An abstract class for surfaces with sampling. More...

#include <sampledSurface.H>

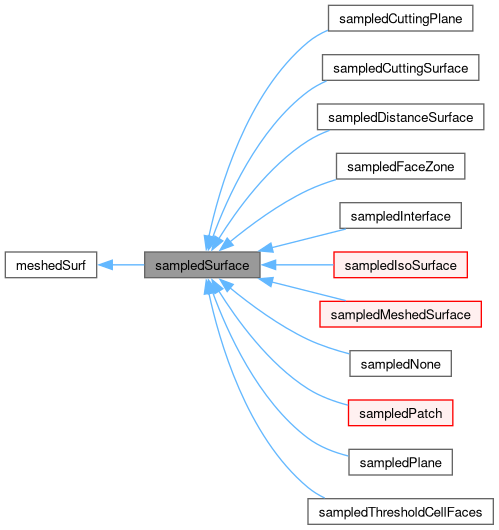

Inheritance diagram for sampledSurface:

[legend]

Collaboration diagram for sampledSurface:

Classes
class	iNew
	PtrList read-construction helper. More...
class	iNewCapture
	PtrList read-construction helper that captures dictionaries used during creation. More...

Public Member Functions
	TypeName ("sampledSurface")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, sampledSurface, word,(const word &name, const polyMesh &mesh, const dictionary &dict),(name, mesh, dict))
	Declare run-time constructor selection table.
	sampledSurface (const word &name, const polyMesh &mesh, const bool interpolateToPoints=false)
	Construct from name, mesh.
	sampledSurface (const word &name, const polyMesh &mesh, const dictionary &dict)
	Construct from dictionary.
autoPtr< sampledSurface >	clone () const
	Clone.
virtual	~sampledSurface ()
	Destructor - calls clearGeom().
const polyMesh &	mesh () const noexcept
	Access to the underlying mesh.
const word &	name () const noexcept
	Name of surface.
bool	enabled () const noexcept
	Surface is enabled.
bool	invariant () const noexcept
	Surface is invariant with geometry change (caution).
bool	isPointData () const noexcept
	Using interpolation to surface points.
virtual bool	isPointData (const bool on)
	Change point/cell representation, may trigger an expire().
virtual bool	needsUpdate () const =0
	Does the surface need an update?
virtual bool	expire ()=0
	Mark the surface as needing an update.
virtual bool	update ()=0
	Update the surface as required.
virtual const pointField &	points () const =0
	Points of surface.
virtual const faceList &	faces () const =0
	Faces of surface.
virtual const vectorField &	Sf () const =0
	Face area vectors.
virtual const scalarField &	magSf () const =0
	Face area magnitudes.
virtual const vectorField &	Cf () const =0
	Face centres.
scalar	area () const
	The total surface area.
virtual bool	hasFaceIds () const
	If element ids/order of the original surface are available.
polySurface *	getRegistrySurface (const objectRegistry &obr, word lookupName="") const
	Get surface from registry if available.

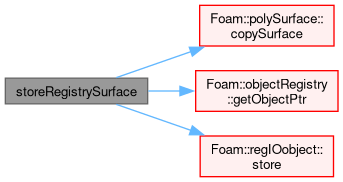

polySurface *	storeRegistrySurface (objectRegistry &obr, word lookupName="") const
	Copy surface into registry.
bool	removeRegistrySurface (objectRegistry &obr, word lookupName="") const
	Remove surface from registry.
template<class Type, class GeoMeshType>
bool	storeRegistryField (const objectRegistry &obr, const word &fieldName, const dimensionSet &dims, const Field< Type > &values, word lookupName="") const
	Copy/store sampled field onto registered surface (if it exists).
template<class Type, class GeoMeshType>
bool	storeRegistryField (const objectRegistry &obr, const word &fieldName, const dimensionSet &dims, Field< Type > &&values, word lookupName="") const
	Move/store sampled field onto registered surface (if it exists).
virtual tmp< scalarField >	sample (const interpolation< scalar > &sampler) const =0
	Sample volume field onto surface faces.
virtual tmp< vectorField >	sample (const interpolation< vector > &sampler) const =0
	Sample volume field onto surface faces.
virtual tmp< sphericalTensorField >	sample (const interpolation< sphericalTensor > &sampler) const =0
	Sample volume field onto surface faces.
virtual tmp< symmTensorField >	sample (const interpolation< symmTensor > &sampler) const =0
	Sample volume field onto surface faces.
virtual tmp< tensorField >	sample (const interpolation< tensor > &sampler) const =0
	Sample volume field onto surface faces.
virtual bool	withSurfaceFields () const
	Can it sample surface-fields?
virtual tmp< scalarField >	sample (const surfaceScalarField &sField) const
	Sample surface field onto surface.
virtual tmp< vectorField >	sample (const surfaceVectorField &sField) const
	Sample surface field onto surface.
virtual tmp< sphericalTensorField >	sample (const surfaceSphericalTensorField &sField) const
	Sample surface field onto surface.
virtual tmp< symmTensorField >	sample (const surfaceSymmTensorField &sField) const
	Sample surface field onto surface.
virtual tmp< tensorField >	sample (const surfaceTensorField &sField) const
	Sample surface field onto surface.
virtual tmp< scalarField >	interpolate (const interpolation< scalar > &interpolator) const =0
	Interpolate volume field onto surface points.
virtual tmp< vectorField >	interpolate (const interpolation< vector > &interpolator) const =0
	Interpolate volume field onto surface points.
virtual tmp< sphericalTensorField >	interpolate (const interpolation< sphericalTensor > &interpolator) const =0
	Interpolate volume field onto surface points.
virtual tmp< symmTensorField >	interpolate (const interpolation< symmTensor > &interpolator) const =0
	Interpolate volume field onto surface points.
virtual tmp< tensorField >	interpolate (const interpolation< tensor > &interpolator) const =0
	Interpolate volume field onto surface points.
virtual void	rename (const word &newName)
	Rename.
virtual void	print (Ostream &os, int level=0) const
	Print information.
bool	interpolate () const noexcept
	Same as isPointData().
template<class Type>
Foam::tmp< Foam::Field< Type > >	sampleOnFaces (const interpolation< Type > &sampler, const labelUList &elements, const faceList &fcs, const pointField &pts, const Type &defaultValue)
template<class Type>
Foam::tmp< Foam::Field< Type > >	sampleOnPoints (const interpolation< Type > &interpolator, const labelUList &elements, const faceList &fcs, const pointField &pts)
template<class Type>
Foam::tmp< Foam::VolumeField< Type > >	pointAverage (const PointField< Type > &pfld)
Public Member Functions inherited from meshedSurf
constexpr	meshedSurf () noexcept=default
	Default construct.
virtual	~meshedSurf ()=default
	Destructor.
virtual const labelList &	zoneIds () const
	Per-face zone/region information.
virtual const labelList &	faceIds () const
	Per-face identifier (eg, element Id).

Static Public Member Functions
static autoPtr< sampledSurface >	New (const word &name, const polyMesh &mesh, const dictionary &dict)
	Return a reference to the selected surface.

Protected Member Functions
virtual void	clearGeom () const
	Additional cleanup when clearing the geometry.
	sampledSurface (const word &name, std::nullptr_t)
	Construct null.

Static Protected Member Functions
template<class Type>
static tmp< Field< Type > >	sampleOnFaces (const interpolation< Type > &sampler, const labelUList &elements, const faceList &fcs, const pointField &pts, const Type &defaultValue=Type(Zero))
	Loop for sampling volume elements to faces.
template<class Type>
static tmp< Field< Type > >	sampleOnPoints (const interpolation< Type > &interpolator, const labelUList &elements, const faceList &fcs, const pointField &pts)
	Loop for interpolating volume elements to face points.
template<class Type>
static tmp< VolumeField< Type > >	pointAverage (const PointField< Type > &pfld)
	Create cell values by averaging the point values.

Detailed Description

An abstract class for surfaces with sampling.

The constructors for the derived classes should generally start in a 'expired' condition (ie, needsUpdate() == true) and rely on a subsequent call to the update() method to complete the initialization. Delaying the final construction as late as possible allows the construction of surfaces that may depend on intermediate calculation results (eg, iso-surfaces) and also avoids the unnecessary reconstruction of surfaces between sampling intervals.

It is the responsibility of the caller to ensure that the surface update() is called before the surface is used. The update() method implementation should do nothing when the surface is already up-to-date.

Any sampler is assumed to work for the standard volume field types. Some may also support surface fields.

Dictionary entries:

Property	Description	Required	Default
`name`	Alternative name	no
`enabled`	Enable/disable the surface?	no	yes
`interpolate`	Interpolate to nodes instead of faces	no	false
`invariant`	Invariant with geometry change (use with caution!)	no	false

Note: The invariant switch is an advanced feature to declare that the surface is unaffected by changes in the general mesh geometry. For example, if sampling on a static patch while some other motion occurs elsewhere. If used improperly, there is a significant possibility for problems (caveat emptor).

Source files

Definition at line 116 of file sampledSurface.H.

Constructor & Destructor Documentation

◆ sampledSurface() [1/3]

sampledSurface	(	const word &	name,
		std::nullptr_t	)

explicitprotected

Construct null.

Definition at line 75 of file sampledSurface.C.

References name(), and Foam::NullObjectRef().

Referenced by declareRunTimeSelectionTable(), sampledCuttingPlane::sampledCuttingPlane(), sampledCuttingSurface::sampledCuttingSurface(), sampledCuttingSurface::sampledCuttingSurface(), sampledDistanceSurface::sampledDistanceSurface(), sampledDistanceSurface::sampledDistanceSurface(), sampledFaceZone::sampledFaceZone(), sampledFaceZone::sampledFaceZone(), sampledInterface::sampledInterface(), sampledIsoSurface::sampledIsoSurface(), sampledMeshedSurface::sampledMeshedSurface(), sampledMeshedSurface::sampledMeshedSurface(), sampledNone::sampledNone(), sampledNone::sampledNone(), sampledNone::sampledNone(), sampledPatch::sampledPatch(), sampledPatch::sampledPatch(), sampledPlane::sampledPlane(), sampledPlane::sampledPlane(), and sampledThresholdCellFaces::sampledThresholdCellFaces().

Here is the call graph for this function:

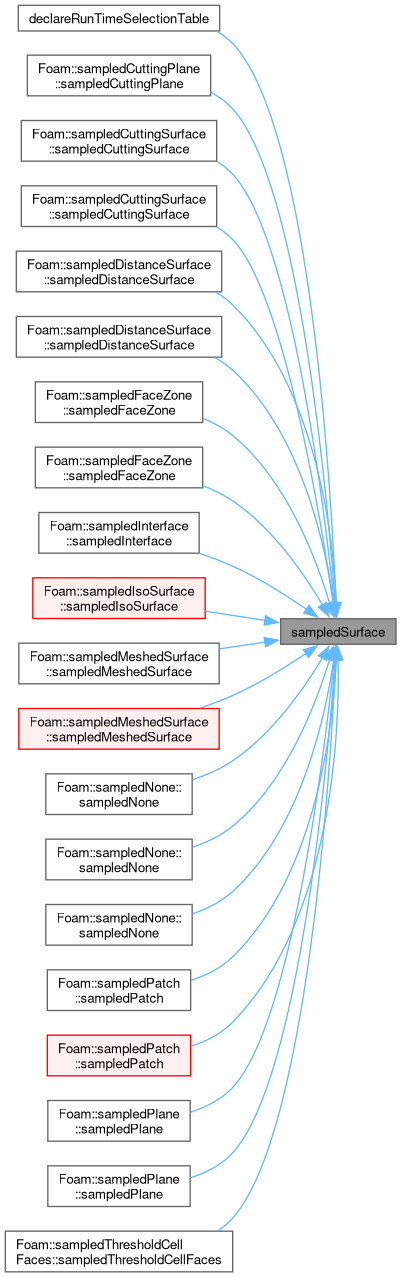

Here is the caller graph for this function:

◆ sampledSurface() [2/3]

sampledSurface	(	const word &	name,
		const polyMesh &	mesh,
		const bool	interpolateToPoints = false )

Construct from name, mesh.

Definition at line 86 of file sampledSurface.C.

References mesh(), and name().

Here is the call graph for this function:

◆ sampledSurface() [3/3]

sampledSurface	(	const word &	name,
		const polyMesh &	mesh,
		const dictionary &	dict )

Construct from dictionary.

Definition at line 102 of file sampledSurface.C.

References dict, mesh(), and name().

Here is the call graph for this function:

◆ ~sampledSurface()

~sampledSurface ( )

virtual

Destructor - calls clearGeom().

Definition at line 120 of file sampledSurface.C.

References clearGeom().

Here is the call graph for this function:

Member Function Documentation

◆ sampleOnFaces() [1/2]

template<class Type>

tmp< Field< Type > > sampleOnFaces	(	const interpolation< Type > &	sampler,
		const labelUList &	elements,
		const faceList &	fcs,
		const pointField &	pts,
		const Type &	defaultValue = Type(Zero) )

staticprotected

Loop for sampling volume elements to faces.

The defaultValue is used for invalid (negative) elements

References pts, and Foam::Zero.

Referenced by sampledCuttingPlane::sampleOnFaces(), sampledCuttingSurface::sampleOnFaces(), sampledDistanceSurface::sampleOnFaces(), sampledInterface::sampleOnFaces(), sampledIsoSurface::sampleOnFaces(), sampledMeshedSurface::sampleOnFaces(), sampledPlane::sampleOnFaces(), and sampledThresholdCellFaces::sampleOnFaces().

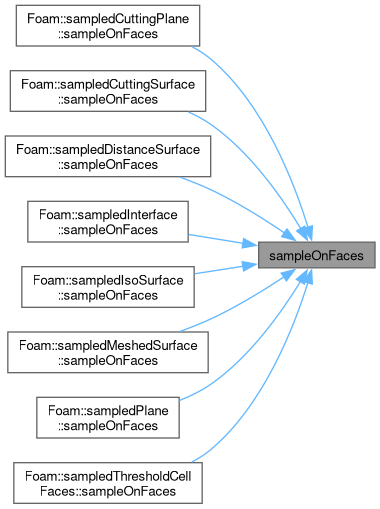

Here is the caller graph for this function:

◆ sampleOnPoints() [1/2]

template<class Type>

tmp< Field< Type > > sampleOnPoints	(	const interpolation< Type > &	interpolator,
		const labelUList &	elements,
		const faceList &	fcs,
		const pointField &	pts )

staticprotected

Loop for interpolating volume elements to face points.

References pts.

Referenced by sampledCuttingPlane::sampleOnPoints(), sampledCuttingSurface::sampleOnPoints(), sampledDistanceSurface::sampleOnPoints(), sampledIsoSurface::sampleOnPoints(), sampledPlane::sampleOnPoints(), and sampledThresholdCellFaces::sampleOnPoints().

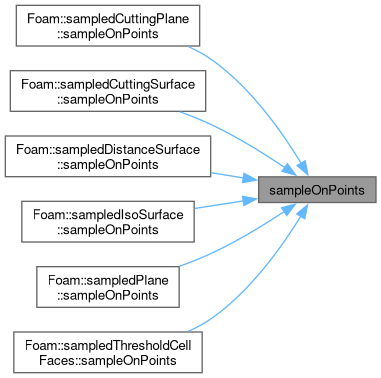

Here is the caller graph for this function:

◆ pointAverage() [1/2]

template<class Type>

tmp< VolumeField< Type > > pointAverage ( const PointField< Type > & pfld )

staticprotected

Create cell values by averaging the point values.

References name().

Referenced by sampledCuttingPlane::sampleOnIsoSurfacePoints(), sampledDistanceSurface::sampleOnIsoSurfacePoints(), and sampledIsoSurface::sampleOnIsoSurfacePoints().

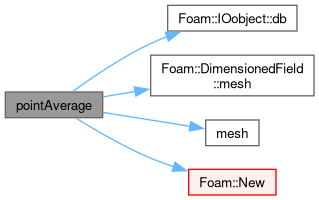

Here is the call graph for this function:

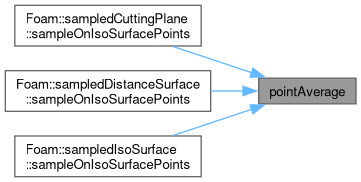

Here is the caller graph for this function:

◆ clearGeom()

void clearGeom ( ) const

protectedvirtual

Additional cleanup when clearing the geometry.

Definition at line 36 of file sampledSurface.C.

Referenced by sampledCuttingPlane::expire(), sampledCuttingSurface::expire(), sampledDistanceSurface::expire(), sampledFaceZone::expire(), sampledInterface::expire(), sampledIsoSurface::expire(), sampledMeshedSurface::expire(), sampledPatch::expire(), sampledPlane::expire(), sampledCuttingSurface::update(), sampledPlane::update(), and ~sampledSurface().

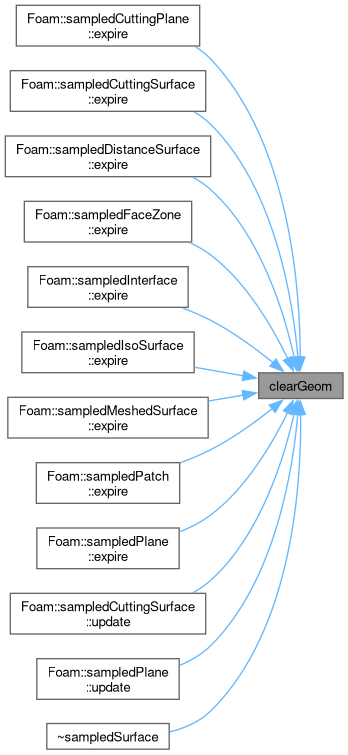

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "sampledSurface" )

Runtime type information.

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		sampledSurface	,
		word	,
		(const word &name, const polyMesh &mesh, const dictionary &dict)	,
		(name, mesh, dict)	)

Declare run-time constructor selection table.

References dict, mesh(), name(), and sampledSurface().

Here is the call graph for this function:

◆ clone()

autoPtr< sampledSurface > clone ( ) const

inline

Clone.

Definition at line 317 of file sampledSurface.H.

References NotImplemented.

◆ New()

Foam::autoPtr< Foam::sampledSurface > New	(	const word &	name,
		const polyMesh &	mesh,
		const dictionary &	dict )

static

Return a reference to the selected surface.

Definition at line 44 of file sampledSurface.C.

References DebugInfo, dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, mesh(), and name().

Referenced by sampledSurface::iNew::operator()(), sampledSurface::iNewCapture::operator()(), sampledSurfaces::read(), sampledFaceZone::sampleOnFaces(), sampledMeshedSurface::sampleOnFaces(), sampledPatch::sampleOnFaces(), and sampleOnFaces().

Here is the call graph for this function:

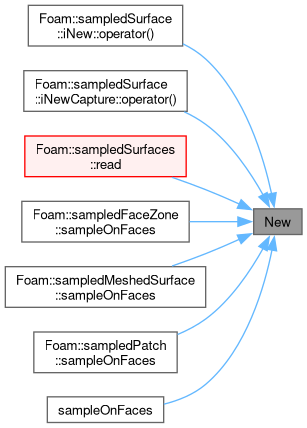

Here is the caller graph for this function:

◆ mesh()

const polyMesh & mesh ( ) const

inlinenoexcept

Access to the underlying mesh.

Definition at line 350 of file sampledSurface.H.

References Foam::noexcept.

Here is the caller graph for this function:

◆ name()

const word & name ( ) const

inlinenoexcept

Name of surface.

Definition at line 358 of file sampledSurface.H.

References Foam::noexcept.

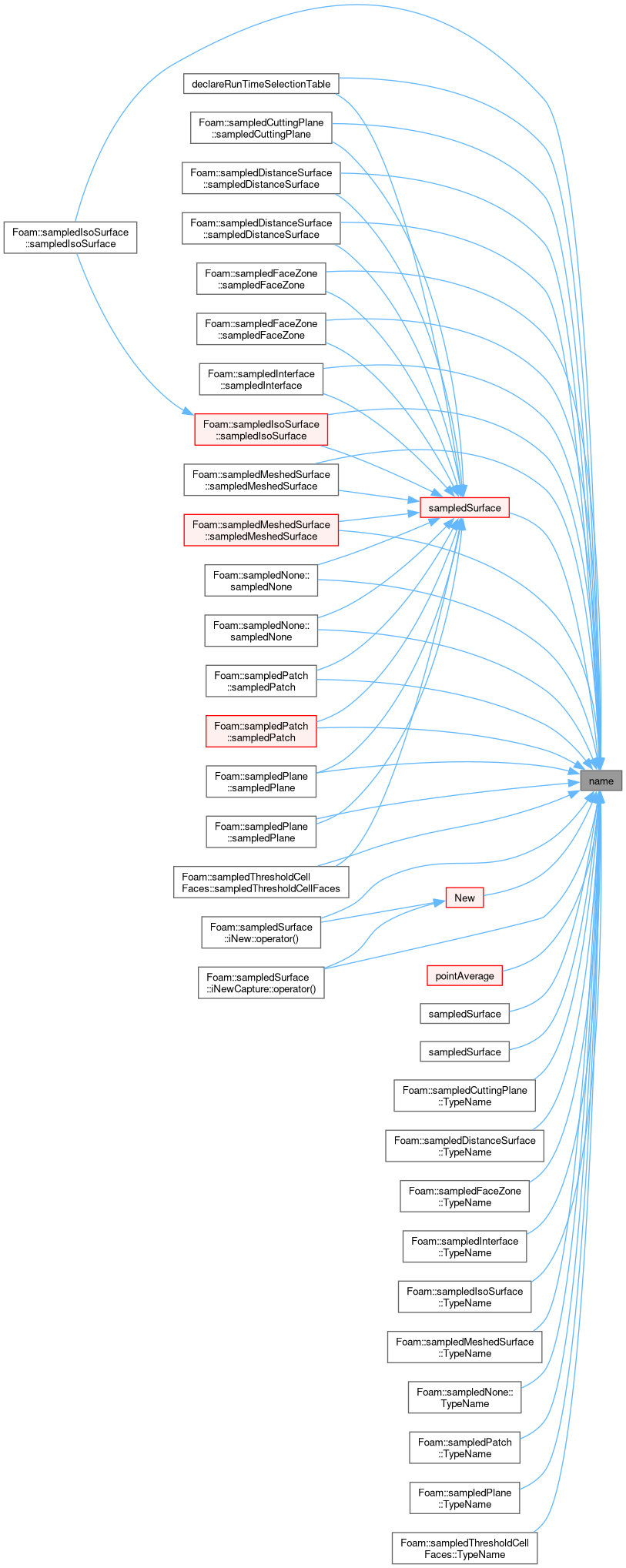

Here is the caller graph for this function:

◆ enabled()

bool enabled ( ) const

inlinenoexcept

Surface is enabled.

Definition at line 366 of file sampledSurface.H.

References Foam::noexcept.

◆ invariant()

bool invariant ( ) const

inlinenoexcept

Surface is invariant with geometry change (caution).

Definition at line 374 of file sampledSurface.H.

References Foam::noexcept.

◆ isPointData() [1/2]

bool isPointData ( ) const

inlinenoexcept

Using interpolation to surface points.

Definition at line 382 of file sampledSurface.H.

References Foam::noexcept.

◆ isPointData() [2/2]

bool isPointData ( const bool on )

virtual

Change point/cell representation, may trigger an expire().

Returns: old value

Definition at line 139 of file sampledSurface.C.

◆ needsUpdate()

virtual bool needsUpdate ( ) const

pure virtual

Does the surface need an update?

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledNone, sampledPatch, sampledPlane, and sampledThresholdCellFaces.

◆ expire()

virtual bool expire ( )

pure virtual

Mark the surface as needing an update.

May also free up unneeded data. Return false if surface was already marked as expired.

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledNone, sampledPatch, sampledPlane, and sampledThresholdCellFaces.

◆ update()

virtual bool update ( )

pure virtual

Update the surface as required.

Do nothing (and return false) if no update was required

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledNone, sampledPatch, sampledPlane, and sampledThresholdCellFaces.

◆ points()

virtual const pointField & points ( ) const

pure virtual

Points of surface.

Implements meshedSurf.

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledNone, sampledPatch, sampledPlane, and sampledThresholdCellFaces.

◆ faces()

virtual const faceList & faces ( ) const

pure virtual

Faces of surface.

Implements meshedSurf.

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledNone, sampledPatch, sampledPlane, and sampledThresholdCellFaces.

◆ Sf()

virtual const vectorField & Sf ( ) const

pure virtual

Face area vectors.

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledNone, sampledPatch, sampledPlane, and sampledThresholdCellFaces.

◆ magSf()

virtual const scalarField & magSf ( ) const

pure virtual

Face area magnitudes.

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledNone, sampledPatch, sampledPlane, and sampledThresholdCellFaces.

Referenced by area().

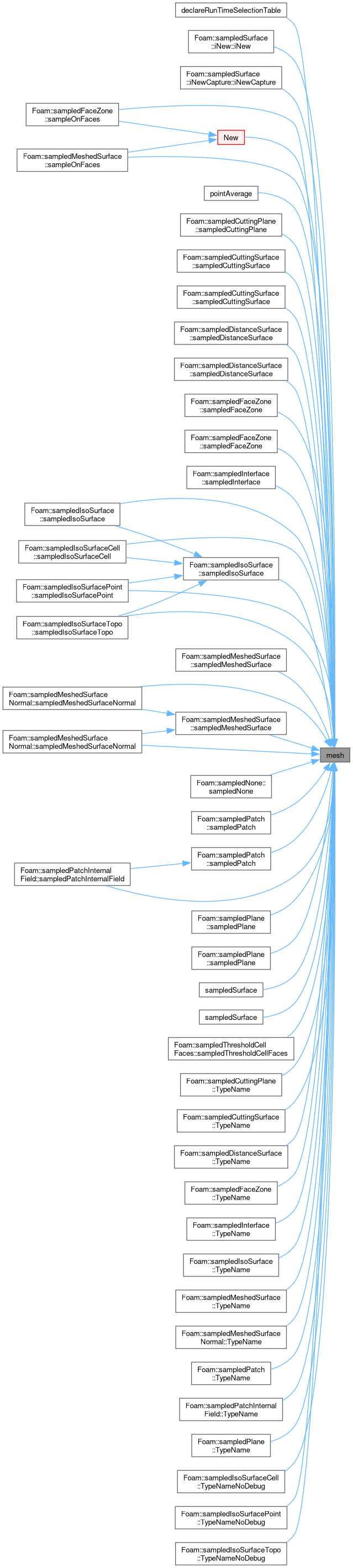

Here is the caller graph for this function:

◆ Cf()

virtual const vectorField & Cf ( ) const

pure virtual

Face centres.

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledNone, sampledPatch, sampledPlane, and sampledThresholdCellFaces.

◆ area()

Foam::scalar area ( ) const

The total surface area.

Definition at line 128 of file sampledSurface.C.

References Foam::gSum(), and magSf().

Here is the call graph for this function:

◆ hasFaceIds()

virtual bool hasFaceIds ( ) const

inlinevirtual

If element ids/order of the original surface are available.

Reimplemented in sampledMeshedSurface.

Definition at line 447 of file sampledSurface.H.

◆ getRegistrySurface()

Foam::polySurface * getRegistrySurface	(	const objectRegistry &	obr,
		word	lookupName = "" ) const

Get surface from registry if available.

Parameters

obr	The objectRegistry to use
lookupName	Optional lookup name, use surface name if empty

Returns: surface or nullptr

Definition at line 26 of file sampledSurfaceRegister.C.

References objectRegistry::getObjectPtr().

Referenced by storeRegistryField(), and storeRegistryField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ storeRegistrySurface()

Foam::polySurface * storeRegistrySurface	(	objectRegistry &	obr,
		word	lookupName = "" ) const

Copy surface into registry.

Parameters

obr	The objectRegistry to use
lookupName	Optional lookup name, use surface name if empty

Returns: surface or nullptr it surface should not be stored

Definition at line 41 of file sampledSurfaceRegister.C.

References polySurface::copySurface(), objectRegistry::getObjectPtr(), name, and regIOobject::store().

Here is the call graph for this function:

◆ removeRegistrySurface()

bool removeRegistrySurface	(	objectRegistry &	obr,
		word	lookupName = "" ) const

Remove surface from registry.

Parameters

obr	The objectRegistry to use
lookupName	Optional lookup name, use surface name if empty

Returns: True if surface existed and was removed

Definition at line 67 of file sampledSurfaceRegister.C.

References polySurface::Delete().

Here is the call graph for this function:

◆ storeRegistryField() [1/2]

template<class Type, class GeoMeshType>

bool storeRegistryField	(	const objectRegistry &	obr,
		const word &	fieldName,
		const dimensionSet &	dims,
		const Field< Type > &	values,
		word	lookupName = "" ) const

Copy/store sampled field onto registered surface (if it exists).

Definition at line 174 of file sampledSurfaceTemplates.C.

References getRegistrySurface(), and polySurface::storeField().

Here is the call graph for this function:

◆ storeRegistryField() [2/2]

template<class Type, class GeoMeshType>

bool storeRegistryField	(	const objectRegistry &	obr,
		const word &	fieldName,
		const dimensionSet &	dims,
		Field< Type > &&	values,
		word	lookupName = "" ) const

Move/store sampled field onto registered surface (if it exists).

Definition at line 198 of file sampledSurfaceTemplates.C.

References getRegistrySurface(), and polySurface::storeField().

Here is the call graph for this function:

◆ sample() [1/10]

virtual tmp< scalarField > sample ( const interpolation< scalar > & sampler ) const

pure virtual

Sample volume field onto surface faces.

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledMeshedSurfaceNormal, sampledNone, sampledPatch, sampledPatchInternalField, sampledPlane, and sampledThresholdCellFaces.

◆ sample() [2/10]

virtual tmp< vectorField > sample ( const interpolation< vector > & sampler ) const

pure virtual

Sample volume field onto surface faces.

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledMeshedSurfaceNormal, sampledNone, sampledPatch, sampledPatchInternalField, sampledPlane, and sampledThresholdCellFaces.

◆ sample() [3/10]

virtual tmp< sphericalTensorField > sample ( const interpolation< sphericalTensor > & sampler ) const

pure virtual

Sample volume field onto surface faces.

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledMeshedSurfaceNormal, sampledNone, sampledPatch, sampledPatchInternalField, sampledPlane, and sampledThresholdCellFaces.

◆ sample() [4/10]

virtual tmp< symmTensorField > sample ( const interpolation< symmTensor > & sampler ) const

pure virtual

Sample volume field onto surface faces.

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledMeshedSurfaceNormal, sampledNone, sampledPatch, sampledPatchInternalField, sampledPlane, and sampledThresholdCellFaces.

◆ sample() [5/10]

virtual tmp< tensorField > sample ( const interpolation< tensor > & sampler ) const

pure virtual

Sample volume field onto surface faces.

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledMeshedSurfaceNormal, sampledNone, sampledPatch, sampledPatchInternalField, sampledPlane, and sampledThresholdCellFaces.

◆ withSurfaceFields()

bool withSurfaceFields ( ) const

virtual

Can it sample surface-fields?

Reimplemented in sampledFaceZone, and sampledPatch.

Definition at line 147 of file sampledSurface.C.

◆ sample() [6/10]

Foam::tmp< Foam::scalarField > sample ( const surfaceScalarField & sField ) const

virtual

Sample surface field onto surface.

Reimplemented in sampledFaceZone, and sampledPatch.

Definition at line 153 of file sampledSurface.C.

References NotImplemented.

◆ sample() [7/10]

Foam::tmp< Foam::vectorField > sample ( const surfaceVectorField & sField ) const

virtual

Sample surface field onto surface.

Reimplemented in sampledFaceZone, and sampledPatch.

Definition at line 163 of file sampledSurface.C.

References NotImplemented.

◆ sample() [8/10]

Foam::tmp< Foam::tensorField > sample ( const surfaceSphericalTensorField & sField ) const

virtual

Sample surface field onto surface.

Reimplemented in sampledFaceZone, sampledFaceZone, sampledFaceZone, sampledPatch, sampledPatch, and sampledPatch.

Definition at line 173 of file sampledSurface.C.

References NotImplemented.

◆ sample() [9/10]

virtual tmp< symmTensorField > sample ( const surfaceSymmTensorField & sField ) const

virtual

Sample surface field onto surface.

Reimplemented in sampledFaceZone, sampledFaceZone, sampledFaceZone, sampledPatch, sampledPatch, and sampledPatch.

◆ sample() [10/10]

virtual tmp< tensorField > sample ( const surfaceTensorField & sField ) const

virtual

Sample surface field onto surface.

Reimplemented in sampledFaceZone, sampledFaceZone, sampledFaceZone, sampledPatch, sampledPatch, and sampledPatch.

◆ interpolate() [1/6]

virtual tmp< scalarField > interpolate ( const interpolation< scalar > & interpolator ) const

pure virtual

Interpolate volume field onto surface points.

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledMeshedSurfaceNormal, sampledNone, sampledPatch, sampledPatchInternalField, sampledPlane, and sampledThresholdCellFaces.

◆ interpolate() [2/6]

virtual tmp< vectorField > interpolate ( const interpolation< vector > & interpolator ) const

pure virtual

Interpolate volume field onto surface points.

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledMeshedSurfaceNormal, sampledNone, sampledPatch, sampledPatchInternalField, sampledPlane, and sampledThresholdCellFaces.

◆ interpolate() [3/6]

virtual tmp< sphericalTensorField > interpolate ( const interpolation< sphericalTensor > & interpolator ) const

pure virtual

Interpolate volume field onto surface points.

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledMeshedSurfaceNormal, sampledNone, sampledPatch, sampledPatchInternalField, sampledPlane, and sampledThresholdCellFaces.

◆ interpolate() [4/6]

virtual tmp< symmTensorField > interpolate ( const interpolation< symmTensor > & interpolator ) const

pure virtual

Interpolate volume field onto surface points.

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledMeshedSurfaceNormal, sampledNone, sampledPatch, sampledPatchInternalField, sampledPlane, and sampledThresholdCellFaces.

◆ interpolate() [5/6]

virtual tmp< tensorField > interpolate ( const interpolation< tensor > & interpolator ) const

pure virtual

Interpolate volume field onto surface points.

Implemented in sampledCuttingPlane, sampledCuttingSurface, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledMeshedSurfaceNormal, sampledNone, sampledPatch, sampledPatchInternalField, sampledPlane, and sampledThresholdCellFaces.

◆ rename()

virtual void rename ( const word & newName )

inlinevirtual

Rename.

Definition at line 659 of file sampledSurface.H.

◆ print()

void print	(	Ostream &	os,
		int	level = 0 ) const

virtual

Print information.

Reimplemented in sampledCuttingPlane, sampledDistanceSurface, sampledFaceZone, sampledInterface, sampledIsoSurface, sampledMeshedSurface, sampledPatch, sampledPatchInternalField, sampledPlane, and sampledThresholdCellFaces.

Definition at line 203 of file sampledSurface.C.

References os(), and Foam::type().

Here is the call graph for this function:

◆ interpolate() [6/6]

bool interpolate ( ) const

inlinenoexcept

Same as isPointData().

Definition at line 678 of file sampledSurface.H.

References Foam::noexcept.

◆ sampleOnFaces() [2/2]

template<class Type>

Foam::tmp< Foam::Field< Type > > sampleOnFaces	(	const interpolation< Type > &	sampler,
		const labelUList &	elements,
		const faceList &	fcs,
		const pointField &	pts,
		const Type &	defaultValue )

Definition at line 28 of file sampledSurfaceTemplates.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, interpolation< Type >::interpolate(), New(), pts, and UList< T >::size().

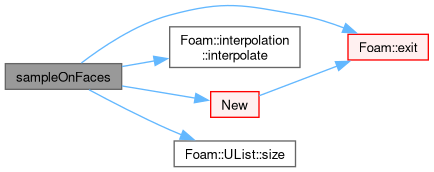

Here is the call graph for this function:

◆ sampleOnPoints() [2/2]

template<class Type>

Foam::tmp< Foam::Field< Type > > sampleOnPoints	(	const interpolation< Type > &	interpolator,
		const labelUList &	elements,
		const faceList &	fcs,
		const pointField &	pts )

Definition at line 72 of file sampledSurfaceTemplates.C.

References Foam::exit(), f(), Foam::FatalError, FatalErrorInFunction, forAll, interpolation< Type >::interpolate(), Foam::New(), pts, bitSet::set(), UList< T >::size(), and Foam::Zero.

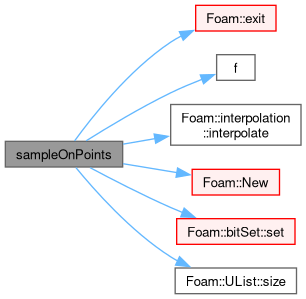

Here is the call graph for this function:

◆ pointAverage() [2/2]

template<class Type>

Foam::tmp< Foam::VolumeField< Type > > pointAverage ( const PointField< Type > & pfld )

Definition at line 122 of file sampledSurfaceTemplates.C.

References IOobject::db(), Foam::dimless, forAll, DimensionedField< Type, GeoMesh >::mesh(), mesh(), Foam::New(), IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, and Foam::Zero.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/sampling/sampledSurface/sampledSurface/sampledSurface.H
src/sampling/sampledSurface/sampledSurface/sampledSurface.C
src/sampling/sampledSurface/sampledSurface/sampledSurfaceRegister.C
src/sampling/sampledSurface/sampledSurface/sampledSurfaceTemplates.C

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ sampledSurface() [1/3]

◆ sampledSurface() [2/3]

◆ sampledSurface() [3/3]

◆ ~sampledSurface()

Member Function Documentation

◆ sampleOnFaces() [1/2]

◆ sampleOnPoints() [1/2]

◆ pointAverage() [1/2]

◆ clearGeom()

◆ TypeName()

◆ declareRunTimeSelectionTable()

◆ clone()

◆ New()

◆ mesh()

◆ name()

◆ enabled()

◆ invariant()

◆ isPointData() [1/2]

◆ isPointData() [2/2]

◆ needsUpdate()

◆ expire()

◆ update()

◆ points()

◆ faces()

◆ Sf()

◆ magSf()

◆ Cf()

◆ area()

◆ hasFaceIds()

◆ getRegistrySurface()

◆ storeRegistrySurface()

◆ removeRegistrySurface()

◆ storeRegistryField() [1/2]

◆ storeRegistryField() [2/2]

◆ sample() [1/10]

◆ sample() [2/10]

◆ sample() [3/10]

◆ sample() [4/10]

◆ sample() [5/10]

◆ withSurfaceFields()

◆ sample() [6/10]

◆ sample() [7/10]

◆ sample() [8/10]

◆ sample() [9/10]

◆ sample() [10/10]

◆ interpolate() [1/6]

◆ interpolate() [2/6]

◆ interpolate() [3/6]

◆ interpolate() [4/6]

◆ interpolate() [5/6]

◆ rename()

◆ print()

◆ interpolate() [6/6]

◆ sampleOnFaces() [2/2]

◆ sampleOnPoints() [2/2]

◆ pointAverage() [2/2]
