#include <sensitivityTopO.H>

Inheritance diagram for sensitivityTopO:

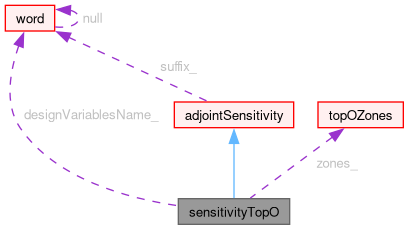

Collaboration diagram for sensitivityTopO:

[legend]

Public Member Functions
	TypeName ("topO")
	Runtime type information.
	sensitivityTopO (const fvMesh &mesh, const dictionary &dict, adjointSolver &adjointSolver)
	Construct from components.
virtual	~sensitivityTopO ()=default
	Destructor.
virtual bool	readDict (const dictionary &dict)
	Read dictionary if changed.
virtual void	accumulateIntegrand (const scalar dt)
	Accumulate sensitivity integrands.
virtual void	assembleSensitivities (autoPtr< designVariables > &designVars)
	Assemble sensitivities.
void	postProcessSens (scalarField &sens, scalarField &auxSens, const word &fieldName)
	Add part of the sensitivities coming from fvOptions.
Public Member Functions inherited from adjointSensitivity
	TypeName ("adjointSensitivity")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, adjointSensitivity, dictionary,(const fvMesh &mesh, const dictionary &dict, adjointSolver &adjointSolver),(mesh, dict, adjointSolver))
	adjointSensitivity (const fvMesh &mesh, const dictionary &dict, adjointSolver &adjointSolver)
	Construct from components.
virtual	~adjointSensitivity ()=default
	Destructor.
const adjointSolver &	getAdjointSolver () const
	Const access to adjoint solver.
adjointSolver &	getAdjointSolver ()
	Non-const access to adjoint solver.
bool	includeDistance () const
	Should the adjoint eikonal PDE should be solved.
autoPtr< adjointEikonalSolver > &	getAdjointEikonalSolver ()
	Return the adjoint eikonal solver.
autoPtr< adjointMeshMovementSolver > &	getAdjointMeshMovementSolver ()
	Return the adjoint eikonal solver.
void	setSuffix (const word &suffix)
	Set suffix.
const word &	getSuffix () const
	Get suffix.
virtual bool	computeDxDbInternalField () const
	Should the parameterization compute the internalField of dxdb.
virtual const scalarField &	calculateSensitivities (autoPtr< designVariables > &designVars)
	Calculates and returns sensitivity fields.
const scalarField &	getSensitivities () const
	Returns the sensitivity fields.
virtual void	clearSensitivities ()
	Zero sensitivity fields and their constituents.
virtual void	write (const word &baseName=word::null)
	Write sensitivity fields.
const autoPtr< volTensorField > &	gradDxDbMult () const
autoPtr< volTensorField > &	gradDxDbMult ()
const autoPtr< scalarField > &	divDxDbMult () const
const autoPtr< boundaryVectorField > &	dxdbMult () const
const autoPtr< boundaryVectorField > &	dSfdbMult () const
const autoPtr< boundaryVectorField > &	dnfdbMult () const
const autoPtr< boundaryVectorField > &	dxdbDirectMult () const
const autoPtr< pointBoundaryVectorField > &	pointDxDbDirectMult () const
const autoPtr< boundaryVectorField > &	bcDxDbMult () const
const autoPtr< vectorField > &	optionsDxDbMult () const
Public Member Functions inherited from sensitivity
	TypeName ("sensitivity")
	Runtime type information.
	sensitivity (const fvMesh &mesh, const dictionary &dict)
	Construct from components.
virtual	~sensitivity ()=default
	Destructor.
const fvMesh &	mesh () const
	Return reference to mesh.
const dictionary &	dict () const
	Return the construction dictionary.
const autoPtr< volScalarField > &	fieldSensPtr () const
	Get the fieldSensPtr.

Static Public Member Functions
static void	postProcessSens (scalarField &sens, scalarField &auxSens, fv::options &fvOptions, const word &fieldName, const word &designVariablesName)
	Add part of the sensitivities coming from fvOptions.
template<class Type, template< class > class PatchField, class GeoMesh>
static void	postProcessAuxSens (const GeometricField< Type, PatchField, GeoMesh > &primal, const GeometricField< Type, PatchField, GeoMesh > &adjoint, fv::options &fvOptions, const word &fieldName, scalarField &auxSens)
	Potentially manipulate auxSens within the fvOption before adding the part related to the design variables.
Static Public Member Functions inherited from adjointSensitivity
static autoPtr< adjointSensitivity >	New (const fvMesh &mesh, const dictionary &dict, adjointSolver &adjointSolver)
	Return a reference to the selected turbulence model.

Protected Member Functions
void	zeroSensInFixedPorousZones (scalarField &sens)
	Zero sensitivities in fixed porous zones.

Protected Attributes
topOZones	zones_
	Zones related to topology optimisation.
word	designVariablesName_
	Name used as the argument for the post-processing of the sensitivities through fvOptions.
Protected Attributes inherited from adjointSensitivity
adjointSolver &	adjointSolver_
	Reference to the underlaying adjoint solver.
scalarField	derivatives_
	The sensitivity derivative values.
word	suffix_
	Append this word to files related to the sensitivities.
bool	includeDistance_
	Include distance variation in sensitivity computations.
autoPtr< adjointEikonalSolver >	eikonalSolver_
	Adjoint eikonal equation solver.
autoPtr< adjointMeshMovementSolver >	adjointMeshMovementSolver_
	Adjoint grid displacement solver.
autoPtr< volTensorField >	gradDxDbMult_
	Multiplier of grad(dx/b).
autoPtr< scalarField >	divDxDbMult_
	Multiplier of div(dx/db).
autoPtr< boundaryVectorField >	dxdbMult_
	Multiplier of face dx/db.
autoPtr< boundaryVectorField >	dSfdbMult_
	Multiplier of dSf/db.
autoPtr< boundaryVectorField >	dnfdbMult_
	Multiplier of dnf/db.
autoPtr< boundaryVectorField >	dxdbDirectMult_
	Multiplier of dCf/db, found in the objective function.
autoPtr< pointBoundaryVectorField >	pointDxDbDirectMult_
	Multiplier of dx/db computed at points, found in the objective function.
autoPtr< boundaryVectorField >	bcDxDbMult_
	Multiplier of dx/db, coming from boundary conditions that depend on the geometry, like rotatingWallVelocity.
autoPtr< vectorField >	optionsDxDbMult_
	dx/db multiplier coming from fvOptions
Protected Attributes inherited from sensitivity
const fvMesh &	mesh_
dictionary	dict_
bool	writeFieldSens_
autoPtr< volScalarField >	fieldSensPtr_

Detailed Description

Source files

Definition at line 53 of file sensitivityTopO.H.

Constructor & Destructor Documentation

◆ sensitivityTopO()

sensitivityTopO	(	const fvMesh &	mesh,
		const dictionary &	dict,
		adjointSolver &	adjointSolver )

Construct from components.

Definition at line 86 of file sensitivityTopO.C.

References Foam::createZeroFieldPtr(), adjointSensitivity::derivatives_, designVariablesName_, sensitivity::dict(), sensitivity::dict_, Foam::dimLength, Foam::dimTime, adjointSensitivity::eikonalSolver_, sensitivity::fieldSensPtr_, adjointSensitivity::includeDistance_, sensitivity::mesh(), sensitivity::mesh_, Foam::pow5(), solver::solverName(), Foam::sqr(), Foam::Zero, and zones_.

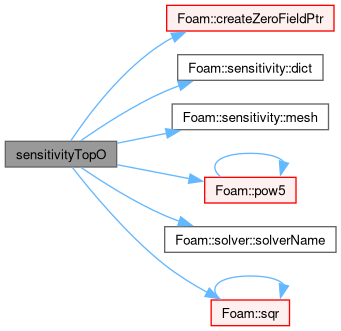

Here is the call graph for this function:

◆ ~sensitivityTopO()

virtual ~sensitivityTopO ( )

virtualdefault

Destructor.

References sensitivity::dict(), and fvOptions.

Here is the call graph for this function:

Member Function Documentation

◆ zeroSensInFixedPorousZones()

void zeroSensInFixedPorousZones ( scalarField & sens )

protected

Zero sensitivities in fixed porous zones.

Definition at line 40 of file sensitivityTopO.C.

References UList< T >::empty(), sensitivity::mesh_, UList< T >::size(), Foam::Zero, and zones_.

Referenced by assembleSensitivities().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "topO" )

Runtime type information.

References sensitivity::dict(), and sensitivity::mesh().

Here is the call graph for this function:

◆ readDict()

bool readDict ( const dictionary & dict )

virtual

Read dictionary if changed.

Reimplemented from adjointSensitivity.

Definition at line 128 of file sensitivityTopO.C.

References adjointSensitivity::adjointSolver_, sensitivity::dict(), sensitivity::dict_, adjointSensitivity::eikonalSolver_, adjointSensitivity::includeDistance_, sensitivity::mesh_, and adjointSensitivity::readDict().

Here is the call graph for this function:

◆ accumulateIntegrand()

void accumulateIntegrand ( const scalar dt )

virtual

Accumulate sensitivity integrands.

Implements adjointSensitivity.

Definition at line 160 of file sensitivityTopO.C.

References adjointSensitivity::adjointSolver_, designVariablesName_, adjointSensitivity::eikonalSolver_, sensitivity::fieldSensPtr_, and primitiveFieldRef().

Here is the call graph for this function:

◆ assembleSensitivities()

void assembleSensitivities ( autoPtr< designVariables > & designVars )

virtual

Assemble sensitivities.

Reimplemented from adjointSensitivity.

Definition at line 173 of file sensitivityTopO.C.

References adjointSensitivity::assembleSensitivities(), designVariablesName_, adjointSensitivity::eikonalSolver_, sensitivity::fieldSensPtr_, and zeroSensInFixedPorousZones().

Here is the call graph for this function:

◆ postProcessSens() [1/2]

void postProcessSens	(	scalarField &	sens,
		scalarField &	auxSens,
		fv::options &	fvOptions,
		const word &	fieldName,
		const word &	designVariablesName )

static

Add part of the sensitivities coming from fvOptions.

Definition at line 190 of file sensitivityTopO.C.

References DebugInfo, Foam::endl(), and fvOptions.

Referenced by postProcessSens(), adjointEikonalSolver::topologySensitivities(), adjointkOmegaSST::topologySensitivities(), adjointSpalartAllmaras::topologySensitivities(), and incompressibleAdjointSolver::topOSensMultiplier().

Here is the call graph for this function:

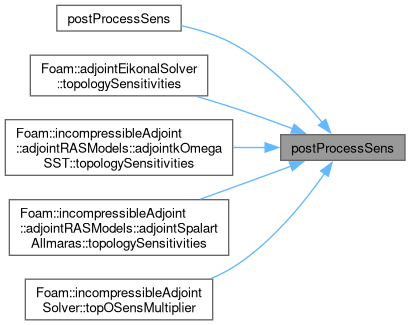

Here is the caller graph for this function:

◆ postProcessSens() [2/2]

void postProcessSens	(	scalarField &	sens,
		scalarField &	auxSens,
		const word &	fieldName )

Add part of the sensitivities coming from fvOptions.

Definition at line 210 of file sensitivityTopO.C.

References designVariablesName_, fvOptions, sensitivity::mesh_, options::New(), and postProcessSens().

Here is the call graph for this function:

◆ postProcessAuxSens()

template<class Type, template< class > class PatchField, class GeoMesh>

void postProcessAuxSens	(	const GeometricField< Type, PatchField, GeoMesh > &	primal,
		const GeometricField< Type, PatchField, GeoMesh > &	adjoint,
		fv::options &	fvOptions,
		const word &	fieldName,
		scalarField &	auxSens )

static

Potentially manipulate auxSens within the fvOption before adding the part related to the design variables.

Definition at line 25 of file sensitivityTopOTemplates.C.

References DebugInfo, Foam::endl(), and fvOptions.

Here is the call graph for this function:

Member Data Documentation

◆ zones_

topOZones zones_

protected

Zones related to topology optimisation.

Definition at line 65 of file sensitivityTopO.H.

Referenced by sensitivityTopO(), and zeroSensInFixedPorousZones().

◆ designVariablesName_

word designVariablesName_

protected

Name used as the argument for the post-processing of the sensitivities through fvOptions.

Definition at line 71 of file sensitivityTopO.H.

Referenced by accumulateIntegrand(), assembleSensitivities(), postProcessSens(), and sensitivityTopO().

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/optimisation/adjointSensitivity/adjointSensitivity/topO/sensitivityTopO.H
src/optimisation/adjointOptimisation/adjoint/optimisation/adjointSensitivity/adjointSensitivity/topO/sensitivityTopO.C
src/optimisation/adjointOptimisation/adjoint/optimisation/adjointSensitivity/adjointSensitivity/topO/sensitivityTopOTemplates.C
