#include <sixDoFSolver.H>

Inheritance diagram for sixDoFSolver:

[legend]

Collaboration diagram for sixDoFSolver:

[legend]

Public Member Functions
	TypeName ("sixDoFSolver")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, sixDoFSolver, dictionary,(const dictionary &dict, sixDoFRigidBodyMotion &body),(dict, body))
	sixDoFSolver (const dictionary &dict, sixDoFRigidBodyMotion &body)
virtual autoPtr< sixDoFSolver >	clone () const =0
	Construct and return a clone.
virtual	~sixDoFSolver ()
	Destructor.
virtual void	solve (bool firstIter, const vector &fGlobal, const vector &tauGlobal, scalar deltaT, scalar deltaT0)=0
	Drag coefficient.
void	write (Ostream &) const
	Write.

Static Public Member Functions
static autoPtr< sixDoFSolver >	New (const dictionary &dict, sixDoFRigidBodyMotion &body)

Protected Member Functions
point &	centreOfRotation ()
	Return the current centre of rotation.
tensor &	Q ()
	Return the orientation.
vector &	v ()
	Return non-const access to vector.
vector &	a ()
	Return non-const access to acceleration.
vector &	pi ()
	Return non-const access to angular momentum.
vector &	tau ()
	Return non-const access to torque.
const point &	centreOfRotation0 () const
	Return the centre of rotation at previous time-step.
const tensor &	Q0 () const
	Return the orientation at previous time-step.
const vector &	v0 () const
	Return the velocity at previous time-step.
const vector &	a0 () const
	Return the acceleration at previous time-step.
const vector &	pi0 () const
	Return the angular momentum at previous time-step.
const vector &	tau0 () const
	Return the torque at previous time-step.
scalar	aDamp () const
	Acceleration damping coefficient (for steady-state simulations).
tensor	tConstraints () const
	Translational constraint tensor.
tensor	rConstraints () const
	Rotational constraint tensor.
Tuple2< tensor, vector >	rotate (const tensor &Q0, const vector &pi, const scalar deltaT) const
	Apply rotation tensors to Q0 for the given torque (pi) and deltaT.
void	updateAcceleration (const vector &fGlobal, const vector &tauGlobal)
	Update and relax accelerations from the force and torque.
void	updateConstraints ()
	Update the constraints to the object.

Protected Attributes
sixDoFRigidBodyMotion &	body_
	The rigid body.
dictionary	dict_
	Model dictionary.

Detailed Description

Source files

Definition at line 51 of file sixDoFSolver.H.

Constructor & Destructor Documentation

◆ sixDoFSolver()

sixDoFSolver	(	const dictionary &	dict,
		sixDoFRigidBodyMotion &	body )

Definition at line 35 of file sixDoFSolver.C.

References body_, dict, and dict_.

Referenced by CrankNicolson::CrankNicolson(), declareRunTimeSelectionTable(), Newmark::Newmark(), and symplectic::symplectic().

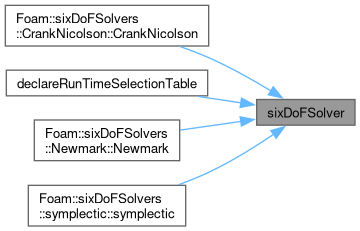

Here is the caller graph for this function:

◆ ~sixDoFSolver()

~sixDoFSolver ( )

virtual

Destructor.

Definition at line 53 of file sixDoFSolver.C.

Member Function Documentation

◆ centreOfRotation()

Foam::point & centreOfRotation ( )

inlineprotected

Return the current centre of rotation.

Definition at line 24 of file sixDoFSolverI.H.

References body_.

Referenced by CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

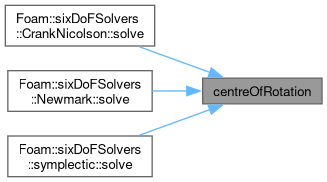

Here is the caller graph for this function:

◆ Q()

Foam::tensor & Q ( )

inlineprotected

Return the orientation.

Definition at line 29 of file sixDoFSolverI.H.

References body_.

Referenced by CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

Here is the caller graph for this function:

◆ v()

Foam::vector & v ( )

inlineprotected

Return non-const access to vector.

Definition at line 34 of file sixDoFSolverI.H.

References body_.

Referenced by CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

Here is the caller graph for this function:

◆ a()

Foam::vector & a ( )

inlineprotected

Return non-const access to acceleration.

Definition at line 39 of file sixDoFSolverI.H.

References body_.

Referenced by CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

Here is the caller graph for this function:

◆ pi()

Foam::vector & pi ( )

inlineprotected

Return non-const access to angular momentum.

Definition at line 44 of file sixDoFSolverI.H.

References body_.

Referenced by rotate().

Here is the caller graph for this function:

◆ tau()

Foam::vector & tau ( )

inlineprotected

Return non-const access to torque.

Definition at line 49 of file sixDoFSolverI.H.

References body_.

Referenced by CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

Here is the caller graph for this function:

◆ centreOfRotation0()

const Foam::point & centreOfRotation0 ( ) const

inlineprotected

Return the centre of rotation at previous time-step.

Definition at line 55 of file sixDoFSolverI.H.

References body_.

Referenced by CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

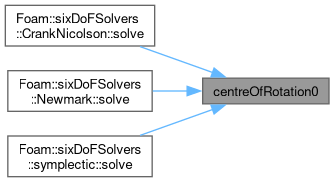

Here is the caller graph for this function:

◆ Q0()

const Foam::tensor & Q0 ( ) const

inlineprotected

Return the orientation at previous time-step.

Definition at line 60 of file sixDoFSolverI.H.

References body_.

Referenced by rotate(), CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

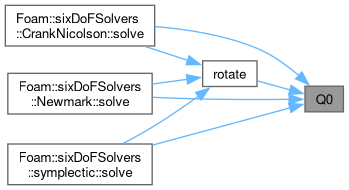

Here is the caller graph for this function:

◆ v0()

const Foam::vector & v0 ( ) const

inlineprotected

Return the velocity at previous time-step.

Definition at line 66 of file sixDoFSolverI.H.

References body_.

Referenced by CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

Here is the caller graph for this function:

◆ a0()

const Foam::vector & a0 ( ) const

inlineprotected

Return the acceleration at previous time-step.

Definition at line 72 of file sixDoFSolverI.H.

References body_.

Referenced by CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

Here is the caller graph for this function:

◆ pi0()

const Foam::vector & pi0 ( ) const

inlineprotected

Return the angular momentum at previous time-step.

Definition at line 78 of file sixDoFSolverI.H.

References body_.

Referenced by CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

Here is the caller graph for this function:

◆ tau0()

const Foam::vector & tau0 ( ) const

inlineprotected

Return the torque at previous time-step.

Definition at line 84 of file sixDoFSolverI.H.

References body_.

Referenced by CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

Here is the caller graph for this function:

◆ aDamp()

Foam::scalar aDamp ( ) const

inlineprotected

Acceleration damping coefficient (for steady-state simulations).

Definition at line 89 of file sixDoFSolverI.H.

References body_.

Referenced by CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

Here is the caller graph for this function:

◆ tConstraints()

Foam::tensor tConstraints ( ) const

inlineprotected

Translational constraint tensor.

Definition at line 94 of file sixDoFSolverI.H.

References body_.

Referenced by CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

Here is the caller graph for this function:

◆ rConstraints()

Foam::tensor rConstraints ( ) const

inlineprotected

Rotational constraint tensor.

Definition at line 99 of file sixDoFSolverI.H.

References body_.

Referenced by CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

Here is the caller graph for this function:

◆ rotate()

Foam::Tuple2< Foam::tensor, Foam::vector > rotate	(	const tensor &	Q0,
		const vector &	pi,
		const scalar	deltaT ) const

inlineprotected

Apply rotation tensors to Q0 for the given torque (pi) and deltaT.

and return the rotated Q and pi as a tuple

Definition at line 109 of file sixDoFSolverI.H.

References body_, pi(), and Q0().

Referenced by CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateAcceleration()

void updateAcceleration	(	const vector &	fGlobal,
		const vector &	tauGlobal )

inlineprotected

Update and relax accelerations from the force and torque.

Definition at line 122 of file sixDoFSolverI.H.

References body_.

Referenced by CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

Here is the caller graph for this function:

◆ updateConstraints()

void updateConstraints ( )

inlineprotected

Update the constraints to the object.

Definition at line 131 of file sixDoFSolverI.H.

References body_.

Referenced by CrankNicolson::solve(), Newmark::solve(), and symplectic::solve().

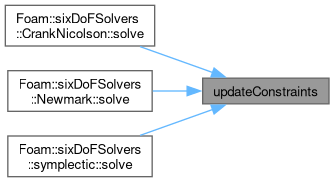

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "sixDoFSolver" )

Runtime type information.

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		sixDoFSolver	,
		dictionary	,
		(const dictionary &dict, sixDoFRigidBodyMotion &body)	,
		(dict, body)	)

References dict, and sixDoFSolver().

Here is the call graph for this function:

◆ clone()

virtual autoPtr< sixDoFSolver > clone ( ) const

pure virtual

Construct and return a clone.

Implemented in CrankNicolson, Newmark, and symplectic.

References dict.

◆ New()

Foam::autoPtr< Foam::sixDoFSolver > New	(	const dictionary &	dict,
		sixDoFRigidBodyMotion &	body )

static

Definition at line 26 of file sixDoFSolverNew.C.

References dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, and Foam::Info.

Here is the call graph for this function:

◆ solve()

virtual void solve	(	bool	firstIter,
		const vector &	fGlobal,
		const vector &	tauGlobal,
		scalar	deltaT,
		scalar	deltaT0 )

pure virtual

Drag coefficient.

Implemented in CrankNicolson, Newmark, and symplectic.

◆ write()

void write ( Ostream & os ) const

Write.

Definition at line 46 of file sixDoFSolver.C.

References dict_, and os().

Here is the call graph for this function:

Member Data Documentation

◆ body_

sixDoFRigidBodyMotion& body_

protected

The rigid body.

Definition at line 60 of file sixDoFSolver.H.

Referenced by a(), a0(), aDamp(), centreOfRotation(), centreOfRotation0(), CrankNicolson::clone(), Newmark::clone(), symplectic::clone(), pi(), pi0(), Q(), Q0(), rConstraints(), rotate(), sixDoFSolver(), tau(), tau0(), tConstraints(), updateAcceleration(), updateConstraints(), v(), and v0().

◆ dict_

dictionary dict_

protected

Model dictionary.

Definition at line 65 of file sixDoFSolver.H.

Referenced by CrankNicolson::clone(), Newmark::clone(), symplectic::clone(), sixDoFSolver(), and write().

The documentation for this class was generated from the following files:

src/sixDoFRigidBodyMotion/sixDoFSolvers/sixDoFSolver/sixDoFSolver.H
src/sixDoFRigidBodyMotion/sixDoFSolvers/sixDoFSolver/sixDoFSolver.C
src/sixDoFRigidBodyMotion/sixDoFSolvers/sixDoFSolver/sixDoFSolverI.H
src/sixDoFRigidBodyMotion/sixDoFSolvers/sixDoFSolver/sixDoFSolverNew.C
