Symplectic 2nd-order explicit time-integrator for 6DoF solid-body motion. More...

#include <symplectic.H>

Inheritance diagram for symplectic:

Collaboration diagram for symplectic:

Public Member Functions
	TypeName ("symplectic")
	Runtime type information.
	symplectic (const dictionary &dict, sixDoFRigidBodyMotion &body)
	Construct from a dictionary and the body.
virtual autoPtr< sixDoFSolver >	clone () const
	Construct and return a clone.
virtual	~symplectic ()
	Destructor.

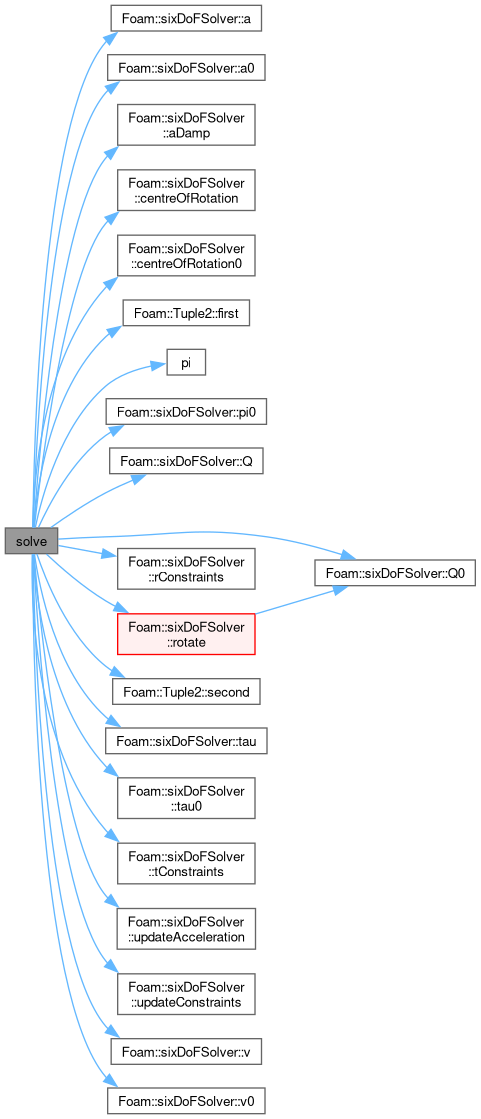

virtual void	solve (bool firstIter, const vector &fGlobal, const vector &tauGlobal, scalar deltaT, scalar deltaT0)
	Drag coefficient.
Public Member Functions inherited from sixDoFSolver
	TypeName ("sixDoFSolver")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, sixDoFSolver, dictionary,(const dictionary &dict, sixDoFRigidBodyMotion &body),(dict, body))
	sixDoFSolver (const dictionary &dict, sixDoFRigidBodyMotion &body)
virtual	~sixDoFSolver ()
	Destructor.
void	write (Ostream &) const
	Write.

Additional Inherited Members
Static Public Member Functions inherited from sixDoFSolver
static autoPtr< sixDoFSolver >	New (const dictionary &dict, sixDoFRigidBodyMotion &body)
Protected Member Functions inherited from sixDoFSolver
point &	centreOfRotation ()
	Return the current centre of rotation.
tensor &	Q ()
	Return the orientation.
vector &	v ()
	Return non-const access to vector.
vector &	a ()
	Return non-const access to acceleration.
vector &	pi ()
	Return non-const access to angular momentum.
vector &	tau ()
	Return non-const access to torque.
const point &	centreOfRotation0 () const
	Return the centre of rotation at previous time-step.
const tensor &	Q0 () const
	Return the orientation at previous time-step.
const vector &	v0 () const
	Return the velocity at previous time-step.
const vector &	a0 () const
	Return the acceleration at previous time-step.
const vector &	pi0 () const
	Return the angular momentum at previous time-step.
const vector &	tau0 () const
	Return the torque at previous time-step.
scalar	aDamp () const
	Acceleration damping coefficient (for steady-state simulations).
tensor	tConstraints () const
	Translational constraint tensor.
tensor	rConstraints () const
	Rotational constraint tensor.
Tuple2< tensor, vector >	rotate (const tensor &Q0, const vector &pi, const scalar deltaT) const
	Apply rotation tensors to Q0 for the given torque (pi) and deltaT.
void	updateAcceleration (const vector &fGlobal, const vector &tauGlobal)
	Update and relax accelerations from the force and torque.
void	updateConstraints ()
	Update the constraints to the object.
Protected Attributes inherited from sixDoFSolver
sixDoFRigidBodyMotion &	body_
	The rigid body.
dictionary	dict_
	Model dictionary.

Detailed Description

Symplectic 2nd-order explicit time-integrator for 6DoF solid-body motion.

Reference:

    Dullweber, A., Leimkuhler, B., & McLachlan, R. (1997).
    Symplectic splitting methods for rigid body molecular dynamics.
    The Journal of chemical physics, 107(15), 5840-5851.

Can only be used for explicit integration of the motion of the body, i.e. may only be called once per time-step, no outer-correctors may be applied. For implicit integration with outer-correctors choose either CrankNicolson or Newmark schemes.

Example specification in dynamicMeshDict:
