smoothSolver Class Reference

Iterative solver for symmetric and asymmetric matrices which uses a run-time selected smoother e.g. GaussSeidel to converge the solution to the required tolerance. More...

#include <smoothSolver.H>

Inheritance diagram for smoothSolver:

Collaboration diagram for smoothSolver:

Public Member Functions
	TypeName ("smoothSolver")
	Runtime type information.
	smoothSolver (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
	Construct from matrix components and solver controls.
virtual	~smoothSolver ()=default
	Destructor.
virtual solverPerformance	solve (scalarField &psi, const scalarField &source, const direction cmpt=0) const
	Solve the matrix with this solver.
Public Member Functions inherited from lduMatrix::solver
virtual const word &	type () const =0
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, solver, symMatrix,(const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls),(fieldName, matrix, interfaceBouCoeffs, interfaceIntCoeffs, interfaces, solverControls))
	declareRunTimeSelectionTable (autoPtr, solver, asymMatrix,(const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls),(fieldName, matrix, interfaceBouCoeffs, interfaceIntCoeffs, interfaces, solverControls))
	solver (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
	Construct solver for given field name, matrix etc.
virtual	~solver ()=default
	Destructor.
const word &	fieldName () const noexcept
const lduMatrix &	matrix () const noexcept
const FieldField< Field, scalar > &	interfaceBouCoeffs () const noexcept
const FieldField< Field, scalar > &	interfaceIntCoeffs () const noexcept
const lduInterfaceFieldPtrsList &	interfaces () const noexcept
virtual void	read (const dictionary &)
	Read and reset the solver parameters from the given stream.
virtual solverPerformance	scalarSolve (solveScalarField &psi, const solveScalarField &source, const direction cmpt=0) const
	Solve with given field and rhs (in solveScalar precision).
solveScalarField::cmptType	normFactor (const solveScalarField &psi, const solveScalarField &source, const solveScalarField &Apsi, solveScalarField &tmpField, const lduMatrix::normTypes normType) const
	Return the matrix norm using the specified norm method.
solveScalarField::cmptType	normFactor (const solveScalarField &psi, const solveScalarField &source, const solveScalarField &Apsi, solveScalarField &tmpField) const
	Return the matrix norm used to normalise the residual for the stopping criterion.

Protected Member Functions
virtual void	readControls ()
	Read the control parameters from the controlDict_.

Protected Attributes
label	nSweeps_
	Number of sweeps before the evaluation of residual.
Protected Attributes inherited from lduMatrix::solver
word	fieldName_
const lduMatrix &	matrix_
const FieldField< Field, scalar > &	interfaceBouCoeffs_
const FieldField< Field, scalar > &	interfaceIntCoeffs_
lduInterfaceFieldPtrsList	interfaces_
dictionary	controlDict_
	Dictionary of solution controls.
int	log_
	Verbosity level for solver output statements.
label	minIter_
	Minimum number of iterations in the solver.
label	maxIter_
	Maximum number of iterations in the solver.
lduMatrix::normTypes	normType_
	The normalisation type.
scalar	tolerance_
	Final convergence tolerance.
scalar	relTol_
	Convergence tolerance relative to the initial.
profilingTrigger	profiling_
	Profiling instrumentation.

Additional Inherited Members
Static Public Member Functions inherited from lduMatrix::solver
static autoPtr< solver >	New (const word &solverName, const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
	Return a new solver of given type.
static autoPtr< solver >	New (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
	Return a new solver given dictionary.

Detailed Description

Iterative solver for symmetric and asymmetric matrices which uses a run-time selected smoother e.g. GaussSeidel to converge the solution to the required tolerance.

To improve efficiency, the residual is evaluated after every nSweeps smoothing iterations.

Source files

• smoothSolver.H
• smoothSolver.C

Definition at line 55 of file smoothSolver.H.

Constructor & Destructor Documentation

smoothSolver()

smoothSolver	(	const word &	fieldName,
		const lduMatrix &	matrix,
		const FieldField< Field, scalar > &	interfaceBouCoeffs,
		const FieldField< Field, scalar > &	interfaceIntCoeffs,
		const lduInterfaceFieldPtrsList &	interfaces,
		const dictionary &	solverControls )

Construct from matrix components and solver controls.

Definition at line 42 of file smoothSolver.C.

References lduMatrix::solver::fieldName(), lduMatrix::solver::interfaceBouCoeffs(), lduMatrix::solver::interfaceIntCoeffs(), lduMatrix::solver::interfaces(), lduMatrix::solver::matrix(), readControls(), and lduMatrix::solver::solver().

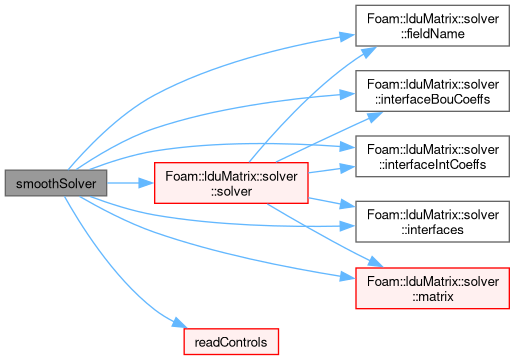

Here is the call graph for this function:

~smoothSolver()

virtual ~smoothSolver ( )

virtualdefault

Destructor.

References psi.

Member Function Documentation

readControls()

void readControls ( )

protectedvirtual

Read the control parameters from the controlDict_.

Reimplemented from lduMatrix::solver.

Definition at line 68 of file smoothSolver.C.

References lduMatrix::solver::controlDict_, nSweeps_, and lduMatrix::solver::readControls().

Referenced by smoothSolver().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeName()

TypeName

(

"smoothSolver"

)

Runtime type information.

References lduMatrix::solver::fieldName(), lduMatrix::solver::interfaceBouCoeffs(), lduMatrix::solver::interfaceIntCoeffs(), lduMatrix::solver::interfaces(), and lduMatrix::solver::matrix().

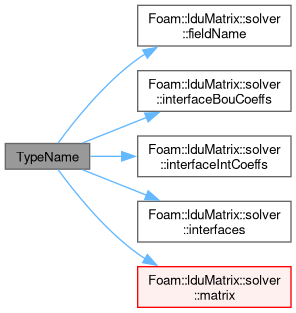

Here is the call graph for this function:

solve()

Foam::solverPerformance solve ( scalarField & psi, const scalarField & source, const direction cmpt = 0 ) const

virtual

Solve the matrix with this solver.

Implements lduMatrix::solver.

Definition at line 75 of file smoothSolver.C.

References addProfiling, SolverPerformance< Type >::checkConvergence(), lduMatrix::solver::controlDict_, Foam::endl(), lduMatrix::solver::fieldName_, SolverPerformance< Type >::finalResidual(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, Foam::gSumMag(), Foam::Info, SolverPerformance< Type >::initialResidual(), lduMatrix::solver::interfaceBouCoeffs_, lduMatrix::solver::interfaceIntCoeffs_, lduMatrix::solver::interfaces_, lduMatrix::solver::log_, lduMatrix::solver::matrix(), lduMatrix::solver::matrix_, lduMatrix::solver::maxIter_, mesh, lduMatrix::solver::minIter_, lduMatrix::smoother::New(), SolverPerformance< Type >::nIterations(), lduMatrix::solver::normFactor(), nSweeps_, psi, refPtr< T >::ref(), lduMatrix::solver::relTol_, solve(), and lduMatrix::solver::tolerance_.

Referenced by solve().

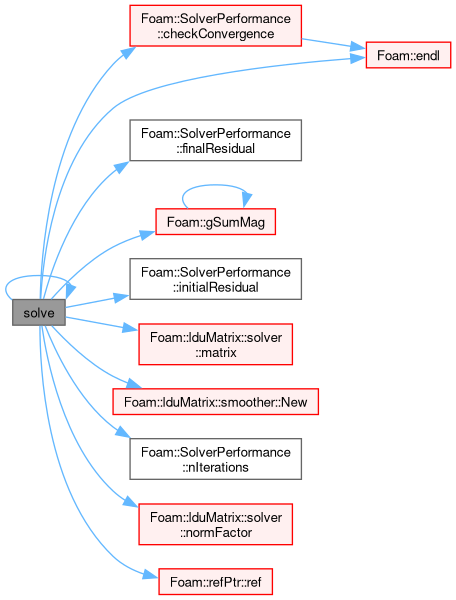

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

nSweeps_

label nSweeps_

protected

Number of sweeps before the evaluation of residual.

Definition at line 66 of file smoothSolver.H.

Referenced by readControls(), and solve().

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/matrices/lduMatrix/solvers/smoothSolver/smoothSolver.H
• src/OpenFOAM/matrices/lduMatrix/solvers/smoothSolver/smoothSolver.C
