Extends base solid chemistry model by adding a thermo package, and ODE functions. More...

#include <solidChemistryModel.H>

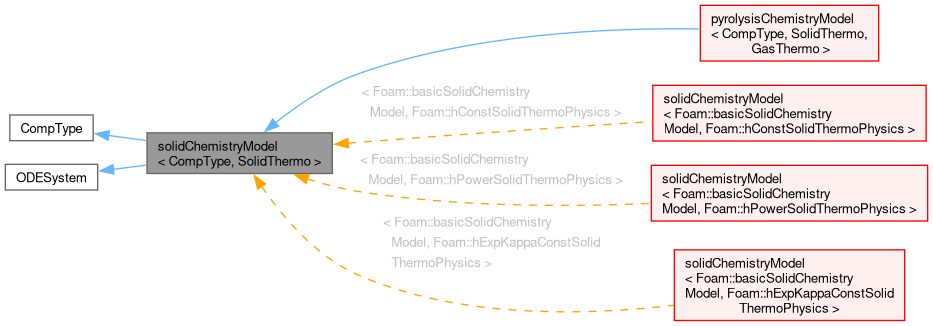

Inheritance diagram for solidChemistryModel< CompType, SolidThermo >:

[legend]

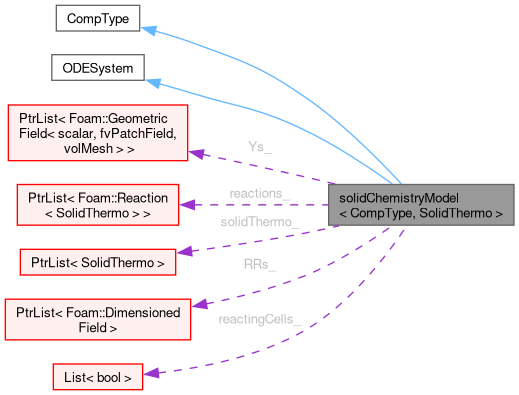

Collaboration diagram for solidChemistryModel< CompType, SolidThermo >:

[legend]

Public Member Functions
	TypeName ("solidChemistryModel")
	Runtime type information.
	solidChemistryModel (typename CompType::reactionThermo &thermo)
	Construct from thermo.
virtual	~solidChemistryModel ()
	Destructor.
const PtrList< Reaction< SolidThermo > > &	reactions () const
	The reactions.
label	nReaction () const
	The number of reactions.
virtual scalarField	omega (const scalarField &c, const scalar T, const scalar p, const bool updateC0=false) const =0
	dc/dt = omega, rate of change in concentration, for each species
virtual scalar	omega (const Reaction< SolidThermo > &r, const scalarField &c, const scalar T, const scalar p, scalar &pf, scalar &cf, label &lRef, scalar &pr, scalar &cr, label &rRef) const =0
	Return the reaction rate for reaction r and the reference.
virtual scalar	omegaI (label iReaction, const scalarField &c, const scalar T, const scalar p, scalar &pf, scalar &cf, label &lRef, scalar &pr, scalar &cr, label &rRef) const =0
	Return the reaction rate for iReaction and the reference.
virtual void	calculate ()=0
	Calculates the reaction rates.
const volScalarField::Internal &	RRs (const label i) const
	Return const access to the chemical source terms for solids.
tmp< volScalarField::Internal >	RRs () const
	Return total solid source term.
tmp< DimensionedField< scalar, volMesh > >	RRsHs () const
	Return net solid sensible enthalpy.
virtual scalar	solve (const scalar deltaT)=0
	Solve the reaction system for the given time step.
virtual scalar	solve (const scalarField &deltaT)
	Solve the reaction system for the given time step.
virtual tmp< volScalarField >	tc () const
	Return the chemical time scale.
virtual tmp< volScalarField >	Qdot () const
	Return the heat release rate [kg/m/s3].
virtual label	nEqns () const =0
	Number of ODE's to solve.
virtual void	derivatives (const scalar t, const scalarField &c, scalarField &dcdt) const =0
	Calculate the derivatives in dydx.
virtual void	jacobian (const scalar t, const scalarField &c, scalarField &dcdt, scalarSquareMatrix &dfdc) const =0
	Calculate the Jacobian of the system.
virtual void	solve (scalarField &c, scalar &T, scalar &p, scalar &deltaT, scalar &subDeltaT) const =0
Public Member Functions inherited from ODESystem
	ODESystem ()
	Construct null.
virtual	~ODESystem ()=default
	Destructor.

Protected Member Functions
PtrList< volScalarField::Internal > &	RRs ()
	Write access to source terms for solids.
void	setCellReacting (const label celli, const bool active)
	Set reacting status of cell, celli.

Protected Attributes
PtrList< volScalarField > &	Ys_
	Reference to solid mass fractions.
const PtrList< Reaction< SolidThermo > > &	reactions_
	Reactions.
const PtrList< SolidThermo > &	solidThermo_
	Thermodynamic data of solids.
label	nSolids_
	Number of solid components.
label	nReaction_
	Number of solid reactions.
PtrList< volScalarField::Internal >	RRs_
	List of reaction rate per solid [kg/m3/s].
List< bool >	reactingCells_
	List of active reacting cells.

Detailed Description

template<class CompType, class SolidThermo>
class Foam::solidChemistryModel< CompType, SolidThermo >

Extends base solid chemistry model by adding a thermo package, and ODE functions.

Introduces chemistry equation system and evaluation of chemical source terms.

Source files

Definition at line 59 of file solidChemistryModel.H.

Constructor & Destructor Documentation

◆ solidChemistryModel()

template<class CompType, class SolidThermo>

solidChemistryModel ( typename CompType::reactionThermo & thermo )

Construct from thermo.

Definition at line 28 of file solidChemistryModel.C.

References composition, Foam::dimMass, Foam::dimTime, Foam::dimVolume, forAll, mesh, name, IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, nReaction_, nSolids_, ODESystem::ODESystem(), reactingCells_, reactions_, RRs_, solidThermo_, timeName, Y, Ys_, and Foam::Zero.

Here is the call graph for this function:

◆ ~solidChemistryModel()

template<class CompType, class SolidThermo>

~solidChemistryModel ( )

virtual

Destructor.

Definition at line 82 of file solidChemistryModel.C.

Member Function Documentation

◆ RRs() [1/3]

template<class CompType, class SolidThermo>

Foam::PtrList< Foam::DimensionedField< Foam::scalar, Foam::volMesh > > & RRs ( )

inlineprotected

Write access to source terms for solids.

Definition at line 28 of file solidChemistryModelI.H.

References RRs_.

Referenced by RRs(), and RRsHs().

Here is the caller graph for this function:

◆ setCellReacting()

template<class CompType, class SolidThermo>

void setCellReacting	(	const label	celli,
		const bool	active )

protected

Set reacting status of cell, celli.

Definition at line 139 of file solidChemistryModel.C.

References reactingCells_.

◆ TypeName()

template<class CompType, class SolidThermo>

TypeName ( "solidChemistryModel< CompType, SolidThermo >" )

Runtime type information.

◆ reactions()

template<class CompType, class SolidThermo>

const Foam::PtrList< Foam::Reaction< SolidThermo > > & reactions ( ) const

inline

The reactions.

Definition at line 36 of file solidChemistryModelI.H.

References reactions_.

◆ nReaction()

template<class CompType, class SolidThermo>

Foam::label nReaction ( ) const

inline

The number of reactions.

Definition at line 44 of file solidChemistryModelI.H.

References nReaction_.

◆ omega() [1/2]

template<class CompType, class SolidThermo>

virtual scalarField omega	(	const scalarField &	c,
		const scalar	T,
		const scalar	p,
		const bool	updateC0 = false ) const

pure virtual

dc/dt = omega, rate of change in concentration, for each species

Implemented in pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hConstSolidThermoPhysics, Foam::gasHThermoPhysics >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hExpKappaConstSolidThermoPhysics, Foam::gasHThermoPhysics >, and pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hPowerSolidThermoPhysics, Foam::gasHThermoPhysics >.

◆ omega() [2/2]

template<class CompType, class SolidThermo>

virtual scalar omega	(	const Reaction< SolidThermo > &	r,
		const scalarField &	c,
		const scalar	T,
		const scalar	p,
		scalar &	pf,
		scalar &	cf,
		label &	lRef,
		scalar &	pr,
		scalar &	cr,
		label &	rRef ) const

pure virtual

Return the reaction rate for reaction r and the reference.

species and characteristic times

Implemented in pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hConstSolidThermoPhysics, Foam::gasHThermoPhysics >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hExpKappaConstSolidThermoPhysics, Foam::gasHThermoPhysics >, and pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hPowerSolidThermoPhysics, Foam::gasHThermoPhysics >.

◆ omegaI()

template<class CompType, class SolidThermo>

virtual scalar omegaI	(	label	iReaction,
		const scalarField &	c,
		const scalar	T,
		const scalar	p,
		scalar &	pf,
		scalar &	cf,
		label &	lRef,
		scalar &	pr,
		scalar &	cr,
		label &	rRef ) const

pure virtual

Return the reaction rate for iReaction and the reference.

species and characteristic times

Implemented in pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hConstSolidThermoPhysics, Foam::gasHThermoPhysics >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hExpKappaConstSolidThermoPhysics, Foam::gasHThermoPhysics >, and pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hPowerSolidThermoPhysics, Foam::gasHThermoPhysics >.

◆ calculate()

template<class CompType, class SolidThermo>

virtual void calculate ( )

pure virtual

Calculates the reaction rates.

Implemented in pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hConstSolidThermoPhysics, Foam::gasHThermoPhysics >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hExpKappaConstSolidThermoPhysics, Foam::gasHThermoPhysics >, and pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hPowerSolidThermoPhysics, Foam::gasHThermoPhysics >.

◆ RRs() [2/3]

template<class CompType, class SolidThermo>

const Foam::DimensionedField< Foam::scalar, Foam::volMesh > & RRs ( const label i ) const

inline

Return const access to the chemical source terms for solids.

Definition at line 53 of file solidChemistryModelI.H.

References RRs_.

◆ RRs() [3/3]

template<class CompType, class SolidThermo>

Foam::tmp< Foam::DimensionedField< Foam::scalar, Foam::volMesh > > RRs ( ) const

inline

Return total solid source term.

Definition at line 64 of file solidChemistryModelI.H.

References Foam::dimMass, Foam::dimTime, Foam::dimVolume, mesh, DimensionedField< Type, GeoMesh >::New(), IOobjectOption::NO_REGISTER, nSolids_, RRs(), RRs_, and Foam::Zero.

Here is the call graph for this function:

◆ RRsHs()

template<class CompType, class SolidThermo>

Foam::tmp< Foam::DimensionedField< Foam::scalar, Foam::volMesh > > RRsHs ( ) const

inline

Return net solid sensible enthalpy.

Definition at line 88 of file solidChemistryModelI.H.

References Foam::dimEnergy, Foam::dimTime, Foam::dimVolume, forAll, mesh, DimensionedField< Type, GeoMesh >::New(), IOobjectOption::NO_REGISTER, nSolids_, basicThermo::p(), p, RRs(), RRs_, solidThermo_, basicThermo::T(), Foam::T(), and Foam::Zero.

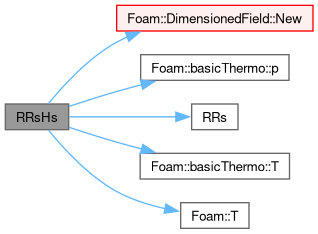

Here is the call graph for this function:

◆ solve() [1/3]

template<class CompType, class SolidThermo>

virtual scalar solve ( const scalar deltaT )

pure virtual

Solve the reaction system for the given time step.

and return the characteristic time

Implemented in pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hConstSolidThermoPhysics, Foam::gasHThermoPhysics >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hExpKappaConstSolidThermoPhysics, Foam::gasHThermoPhysics >, and pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hPowerSolidThermoPhysics, Foam::gasHThermoPhysics >.

◆ solve() [2/3]

template<class CompType, class SolidThermo>

Foam::scalar solve ( const scalarField & deltaT )

virtual

Solve the reaction system for the given time step.

and return the characteristic time

Definition at line 90 of file solidChemistryModel.C.

References NotImplemented.

◆ tc()

template<class CompType, class SolidThermo>

Foam::tmp< Foam::volScalarField > tc ( ) const

virtual

Return the chemical time scale.

Definition at line 102 of file solidChemistryModel.C.

References NotImplemented, and GeometricField< scalar, fvPatchField, volMesh >::null().

Here is the call graph for this function:

◆ Qdot()

template<class CompType, class SolidThermo>

Foam::tmp< Foam::volScalarField > Qdot ( ) const

virtual

Return the heat release rate [kg/m/s3].

Definition at line 111 of file solidChemistryModel.C.

References Foam::dimEnergy, Foam::dimTime, Foam::dimVolume, forAll, GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, Qdot(), RRs_, solidThermo_, Ys_, and Foam::Zero.

Referenced by Qdot().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nEqns()

template<class CompType, class SolidThermo>

virtual label nEqns ( ) const

pure virtual

Number of ODE's to solve.

Implements ODESystem.

Implemented in pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hConstSolidThermoPhysics, Foam::gasHThermoPhysics >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hExpKappaConstSolidThermoPhysics, Foam::gasHThermoPhysics >, and pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hPowerSolidThermoPhysics, Foam::gasHThermoPhysics >.

◆ derivatives()

template<class CompType, class SolidThermo>

virtual void derivatives	(	const scalar	x,
		const scalarField &	y,
		scalarField &	dydx ) const

pure virtual

Calculate the derivatives in dydx.

Implements ODESystem.

Implemented in pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hConstSolidThermoPhysics, Foam::gasHThermoPhysics >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hExpKappaConstSolidThermoPhysics, Foam::gasHThermoPhysics >, and pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hPowerSolidThermoPhysics, Foam::gasHThermoPhysics >.

◆ jacobian()

template<class CompType, class SolidThermo>

virtual void jacobian	(	const scalar	x,
		const scalarField &	y,
		scalarField &	dfdx,
		scalarSquareMatrix &	dfdy ) const

pure virtual

Calculate the Jacobian of the system.

Need by the stiff-system solvers

Implements ODESystem.

Implemented in pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hConstSolidThermoPhysics, Foam::gasHThermoPhysics >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hExpKappaConstSolidThermoPhysics, Foam::gasHThermoPhysics >, and pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hPowerSolidThermoPhysics, Foam::gasHThermoPhysics >.

◆ solve() [3/3]

template<class CompType, class SolidThermo>

virtual void solve	(	scalarField &	c,
		scalar &	T,
		scalar &	p,
		scalar &	deltaT,
		scalar &	subDeltaT ) const

pure virtual

Implemented in pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hConstSolidThermoPhysics, Foam::gasHThermoPhysics >, pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hExpKappaConstSolidThermoPhysics, Foam::gasHThermoPhysics >, and pyrolysisChemistryModel< Foam::basicSolidChemistryModel, Foam::hPowerSolidThermoPhysics, Foam::gasHThermoPhysics >.

Member Data Documentation

◆ Ys_

template<class CompType, class SolidThermo>

PtrList<volScalarField>& Ys_

protected

Reference to solid mass fractions.

Definition at line 82 of file solidChemistryModel.H.

Referenced by pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::calculate(), pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::pyrolysisChemistryModel(), Qdot(), solidChemistryModel(), and pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::solve().

◆ reactions_

template<class CompType, class SolidThermo>

const PtrList<Reaction<SolidThermo> >& reactions_

protected

Reactions.

Definition at line 87 of file solidChemistryModel.H.

Referenced by pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::jacobian(), pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::omega(), pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::omegaI(), pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::pyrolysisChemistryModel(), reactions(), and solidChemistryModel().

◆ solidThermo_

template<class CompType, class SolidThermo>

const PtrList<SolidThermo>& solidThermo_

protected

Thermodynamic data of solids.

Definition at line 92 of file solidChemistryModel.H.

Referenced by pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::derivatives(), pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::omega(), Qdot(), RRsHs(), and solidChemistryModel().

◆ nSolids_

template<class CompType, class SolidThermo>

label nSolids_

protected

Number of solid components.

Definition at line 97 of file solidChemistryModel.H.

Referenced by pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::calculate(), pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::derivatives(), pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::jacobian(), pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::omega(), pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::pyrolysisChemistryModel(), RRs(), RRsHs(), solidChemistryModel(), and pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::solve().

◆ nReaction_

template<class CompType, class SolidThermo>

label nReaction_

protected

Number of solid reactions.

Definition at line 102 of file solidChemistryModel.H.

Referenced by nReaction(), and solidChemistryModel().

◆ RRs_

template<class CompType, class SolidThermo>

PtrList<volScalarField::Internal> RRs_

protected

List of reaction rate per solid [kg/m3/s].

Definition at line 107 of file solidChemistryModel.H.

Referenced by pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::calculate(), pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::pyrolysisChemistryModel(), Qdot(), RRs(), RRs(), RRs(), RRsHs(), solidChemistryModel(), and pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::solve().

◆ reactingCells_

template<class CompType, class SolidThermo>

List<bool> reactingCells_

protected

List of active reacting cells.

Definition at line 112 of file solidChemistryModel.H.

Referenced by pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::calculate(), setCellReacting(), solidChemistryModel(), and pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::solve().

The documentation for this class was generated from the following files:

src/thermophysicalModels/solidChemistryModel/solidChemistryModel/solidChemistryModel.H
src/thermophysicalModels/solidChemistryModel/solidChemistryModel/solidChemistryModel.C
src/thermophysicalModels/solidChemistryModel/solidChemistryModel/solidChemistryModelI.H

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ solidChemistryModel()

◆ ~solidChemistryModel()

Member Function Documentation

◆ RRs() [1/3]

◆ setCellReacting()

◆ TypeName()

◆ reactions()

◆ nReaction()

◆ omega() [1/2]

◆ omega() [2/2]

◆ omegaI()

◆ calculate()

◆ RRs() [2/3]

◆ RRs() [3/3]

◆ RRsHs()

◆ solve() [1/3]

◆ solve() [2/3]

◆ tc()

◆ Qdot()

◆ nEqns()

◆ derivatives()

◆ jacobian()

◆ solve() [3/3]

Member Data Documentation

◆ Ys_

◆ reactions_

◆ solidThermo_

◆ nSolids_

◆ nReaction_

◆ RRs_

◆ reactingCells_
