springRenumber Class Reference

Use spring analogy - attract neighbouring cells according to the distance of their cell indices. More...

#include <springRenumber.H>

Inheritance diagram for springRenumber:

Collaboration diagram for springRenumber:

Public Member Functions
	TypeName ("spring")
	Runtime type information.
	springRenumber (const dictionary &dict)
	Construct given the renumber dictionary.
virtual	~springRenumber ()=default
	Destructor.
virtual labelList	renumber (const polyMesh &mesh) const
	Return the cell visit order (from ordered back to original cell id) using the mesh to determine the connectivity.
virtual labelList	renumber (const CompactListList< label > &cellCells) const
	Return the cell visit order (from ordered back to original cell id).
virtual labelList	renumber (const labelListList &cellCells) const
	Return the cell visit order (from ordered back to original cell id).
template<class ConnectionListListType>
Foam::labelList	renumberImpl (const ConnectionListListType &cellCells) const
Public Member Functions inherited from renumberMethod
	TypeNameNoDebug ("renumberMethod")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, renumberMethod, dictionary,(const dictionary &renumberDict),(renumberDict))
	renumberMethod ()
	Default construct.
	renumberMethod (const dictionary &)
	Construct with renumber dictionary (which is currently unused).
virtual	~renumberMethod ()=default
	Destructor.
virtual bool	no_topology () const
	Renumbering method without mesh or cell-cell topology (very special case).
virtual bool	needs_mesh () const
	Renumbering method requires a polyMesh for its topology.
virtual labelList	renumber (const label nCells) const
	Return the cell visit order (from ordered back to original cell id) based solely on the number of cells.
virtual labelList	renumber (const pointField &) const
	Return the cell visit order (from ordered back to original cell id) based solely on the cell centres (or number of cell centres).
virtual labelList	renumber (const polyMesh &mesh, const pointField &) const
	Deprecated - the pointField is unused.
virtual labelList	renumber (const CompactListList< label > &cellCells, const pointField &) const
	Deprecated - the pointField is unused.
virtual labelList	renumber (const labelListList &cellCells, const pointField &) const
	Deprecated - the pointField is unused.
virtual labelList	renumber (const polyMesh &mesh, const labelUList &fineToCoarse, const pointField &coarsePoints) const
	Deprecated - renumbering with agglomeration map. Calculate globalCellCells directly.

Additional Inherited Members
Static Public Member Functions inherited from renumberMethod
static autoPtr< renumberMethod >	New (const dictionary &dict)
	Construct/select a renumbering method.
static wordList	supportedMethods ()
	Return a list of the known methods.

Detailed Description

Use spring analogy - attract neighbouring cells according to the distance of their cell indices.

Maximum jump of cell indices. Is fraction of number of cells maxCo 0.1;

Limit the amount of movement; the fraction maxCo gets decreased with every iteration. freezeFraction 0.9;

Maximum number of iterations maxIter 1000;

Source files

• springRenumber.H
• springRenumber.C

Definition at line 56 of file springRenumber.H.

Constructor & Destructor Documentation

springRenumber()

springRenumber ( const dictionary & dict )

explicit

Construct given the renumber dictionary.

Definition at line 43 of file springRenumber.C.

References dict, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, and renumberMethod::renumberMethod().

Here is the call graph for this function:

~springRenumber()

virtual ~springRenumber ( )

virtualdefault

Destructor.

References mesh.

Member Function Documentation

TypeName()

TypeName

(

"spring"

)

Runtime type information.

References dict.

renumber() [1/3]

Foam::labelList renumber ( const polyMesh & mesh ) const

virtual

Return the cell visit order (from ordered back to original cell id) using the mesh to determine the connectivity.

Parameters

mesh	Mesh connectivity (see globalMeshData::calcCellCells)

Reimplemented from renumberMethod.

Definition at line 153 of file springRenumber.C.

References globalMeshData::calcCellCells(), and mesh.

Here is the call graph for this function:

renumber() [2/3]

Foam::labelList renumber ( const CompactListList< label > & cellCells ) const

virtual

Return the cell visit order (from ordered back to original cell id).

Parameters

cellCells

Mesh connectivity

Implements renumberMethod.

Definition at line 166 of file springRenumber.C.

renumber() [3/3]

Foam::labelList renumber ( const labelListList & cellCells ) const

virtual

Return the cell visit order (from ordered back to original cell id).

Parameters

cellCells

Mesh connectivity

Implements renumberMethod.

Definition at line 175 of file springRenumber.C.

renumberImpl()

template<class ConnectionListListType>

Foam::labelList renumberImpl

(

const ConnectionListListType &

cellCells

)

const

Definition at line 57 of file springRenumber.C.

References Foam::average(), UList< T >::begin(), UList< T >::end(), Foam::endl(), Foam::identity(), Foam::Info, Foam::inplaceReorder(), Foam::invert(), Foam::mag(), Foam::max(), maxCo, Foam::min(), Foam::shuffle(), UList< T >::size(), Foam::sortedOrder(), and Foam::Zero.

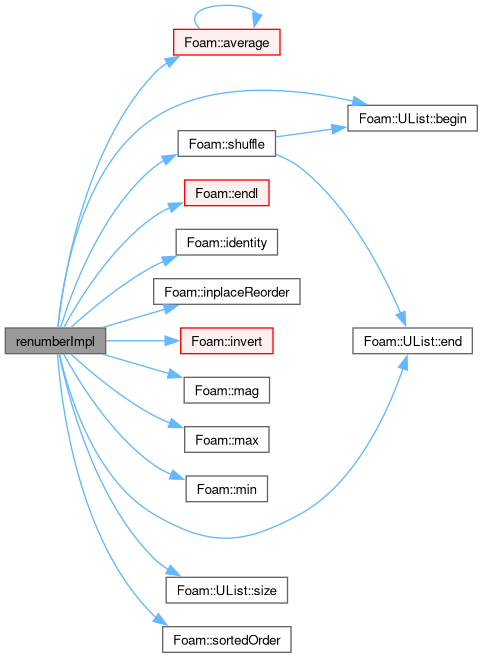

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/renumber/renumberMethods/springRenumber/springRenumber.H
• src/renumber/renumberMethods/springRenumber/springRenumber.C
