Various mesh related information for a parallel run. Upon construction, constructs all info using parallel communication. More...

#include <globalMeshData.H>

Public Member Functions
	globalMeshData (const globalMeshData &)=delete
	No copy construct.
void	operator= (const globalMeshData &)=delete
	No copy assignment.
	ClassName ("globalMeshData")
	Runtime type information.
	globalMeshData (const polyMesh &mesh)
	Construct from mesh, derive rest (does parallel communication!).
	~globalMeshData ()
	Destructor.
void	clearOut ()
	Remove all demand driven data.
const polyMesh &	mesh () const noexcept
	Return the mesh reference.
bool	parallel () const noexcept
	Does the mesh contain processor patches? (also valid when not running parallel).
const globalIndex &	globalMeshPointAddr () const noexcept
	Global numbering for mesh points. Not compensated for duplicate points!
const globalIndex &	globalMeshFaceAddr () const noexcept
	Global numbering for mesh faces. Not compensated for duplicate faces!
const globalIndex &	globalMeshCellAddr () const noexcept
	Global numbering for mesh cells.
label	nTotalPoints () const noexcept
	Total global number of mesh points. Not compensated for duplicate points!
label	nTotalFaces () const noexcept
	Total global number of mesh faces. Not compensated for duplicate faces!
label	nTotalCells () const noexcept
	Total global number of mesh cells.
const processorTopology &	topology () const noexcept
	The processor to processor topology.
const lduSchedule &	patchSchedule () const noexcept
	Order in which the patches should be initialised/evaluated corresponding to the schedule.
const labelList &	processorPatches () const noexcept
	Return list of processor patch labels.
const labelList &	processorPatchIndices () const noexcept
	Return list of indices into processorPatches_ for each patch.
const labelList &	processorPatchNeighbours () const noexcept
	Return processorPatchIndices of the neighbours processor patches. -1 if not running parallel.

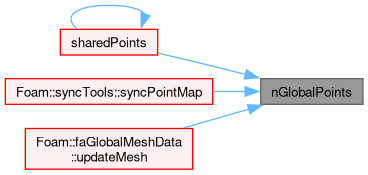

label	nGlobalPoints () const
	Return number of globally shared points.

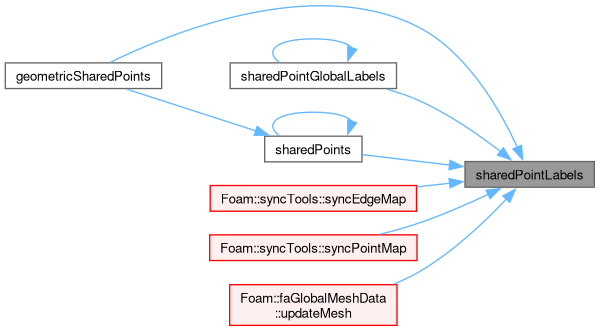

const labelList &	sharedPointLabels () const
	Return indices of local points that are globally shared.

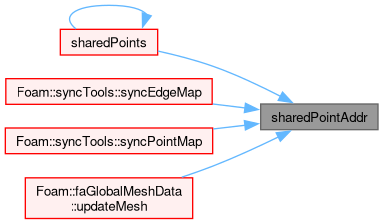

const labelList &	sharedPointAddr () const
	Return addressing into the complete globally shared points list.

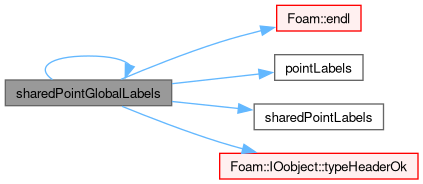

const labelList &	sharedPointGlobalLabels () const
	Return shared point global labels. Tries to read 'pointProcAddressing' and returns list or -1 if none available.

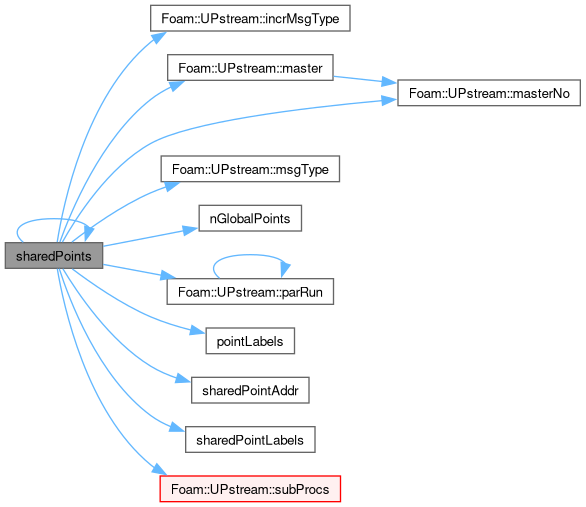

pointField	sharedPoints () const
	Collect coordinates of shared points on all processors. (does parallel communication!).

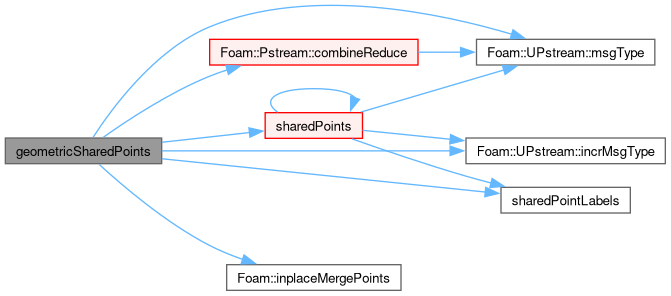

pointField	geometricSharedPoints () const
	Like sharedPoints but keeps cyclic points separate. (does geometric merging; uses matchTol_*bb as merging tolerance) Use sharedPoints() instead.
label	nGlobalEdges () const
	Return number of globally shared edges.
const labelList &	sharedEdgeLabels () const
	Return indices of local edges that are globally shared.
const labelList &	sharedEdgeAddr () const
	Return addressing into the complete globally shared edge list.

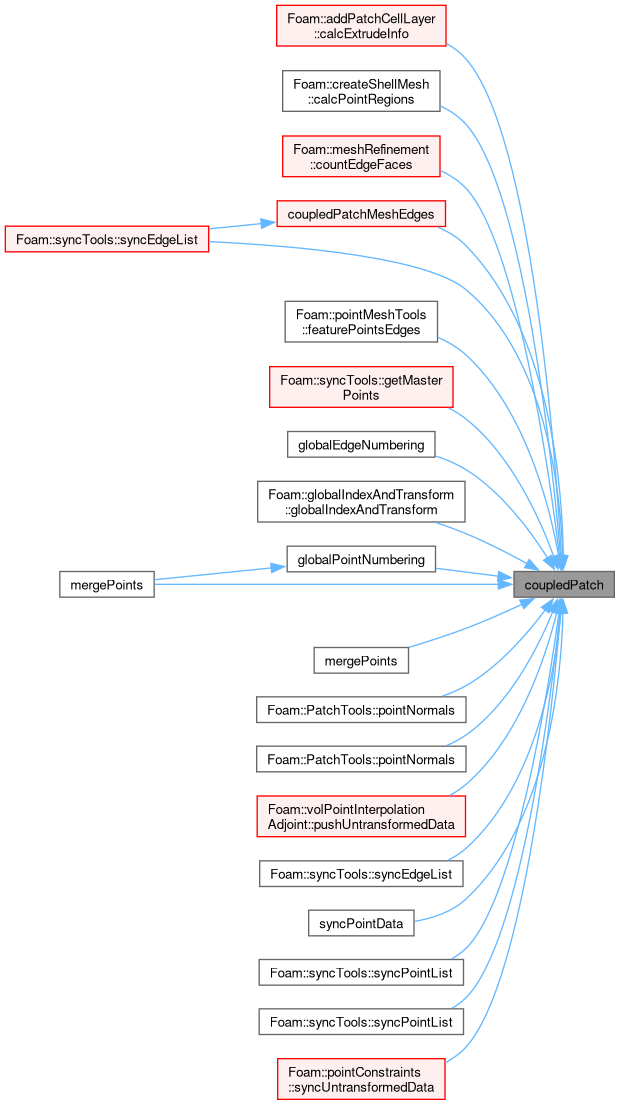

const indirectPrimitivePatch &	coupledPatch () const
	Return patch of all coupled faces.

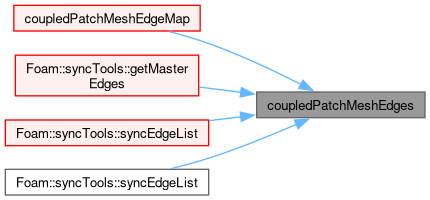

const labelList &	coupledPatchMeshEdges () const
	Return map from coupledPatch edges to mesh edges.
const Map< label > &	coupledPatchMeshEdgeMap () const
	Return map from mesh edges to coupledPatch edges.

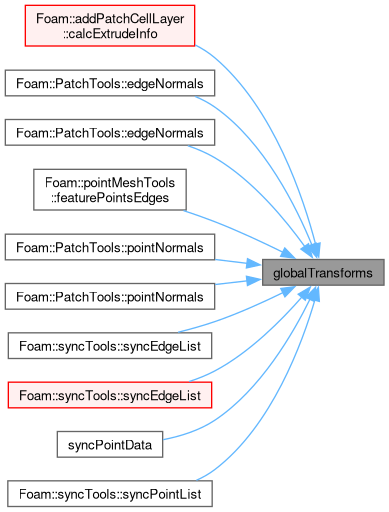

const globalIndexAndTransform &	globalTransforms () const
	Global transforms numbering.
const globalIndex &	globalPointNumbering () const
	Numbering of coupled points is according to coupledPatch.

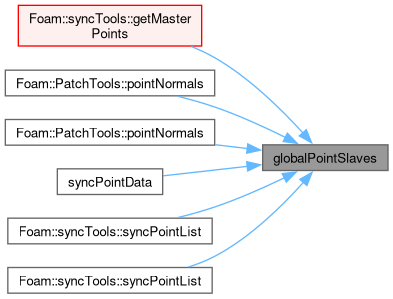

const labelListList &	globalPointSlaves () const

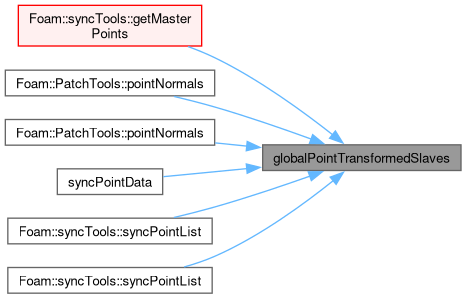

const labelListList &	globalPointTransformedSlaves () const

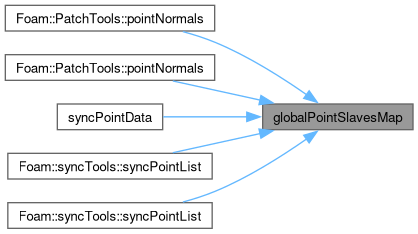

const mapDistribute &	globalPointSlavesMap () const
template<class Type, class CombineOp, class TransformOp>

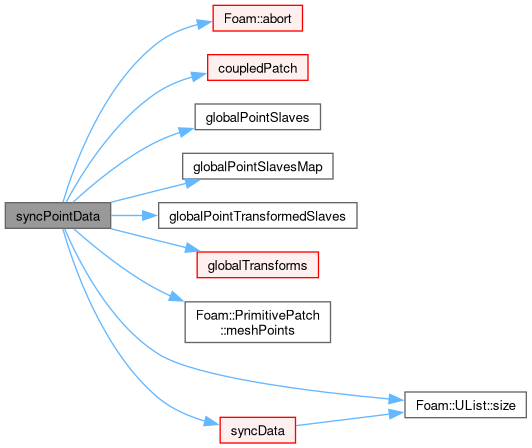

void	syncPointData (List< Type > &pointData, const CombineOp &cop, const TransformOp &top) const
	Helper to synchronise coupled patch point data.
const globalIndex &	globalEdgeNumbering () const

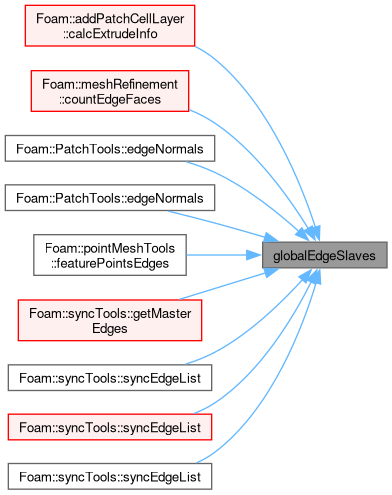

const labelListList &	globalEdgeSlaves () const

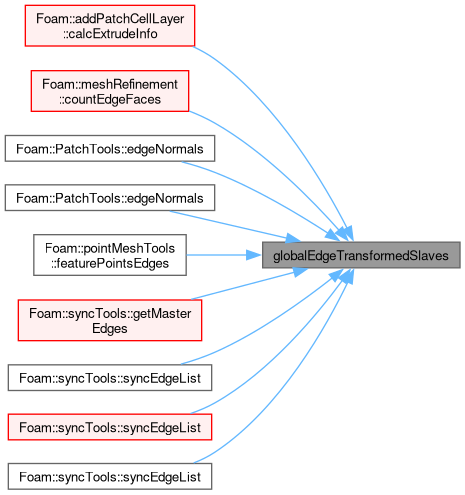

const labelListList &	globalEdgeTransformedSlaves () const

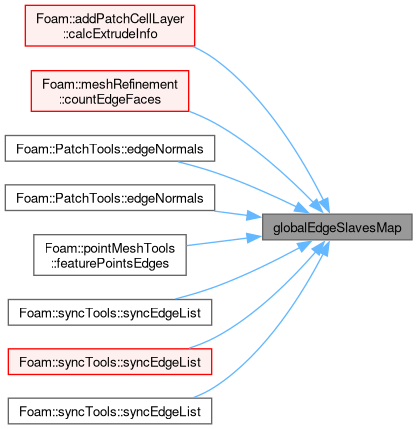

const mapDistribute &	globalEdgeSlavesMap () const
const bitSet &	globalEdgeOrientation () const
	Is my edge same orientation as master edge.

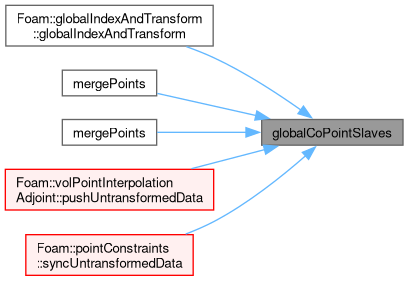

const labelListList &	globalCoPointSlaves () const

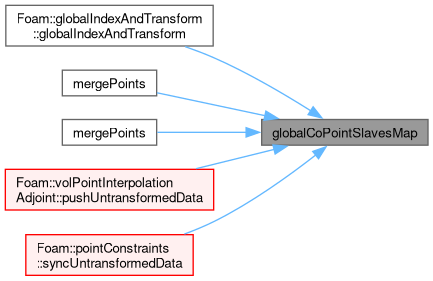

const mapDistribute &	globalCoPointSlavesMap () const
const globalIndex &	globalBoundaryFaceNumbering () const
	Numbering of boundary faces is face-mesh.nInternalFaces().
const labelListList &	globalPointBoundaryFaces () const
const labelListList &	globalPointTransformedBoundaryFaces () const
const mapDistribute &	globalPointBoundaryFacesMap () const
const labelList &	boundaryCells () const
	From boundary cell to mesh cell.
const globalIndex &	globalBoundaryCellNumbering () const
	Numbering of boundary cells is according to boundaryCells().
const labelListList &	globalPointBoundaryCells () const
const labelListList &	globalPointTransformedBoundaryCells () const
const mapDistribute &	globalPointBoundaryCellsMap () const

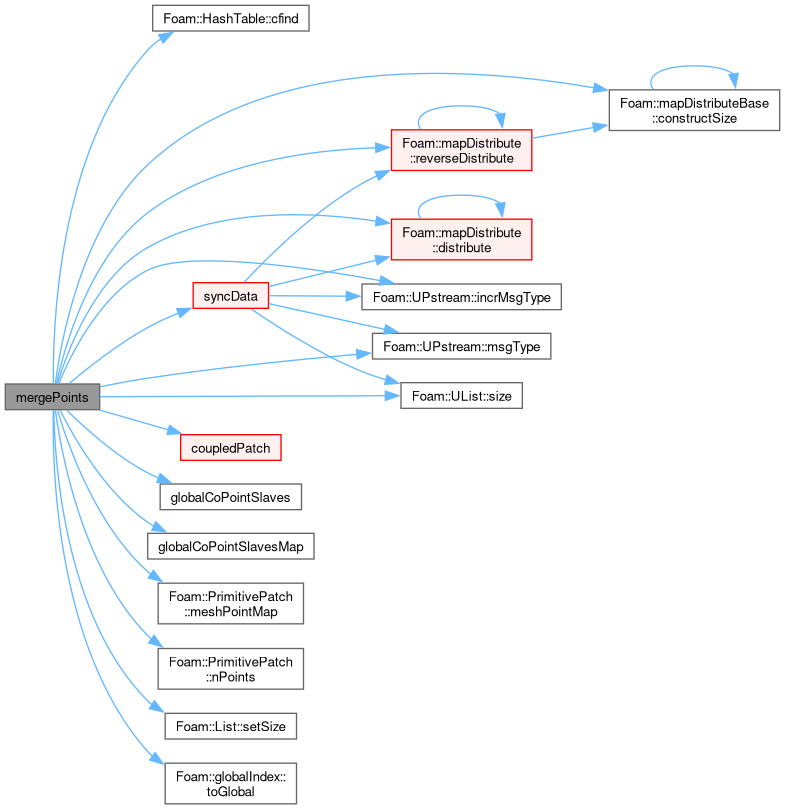

autoPtr< globalIndex >	mergePoints (labelList &pointToGlobal, labelList &uniquePoints) const
	Helper for merging (collocated!) mesh point data.

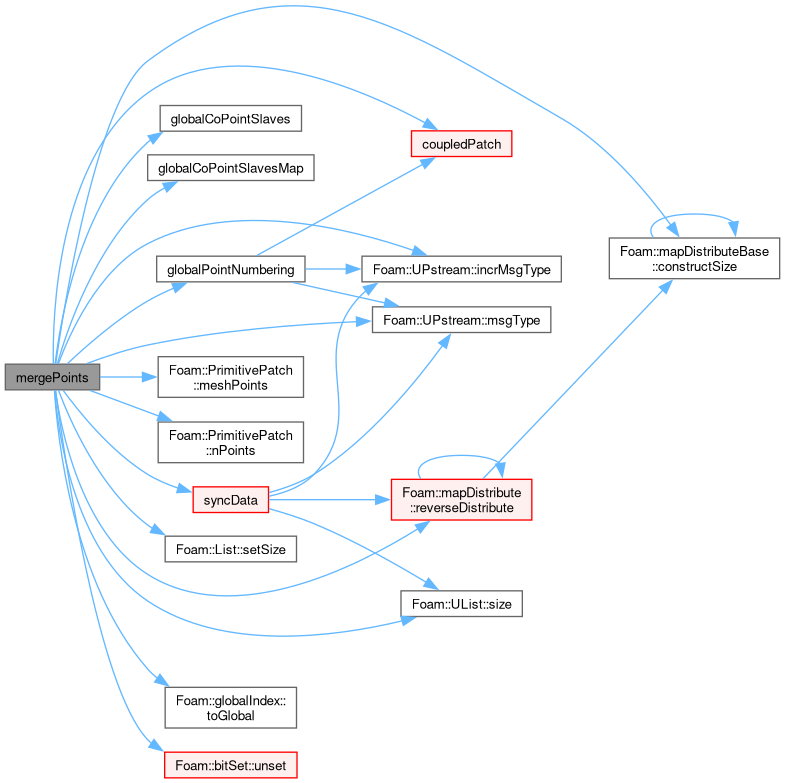

autoPtr< globalIndex >	mergePoints (const labelUList &meshPoints, const Map< label > &meshPointMap, labelList &pointToGlobal, labelList &uniqueMeshPoints) const
	Helper for merging (collocated!) patch point data.
void	movePoints (const pointField &newPoints)
	Update for moving points.

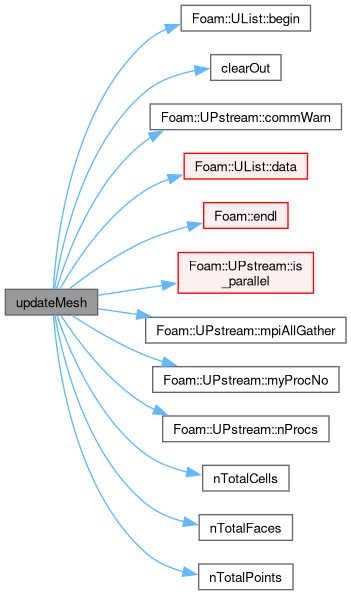

void	updateMesh ()
	Change global mesh data given a topological change. Does a.

Static Public Member Functions

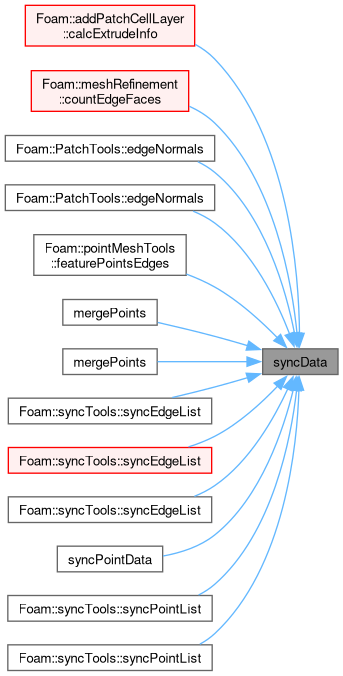

template<class Type, class CombineOp, class TransformOp>

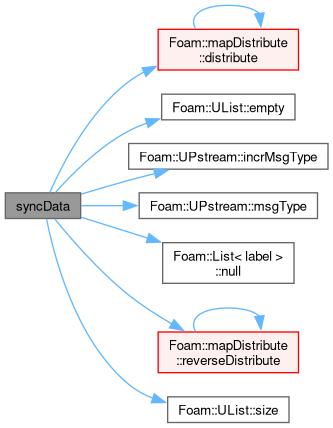

static void	syncData (List< Type > &elems, const labelListList &slaves, const labelListList &transformedSlaves, const mapDistribute &slavesMap, const globalIndexAndTransform &, const CombineOp &cop, const TransformOp &top)
	Helper: synchronise data with transforms.
template<class Type, class CombineOp>
static void	syncData (List< Type > &elems, const labelListList &slaves, const labelListList &transformedSlaves, const mapDistribute &slavesMap, const CombineOp &cop)
	Helper: synchronise data without transforms.

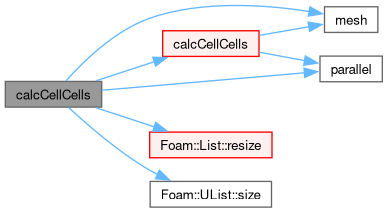

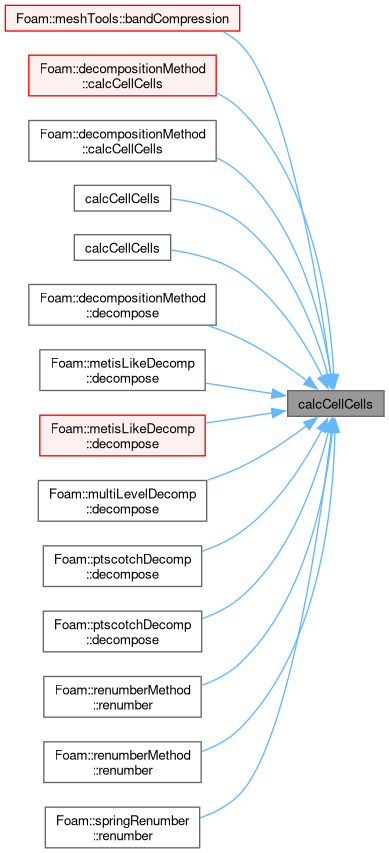

static void	calcCellCells (const polyMesh &mesh, const labelUList &agglom, const label nLocalCoarse, const bool parallel, CompactListList< label > &cellCells)
	Determine (local or global) cellCells from mesh agglomeration.
static void	calcCellCells (const polyMesh &mesh, const labelUList &agglom, const label nLocalCoarse, const bool parallel, CompactListList< label > &cellCells, CompactListList< scalar > &cellCellWeights)
	Determine (local or global) cellCells and face weights from mesh agglomeration.
static void	calcCellCells (const polyMesh &mesh, CompactListList< label > &cellCells, const bool parallel=false)
	Determine (local or global) mesh connectivity.
static labelList	calcCellCells (const polyMesh &mesh, const bitSet &selectedCells, CompactListList< label > &cellCells, const bool parallel=false)
	Determine (local or global) sub-mesh connectivity.
static labelList	calcCellCells (const polyMesh &mesh, const labelUList &selectedCells, CompactListList< label > &cellCells, const bool parallel=false)
	Determine (local or global) sub-mesh connectivity.

Static Public Attributes
static const Foam::scalar	matchTol_ = 1e-8
	Geometric tolerance (fraction of bounding box).

Detailed Description

Various mesh related information for a parallel run. Upon construction, constructs all info using parallel communication.

Requires:

all processor patches to have correct ordering.
all processorPatches to have their transforms set.

The shared point and edge addressing calculates addressing for points and edges on coupled patches. In the 'old' way a distinction was made between points/edges that are only on two processors and those that are on multiple processors. The problem is that those on multiple processors do not allow any transformations and require a global reduction on the master processor.

The alternative is to have an exchange schedule (through a 'mapDistribute') which sends all point/edge data (no distinction is made between those on two and those on more than two coupled patches) to the local 'master'. This master then does any calculation and sends the result back to the 'slave' points/edges. This only needs to be done on points on coupled faces. Any transformation is done using a predetermined set of transformations - since transformations have to be space filling only a certain number of transformation is supported.

The exchange needs

a field of data
a mapDistribute which does all parallel exchange and transformations This appends remote data to the end of the field.
a set of indices which indicate where to get untransformed data in the field
a set of indices which indicate where to get transformed data in the field

Note

compared to 17x nTotalFaces, nTotalPoints do not compensate for shared points since this would trigger full connectivity analysis
most calculation is demand driven and uses parallel communication so make sure to invoke on all processors at the same time
old sharedEdge calculation: currently an edge is considered shared if it uses two shared points and is used more than once. This is not correct on processor patches but it only slightly overestimates the number of shared edges. Doing full analysis of how many patches use the edge would be too complicated

See also: mapDistribute globalIndexAndTransform

Source files

Definition at line 104 of file globalMeshData.H.

Constructor & Destructor Documentation

◆ globalMeshData() [1/2]

globalMeshData ( const globalMeshData & )

delete

No copy construct.

References globalMeshData().

Referenced by globalMeshData(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ globalMeshData() [2/2]

globalMeshData ( const polyMesh & mesh )

Construct from mesh, derive rest (does parallel communication!).

Definition at line 1787 of file globalMeshData.C.

References mesh(), Foam::New(), and updateMesh().

Here is the call graph for this function:

◆ ~globalMeshData()

~globalMeshData ( )

Destructor.

Definition at line 1808 of file globalMeshData.C.

Member Function Documentation

◆ operator=()

void operator= ( const globalMeshData & )

delete

No copy assignment.

References globalMeshData().

Here is the call graph for this function:

◆ ClassName()

ClassName ( "globalMeshData" )

Runtime type information.

◆ clearOut()

void clearOut ( )

Remove all demand driven data.

Definition at line 1812 of file globalMeshData.C.

Referenced by updateMesh().

Here is the caller graph for this function:

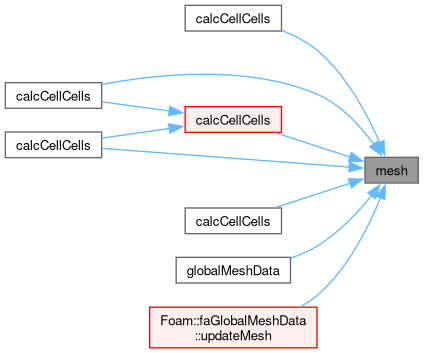

◆ mesh()

const polyMesh & mesh ( ) const

inlinenoexcept

Return the mesh reference.

Definition at line 430 of file globalMeshData.H.

References Foam::noexcept.

Referenced by calcCellCells(), calcCellCells(), calcCellCells(), calcCellCells(), calcCellCells(), globalMeshData(), and faGlobalMeshData::updateMesh().

Here is the caller graph for this function:

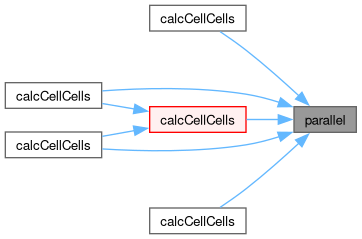

◆ parallel()

bool parallel ( ) const

inlinenoexcept

Does the mesh contain processor patches? (also valid when not running parallel).

Definition at line 439 of file globalMeshData.H.

References Foam::noexcept.

Referenced by calcCellCells(), calcCellCells(), calcCellCells(), calcCellCells(), and calcCellCells().

Here is the caller graph for this function:

◆ globalMeshPointAddr()

const globalIndex & globalMeshPointAddr ( ) const

inlinenoexcept

Global numbering for mesh points. Not compensated for duplicate points!

Definition at line 448 of file globalMeshData.H.

References Foam::noexcept.

◆ globalMeshFaceAddr()

const globalIndex & globalMeshFaceAddr ( ) const

inlinenoexcept

Global numbering for mesh faces. Not compensated for duplicate faces!

Definition at line 457 of file globalMeshData.H.

References Foam::noexcept.

◆ globalMeshCellAddr()

const globalIndex & globalMeshCellAddr ( ) const

inlinenoexcept

Global numbering for mesh cells.

Definition at line 465 of file globalMeshData.H.

References Foam::noexcept.

◆ nTotalPoints()

label nTotalPoints ( ) const

inlinenoexcept

Total global number of mesh points. Not compensated for duplicate points!

Definition at line 474 of file globalMeshData.H.

References Foam::noexcept.

Referenced by updateMesh().

Here is the caller graph for this function:

◆ nTotalFaces()

label nTotalFaces ( ) const

inlinenoexcept

Total global number of mesh faces. Not compensated for duplicate faces!

Definition at line 483 of file globalMeshData.H.

References Foam::noexcept.

Referenced by updateMesh().

Here is the caller graph for this function:

◆ nTotalCells()

label nTotalCells ( ) const

inlinenoexcept

Total global number of mesh cells.

Definition at line 491 of file globalMeshData.H.

References Foam::noexcept.

Referenced by meshRefinement::printMeshInfo(), and updateMesh().

Here is the caller graph for this function:

◆ topology()

const processorTopology & topology ( ) const

inlinenoexcept

The processor to processor topology.

Definition at line 502 of file globalMeshData.H.

References Foam::noexcept.

Referenced by addPatchCellLayer::calcExtrudeInfo(), FaceCellWave< Type, TrackingData >::handleProcPatches(), and Cloud< ParticleType >::move().

Here is the caller graph for this function:

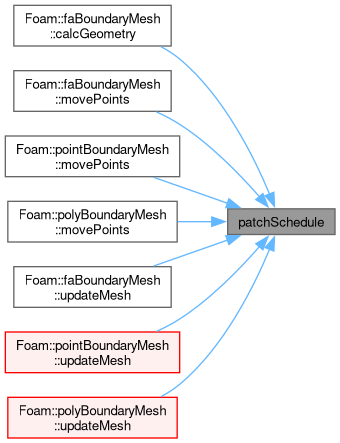

◆ patchSchedule()

const lduSchedule & patchSchedule ( ) const

inlinenoexcept

Order in which the patches should be initialised/evaluated corresponding to the schedule.

Definition at line 511 of file globalMeshData.H.

References Foam::noexcept.

Referenced by faBoundaryMesh::calcGeometry(), faBoundaryMesh::movePoints(), pointBoundaryMesh::movePoints(), polyBoundaryMesh::movePoints(), faBoundaryMesh::updateMesh(), pointBoundaryMesh::updateMesh(), and polyBoundaryMesh::updateMesh().

Here is the caller graph for this function:

◆ processorPatches()

const labelList & processorPatches ( ) const

inlinenoexcept

Return list of processor patch labels.

(size of list = number of processor patches)

Definition at line 521 of file globalMeshData.H.

References Foam::noexcept.

Referenced by FaceCellWave< Type, TrackingData >::handleProcPatches(), and Cloud< ParticleType >::move().

Here is the caller graph for this function:

◆ processorPatchIndices()

const labelList & processorPatchIndices ( ) const

inlinenoexcept

Return list of indices into processorPatches_ for each patch.

Index = -1 for non-processor parches. (size of list = number of patches)

Definition at line 532 of file globalMeshData.H.

References Foam::noexcept.

◆ processorPatchNeighbours()

const labelList & processorPatchNeighbours ( ) const

inlinenoexcept

Return processorPatchIndices of the neighbours processor patches. -1 if not running parallel.

Definition at line 541 of file globalMeshData.H.

References Foam::noexcept.

Referenced by Cloud< ParticleType >::move().

Here is the caller graph for this function:

◆ nGlobalPoints()

Foam::label nGlobalPoints ( ) const

Return number of globally shared points.

Definition at line 2012 of file globalMeshData.C.

Referenced by sharedPoints(), syncTools::syncPointMap(), and faGlobalMeshData::updateMesh().

Here is the caller graph for this function:

◆ sharedPointLabels()

const Foam::labelList & sharedPointLabels ( ) const

Return indices of local points that are globally shared.

Definition at line 2022 of file globalMeshData.C.

Referenced by geometricSharedPoints(), sharedPointGlobalLabels(), sharedPoints(), syncTools::syncEdgeMap(), syncTools::syncPointMap(), and faGlobalMeshData::updateMesh().

Here is the caller graph for this function:

◆ sharedPointAddr()

const Foam::labelList & sharedPointAddr ( ) const

Return addressing into the complete globally shared points list.

Note: It is assumed that a (never constructed) complete list of globally shared points exists. The set of shared points on the current processor is a subset of all shared points. Shared point addressing gives the index in the list of all globally shared points for each of the locally shared points.

Definition at line 2032 of file globalMeshData.C.

Referenced by sharedPoints(), syncTools::syncEdgeMap(), syncTools::syncPointMap(), and faGlobalMeshData::updateMesh().

Here is the caller graph for this function:

◆ sharedPointGlobalLabels()

const Foam::labelList & sharedPointGlobalLabels ( ) const

Return shared point global labels. Tries to read 'pointProcAddressing' and returns list or -1 if none available.

Definition at line 1865 of file globalMeshData.C.

References Foam::endl(), forAll, polyMesh::meshSubDir, IOobjectOption::MUST_READ, pointLabels(), Foam::Pout, sharedPointGlobalLabels(), sharedPointLabels(), and IOobject::typeHeaderOk().

Referenced by sharedPointGlobalLabels().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sharedPoints()

Foam::pointField sharedPoints ( ) const

Collect coordinates of shared points on all processors. (does parallel communication!).

Note: not valid for cyclicParallel since shared cyclic points are merged into single global point. (use geometricSharedPoints instead)

Definition at line 1916 of file globalMeshData.C.

References UPstream::broadcast, forAll, UPstream::incrMsgType(), UPstream::master(), UPstream::masterNo(), UPstream::msgType(), nGlobalPoints(), UPstream::parRun(), pointLabels(), UPstream::scheduled, sharedPointAddr(), sharedPointLabels(), sharedPoints(), and UPstream::subProcs().

Referenced by geometricSharedPoints(), and sharedPoints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ geometricSharedPoints()

Foam::pointField geometricSharedPoints ( ) const

Like sharedPoints but keeps cyclic points separate. (does geometric merging; uses matchTol_*bb as merging tolerance) Use sharedPoints() instead.

Definition at line 1982 of file globalMeshData.C.

References Pstream::combineReduce(), UPstream::incrMsgType(), Foam::inplaceMergePoints(), matchTol_, UPstream::msgType(), sharedPointLabels(), and sharedPoints().

Here is the call graph for this function:

◆ nGlobalEdges()

Foam::label nGlobalEdges ( ) const

Return number of globally shared edges.

Demand-driven calculation so call needs to be synchronous among processors!

Definition at line 2042 of file globalMeshData.C.

◆ sharedEdgeLabels()

const Foam::labelList & sharedEdgeLabels ( ) const

Return indices of local edges that are globally shared.

Demand-driven calculation so call needs to be synchronous among processors!

Definition at line 2052 of file globalMeshData.C.

◆ sharedEdgeAddr()

const Foam::labelList & sharedEdgeAddr ( ) const

Return addressing into the complete globally shared edge list.

The set of shared edges on the current processor is a subset of all shared edges. Shared edge addressing gives the index in the list of all globally shared edges for each of the locally shared edges. Demand-driven calculation so call needs to be synchronous among processors!

Definition at line 2062 of file globalMeshData.C.

◆ coupledPatch()

const Foam::indirectPrimitivePatch & coupledPatch ( ) const

Return patch of all coupled faces.

Definition at line 2072 of file globalMeshData.C.

References Foam::endl(), forAll, Foam::Pout, and pp().

Referenced by addPatchCellLayer::calcExtrudeInfo(), createShellMesh::calcPointRegions(), meshRefinement::countEdgeFaces(), coupledPatchMeshEdges(), pointMeshTools::featurePointsEdges(), syncTools::getMasterPoints(), globalEdgeNumbering(), globalIndexAndTransform::globalIndexAndTransform(), globalPointNumbering(), mergePoints(), mergePoints(), PatchTools::pointNormals(), PatchTools::pointNormals(), volPointInterpolationAdjoint::pushUntransformedData(), syncTools::syncEdgeList(), syncTools::syncEdgeList(), syncPointData(), syncTools::syncPointList(), syncTools::syncPointList(), and pointConstraints::syncUntransformedData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ coupledPatchMeshEdges()

const Foam::labelList & coupledPatchMeshEdges ( ) const

Return map from coupledPatch edges to mesh edges.

Definition at line 2133 of file globalMeshData.C.

References coupledPatch().

Referenced by coupledPatchMeshEdgeMap(), syncTools::getMasterEdges(), syncTools::syncEdgeList(), and syncTools::syncEdgeList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ coupledPatchMeshEdgeMap()

const Foam::Map< Foam::label > & coupledPatchMeshEdgeMap ( ) const

Return map from mesh edges to coupledPatch edges.

Definition at line 2153 of file globalMeshData.C.

References coupledPatchMeshEdges(), and Foam::invertToMap().

Referenced by syncTools::syncEdgeList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ globalTransforms()

const Foam::globalIndexAndTransform & globalTransforms ( ) const

Global transforms numbering.

Definition at line 2189 of file globalMeshData.C.

References UPstream::incrMsgType(), and UPstream::msgType().

Referenced by addPatchCellLayer::calcExtrudeInfo(), PatchTools::edgeNormals(), PatchTools::edgeNormals(), pointMeshTools::featurePointsEdges(), PatchTools::pointNormals(), PatchTools::pointNormals(), syncTools::syncEdgeList(), syncTools::syncEdgeList(), syncPointData(), and syncTools::syncPointList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ syncData() [1/2]

template<class Type, class CombineOp, class TransformOp>

void syncData	(	List< Type > &	elems,
		const labelListList &	slaves,
		const labelListList &	transformedSlaves,
		const mapDistribute &	slavesMap,
		const globalIndexAndTransform &	transforms,
		const CombineOp &	cop,
		const TransformOp &	top )

static

Helper: synchronise data with transforms.

Definition at line 29 of file globalMeshDataTemplates.C.

References mapDistribute::distribute(), UList< T >::empty(), forAll, UPstream::incrMsgType(), UPstream::msgType(), List< label >::null(), mapDistribute::reverseDistribute(), and UList< T >::size().

Referenced by addPatchCellLayer::calcExtrudeInfo(), meshRefinement::countEdgeFaces(), PatchTools::edgeNormals(), PatchTools::edgeNormals(), pointMeshTools::featurePointsEdges(), mergePoints(), mergePoints(), syncTools::syncEdgeList(), syncTools::syncEdgeList(), syncTools::syncEdgeList(), syncPointData(), syncTools::syncPointList(), and syncTools::syncPointList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ syncData() [2/2]

template<class Type, class CombineOp>

void syncData	(	List< Type > &	elems,
		const labelListList &	slaves,
		const labelListList &	transformedSlaves,
		const mapDistribute &	slavesMap,
		const CombineOp &	cop )

static

Helper: synchronise data without transforms.

Definition at line 100 of file globalMeshDataTemplates.C.

References mapDistribute::distribute(), UList< T >::empty(), forAll, UPstream::incrMsgType(), UPstream::msgType(), List< label >::null(), mapDistribute::reverseDistribute(), and UList< T >::size().

Here is the call graph for this function:

◆ globalPointNumbering()

const Foam::globalIndex & globalPointNumbering ( ) const

Numbering of coupled points is according to coupledPatch.

Definition at line 2169 of file globalMeshData.C.

References coupledPatch(), UPstream::incrMsgType(), UPstream::msgType(), and nPoints.

Referenced by mergePoints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ globalPointSlaves()

const Foam::labelListList & globalPointSlaves ( ) const

Definition at line 2205 of file globalMeshData.C.

Referenced by syncTools::getMasterPoints(), PatchTools::pointNormals(), PatchTools::pointNormals(), syncPointData(), syncTools::syncPointList(), and syncTools::syncPointList().

Here is the caller graph for this function:

◆ globalPointTransformedSlaves()

const Foam::labelListList & globalPointTransformedSlaves ( ) const

Definition at line 2215 of file globalMeshData.C.

Referenced by syncTools::getMasterPoints(), PatchTools::pointNormals(), PatchTools::pointNormals(), syncPointData(), syncTools::syncPointList(), and syncTools::syncPointList().

Here is the caller graph for this function:

◆ globalPointSlavesMap()

const Foam::mapDistribute & globalPointSlavesMap ( ) const

Definition at line 2226 of file globalMeshData.C.

Referenced by PatchTools::pointNormals(), PatchTools::pointNormals(), syncPointData(), syncTools::syncPointList(), and syncTools::syncPointList().

Here is the caller graph for this function:

◆ syncPointData()

template<class Type, class CombineOp, class TransformOp>

void syncPointData	(	List< Type > &	pointData,
		const CombineOp &	cop,
		const TransformOp &	top ) const

Helper to synchronise coupled patch point data.

Definition at line 163 of file globalMeshDataTemplates.C.

References Foam::abort(), coupledPatch(), Foam::FatalError, FatalErrorInFunction, forAll, globalPointSlaves(), globalPointSlavesMap(), globalPointTransformedSlaves(), globalTransforms(), PrimitivePatch< FaceList, PointField >::meshPoints(), UList< T >::size(), and syncData().

Here is the call graph for this function:

◆ globalEdgeNumbering()

const Foam::globalIndex & globalEdgeNumbering ( ) const

Definition at line 2236 of file globalMeshData.C.

References coupledPatch(), UPstream::incrMsgType(), and UPstream::msgType().

Here is the call graph for this function:

◆ globalEdgeSlaves()

const Foam::labelListList & globalEdgeSlaves ( ) const

Definition at line 2255 of file globalMeshData.C.

Referenced by addPatchCellLayer::calcExtrudeInfo(), meshRefinement::countEdgeFaces(), PatchTools::edgeNormals(), PatchTools::edgeNormals(), pointMeshTools::featurePointsEdges(), syncTools::getMasterEdges(), syncTools::syncEdgeList(), syncTools::syncEdgeList(), and syncTools::syncEdgeList().

Here is the caller graph for this function:

◆ globalEdgeTransformedSlaves()

const Foam::labelListList & globalEdgeTransformedSlaves ( ) const

Definition at line 2265 of file globalMeshData.C.

Referenced by addPatchCellLayer::calcExtrudeInfo(), meshRefinement::countEdgeFaces(), PatchTools::edgeNormals(), PatchTools::edgeNormals(), pointMeshTools::featurePointsEdges(), syncTools::getMasterEdges(), syncTools::syncEdgeList(), syncTools::syncEdgeList(), and syncTools::syncEdgeList().

Here is the caller graph for this function:

◆ globalEdgeSlavesMap()

const Foam::mapDistribute & globalEdgeSlavesMap ( ) const

Definition at line 2286 of file globalMeshData.C.

Referenced by addPatchCellLayer::calcExtrudeInfo(), meshRefinement::countEdgeFaces(), PatchTools::edgeNormals(), PatchTools::edgeNormals(), pointMeshTools::featurePointsEdges(), syncTools::syncEdgeList(), syncTools::syncEdgeList(), and syncTools::syncEdgeList().

Here is the caller graph for this function:

◆ globalEdgeOrientation()

const Foam::bitSet & globalEdgeOrientation ( ) const

Is my edge same orientation as master edge.

Definition at line 2276 of file globalMeshData.C.

Referenced by syncTools::syncEdgeList(), and syncTools::syncEdgeList().

Here is the caller graph for this function:

◆ globalCoPointSlaves()

const Foam::labelListList & globalCoPointSlaves ( ) const

Definition at line 2394 of file globalMeshData.C.

Referenced by globalIndexAndTransform::globalIndexAndTransform(), mergePoints(), mergePoints(), volPointInterpolationAdjoint::pushUntransformedData(), and pointConstraints::syncUntransformedData().

Here is the caller graph for this function:

◆ globalCoPointSlavesMap()

const Foam::mapDistribute & globalCoPointSlavesMap ( ) const

Definition at line 2404 of file globalMeshData.C.

Referenced by globalIndexAndTransform::globalIndexAndTransform(), mergePoints(), mergePoints(), volPointInterpolationAdjoint::pushUntransformedData(), and pointConstraints::syncUntransformedData().

Here is the caller graph for this function:

◆ globalBoundaryFaceNumbering()

const Foam::globalIndex & globalBoundaryFaceNumbering ( ) const

Numbering of boundary faces is face-mesh.nInternalFaces().

Definition at line 2296 of file globalMeshData.C.

◆ globalPointBoundaryFaces()

const Foam::labelListList & globalPointBoundaryFaces ( ) const

Definition at line 2307 of file globalMeshData.C.

◆ globalPointTransformedBoundaryFaces()

const Foam::labelListList & globalPointTransformedBoundaryFaces ( ) const

Definition at line 2319 of file globalMeshData.C.

◆ globalPointBoundaryFacesMap()

const Foam::mapDistribute & globalPointBoundaryFacesMap ( ) const

Definition at line 2329 of file globalMeshData.C.

◆ boundaryCells()

const Foam::labelList & boundaryCells ( ) const

From boundary cell to mesh cell.

Definition at line 2340 of file globalMeshData.C.

◆ globalBoundaryCellNumbering()

const Foam::globalIndex & globalBoundaryCellNumbering ( ) const

Numbering of boundary cells is according to boundaryCells().

Definition at line 2350 of file globalMeshData.C.

◆ globalPointBoundaryCells()

const Foam::labelListList & globalPointBoundaryCells ( ) const

Definition at line 2361 of file globalMeshData.C.

◆ globalPointTransformedBoundaryCells()

const Foam::labelListList & globalPointTransformedBoundaryCells ( ) const

Definition at line 2373 of file globalMeshData.C.

◆ globalPointBoundaryCellsMap()

const Foam::mapDistribute & globalPointBoundaryCellsMap ( ) const

Definition at line 2383 of file globalMeshData.C.

◆ mergePoints() [1/2]

Foam::autoPtr< Foam::globalIndex > mergePoints	(	labelList &	pointToGlobal,
		labelList &	uniquePoints ) const

Helper for merging (collocated!) mesh point data.

Determines:

my unique indices
global numbering over all unique indices
the global number for all local points (so this will be local for my unique points)

Definition at line 2414 of file globalMeshData.C.

References mapDistributeBase::constructSize(), coupledPatch(), forAll, globalCoPointSlaves(), globalCoPointSlavesMap(), globalPointNumbering(), UPstream::incrMsgType(), PrimitivePatch< FaceList, PointField >::meshPoints(), UPstream::msgType(), PrimitivePatch< FaceList, PointField >::nPoints(), mapDistribute::reverseDistribute(), List< T >::setSize(), UList< T >::size(), syncData(), globalIndex::toGlobal(), and bitSet::unset().

Here is the call graph for this function:

◆ mergePoints() [2/2]

Foam::autoPtr< Foam::globalIndex > mergePoints	(	const labelUList &	meshPoints,
		const Map< label > &	meshPointMap,
		labelList &	pointToGlobal,
		labelList &	uniqueMeshPoints ) const

Helper for merging (collocated!) patch point data.

Takes maps from: local points to/from mesh. Determines

my unique points. These are mesh point indices, not patch point indices.
global numbering over all unique indices.
the global number for all local points.

Parameters

meshPointMap currently unused

Definition at line 2553 of file globalMeshData.C.

References HashTable< T, Key, Hash >::cfind(), mapDistributeBase::constructSize(), coupledPatch(), mapDistribute::distribute(), forAll, globalCoPointSlaves(), globalCoPointSlavesMap(), UPstream::incrMsgType(), Foam::labelMax, PrimitivePatch< FaceList, PointField >::meshPointMap(), UPstream::msgType(), PrimitivePatch< FaceList, PointField >::nPoints(), mapDistribute::reverseDistribute(), List< T >::setSize(), UList< T >::size(), syncData(), and globalIndex::toGlobal().

Here is the call graph for this function:

◆ movePoints()

void movePoints ( const pointField & newPoints )

Update for moving points.

Definition at line 2774 of file globalMeshData.C.

◆ updateMesh()

void updateMesh ( )

Change global mesh data given a topological change. Does a.

full parallel analysis to determine shared points and boundaries.

Definition at line 2783 of file globalMeshData.C.

References UList< T >::begin(), clearOut(), UPstream::commWarn(), UList< T >::data(), Foam::endl(), Foam::Info, UPstream::is_parallel(), matchTol_, UPstream::mpiAllGather(), UPstream::myProcNo(), UPstream::nProcs(), nTotalCells(), nTotalFaces(), nTotalPoints(), and Foam::Pout.

Referenced by globalMeshData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calcCellCells() [1/5]

void calcCellCells	(	const polyMesh &	mesh,
		const labelUList &	agglom,
		const label	nLocalCoarse,
		const bool	parallel,
		CompactListList< label > &	cellCells )

static

Determine (local or global) cellCells from mesh agglomeration.

Agglomeration is local to the processor.

parallel = false Resulting connections are in local cell indices. Coupled across cyclics but not processor patches.
parallel = true Resulting connections are in global cell indices. Coupled across cyclics and processor patches.

Parameters

	agglom	The cell agglomeration, negative agglomeration are excluded from the sub-mesh
	nLocalCoarse	The number of unique, agglomerated cells
	parallel	Use global cell ids in parallel
[out]	cellCells	the mesh connectivity as CSR

Definition at line 298 of file globalMeshDataTopology.C.

References Foam::calcCellCellsImpl(), mesh(), and parallel().

Referenced by Foam::meshTools::bandCompression(), decompositionMethod::calcCellCells(), decompositionMethod::calcCellCells(), calcCellCells(), calcCellCells(), decompositionMethod::decompose(), metisLikeDecomp::decompose(), metisLikeDecomp::decompose(), multiLevelDecomp::decompose(), ptscotchDecomp::decompose(), ptscotchDecomp::decompose(), renumberMethod::renumber(), renumberMethod::renumber(), and springRenumber::renumber().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calcCellCells() [2/5]

void calcCellCells	(	const polyMesh &	mesh,
		const labelUList &	agglom,
		const label	nLocalCoarse,
		const bool	parallel,
		CompactListList< label > &	cellCells,
		CompactListList< scalar > &	cellCellWeights )

static

Determine (local or global) cellCells and face weights from mesh agglomeration.

Uses mag of faceArea as weights

Parameters

	agglom	The cell agglomeration, negative agglomeration are excluded from the sub-mesh
	nLocalCoarse	The number of unique, agglomerated cells
	parallel	Use global cell ids in parallel
[out]	cellCells	the mesh connectivity as CSR
[out]	cellCellWeights	the connectivity weights (face area)

Definition at line 318 of file globalMeshDataTopology.C.

References Foam::calcCellCellsImpl(), mesh(), and parallel().

Here is the call graph for this function:

◆ calcCellCells() [3/5]

void calcCellCells	(	const polyMesh &	mesh,
		CompactListList< label > &	cellCells,
		const bool	parallel = false )

static

Determine (local or global) mesh connectivity.

parallel = false Resulting connections are in local cell indices. Coupled across cyclics but not processor patches.
parallel = true Resulting connections are in global cell indices. Coupled across cyclics and processor patches.

Parameters

[out]	cellCells	the mesh connectivity as CSR
	parallel	Use global cell ids in parallel

Definition at line 342 of file globalMeshDataTopology.C.

References Foam::calcCellCellsImpl(), mesh(), and parallel().

Here is the call graph for this function:

◆ calcCellCells() [4/5]

Foam::labelList calcCellCells	(	const polyMesh &	mesh,
		const bitSet &	selectedCells,
		CompactListList< label > &	cellCells,
		const bool	parallel = false )

static

Determine (local or global) sub-mesh connectivity.

parallel = false Resulting connections are in local cell indices. Coupled across cyclics but not processor patches.
parallel = true Resulting connections are in global cell indices. Coupled across cyclics and processor patches.

Returns: the cellMap

Parameters

	selectedCells	The cell-subset
[out]	cellCells	the mesh connectivity as CSR
	parallel	Use global cell ids in parallel

Definition at line 360 of file globalMeshDataTopology.C.

References calcCellCells(), mesh(), parallel(), List< T >::resize(), and UList< T >::size().

Here is the call graph for this function:

◆ calcCellCells() [5/5]

Foam::labelList calcCellCells	(	const polyMesh &	mesh,
		const labelUList &	selectedCells,
		CompactListList< label > &	cellCells,
		const bool	parallel = false )

static

Determine (local or global) sub-mesh connectivity.

parallel = false Resulting connections are in local cell indices. Coupled across cyclics but not processor patches.
parallel = true Resulting connections are in global cell indices. Coupled across cyclics and processor patches.

Returns: the cellMap

Parameters

	selectedCells	The cell-subset
[out]	cellCells	the mesh connectivity as CSR
	parallel	Use global cell ids in parallel

Definition at line 424 of file globalMeshDataTopology.C.

References calcCellCells(), mesh(), parallel(), List< T >::resize(), and UList< T >::size().

Here is the call graph for this function:

Member Data Documentation

◆ matchTol_

const scalar matchTol_ = 1e-8

static

Geometric tolerance (fraction of bounding box).

Definition at line 401 of file globalMeshData.H.

Referenced by Foam::defineTypeNameAndDebug(), geometricSharedPoints(), and updateMesh().

The documentation for this class was generated from the following files:

src/OpenFOAM/meshes/polyMesh/globalMeshData/globalMeshData.H
src/OpenFOAM/meshes/polyMesh/globalMeshData/globalMeshData.C
src/OpenFOAM/meshes/polyMesh/globalMeshData/globalMeshDataTemplates.C
src/OpenFOAM/meshes/polyMesh/globalMeshData/globalMeshDataTopology.C

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ globalMeshData() [1/2]

◆ globalMeshData() [2/2]

◆ ~globalMeshData()

Member Function Documentation

◆ operator=()

◆ ClassName()

◆ clearOut()

◆ mesh()

◆ parallel()

◆ globalMeshPointAddr()

◆ globalMeshFaceAddr()

◆ globalMeshCellAddr()

◆ nTotalPoints()

◆ nTotalFaces()

◆ nTotalCells()

◆ topology()

◆ patchSchedule()

◆ processorPatches()

◆ processorPatchIndices()

◆ processorPatchNeighbours()

◆ nGlobalPoints()

◆ sharedPointLabels()

◆ sharedPointAddr()

◆ sharedPointGlobalLabels()

◆ sharedPoints()

◆ geometricSharedPoints()

◆ nGlobalEdges()

◆ sharedEdgeLabels()

◆ sharedEdgeAddr()

◆ coupledPatch()

◆ coupledPatchMeshEdges()

◆ coupledPatchMeshEdgeMap()

◆ globalTransforms()

◆ syncData() [1/2]

◆ syncData() [2/2]

◆ globalPointNumbering()

◆ globalPointSlaves()

◆ globalPointTransformedSlaves()

◆ globalPointSlavesMap()

◆ syncPointData()

◆ globalEdgeNumbering()

◆ globalEdgeSlaves()

◆ globalEdgeTransformedSlaves()

◆ globalEdgeSlavesMap()

◆ globalEdgeOrientation()

◆ globalCoPointSlaves()

◆ globalCoPointSlavesMap()

◆ globalBoundaryFaceNumbering()

◆ globalPointBoundaryFaces()

◆ globalPointTransformedBoundaryFaces()

◆ globalPointBoundaryFacesMap()

◆ boundaryCells()

◆ globalBoundaryCellNumbering()

◆ globalPointBoundaryCells()

◆ globalPointTransformedBoundaryCells()

◆ globalPointBoundaryCellsMap()

◆ mergePoints() [1/2]

◆ mergePoints() [2/2]

◆ movePoints()

◆ updateMesh()

◆ calcCellCells() [1/5]

◆ calcCellCells() [2/5]

◆ calcCellCells() [3/5]

◆ calcCellCells() [4/5]

◆ calcCellCells() [5/5]

Member Data Documentation

◆ matchTol_
