supersonicFreestreamFvPatchVectorField Class Reference
Boundary conditions » Inlet | Boundary conditions » Outlet

This boundary condition provides a supersonic free-stream condition. More...

#include <supersonicFreestreamFvPatchVectorField.H>

Inheritance diagram for supersonicFreestreamFvPatchVectorField:
Inheritance graph
[legend]
Collaboration diagram for supersonicFreestreamFvPatchVectorField:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("supersonicFreestream")
 Runtime type information.
 supersonicFreestreamFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &)
 Construct from patch and internal field.
 supersonicFreestreamFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &, const dictionary &)
 Construct from patch, internal field and dictionary.
 supersonicFreestreamFvPatchVectorField (const supersonicFreestreamFvPatchVectorField &, const fvPatch &, const DimensionedField< vector, volMesh > &, const fvPatchFieldMapper &)
 Construct by mapping given supersonicFreestreamFvPatchVectorField.
 supersonicFreestreamFvPatchVectorField (const supersonicFreestreamFvPatchVectorField &)
 Construct as copy.
 supersonicFreestreamFvPatchVectorField (const supersonicFreestreamFvPatchVectorField &, const DimensionedField< vector, volMesh > &)
 Construct as copy setting internal field reference.
virtual tmp< fvPatchField< vector > > clone () const
 Return a clone.
virtual tmp< fvPatchField< vector > > clone (const DimensionedField< vector, volMesh > &iF) const
 Clone with an internal field reference.
const vector & UInf () const
 Return the velocity at infinity.
vector & UInf ()
 Return reference to the velocity at infinity to allow adjustment.
scalar pInf () const
 Return the pressure at infinity.
scalar & pInf ()
 Return reference to the pressure at infinity to allow adjustment.
scalar TInf () const
 Return the temperature at infinity.
scalar & TInf ()
 Return reference to the temperature at infinity.
virtual void updateCoeffs ()
 Update the coefficients associated with the patch field.
virtual void write (Ostream &) const
 Write.

Detailed Description

This boundary condition provides a supersonic free-stream condition.

  • supersonic outflow is vented according to ???
  • supersonic inflow is assumed to occur according to the Prandtl-Meyer expansion process.
  • subsonic outflow is applied via a zero-gradient condition from inside the domain.
Usage
Property Description Required Default value
T Temperature field name no T
p Pressure field name no p
psi Compressibility field name no thermo:psi
UInf free-stream velocity yes
pInf free-stream pressure yes
TInf free-stream temperature yes
gamma heat capacity ratio (cp/Cv) yes

Example of the boundary condition specification:

    <patchName>
    {
        type            supersonicFreestream;
        UInf            500;
        pInf            1e4;
        TInf            265;
        gamma           1.4;
    }
Note
This boundary condition is ill-posed if the free-stream flow is normal to the boundary.
Source files

Definition at line 124 of file supersonicFreestreamFvPatchVectorField.H.

Constructor & Destructor Documentation

◆ supersonicFreestreamFvPatchVectorField() [1/5]

supersonicFreestreamFvPatchVectorField ( const fvPatch & p,
const DimensionedField< vector, volMesh > & iF )

Construct from patch and internal field.

Definition at line 29 of file supersonicFreestreamFvPatchVectorField.C.

References p, and Foam::Zero.

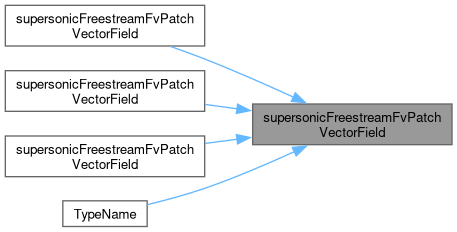

Referenced by supersonicFreestreamFvPatchVectorField(), supersonicFreestreamFvPatchVectorField(), supersonicFreestreamFvPatchVectorField(), and TypeName().

Here is the caller graph for this function:

◆ supersonicFreestreamFvPatchVectorField() [2/5]

supersonicFreestreamFvPatchVectorField ( const fvPatch & p,
const DimensionedField< vector, volMesh > & iF,
const dictionary & dict )

Construct from patch, internal field and dictionary.

Definition at line 51 of file supersonicFreestreamFvPatchVectorField.C.

References dict, Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, p, fvPatchFieldBase::readDict(), and Foam::Zero.

Here is the call graph for this function:

◆ supersonicFreestreamFvPatchVectorField() [3/5]

supersonicFreestreamFvPatchVectorField ( const supersonicFreestreamFvPatchVectorField & ptf,
const fvPatch & p,
const DimensionedField< vector, volMesh > & iF,
const fvPatchFieldMapper & mapper )

Construct by mapping given supersonicFreestreamFvPatchVectorField.

onto a new patch

Definition at line 91 of file supersonicFreestreamFvPatchVectorField.C.

References p, and supersonicFreestreamFvPatchVectorField().

Here is the call graph for this function:

◆ supersonicFreestreamFvPatchVectorField() [4/5]

supersonicFreestreamFvPatchVectorField ( const supersonicFreestreamFvPatchVectorField & sfspvf)

Construct as copy.

Definition at line 111 of file supersonicFreestreamFvPatchVectorField.C.

References supersonicFreestreamFvPatchVectorField().

Here is the call graph for this function:

◆ supersonicFreestreamFvPatchVectorField() [5/5]

supersonicFreestreamFvPatchVectorField ( const supersonicFreestreamFvPatchVectorField & sfspvf,
const DimensionedField< vector, volMesh > & iF )

Construct as copy setting internal field reference.

Definition at line 128 of file supersonicFreestreamFvPatchVectorField.C.

References supersonicFreestreamFvPatchVectorField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "supersonicFreestream" )

Runtime type information.

References supersonicFreestreamFvPatchVectorField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< vector > > clone ( ) const
inlinevirtual

Return a clone.

Definition at line 228 of file supersonicFreestreamFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< vector > > clone ( const DimensionedField< vector, volMesh > & iF) const
inlinevirtual

Clone with an internal field reference.

Definition at line 236 of file supersonicFreestreamFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ UInf() [1/2]

const vector & UInf ( ) const
inline

Return the velocity at infinity.

Definition at line 252 of file supersonicFreestreamFvPatchVectorField.H.

◆ UInf() [2/2]

vector & UInf ( )
inline

Return reference to the velocity at infinity to allow adjustment.

Definition at line 260 of file supersonicFreestreamFvPatchVectorField.H.

◆ pInf() [1/2]

scalar pInf ( ) const
inline

Return the pressure at infinity.

Definition at line 268 of file supersonicFreestreamFvPatchVectorField.H.

◆ pInf() [2/2]

scalar & pInf ( )
inline

Return reference to the pressure at infinity to allow adjustment.

Definition at line 276 of file supersonicFreestreamFvPatchVectorField.H.

◆ TInf() [1/2]

scalar TInf ( ) const
inline

Return the temperature at infinity.

Definition at line 284 of file supersonicFreestreamFvPatchVectorField.H.

◆ TInf() [2/2]

scalar & TInf ( )
inline

Return reference to the temperature at infinity.

to allow adjustment

Definition at line 294 of file supersonicFreestreamFvPatchVectorField.H.

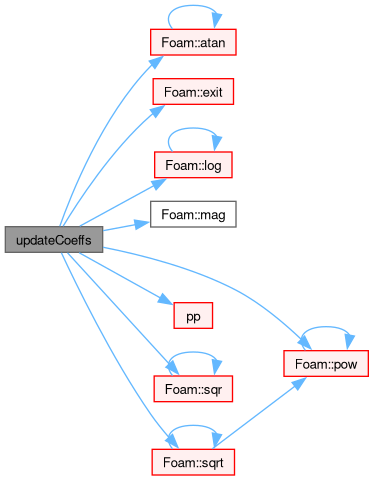

◆ updateCoeffs()

void updateCoeffs ( )
virtual

Update the coefficients associated with the patch field.

Definition at line 148 of file supersonicFreestreamFvPatchVectorField.C.

References Foam::atan(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::log(), Foam::mag(), Foam::pow(), pp(), R, Foam::sqr(), Foam::sqrt(), and U.

Here is the call graph for this function:

◆ write()

void write ( Ostream & os) const
virtual

Write.

Definition at line 281 of file supersonicFreestreamFvPatchVectorField.C.

References os(), fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:
The documentation for this class was generated from the following files:
