A surfaceWriter for special purpose debugging. Its definition and behaviour are subject to change at any time. More...

#include <debugSurfaceWriter.H>

Inheritance diagram for debugWriter:

Collaboration diagram for debugWriter:

Public Member Functions
	TypeNameNoDebug ("debug")
	Declare type-name, virtual type (without debug switch).
	debugWriter ()
	Default construct.
	debugWriter (const dictionary &options)
	Construct with some output options.
	debugWriter (const meshedSurf &surf, const fileName &outputPath, bool parallel=UPstream::parRun(), const dictionary &options=dictionary())
	Construct from components.
	debugWriter (const pointField &points, const faceList &faces, const fileName &outputPath, bool parallel=UPstream::parRun(), const dictionary &options=dictionary())
	Construct from components.
virtual	~debugWriter ()=default
	Destructor.
virtual fileName	write ()
	Write surface geometry to file.
	declareSurfaceWriterWriteMethod (label)
	declareSurfaceWriterWriteMethod (scalar)
	declareSurfaceWriterWriteMethod (vector)
	declareSurfaceWriterWriteMethod (sphericalTensor)
	declareSurfaceWriterWriteMethod (symmTensor)
	declareSurfaceWriterWriteMethod (tensor)
template<class Type>
Foam::tmp< Foam::Field< Type > >	mergeField (const Field< Type > &fld) const
template<class Type>
Foam::fileName	writeTemplate (const word &fieldName, const Field< Type > &localValues)
Public Member Functions inherited from surfaceWriter
	TypeName ("surfaceWriter")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, surfaceWriter, word,(),())
	declareRunTimeSelectionTable (autoPtr, surfaceWriter, wordDict,(const dictionary &writeOpts),(writeOpts))
	surfaceWriter ()
	Default construct.
	surfaceWriter (const dictionary &options)
	Default construct with specified options.
virtual	~surfaceWriter ()
	Destructor. Calls close().
virtual bool	enabled () const
	The writer is enabled. If the writer is not enabled, it may be possible for the caller to skip various preparatory operations.
virtual bool	separateGeometry () const
	True if the surface format requires geometry in a separate file.
virtual bool	usesFaceIds () const
	True if the writer format uses faceIds as part of its output.
virtual bool	needsUpdate () const
	Does the writer need an update (eg, lagging behind surface changes).
virtual bool	wroteData () const
	Geometry or fields written since the last open?
virtual bool	expire ()
	Mark that surface changed and the writer will need an update, and set nFields = 0.
virtual void	clear ()
	Close any open output, remove association with a surface and expire the writer. The parallel flag remains untouched.
virtual void	setSurface (const meshedSurf &surf, bool parallel)
	Change association with a surface, expire the writer with defined parallel/serial treatment.
virtual void	setSurface (const pointField &points, const faceList &faces, bool parallel)
	Change association with a surface, expire the writer with defined parallel/serial treatment.
virtual void	setSurface (const meshedSurf &surf)
	Change association with a surface, expire the writer with the current parallel/serial treatment.
virtual void	setSurface (const pointField &points, const faceList &faces)
	Change association with a surface, expire the writer with the current parallel/serial treatment.
bool	is_open () const noexcept
	Test if outputPath has been set.
bool	hasSurface () const
	Writer is associated with a surface.
bool	empty () const
	The surface to write is empty if the global number of faces is zero.
label	size () const
	The global number of faces for the associated surface.
label	nFields () const noexcept
	The number of expected output fields.
label	nFields (const label n) noexcept
	Set the number of expected output fields.
bool	isPointData () const noexcept
	Are the field data to be treated as point data?
bool	isPointData (const bool on) noexcept
	Set handling of field data to face/point data.
bool	useTimeDir () const noexcept
	Should a time directory be spliced into the output path?
bool	useTimeDir (const bool on) noexcept
	Enable/disable use of spliced output path.
bool	verbose () const noexcept
	Get output verbosity.
bool	verbose (const bool on) noexcept
	Enable/disable verbose output.
scalar	mergeDim () const noexcept
	The current value of the point merge dimension (metre).
scalar	mergeDim (const scalar dist) noexcept
	Change the point merge dimension (metre).
scalar	scale () const noexcept
	The current value of the geometry scaling.
scalar	scale (const scalar factor) noexcept
	Change the geometry scaling.
const coordSystem::cartesian &	transform () const noexcept
	The current (cartesian) coordinate system transformation.
bool	hasTime () const
	True if there is a known time.
const word &	timeName () const
	The current time value/name.
scalar	timeValue () const
	The current time value/name.
void	setTime (const instant &inst)
	Set the current time.
void	setTime (scalar timeValue)
	Set current time from timeValue, auto generating the name.
void	setTime (scalar timeValue, const word &timeName)
	Set current time from timeValue and timeName.
void	unsetTime ()
	Clear the current time.
virtual void	beginTime (const Time &t)
	Begin a time-step.
virtual void	beginTime (const instant &inst)
	Begin a time-step.
virtual void	endTime ()
	End a time-step.
virtual void	open (const fileName &outputPath)
	Open for output on specified path, using existing surface.
virtual void	open (const pointField &points, const faceList &faces, const fileName &outputPath, bool parallel)
	Open from components.
virtual void	open (const meshedSurf &surf, const fileName &outputPath, bool parallel)
	Open from components.
virtual void	open (const pointField &points, const faceList &faces, const fileName &outputPath)
	Open from components, with the current parallel/serial treatment.
virtual void	open (const meshedSurf &surf, const fileName &outputPath)
	Open from components, with the current parallel/serial treatment.
virtual void	close ()
	Finish output, performing any necessary cleanup.
virtual fileName	write (const word &fieldName, const Field< label > &values)=0
	Write field of label (per face or vertex).
virtual fileName	write (const word &fieldName, const Field< scalar > &values)=0
	Write field of scalar (per face or vertex).
virtual fileName	write (const word &fieldName, const Field< vector > &values)=0
	Write field of vector (per face or vertex).
virtual fileName	write (const word &fieldName, const Field< sphericalTensor > &values)=0
	Write field of sphericalTensor (per face or vertex).
virtual fileName	write (const word &fieldName, const Field< symmTensor > &values)=0
	Write field of symmTensor (per face or vertex).
virtual fileName	write (const word &fieldName, const Field< tensor > &values)=0
	Write field of tensor (per face or vertex).
virtual InfoProxy< surfaceWriter >	info () const noexcept
	Return info proxy, used to print information to a stream.
template<class Type>
Foam::tmp< Foam::Field< Type > >	mergeFieldTemplate (const Field< Type > &fld) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	adjustFieldTemplate (const word &fieldName, const tmp< Field< Type > > &tfield) const

Additional Inherited Members
Static Public Member Functions inherited from surfaceWriter
static dictionary	formatOptions (const dictionary &dict, const word &formatName, const word &entryName="formatOptions")
	Same as fileFormats::getFormatOptions.
static dictionary	formatOptions (const dictionary &dict, const dictionary &surfDict, const word &formatName, const word &entryName="formatOptions")
	Same as fileFormats::getFormatOptions.
static bool	supportedType (const word &writeType)
	True if New is likely to succeed for this writeType.
static autoPtr< surfaceWriter >	TryNew (const word &writeType)
	Optional select construct surfaceWriter.
static autoPtr< surfaceWriter >	TryNew (const word &writeType, const dictionary &writeOptions)
	Optional select construct surfaceWriter with extra write options.
static autoPtr< surfaceWriter >	New (const word &writeType)
	Select construct a surfaceWriter.
static autoPtr< surfaceWriter >	New (const word &writeType, const dictionary &writeOptions)
	Select construct a surfaceWriter with extra write options.
Static Public Attributes inherited from surfaceWriter
static scalar	defaultMergeDim = 1e-8
	The default merge dimension (1e-8).
Protected Member Functions inherited from surfaceWriter
void	checkOpen () const
	Verify that the outputPath_ has been set or FatalError.
virtual bool	merge () const
	Merge surfaces if they are not already upToDate (parallel) or simply mark the surface as being up-to-date.
const meshedSurf &	surface () const
	Merge surfaces (if not upToDate) and return merged (parallel) or regular surface (non-parallel).
const meshedSurfRef &	adjustSurface () const
	Merge surfaces (if not upToDate) and return merged (parallel) or regular surface (non-parallel) and apply any coordinate system changes and/or output scaling.
template<class Type>
tmp< Field< Type > >	mergeFieldTemplate (const Field< Type > &fld) const
	Gather (merge) fields with renumbering and shrinking for point data.
template<class Type>
tmp< Field< Type > >	adjustFieldTemplate (const word &fieldName, const tmp< Field< Type > > &tfield) const
	Apply refLevel and fieldScaling.
tmp< Field< label > >	mergeField (const Field< label > &fld) const
tmp< Field< label > >	adjustField (const word &fieldName, const tmp< Field< label > > &tfield) const
tmp< Field< scalar > >	mergeField (const Field< scalar > &fld) const
tmp< Field< scalar > >	adjustField (const word &fieldName, const tmp< Field< scalar > > &tfield) const
tmp< Field< vector > >	mergeField (const Field< vector > &fld) const
tmp< Field< vector > >	adjustField (const word &fieldName, const tmp< Field< vector > > &tfield) const
tmp< Field< sphericalTensor > >	mergeField (const Field< sphericalTensor > &fld) const
tmp< Field< sphericalTensor > >	adjustField (const word &fieldName, const tmp< Field< sphericalTensor > > &tfield) const
tmp< Field< symmTensor > >	mergeField (const Field< symmTensor > &fld) const
tmp< Field< symmTensor > >	adjustField (const word &fieldName, const tmp< Field< symmTensor > > &tfield) const
tmp< Field< tensor > >	mergeField (const Field< tensor > &fld) const
tmp< Field< tensor > >	adjustField (const word &fieldName, const tmp< Field< tensor > > &tfield) const
template<class Type>
fileName	writeTemplate (const word &fieldName, const Field< Type > &localValues)
	Dummy templated write operation.
Protected Attributes inherited from surfaceWriter
meshedSurfRef	surf_
	Reference to surface or surface components.
mergedSurf	mergedSurf_
	Surface after merging (parallel).
meshedSurfRef	adjustedSurf_
	The surface after point coordinate transforms and scaling.
scalar	mergeDim_
	Dimension for merging.
scalar	geometryScale_
	Output geometry scaling after rotate/translate.
point	geometryCentre_
	The centre of rotation (untranslate, translate).
coordSystem::cartesian	geometryTransform_
	Local coordinate system transformation.
bool	upToDate_
	The topology/surface is up-to-date?
bool	wroteGeom_
	Track if geometry has been written since the last open.
bool	parallel_
	Writing in parallel (via master).
bool	useTimeDir_
	Insert additional time sub-directory in the output path.
bool	isPointData_
	Is point vs cell data.
bool	verbose_
	Additional output verbosity.
UPstream::commsTypes	commType_
	Communication type (for field merging).
bool	gatherv_
	Prefer MPI gatherv intrinsic (for field merging) [experimental].
label	nFields_
	The number of fields.
instant	currTime_
	The current time value/name.
fileName	outputPath_
	The full output directory and file (surface) name.
dictionary	fieldLevel_
	Field level to remove (on output).
dictionary	fieldScale_
	Field scaling (on output).

Detailed Description

A surfaceWriter for special purpose debugging. Its definition and behaviour are subject to change at any time.

formatOptions
{
    debug
    {
        merge   true;
        write   true;
    }
}

Format options:

Property	Description	Required	Default
`commsType`	scheduled/nonBlocking/buffered	no	scheduled
`merge`	Enable geometry/field merging	no	true
`write`	Write file(s)	no	false

Note: Disabling geometry/field merging (in parallel) implicitly deactivates writing as well.

Output files (if any) are written as boundaryData (binary + header).

Source files

Definition at line 98 of file debugSurfaceWriter.H.

Constructor & Destructor Documentation

◆ debugWriter() [1/4]

debugWriter ( )

Default construct.

Definition at line 62 of file debugSurfaceWriter.C.

References surfaceWriter::surfaceWriter().

Referenced by debugWriter(), and debugWriter().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ debugWriter() [2/4]

debugWriter ( const dictionary & options )

explicit

Construct with some output options.

Definition at line 72 of file debugSurfaceWriter.C.

References UPstream::commsTypeNames, surfaceWriter::commType_, Foam::endl(), surfaceWriter::gatherv_, Foam::Info, surfaceWriter::isPointData(), Switch::name(), and surfaceWriter::surfaceWriter().

Here is the call graph for this function:

◆ debugWriter() [3/4]

debugWriter	(	const meshedSurf &	surf,
		const fileName &	outputPath,
		bool	parallel = UPstream::parRun(),
		const dictionary &	options = dictionary() )

Construct from components.

Definition at line 94 of file debugSurfaceWriter.C.

References debugWriter(), and surfaceWriter::open().

Here is the call graph for this function:

◆ debugWriter() [4/4]

debugWriter	(	const pointField &	points,
		const faceList &	faces,
		const fileName &	outputPath,
		bool	parallel = UPstream::parRun(),
		const dictionary &	options = dictionary() )

Construct from components.

Definition at line 108 of file debugSurfaceWriter.C.

References debugWriter(), surfaceWriter::open(), and points.

Here is the call graph for this function:

◆ ~debugWriter()

virtual ~debugWriter ( )

virtualdefault

Destructor.

Member Function Documentation

◆ TypeNameNoDebug()

TypeNameNoDebug ( "debug" )

Declare type-name, virtual type (without debug switch).

References UPstream::parRun(), and points.

Here is the call graph for this function:

◆ write()

Foam::fileName write ( )

virtual

Write surface geometry to file.

Implements surfaceWriter.

Definition at line 180 of file debugSurfaceWriter.C.

References surfaceWriter::checkOpen(), meshedSurf::faces(), Foam::Info, Foam::isDir(), surfaceWriter::isPointData(), UPstream::master(), Foam::mkDir(), Time::NewGlobalTime(), Foam::nl, IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, IOobject::note(), surfaceWriter::outputPath_, surfaceWriter::parallel_, UList< T >::size(), surfaceWriter::surface(), surfaceWriter::verbose_, and surfaceWriter::wroteGeom_.

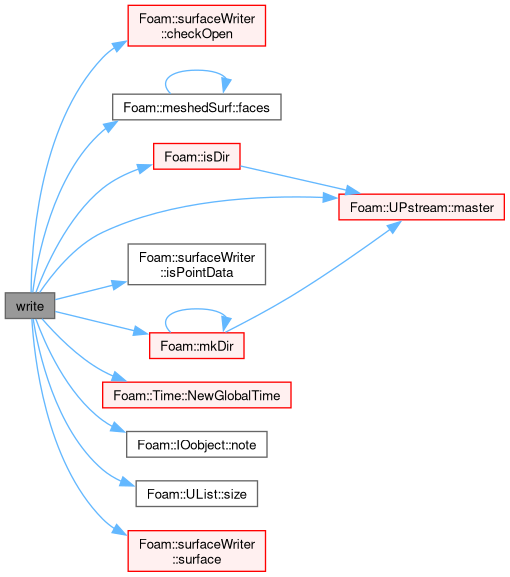

Here is the call graph for this function:

◆ declareSurfaceWriterWriteMethod() [1/6]

declareSurfaceWriterWriteMethod ( label )

◆ declareSurfaceWriterWriteMethod() [2/6]

declareSurfaceWriterWriteMethod ( scalar )

◆ declareSurfaceWriterWriteMethod() [3/6]

declareSurfaceWriterWriteMethod ( vector )

◆ declareSurfaceWriterWriteMethod() [4/6]

declareSurfaceWriterWriteMethod ( sphericalTensor )

◆ declareSurfaceWriterWriteMethod() [5/6]

declareSurfaceWriterWriteMethod ( symmTensor )

◆ declareSurfaceWriterWriteMethod() [6/6]

declareSurfaceWriterWriteMethod ( tensor )

◆ mergeField()

template<class Type>

Foam::tmp< Foam::Field< Type > > mergeField ( const Field< Type > & fld ) const

Definition at line 50 of file debugSurfaceWriter.C.

References addProfiling, fld(), surfaceWriter::merge(), and surfaceWriter::mergeField().

Here is the call graph for this function:

◆ writeTemplate()

template<class Type>

Foam::fileName writeTemplate	(	const word &	fieldName,
		const Field< Type > &	localValues )

Definition at line 249 of file debugSurfaceWriter.C.

References surfaceWriter::checkOpen(), Foam::Info, Foam::isDir(), surfaceWriter::isPointData(), UPstream::master(), Foam::mkDir(), Time::NewGlobalTime(), Foam::nl, IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, IOobject::note(), IOobject::objectPath(), os(), surfaceWriter::outputPath_, surfaceWriter::parallel_, fileName::path(), surfaceWriter::surface(), timeName, surfaceWriter::verbose_, IOobject::writeEndDivider(), IOobject::writeHeader(), and surfaceWriter::wroteGeom_.

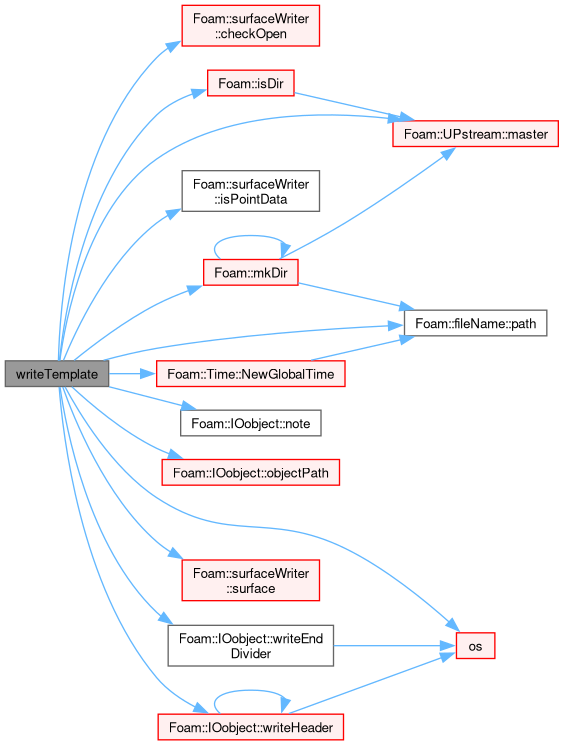

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/surfMesh/writers/debug/debugSurfaceWriter.H
src/surfMesh/writers/debug/debugSurfaceWriter.C

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ debugWriter() [1/4]

◆ debugWriter() [2/4]

◆ debugWriter() [3/4]

◆ debugWriter() [4/4]

◆ ~debugWriter()

Member Function Documentation

◆ TypeNameNoDebug()

◆ write()

◆ declareSurfaceWriterWriteMethod() [1/6]

◆ declareSurfaceWriterWriteMethod() [2/6]

◆ declareSurfaceWriterWriteMethod() [3/6]

◆ declareSurfaceWriterWriteMethod() [4/6]

◆ declareSurfaceWriterWriteMethod() [5/6]

◆ declareSurfaceWriterWriteMethod() [6/6]

◆ mergeField()

◆ writeTemplate()
