Base class for surface writers. More...

#include <surfaceWriter.H>

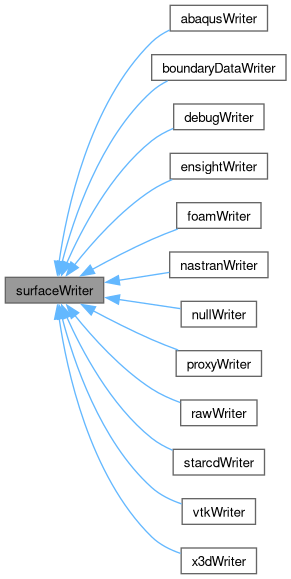

Inheritance diagram for surfaceWriter:

[legend]

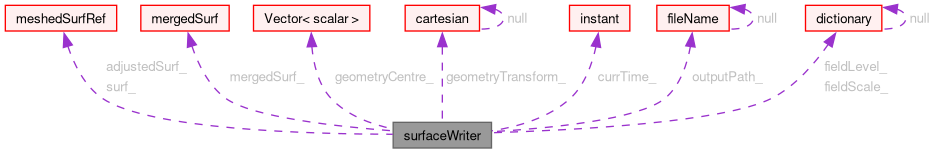

Collaboration diagram for surfaceWriter:

[legend]

Public Member Functions
	TypeName ("surfaceWriter")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, surfaceWriter, word,(),())
	declareRunTimeSelectionTable (autoPtr, surfaceWriter, wordDict,(const dictionary &writeOpts),(writeOpts))
	surfaceWriter ()
	Default construct.
	surfaceWriter (const dictionary &options)
	Default construct with specified options.
virtual	~surfaceWriter ()
	Destructor. Calls close().
virtual bool	enabled () const
	The writer is enabled. If the writer is not enabled, it may be possible for the caller to skip various preparatory operations.
virtual bool	separateGeometry () const
	True if the surface format requires geometry in a separate file.
virtual bool	usesFaceIds () const
	True if the writer format uses faceIds as part of its output.
virtual bool	needsUpdate () const
	Does the writer need an update (eg, lagging behind surface changes).
virtual bool	wroteData () const
	Geometry or fields written since the last open?
virtual bool	expire ()
	Mark that surface changed and the writer will need an update, and set nFields = 0.
virtual void	clear ()
	Close any open output, remove association with a surface and expire the writer. The parallel flag remains untouched.
virtual void	setSurface (const meshedSurf &surf, bool parallel)
	Change association with a surface, expire the writer with defined parallel/serial treatment.
virtual void	setSurface (const pointField &points, const faceList &faces, bool parallel)
	Change association with a surface, expire the writer with defined parallel/serial treatment.
virtual void	setSurface (const meshedSurf &surf)
	Change association with a surface, expire the writer with the current parallel/serial treatment.
virtual void	setSurface (const pointField &points, const faceList &faces)
	Change association with a surface, expire the writer with the current parallel/serial treatment.
bool	is_open () const noexcept
	Test if outputPath has been set.
bool	hasSurface () const
	Writer is associated with a surface.

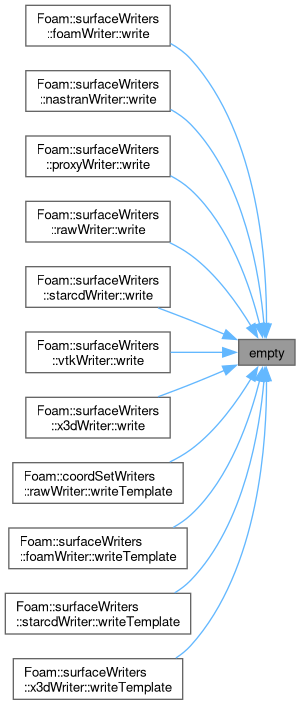

bool	empty () const
	The surface to write is empty if the global number of faces is zero.
label	size () const
	The global number of faces for the associated surface.
label	nFields () const noexcept
	The number of expected output fields.
label	nFields (const label n) noexcept
	Set the number of expected output fields.
bool	isPointData () const noexcept
	Are the field data to be treated as point data?
bool	isPointData (const bool on) noexcept
	Set handling of field data to face/point data.
bool	useTimeDir () const noexcept
	Should a time directory be spliced into the output path?
bool	useTimeDir (const bool on) noexcept
	Enable/disable use of spliced output path.
bool	verbose () const noexcept
	Get output verbosity.
bool	verbose (const bool on) noexcept
	Enable/disable verbose output.
scalar	mergeDim () const noexcept
	The current value of the point merge dimension (metre).
scalar	mergeDim (const scalar dist) noexcept
	Change the point merge dimension (metre).
scalar	scale () const noexcept
	The current value of the geometry scaling.
scalar	scale (const scalar factor) noexcept
	Change the geometry scaling.
const coordSystem::cartesian &	transform () const noexcept
	The current (cartesian) coordinate system transformation.
bool	hasTime () const
	True if there is a known time.
const word &	timeName () const
	The current time value/name.
scalar	timeValue () const
	The current time value/name.
void	setTime (const instant &inst)
	Set the current time.
void	setTime (scalar timeValue)
	Set current time from timeValue, auto generating the name.
void	setTime (scalar timeValue, const word &timeName)
	Set current time from timeValue and timeName.
void	unsetTime ()
	Clear the current time.
virtual void	beginTime (const Time &t)
	Begin a time-step.
virtual void	beginTime (const instant &inst)
	Begin a time-step.
virtual void	endTime ()
	End a time-step.

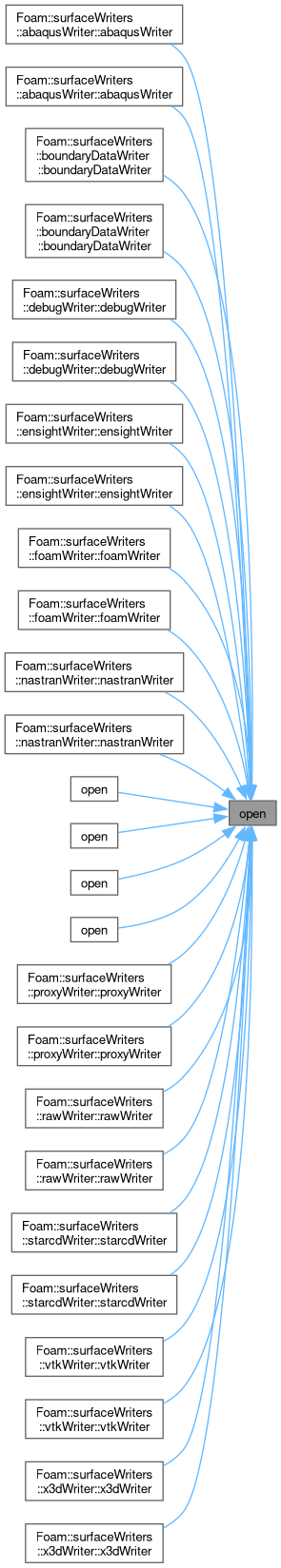

virtual void	open (const fileName &outputPath)
	Open for output on specified path, using existing surface.
virtual void	open (const pointField &points, const faceList &faces, const fileName &outputPath, bool parallel)
	Open from components.
virtual void	open (const meshedSurf &surf, const fileName &outputPath, bool parallel)
	Open from components.
virtual void	open (const pointField &points, const faceList &faces, const fileName &outputPath)
	Open from components, with the current parallel/serial treatment.
virtual void	open (const meshedSurf &surf, const fileName &outputPath)
	Open from components, with the current parallel/serial treatment.

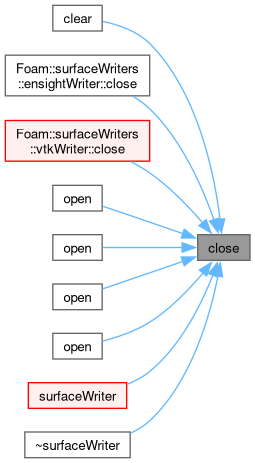

virtual void	close ()
	Finish output, performing any necessary cleanup.
virtual fileName	write ()=0
	Write separate surface geometry to file.
virtual fileName	write (const word &fieldName, const Field< label > &values)=0
	Write field of label (per face or vertex).
virtual fileName	write (const word &fieldName, const Field< scalar > &values)=0
	Write field of scalar (per face or vertex).
virtual fileName	write (const word &fieldName, const Field< vector > &values)=0
	Write field of vector (per face or vertex).
virtual fileName	write (const word &fieldName, const Field< sphericalTensor > &values)=0
	Write field of sphericalTensor (per face or vertex).
virtual fileName	write (const word &fieldName, const Field< symmTensor > &values)=0
	Write field of symmTensor (per face or vertex).
virtual fileName	write (const word &fieldName, const Field< tensor > &values)=0
	Write field of tensor (per face or vertex).
virtual InfoProxy< surfaceWriter >	info () const noexcept
	Return info proxy, used to print information to a stream.
template<class Type>
Foam::tmp< Foam::Field< Type > >	mergeFieldTemplate (const Field< Type > &fld) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	adjustFieldTemplate (const word &fieldName, const tmp< Field< Type > > &tfield) const

Static Public Member Functions

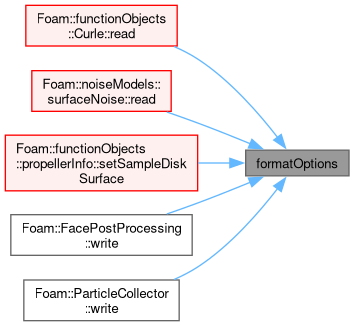

static dictionary	formatOptions (const dictionary &dict, const word &formatName, const word &entryName="formatOptions")
	Same as fileFormats::getFormatOptions.
static dictionary	formatOptions (const dictionary &dict, const dictionary &surfDict, const word &formatName, const word &entryName="formatOptions")
	Same as fileFormats::getFormatOptions.
static bool	supportedType (const word &writeType)
	True if New is likely to succeed for this writeType.
static autoPtr< surfaceWriter >	TryNew (const word &writeType)
	Optional select construct surfaceWriter.
static autoPtr< surfaceWriter >	TryNew (const word &writeType, const dictionary &writeOptions)
	Optional select construct surfaceWriter with extra write options.
static autoPtr< surfaceWriter >	New (const word &writeType)
	Select construct a surfaceWriter.
static autoPtr< surfaceWriter >	New (const word &writeType, const dictionary &writeOptions)
	Select construct a surfaceWriter with extra write options.

Static Public Attributes
static scalar	defaultMergeDim = 1e-8
	The default merge dimension (1e-8).

Protected Member Functions

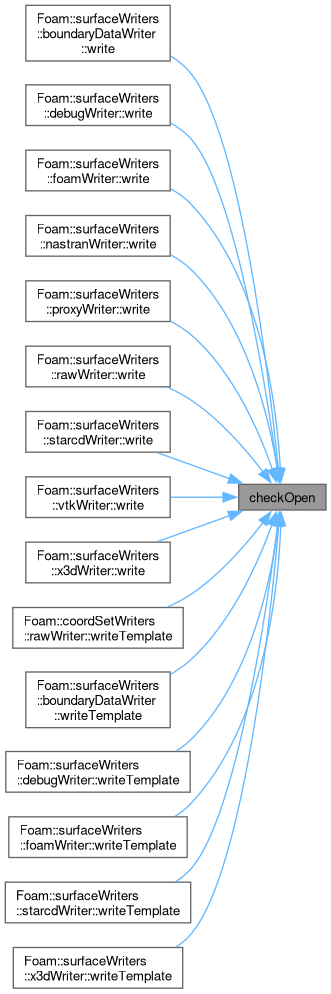

void	checkOpen () const
	Verify that the outputPath_ has been set or FatalError.
virtual bool	merge () const
	Merge surfaces if they are not already upToDate (parallel) or simply mark the surface as being up-to-date.
const meshedSurf &	surface () const
	Merge surfaces (if not upToDate) and return merged (parallel) or regular surface (non-parallel).

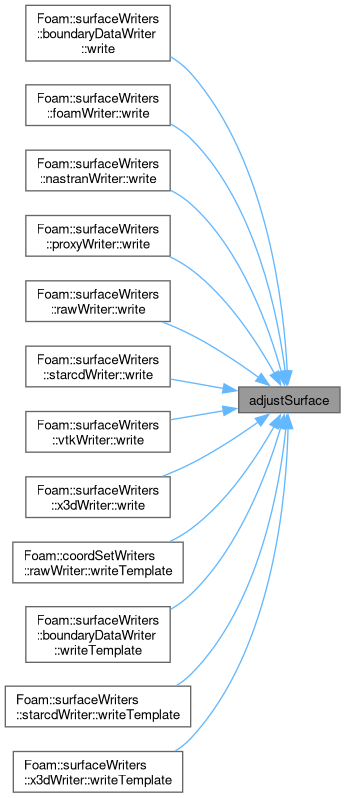

const meshedSurfRef &	adjustSurface () const
	Merge surfaces (if not upToDate) and return merged (parallel) or regular surface (non-parallel) and apply any coordinate system changes and/or output scaling.

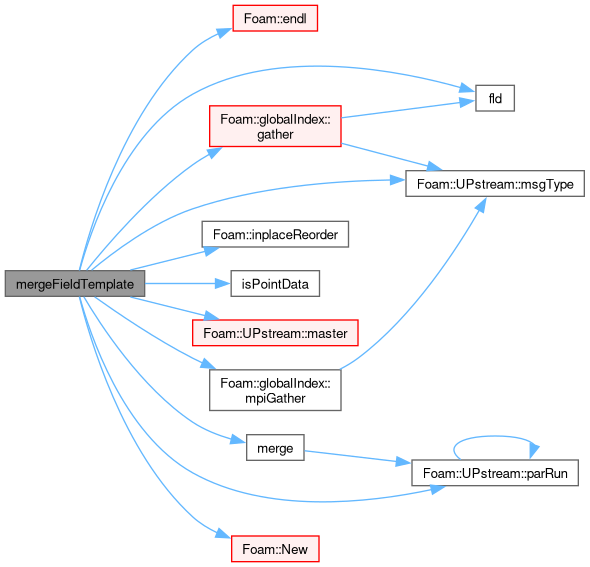

template<class Type>
tmp< Field< Type > >	mergeFieldTemplate (const Field< Type > &fld) const
	Gather (merge) fields with renumbering and shrinking for point data.
template<class Type>
tmp< Field< Type > >	adjustFieldTemplate (const word &fieldName, const tmp< Field< Type > > &tfield) const
	Apply refLevel and fieldScaling.

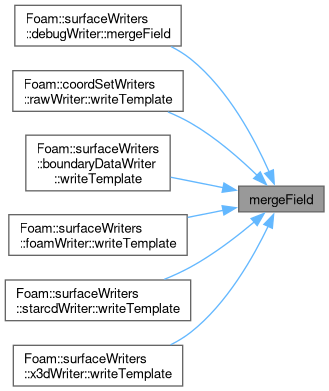

tmp< Field< label > >	mergeField (const Field< label > &fld) const
tmp< Field< label > >	adjustField (const word &fieldName, const tmp< Field< label > > &tfield) const
tmp< Field< scalar > >	mergeField (const Field< scalar > &fld) const
tmp< Field< scalar > >	adjustField (const word &fieldName, const tmp< Field< scalar > > &tfield) const
tmp< Field< vector > >	mergeField (const Field< vector > &fld) const
tmp< Field< vector > >	adjustField (const word &fieldName, const tmp< Field< vector > > &tfield) const
tmp< Field< sphericalTensor > >	mergeField (const Field< sphericalTensor > &fld) const
tmp< Field< sphericalTensor > >	adjustField (const word &fieldName, const tmp< Field< sphericalTensor > > &tfield) const
tmp< Field< symmTensor > >	mergeField (const Field< symmTensor > &fld) const
tmp< Field< symmTensor > >	adjustField (const word &fieldName, const tmp< Field< symmTensor > > &tfield) const
tmp< Field< tensor > >	mergeField (const Field< tensor > &fld) const
tmp< Field< tensor > >	adjustField (const word &fieldName, const tmp< Field< tensor > > &tfield) const
template<class Type>
fileName	writeTemplate (const word &fieldName, const Field< Type > &localValues)
	Dummy templated write operation.

Protected Attributes
meshedSurfRef	surf_
	Reference to surface or surface components.
mergedSurf	mergedSurf_
	Surface after merging (parallel).
meshedSurfRef	adjustedSurf_
	The surface after point coordinate transforms and scaling.
scalar	mergeDim_
	Dimension for merging.
scalar	geometryScale_
	Output geometry scaling after rotate/translate.
point	geometryCentre_
	The centre of rotation (untranslate, translate).
coordSystem::cartesian	geometryTransform_
	Local coordinate system transformation.
bool	upToDate_
	The topology/surface is up-to-date?
bool	wroteGeom_
	Track if geometry has been written since the last open.
bool	parallel_
	Writing in parallel (via master).
bool	useTimeDir_
	Insert additional time sub-directory in the output path.
bool	isPointData_
	Is point vs cell data.
bool	verbose_
	Additional output verbosity.
UPstream::commsTypes	commType_
	Communication type (for field merging).
bool	gatherv_
	Prefer MPI gatherv intrinsic (for field merging) [experimental].
label	nFields_
	The number of fields.
instant	currTime_
	The current time value/name.
fileName	outputPath_
	The full output directory and file (surface) name.
dictionary	fieldLevel_
	Field level to remove (on output).
dictionary	fieldScale_
	Field scaling (on output).

Friends
Ostream &	operator<< (Ostream &os, const InfoProxy< surfaceWriter > &iproxy)
	Output info proxy.

Detailed Description

Base class for surface writers.

The surfaceWriter interface is rather large since we need a writer that can either be initially defined without a surface association and have that added at a later stage, or be defined with a surface association.

formatOptions
{
    default
    {
        verbose     true;
        commsType   scheduled;

        fieldLevel
        {
            "p.*"   1e5;    // Absolute -> gauge [Pa]
            T       273.15; // [K] -> [C]
            U       #eval{ 10/sqrt(3) };  // Uniform magU=10
        }
    }

    someFormat // Eg, ensight, vtk, etc
    {
        fieldScale
        {
            "p.*"   0.01;   // [Pa] -> [mbar]
        }

        scale   1000;  // [m] -> [mm]
        transform
        {
            origin  (0 0 0);
            rotationCentre  (0 0 0);
            rotation axisAngle;
            axis    (1 0 0);
            angle   45;
        }
    }
}

Format options:

Property	Description	Reqd	Default
`verbose`	Additional output verbosity	no	no
`commsType`	Communication type	no	scheduled
`gatherv`	Use MPI gatherv [experimental]	no	false
`scale`	Output geometry scaling	no	1
`transform`	Output coordinate transform	no
`fieldLevel`	Subtract field level before scaling	no	empty dict
`fieldScale`	Output field scaling	no	empty dict

Note: The transform sub-dictionary also supports a rotationCentre keyword which applies untranslate by that amount prior to the rotation, and subsequently followed by a translate.

For surface formats that require geometry in a separate file, it is the responsibility of the implementation (not the caller) to ensure that this occurs.

Using MPI gatherv [experimental] is not well tested and may change or be removed in the future!

Source files

Definition at line 181 of file surfaceWriter.H.

Constructor & Destructor Documentation

◆ surfaceWriter() [1/2]

surfaceWriter ( )

Default construct.

Definition at line 181 of file surfaceWriter.C.

References adjustedSurf_, close(), commType_, currTime_, defaultMergeDim, fieldLevel_, fieldScale_, gatherv_, geometryCentre_, geometryScale_, geometryTransform_, isPointData_, mergeDim_, mergedSurf_, nFields_, outputPath_, parallel_, surf_, upToDate_, useTimeDir_, verbose_, wroteGeom_, and Foam::Zero.

Referenced by abaqusWriter::abaqusWriter(), abaqusWriter::abaqusWriter(), boundaryDataWriter::boundaryDataWriter(), boundaryDataWriter::boundaryDataWriter(), debugWriter::debugWriter(), debugWriter::debugWriter(), declareRunTimeSelectionTable(), declareRunTimeSelectionTable(), ensightWriter::ensightWriter(), ensightWriter::ensightWriter(), foamWriter::foamWriter(), foamWriter::foamWriter(), nastranWriter::nastranWriter(), nastranWriter::nastranWriter(), nullWriter::nullWriter(), proxyWriter::proxyWriter(), proxyWriter::proxyWriter(), rawWriter::rawWriter(), rawWriter::rawWriter(), starcdWriter::starcdWriter(), starcdWriter::starcdWriter(), surfaceWriter(), vtkWriter::vtkWriter(), vtkWriter::vtkWriter(), vtkWriter::vtkWriter(), x3dWriter::x3dWriter(), and x3dWriter::x3dWriter().

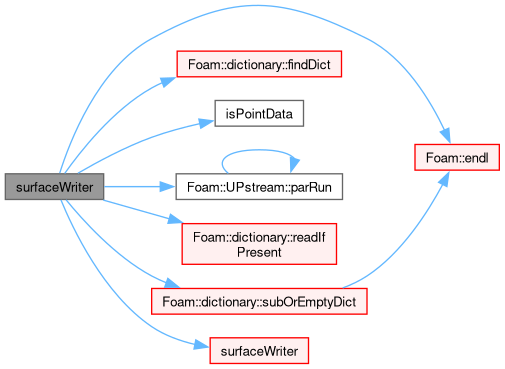

Here is the call graph for this function:

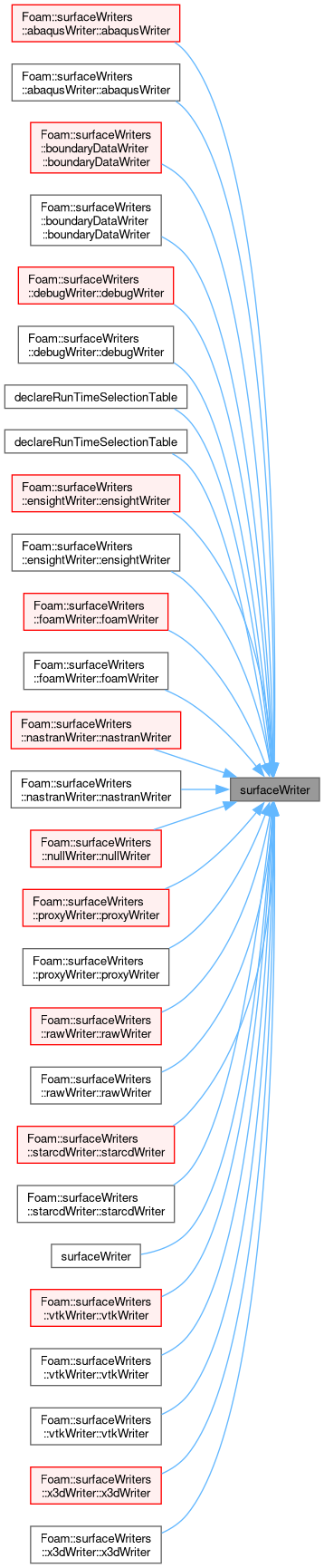

Here is the caller graph for this function:

◆ surfaceWriter() [2/2]

surfaceWriter ( const dictionary & options )

explicit

Default construct with specified options.

Definition at line 208 of file surfaceWriter.C.

References UPstream::commsTypeNames, commType_, Foam::endl(), fieldLevel_, fieldScale_, dictionary::findDict(), gatherv_, geometryCentre_, geometryScale_, geometryTransform_, Foam::Info, isPointData(), IOobjectOption::LAZY_READ, keyType::LITERAL, UPstream::parRun(), dictionary::readIfPresent(), dictionary::subOrEmptyDict(), surfaceWriter(), verbose_, and Foam::Zero.

Here is the call graph for this function:

◆ ~surfaceWriter()

~surfaceWriter ( )

virtual

Destructor. Calls close().

Definition at line 262 of file surfaceWriter.C.

References close().

Here is the call graph for this function:

Member Function Documentation

◆ checkOpen()

void checkOpen ( ) const

protected

Verify that the outputPath_ has been set or FatalError.

Definition at line 482 of file surfaceWriter.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, is_open(), Foam::nl, and Foam::type().

Referenced by boundaryDataWriter::write(), debugWriter::write(), foamWriter::write(), nastranWriter::write(), proxyWriter::write(), rawWriter::write(), starcdWriter::write(), vtkWriter::write(), x3dWriter::write(), rawWriter::writeTemplate(), boundaryDataWriter::writeTemplate(), debugWriter::writeTemplate(), foamWriter::writeTemplate(), starcdWriter::writeTemplate(), and x3dWriter::writeTemplate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ merge()

bool merge ( ) const

protectedvirtual

Merge surfaces if they are not already upToDate (parallel) or simply mark the surface as being up-to-date.

Definition at line 493 of file surfaceWriter.C.

References adjustedSurf_, mergeDim_, mergedSurf_, parallel_, UPstream::parRun(), surf_, upToDate_, and wroteGeom_.

Referenced by debugWriter::mergeField(), mergeFieldTemplate(), surface(), and vtkWriter::write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ surface()

const Foam::meshedSurf & surface ( ) const

protected

Merge surfaces (if not upToDate) and return merged (parallel) or regular surface (non-parallel).

Definition at line 522 of file surfaceWriter.C.

References merge(), mergedSurf_, parallel_, UPstream::parRun(), and surf_.

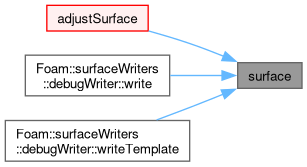

Referenced by adjustSurface(), debugWriter::write(), and debugWriter::writeTemplate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ adjustSurface()

const Foam::meshedSurfRef & adjustSurface ( ) const

protected

Merge surfaces (if not upToDate) and return merged (parallel) or regular surface (non-parallel) and apply any coordinate system changes and/or output scaling.

Definition at line 535 of file surfaceWriter.C.

References adjustedSurf_, geometryCentre_, geometryScale_, geometryTransform_, Foam::magSqr(), tmp< T >::ref(), surface(), and upToDate_.

Referenced by boundaryDataWriter::write(), foamWriter::write(), nastranWriter::write(), proxyWriter::write(), rawWriter::write(), starcdWriter::write(), vtkWriter::write(), x3dWriter::write(), rawWriter::writeTemplate(), boundaryDataWriter::writeTemplate(), starcdWriter::writeTemplate(), and x3dWriter::writeTemplate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mergeFieldTemplate() [1/2]

template<class Type>

tmp< Field< Type > > mergeFieldTemplate ( const Field< Type > & fld ) const

protected

Gather (merge) fields with renumbering and shrinking for point data.

References fld().

Here is the call graph for this function:

◆ adjustFieldTemplate() [1/2]

template<class Type>

tmp< Field< Type > > adjustFieldTemplate	(	const word &	fieldName,
		const tmp< Field< Type > > &	tfield ) const

protected

Apply refLevel and fieldScaling.

◆ mergeField() [1/6]

tmp< Field< label > > mergeField ( const Field< label > & fld ) const

protected

Referenced by debugWriter::mergeField(), rawWriter::writeTemplate(), boundaryDataWriter::writeTemplate(), foamWriter::writeTemplate(), starcdWriter::writeTemplate(), and x3dWriter::writeTemplate().

Here is the caller graph for this function:

◆ adjustField() [1/6]

tmp< Field< label > > adjustField	(	const word &	fieldName,
		const tmp< Field< label > > &	tfield ) const

protected

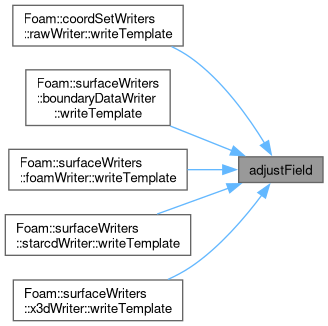

Referenced by rawWriter::writeTemplate(), boundaryDataWriter::writeTemplate(), foamWriter::writeTemplate(), starcdWriter::writeTemplate(), and x3dWriter::writeTemplate().

Here is the caller graph for this function:

◆ mergeField() [2/6]

tmp< Field< scalar > > mergeField ( const Field< scalar > & fld ) const

protected

◆ adjustField() [2/6]

tmp< Field< scalar > > adjustField	(	const word &	fieldName,
		const tmp< Field< scalar > > &	tfield ) const

protected

◆ mergeField() [3/6]

Foam::tmp< Foam::Field< Foam::vector > > mergeField ( const Field< vector > & fld ) const

protected

Definition at line 797 of file surfaceWriter.C.

◆ adjustField() [3/6]

Foam::tmp< Foam::Field< Foam::vector > > adjustField	(	const word &	fieldName,
		const tmp< Field< vector > > &	tfield ) const

protected

Definition at line 797 of file surfaceWriter.C.

◆ mergeField() [4/6]

Foam::tmp< Foam::Field< Foam::sphericalTensor > > mergeField ( const Field< sphericalTensor > & fld ) const

protected

Definition at line 798 of file surfaceWriter.C.

◆ adjustField() [4/6]

Foam::tmp< Foam::Field< Foam::sphericalTensor > > adjustField	(	const word &	fieldName,
		const tmp< Field< sphericalTensor > > &	tfield ) const

protected

Definition at line 798 of file surfaceWriter.C.

◆ mergeField() [5/6]

Foam::tmp< Foam::Field< Foam::symmTensor > > mergeField ( const Field< symmTensor > & fld ) const

protected

Definition at line 799 of file surfaceWriter.C.

◆ adjustField() [5/6]

Foam::tmp< Foam::Field< Foam::symmTensor > > adjustField	(	const word &	fieldName,
		const tmp< Field< symmTensor > > &	tfield ) const

protected

Definition at line 799 of file surfaceWriter.C.

◆ mergeField() [6/6]

Foam::tmp< Foam::Field< Foam::tensor > > mergeField ( const Field< tensor > & fld ) const

protected

Definition at line 800 of file surfaceWriter.C.

◆ adjustField() [6/6]

Foam::tmp< Foam::Field< Foam::tensor > > adjustField	(	const word &	fieldName,
		const tmp< Field< tensor > > &	tfield ) const

protected

Definition at line 800 of file surfaceWriter.C.

◆ writeTemplate()

template<class Type>

fileName writeTemplate	(	const word &	fieldName,
		const Field< Type > &	localValues )

inlineprotected

Dummy templated write operation.

Parameters

fieldName	Name of field
localValues	Local field values to write

Definition at line 359 of file surfaceWriter.H.

References fileName::null, write(), and wroteGeom_.

Here is the call graph for this function:

◆ TypeName()

TypeName ( "surfaceWriter" )

Runtime type information.

◆ declareRunTimeSelectionTable() [1/2]

declareRunTimeSelectionTable	(	autoPtr	,
		surfaceWriter	,
		word	,
		()	,
		()	)

References surfaceWriter().

Here is the call graph for this function:

◆ declareRunTimeSelectionTable() [2/2]

declareRunTimeSelectionTable	(	autoPtr	,
		surfaceWriter	,
		wordDict	,
		(const dictionary &writeOpts)	,
		(writeOpts)	)

References dict, and surfaceWriter().

Here is the call graph for this function:

◆ formatOptions() [1/2]

Foam::dictionary formatOptions	(	const dictionary &	dict,
		const word &	formatName,
		const word &	entryName = "formatOptions" )

static

Same as fileFormats::getFormatOptions.

Definition at line 56 of file surfaceWriter.C.

References dict, and Foam::fileFormats::getFormatOptions().

Referenced by Curle::read(), surfaceNoise::read(), propellerInfo::setSampleDiskSurface(), FacePostProcessing< CloudType >::write(), and ParticleCollector< CloudType >::write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ formatOptions() [2/2]

Foam::dictionary formatOptions	(	const dictionary &	dict,
		const dictionary &	surfDict,
		const word &	formatName,
		const word &	entryName = "formatOptions" )

static

Same as fileFormats::getFormatOptions.

Definition at line 67 of file surfaceWriter.C.

References dict, and Foam::fileFormats::getFormatOptions().

Here is the call graph for this function:

◆ supportedType()

bool supportedType ( const word & writeType )

static

True if New is likely to succeed for this writeType.

Definition at line 45 of file surfaceWriter.C.

References MeshedSurfaceProxy< Face >::canWriteType().

Here is the call graph for this function:

◆ TryNew() [1/2]

Foam::autoPtr< Foam::surfaceWriter > TryNew ( const word & writeType )

static

Optional select construct surfaceWriter.

Return nullptr if the specified type is not supported.

Definition at line 80 of file surfaceWriter.C.

References proxyWriter::TryNew().

Referenced by New(), and New().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TryNew() [2/2]

Foam::autoPtr< Foam::surfaceWriter > TryNew	(	const word &	writeType,
		const dictionary &	writeOptions )

static

Optional select construct surfaceWriter with extra write options.

Return nullptr if the specified type is not supported.

Definition at line 98 of file surfaceWriter.C.

References proxyWriter::TryNew().

Here is the call graph for this function:

◆ New() [1/2]

Foam::autoPtr< Foam::surfaceWriter > New ( const word & writeType )

static

Select construct a surfaceWriter.

Definition at line 130 of file surfaceWriter.C.

References Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::flatOutput(), Foam::nl, TryNew(), writer(), and MeshedSurfaceProxy< Face >::writeTypes().

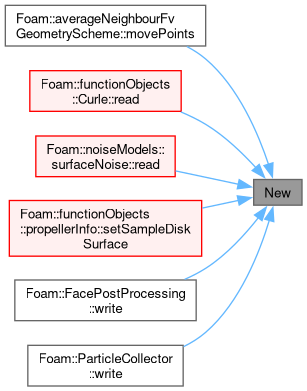

Referenced by averageNeighbourFvGeometryScheme::movePoints(), Curle::read(), surfaceNoise::read(), propellerInfo::setSampleDiskSurface(), FacePostProcessing< CloudType >::write(), and ParticleCollector< CloudType >::write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ New() [2/2]

Foam::autoPtr< Foam::surfaceWriter > New	(	const word &	writeType,
		const dictionary &	writeOptions )

static

Select construct a surfaceWriter with extra write options.

Definition at line 153 of file surfaceWriter.C.

References Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::flatOutput(), Foam::nl, TryNew(), writer(), and MeshedSurfaceProxy< Face >::writeTypes().

Here is the call graph for this function:

◆ enabled()

virtual bool enabled ( ) const

inlinevirtual

The writer is enabled. If the writer is not enabled, it may be possible for the caller to skip various preparatory operations.

This method is primarily useful for the null writer

Reimplemented in nullWriter.

Definition at line 503 of file surfaceWriter.H.

◆ separateGeometry()

virtual bool separateGeometry ( ) const

inlinevirtual

True if the surface format requires geometry in a separate file.

Reimplemented in ensightWriter, foamWriter, proxyWriter, and starcdWriter.

Definition at line 511 of file surfaceWriter.H.

◆ usesFaceIds()

virtual bool usesFaceIds ( ) const

inlinevirtual

True if the writer format uses faceIds as part of its output.

Element ids are used by various CAE formats (abaqus, nastran, starcd, ...)

Reimplemented in abaqusWriter, nastranWriter, and starcdWriter.

Definition at line 522 of file surfaceWriter.H.

◆ needsUpdate()

bool needsUpdate ( ) const

virtual

Does the writer need an update (eg, lagging behind surface changes).

Reimplemented in nullWriter.

Definition at line 432 of file surfaceWriter.C.

References upToDate_.

Referenced by vtkWriter::write().

Here is the caller graph for this function:

◆ wroteData()

bool wroteData ( ) const

virtual

Geometry or fields written since the last open?

Reimplemented in nullWriter.

Definition at line 438 of file surfaceWriter.C.

References wroteGeom_.

◆ expire()

bool expire ( )

virtual

Mark that surface changed and the writer will need an update, and set nFields = 0.

May also free up unneeded data. Return false if it was previously already expired.

Definition at line 444 of file surfaceWriter.C.

References adjustedSurf_, mergedSurf_, upToDate_, and wroteGeom_.

Referenced by clear(), setSurface(), and setSurface().

Here is the caller graph for this function:

◆ clear()

void clear ( )

virtual

Close any open output, remove association with a surface and expire the writer. The parallel flag remains untouched.

Definition at line 380 of file surfaceWriter.C.

References close(), expire(), and surf_.

Here is the call graph for this function:

◆ setSurface() [1/4]

void setSurface	(	const meshedSurf &	surf,
		bool	parallel )

virtual

Change association with a surface, expire the writer with defined parallel/serial treatment.

Reimplemented in nullWriter.

Definition at line 388 of file surfaceWriter.C.

References expire(), parallel_, UPstream::parRun(), and surf_.

Referenced by open(), open(), open(), open(), setSurface(), and setSurface().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setSurface() [2/4]

void setSurface	(	const pointField &	points,
		const faceList &	faces,
		bool	parallel )

virtual

Change association with a surface, expire the writer with defined parallel/serial treatment.

Reimplemented in nullWriter.

Definition at line 400 of file surfaceWriter.C.

References expire(), parallel_, UPstream::parRun(), points, and surf_.

Here is the call graph for this function:

◆ setSurface() [3/4]

void setSurface ( const meshedSurf & surf )

virtual

Change association with a surface, expire the writer with the current parallel/serial treatment.

Definition at line 413 of file surfaceWriter.C.

References parallel_, and setSurface().

Here is the call graph for this function:

◆ setSurface() [4/4]

void setSurface	(	const pointField &	points,
		const faceList &	faces )

virtual

Change association with a surface, expire the writer with the current parallel/serial treatment.

Definition at line 422 of file surfaceWriter.C.

References parallel_, points, and setSurface().

Here is the call graph for this function:

◆ is_open()

bool is_open ( ) const

inlinenoexcept

Test if outputPath has been set.

Definition at line 23 of file surfaceWriterI.H.

References Foam::noexcept, and outputPath_.

Referenced by checkOpen().

Here is the caller graph for this function:

◆ hasSurface()

bool hasSurface ( ) const

Writer is associated with a surface.

Definition at line 460 of file surfaceWriter.C.

References surf_.

◆ empty()

bool empty ( ) const

The surface to write is empty if the global number of faces is zero.

Definition at line 466 of file surfaceWriter.C.

References parallel_, Foam::returnReduceAnd(), and surf_.

Referenced by foamWriter::write(), nastranWriter::write(), proxyWriter::write(), rawWriter::write(), starcdWriter::write(), vtkWriter::write(), x3dWriter::write(), rawWriter::writeTemplate(), foamWriter::writeTemplate(), starcdWriter::writeTemplate(), and x3dWriter::writeTemplate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ size()

Foam::label size ( ) const

The global number of faces for the associated surface.

Definition at line 474 of file surfaceWriter.C.

References parallel_, Foam::returnReduce(), and surf_.

Here is the call graph for this function:

◆ nFields() [1/2]

Foam::label nFields ( ) const

inlinenoexcept

The number of expected output fields.

Currently only used by the legacy VTK format.

Definition at line 29 of file surfaceWriterI.H.

References nFields_, and Foam::noexcept.

◆ nFields() [2/2]

Foam::label nFields ( const label n )

inlinenoexcept

Set the number of expected output fields.

Currently only used by the legacy VTK format.

Returns: old value

Definition at line 35 of file surfaceWriterI.H.

References n, and nFields_.

◆ isPointData() [1/2]

bool isPointData ( ) const

inlinenoexcept

Are the field data to be treated as point data?

Definition at line 43 of file surfaceWriterI.H.

References isPointData_, and Foam::noexcept.

Referenced by debugWriter::debugWriter(), mergeFieldTemplate(), surfaceWriter(), boundaryDataWriter::write(), debugWriter::write(), rawWriter::write(), vtkWriter::write(), rawWriter::writeTemplate(), boundaryDataWriter::writeTemplate(), debugWriter::writeTemplate(), and x3dWriter::writeTemplate().

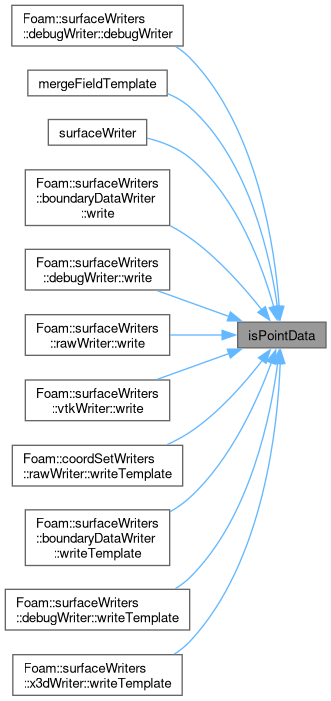

Here is the caller graph for this function:

◆ isPointData() [2/2]

bool isPointData ( const bool on )

inlinenoexcept

Set handling of field data to face/point data.

Returns: old value

Definition at line 49 of file surfaceWriterI.H.

References isPointData_.

◆ useTimeDir() [1/2]

bool useTimeDir ( ) const

inlinenoexcept

Should a time directory be spliced into the output path?

Definition at line 57 of file surfaceWriterI.H.

References Foam::noexcept, and useTimeDir_.

Referenced by foamWriter::write(), nastranWriter::write(), proxyWriter::write(), rawWriter::write(), starcdWriter::write(), vtkWriter::write(), x3dWriter::write(), rawWriter::writeTemplate(), foamWriter::writeTemplate(), starcdWriter::writeTemplate(), and x3dWriter::writeTemplate().

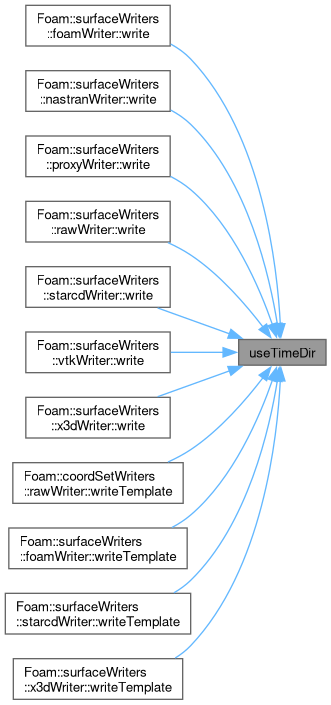

Here is the caller graph for this function:

◆ useTimeDir() [2/2]

bool useTimeDir ( const bool on )

inlinenoexcept

Enable/disable use of spliced output path.

Returns: old value

Definition at line 63 of file surfaceWriterI.H.

References useTimeDir_.

◆ verbose() [1/2]

bool verbose ( ) const

inlinenoexcept

Get output verbosity.

Definition at line 71 of file surfaceWriterI.H.

References Foam::noexcept, and verbose_.

◆ verbose() [2/2]

bool verbose ( const bool on )

inlinenoexcept

Enable/disable verbose output.

Returns: old value

Definition at line 77 of file surfaceWriterI.H.

References verbose_.

◆ mergeDim() [1/2]

Foam::scalar mergeDim ( ) const

inlinenoexcept

The current value of the point merge dimension (metre).

Definition at line 85 of file surfaceWriterI.H.

References mergeDim_, and Foam::noexcept.

◆ mergeDim() [2/2]

Foam::scalar mergeDim ( const scalar dist )

inlinenoexcept

Change the point merge dimension (metre).

Returns: old value

Definition at line 91 of file surfaceWriterI.H.

References mergeDim_.

◆ scale() [1/2]

Foam::scalar scale ( ) const

inlinenoexcept

The current value of the geometry scaling.

Definition at line 99 of file surfaceWriterI.H.

References geometryScale_, and Foam::noexcept.

◆ scale() [2/2]

Foam::scalar scale ( const scalar factor )

inlinenoexcept

Change the geometry scaling.

Returns: old value

Definition at line 105 of file surfaceWriterI.H.

References geometryScale_.

◆ transform()

const Foam::coordSystem::cartesian & transform ( ) const

inlinenoexcept

The current (cartesian) coordinate system transformation.

Definition at line 115 of file surfaceWriterI.H.

References geometryTransform_, and Foam::noexcept.

◆ hasTime()

bool hasTime ( ) const

inline

True if there is a known time.

Definition at line 121 of file surfaceWriterI.H.

References currTime_.

Referenced by vtkWriter::write().

Here is the caller graph for this function:

◆ timeName()

const Foam::word & timeName ( ) const

inline

The current time value/name.

Definition at line 127 of file surfaceWriterI.H.

References currTime_.

Referenced by setTime(), and rawWriter::writeTemplate().

Here is the caller graph for this function:

◆ timeValue()

Foam::scalar timeValue ( ) const

inline

The current time value/name.

Definition at line 133 of file surfaceWriterI.H.

References currTime_.

Referenced by setTime(), and setTime().

Here is the caller graph for this function:

◆ setTime() [1/3]

void setTime ( const instant & inst )

Set the current time.

Definition at line 270 of file surfaceWriter.C.

References currTime_.

◆ setTime() [2/3]

void setTime ( scalar timeValue )

Set current time from timeValue, auto generating the name.

Definition at line 276 of file surfaceWriter.C.

References currTime_, and timeValue().

Here is the call graph for this function:

◆ setTime() [3/3]

void setTime	(	scalar	timeValue,
		const word &	timeName )

Set current time from timeValue and timeName.

Definition at line 282 of file surfaceWriter.C.

References currTime_, timeName(), and timeValue().

Here is the call graph for this function:

◆ unsetTime()

void unsetTime ( )

Clear the current time.

Definition at line 289 of file surfaceWriter.C.

References currTime_.

Referenced by endTime().

Here is the caller graph for this function:

◆ beginTime() [1/2]

void beginTime ( const Time & t )

virtual

Begin a time-step.

Reimplemented in vtkWriter.

Definition at line 296 of file surfaceWriter.C.

References setTime(), Time::timeName(), and dimensioned< Type >::value().

Referenced by vtkWriter::beginTime(), and vtkWriter::beginTime().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ beginTime() [2/2]

void beginTime ( const instant & inst )

virtual

Begin a time-step.

Reimplemented in vtkWriter.

Definition at line 302 of file surfaceWriter.C.

References setTime().

Here is the call graph for this function:

◆ endTime()

void endTime ( )

virtual

End a time-step.

Reimplemented in vtkWriter.

Definition at line 308 of file surfaceWriter.C.

References unsetTime().

Referenced by vtkWriter::endTime().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ open() [1/5]

void open ( const fileName & outputPath )

virtual

Open for output on specified path, using existing surface.

Reimplemented in nullWriter.

Definition at line 314 of file surfaceWriter.C.

References outputPath_, and wroteGeom_.

Referenced by abaqusWriter::abaqusWriter(), abaqusWriter::abaqusWriter(), boundaryDataWriter::boundaryDataWriter(), boundaryDataWriter::boundaryDataWriter(), debugWriter::debugWriter(), debugWriter::debugWriter(), ensightWriter::ensightWriter(), ensightWriter::ensightWriter(), foamWriter::foamWriter(), foamWriter::foamWriter(), nastranWriter::nastranWriter(), nastranWriter::nastranWriter(), open(), open(), open(), open(), proxyWriter::proxyWriter(), proxyWriter::proxyWriter(), rawWriter::rawWriter(), rawWriter::rawWriter(), starcdWriter::starcdWriter(), starcdWriter::starcdWriter(), vtkWriter::vtkWriter(), vtkWriter::vtkWriter(), x3dWriter::x3dWriter(), and x3dWriter::x3dWriter().

Here is the caller graph for this function:

◆ open() [2/5]

void open	(	const pointField &	points,
		const faceList &	faces,
		const fileName &	outputPath,
		bool	parallel )

virtual

Open from components.

Definition at line 334 of file surfaceWriter.C.

References close(), open(), points, and setSurface().

Here is the call graph for this function:

◆ open() [3/5]

void open	(	const meshedSurf &	surf,
		const fileName &	outputPath,
		bool	parallel )

virtual

Open from components.

Definition at line 321 of file surfaceWriter.C.

References close(), open(), and setSurface().

Here is the call graph for this function:

◆ open() [4/5]

void open	(	const pointField &	points,
		const faceList &	faces,
		const fileName &	outputPath )

virtual

Open from components, with the current parallel/serial treatment.

Definition at line 360 of file surfaceWriter.C.

References close(), open(), parallel_, points, and setSurface().

Here is the call graph for this function:

◆ open() [5/5]

void open	(	const meshedSurf &	surf,
		const fileName &	outputPath )

virtual

Open from components, with the current parallel/serial treatment.

Definition at line 348 of file surfaceWriter.C.

References close(), open(), parallel_, and setSurface().

Here is the call graph for this function:

◆ close()

void close ( )

virtual

Finish output, performing any necessary cleanup.

Reimplemented in ensightWriter, and vtkWriter.

Definition at line 373 of file surfaceWriter.C.

References outputPath_, and wroteGeom_.

Referenced by clear(), ensightWriter::close(), vtkWriter::close(), open(), open(), open(), open(), surfaceWriter(), and ~surfaceWriter().

Here is the caller graph for this function:

◆ write() [1/7]

virtual fileName write ( )

pure virtual

Write separate surface geometry to file.

Implemented in abaqusWriter, boundaryDataWriter, debugWriter, ensightWriter, foamWriter, nastranWriter, nullWriter, proxyWriter, rawWriter, starcdWriter, vtkWriter, and x3dWriter.

References write().

Referenced by write(), and writeTemplate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write() [2/7]

virtual fileName write	(	const word &	fieldName,
		const Field< label > &	values )

pure virtual

Write field of label (per face or vertex).

Parameters

fieldName	Name of field
values	Field values to write

◆ write() [3/7]

virtual fileName write	(	const word &	fieldName,
		const Field< scalar > &	values )

pure virtual

Write field of scalar (per face or vertex).

Parameters

fieldName	Name of field
values	Field values to write

◆ write() [4/7]

virtual fileName write	(	const word &	fieldName,
		const Field< vector > &	values )

pure virtual

Write field of vector (per face or vertex).

Parameters

fieldName	Name of field
values	Field values to write

◆ write() [5/7]

virtual fileName write	(	const word &	fieldName,
		const Field< sphericalTensor > &	values )

pure virtual

Write field of sphericalTensor (per face or vertex).

Parameters

fieldName	Name of field
values	Field values to write

◆ write() [6/7]

virtual fileName write	(	const word &	fieldName,
		const Field< symmTensor > &	values )

pure virtual

Write field of symmTensor (per face or vertex).

Parameters

fieldName	Name of field
values	Field values to write

◆ write() [7/7]

virtual fileName write	(	const word &	fieldName,
		const Field< tensor > &	values )

pure virtual

Write field of tensor (per face or vertex).

Parameters

fieldName	Name of field
values	Field values to write

◆ info()

virtual InfoProxy< surfaceWriter > info ( ) const

inlinevirtualnoexcept

Return info proxy, used to print information to a stream.

Definition at line 852 of file surfaceWriter.H.

References Foam::noexcept.

◆ mergeFieldTemplate() [2/2]

template<class Type>

Foam::tmp< Foam::Field< Type > > mergeFieldTemplate ( const Field< Type > & fld ) const

Definition at line 593 of file surfaceWriter.C.

References commType_, Foam::endl(), fld(), globalIndex::gather(), gatherv_, Foam::Info, Foam::inplaceReorder(), isPointData(), UPstream::master(), merge(), mergedSurf_, globalIndex::mpiGather(), UPstream::msgType(), Foam::New(), parallel_, UPstream::parRun(), upToDate_, and UPstream::worldComm.

Here is the call graph for this function:

◆ adjustFieldTemplate() [2/2]

template<class Type>

Foam::tmp< Foam::Field< Type > > adjustFieldTemplate	(	const word &	fieldName,
		const tmp< Field< Type > > &	tfield ) const

Definition at line 672 of file surfaceWriter.C.

References Foam::equal(), fieldLevel_, fieldScale_, geometryTransform_, Foam::Info, Foam::is_rotational_vectorspace_v, Foam::is_vectorspace_v, tmp< T >::ref(), keyType::REGEX, tmp< T >::reset(), Foam::transform(), and verbose_.

Here is the call graph for this function:

◆ operator<<

Ostream & operator<<	(	Ostream &	os,
		const InfoProxy< surfaceWriter > &	iproxy )

friend

Output info proxy.

References nFields_, and os().

Member Data Documentation

◆ surf_

meshedSurfRef surf_

protected

Reference to surface or surface components.

Definition at line 190 of file surfaceWriter.H.

Referenced by clear(), empty(), hasSurface(), merge(), setSurface(), setSurface(), size(), surface(), and surfaceWriter().

◆ mergedSurf_

mergedSurf mergedSurf_

mutableprotected

Surface after merging (parallel).

Definition at line 195 of file surfaceWriter.H.

Referenced by expire(), merge(), mergeFieldTemplate(), surface(), and surfaceWriter().

◆ adjustedSurf_

meshedSurfRef adjustedSurf_

mutableprotected

The surface after point coordinate transforms and scaling.

Definition at line 200 of file surfaceWriter.H.

Referenced by adjustSurface(), expire(), merge(), and surfaceWriter().

◆ mergeDim_

scalar mergeDim_

protected

Dimension for merging.

Definition at line 205 of file surfaceWriter.H.

Referenced by merge(), mergeDim(), mergeDim(), and surfaceWriter().

◆ geometryScale_

scalar geometryScale_

protected

Output geometry scaling after rotate/translate.

Definition at line 210 of file surfaceWriter.H.

Referenced by adjustSurface(), scale(), scale(), surfaceWriter(), and surfaceWriter().

◆ geometryCentre_

point geometryCentre_

protected

The centre of rotation (untranslate, translate).

Definition at line 215 of file surfaceWriter.H.

Referenced by adjustSurface(), surfaceWriter(), and surfaceWriter().

◆ geometryTransform_

coordSystem::cartesian geometryTransform_

protected

Local coordinate system transformation.

Definition at line 220 of file surfaceWriter.H.

Referenced by adjustFieldTemplate(), adjustSurface(), surfaceWriter(), surfaceWriter(), and transform().

◆ upToDate_

bool upToDate_

mutableprotected

The topology/surface is up-to-date?

Definition at line 230 of file surfaceWriter.H.

Referenced by adjustSurface(), expire(), merge(), mergeFieldTemplate(), needsUpdate(), and surfaceWriter().

◆ wroteGeom_

bool wroteGeom_

mutableprotected

Track if geometry has been written since the last open.

Definition at line 235 of file surfaceWriter.H.

Referenced by close(), expire(), merge(), open(), surfaceWriter(), boundaryDataWriter::write(), debugWriter::write(), foamWriter::write(), nastranWriter::write(), nullWriter::write(), proxyWriter::write(), rawWriter::write(), starcdWriter::write(), vtkWriter::write(), x3dWriter::write(), writeTemplate(), boundaryDataWriter::writeTemplate(), debugWriter::writeTemplate(), foamWriter::writeTemplate(), starcdWriter::writeTemplate(), x3dWriter::writeTemplate(), and wroteData().

◆ parallel_

bool parallel_

protected

Writing in parallel (via master).

Definition at line 240 of file surfaceWriter.H.

Referenced by empty(), merge(), mergeFieldTemplate(), open(), open(), setSurface(), setSurface(), setSurface(), setSurface(), size(), surface(), surfaceWriter(), boundaryDataWriter::write(), debugWriter::write(), foamWriter::write(), nastranWriter::write(), proxyWriter::write(), rawWriter::write(), starcdWriter::write(), vtkWriter::write(), x3dWriter::write(), rawWriter::writeTemplate(), boundaryDataWriter::writeTemplate(), debugWriter::writeTemplate(), starcdWriter::writeTemplate(), and x3dWriter::writeTemplate().

◆ useTimeDir_

bool useTimeDir_

protected

Insert additional time sub-directory in the output path.

Definition at line 245 of file surfaceWriter.H.

Referenced by surfaceWriter(), useTimeDir(), and useTimeDir().

◆ isPointData_

bool isPointData_

protected

Is point vs cell data.

Definition at line 250 of file surfaceWriter.H.

Referenced by isPointData(), isPointData(), and surfaceWriter().

◆ verbose_

bool verbose_

protected

Additional output verbosity.

Definition at line 255 of file surfaceWriter.H.

Referenced by adjustFieldTemplate(), surfaceWriter(), surfaceWriter(), verbose(), verbose(), debugWriter::write(), foamWriter::write(), nastranWriter::write(), proxyWriter::write(), rawWriter::write(), starcdWriter::write(), vtkWriter::write(), x3dWriter::write(), boundaryDataWriter::writeTemplate(), debugWriter::writeTemplate(), foamWriter::writeTemplate(), starcdWriter::writeTemplate(), x3dWriter::writeTemplate(), and x3dWriter::x3dWriter().

◆ commType_

UPstream::commsTypes commType_

protected

Communication type (for field merging).

Definition at line 260 of file surfaceWriter.H.

Referenced by debugWriter::debugWriter(), mergeFieldTemplate(), surfaceWriter(), and surfaceWriter().

◆ gatherv_

bool gatherv_

protected

Prefer MPI gatherv intrinsic (for field merging) [experimental].

Definition at line 265 of file surfaceWriter.H.

Referenced by debugWriter::debugWriter(), mergeFieldTemplate(), surfaceWriter(), and surfaceWriter().

◆ nFields_

label nFields_

protected

The number of fields.

Definition at line 270 of file surfaceWriter.H.

Referenced by nFields(), nFields(), operator<<, surfaceWriter(), and vtkWriter::write().

◆ currTime_

instant currTime_

protected

The current time value/name.

Definition at line 275 of file surfaceWriter.H.

Referenced by hasTime(), setTime(), setTime(), setTime(), surfaceWriter(), timeName(), timeValue(), unsetTime(), and vtkWriter::write().

◆ outputPath_

fileName outputPath_

protected

The full output directory and file (surface) name.

Definition at line 280 of file surfaceWriter.H.

Referenced by close(), is_open(), open(), surfaceWriter(), boundaryDataWriter::write(), debugWriter::write(), foamWriter::write(), nastranWriter::write(), proxyWriter::write(), rawWriter::write(), starcdWriter::write(), vtkWriter::write(), x3dWriter::write(), boundaryDataWriter::writeTemplate(), debugWriter::writeTemplate(), foamWriter::writeTemplate(), starcdWriter::writeTemplate(), and x3dWriter::writeTemplate().

◆ fieldLevel_

dictionary fieldLevel_

protected

Field level to remove (on output).

Definition at line 285 of file surfaceWriter.H.

Referenced by adjustFieldTemplate(), surfaceWriter(), and surfaceWriter().

◆ fieldScale_

dictionary fieldScale_

protected

Field scaling (on output).

Definition at line 290 of file surfaceWriter.H.

Referenced by adjustFieldTemplate(), surfaceWriter(), and surfaceWriter().

◆ defaultMergeDim

Foam::scalar defaultMergeDim = 1e-8

static

The default merge dimension (1e-8).

Definition at line 379 of file surfaceWriter.H.

Referenced by surfaceWriter(), and topOVariablesBase::writeSurfaceFiles().

The documentation for this class was generated from the following files:

src/surfMesh/writers/common/surfaceWriter.H
src/surfMesh/writers/common/surfaceWriter.C
src/surfMesh/writers/common/surfaceWriterI.H

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ surfaceWriter() [1/2]

◆ surfaceWriter() [2/2]

◆ ~surfaceWriter()

Member Function Documentation

◆ checkOpen()

◆ merge()

◆ surface()

◆ adjustSurface()

◆ mergeFieldTemplate() [1/2]

◆ adjustFieldTemplate() [1/2]

◆ mergeField() [1/6]

◆ adjustField() [1/6]

◆ mergeField() [2/6]

◆ adjustField() [2/6]

◆ mergeField() [3/6]

◆ adjustField() [3/6]

◆ mergeField() [4/6]

◆ adjustField() [4/6]

◆ mergeField() [5/6]

◆ adjustField() [5/6]

◆ mergeField() [6/6]

◆ adjustField() [6/6]

◆ writeTemplate()

◆ TypeName()

◆ declareRunTimeSelectionTable() [1/2]

◆ declareRunTimeSelectionTable() [2/2]

◆ formatOptions() [1/2]

◆ formatOptions() [2/2]

◆ supportedType()

◆ TryNew() [1/2]

◆ TryNew() [2/2]

◆ New() [1/2]

◆ New() [2/2]

◆ enabled()

◆ separateGeometry()

◆ usesFaceIds()

◆ needsUpdate()

◆ wroteData()

◆ expire()

◆ clear()

◆ setSurface() [1/4]

◆ setSurface() [2/4]

◆ setSurface() [3/4]

◆ setSurface() [4/4]

◆ is_open()

◆ hasSurface()

◆ empty()

◆ size()

◆ nFields() [1/2]

◆ nFields() [2/2]

◆ isPointData() [1/2]

◆ isPointData() [2/2]

◆ useTimeDir() [1/2]

◆ useTimeDir() [2/2]

◆ verbose() [1/2]

◆ verbose() [2/2]

◆ mergeDim() [1/2]

◆ mergeDim() [2/2]

◆ scale() [1/2]

◆ scale() [2/2]

◆ transform()

◆ hasTime()

◆ timeName()

◆ timeValue()

◆ setTime() [1/3]

◆ setTime() [2/3]

◆ setTime() [3/3]

◆ unsetTime()

◆ beginTime() [1/2]

◆ beginTime() [2/2]

◆ endTime()

◆ open() [1/5]
