totalTemperatureFvPatchScalarField Class Reference
Boundary conditions » Inlet | Boundary conditions » Outlet

This boundary condition provides a total temperature condition. More...

#include <totalTemperatureFvPatchScalarField.H>

Inheritance diagram for totalTemperatureFvPatchScalarField:
Inheritance graph
[legend]
Collaboration diagram for totalTemperatureFvPatchScalarField:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("totalTemperature")
 Runtime type information.
 totalTemperatureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
 Construct from patch and internal field.
 totalTemperatureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
 Construct from patch, internal field and dictionary.
 totalTemperatureFvPatchScalarField (const totalTemperatureFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
 Construct by mapping given totalTemperatureFvPatchScalarField.
 totalTemperatureFvPatchScalarField (const totalTemperatureFvPatchScalarField &)
 Construct as copy.
 totalTemperatureFvPatchScalarField (const totalTemperatureFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
 Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > > clone () const
 Return a clone.
virtual tmp< fvPatchField< scalar > > clone (const DimensionedField< scalar, volMesh > &iF) const
 Clone with an internal field reference.
const scalarField & T0 () const
 Return the total pressure.
scalarField & T0 ()
 Return reference to the total pressure to allow adjustment.
virtual void autoMap (const fvPatchFieldMapper &)
 Map (and resize as needed) from self given a mapping object.
virtual void rmap (const fvPatchScalarField &, const labelList &)
 Reverse map the given fvPatchField onto this fvPatchField.
virtual void updateCoeffs ()
 Update the coefficients associated with the patch field.
virtual void write (Ostream &) const
 Write.

Detailed Description

This boundary condition provides a total temperature condition.

Usage
Property Description Required Default value
U Velocity field name no U
phi Flux field name no phi
psi Compressibility field name no thermo:psi
gamma ratio of specific heats (Cp/Cv) yes
T0 total temperature yes

Example of the boundary condition specification:

    <patchName>
    {
        type            totalTemperature;
        gamma           1.4;
        T0              uniform 800;
    }
Source files
See also
Foam::fixedValueFvPatchField

Definition at line 102 of file totalTemperatureFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ totalTemperatureFvPatchScalarField() [1/5]

totalTemperatureFvPatchScalarField ( const fvPatch & p,
const DimensionedField< scalar, volMesh > & iF )

Construct from patch and internal field.

Definition at line 30 of file totalTemperatureFvPatchScalarField.C.

References p, and Foam::Zero.

Referenced by rmap(), totalTemperatureFvPatchScalarField(), totalTemperatureFvPatchScalarField(), totalTemperatureFvPatchScalarField(), and TypeName().

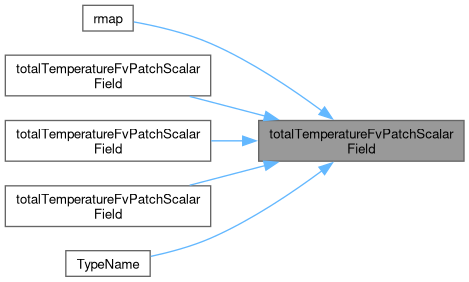

Here is the caller graph for this function:

◆ totalTemperatureFvPatchScalarField() [2/5]

totalTemperatureFvPatchScalarField ( const fvPatch & p,
const DimensionedField< scalar, volMesh > & iF,
const dictionary & dict )

Construct from patch, internal field and dictionary.

Definition at line 62 of file totalTemperatureFvPatchScalarField.C.

References dict, fvPatchField< Type >::operator=(), and p.

Here is the call graph for this function:

◆ totalTemperatureFvPatchScalarField() [3/5]

totalTemperatureFvPatchScalarField ( const totalTemperatureFvPatchScalarField & ptf,
const fvPatch & p,
const DimensionedField< scalar, volMesh > & iF,
const fvPatchFieldMapper & mapper )

Construct by mapping given totalTemperatureFvPatchScalarField.

onto a new patch

Definition at line 45 of file totalTemperatureFvPatchScalarField.C.

References p, and totalTemperatureFvPatchScalarField().

Here is the call graph for this function:

◆ totalTemperatureFvPatchScalarField() [4/5]

totalTemperatureFvPatchScalarField ( const totalTemperatureFvPatchScalarField & tppsf)

Construct as copy.

Definition at line 83 of file totalTemperatureFvPatchScalarField.C.

References totalTemperatureFvPatchScalarField().

Here is the call graph for this function:

◆ totalTemperatureFvPatchScalarField() [5/5]

totalTemperatureFvPatchScalarField ( const totalTemperatureFvPatchScalarField & tppsf,
const DimensionedField< scalar, volMesh > & iF )

Construct as copy setting internal field reference.

Definition at line 97 of file totalTemperatureFvPatchScalarField.C.

References totalTemperatureFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "totalTemperature" )

Runtime type information.

References totalTemperatureFvPatchScalarField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const
inlinevirtual

Return a clone.

Definition at line 196 of file totalTemperatureFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF) const
inlinevirtual

Clone with an internal field reference.

Definition at line 204 of file totalTemperatureFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ T0() [1/2]

const scalarField & T0 ( ) const
inline

Return the total pressure.

Definition at line 220 of file totalTemperatureFvPatchScalarField.H.

◆ T0() [2/2]

scalarField & T0 ( )
inline

Return reference to the total pressure to allow adjustment.

Definition at line 228 of file totalTemperatureFvPatchScalarField.H.

◆ autoMap()

void autoMap ( const fvPatchFieldMapper & m)
virtual

Map (and resize as needed) from self given a mapping object.

Definition at line 114 of file totalTemperatureFvPatchScalarField.C.

◆ rmap()

void rmap ( const fvPatchScalarField & ptf,
const labelList & addr )
virtual

Reverse map the given fvPatchField onto this fvPatchField.

Definition at line 124 of file totalTemperatureFvPatchScalarField.C.

References Foam::refCast(), and totalTemperatureFvPatchScalarField().

Here is the call graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )
virtual

Update the coefficients associated with the patch field.

Definition at line 139 of file totalTemperatureFvPatchScalarField.C.

References Foam::magSqr(), and Foam::neg().

Here is the call graph for this function:

◆ write()

void write ( Ostream & os) const
virtual

Write.

Definition at line 166 of file totalTemperatureFvPatchScalarField.C.

References os(), fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:
The documentation for this class was generated from the following files:
