tractionDisplacementFvPatchVectorField Class Reference

Fixed traction boundary condition for the standard linear elastic, fixed coefficient displacement equation. More...

#include <tractionDisplacementFvPatchVectorField.H>

Inheritance diagram for tractionDisplacementFvPatchVectorField:

Collaboration diagram for tractionDisplacementFvPatchVectorField:

Public Member Functions
	TypeName ("tractionDisplacement")
	Runtime type information.
	tractionDisplacementFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &)
	Construct from patch and internal field.
	tractionDisplacementFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	tractionDisplacementFvPatchVectorField (const tractionDisplacementFvPatchVectorField &, const fvPatch &, const DimensionedField< vector, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given.
	tractionDisplacementFvPatchVectorField (const tractionDisplacementFvPatchVectorField &)
	Construct as copy.
	tractionDisplacementFvPatchVectorField (const tractionDisplacementFvPatchVectorField &, const DimensionedField< vector, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< vector > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< vector > >	clone (const DimensionedField< vector, volMesh > &iF) const
	Clone with an internal field reference.
virtual const vectorField &	traction () const
virtual vectorField &	traction ()
virtual const scalarField &	pressure () const
virtual scalarField &	pressure ()
virtual void	autoMap (const fvPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const fvPatchVectorField &, const labelList &)
	Reverse map the given fvPatchField onto this fvPatchField.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	write (Ostream &) const
	Write.

Detailed Description

Fixed traction boundary condition for the standard linear elastic, fixed coefficient displacement equation.

Source files

• tractionDisplacementFvPatchVectorField.H
• tractionDisplacementFvPatchVectorField.C

Definition at line 48 of file tractionDisplacementFvPatchVectorField.H.

Constructor & Destructor Documentation

tractionDisplacementFvPatchVectorField() [1/5]

tractionDisplacementFvPatchVectorField	(	const fvPatch &	,
		const DimensionedField< vector, volMesh > &	)

Construct from patch and internal field.

Referenced by tractionDisplacementFvPatchVectorField(), tractionDisplacementFvPatchVectorField(), and tractionDisplacementFvPatchVectorField().

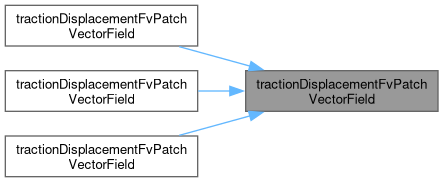

Here is the caller graph for this function:

tractionDisplacementFvPatchVectorField() [2/5]

tractionDisplacementFvPatchVectorField	(	const fvPatch &	,
		const DimensionedField< vector, volMesh > &	,
		const dictionary &	)

Construct from patch, internal field and dictionary.

tractionDisplacementFvPatchVectorField() [3/5]

tractionDisplacementFvPatchVectorField	(	const tractionDisplacementFvPatchVectorField &	,
		const fvPatch &	,
		const DimensionedField< vector, volMesh > &	,
		const fvPatchFieldMapper &	)

Construct by mapping given.

tractionDisplacementFvPatchVectorField onto a new patch

References tractionDisplacementFvPatchVectorField().

Here is the call graph for this function:

tractionDisplacementFvPatchVectorField() [4/5]

tractionDisplacementFvPatchVectorField

(

const tractionDisplacementFvPatchVectorField &

)

Construct as copy.

References tractionDisplacementFvPatchVectorField().

Here is the call graph for this function:

tractionDisplacementFvPatchVectorField() [5/5]

tractionDisplacementFvPatchVectorField	(	const tractionDisplacementFvPatchVectorField &	,
		const DimensionedField< vector, volMesh > &	)

Construct as copy setting internal field reference.

References tractionDisplacementFvPatchVectorField().

Here is the call graph for this function:

Member Function Documentation

TypeName()

TypeName

(

"tractionDisplacement"

)

Runtime type information.

clone() [1/2]

virtual tmp< fvPatchField< vector > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 121 of file tractionDisplacementFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

clone() [2/2]

virtual tmp< fvPatchField< vector > > clone ( const DimensionedField< vector, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 129 of file tractionDisplacementFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

traction() [1/2]

virtual const vectorField & traction ( ) const

inlinevirtual

Definition at line 142 of file tractionDisplacementFvPatchVectorField.H.

traction() [2/2]

virtual vectorField & traction ( )

inlinevirtual

Definition at line 147 of file tractionDisplacementFvPatchVectorField.H.

pressure() [1/2]

virtual const scalarField & pressure ( ) const

inlinevirtual

Definition at line 152 of file tractionDisplacementFvPatchVectorField.H.

pressure() [2/2]

virtual scalarField & pressure ( )

inlinevirtual

Definition at line 157 of file tractionDisplacementFvPatchVectorField.H.

autoMap()

virtual void autoMap ( const fvPatchFieldMapper & )

virtual

Map (and resize as needed) from self given a mapping object.

rmap()

virtual void rmap ( const fvPatchVectorField & , const labelList &  )

virtual

Reverse map the given fvPatchField onto this fvPatchField.

updateCoeffs()

virtual void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

write()

virtual void write ( Ostream & ) const

virtual

Write.

---

The documentation for this class was generated from the following file:

• applications/solvers/stressAnalysis/solidDisplacementFoam/tractionDisplacement/tractionDisplacementFvPatchVectorField.H
