Helper class to search on triSurface. Creates an octree for each region of the surface and only searches on the specified regions. More...

#include <triSurfaceRegionSearch.H>

Inheritance diagram for triSurfaceRegionSearch:

[legend]

Collaboration diagram for triSurfaceRegionSearch:

[legend]

Public Member Functions
	triSurfaceRegionSearch (const triSurface &)
	Construct from surface. Holds reference to surface!
	triSurfaceRegionSearch (const triSurface &, const dictionary &dict)
	Construct from surface and dictionary. Holds reference to surface!
	~triSurfaceRegionSearch ()
	Destructor.
void	clearOut ()
	Clear storage.
const PtrList< treeType > &	treeByRegion () const
	Demand driven construction of octree for each region.
void	findNearest (const pointField &samples, const scalarField &nearestDistSqr, const labelList &regionIndices, List< pointIndexHit > &info) const
	Find the nearest point on the surface out of the regions.
void	flip ()
	Flip orientation.
Public Member Functions inherited from triSurfaceSearch
	triSurfaceSearch (const triSurface &surface)
	Construct from surface. Holds reference to surface!
	triSurfaceSearch (const triSurface &surface, const dictionary &dict)
	Construct from surface and dictionary.
	triSurfaceSearch (const triSurface &surface, const scalar tolerance, const label maxTreeDepth=10)
	Construct from components.
	~triSurfaceSearch ()
	Destructor.
void	clearOut ()
	Clear storage.
const indexedOctree< treeDataTriSurface > &	tree () const
	Demand driven construction of the octree.
void	flip ()
	Flip orientation (if cached on octree).
const triSurface &	surface () const
	Return reference to the surface.
scalar	tolerance () const
	Return tolerance to use in searches.
label	maxTreeDepth () const
	Return max tree depth of octree.
boolList	calcInside (const pointField &searchPoints) const
	Calculate for each searchPoint inside/outside status.
void	findNearest (const pointField &samples, const scalarField &nearestDistSqr, List< pointIndexHit > &info) const
pointIndexHit	nearest (const point &pt, const vector &span) const
	Calculate nearest point on surface for single searchPoint. Returns.
void	findLine (const pointField &start, const pointField &end, List< pointIndexHit > &info) const
void	findLineAny (const pointField &start, const pointField &end, List< pointIndexHit > &info) const
void	findLineAll (const pointField &start, const pointField &end, List< List< pointIndexHit > > &info) const
	Calculate all intersections from start to end.

Detailed Description

Helper class to search on triSurface. Creates an octree for each region of the surface and only searches on the specified regions.

Source files

Definition at line 54 of file triSurfaceRegionSearch.H.

Constructor & Destructor Documentation

◆ triSurfaceRegionSearch() [1/2]

triSurfaceRegionSearch ( const triSurface & surface )

explicit

Construct from surface. Holds reference to surface!

Definition at line 29 of file triSurfaceRegionSearch.C.

References triSurfaceSearch::surface().

Here is the call graph for this function:

◆ triSurfaceRegionSearch() [2/2]

triSurfaceRegionSearch	(	const triSurface &	surface,
		const dictionary &	dict )

Construct from surface and dictionary. Holds reference to surface!

Definition at line 37 of file triSurfaceRegionSearch.C.

References dict, and triSurfaceSearch::surface().

Here is the call graph for this function:

◆ ~triSurfaceRegionSearch()

~triSurfaceRegionSearch ( )

Destructor.

Definition at line 51 of file triSurfaceRegionSearch.C.

References clearOut().

Here is the call graph for this function:

Member Function Documentation

◆ clearOut()

void clearOut ( )

Clear storage.

Definition at line 57 of file triSurfaceRegionSearch.C.

References triSurfaceSearch::clearOut().

Referenced by triSurfaceMesh::clearOut(), triSurfaceMesh::movePoints(), and ~triSurfaceRegionSearch().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ treeByRegion()

const Foam::PtrList< Foam::triSurfaceRegionSearch::treeType > & treeByRegion ( ) const

Demand driven construction of octree for each region.

Currently creates a tree for each region; could optimise by only constructing trees when they are in regionIndices

Definition at line 67 of file triSurfaceRegionSearch.C.

References PatchTools::calcBounds(), e, forAll, boundBox::inflate(), Foam::max(), triSurfaceSearch::maxTreeDepth(), nPoints, indexedOctreeBase::perturbTol(), points, rndGen, List< T >::setSize(), triSurfaceSearch::surface(), triSurfaceSearch::tolerance(), Foam::Zero, and VectorSpace< Form, Cmpt, Ncmpts >::zero.

Referenced by findNearest().

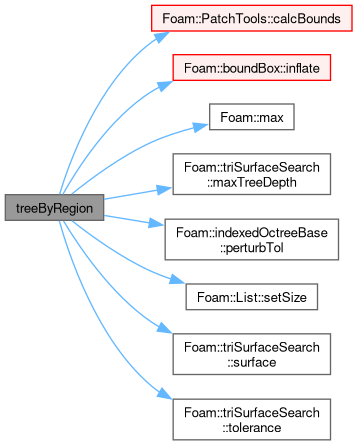

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findNearest()

void findNearest	(	const pointField &	samples,
		const scalarField &	nearestDistSqr,
		const labelList &	regionIndices,
		List< pointIndexHit > &	info ) const
