Triangulated surface description with patch information. More...

#include <triSurface.H>

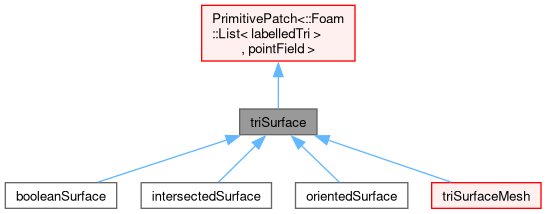

Inheritance diagram for triSurface:

[legend]

Collaboration diagram for triSurface:

Public Types
typedef bool	BoundaryMesh
	Placeholder only, but do not remove - it is needed for GeoMesh.
typedef labelledTri	face_type
	The face type (same as the underlying PrimitivePatch).
typedef point	point_type
	The point type (same as the underlying PrimitivePatch).
Public Types inherited from PrimitivePatch<::Foam::List< labelledTri >, pointField >
enum	surfaceTopo
	Enumeration defining the surface type. Used in check routines. More...
typedef std::remove_reference< ::Foam::List< labelledTri > >::type::value_type	face_type
	The face type.
typedef std::remove_reference< pointField >::type::value_type	point_type
	The point type.
typedef ::Foam::List< labelledTri >	FaceListType
	The face list type.
typedef pointField	PointFieldType
	The point field type.
typedef face_type	FaceType
	Deprecated(2020-03) prefer face_type typedef.
Public Types inherited from List< T >
typedef SubList< T >	subList
	Declare type of subList.
Public Types inherited from UList< T >
typedef T	value_type
	The value type the list contains.
typedef T *	pointer
	The pointer type for non-const access to value_type items.
typedef const T *	const_pointer
	The pointer type for const access to value_type items.
typedef T &	reference
	The type used for storing into value_type objects.
typedef const T &	const_reference
	The type used for reading from constant value_type objects.
typedef T *	iterator
	Random access iterator for traversing a UList.
typedef const T *	const_iterator
	Random access iterator for traversing a UList.
typedef label	size_type
	The type to represent the size of a UList.
typedef label	difference_type
	The difference between iterator objects.
typedef std::reverse_iterator< iterator >	reverse_iterator
	Reverse iterator (non-const access).
typedef std::reverse_iterator< const_iterator >	const_reverse_iterator
	Reverse iterator (const access).
using	is_List = void
	Have unique tag.

Public Member Functions
	ClassName ("triSurface")
	Runtime type information.

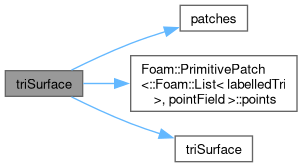

	triSurface ()
	Default construct.
	triSurface (const triSurface &surf)
	Copy construct.
	triSurface (triSurface &&surf)
	Move construct.
	triSurface (const List< labelledTri > &triangles, const geometricSurfacePatchList &patches, const pointField &pts)
	Construct from triangles, patches, points.
	triSurface (List< labelledTri > &triangles, const geometricSurfacePatchList &patches, pointField &pts, const bool reuse)
	Construct from triangles, patches, points. Reuse storage.
	triSurface (const List< labelledTri > &triangles, const pointField &pts)
	Construct from triangles, points. Set patch names to default.
	triSurface (const triFaceList &triangles, const pointField &pts)
	Construct from triangles, points. Set region to 0 and default patchName.
	triSurface (const fileName &name, const scalar scaleFactor=-1)
	Construct from file name (uses extension to determine type).
	triSurface (const fileName &name, const word &fileType, const scalar scaleFactor=-1)
	Construct from file name with given format type.
	triSurface (Istream &is)
	Construct from Istream.
	triSurface (const Time &d)
	Construct from objectRegistry by reading an ".ftr" file.
	triSurface (const IOobject &io, const dictionary &dict, const bool isGlobal=true)
	Read construct using IO to find the file location.
virtual	~triSurface ()
	Destructor.

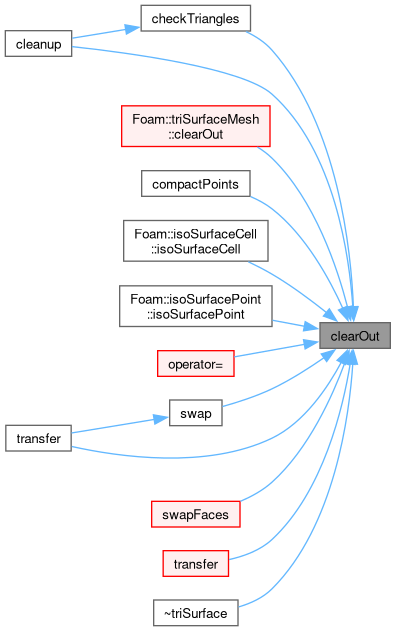

void	clearOut ()
void	clearTopology ()
void	clearPatchMeshAddr ()
void	swap (triSurface &surf)

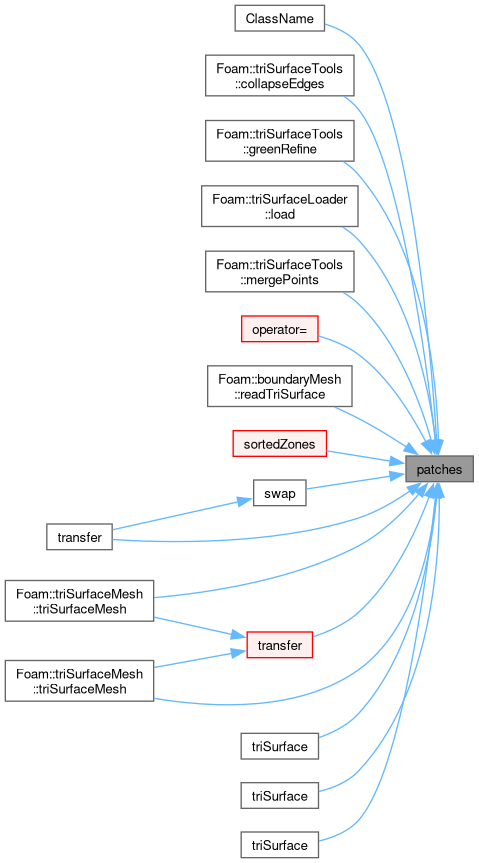

const geometricSurfacePatchList &	patches () const noexcept
geometricSurfacePatchList &	patches () noexcept
const List< labelledTri > &	surfFaces () const noexcept
	Return const access to the faces.
const labelListList &	sortedEdgeFaces () const
	Return edge-face addressing sorted (for edges with more than.
const labelList &	edgeOwner () const
	If 2 face neighbours: label of face where ordering of edge.
const vectorField &	Sf () const
	Face area vectors (normals).
const scalarField &	magSf () const
	Face area magnitudes.
const vectorField &	Cf () const
	Face centres.
List< surfZone >	sortedZones (labelList &faceMap) const
	Sort faces according to zoneIds.
void	triFaceFaces (List< face > &plainFaceList) const
	Create a list of faces from the triFaces.
virtual void	movePoints (const pointField &pts)
	Move points.

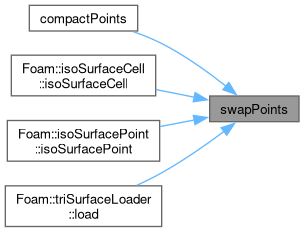

virtual void	swapPoints (pointField &pts)
	Swap points. Similar to movePoints, but returns the old points.

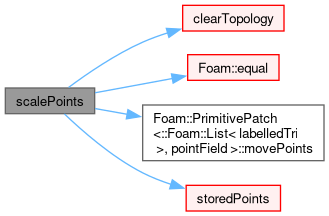

virtual void	scalePoints (const scalar scaleFactor)
	Scale points. A non-positive factor is ignored.

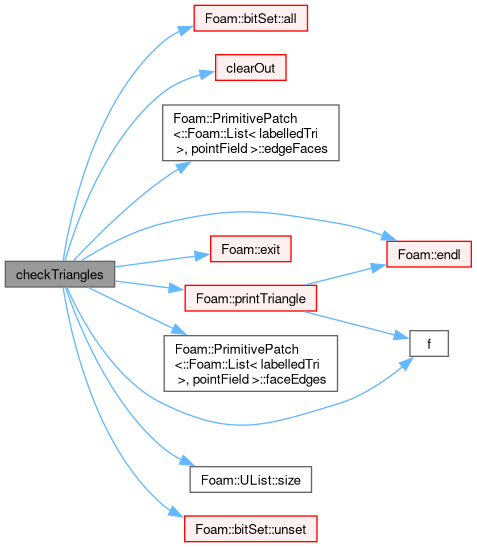

void	checkTriangles (const bool verbose)
	Check/remove duplicate/degenerate triangles.

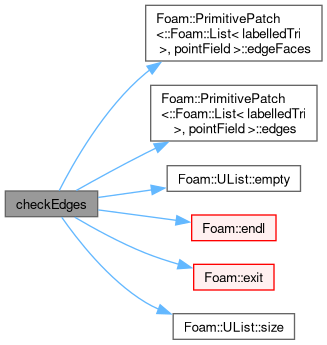

void	checkEdges (const bool verbose)
	Check triply (or more) connected edges.
void	cleanup (const bool verbose)
	Remove non-valid triangles.

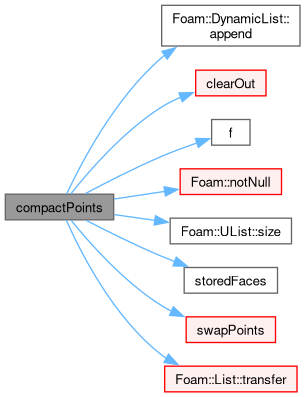

void	compactPoints (labelList &pointMap=const_cast< labelList & >(labelList::null()))
	Remove unused points and renumber faces in local visit order.

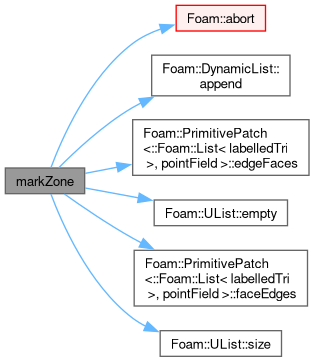

void	markZone (const boolList &borderEdge, const label facei, const label currentZone, labelList &faceZone) const
	Fill faceZone with currentZone for every face reachable.

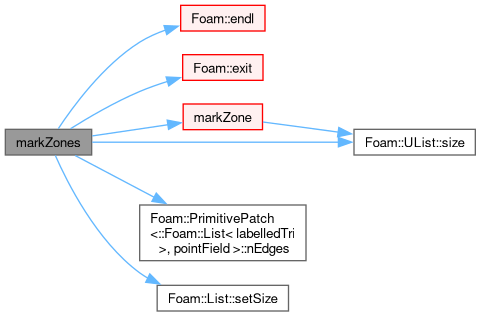

label	markZones (const boolList &borderEdge, labelList &faceZone) const
	(size and) fills faceZone with zone of face. Zone is area
template<class BoolListType>
void	subsetMeshMap (const BoolListType &include, labelList &pointMap, labelList &faceMap) const
	Create mappings for a sub-surface.

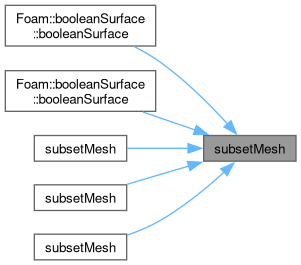

triSurface	subsetMesh (const UList< bool > &include, labelList &pointMap, labelList &faceMap) const
	Return a new surface subsetted on the selected faces.
triSurface	subsetMesh (const bitSet &include, labelList &pointMap, labelList &faceMap) const
	Return a new surface subsetted on the selected faces.
triSurface	subsetMesh (const UList< bool > &include) const
	Return a new surface subsetted on the selected faces.
triSurface	subsetMesh (const bitSet &include) const
	Return a new surface subsetted on the selected faces.
triSurface	subsetMesh (const wordRes &includeNames, const wordRes &excludeNames=wordRes()) const
	Return a new surface subsetted on the selected patch names.
void	swapFaces (List< labelledTri > &faceLst)
	Swap the list of faces being addressed.
void	transfer (triSurface &surf)
	Alter contents by transferring (triangles, points) components.

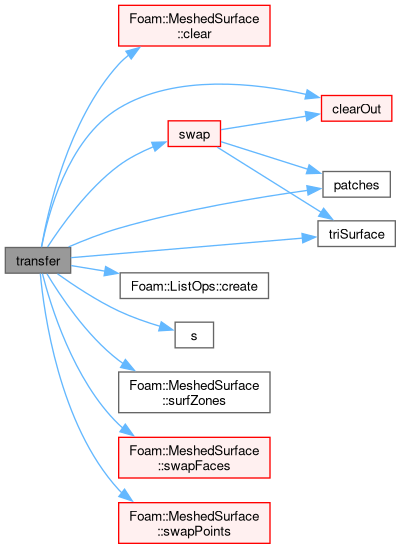

void	transfer (MeshedSurface< labelledTri > &surf)
	Alter contents by transferring (triangles, points) components.

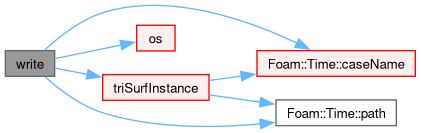

void	write (Ostream &os) const
	Write to Ostream in simple OpenFOAM format.

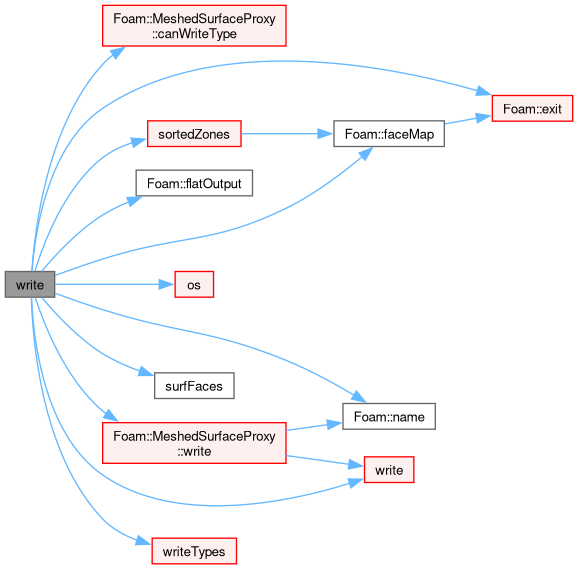

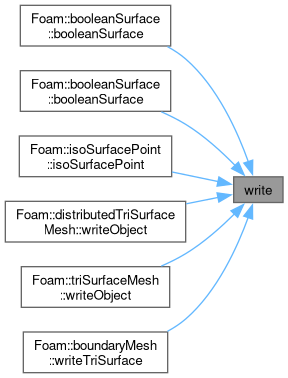

void	write (const fileName &, const bool sortByRegion=false) const
	Generic write routine (uses extension to determine type).
void	write (const fileName &filename, const word &fileType, const bool sortByRegion=false) const
	Generic write routine for given format type.
void	write (const Time &d) const
	Write to database.

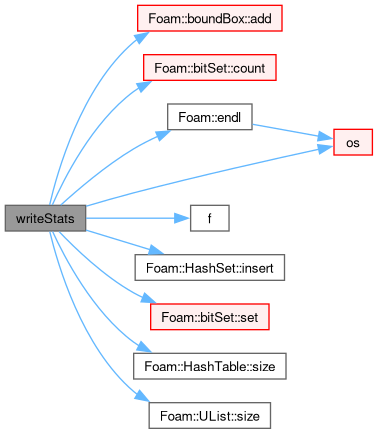

void	writeStats (Ostream &os) const
	Write some statistics.

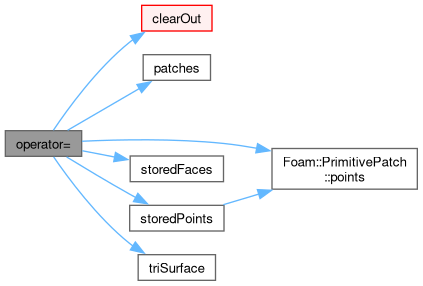

void	operator= (const triSurface &surf)
	Copy assignment.
void	operator= (triSurface &&surf)
	Move assignment.
void	operator= (MeshedSurface< labelledTri > &&surf)
	Move assignment.
Public Member Functions inherited from PrimitivePatch<::Foam::List< labelledTri >, pointField >
	PrimitivePatch (const ::Foam::List< labelledTri > &faces, const pointField &points)
	Construct from components.
	PrimitivePatch (::Foam::List< labelledTri > &&faces, const pointField &points)
	Construct from components, transferring faces.
	PrimitivePatch (::Foam::List< labelledTri > &faces, pointField &points, const bool reuse)
	Construct from components, reuse storage.
	PrimitivePatch (const PrimitivePatch< ::Foam::List< labelledTri >, pointField > &pp)
	Copy construct.
virtual	~PrimitivePatch ()
	Destructor.
void	clearOut ()
void	clearGeom ()
void	clearTopology ()
void	clearPatchMeshAddr ()
void	swap (PrimitivePatch &)=delete
	Suppress direct swapping, since storage containers may be const.
const Field< point_type > &	points () const noexcept
	Return reference to global points.
label	nFaces () const noexcept
	Number of faces in the patch.
label	nPoints () const
	Number of points supporting patch faces.
label	nEdges () const
	Number of edges in patch.
const edgeList &	edges () const
	Return list of edges, address into LOCAL point list.
const edgeList::subList	internalEdges () const
	Return sub-list of internal edges, address into LOCAL point list.
const edgeList::subList	boundaryEdges () const
	Return sub-list of boundary edges, address into LOCAL point list.
label	nInternalEdges () const
	Number of internal edges.
label	nBoundaryEdges () const
	Number of boundary edges == (nEdges() - nInternalEdges()).
bool	isInternalEdge (const label edgei) const
	Is internal edge?
const labelList &	boundaryPoints () const
	Return list of boundary points, address into LOCAL point list.
const labelListList &	faceFaces () const
	Return face-face addressing.
const labelListList &	edgeFaces () const
	Return edge-face addressing.
const labelListList &	faceEdges () const
	Return face-edge addressing.
const labelListList &	pointEdges () const
	Return point-edge addressing.
const labelListList &	pointFaces () const
	Return point-face addressing.
const List< face_type > &	localFaces () const
	Return patch faces addressing into local point list.
labelList	boundaryFaces () const
	Extract list of local faces corresponding to the boundary edges.
labelList	uniqBoundaryFaces () const
	Extract sorted list of unique local faces associated with the boundary edges.
const labelList &	meshPoints () const
	Return labelList of mesh points in patch.
const Map< label > &	meshPointMap () const
	Mesh point map.
const Field< point_type > &	localPoints () const
	Return pointField of points in patch.
const labelList &	localPointOrder () const
	Return orders the local points for most efficient search.
label	whichPoint (const label gp) const
	Given a global point index, return the local point index.
edge	meshEdge (const label edgei) const
	From patch edge to global edge using meshPoints.
edge	meshEdge (const edge &e) const
	From patch edge to global edge using meshPoints.
label	findEdge (const edge &e) const
	Search for edge (local point labels) and return its index in the edge list or -1 if not found.
labelList	meshEdges (const edgeList &allEdges, const labelListList &cellEdges, const labelList &faceCells) const
	Return labels of patch edges in the global edge list using cell addressing.
labelList	meshEdges (const edgeList &allEdges, const labelListList &pointEdges) const
	Return labels of patch edges into the global edge list using basic edge addressing.
label	meshEdge (const label edgei, const edgeList &allEdges, const labelListList &pointEdges) const
	Return label of the local patch edge into the global edge list using basic edge addressing.
labelList	meshEdges (const labelUList &edgeLabels, const edgeList &allEdges, const labelListList &pointEdges) const
	Return labels of specified patch edges into the global edge list using basic edge addressing.
const Field< point_type > &	faceCentres () const
	Return face centres for patch.
const Field< point_type > &	faceAreas () const
	Return face area vectors for patch.
const Field< scalar > &	magFaceAreas () const
	Return face area magnitudes for patch.
const Field< point_type > &	faceNormals () const
	Return face unit normals for patch.
const Field< point_type > &	pointNormals () const
	Return point normals for patch.
Pair< point_type >	box () const
	The enclosing (bounding) box for the patch points.
scalar	sphere (const label facei) const
	The enclosing (bounding) sphere radius^2 for specified face.
bool	hasFaceAreas () const
bool	hasFaceCentres () const
bool	hasFaceNormals () const
bool	hasPointNormals () const
bool	hasBoundaryPoints () const
bool	hasEdges () const
bool	hasFaceFaces () const
bool	hasEdgeFaces () const
bool	hasFaceEdges () const
bool	hasPointEdges () const
bool	hasPointFaces () const
bool	hasMeshPoints () const
bool	hasMeshPointMap () const
List< objectHit >	projectPoints (const ToPatch &targetPatch, const Field< point_type > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const
	Project vertices of patch onto another patch.
List< objectHit >	projectFaceCentres (const ToPatch &targetPatch, const Field< point_type > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const
	Project vertices of patch onto another patch.
const labelListList &	edgeLoops () const
	Return list of closed loops of boundary vertices.
surfaceTopo	surfaceType (labelHashSet *badEdgesPtr=nullptr) const
	Calculate surface type formed by patch, optionally recording the indices of illegal edges.
bool	checkTopology (const bool report=false, labelHashSet *pointSetPtr=nullptr) const
	Check surface formed by patch for manifoldness (see above).
bool	checkPointManifold (const bool report=false, labelHashSet *pointSetPtr=nullptr) const
	Checks primitivePatch for faces sharing point but not edge.
virtual void	movePoints (const Field< point_type > &)
	Correct patch after moving points.
void	operator= (const PrimitivePatch< ::Foam::List< labelledTri >, pointField > &rhs)
	Copy assign faces. Leave points alone (could be a reference).
void	operator= (PrimitivePatch< ::Foam::List< labelledTri >, pointField > &&rhs)
	Move assign faces. Leave points alone (could be a reference).
label	whichEdge (const edge &e) const
	Identical to findEdge.
Foam::List< Foam::objectHit >	projectPoints (const ToPatch &targetPatch, const Field< typename Foam::PrimitivePatch< ::Foam::List< labelledTri >, pointField >::point_type > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const
Foam::List< Foam::objectHit >	projectFaceCentres (const ToPatch &targetPatch, const Field< typename Foam::PrimitivePatch< ::Foam::List< labelledTri >, pointField >::point_type > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const
Public Member Functions inherited from PrimitivePatchBase
	ClassName ("PrimitivePatch")
	Runtime type information.
	PrimitivePatchBase ()=default
	Default construct.
Public Member Functions inherited from List< T >
constexpr	List () noexcept
	Default construct.
	List (const label len)
	Construct with given size.
	List (const label len, const T &val)
	Construct with given size and value for all elements.
	List (const label len, Foam::zero)
	Construct with given size initializing all elements to zero.
	List (Foam::one, const T &val)
	Construct with length=1, copying the value as the only content.
	List (Foam::one, T &&val)
	Construct with length=1, moving the value as the only content.
	List (Foam::one, Foam::zero)
	Construct with length=1, initializing content to zero.
	List (const List< T > &list)
	Copy construct from list.
	List (const UList< T > &list)
	Copy construct contents from list.
	List (List< T > &list, bool reuse)
	Construct as copy or re-use as specified.
	List (const UList< T > &list, const labelUList &indices)
	Copy construct subset of list.
template<unsigned N>
	List (const UList< T > &list, const FixedList< label, N > &indices)
	Copy construct subset of list.
template<unsigned N>
	List (const FixedList< T, N > &list)
	Construct as copy of FixedList<T, N>.
	List (const UPtrList< T > &list)
	Construct as copy of UPtrList<T> content.
template<class Addr>
	List (const IndirectListBase< T, Addr > &list)
	Construct as copy of IndirectList contents.
	List (std::initializer_list< T > list)
	Construct from an initializer list.
	List (List< T > &&list) noexcept
	Move construct from List.
template<int SizeMin>
	List (DynamicList< T, SizeMin > &&list)
	Move construct from DynamicList.
	List (Istream &is)
	Construct from Istream.
autoPtr< List< T > >	clone () const
	Clone.
	~List ()
	Destructor.
void	clear ()
	Clear the list, i.e. set size to zero.
void	resize (const label len)
	Adjust allocated size of list.
void	resize (const label len, const T &val)
	Adjust allocated size of list and set val for new elements.
void	resize_copy (label count, const label len)
	Change allocated size of list, retaining the first count elements.
void	resize_fill (const label len, const T &val)
	Adjust allocated size of list and set val for all elements.
void	resize_nocopy (const label len)
	Adjust allocated size of list without necessarily.
void	transfer (List< T > &list)
	Transfer the contents of the argument List into this list and annul the argument list.
template<int SizeMin>
void	transfer (DynamicList< T, SizeMin > &list)
	Transfer the contents of the argument List into this list and annul the argument list.
T &	newElmt (const label i)
	Return subscript-checked element of UList and resizing the list if required.
template<class... Args>
T &	emplace_back (Args &&... args)
	Construct an element at the end of the list, return reference to the new list element.
void	push_back (const T &val)
	Append an element at the end of the list.
void	push_back (T &&val)
	Move append an element at the end of the list.
void	push_back (const UList< T > &list)
	Append a List to the end of this list.
template<class Addr>
void	push_back (const IndirectListBase< T, Addr > &list)
	Append IndirectList contents at the end of this list.
label	push_uniq (const T &val)
	Append an element if not already in the list.
void	pop_back (label n=1)
	Reduce size by 1 or more elements. Can be called on an empty list.
void	operator= (const UList< T > &list)
	Assignment to UList operator. Takes linear time.
void	operator= (const List< T > &list)
	Assignment operator. Takes linear time.
template<class Addr>
void	operator= (const IndirectListBase< T, Addr > &list)
	Assignment from IndirectList. Takes linear time.
template<unsigned N>
void	operator= (const FixedList< T, N > &list)
	Copy assignment from FixedList.
void	operator= (std::initializer_list< T > list)
	Assignment to an initializer list.
void	operator= (const T &val)
	Assignment of all entries to the given value.
void	operator= (Foam::zero)
	Assignment of all entries to zero.
void	operator= (List< T > &&list)
	Move assignment. Takes constant time.
template<int SizeMin>
void	operator= (DynamicList< T, SizeMin > &&list)
	Move assignment. Takes constant time.
Istream &	readList (Istream &is)
	Read List from Istream, discarding contents of existing List.
void	shallowCopy (const UList< T > &)=delete
	No shallowCopy permitted.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	set (const label i, bool val=true)
	A bitSet::set() method for a list of bool.
void	append (const T &val)
	Append an element at the end of the list.
void	append (T &&val)
	Move append an element at the end of the list.
void	append (const UList< T > &list)
	Append a List to the end of this list.
template<class Addr>
void	append (const IndirectListBase< T, Addr > &list)
	Append IndirectList contents at the end of this list.
label	appendUniq (const T &val)
	Same as push_uniq().
void	setSize (label n)
	Alias for resize().
void	setSize (label n, const T &val)
	Alias for resize().
template<typename E>
	List (const Expression::ListExpression< E > &expr)
	Construct from value expression.
template<typename E>
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.
void	resize (const label len)
Public Member Functions inherited from UList< T >
	UList (const UList< T > &) noexcept=default
	Copy construct, shallow copy.
	UList (UList< T > &&) noexcept=default
	Move construct, shallow copy.
UList< T > &	operator= (const UList< T > &)=delete
	No copy assignment (default: shallow copy).
UList< T > &	operator= (UList< T > &&) noexcept=default
	Move assignment, shallow copy.
constexpr	UList () noexcept
	Default construct, zero-sized and nullptr.
	UList (T *__restrict__ ptr, const label len) noexcept
	Construct from components.
	UList (SubList< T > &&) noexcept
	Move construct from a SubList, shallow copy.
label	fcIndex (const label i) const noexcept
	The forward circular index. The next index in the list which returns to the first at the end of the list.
label	rcIndex (const label i) const noexcept
	The reverse circular index. The previous index in the list which returns to the last at the beginning of the list.
const T &	fcValue (const label i) const
	Return forward circular value (ie, next value in the list).
T &	fcValue (const label i)
	Return forward circular value (ie, next value in the list).
const T &	rcValue (const label i) const
	Return reverse circular value (ie, previous value in the list).
T &	rcValue (const label i)
	Return reverse circular value (ie, previous value in the list).
const T *	cdata () const noexcept
	Return pointer to the underlying array serving as data storage.
T *	data () noexcept
	Return pointer to the underlying array serving as data storage.
const char *	cdata_bytes () const noexcept
	Return pointer to the underlying array serving as data storage,.
char *	data_bytes () noexcept
	Return pointer to the underlying array serving as data storage,.
T &	front ()
	Access first element of the list, position [0].
const T &	front () const
	Access first element of the list.
T &	back ()
	Access last element of the list, position [size()-1].
const T &	back () const
	Access last element of the list, position [size()-1].
std::streamsize	size_bytes () const noexcept
	Number of contiguous bytes for the List data.
std::streamsize	byteSize () const
	Number of contiguous bytes for the List data, runtime FatalError if type is not contiguous.
void	checkStart (const label start) const
	Check start is within valid range [0,size).
void	checkSize (const label size) const
	Check size is within valid range [0,size].
void	checkRange (const label start, const label len) const
	Check that start and length define a valid range.
void	checkIndex (const label i) const
	Check index is within valid range [0,size).
bool	uniform () const
	True if all entries have identical values, and list is non-empty.
bool	contains (const T &val) const
	True if the value is contained in the list.
bool	contains (const T &val, label pos, label len=-1) const
	Is the value contained in the list?
label	find (const T &val) const
	Find index of the first occurrence of the value.
label	find (const T &val, label pos, label len=-1) const
	Find index of the first occurrence of the value.
label	rfind (const T &val, label pos=-1) const
	Find index of the last occurrence of the value.
void	moveFirst (const label i)
	Move element to the first position.
void	moveLast (const label i)
	Move element to the last position.
void	swapFirst (const label i)
	Swap element with the first element. Fatal on an empty list.
void	swapLast (const label i)
	Swap element with the last element. Fatal on an empty list.
void	shallowCopy (T *__restrict__ ptr, const label len) noexcept
	Copy the pointer and size.
void	shallowCopy (std::nullptr_t) noexcept
	Copy nullptr and zero size.
void	shallowCopy (const UList< T > &list) noexcept
	Copy the pointer and size held by the given UList.
void	deepCopy (const UList< T > &list)
	Copy elements of the given UList. Sizes must match!
template<class Addr>
void	deepCopy (const IndirectListBase< T, Addr > &list)
	Copy elements of the given indirect list. Sizes must match!
SubList< T >	slice (const label pos, label len=-1)
	Return SubList slice (non-const access) - no range checking.
const SubList< T >	slice (const label pos, label len=-1) const
	Return SubList slice (const access) - no range checking.
SubList< T >	slice (const labelRange &range)
	Return SubList slice (non-const access) - with range checking.
const SubList< T >	slice (const labelRange &range) const
	Return SubList slice (const access) - with range checking.
T &	operator[] (const label i)
	Return element of UList.
const T &	operator[] (const label i) const
	Return element of constant UList.
	operator const Foam::List< T > & () const
	Allow cast to a const List<T>&.
void	operator= (const T &val)
	Assignment of all entries to the given value.
void	operator= (Foam::zero)
	Assignment of all entries to zero.
iterator	begin () noexcept
	Return an iterator to begin traversing the UList.
iterator	end () noexcept
	Return an iterator to end traversing the UList.
iterator	begin (const label i) noexcept
	Return iterator at offset i from begin, clamped to [0,size] range.
const_iterator	cbegin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	cend () const noexcept
	Return const_iterator to end traversing the constant UList.
const_iterator	begin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	end () const noexcept
	Return const_iterator to end traversing the constant UList.
const_iterator	cbegin (const label i) const noexcept
	Return const_iterator at offset i from begin, clamped to [0,size] range.
const_iterator	begin (const label i) const noexcept
	Return const_iterator at offset i from begin, clamped to [0,size] range.
reverse_iterator	rbegin ()
	Return reverse_iterator to begin reverse traversing the UList.
reverse_iterator	rend ()
	Return reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	crbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	crend () const
	Return const_reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	rbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	rend () const
	Return const_reverse_iterator to end reverse traversing the UList.
bool	empty () const noexcept
	True if List is empty (ie, size() is zero).
label	size () const noexcept
	The number of elements in the container.
label	capacity () const noexcept
	Size of the underlying storage.
void	swap (UList< T > &list) noexcept
	Swap content with another UList of the same type in constant time.
bool	operator== (const UList< T > &list) const
	Equality operation on ULists of the same type.
bool	operator!= (const UList< T > &list) const
	The opposite of the equality operation. Takes linear time.
bool	operator< (const UList< T > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator> (const UList< T > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator<= (const UList< T > &list) const
	Return true if !(a > b). Takes linear time.
bool	operator>= (const UList< T > &list) const
	Return true if !(a < b). Takes linear time.
Istream &	readList (Istream &is)
	Read List contents from Istream.
void	writeEntry (const word &keyword, Ostream &os) const
	Write the List as a dictionary entry with keyword.
Ostream &	writeList (Ostream &os, const label shortLen=0) const
	Write List, with line-breaks in ASCII when length exceeds shortLen.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	all () const
	True if all entries are 'true' or if the list is empty.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	any () const
	True if any entries are 'true'.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	none () const
	True if no entries are 'true'.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	test (const label i) const
	Test `bool` value at specified position, always false for out-of-range access.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	get (const label i) const
	Return `bool` value at specified position, always false for out-of-range access.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	unset (const label i)
	Unset the `bool` entry at specified position, always false for out-of-range access.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_char_v<TypeT>>>
std::string_view	view () const
	Return a string_view of the charList. Content is non-modifiable.
T &	first ()
	Access first element of the list, position [0].
const T &	first () const
	Access first element of the list.
T &	last ()
	Access last element of the list, position [size()-1].
const T &	last () const
	Access last element of the list, position [size()-1].
bool	found (const T &val, label pos=0) const
	Same as contains().
auto	expr () const
	Wrap value as expression.
template<typename E>
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.

Static Public Member Functions

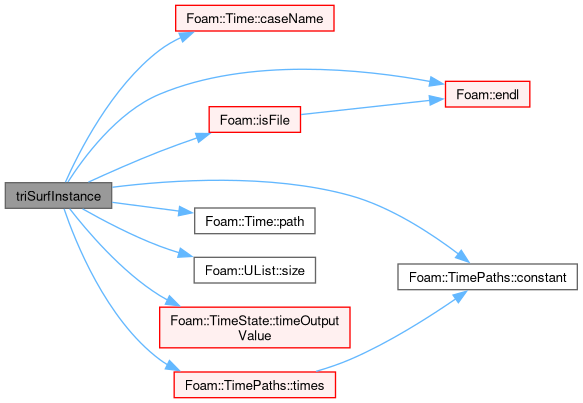

static fileName	triSurfInstance (const Time &)
	Name of triSurface directory to use.

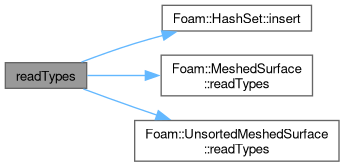

static wordHashSet	readTypes ()
	Known readable file-types, including via friends or proxies.
static wordHashSet	writeTypes ()
	Known writable file-types, including via friends or proxies.
static bool	canReadType (const word &fileType, bool verbose=false)
	Can we read this file format?
static bool	canWriteType (const word &fileType, bool verbose=false)
	Can we write this file format?
static bool	canRead (const fileName &name, bool verbose=false)
	Can we read this file format?
static fileName	relativeFilePath (const IOobject &io, const fileName &f, const bool isGlobal=true)
	Return fileName.
static fileName	checkFile (const IOobject &io, const bool isGlobal=true)
	Return fileName to load IOobject from.
static fileName	checkFile (const IOobject &io, const dictionary &dict, const bool isGlobal=true)
	Return fileName to load IOobject from.
static fileName	findFile (const IOobject &io, const bool isGlobal=true)
	Use IOobject information to resolve file to load from, or empty if the file does not exist.
static fileName	findFile (const IOobject &io, const dictionary &dict, const bool isGlobal=true)
	Use IOobject information to resolve file to load from, or empty if the file does not exist.
static autoPtr< triSurface >	New (const fileName &name, const word &fileType)
	Read construct from filename with given file type.
static autoPtr< triSurface >	New (const fileName &name)
	Read construct from filename (file type implicit from extension).
Static Public Member Functions inherited from List< T >
static const List< T > &	null () noexcept
	Return a null List (reference to a nullObject). Behaves like an empty List.
Static Public Member Functions inherited from UList< T >
static const UList< T > &	null () noexcept
	Return a null UList (reference to a nullObject). Behaves like an empty UList.
static constexpr label	max_size () noexcept
	The size of the largest possible UList.

Protected Member Functions
pointField &	storedPoints ()
	Non-const access to global points.
List< labelledTri > &	storedFaces ()
	Non-const access to the faces.
Protected Member Functions inherited from UList< T >
void	setAddressableSize (const label n) noexcept
	Set addressed size to be inconsistent with allocated storage.
void	size (const label n)
	Older name for setAddressableSize.
void	writeEntry (Ostream &os) const
	Write the UList with its compound type.
labelRange	validateRange (const labelRange &requestedRange) const
	Return a validated (start,size) subset range, which means that it always addresses a valid section of the list.
void	fill_uniform (const T &val)
	Assign all entries to the given value.
void	fill_uniform (Foam::zero)
	Assign all entries to zero.

Friends
Istream &	operator>> (Istream &is, triSurface &s)
Ostream &	operator<< (Ostream &os, const triSurface &s)

Detailed Description

Triangulated surface description with patch information.

Source files

Definition at line 71 of file triSurface.H.

Member Typedef Documentation

◆ BoundaryMesh

typedef bool BoundaryMesh

Placeholder only, but do not remove - it is needed for GeoMesh.

Definition at line 251 of file triSurface.H.

◆ face_type

typedef labelledTri face_type

The face type (same as the underlying PrimitivePatch).

Definition at line 256 of file triSurface.H.

◆ point_type

typedef point point_type

The point type (same as the underlying PrimitivePatch).

Definition at line 261 of file triSurface.H.

Constructor & Destructor Documentation

◆ triSurface() [1/12]

triSurface ( )

Default construct.

Definition at line 426 of file triSurface.C.

Referenced by booleanSurface::booleanSurface(), booleanSurface::booleanSurface(), booleanSurface::booleanSurface(), intersectedSurface::ClassName(), orientedSurface::ClassName(), ClassName(), triSurfaceMesh::flip(), triSurfaceMesh::getNormal(), intersectedSurface::intersectedSurface(), intersectedSurface::intersectedSurface(), intersectedSurface::intersectedSurface(), triSurfaceMesh::isSurfaceClosed(), operator<<, operator=(), operator=(), operator>>, orientedSurface::orient(), orientedSurface::orient(), orientedSurface::orientConsistent(), orientedSurface::orientedSurface(), orientedSurface::orientedSurface(), orientedSurface::orientedSurface(), swap(), transfer(), transfer(), triSurface(), triSurface(), triSurface(), triSurface(), triSurface(), triSurface(), triSurface(), triSurfaceMesh::triSurfaceMesh(), triSurfaceMesh::triSurfaceMesh(), triSurfaceMesh::triSurfaceMesh(), triSurfaceMesh::triSurfaceMesh(), and triSurfaceMesh::triSurfaceMesh().

Here is the caller graph for this function:

◆ triSurface() [2/12]

triSurface ( const triSurface & surf )

Copy construct.

Definition at line 435 of file triSurface.C.

References patches(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::points(), and triSurface().

Here is the call graph for this function:

◆ triSurface() [3/12]

triSurface ( triSurface && surf )

Move construct.

Definition at line 444 of file triSurface.C.

References transfer(), and triSurface().

Here is the call graph for this function:

◆ triSurface() [4/12]

triSurface	(	const List< labelledTri > &	triangles,
		const geometricSurfacePatchList &	patches,
		const pointField &	pts )

Construct from triangles, patches, points.

Definition at line 452 of file triSurface.C.

References patches(), pts, and triangles.

Here is the call graph for this function:

◆ triSurface() [5/12]

triSurface	(	List< labelledTri > &	triangles,
		const geometricSurfacePatchList &	patches,
		pointField &	pts,
		const bool	reuse )

Construct from triangles, patches, points. Reuse storage.

Definition at line 466 of file triSurface.C.

References patches(), pts, and triangles.

Here is the call graph for this function:

◆ triSurface() [6/12]

triSurface	(	const List< labelledTri > &	triangles,
		const pointField &	pts )

Construct from triangles, points. Set patch names to default.

Definition at line 481 of file triSurface.C.

References pts, and triangles.

◆ triSurface() [7/12]

triSurface	(	const triFaceList &	triangles,
		const pointField &	pts )

Construct from triangles, points. Set region to 0 and default patchName.

Definition at line 496 of file triSurface.C.

References pts, and triangles.

◆ triSurface() [8/12]

triSurface	(	const fileName &	name,
		const scalar	scaleFactor = -1 )

explicit

Construct from file name (uses extension to determine type).

Optional (positive, non-zero) point scaling is possible.

Definition at line 511 of file triSurface.C.

References Foam::name(), and triSurface().

Here is the call graph for this function:

◆ triSurface() [9/12]

triSurface	(	const fileName &	name,
		const word &	fileType,
		const scalar	scaleFactor = -1 )

Construct from file name with given format type.

If the format type is "", uses the file extension.

Definition at line 521 of file triSurface.C.

References Foam::name(), scalePoints(), and triSurface().

Here is the call graph for this function:

◆ triSurface() [10/12]

triSurface ( Istream & is )

explicit

Construct from Istream.

Definition at line 275 of file triSurfaceIO.C.

References triSurface().

Here is the call graph for this function:

◆ triSurface() [11/12]

triSurface ( const Time & d )

explicit

Construct from objectRegistry by reading an ".ftr" file.

Definition at line 285 of file triSurfaceIO.C.

References Time::caseName(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, Time::path(), triSurface(), and triSurfInstance().

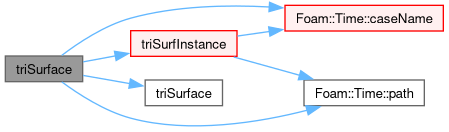

Here is the call graph for this function:

◆ triSurface() [12/12]

triSurface	(	const IOobject &	io,
		const dictionary &	dict,
		const bool	isGlobal = true )

Read construct using IO to find the file location.

Dictionary may contain the following entries:

file = alternative file name (default is dictionary name)
fileType = file format (default is from file extension)
scale (eg, 0.001: mm to m)

Parameters

isGlobal resolve as a global file

Definition at line 300 of file triSurfaceIO.C.

References checkFile(), dict, io, word::null, scalePoints(), and triSurface().

Here is the call graph for this function:

◆ ~triSurface()

~triSurface ( )

virtual

Destructor.

Definition at line 538 of file triSurface.C.

References clearOut().

Here is the call graph for this function:

Member Function Documentation

◆ storedPoints()

pointField & storedPoints ( )

inlineprotected

Non-const access to global points.

Definition at line 230 of file triSurface.H.

References PrimitivePatch<::Foam::List< labelledTri >, pointField >::points().

Referenced by movePoints(), operator=(), scalePoints(), swap(), swapPoints(), and transfer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ storedFaces()

List< labelledTri > & storedFaces ( )

inlineprotected

Non-const access to the faces.

Definition at line 238 of file triSurface.H.

Referenced by compactPoints(), operator=(), swap(), swapFaces(), and transfer().

Here is the caller graph for this function:

◆ ClassName()

ClassName ( "triSurface" )

Runtime type information.

References dict, f(), io, Foam::name(), patches(), pts, triangles, and triSurface().

Here is the call graph for this function:

◆ triSurfInstance()

Foam::fileName triSurfInstance ( const Time & d )

static

Name of triSurface directory to use.

Definition at line 67 of file triSurface.C.

References Time::caseName(), TimePaths::constant(), Foam::endl(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, Foam::isFile(), Time::path(), Foam::Pout, UList< T >::size(), TimeState::timeOutputValue(), and TimePaths::times().

Referenced by triSurface(), and write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readTypes()

Foam::wordHashSet readTypes ( )

static

Known readable file-types, including via friends or proxies.

Definition at line 33 of file triSurfaceIO.C.

References HashSet< Key, Hash >::insert(), MeshedSurface< Face >::readTypes(), and UnsortedMeshedSurface< Face >::readTypes().

Referenced by canReadType(), and New().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeTypes()

Foam::wordHashSet writeTypes ( )

static

Known writable file-types, including via friends or proxies.

Definition at line 51 of file triSurfaceIO.C.

References HashSet< Key, Hash >::insert(), and MeshedSurfaceProxy< Face >::writeTypes().

Referenced by canWriteType(), and write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ canReadType()

bool canReadType	(	const word &	fileType,
		bool	verbose = false )

static

Can we read this file format?

Definition at line 68 of file triSurfaceIO.C.

References surfaceFormatsCore::checkSupport(), and readTypes().

Referenced by canRead().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ canWriteType()

bool canWriteType	(	const word &	fileType,
		bool	verbose = false )

static

Can we write this file format?

Definition at line 80 of file triSurfaceIO.C.

References surfaceFormatsCore::checkSupport(), and writeTypes().

Here is the call graph for this function:

◆ canRead()

bool canRead	(	const fileName &	name,
		bool	verbose = false )

static

Can we read this file format?

Definition at line 92 of file triSurfaceIO.C.

References canReadType(), and Foam::name().

Referenced by triSurfaceLoader::readDir().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ relativeFilePath()

Foam::fileName relativeFilePath	(	const IOobject &	io,
		const fileName &	f,
		const bool	isGlobal = true )

static

Return fileName.

If fileName is relative gets treated as local to IOobject.

Parameters

isGlobal resolve as a global file

Definition at line 105 of file triSurfaceIO.C.

References f(), io, and surfaceFormatsCore::relativeFilePath().

Here is the call graph for this function:

◆ checkFile() [1/2]

Foam::fileName checkFile	(	const IOobject &	io,
		const bool	isGlobal = true )

static

Return fileName to load IOobject from.

Fatal if the file does not exist

Parameters

isGlobal resolve as a global file

Definition at line 116 of file triSurfaceIO.C.

References surfaceFormatsCore::checkFile(), and io.

Referenced by triSurface().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkFile() [2/2]

Foam::fileName checkFile	(	const IOobject &	io,
		const dictionary &	dict,
		const bool	isGlobal = true )

static

Return fileName to load IOobject from.

Supports optional override of fileName with "file" entry Fatal if the file does not exist

Parameters

isGlobal resolve as a global file

Definition at line 126 of file triSurfaceIO.C.

References surfaceFormatsCore::checkFile(), dict, and io.

Here is the call graph for this function:

◆ findFile() [1/2]

Foam::fileName findFile	(	const IOobject &	io,
		const bool	isGlobal = true )

static

Use IOobject information to resolve file to load from, or empty if the file does not exist.

Parameters

isGlobal resolve as a global file

Definition at line 137 of file triSurfaceIO.C.

References surfaceFormatsCore::findFile(), and io.

Referenced by distributedTriSurfaceMesh::distributedTriSurfaceMesh(), and distributedTriSurfaceMesh::distributedTriSurfaceMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findFile() [2/2]

Foam::fileName findFile	(	const IOobject &	io,
		const dictionary &	dict,
		const bool	isGlobal = true )

static

Use IOobject information to resolve file to load from, or empty if the file does not exist.

Supports optional override of fileName with "file" entry

Parameters

isGlobal resolve as a global file

Definition at line 147 of file triSurfaceIO.C.

References dict, surfaceFormatsCore::findFile(), and io.

Here is the call graph for this function:

◆ New() [1/2]

Foam::autoPtr< Foam::triSurface > New	(	const fileName &	name,
		const word &	fileType )

static

Read construct from filename with given file type.

Definition at line 29 of file triSurfaceNew.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::flatOutput(), found, Foam::name(), autoPtr< T >::New(), New(), Foam::nl, and readTypes().

Referenced by New().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ New() [2/2]

Foam::autoPtr< Foam::triSurface > New ( const fileName & name )

static

Read construct from filename (file type implicit from extension).

Definition at line 133 of file triSurfaceNew.C.

References Foam::name(), and Foam::New().

Here is the call graph for this function:

◆ clearOut()

void clearOut ( )

Definition at line 560 of file triSurface.C.

References PrimitivePatch<::Foam::List< labelledTri >, pointField >::clearOut(), clearPatchMeshAddr(), and clearTopology().

Referenced by checkTriangles(), cleanup(), triSurfaceMesh::clearOut(), compactPoints(), isoSurfaceCell::isoSurfaceCell(), isoSurfacePoint::isoSurfacePoint(), operator=(), swap(), swapFaces(), transfer(), transfer(), and ~triSurface().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clearTopology()

void clearTopology ( )

Definition at line 546 of file triSurface.C.

References PrimitivePatch<::Foam::List< labelledTri >, pointField >::clearTopology().

Referenced by clearOut(), and scalePoints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clearPatchMeshAddr()

void clearPatchMeshAddr ( )

Definition at line 554 of file triSurface.C.

References PrimitivePatch<::Foam::List< labelledTri >, pointField >::clearPatchMeshAddr().

Referenced by clearOut().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ swap()

void swap ( triSurface & surf )

Definition at line 568 of file triSurface.C.

References clearOut(), patches(), storedFaces(), storedPoints(), and triSurface().

Referenced by transfer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ patches() [1/2]

const geometricSurfacePatchList & patches ( ) const

inlinenoexcept

Definition at line 509 of file triSurface.H.

References Foam::noexcept.

Referenced by ClassName(), triSurfaceTools::collapseEdges(), triSurfaceTools::greenRefine(), triSurfaceLoader::load(), triSurfaceTools::mergePoints(), operator=(), boundaryMesh::readTriSurface(), sortedZones(), swap(), transfer(), transfer(), triSurface(), triSurface(), triSurface(), triSurfaceMesh::triSurfaceMesh(), and triSurfaceMesh::triSurfaceMesh().

Here is the caller graph for this function:

◆ patches() [2/2]

geometricSurfacePatchList & patches ( )

inlinenoexcept

Definition at line 514 of file triSurface.H.

References Foam::noexcept.

◆ surfFaces()

const List< labelledTri > & surfFaces ( ) const

inlinenoexcept

Return const access to the faces.

Definition at line 522 of file triSurface.H.

References Foam::noexcept.

Referenced by write().

Here is the caller graph for this function:

◆ sortedEdgeFaces()

const Foam::labelListList & sortedEdgeFaces ( ) const

Return edge-face addressing sorted (for edges with more than.

2 faces) according to the angle around the edge. Orientation is anticlockwise looking from edge.vec(localPoints())

Definition at line 584 of file triSurface.C.

◆ edgeOwner()

const Foam::labelList & edgeOwner ( ) const

If 2 face neighbours: label of face where ordering of edge.

is consistent with righthand walk. If 1 neighbour: label of only face. If >2 neighbours: undetermined.

Definition at line 595 of file triSurface.C.

◆ Sf()

const vectorField & Sf ( ) const

inline

Face area vectors (normals).

Definition at line 549 of file triSurface.H.

References PrimitivePatch<::Foam::List< labelledTri >, pointField >::faceAreas().

Here is the call graph for this function:

◆ magSf()

const scalarField & magSf ( ) const

inline

Face area magnitudes.

Definition at line 557 of file triSurface.H.

References PrimitivePatch<::Foam::List< labelledTri >, pointField >::magFaceAreas().

Here is the call graph for this function:

◆ Cf()

const vectorField & Cf ( ) const

inline

Face centres.

Definition at line 565 of file triSurface.H.

References PrimitivePatch<::Foam::List< labelledTri >, pointField >::faceCentres().

Here is the call graph for this function:

◆ sortedZones()

Foam::List< Foam::surfZone > sortedZones ( labelList & faceMap ) const

Sort faces according to zoneIds.

Returns a surfZoneList and sets faceMap to index within faces() (i.e. map from original,unsorted to sorted)

Definition at line 703 of file triSurface.C.

References Foam::faceMap(), forAll, patches(), and patches.

Referenced by write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ triFaceFaces()

void triFaceFaces ( List< face > & plainFaceList ) const

Create a list of faces from the triFaces.

Definition at line 717 of file triSurface.C.

References forAll, UList< T >::operator[](), List< T >::setSize(), and UList< T >::size().

Referenced by isoSurfaceCell::isoSurfaceCell(), and isoSurfacePoint::isoSurfacePoint().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ movePoints()

void movePoints ( const pointField & pts )

virtual

Move points.

Reimplemented in triSurfaceMesh.

Definition at line 606 of file triSurface.C.

References PrimitivePatch<::Foam::List< labelledTri >, pointField >::movePoints(), pts, and storedPoints().

Referenced by triSurfaceMesh::movePoints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ swapPoints()

void swapPoints ( pointField & pts )

virtual

Swap points. Similar to movePoints, but returns the old points.

Definition at line 619 of file triSurface.C.

References PrimitivePatch<::Foam::List< labelledTri >, pointField >::movePoints(), pts, and storedPoints().

Referenced by compactPoints(), isoSurfaceCell::isoSurfaceCell(), isoSurfacePoint::isoSurfacePoint(), and triSurfaceLoader::load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ scalePoints()

void scalePoints ( const scalar scaleFactor )

virtual

Scale points. A non-positive factor is ignored.

Definition at line 632 of file triSurface.C.

References clearTopology(), Foam::equal(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::movePoints(), and storedPoints().

Referenced by triSurface(), and triSurface().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkTriangles()

void checkTriangles ( const bool verbose )

Check/remove duplicate/degenerate triangles.

Definition at line 176 of file triSurface.C.

References bitSet::all(), clearOut(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::edgeFaces(), Foam::endl(), Foam::exit(), f(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::faceEdges(), Foam::FatalError, FatalErrorInFunction, forAll, n, points, Foam::printTriangle(), UList< T >::size(), bitSet::unset(), Foam::Warning, and WarningInFunction.

Referenced by cleanup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkEdges()

void checkEdges ( const bool verbose )

Check triply (or more) connected edges.

Definition at line 295 of file triSurface.C.

References PrimitivePatch<::Foam::List< labelledTri >, pointField >::edgeFaces(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::edges(), UList< T >::empty(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, UList< T >::size(), and WarningInFunction.

Referenced by cleanup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cleanup()

void cleanup ( const bool verbose )

Remove non-valid triangles.

Definition at line 649 of file triSurface.C.

References checkEdges(), checkTriangles(), and clearOut().

Here is the call graph for this function:

◆ compactPoints()

void compactPoints ( labelList & pointMap = const_cast<labelList&>(labelList::null()) )

Remove unused points and renumber faces in local visit order.

Parameters

[out] pointMap from new to old points (optional)

Definition at line 663 of file triSurface.C.

References DynamicList< T, SizeMin >::append(), clearOut(), f(), Foam::notNull(), points, UList< T >::size(), storedFaces(), swapPoints(), and List< T >::transfer().

Here is the call graph for this function:

◆ markZone()

void markZone	(	const boolList &	borderEdge,
		const label	facei,
		const label	currentZone,
		labelList &	faceZone ) const

Fill faceZone with currentZone for every face reachable.

from facei without crossing edge marked in borderEdge. Note: faceZone has to be sized nFaces before calling this fun.

Definition at line 730 of file triSurface.C.

References Foam::abort(), DynamicList< T, SizeMin >::append(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::edgeFaces(), UList< T >::empty(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::faceEdges(), Foam::FatalError, FatalErrorInFunction, and UList< T >::size().

Referenced by markZones().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ markZones()

Foam::label markZones	(	const boolList &	borderEdge,
		labelList &	faceZone ) const

(size and) fills faceZone with zone of face. Zone is area

reachable by edge crossing without crossing borderEdge (bool for every edge in surface). Returns number of zones.

Definition at line 789 of file triSurface.C.

References Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, markZone(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::nEdges(), List< T >::setSize(), and UList< T >::size().

Referenced by booleanSurface::booleanSurface().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ subsetMeshMap()

template<class BoolListType>

void subsetMeshMap	(	const BoolListType &	include,
		labelList &	pointMap,
		labelList &	faceMap ) const

inline

Create mappings for a sub-surface.

Parameters

[in]	include	the faces to select
[out]	pointMap	from new to old localPoints
[out]	faceMap	from new to old localFaces

Definition at line 665 of file triSurface.H.

References Foam::faceMap(), and PatchTools::subsetMap().

Referenced by subsetMesh(), and subsetMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ subsetMesh() [1/5]

Foam::triSurface subsetMesh	(	const UList< bool > &	include,
		labelList &	pointMap,
		labelList &	faceMap ) const

Return a new surface subsetted on the selected faces.

Parameters

[in]	include	the faces to select
[out]	pointMap	from new to old localPoints
[out]	faceMap	from new to old localFaces

Definition at line 872 of file triSurface.C.

References Foam::faceMap(), and subsetMeshMap().

Referenced by booleanSurface::booleanSurface(), booleanSurface::booleanSurface(), subsetMesh(), subsetMesh(), and subsetMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ subsetMesh() [2/5]

Foam::triSurface subsetMesh	(	const bitSet &	include,
		labelList &	pointMap,
		labelList &	faceMap ) const

Return a new surface subsetted on the selected faces.

Parameters

[in]	include	the faces to select
[out]	pointMap	from subsetMeshMap
[out]	faceMap	from subsetMeshMap

Definition at line 885 of file triSurface.C.

References Foam::faceMap(), and subsetMeshMap().

Here is the call graph for this function:

◆ subsetMesh() [3/5]

Foam::triSurface subsetMesh ( const UList< bool > & include ) const

Return a new surface subsetted on the selected faces.

Parameters

[in] include the faces to select

Definition at line 898 of file triSurface.C.

References Foam::faceMap(), and subsetMesh().

Here is the call graph for this function:

◆ subsetMesh() [4/5]

Foam::triSurface subsetMesh ( const bitSet & include ) const

Return a new surface subsetted on the selected faces.

Parameters

[in] include the faces to select

Definition at line 906 of file triSurface.C.

References Foam::faceMap(), and subsetMesh().

Here is the call graph for this function:

◆ subsetMesh() [5/5]

Foam::triSurface subsetMesh	(	const wordRes &	includeNames,
		const wordRes &	excludeNames = wordRes() ) const

Return a new surface subsetted on the selected patch names.

Parameters

[in]	includeNames	surface patch names to include
[in]	excludeNames	surface patch names to exclude

See also: Foam::stringListOps::findMatching for details about matching

Definition at line 914 of file triSurface.C.

References Foam::stringListOps::findMatching(), forAll, bitSet::set(), UList< T >::size(), subsetMesh(), and bitSet::test().

Here is the call graph for this function:

◆ swapFaces()

void swapFaces ( List< labelledTri > & faceLst )

Swap the list of faces being addressed.

Definition at line 947 of file triSurface.C.

References clearOut(), and storedFaces().

Referenced by triSurfaceLoader::load().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ transfer() [1/2]

void transfer ( triSurface & surf )

Alter contents by transferring (triangles, points) components.

Patch information is small and therefore just copied.

Definition at line 955 of file triSurface.C.

References clearOut(), patches(), storedFaces(), storedPoints(), and triSurface().

Referenced by operator=(), operator=(), triSurface(), triSurfaceMesh::triSurfaceMesh(), and triSurfaceMesh::triSurfaceMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ transfer() [2/2]

void transfer ( MeshedSurface< labelledTri > & surf )

Alter contents by transferring (triangles, points) components.

Patch information is small and therefore just copied.

Definition at line 967 of file triSurface.C.

References MeshedSurface< Face >::clear(), clearOut(), Foam::ListOps::create(), patches(), pts, s(), MeshedSurface< Face >::surfZones(), swap(), MeshedSurface< Face >::swapFaces(), MeshedSurface< Face >::swapPoints(), and triSurface().

Here is the call graph for this function:

◆ write() [1/4]

void write ( Ostream & os ) const

Write to Ostream in simple OpenFOAM format.

Definition at line 331 of file triSurfaceIO.C.

References os().

Referenced by booleanSurface::booleanSurface(), booleanSurface::booleanSurface(), isoSurfacePoint::isoSurfacePoint(), distributedTriSurfaceMesh::writeObject(), triSurfaceMesh::writeObject(), and boundaryMesh::writeTriSurface().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write() [2/4]

void write	(	const fileName &	name,
		const bool	sortByRegion = false ) const

Generic write routine (uses extension to determine type).

The sort option may not have an effect.

Definition at line 321 of file triSurfaceIO.C.

References Foam::name(), and write().

Here is the call graph for this function:

◆ write() [3/4]

void write	(	const fileName &	filename,
		const word &	fileType,
		const bool	sortByRegion = false ) const

Generic write routine for given format type.

If the format type is "", uses the file extension. The sort option may not have an effect.

Definition at line 201 of file triSurfaceIO.C.

References MeshedSurfaceProxy< Face >::canWriteType(), Foam::exit(), Foam::faceMap(), Foam::FatalError, FatalErrorInFunction, Foam::flatOutput(), Foam::name(), Foam::nl, os(), points, sortedZones(), surfFaces(), MeshedSurfaceProxy< Face >::write(), write(), and writeTypes().

Here is the call graph for this function:

◆ write() [4/4]

void write ( const Time & d ) const

Write to database.

Definition at line 337 of file triSurfaceIO.C.

References Time::caseName(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, os(), Time::path(), and triSurfInstance().

Here is the call graph for this function:

◆ writeStats()

void writeStats ( Ostream & os ) const

Write some statistics.

Definition at line 348 of file triSurfaceIO.C.

References boundBox::add(), bitSet::count(), Foam::endl(), f(), HashSet< Key, Hash >::insert(), Foam::nl, os(), points, bitSet::set(), HashTable< T, Key, Hash >::size(), and UList< T >::size().

Referenced by booleanSurface::booleanSurface(), and booleanSurface::booleanSurface().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=() [1/3]

void operator= ( const triSurface & surf )

Copy assignment.

Definition at line 993 of file triSurface.C.

References clearOut(), patches(), PrimitivePatch< FaceList, PointField >::points(), storedFaces(), storedPoints(), and triSurface().

Referenced by booleanSurface::booleanSurface(), and distributedTriSurfaceMesh::distribute().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=() [2/3]

void operator= ( triSurface && surf )

Move assignment.

Definition at line 1003 of file triSurface.C.

References transfer(), and triSurface().

Here is the call graph for this function:

◆ operator=() [3/3]

void operator= ( MeshedSurface< labelledTri > && surf )

Move assignment.

Definition at line 1009 of file triSurface.C.

References transfer().

Here is the call graph for this function:

◆ operator>>

Istream & operator>>	(	Istream &	is,
		triSurface &	s )

friend

References s(), and triSurface().

◆ operator<<

Ostream & operator<<	(	Ostream &	os,
		const triSurface &	s )

friend

References os(), s(), and triSurface().

The documentation for this class was generated from the following files:

src/surfMesh/triSurface/triSurface.H
src/surfMesh/surfaceFormats/gts/triSurfaceGTSformat.C
src/surfMesh/surfaceFormats/stl/triSurfaceSTLformat.C
src/surfMesh/triSurface/triSurface.C
src/surfMesh/triSurface/triSurfaceAddressing.C
src/surfMesh/triSurface/triSurfaceIO.C
src/surfMesh/triSurface/triSurfaceNew.C
src/surfMesh/triSurface/triSurfaceStitch.C

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Detailed Description

Member Typedef Documentation

◆ BoundaryMesh

◆ face_type

◆ point_type

Constructor & Destructor Documentation

◆ triSurface() [1/12]

◆ triSurface() [2/12]

◆ triSurface() [3/12]

◆ triSurface() [4/12]

◆ triSurface() [5/12]

◆ triSurface() [6/12]

◆ triSurface() [7/12]

◆ triSurface() [8/12]

◆ triSurface() [9/12]

◆ triSurface() [10/12]

◆ triSurface() [11/12]

◆ triSurface() [12/12]

◆ ~triSurface()

Member Function Documentation

◆ storedPoints()

◆ storedFaces()

◆ ClassName()

◆ triSurfInstance()

◆ readTypes()

◆ writeTypes()

◆ canReadType()

◆ canWriteType()

◆ canRead()

◆ relativeFilePath()

◆ checkFile() [1/2]

◆ checkFile() [2/2]

◆ findFile() [1/2]

◆ findFile() [2/2]

◆ New() [1/2]

◆ New() [2/2]

◆ clearOut()

◆ clearTopology()

◆ clearPatchMeshAddr()

◆ swap()

◆ patches() [1/2]

◆ patches() [2/2]

◆ surfFaces()

◆ sortedEdgeFaces()

◆ edgeOwner()

◆ Sf()

◆ magSf()

◆ Cf()

◆ sortedZones()

◆ triFaceFaces()

◆ movePoints()

◆ swapPoints()

◆ scalePoints()

◆ checkTriangles()

◆ checkEdges()

◆ cleanup()

◆ compactPoints()

◆ markZone()

◆ markZones()

◆ subsetMeshMap()

◆ subsetMesh() [1/5]

◆ subsetMesh() [2/5]

◆ subsetMesh() [3/5]

◆ subsetMesh() [4/5]

◆ subsetMesh() [5/5]

◆ swapFaces()

◆ transfer() [1/2]

◆ transfer() [2/2]

◆ write() [1/4]

◆ write() [2/4]

◆ write() [3/4]

◆ write() [4/4]

◆ writeStats()

◆ operator=() [1/3]

◆ operator=() [2/3]
