Gosman Class Reference

Turbulent dispersion model of Gosman et al. More...

#include <Gosman.H>

Inheritance diagram for Gosman:

Collaboration diagram for Gosman:

Public Member Functions
	TypeName ("Gosman")
	Runtime type information.
	Gosman (const dictionary &dict, const phasePair &pair)
	Construct from a dictionary and a phase pair.
virtual	~Gosman ()
	Destructor.
virtual tmp< volScalarField >	D () const
	Turbulent diffusivity.
	TypeName ("Gosman")
	Runtime type information.
	Gosman (const dictionary &dict, const phasePair &pair)
	Construct from a dictionary and a phase pair.
virtual	~Gosman ()
	Destructor.
virtual tmp< volScalarField >	D () const
	Turbulent diffusivity.
Public Member Functions inherited from turbulentDispersionModel
	TypeName ("turbulentDispersionModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, turbulentDispersionModel, dictionary,(const dictionary &dict, const phasePair &pair),(dict, pair))
	turbulentDispersionModel (const dictionary &dict, const phasePair &pair)
	Construct from a dictionary and a phase pair.
virtual	~turbulentDispersionModel ()=default
	Destructor.
const phaseCompressibleTurbulenceModel &	continuousTurbulence () const
	Return a reference to the turbulence model for the continuous phase.
virtual tmp< volVectorField >	F () const
	Turbulent dispersion force.
virtual tmp< surfaceScalarField >	Ff () const
	Turbulent dispersion force on faces.
	TypeName ("turbulentDispersionModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, turbulentDispersionModel, dictionary,(const dictionary &dict, const phasePair &pair),(dict, pair))
	turbulentDispersionModel (const dictionary &dict, const phasePair &pair)
	Construct from a dictionary and a phase pair.
virtual	~turbulentDispersionModel ()=default
	Destructor.
virtual tmp< volVectorField >	F () const
	Turbulent dispersion force.

Additional Inherited Members
Static Public Member Functions inherited from turbulentDispersionModel
static autoPtr< turbulentDispersionModel >	New (const dictionary &dict, const phasePair &pair)
static autoPtr< turbulentDispersionModel >	New (const dictionary &dict, const phasePair &pair)
Static Public Attributes inherited from turbulentDispersionModel
static const dimensionSet	dimD
	Diffusivity dimensions.
static const dimensionSet	dimF
	Force dimensions.
Protected Attributes inherited from turbulentDispersionModel
const phasePair &	pair_
	Phase pair.

Detailed Description

Turbulent dispersion model of Gosman et al.

Reference:

    Gosman, A. D., Lekakou, C., Politis, S., Issa, R. I., &
    Looney, M. K. (1992).
    Multidimensional modeling of turbulent two-phase flows in stirred
    vessels.
    AIChE Journal, 38(12), 1946-1956.

Source files

• Gosman.H
• Gosman.C

Reference:

    "Multidimensional modeling of turbulent two-phase flows in stirred
     vessels"
    Gosman, A.D., Lekakou, C., Politis, S., Issa, R.I., and Looney, M.K.,
    AIChE Journal
    Volume 38, Issue 12, 1992, pp. 1946-1956

Source files

• Gosman.H
• Gosman.C

Definition at line 60 of file Gosman.H.

Constructor & Destructor Documentation

Gosman() [1/2]

Gosman	(	const dictionary &	dict,
		const phasePair &	pair )

Construct from a dictionary and a phase pair.

Definition at line 46 of file Gosman.C.

References dict, Foam::dimless, and turbulentDispersionModel::turbulentDispersionModel().

Here is the call graph for this function:

~Gosman() [1/2]

~Gosman ( )

virtual

Destructor.

Definition at line 59 of file Gosman.C.

Gosman() [2/2]

Gosman	(	const dictionary &	dict,
		const phasePair &	pair )

Construct from a dictionary and a phase pair.

References dict.

~Gosman() [2/2]

virtual ~Gosman ( )

virtual

Destructor.

Member Function Documentation

TypeName() [1/2]

TypeName

(

"Gosman"

)

Runtime type information.

References dict.

D() [1/2]

Foam::tmp< Foam::volScalarField > D ( ) const

virtual

Turbulent diffusivity.

multiplying the gradient of the phase-fraction

Implements turbulentDispersionModel.

Definition at line 66 of file Gosman.C.

References turbulentDispersionModel::continuousTurbulence(), drag, IOobject::groupName(), mesh, turbulentDispersionModel::pair_, and Foam::sqr().

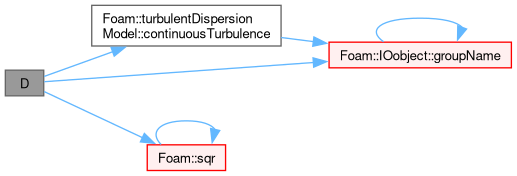

Here is the call graph for this function:

TypeName() [2/2]

TypeName

(

"Gosman"

)

Runtime type information.

D() [2/2]

virtual tmp< volScalarField > D ( ) const

virtual

Turbulent diffusivity.

multiplying the gradient of the phase-fraction

Implements turbulentDispersionModel.

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/reactingEuler/multiphaseSystem/interfacialModels/turbulentDispersionModels/Gosman/Gosman.H
• src/phaseSystemModels/twoPhaseEuler/twoPhaseSystem/interfacialModels/turbulentDispersionModels/Gosman/Gosman.H
• src/phaseSystemModels/reactingEuler/multiphaseSystem/interfacialModels/turbulentDispersionModels/Gosman/Gosman.C
• src/phaseSystemModels/twoPhaseEuler/twoPhaseSystem/interfacialModels/turbulentDispersionModels/Gosman/Gosman.C
