variableHeightFlowRateInletVelocityFvPatchVectorField Class Reference
Boundary conditions » Inlet

This boundary condition provides a velocity boundary condition for multphase flow based on a user-specified volumetric flow rate. More...

#include <variableHeightFlowRateInletVelocityFvPatchVectorField.H>

Inheritance diagram for variableHeightFlowRateInletVelocityFvPatchVectorField:
Inheritance graph
[legend]
Collaboration diagram for variableHeightFlowRateInletVelocityFvPatchVectorField:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("variableHeightFlowRateInletVelocity")
 Runtime type information.
 variableHeightFlowRateInletVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &)
 Construct from patch and internal field.
 variableHeightFlowRateInletVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &, const dictionary &)
 Construct from patch, internal field and dictionary.
 variableHeightFlowRateInletVelocityFvPatchVectorField (const variableHeightFlowRateInletVelocityFvPatchVectorField &, const fvPatch &, const DimensionedField< vector, volMesh > &, const fvPatchFieldMapper &)
 Construct by mapping given.
 variableHeightFlowRateInletVelocityFvPatchVectorField (const variableHeightFlowRateInletVelocityFvPatchVectorField &)
 Construct as copy.
 variableHeightFlowRateInletVelocityFvPatchVectorField (const variableHeightFlowRateInletVelocityFvPatchVectorField &, const DimensionedField< vector, volMesh > &)
 Construct as copy setting internal field reference.
virtual tmp< fvPatchField< vector > > clone () const
 Return a clone.
virtual tmp< fvPatchField< vector > > clone (const DimensionedField< vector, volMesh > &iF) const
 Clone with an internal field reference.
virtual void updateCoeffs ()
 Update the coefficients associated with the patch field.
virtual void write (Ostream &) const
 Write.

Detailed Description

This boundary condition provides a velocity boundary condition for multphase flow based on a user-specified volumetric flow rate.

The flow rate is made proportional to the phase fraction alpha at each face of the patch and alpha is ensured to be bound between 0 and 1.

Usage
Property Description Required Default value
flowRate volumetric flow rate [m3/s] yes
alpha phase-fraction field yes

Example of the boundary condition specification:

    <patchName>
    {
        type            variableHeightFlowRateInletVelocity;
        flowRate        0.2;
        alpha           alpha.water;
        value           uniform (0 0 0); // placeholder
    }

The flowRate entry is a Function1 of time, see Foam::Function1Types.

Note
  • the value is positive into the domain
  • may not work correctly for transonic inlets
  • strange behaviour with potentialFoam since the momentum equation is not solved
See also
Foam::fixedValueFvPatchField Foam::Function1Types
Source files

Definition at line 98 of file variableHeightFlowRateInletVelocityFvPatchVectorField.H.

Constructor & Destructor Documentation

◆ variableHeightFlowRateInletVelocityFvPatchVectorField() [1/5]

variableHeightFlowRateInletVelocityFvPatchVectorField ( const fvPatch & p,
const DimensionedField< vector, volMesh > & iF )

Construct from patch and internal field.

Definition at line 28 of file variableHeightFlowRateInletVelocityFvPatchVectorField.C.

References p.

Referenced by TypeName(), variableHeightFlowRateInletVelocityFvPatchVectorField(), variableHeightFlowRateInletVelocityFvPatchVectorField(), and variableHeightFlowRateInletVelocityFvPatchVectorField().

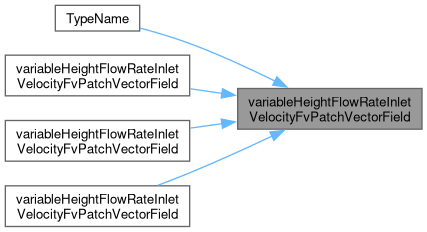

Here is the caller graph for this function:

◆ variableHeightFlowRateInletVelocityFvPatchVectorField() [2/5]

variableHeightFlowRateInletVelocityFvPatchVectorField ( const fvPatch & p,
const DimensionedField< vector, volMesh > & iF,
const dictionary & dict )

Construct from patch, internal field and dictionary.

Definition at line 41 of file variableHeightFlowRateInletVelocityFvPatchVectorField.C.

References dict, Foam::New(), and p.

Here is the call graph for this function:

◆ variableHeightFlowRateInletVelocityFvPatchVectorField() [3/5]

variableHeightFlowRateInletVelocityFvPatchVectorField ( const variableHeightFlowRateInletVelocityFvPatchVectorField & ptf,
const fvPatch & p,
const DimensionedField< vector, volMesh > & iF,
const fvPatchFieldMapper & mapper )

Construct by mapping given.

variableHeightFlowRateInletVelocityFvPatchVectorField onto a new patch

Definition at line 55 of file variableHeightFlowRateInletVelocityFvPatchVectorField.C.

References clone(), p, and variableHeightFlowRateInletVelocityFvPatchVectorField().

Here is the call graph for this function:

◆ variableHeightFlowRateInletVelocityFvPatchVectorField() [4/5]

variableHeightFlowRateInletVelocityFvPatchVectorField ( const variableHeightFlowRateInletVelocityFvPatchVectorField & ptf)

Construct as copy.

Definition at line 70 of file variableHeightFlowRateInletVelocityFvPatchVectorField.C.

References clone(), and variableHeightFlowRateInletVelocityFvPatchVectorField().

Here is the call graph for this function:

◆ variableHeightFlowRateInletVelocityFvPatchVectorField() [5/5]

variableHeightFlowRateInletVelocityFvPatchVectorField ( const variableHeightFlowRateInletVelocityFvPatchVectorField & ptf,
const DimensionedField< vector, volMesh > & iF )

Construct as copy setting internal field reference.

Definition at line 82 of file variableHeightFlowRateInletVelocityFvPatchVectorField.C.

References clone(), and variableHeightFlowRateInletVelocityFvPatchVectorField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "variableHeightFlowRateInletVelocity" )

Runtime type information.

References variableHeightFlowRateInletVelocityFvPatchVectorField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< vector > > clone ( ) const
inlinevirtual

Return a clone.

Definition at line 178 of file variableHeightFlowRateInletVelocityFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Referenced by variableHeightFlowRateInletVelocityFvPatchVectorField(), variableHeightFlowRateInletVelocityFvPatchVectorField(), and variableHeightFlowRateInletVelocityFvPatchVectorField().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< vector > > clone ( const DimensionedField< vector, volMesh > & iF) const
inlinevirtual

Clone with an internal field reference.

Definition at line 186 of file variableHeightFlowRateInletVelocityFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )
virtual

Update the coefficients associated with the patch field.

Definition at line 97 of file variableHeightFlowRateInletVelocityFvPatchVectorField.C.

References alpha, Field< Type >::clamp_range(), DebugInfo, Foam::endl(), Foam::gWeightedSum(), mesh, n, Foam::operator==(), and fvPatchField< Type >::updateCoeffs().

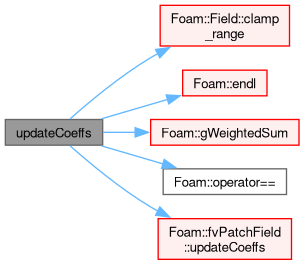

Here is the call graph for this function:

◆ write()

void write ( Ostream & os) const
virtual

Write.

Definition at line 138 of file variableHeightFlowRateInletVelocityFvPatchVectorField.C.

References os(), fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:
