departureDiameterModel Class Reference

Base class for bubble departure diameter models for boiling flows. More...

#include <departureDiameterModel.H>

Inheritance diagram for departureDiameterModel:

Public Member Functions
	TypeName ("departureDiameterModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, departureDiameterModel, dictionary,(const dictionary &dict),(dict))
	Declare runtime construction.
	departureDiameterModel ()=default
	Default construct.
virtual	~departureDiameterModel ()=default
	Destructor.
virtual tmp< scalarField >	dDeparture (const phaseModel &liquid, const phaseModel &vapor, const label patchi, const scalarField &Tl, const scalarField &Tsatw, const scalarField &L) const =0
	Calculate and return the departure diameter field.
virtual void	write (Ostream &os) const
	Write.

Static Public Member Functions
static autoPtr< departureDiameterModel >	New (const dictionary &dict)
	Select default constructed.

Detailed Description

Base class for bubble departure diameter models for boiling flows.

Source files

• departureDiameterModel.H
• departureDiameterModel.C

Definition at line 53 of file departureDiameterModel.H.

Constructor & Destructor Documentation

departureDiameterModel()

departureDiameterModel ( )

default

Default construct.

Referenced by declareRunTimeSelectionTable(), KocamustafaogullariIshii::KocamustafaogullariIshii(), and TolubinskiKostanchuk::TolubinskiKostanchuk().

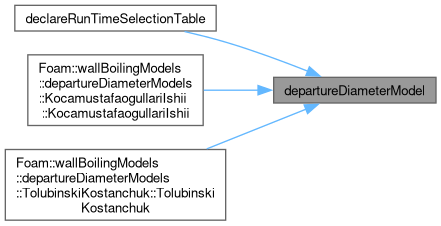

Here is the caller graph for this function:

~departureDiameterModel()

virtual ~departureDiameterModel ( )

virtualdefault

Destructor.

References dict.

Member Function Documentation

TypeName()

TypeName

(

"departureDiameterModel"

)

Runtime type information.

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		departureDiameterModel	,
		dictionary	,
		(const dictionary &dict)	,
		(dict)	)

Declare runtime construction.

References departureDiameterModel(), and dict.

Here is the call graph for this function:

New()

Foam::autoPtr< Foam::wallBoilingModels::departureDiameterModel > New ( const dictionary & dict )

static

Select default constructed.

Definition at line 39 of file departureDiameterModel.C.

References Foam::abort(), dict, Foam::endl(), Foam::FatalIOError, FatalIOErrorInLookup, and Foam::Info.

Referenced by alphatWallBoilingWallFunctionFvPatchScalarField::alphatWallBoilingWallFunctionFvPatchScalarField().

Here is the call graph for this function:

Here is the caller graph for this function:

dDeparture()

virtual tmp< scalarField > dDeparture ( const phaseModel & liquid, const phaseModel & vapor, const label patchi, const scalarField & Tl, const scalarField & Tsatw, const scalarField & L ) const

pure virtual

Calculate and return the departure diameter field.

Implemented in KocamustafaogullariIshii, and TolubinskiKostanchuk.

References L, and os().

Here is the call graph for this function:

write()

void write ( Ostream & os ) const

virtual

Write.

Reimplemented in KocamustafaogullariIshii, and TolubinskiKostanchuk.

Definition at line 67 of file departureDiameterModel.C.

References os(), and Foam::type().

Referenced by KocamustafaogullariIshii::write(), and TolubinskiKostanchuk::write().

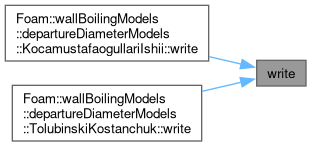

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/reactingEuler/multiphaseSystem/derivedFvPatchFields/wallBoilingSubModels/departureDiameterModels/departureDiameterModel/departureDiameterModel.H
• src/phaseSystemModels/reactingEuler/multiphaseSystem/derivedFvPatchFields/wallBoilingSubModels/departureDiameterModels/departureDiameterModel/departureDiameterModel.C
