KocamustafaogullariIshii Class Reference

A correlation for bubble departure diameter modelling based on Kocamustafaogullari-Ishii (1983) for boiling flows. More...

#include <KocamustafaogullariIshii.H>

Inheritance diagram for KocamustafaogullariIshii:

Collaboration diagram for KocamustafaogullariIshii:

Public Member Functions
	TypeName ("KocamustafaogullariIshii")
	Runtime type information.
	KocamustafaogullariIshii (const dictionary &dict)
	Construct from a dictionary.
virtual	~KocamustafaogullariIshii ()=default
	Destructor.
virtual tmp< scalarField >	dDeparture (const phaseModel &liquid, const phaseModel &vapor, const label patchi, const scalarField &Tl, const scalarField &Tsatw, const scalarField &L) const
	Calculate and return the departure diameter field.
virtual void	write (Ostream &os) const
	Write.
Public Member Functions inherited from departureDiameterModel
	TypeName ("departureDiameterModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, departureDiameterModel, dictionary,(const dictionary &dict),(dict))
	Declare runtime construction.
	departureDiameterModel ()=default
	Default construct.
virtual	~departureDiameterModel ()=default
	Destructor.

Additional Inherited Members
Static Public Member Functions inherited from departureDiameterModel
static autoPtr< departureDiameterModel >	New (const dictionary &dict)
	Select default constructed.

Detailed Description

A correlation for bubble departure diameter modelling based on Kocamustafaogullari-Ishii (1983) for boiling flows.

Reference:

    Kocamustafaogullari, G., & Ishii, M. (1983).
    Interfacial area and nucleation site density in boiling systems.
    International Journal of Heat and Mass Transfer, 26(9), 1377-1387.
    DOI:10.1016/S0017-9310(83)80069-6

Usage

Example of the model specification:

departureDiameterModel
{
    // Mandatory entries
    type            KocamustafaogullariIshii;
    phi             <scalar>;
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
type	Type name: KocamustafaogullariIshii	word	yes	-
phi	Contact angle [deg]	scalar	yes	-

Source files

• KocamustafaogullariIshii.H
• KocamustafaogullariIshii.C

Definition at line 96 of file KocamustafaogullariIshii.H.

Constructor & Destructor Documentation

KocamustafaogullariIshii()

KocamustafaogullariIshii

(

const dictionary &

dict

)

Construct from a dictionary.

Definition at line 52 of file KocamustafaogullariIshii.C.

References departureDiameterModel::departureDiameterModel(), and dict.

Here is the call graph for this function:

~KocamustafaogullariIshii()

virtual ~KocamustafaogullariIshii ( )

virtualdefault

Destructor.

References L, and os().

Here is the call graph for this function:

Member Function Documentation

TypeName()

TypeName

(

"KocamustafaogullariIshii"

)

Runtime type information.

References dict.

dDeparture()

Foam::tmp< Foam::scalarField > dDeparture ( const phaseModel & liquid, const phaseModel & vapor, const label patchi, const scalarField & Tl, const scalarField & Tsatw, const scalarField & L ) const

virtual

Calculate and return the departure diameter field.

Implements departureDiameterModel.

Definition at line 66 of file KocamustafaogullariIshii.C.

References g, L, Foam::mag(), phaseModel::name(), Foam::pow(), liquid::rho(), rhoThermo::rho(), liquid::sigma(), sigma(), Foam::sqrt(), and phaseModel::thermo().

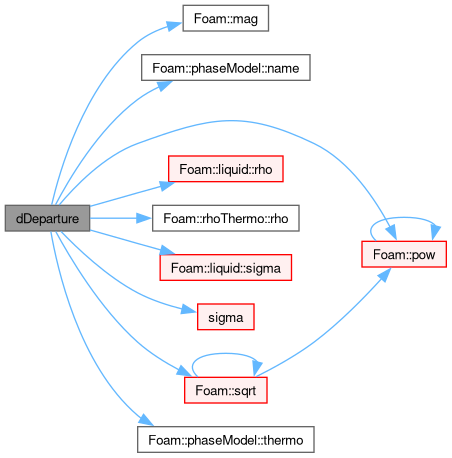

Here is the call graph for this function:

write()

void write ( Ostream & os ) const

virtual

Write.

Reimplemented from departureDiameterModel.

Definition at line 98 of file KocamustafaogullariIshii.C.

References os(), and departureDiameterModel::write().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/reactingEuler/multiphaseSystem/derivedFvPatchFields/wallBoilingSubModels/departureDiameterModels/KocamustafaogullariIshii/KocamustafaogullariIshii.H
• src/phaseSystemModels/reactingEuler/multiphaseSystem/derivedFvPatchFields/wallBoilingSubModels/departureDiameterModels/KocamustafaogullariIshii/KocamustafaogullariIshii.C
