filmBoilingModel Class Reference

#include <filmBoilingModel.H>

Inheritance diagram for filmBoilingModel:

Public Member Functions
	TypeName ("filmBoilingModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, filmBoilingModel, dictionary,(const dictionary &dict),(dict))
	Declare runtime construction.
	filmBoilingModel ()=default
	Default construct.
virtual	~filmBoilingModel ()=default
	Destructor.
virtual tmp< scalarField >	htcFilmBoil (const phaseModel &liquid, const phaseModel &vapor, const label patchi, const scalarField &Tl, const scalarField &Tsatw, const scalarField &L) const =0
	Calculate and return the film boiling correlation.
virtual void	write (Ostream &os) const
	Write.

Static Public Member Functions
static autoPtr< filmBoilingModel >	New (const dictionary &dict)
	Select default constructed.

Detailed Description

Definition at line 52 of file filmBoilingModel.H.

Constructor & Destructor Documentation

filmBoilingModel()

filmBoilingModel ( )

default

Default construct.

Referenced by BreenWestwater::BreenWestwater(), Bromley::Bromley(), and declareRunTimeSelectionTable().

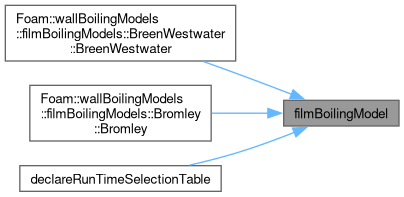

Here is the caller graph for this function:

~filmBoilingModel()

virtual ~filmBoilingModel ( )

virtualdefault

Destructor.

References dict.

Member Function Documentation

TypeName()

TypeName

(

"filmBoilingModel"

)

Runtime type information.

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		filmBoilingModel	,
		dictionary	,
		(const dictionary &dict)	,
		(dict)	)

Declare runtime construction.

References dict, and filmBoilingModel().

Here is the call graph for this function:

New()

Foam::autoPtr< Foam::wallBoilingModels::filmBoilingModel > New ( const dictionary & dict )

static

Select default constructed.

Definition at line 38 of file filmBoilingModel.C.

References Foam::abort(), dict, Foam::endl(), Foam::FatalIOError, FatalIOErrorInLookup, and Foam::Info.

Referenced by alphatWallBoilingWallFunctionFvPatchScalarField::alphatWallBoilingWallFunctionFvPatchScalarField().

Here is the call graph for this function:

Here is the caller graph for this function:

htcFilmBoil()

virtual tmp< scalarField > htcFilmBoil ( const phaseModel & liquid, const phaseModel & vapor, const label patchi, const scalarField & Tl, const scalarField & Tsatw, const scalarField & L ) const

pure virtual

Calculate and return the film boiling correlation.

Implemented in BreenWestwater, and Bromley.

References L, and os().

Here is the call graph for this function:

write()

void write ( Ostream & os ) const

virtual

Write.

Reimplemented in BreenWestwater, and Bromley.

Definition at line 66 of file filmBoilingModel.C.

References os(), and Foam::type().

Referenced by BreenWestwater::write(), and Bromley::write().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/reactingEuler/multiphaseSystem/derivedFvPatchFields/wallBoilingSubModels/filmBoilingModels/filmBoilingModel/filmBoilingModel.H
• src/phaseSystemModels/reactingEuler/multiphaseSystem/derivedFvPatchFields/wallBoilingSubModels/filmBoilingModels/filmBoilingModel/filmBoilingModel.C
