Bromley Class Reference

A correlation for boiling film modelling based on Bromley (1950) for boiling flows. More...

#include <Bromley.H>

Inheritance diagram for Bromley:

Collaboration diagram for Bromley:

Public Member Functions
	TypeName ("Bromley")
	Runtime type information.
	Bromley (const dictionary &dict)
	Construct from a dictionary.
virtual	~Bromley ()=default
	Destructor.
virtual tmp< scalarField >	htcFilmBoil (const phaseModel &liquid, const phaseModel &vapor, const label patchi, const scalarField &Tl, const scalarField &Tsatw, const scalarField &L) const
	Calculate and return the film boiling correlation.
virtual void	write (Ostream &os) const
	Write.
Public Member Functions inherited from filmBoilingModel
	TypeName ("filmBoilingModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, filmBoilingModel, dictionary,(const dictionary &dict),(dict))
	Declare runtime construction.
	filmBoilingModel ()=default
	Default construct.
virtual	~filmBoilingModel ()=default
	Destructor.

Additional Inherited Members
Static Public Member Functions inherited from filmBoilingModel
static autoPtr< filmBoilingModel >	New (const dictionary &dict)
	Select default constructed.

Detailed Description

A correlation for boiling film modelling based on Bromley (1950) for boiling flows.

Reference:

    Bromley, L. A. (1950).
    Heat transfer in stable film boiling.
    Chemical Engineering Progress, 46, 221-227.

Usage

Example of the model specification:

filmBoilingModel
{
    // Mandatory entries
    type            Bromley;
    L               <scalar>;

    // Optional entries
    Cn              <scalar>;
    emissivity      <scalar>;
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
type	Type name: Bromley	word	yes	-
L	Characteristic length scale	scalar	yes	-
Cn	Coefficient for nucleation site density	scalar	no	0.62
emissivity	Wall emissivity	scalar	no	1.0

Source files

• Bromley.H
• Bromley.C

Definition at line 112 of file Bromley.H.

Constructor & Destructor Documentation

Bromley()

Bromley

(

const dictionary &

dict

)

Construct from a dictionary.

Definition at line 50 of file Bromley.C.

References dict, and filmBoilingModel::filmBoilingModel().

Here is the call graph for this function:

~Bromley()

virtual ~Bromley ( )

virtualdefault

Destructor.

References L, and os().

Here is the call graph for this function:

Member Function Documentation

TypeName()

TypeName

(

"Bromley"

)

Runtime type information.

References dict.

htcFilmBoil()

Foam::tmp< Foam::scalarField > htcFilmBoil ( const phaseModel & liquid, const phaseModel & vapor, const label patchi, const scalarField & Tl, const scalarField & Tsatw, const scalarField & L ) const

virtual

Calculate and return the film boiling correlation.

Implements filmBoilingModel.

Definition at line 65 of file Bromley.C.

References cells, basicThermo::Cp(), e, g, phaseModel::kappa(), L, Foam::mag(), Foam::max(), phaseModel::mu(), Foam::pow025(), Foam::pow3(), Foam::pow4(), tmp< T >::ref(), basicThermo::rhoEoS(), Foam::constant::physicoChemical::sigma, tCp, and phaseModel::thermo().

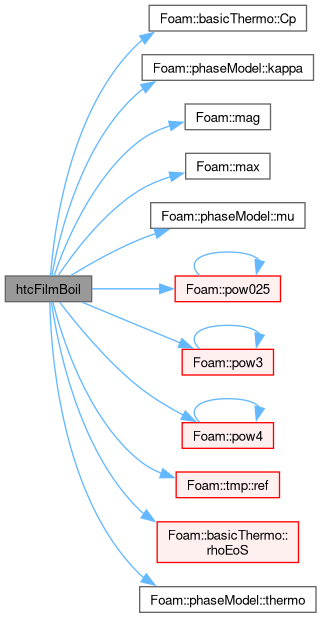

Here is the call graph for this function:

write()

void write ( Ostream & os ) const

virtual

Write.

Reimplemented from filmBoilingModel.

Definition at line 115 of file Bromley.C.

References os(), and filmBoilingModel::write().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/reactingEuler/multiphaseSystem/derivedFvPatchFields/wallBoilingSubModels/filmBoilingModels/Bromley/Bromley.H
• src/phaseSystemModels/reactingEuler/multiphaseSystem/derivedFvPatchFields/wallBoilingSubModels/filmBoilingModels/Bromley/Bromley.C
