This is a pressure boundary condition, whose value is calculated as the hydrostatic pressure based on a given displacement: More...

#include <waveSurfacePressureFvPatchScalarField.H>

Inheritance diagram for waveSurfacePressureFvPatchScalarField:

[legend]

Collaboration diagram for waveSurfacePressureFvPatchScalarField:

[legend]

Public Types
enum	ddtSchemeType { tsEuler , tsCrankNicolson , tsBackward }
	Enumeration defining the available ddt schemes. More...

Public Member Functions
	TypeName ("waveSurfacePressure")
	Runtime type information.
	waveSurfacePressureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	waveSurfacePressureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	waveSurfacePressureFvPatchScalarField (const waveSurfacePressureFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given waveSurfacePressureFvPatchScalarField.
	waveSurfacePressureFvPatchScalarField (const waveSurfacePressureFvPatchScalarField &)
	Construct as copy.
	waveSurfacePressureFvPatchScalarField (const waveSurfacePressureFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	write (Ostream &) const
	Write.

Detailed Description

This is a pressure boundary condition, whose value is calculated as the hydrostatic pressure based on a given displacement:

$\‍[ p = -\rho*g*\zeta \‍]$

$\rho$	=	density [kg/m3]
	=	acceleration due to gravity [m/s2]
$\zeta$	=	wave amplitude [m]

The wave amplitude is updated as part of the calculation, derived from the local volumetric flux.

Usage

Property	Description	Required	Default value
`phi`	flux field name	no	phi
`rho`	density field name	no	rho
`zeta`	wave amplitude field name	no	zeta

Example of the boundary condition specification:

    <patchName>
    {
        type            waveSurfacePressure;
        phi             phi;
        rho             rho;
        zeta            zeta;
        value           uniform 0;  // place holder
    }

The density field is only required if the flux is mass-based as opposed to volumetric-based.

See also: Foam::fixedValueFvPatchField

Source files

Definition at line 122 of file waveSurfacePressureFvPatchScalarField.H.

Member Enumeration Documentation

◆ ddtSchemeType

enum ddtSchemeType

Enumeration defining the available ddt schemes.

Enumerator
tsEuler
tsCrankNicolson
tsBackward

Definition at line 133 of file waveSurfacePressureFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ waveSurfacePressureFvPatchScalarField() [1/5]

waveSurfacePressureFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 57 of file waveSurfacePressureFvPatchScalarField.C.

References p.

Referenced by TypeName(), waveSurfacePressureFvPatchScalarField(), waveSurfacePressureFvPatchScalarField(), and waveSurfacePressureFvPatchScalarField().

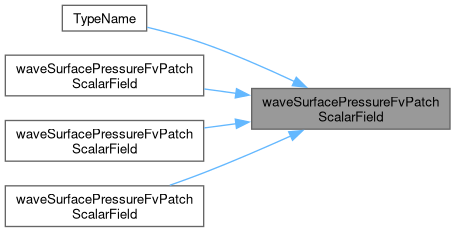

Here is the caller graph for this function:

◆ waveSurfacePressureFvPatchScalarField() [2/5]

waveSurfacePressureFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 71 of file waveSurfacePressureFvPatchScalarField.C.

References dict, and p.

◆ waveSurfacePressureFvPatchScalarField() [3/5]

waveSurfacePressureFvPatchScalarField	(	const waveSurfacePressureFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given waveSurfacePressureFvPatchScalarField.

onto a new patch

Definition at line 86 of file waveSurfacePressureFvPatchScalarField.C.

References p, and waveSurfacePressureFvPatchScalarField().

Here is the call graph for this function:

◆ waveSurfacePressureFvPatchScalarField() [4/5]

waveSurfacePressureFvPatchScalarField ( const waveSurfacePressureFvPatchScalarField & wspsf )

Construct as copy.

Definition at line 102 of file waveSurfacePressureFvPatchScalarField.C.

References waveSurfacePressureFvPatchScalarField().

Here is the call graph for this function:

◆ waveSurfacePressureFvPatchScalarField() [5/5]

waveSurfacePressureFvPatchScalarField	(	const waveSurfacePressureFvPatchScalarField &	wspsf,
		const DimensionedField< scalar, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 115 of file waveSurfacePressureFvPatchScalarField.C.

References waveSurfacePressureFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "waveSurfacePressure" )

Runtime type information.

References waveSurfacePressureFvPatchScalarField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 228 of file waveSurfacePressureFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 236 of file waveSurfacePressureFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 131 of file waveSurfacePressureFvPatchScalarField.C.

References Foam::abort(), GeometricField< Type, PatchField, GeoMesh >::boundaryField(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), Foam::dimMass, Foam::dimTime, Foam::endl(), Foam::FatalError, FatalErrorInFunction, g, Foam::gMinMax(), Foam::Info, limits, DimensionedField< Type, GeoMesh >::mesh(), IOobject::name(), gravity::New(), Foam::nl, GeometricField< Type, PatchField, GeoMesh >::oldTime(), Foam::operator==(), phi, tsBackward, tsCrankNicolson, and tsEuler.

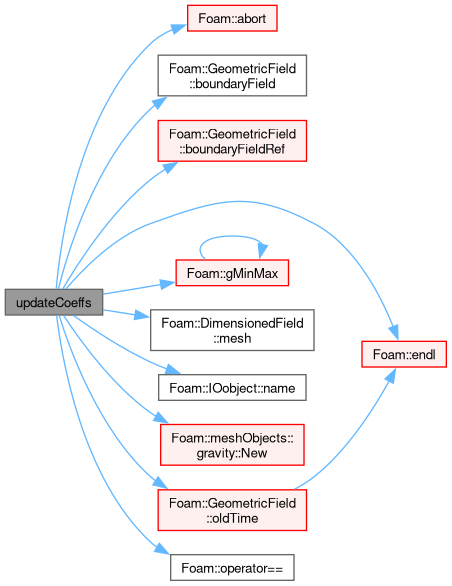

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Definition at line 223 of file waveSurfacePressureFvPatchScalarField.C.

References os(), fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/finiteVolume/fields/fvPatchFields/derived/waveSurfacePressure/waveSurfacePressureFvPatchScalarField.H
src/finiteVolume/fields/fvPatchFields/derived/waveSurfacePressure/waveSurfacePressureFvPatchScalarField.C
