Include dependency graph for foamVtkCore.H:

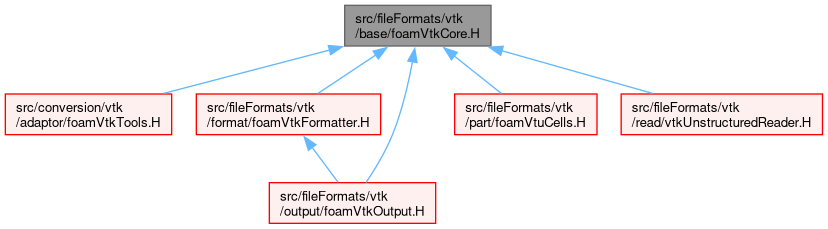

This graph shows which files directly or indirectly include this file:

Namespaces
namespace	Foam::vtk
	Namespace for handling VTK output. Contains classes and functions for writing VTK file content.
namespace	Foam::vtk::legacy
	Namespace for legacy VTK output constants and functions.
namespace	Foam::vtk::Tools
	A collection of static methods to assist converting OpenFOAM data structures into VTK internal data structures.
namespace	Foam
	Namespace for OpenFOAM.

Enumerations
enum	OutputContext : uint8_t { INLINE , HEADER , APPEND }
	The context when outputting a VTK file (XML or legacy). More...
enum class	formatType : uint8_t { INLINE_ASCII = 0 , INLINE_BASE64 = 0x01 , APPEND_BASE64 = 0x11 , APPEND_BINARY = 0x12 , LEGACY_ASCII = 0x20 , LEGACY_BINARY = 0x22 , HDF_FORMAT = 0x40 }
	The output format type for file contents. More...
enum	cellType : uint8_t { VTK_EMPTY_CELL = 0 , VTK_VERTEX = 1 , VTK_POLY_VERTEX = 2 , VTK_LINE = 3 , VTK_POLY_LINE = 4 , VTK_TRIANGLE = 5 , VTK_TRIANGLE_STRIP = 6 , VTK_POLYGON = 7 , VTK_PIXEL = 8 , VTK_QUAD = 9 , VTK_TETRA = 10 , VTK_VOXEL = 11 , VTK_HEXAHEDRON = 12 , VTK_WEDGE = 13 , VTK_PYRAMID = 14 , VTK_PENTAGONAL_PRISM = 15 , VTK_HEXAGONAL_PRISM = 16 , VTK_POLYHEDRON = 42 }
	Equivalent to enumeration in "vtkCellType.h" (should be uint8_t). More...
enum class	fileTag : uint8_t { UNKNOWN , VTK_FILE , DATA_ARRAY , BLOCK , PIECE , DATA_SET , POINTS , CELLS , POLYS , VERTS , LINES , CELL_DATA , POINT_DATA , FIELD_DATA , POLY_DATA , UNSTRUCTURED_GRID , MULTI_BLOCK , VTK_HDF }
	Some common XML tags for vtk files. More...
enum class	fileAttr : uint8_t { OFFSET , NUMBER_OF_COMPONENTS , NUMBER_OF_TUPLES , NUMBER_OF_POINTS , NUMBER_OF_CELLS , NUMBER_OF_POLYS , NUMBER_OF_VERTS , NUMBER_OF_LINES }
	Some common XML attributes for vtk files. More...
enum class	dataArrayAttr : uint8_t { POINTS , OFFSETS , CONNECTIVITY , TYPES , FACES , FACEOFFSETS }
	Some common names for XML DataArray entries. More...

Functions
bool	isAppend (enum formatType fmt) noexcept
	Test for vtk append format (xml).
bool	isLegacy (enum formatType fmt) noexcept
	Test for vtk legacy format.
bool	isHDF (enum formatType fmt) noexcept
	Test for HDF format.
template<class Type>
Type	copyTuple (const Type &value)
	Return a copy of the `value`, with components changed from OpenFOAM order to VTK order (for symmTensor).
template<class FloatType, class Type>
const FloatType *	copyTuple_impl (FloatType output[], const Type &value)
	Implementation detail - not for general use!
template<class Type>
const double *	copyTuple (double output[], const Type &value)
	Copy/transcribe components of OpenFOAM `value` to the `output` buffer (which must be large enough to contain all components).
template<class Type>
const float *	copyTuple (float output[], const Type &value)
	Copy/transcribe components of OpenFOAM `value` to the `output` buffer (which must be large enough to contain all components).
template<class Type>
void	reorderTuple (Type &value)
	Inplace component reordering of `value` from OpenFOAM order to VTK order.

Variables
const Foam::Enum< fileTag >	fileExtension
	File extension (without ".") for some vtk XML file content types.
const Foam::Enum< fileTag >	fileContentVersions
	Version string for some vtk XML file content types.
const Foam::Enum< fileTag >	fileTagNames
	Strings corresponding to the vtk XML tags.
const Foam::Enum< fileAttr >	fileAttrNames
	Strings corresponding to the vtk XML attributes.
const Foam::Enum< dataArrayAttr >	dataArrayAttrNames
	Strings corresponding to the vtk XML DataArray attributes.
const word	fileExtension
	Legacy file extension ("vtk").
const Foam::Enum< vtk::fileTag >	contentNames
	Legacy content names (POLYDATA, UNSTRUCTURED_GRID).
const Foam::Enum< vtk::fileTag >	fileTagNames
	Legacy file tags (eg, LINES, CELL_DATA, POINT_DATA, ...).
const Foam::Enum< dataArrayAttr >	dataArrayAttrNames
	Legacy attributes (eg, OFFSETS).

Detailed Description

Original source file foamVtkCore.H

Definition in file foamVtkCore.H.
