pEqn.H File Reference

Include dependency graph for pEqn.H:

Go to the source code of this file.

Functions
surfaceScalarField	alphaf1 ("alphaf1", fvc::interpolate(alpha1))
surfaceScalarField	alphaf2 ("alphaf2", scalar(1) - alphaf1)
surfaceScalarField	alphaRhof10 ("alphaRhof10", fvc::interpolate(max(alpha1.oldTime(), phase1.residualAlpha()) *rho1.oldTime()))
surfaceScalarField	alphaRhof20 ("alphaRhof20", fvc::interpolate(max(alpha2.oldTime(), phase2.residualAlpha()) *rho2.oldTime()))
surfaceScalarField	Kdf ("Kdf", fluid.Kdf())
surfaceScalarField	Vmf ("Vmf", fluid.Vmf())
surfaceScalarField	rAUf1 (IOobject::groupName("rAUf", phase1.name()), 1.0/((alphaRhof10+Vmf)/runTime.deltaT()+fvc::interpolate(U1Eqn.A())+Kdf))
surfaceScalarField	rAUf2 (IOobject::groupName("rAUf", phase2.name()), 1.0/((alphaRhof20+Vmf)/runTime.deltaT()+fvc::interpolate(U2Eqn.A())+Kdf))
surfaceScalarField	Df1 (fvc::interpolate(D+phase1.turbulence().pPrime()))
surfaceScalarField	Df2 (fvc::interpolate(D+phase2.turbulence().pPrime()))
	if (implicitPhasePressure)
surfaceScalarField	Ff (fluid.Ff())
surfaceScalarField	snGradAlpha1 (fvc::snGrad(alpha1) *mesh.magSf())
	while (pimple.correct())
	if (thermo1.dpdt()||thermo2.dpdt())

Variables
tmp< surfaceScalarField >	Ff1 = Df1*snGradAlpha1 + Ff
tmp< surfaceScalarField >	Ff2 = -Df2*snGradAlpha1 - Ff
	K1 = 0.5*magSqr(U1)
	K2 = 0.5*magSqr(U2)

Function Documentation

alphaf1()

surfaceScalarField alphaf1	(	"alphaf1"	,
		fvc::interpolate(alpha1)	)

References alpha1.

alphaf2()

surfaceScalarField alphaf2	(	"alphaf2"	,
		scalar(1) -	alphaf1 )

References alphaf1().

Here is the call graph for this function:

alphaRhof10()

surfaceScalarField alphaRhof10	(	"alphaRhof10"	,
		fvc::interpolate(max(alpha1.oldTime(), phase1.residualAlpha()) *rho1.oldTime())	)

References alpha1, phase1, and rho1.

alphaRhof20()

surfaceScalarField alphaRhof20	(	"alphaRhof20"	,
		fvc::interpolate(max(alpha2.oldTime(), phase2.residualAlpha()) *rho2.oldTime())	)

References alpha2, phase2, and rho2.

Kdf()

surfaceScalarField Kdf	(	"Kdf"	,
		fluid.	Kdf() )

References fluid.

Vmf()

surfaceScalarField Vmf	(	"Vmf"	,
		fluid.	Vmf() )

References fluid.

Referenced by MomentumTransferPhaseSystem< BasePhaseSystem >::AFfs(), MomentumTransferPhaseSystem< BasePhaseSystem >::phiFfs(), rAUf1(), rAUf2(), and while().

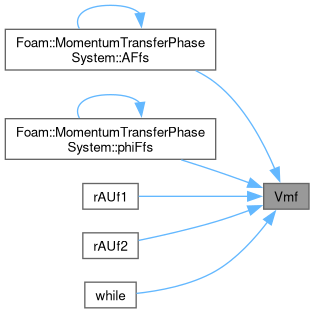

Here is the caller graph for this function:

rAUf1()

surfaceScalarField rAUf1	(	IOobject::groupName("rAUf", phase1.name())	,
		1.0/	(alphaRhof10+Vmf)/runTime.deltaT()+fvc::interpolate(U1Eqn.A())+Kdf )

References alphaRhof10(), Kdf(), phase1, runTime, and Vmf().

Here is the call graph for this function:

rAUf2()

surfaceScalarField rAUf2	(	IOobject::groupName("rAUf", phase2.name())	,
		1.0/	(alphaRhof20+Vmf)/runTime.deltaT()+fvc::interpolate(U2Eqn.A())+Kdf )

References alphaRhof20(), Kdf(), phase2, runTime, and Vmf().

Here is the call graph for this function:

Df1()

surfaceScalarField Df1

(

fvc::interpolate(D+phase1.turbulence().pPrime())

)

References D, and phase1.

Df2()

surfaceScalarField Df2

(

fvc::interpolate(D+phase2.turbulence().pPrime())

)

References D, and phase2.

if() [1/2]

if

(

implicitPhasePressure

)

Definition at line 74 of file pEqn.H.

References Df1(), Df2(), fluid, rAUf1, and rAUf2.

Here is the call graph for this function:

Ff()

surfaceScalarField Ff

(

fluid.

Ff()

)

References fluid.

Referenced by interpolated::damp(), noWallDamping::damp(), MomentumTransferPhaseSystem< BasePhaseSystem >::phiFfs(), and snGradAlpha1().

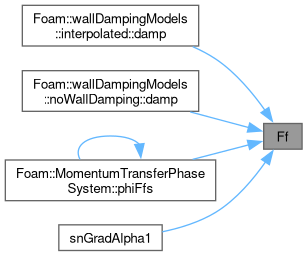

Here is the caller graph for this function:

snGradAlpha1()

surfaceScalarField snGradAlpha1

(

fvc::snGrad(alpha1) *mesh.magSf()

)

References alpha1, Df1(), Df2(), Ff(), Ff1, Ff2, mesh, and snGradAlpha1().

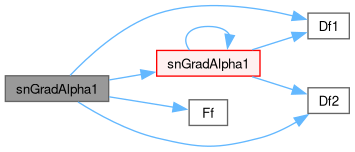

Here is the call graph for this function:

while()

while

(

pimple.

correct()

)

Definition at line 93 of file pEqn.H.

References alpha1, alpha2, alphaf1(), alphaf2(), alphaPhi1, alphaPhi2, alpharAUf1(), alpharAUf2(), alphaRhof10(), alphaRhof20(), contErr1, contErr2, ddtPhi1, ddtPhi2, Ff1, Ff2, fluid, fvOptions, g, gh, ghf, ghSnGradRho(), Kdf(), mesh, MRF, p, p_rgh, p_rgh_0(), phase1, phase2, phi, phi1, phi2, phiHbyA, phir(), pimple, pMin, psi1, psi2, rAUf(), rAUf1, rAUf2, rho, rho1, rho2, runTime, setSnGrad< fixedFluxPressureFvPatchScalarField >(), solve(), U, U1, U2, and Vmf().

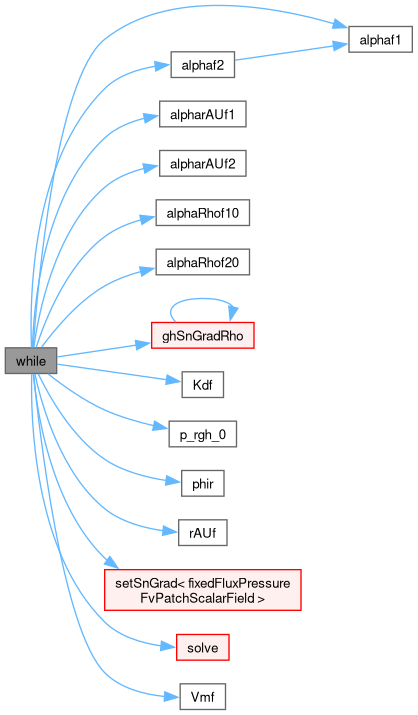

Here is the call graph for this function:

if() [2/2]

if

(

thermo1.

dpdt)||thermo2.dpdt(

)

Definition at line 365 of file pEqn.H.

References dpdt, p, thermo1, and thermo2.

Variable Documentation

Ff1

Ff1 = Df1*snGradAlpha1 + Ff

Definition at line 54 of file pEqn.H.

Referenced by snGradAlpha1(), and while().

Ff2

Ff2 = -Df2*snGradAlpha1 - Ff

Definition at line 55 of file pEqn.H.

Referenced by snGradAlpha1(), and while().

K1

K1 = 0.5*magSqr(U1)

Definition at line 361 of file pEqn.H.

K2

K2 = 0.5*magSqr(U2)

Definition at line 362 of file pEqn.H.
