Foam::FieldOps Namespace Reference

Various utility functions to work on Fields. More...

Functions
template<class Tout, class T1, class UnaryOp>
void	assign (Field< Tout > &result, const Field< T1 > &a, const UnaryOp &op)
	Populate a field as the result of a unary operation on an input.
template<class Tout, class T1, class T2, class BinaryOp>
void	assign (Field< Tout > &result, const Field< T1 > &a, const Field< T2 > &b, const BinaryOp &bop)
	Populate a field as the result of a binary operation on two inputs.
template<class T, class BinaryOp>
void	ternary (Field< T > &result, const Field< T > &a, const Field< T > &b, const BinaryOp &bop)
	Emulate a ternary operation, selecting values from a or b depending on the binary predicate.
template<class T, class BoolListType, class FlipOp>
void	ternarySelect (Field< T > &result, const BoolListType &cond, const Field< T > &a, const Field< T > &b, const FlipOp &flip)
	Emulate a ternary operation, selecting values from a or b depending on the conditional.
template<class T, class FlipOp>
void	ternarySelect (Field< T > &result, const bitSet &cond, const Field< T > &a, const Field< T > &b, const FlipOp &flip)
	Emulate a ternary operation, selecting values from a or b depending on the conditional.
template<class T, class BoolListType>
void	ternarySelect (Field< T > &result, const BoolListType &cond, const Field< T > &a, const Field< T > &b)
	Emulated ternary operation, without condition flipping.
template<class T>
void	ternarySelect (Field< T > &result, const bitSet &cond, const Field< T > &a, const Field< T > &b)
	Emulated ternary operation, without condition flipping.
template<class T1, class T2>
Tuple2< T1, T2 >	findMinData (const Field< T1 > &vals, const Field< T2 > &data)
	Locate the min value in a field and return it and associated data.
template<class T1, class T2>
Tuple2< T1, T2 >	findMaxData (const Field< T1 > &vals, const Field< T2 > &data)
	Locate the max value in a field and return it and associated data.
template<class Tout, class T1, class UnaryOp, template< class > class PatchField, class GeoMesh>
void	assign (GeometricField< Tout, PatchField, GeoMesh > &result, const GeometricField< T1, PatchField, GeoMesh > &a, const UnaryOp &op)
	Populate a geometric field as the result of a unary operation on an input.
template<class Tout, class T1, class T2, class BinaryOp, template< class > class PatchField, class GeoMesh>
void	assign (GeometricField< Tout, PatchField, GeoMesh > &result, const GeometricField< T1, PatchField, GeoMesh > &a, const GeometricField< T2, PatchField, GeoMesh > &b, const BinaryOp &bop)
	Populate a geometric field from the binary operation on two inputs.
template<class T, class BinaryOp, template< class > class PatchField, class GeoMesh>
void	ternary (GeometricField< T, PatchField, GeoMesh > &result, const GeometricField< T, PatchField, GeoMesh > &a, const GeometricField< T, PatchField, GeoMesh > &b, const BinaryOp &bop)
	Emulate a ternary operation, selecting values from a or b depending on the binary predicate.
template<class T, class BoolType, class FlipOp, template< class > class PatchField, class GeoMesh>
void	ternarySelect (GeometricField< T, PatchField, GeoMesh > &result, const GeometricField< BoolType, PatchField, GeoMesh > &cond, const GeometricField< T, PatchField, GeoMesh > &a, const GeometricField< T, PatchField, GeoMesh > &b, const FlipOp &flip)
	Emulate a ternary operation, selecting field values from a or b depending on the conditional.
template<class Tout, class T1, class UnaryOp>
void	assign (pointPatchField< Tout > &result, const pointPatchField< T1 > &a, const UnaryOp &op)
template<class Tout, class T1, class T2, class BinaryOp>
void	assign (pointPatchField< Tout > &result, const pointPatchField< T1 > &a, const pointPatchField< T2 > &b, const BinaryOp &bop)
template<class T, class BinaryOp>
void	ternary (pointPatchField< T > &result, const pointPatchField< T > &a, const pointPatchField< T > &b, const BinaryOp &bop)
template<class T, class BoolType, class FlipOp>
void	ternarySelect (pointPatchField< T > &result, const pointPatchField< BoolType > &cond, const pointPatchField< T > &a, const pointPatchField< T > &b, const FlipOp &flip)

Detailed Description

Various utility functions to work on Fields.

Source files

• FieldOps.H
• FieldOps.C

Function Documentation

assign() [1/6]

template<class Tout, class T1, class UnaryOp>

void assign	(	Field< Tout > &	result,
		const Field< T1 > &	a,
		const UnaryOp &	op )

Populate a field as the result of a unary operation on an input.

It is permissible for inputs/outputs to refer to the same field(s), but partially overlapping regions are ill-defined.

Examples,

boolField result(sfield1.size());

FieldOps::assign(result, sfield1, lessOp1<scalar>(0.5));
FieldOps::assign(result, lfield1, std::logical_not<bool>());

Example of using the Random::uniformGeneratorOp unary operator to populate a random field,

FieldOps::assign
(
    sfield,
    sfield,
    Random::uniformGeneratorOp<scalar>(-15, 25)
);

Note

wraps std::transform

Definition at line 27 of file FieldOps.C.

References Foam::abort(), UList< T >::begin(), UList< T >::cbegin(), UList< T >::cend(), Foam::FatalError, FatalErrorInFunction, Foam::nl, and UList< T >::size().

Referenced by assign(), assign(), exprDriver::fill_random(), and parseDriver::setInternalFieldResult().

Here is the call graph for this function:

Here is the caller graph for this function:

assign() [2/6]

template<class Tout, class T1, class T2, class BinaryOp>

void assign	(	Field< Tout > &	result,
		const Field< T1 > &	a,
		const Field< T2 > &	b,
		const BinaryOp &	bop )

Populate a field as the result of a binary operation on two inputs.

It is permissible for inputs/outputs to refer to the same field(s), but partially overlapping regions are ill-defined.

Examples,

FieldOps::assign(result, sfield1, sfield2, std::less<scalar>());
FieldOps::assign(result, lfield1, lfield2, std::logical_or<bool>());

Note

wraps std::transform

Definition at line 49 of file FieldOps.C.

References Foam::abort(), b, UList< T >::begin(), UList< T >::cbegin(), UList< T >::cend(), Foam::FatalError, FatalErrorInFunction, Foam::nl, and UList< T >::size().

Here is the call graph for this function:

ternary() [1/3]

template<class T, class BinaryOp>

void ternary	(	Field< T > &	result,
		const Field< T > &	a,
		const Field< T > &	b,
		const BinaryOp &	bop )

Emulate a ternary operation, selecting values from a or b depending on the binary predicate.

Examples,

FieldOps::ternary(result, sfield1, sfield2, std::less<scalar>());

Definition at line 72 of file FieldOps.C.

References Foam::abort(), b, Foam::FatalError, FatalErrorInFunction, forAll, Foam::nl, and UList< T >::size().

Referenced by ternary().

Here is the call graph for this function:

Here is the caller graph for this function:

ternarySelect() [1/6]

template<class T, class BoolListType, class FlipOp>

void ternarySelect	(	Field< T > &	result,
		const BoolListType &	cond,
		const Field< T > &	a,
		const Field< T > &	b,
		const FlipOp &	flip )

Emulate a ternary operation, selecting values from a or b depending on the conditional.

The meaning of the conditional is adjusted by the flip operation, which is typically Foam::identityOp() or Foam::flipBoolOp()

Similar parameter requirements as Foam::subset()

Examples,

FieldOps::ternarySelect(result, selector, sfield1, sfield2);

Definition at line 98 of file FieldOps.C.

References Foam::abort(), b, Foam::FatalError, FatalErrorInFunction, forAll, Foam::nl, and UList< T >::size().

Referenced by ternarySelect(), ternarySelect(), and ternarySelect().

Here is the call graph for this function:

Here is the caller graph for this function:

ternarySelect() [2/6]

template<class T, class FlipOp>

void ternarySelect	(	Field< T > &	result,
		const bitSet &	cond,
		const Field< T > &	a,
		const Field< T > &	b,
		const FlipOp &	flip )

Emulate a ternary operation, selecting values from a or b depending on the conditional.

The meaning of the conditional is adjusted by the flip operation, which is typically Foam::identityOp() or Foam::flipBoolOp()

Definition at line 125 of file FieldOps.C.

References Foam::abort(), b, Foam::FatalError, FatalErrorInFunction, forAll, Foam::nl, and UList< T >::size().

Here is the call graph for this function:

ternarySelect() [3/6]

template<class T, class BoolListType>

void ternarySelect	(	Field< T > &	result,
		const BoolListType &	cond,
		const Field< T > &	a,
		const Field< T > &	b )

Emulated ternary operation, without condition flipping.

Definition at line 180 of file FieldOps.H.

References b, and ternarySelect().

Here is the call graph for this function:

ternarySelect() [4/6]

template<class T>

void ternarySelect	(	Field< T > &	result,
		const bitSet &	cond,
		const Field< T > &	a,
		const Field< T > &	b )

Emulated ternary operation, without condition flipping.

Definition at line 196 of file FieldOps.H.

References b, and ternarySelect().

Here is the call graph for this function:

findMinData()

template<class T1, class T2>

Tuple2< T1, T2 > findMinData	(	const Field< T1 > &	vals,
		const Field< T2 > &	data )

Locate the min value in a field and return it and associated data.

This can be used, for example, to return a value/position combination.

Referenced by exprDriver::getPositionOfMinimum().

Here is the caller graph for this function:

findMaxData()

template<class T1, class T2>

Tuple2< T1, T2 > findMaxData	(	const Field< T1 > &	vals,
		const Field< T2 > &	data )

Locate the max value in a field and return it and associated data.

This can be used, for example, to return a value/position combination.

Referenced by exprDriver::getPositionOfMaximum().

Here is the caller graph for this function:

assign() [3/6]

template<class Tout, class T1, class UnaryOp, template< class > class PatchField, class GeoMesh>

void assign	(	GeometricField< Tout, PatchField, GeoMesh > &	result,
		const GeometricField< T1, PatchField, GeoMesh > &	a,
		const UnaryOp &	op )

Populate a geometric field as the result of a unary operation on an input.

It is permissible for inputs/outputs to refer to the same field(s), but partially overlapping regions are ill-defined.

Definition at line 61 of file GeometricFieldOps.H.

References assign(), GeometricField< Type, PatchField, GeoMesh >::boundaryField(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), GeometricBoundaryField< Type, PatchField, GeoMesh >::check(), GeometricField< Type, PatchField, GeoMesh >::correctLocalBoundaryConditions(), GeometricBoundaryField< Type, PatchField, GeoMesh >::debug, GeometricField< Type, PatchField, GeoMesh >::primitiveField(), GeometricField< Type, PatchField, GeoMesh >::primitiveFieldRef(), and UPtrList< T >::size().

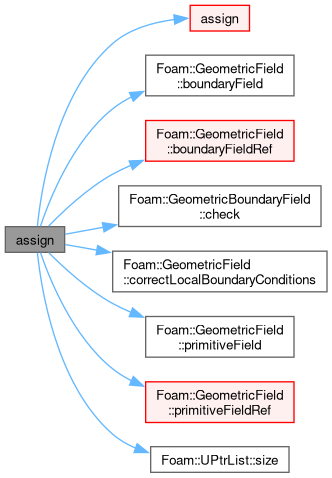

Here is the call graph for this function:

assign() [4/6]

template<class Tout, class T1, class T2, class BinaryOp, template< class > class PatchField, class GeoMesh>

void assign	(	GeometricField< Tout, PatchField, GeoMesh > &	result,
		const GeometricField< T1, PatchField, GeoMesh > &	a,
		const GeometricField< T2, PatchField, GeoMesh > &	b,
		const BinaryOp &	bop )

Populate a geometric field from the binary operation on two inputs.

It is permissible for inputs/outputs to refer to the same field(s), but partially overlapping regions are ill-defined.

Definition at line 107 of file GeometricFieldOps.H.

References assign(), b, GeometricField< Type, PatchField, GeoMesh >::boundaryField(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), GeometricBoundaryField< Type, PatchField, GeoMesh >::check(), GeometricField< Type, PatchField, GeoMesh >::correctLocalBoundaryConditions(), GeometricBoundaryField< Type, PatchField, GeoMesh >::debug, GeometricField< Type, PatchField, GeoMesh >::primitiveField(), GeometricField< Type, PatchField, GeoMesh >::primitiveFieldRef(), and UPtrList< T >::size().

Here is the call graph for this function:

ternary() [2/3]

template<class T, class BinaryOp, template< class > class PatchField, class GeoMesh>

void ternary	(	GeometricField< T, PatchField, GeoMesh > &	result,
		const GeometricField< T, PatchField, GeoMesh > &	a,
		const GeometricField< T, PatchField, GeoMesh > &	b,
		const BinaryOp &	bop )

Emulate a ternary operation, selecting values from a or b depending on the binary predicate.

Definition at line 154 of file GeometricFieldOps.H.

References b, GeometricField< Type, PatchField, GeoMesh >::boundaryField(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), GeometricBoundaryField< Type, PatchField, GeoMesh >::check(), GeometricField< Type, PatchField, GeoMesh >::correctLocalBoundaryConditions(), GeometricBoundaryField< Type, PatchField, GeoMesh >::debug, GeometricField< Type, PatchField, GeoMesh >::primitiveField(), GeometricField< Type, PatchField, GeoMesh >::primitiveFieldRef(), UPtrList< T >::size(), and ternary().

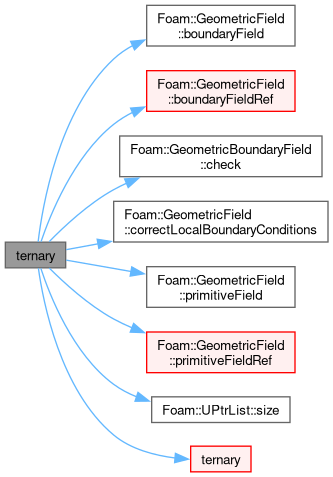

Here is the call graph for this function:

ternarySelect() [5/6]

template<class T, class BoolType, class FlipOp, template< class > class PatchField, class GeoMesh>

void ternarySelect	(	GeometricField< T, PatchField, GeoMesh > &	result,
		const GeometricField< BoolType, PatchField, GeoMesh > &	cond,
		const GeometricField< T, PatchField, GeoMesh > &	a,
		const GeometricField< T, PatchField, GeoMesh > &	b,
		const FlipOp &	flip )

Emulate a ternary operation, selecting field values from a or b depending on the conditional.

Since boolean fields are not normally used, a flip operation is a general requirement.

Definition at line 205 of file GeometricFieldOps.H.

References b, GeometricField< Type, PatchField, GeoMesh >::boundaryField(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), GeometricBoundaryField< Type, PatchField, GeoMesh >::check(), GeometricField< Type, PatchField, GeoMesh >::correctLocalBoundaryConditions(), GeometricBoundaryField< Type, PatchField, GeoMesh >::debug, GeometricField< Type, PatchField, GeoMesh >::primitiveField(), GeometricField< Type, PatchField, GeoMesh >::primitiveFieldRef(), UPtrList< T >::size(), and ternarySelect().

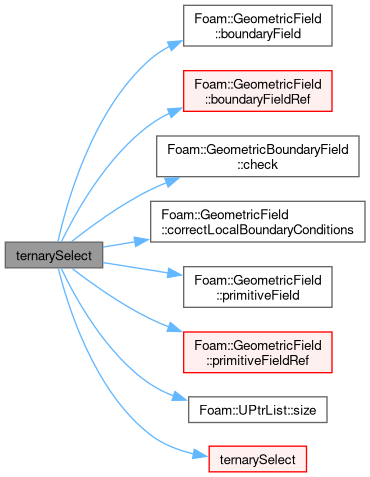

Here is the call graph for this function:

assign() [5/6]

template<class Tout, class T1, class UnaryOp>

void assign ( pointPatchField< Tout > & result, const pointPatchField< T1 > & a, const UnaryOp & op )

inline

Definition at line 352 of file pointPatchFieldFunctions.H.

assign() [6/6]

template<class Tout, class T1, class T2, class BinaryOp>

void assign ( pointPatchField< Tout > & result, const pointPatchField< T1 > & a, const pointPatchField< T2 > & b, const BinaryOp & bop )

inline

Definition at line 362 of file pointPatchFieldFunctions.H.

References b.

ternary() [3/3]

template<class T, class BinaryOp>

void ternary ( pointPatchField< T > & result, const pointPatchField< T > & a, const pointPatchField< T > & b, const BinaryOp & bop )

inline

Definition at line 372 of file pointPatchFieldFunctions.H.

References b.

ternarySelect() [6/6]

template<class T, class BoolType, class FlipOp>

void ternarySelect ( pointPatchField< T > & result, const pointPatchField< BoolType > & cond, const pointPatchField< T > & a, const pointPatchField< T > & b, const FlipOp & flip )

inline

Definition at line 382 of file pointPatchFieldFunctions.H.

References b.
