Foam::edgeMeshTools Namespace Reference

Collection of static functions related to edgeMesh features. More...

Functions
void	writeStats (Ostream &os, const extendedFeatureEdgeMesh &emesh)
	Write some information.
tmp< scalarField >	featureProximity (const extendedEdgeMesh &emesh, const triSurface &surf, const scalar searchDistance)
	Calculate proximity of the features to the surface.
tmp< scalarField >	writeFeatureProximity (const Time &runTime, const word &basename, const extendedEdgeMesh &emesh, const triSurface &surf, const scalar searchDistance)
	Calculate proximity of the features to the surface and write the field.

Detailed Description

Collection of static functions related to edgeMesh features.

Source files

• edgeMeshTools.H
• edgeMeshTools.C
• edgeMeshFeatureProximity.C

Function Documentation

writeStats()

void writeStats	(	Ostream &	os,
		const extendedFeatureEdgeMesh &	emesh )

Write some information.

Definition at line 28 of file edgeMeshTools.C.

References extendedEdgeMesh::concaveStart(), edgeMesh::edges(), Foam::endl(), extendedEdgeMesh::flatStart(), extendedEdgeMesh::internalStart(), extendedEdgeMesh::mixedStart(), extendedEdgeMesh::multipleStart(), Foam::nl, extendedEdgeMesh::nonFeatureStart(), extendedEdgeMesh::openStart(), os(), edgeMesh::points(), and UList< T >::size().

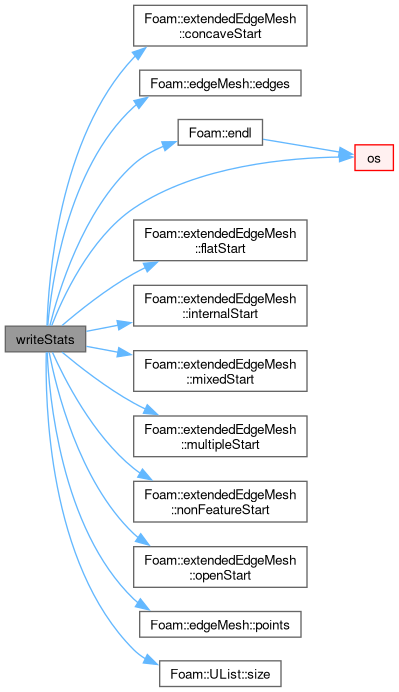

Here is the call graph for this function:

featureProximity()

Foam::tmp< Foam::scalarField > featureProximity	(	const extendedEdgeMesh &	emesh,
		const triSurface &	surf,
		const scalar	searchDistance )

Calculate proximity of the features to the surface.

Definition at line 132 of file edgeMeshFeatureProximity.C.

References extendedEdgeMesh::allNearestFeatureEdges(), extendedEdgeMesh::allNearestFeaturePoints(), Foam::calcProximityOfFeatureEdges(), Foam::calcProximityOfFeaturePoints(), triangle< Point, PointRef >::circumCentre(), triangle< Point, PointRef >::circumRadius(), Foam::endl(), featureProximity(), forAll, Foam::Info, Foam::min(), tmp< T >::New(), PrimitivePatch< FaceList, PointField >::points(), UList< T >::size(), and Foam::sqr().

Referenced by featureProximity(), and writeFeatureProximity().

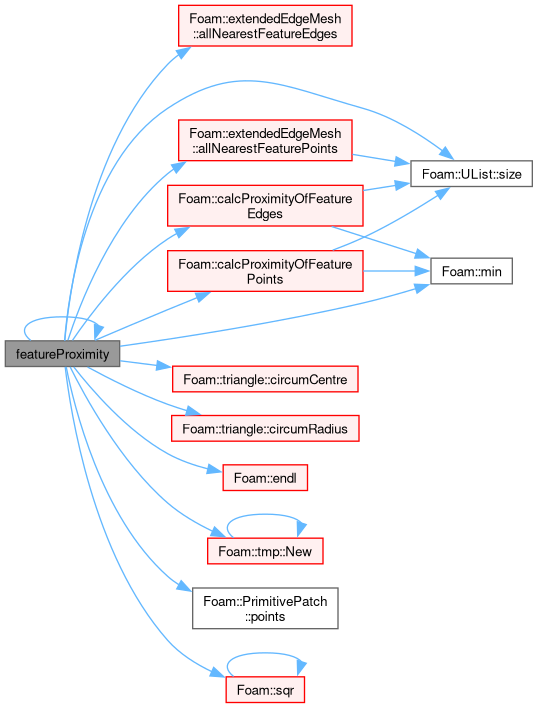

Here is the call graph for this function:

Here is the caller graph for this function:

writeFeatureProximity()

Foam::tmp< Foam::scalarField > writeFeatureProximity	(	const Time &	runTime,
		const word &	basename,
		const extendedEdgeMesh &	emesh,
		const triSurface &	surf,
		const scalar	searchDistance )

Calculate proximity of the features to the surface and write the field.

Definition at line 182 of file edgeMeshFeatureProximity.C.

References Foam::dimLength, Foam::endl(), featureProximity(), Foam::Info, Foam::nl, IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, tmp< T >::ref(), runTime, DynamicField< T, SizeMin >::swap(), and regIOobject::write().

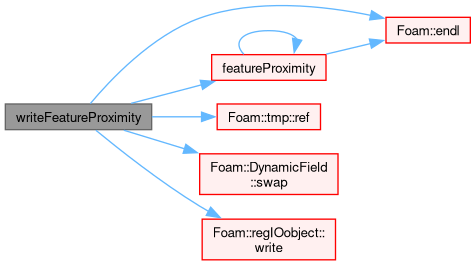

Here is the call graph for this function:
