symmTensorFieldField.H File Reference

Specialisation of FieldField<T> for symmTensor. More...

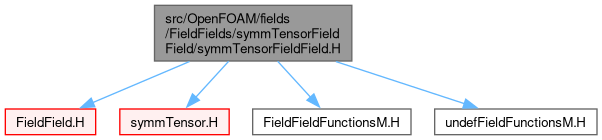

Include dependency graph for symmTensorFieldField.H:

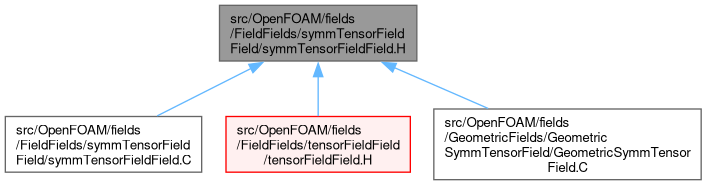

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	Foam
	Namespace for OpenFOAM.

Macros
#define	TEMPLATE   template<template<class> class Field>

Functions
template<template< class > class Field, class Cmpt>
void	zip (FieldField< Field, SymmTensor< Cmpt > > &result, const FieldField< Field, Cmpt > &xx, const FieldField< Field, Cmpt > &xy, const FieldField< Field, Cmpt > &xz, const FieldField< Field, Cmpt > &yy, const FieldField< Field, Cmpt > &yz, const FieldField< Field, Cmpt > &zz)
	Zip together symmTensor field field from components.
template<template< class > class Field, class Cmpt>
void	unzip (const FieldField< Field, SymmTensor< Cmpt > > &input, FieldField< Field, Cmpt > &xx, FieldField< Field, Cmpt > &xy, FieldField< Field, Cmpt > &xz, FieldField< Field, Cmpt > &yy, FieldField< Field, Cmpt > &yz, FieldField< Field, Cmpt > &zz)
	Unzip symmTensor field field into components.
template<template< class > class Field, class Cmpt>
void	zipRows (FieldField< Field, SymmTensor< Cmpt > > &result, const FieldField< Field, Vector< Cmpt > > &x, const FieldField< Field, Vector< Cmpt > > &y, const FieldField< Field, Vector< Cmpt > > &z)
	Zip together symmTensor field field from row components.
template<template< class > class Field, class Cmpt>
void	zipCols (FieldField< Field, SymmTensor< Cmpt > > &result, const FieldField< Field, Vector< Cmpt > > &x, const FieldField< Field, Vector< Cmpt > > &y, const FieldField< Field, Vector< Cmpt > > &z)
	Zip together symmTensor field from column components.
template<template< class > class Field, class Cmpt>
void	unzipRows (const FieldField< Field, SymmTensor< Cmpt > > &input, FieldField< Field, Vector< Cmpt > > &x, FieldField< Field, Vector< Cmpt > > &y, FieldField< Field, Vector< Cmpt > > &z)
	Extract symmTensor field field rows.
template<template< class > class Field, class Cmpt>
void	unzipCols (const FieldField< Field, SymmTensor< Cmpt > > &input, FieldField< Field, Vector< Cmpt > > &x, FieldField< Field, Vector< Cmpt > > &y, FieldField< Field, Vector< Cmpt > > &z)
	Extract symmTensor field field columns.
template<template< class > class Field, class Cmpt>
void	unzipRow (const FieldField< Field, SymmTensor< Cmpt > > &input, const direction idx, FieldField< Field, Vector< Cmpt > > &result)
	Extract a symmTensor field field row (x,y,z) == (0,1,2).
template<template< class > class Field, class Cmpt>
void	unzipCol (const FieldField< Field, SymmTensor< Cmpt > > &input, const direction idx, FieldField< Field, Vector< Cmpt > > &result)
	Extract a symmTensor field field column (x,y,z) == (0,1,2).
template<template< class > class Field, class Cmpt>
void	unzipDiag (const FieldField< Field, SymmTensor< Cmpt > > &input, FieldField< Field, Vector< Cmpt > > &result)
	Extract a symmTensor field field diagonal.

Detailed Description

Specialisation of FieldField<T> for symmTensor.

Original source file symmTensorFieldField.H

InClass Foam::symmTensorFieldField

Source files

• symmTensorFieldField.H
• symmTensorFieldField.C

Definition in file symmTensorFieldField.H.

Macro Definition Documentation

TEMPLATE

#define TEMPLATE   template<template<class> class Field>

Definition at line 40 of file symmTensorFieldField.H.
