A Field of objects of type <T> with automated input and output using a compact storage. Behaves like IOField except when binary output in case it writes a CompactListList. More...

#include <CompactIOField.H>

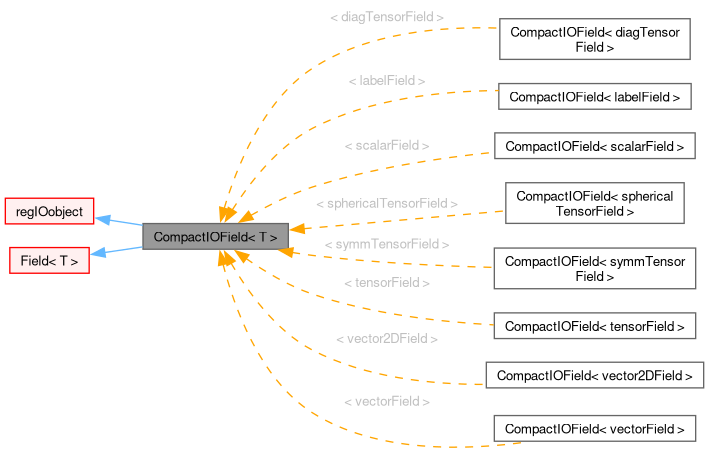

Inheritance diagram for CompactIOField< T >:

[legend]

Collaboration diagram for CompactIOField< T >:

[legend]

Public Types
typedef Field< T >	content_type
	The underlying content type.
Public Types inherited from IOobject
enum	objectState : char { GOOD , BAD }
	Enumeration defining the valid states of an IOobject. More...
enum	fileCheckTypes : char { timeStamp = 1 , timeStampMaster = 3 , inotify = 4 , inotifyMaster = 6 }
	Enumeration defining the file checking options (time-stamp \| inotify) \| (all \| masterOnly). More...
Public Types inherited from IOobjectOption
enum	readOption : unsigned char { NO_READ = 0 , MUST_READ = 0x1 , READ_MODIFIED = 0x3 , MUST_READ_IF_MODIFIED = 0x3 , LAZY_READ = 0x4 , READ_IF_PRESENT = 0x4 }
	Enumeration defining read preferences. More...
enum	writeOption : unsigned char { NO_WRITE = 0 , AUTO_WRITE = 0x10 }
	Enumeration defining write preferences. More...
enum	registerOption : unsigned char { NO_REGISTER = 0 , REGISTER = 1 , LEGACY_REGISTER = 2 }
	Enumeration for use with registerObject(). Values map to bool (false/true). More...
enum class	Layout : unsigned char { regular , global }
	The layout of the case structure. More...
Public Types inherited from Field< T >
typedef pTraits< T >::cmptType	cmptType
	Component type.
typedef SubField< T >	subField
	Declare type of subField.
Public Types inherited from List< T >
typedef SubList< T >	subList
	Declare type of subList.
Public Types inherited from UList< T >
typedef T	value_type
	The value type the list contains.
typedef T *	pointer
	The pointer type for non-const access to value_type items.
typedef const T *	const_pointer
	The pointer type for const access to value_type items.
typedef T &	reference
	The type used for storing into value_type objects.
typedef const T &	const_reference
	The type used for reading from constant value_type objects.
typedef T *	iterator
	Random access iterator for traversing a UList.
typedef const T *	const_iterator
	Random access iterator for traversing a UList.
typedef label	size_type
	The type to represent the size of a UList.
typedef label	difference_type
	The difference between iterator objects.
typedef std::reverse_iterator< iterator >	reverse_iterator
	Reverse iterator (non-const access).
typedef std::reverse_iterator< const_iterator >	const_reverse_iterator
	Reverse iterator (const access).
using	is_List = void
	Have unique tag.

Public Member Functions
	TypeName ("FieldField")
	Runtime type information.
	CompactIOField (const CompactIOField &)=default
	Default copy construct.
	CompactIOField (const IOobject &io)
	Construct from IOobject. Will be zero size if not read.
	CompactIOField (const IOobject &io, const bool readOnProc)
	Construct from IOobject, with local processor conditional reading.
	CompactIOField (const IOobject &io, Foam::zero)
	Construct from IOobject and zero size (if not read).
	CompactIOField (const IOobject &io, const label len)
	Construct from IOobject and size (if not read).
	CompactIOField (const IOobject &io, const UList< T > &content)
	Construct from IOobject and a List/Field content.
	CompactIOField (const IOobject &io, Field< T > &&content)
	Construct by transferring the Field contents.
virtual	~CompactIOField ()=default
	Destructor.

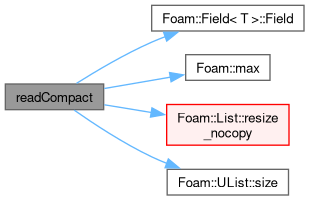

Istream &	readCompact (Istream &is)
	Read as offsets/packed-values and transcribe into *this.
Ostream &	writeCompact (Ostream &os) const
	Write as offsets/packed-values.

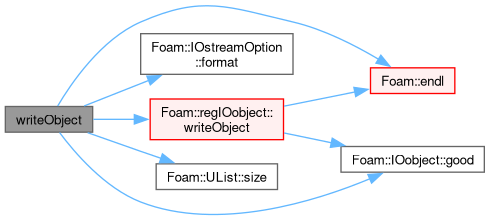

virtual bool	writeObject (IOstreamOption streamOpt, const bool writeOnProc) const
	Write using stream options. Checks for overflow in binary.
virtual bool	writeData (Ostream &os) const
	Write as plain or compact content (depends on stream format).
void	operator= (const CompactIOField< T > &rhs)
	Copy assignment of entries.
void	operator= (CompactIOField< T > &&rhs)
	Move assignment of entries.
Public Member Functions inherited from regIOobject
void	operator= (const regIOobject &)=delete
	No copy assignment.
	TypeName ("regIOobject")
	Runtime type information.
	regIOobject (const IOobject &io, const bool isTimeObject=false)
	Construct from IOobject. The optional flag adds special handling if the object is the top-level regIOobject (eg, Time).
	regIOobject (const regIOobject &rio)
	Copy construct.
	regIOobject (const regIOobject &rio, bool registerCopy)
	Copy construct, transferring registry registration to the copy if registerCopy is true.
	regIOobject (const word &newName, const regIOobject &, bool registerCopy)
	Copy construct with new name, transferring registry registration to the copy if registerCopy is true.
	regIOobject (const IOobject &io, const regIOobject &rio)
	Copy construct with new IO parameters.
virtual	~regIOobject ()
	Destructor.
bool	checkIn ()
	Add object to registry, if not already registered.
bool	checkOut ()
	Remove object from registry, and remove all file watches.
virtual void	addWatch ()
	Add file watch on object (if registered and READ_IF_MODIFIED).
bool	registered () const noexcept
	Query the registered state (ie, has been checked in). This is not necessarily the same as registerObject(), which is just a stated preference.
bool	ownedByRegistry () const noexcept
	Is this object owned by the registry?
bool	store ()
	Register object with its registry and transfer ownership to the registry.
void	release (const bool unregister=false) noexcept
	Set object as not ownedByRegistry.
label	eventNo () const noexcept
	Event number at last update.
label &	eventNo () noexcept
	Event number at last update.
bool	upToDate (const regIOobject &) const
	Return true if up-to-date with respect to given object.
bool	upToDate (const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects.
bool	upToDate (const regIOobject &, const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects.
bool	upToDate (const regIOobject &, const regIOobject &, const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects.
void	setUpToDate ()
	Set as up-to-date.
virtual void	rename (const word &newName)
	Rename.
const dictionary *	findMetaData () const noexcept
	Return pointer to meta-data or nullptr.
dictionary &	getMetaData () noexcept
	Get or create meta-data.
void	removeMetaData ()
	Remove meta-data.
virtual void	updateMetaData ()
	Update internal meta-data (eg, prior to writing).
virtual fileName	filePath () const
	Return complete path + object name if the file exists.
bool	headerOk ()
	Read and check header info. Does not check the headerClassName.
Istream &	readStream (const word &, const bool readOnProc=true)
	Return Istream and check object type against that given.
void	close ()
	Close Istream.
virtual bool	readData (Istream &)
	Virtual readData function.
virtual bool	read ()
	Read object.
virtual label	addWatch (const fileName &)
	Add file watch for fileName on object if not yet watched.
const labelList &	watchIndices () const noexcept
	Read access to file-monitoring handles.
labelList &	watchIndices () noexcept
	Write access to file-monitoring handles.
virtual bool	modified () const
	Return true if the object's file (or files for objectRegistry) have been modified. (modified state is cached by Time).
virtual bool	readIfModified ()
	Read object if modified (as set by call to modified).
virtual bool	write (const bool writeOnProc=true) const
	Write using setting from DB.
virtual bool	global () const
	Is object global.
void	operator= (const IOobject &io)
	Copy assignment.
virtual bool	writeObject (IOstreamOption::streamFormat fmt, IOstreamOption::versionNumber ver, IOstreamOption::compressionType cmp, const bool writeOnProc) const
	Write using given format, version and compression.
Public Member Functions inherited from IOobject
	TypeName ("IOobject")
	Declare type-name, virtual type (with debug switch).
	IOobject (const IOobject &)=default
	Copy construct.
virtual	~IOobject ()=default
	Destructor.
	IOobject (const word &name, const fileName &instance, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from name, instance, registry, io options.
	IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from name, instance, local, registry, io options.
	IOobject (const fileName &path, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from path, registry, io options.
	IOobject (const word &name, const fileName &instance, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from name, instance, registry, io options.
	IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from name, instance, local, registry, io options.
	IOobject (const fileName &path, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from path, registry, io options.
	IOobject (const IOobject &io, const objectRegistry &registry)
	Copy construct, resetting registry.
	IOobject (const IOobject &io, const word &name)
	Copy construct, resetting name.
	IOobject (const IOobject &io, const word &name, const fileName &local)
	Copy construct, resetting name and local component.
	IOobject (const IOobject &io, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt)
	Copy construct, resetting read/write options.
	IOobject (const IOobject &io, IOobjectOption::registerOption regOpt)
	Copy construct, resetting register option.
autoPtr< IOobject >	clone () const
	Clone.
autoPtr< IOobject >	clone (const objectRegistry &registry) const
	Clone resetting registry.
const objectRegistry &	db () const noexcept
	Return the local objectRegistry.
const Time &	time () const noexcept
	Return Time associated with the objectRegistry.
const word &	name () const noexcept
	Return the object name.
const word &	headerClassName () const noexcept
	Return name of the class name read from header.
word &	headerClassName () noexcept
	Modifiable access to the class name read from header.
const string &	note () const noexcept
	Return the optional note.
string &	note () noexcept
	Modifiable access to the optional note.
unsigned	labelByteSize () const noexcept
	The sizeof (label) in bytes, possibly read from the header.
unsigned	scalarByteSize () const noexcept
	The sizeof (scalar) in bytes, possibly read from the header.
void	resetHeader (const word &newName=word::null)
	Clear various bits (headerClassName, note, sizeof...) that would be obtained when reading from a file.
bool	hasHeaderClass () const noexcept
	True if headerClassName() is non-empty (after reading).
bool	isHeaderClass (const word &expectedType) const
	Check if headerClassName() equals the expected type. Always true if the expected type is empty.
template<class Type>
bool	isHeaderClass () const
	Check if headerClassName() equals Type::typeName Always true for a `void` type.
word	group () const
	Return group (extension part of name).
word	member () const
	Return member (name without the extension).
const fileName &	rootPath () const noexcept
	Return the Time::rootPath().
const fileName &	caseName () const noexcept
	Return the Time::caseName().
const fileName &	globalCaseName () const noexcept
	Return the Time::globalCaseName().
const fileName &	caseName (IOobjectOption::Layout) const noexcept
	Return the Time::caseName() - normal or global.
const fileName &	instance () const noexcept
	Read access to instance path component.
fileName &	instance () noexcept
	Modifiable access to instance path component.
scalar	instanceValue () const
	Return the scalar value of the instance component (or 0), which often corresponds to a time index/value.
const fileName &	local () const noexcept
	Read access to local path component.
fileName &	local () noexcept
	Modifiable access to the local path component.
fileName	path () const
	The complete path for the object (with instance, local,...).
fileName	globalPath () const
	The complete global path for the object (with instance, local,...).
fileName	path (IOobjectOption::Layout) const
	The complete path (normal or global) for the object.
fileName	path (const word &instance, const fileName &local=fileName::null) const
	The complete path with alternative instance and local.
fileName	globalPath (const word &instance, const fileName &local=fileName::null) const
	The complete global path with alternative instance and local.
fileName	path (IOobjectOption::Layout, const word &instance, const fileName &local=fileName::null) const
	The complete path (normal or global) with alternative instance and local.
fileName	objectPath () const
	The complete path + object name.
fileName	globalObjectPath () const
	The complete global path + object name.
fileName	objectPath (IOobjectOption::Layout) const
	The complete path (normal or global) + object name.
fileName	objectPath (IOobjectOption::Layout, const word &instance) const
	The complete path (normal or global) + object name with alternative instance.
fileName	objectPath (const word &instance) const
	The complete path + object name with alternative instance.
fileName	globalObjectPath (const word &instance) const
	The complete global path + object name with alternative instance.
fileName	objectRelPath () const
	The object path relative to the case.
fileName	localFilePath (const word &typeName, const bool search=true) const
	Redirect to fileHandler filePath, searching locally.
fileName	globalFilePath (const word &typeName, const bool search=true) const
	Redirect to fileHandler filePath, searching up if in parallel.
IOstreamOption	parseHeader (const dictionary &headerDict)
	Parse 'FoamFile' header contents and set the IOobject characteristics and return the stream characteristics.
bool	readHeader (Istream &is)
	Read header ('FoamFile' dictionary) and set the IOobject and stream characteristics.
bool	readHeader (dictionary &headerDict, Istream &is)
	Read header (the 'FoamFile' dictionary) and set the IOobject and stream characteristics.
template<class Type>
bool	typeHeaderOk (const bool checkType=true, const bool search=true, const bool verbose=true)
	Read header (respects is_globalIOobject trait) and check its info. A `void` type suppresses trait and type-name checks.
template<class Type, bool Searching>
bool	typeHeaderOk (const bool checkType=true, const bool verbose=true)
	Forwards to single-parameter version with the specified search type. A `void` type suppresses trait and type-name checks.
template<class Type>
fileName	typeFilePath (const bool search=true) const
	Call localFilePath or globalFilePath for given type depending on its is_globalIOobject trait.
template<class Type>
void	warnNoRereading () const
	Helper: warn that type does not support re-reading.
bool	writeHeader (Ostream &os) const
	Write header with current type().
bool	writeHeader (Ostream &os, const word &objectType) const
	Write header with override of type.
void	writeHeader (dictionary &dict, IOstreamOption streamOpt) const
	Write header into a dictionary with current type() and given output format.
void	writeHeader (dictionary &dict, const word &objectType, IOstreamOption streamOpt) const
	Write header into a dictionary with override of type and given output format.
bool	good () const noexcept
	Did last readHeader() succeed?
bool	bad () const noexcept
	Did last readHeader() fail?
InfoProxy< IOobject >	info () const noexcept
	Return info proxy, for printing information to a stream.
void	operator= (const IOobject &io)
	Copy assignment, copies all values (except the registry).
template<class Type>
bool	isHeaderClassName () const
	Same as isHeaderClass().
template<class StringType>
Foam::word	groupName (StringType base, const word &group)
template<class Type>
Foam::fileName	typeFilePath (const bool search) const
Public Member Functions inherited from IOobjectOption
constexpr	IOobjectOption (readOption rOpt=readOption::NO_READ, writeOption wOpt=writeOption::NO_WRITE, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Default construct (NO_READ, NO_WRITE, REGISTER, non-global) or construct with specified options.
constexpr	IOobjectOption (readOption rOpt, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Construct NO_WRITE with specified read/register options.
constexpr	IOobjectOption (writeOption wOpt, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Construct NO_READ with specified write/register options.
constexpr	IOobjectOption (registerOption registerObject, bool globalObject=false) noexcept
	Construct (NO_READ, NO_WRITE) with specified register option.
constexpr	IOobjectOption (readOption rOpt, writeOption wOpt, bool registerObject, bool globalObject=false) noexcept
	Construct from components with specified register option as bool.
constexpr	IOobjectOption (bool registerObject, bool globalObject=false) noexcept
	Construct (NO_READ, NO_WRITE) with specified register option as bool.
readOption	readOpt () const noexcept
	Get the read option.
readOption	readOpt (readOption opt) noexcept
	Set the read option.
writeOption	writeOpt () const noexcept
	Get the write option.
writeOption	writeOpt (writeOption opt) noexcept
	Set the write option.
bool	registerObject () const noexcept
	Should objects created with this IOobject be registered?
bool	registerObject (bool on) noexcept
	Change registration preference.
bool	globalObject () const noexcept
	True if object is treated the same for all processors.
bool	globalObject (bool on) noexcept
	Change global-object status.
bool	isAnyRead () const noexcept
	True if any reading may be required (ie, != NO_READ).
bool	isReadRequired () const noexcept
	True if (MUST_READ \| READ_MODIFIED) bits are set.
bool	isReadOptional () const noexcept
	True if (LAZY_READ) bits are set [same as READ_IF_PRESENT].
readOption &	readOpt () noexcept
	Access to the read option.
writeOption &	writeOpt () noexcept
	Access to the write option.
bool &	registerObject () noexcept
	Access to the register object option.
bool &	globalObject () noexcept
	Access to the global object option.
Public Member Functions inherited from Field< T >
constexpr	Field () noexcept
	Default construct.
	Field (const label len)
	Construct given size.
	Field (const label len, const T &val)
	Construct given size and initial value.
	Field (const label len, Foam::zero)
	Construct given size and initial values of zero.
	Field (Foam::one, const T &val)
	Construct with length=1, copying the value as the only content.
	Field (Foam::one, T &&val)
	Construct with length=1, moving the value as the only content.
	Field (Foam::one, Foam::zero)
	Construct with length=1, initializing content to zero.
	Field (const Field< T > &fld)
	Copy construct.
	Field (const UList< T > &list)
	Copy construct from UList<Type>.
	Field (const IndirectListBase< T, Addr > &list)
	Copy construct from IndirectList.
	Field (Field< T > &&fld) noexcept
	Move construct from Field.
	Field (List< T > &&list) noexcept
	Move construct from List.
	Field (DynamicList< T, SizeMin > &&list)
	Move construct from DynamicList.
	Field (const UList< T > &mapF, const labelUList &mapAddressing)
	Construct by 1 to 1 mapping from the given field.
	Field (const tmp< Field< T > > &tmapF, const labelUList &mapAddressing)
	Construct by 1 to 1 mapping from the given tmp field.
	Field (const UList< T > &mapF, const labelListList &mapAddressing, const scalarListList &weights)
	Construct by interpolative mapping from the given field.
	Field (const tmp< Field< T > > &tmapF, const labelListList &mapAddressing, const scalarListList &weights)
	Construct by interpolative mapping from the given tmp field.
	Field (const UList< T > &mapF, const FieldMapper &map, const bool applyFlip=true)
	Construct by mapping from the given field.
	Field (const UList< T > &mapF, const FieldMapper &map, const T &defaultValue, const bool applyFlip=true)
	Construct by mapping from the given field.
	Field (const UList< T > &mapF, const FieldMapper &map, const UList< T > &defaultValues, const bool applyFlip=true)
	Construct by mapping from the given field.
	Field (const tmp< Field< T > > &tmapF, const FieldMapper &map, const bool applyFlip=true)
	Construct by mapping from the given tmp field.
	Field (const tmp< Field< T > > &tmapF, const FieldMapper &map, const T &defaultValue, const bool applyFlip=true)
	Construct by mapping from the given tmp field. Uses supplied uniform value for unmapped items.
	Field (const tmp< Field< T > > &tmapF, const FieldMapper &map, const UList< T > &defaultValues, const bool applyFlip=true)
	Construct by mapping from the given tmp field. Uses supplied values for unmapped items.
	Field (Field< T > &fld, bool reuse)
	Copy construct or re-use as specified.
	Field (const tmp< Field< T > > &tfld)
	Copy or move construct from tmp.
	Field (Istream &is)
	Construct from Istream.
	Field (const entry &e, const label len)
	Construct from a dictionary (primitive) entry.
	Field (const word &key, const dictionary &dict, const label len, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ)
	Lookup of a primitive dictionary entry by (literal) name and assign its contents to this. The behaviour largely as described in assign():
tmp< Field< T > >	clone () const
	Clone.
void	assign (const entry &e, const label len)
	Assign from a primitive dictionary entry with the following behaviour:
bool	assign (const word &key, const dictionary &dict, const label len, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ)
	Lookup a primitive dictionary entry by (literal) name and assign its contents to this (behaviour as described above).
void	map (const UList< T > &mapF, const labelUList &mapAddressing)
	1 to 1 map from the given field
void	map (const tmp< Field< T > > &tmapF, const labelUList &mapAddressing)
	1 to 1 map from the given tmp field
void	map (const UList< T > &mapF, const labelListList &mapAddressing, const scalarListList &weights)
	Interpolative map from the given field.
void	map (const tmp< Field< T > > &tmapF, const labelListList &mapAddressing, const scalarListList &weights)
	Interpolative map from the given tmp field.
void	map (const UList< T > &mapF, const FieldMapper &map, const bool applyFlip=true)
	Map from the given field.
void	map (const tmp< Field< T > > &tmapF, const FieldMapper &map, const bool applyFlip=true)
	Map from the given tmp field.
void	autoMap (const FieldMapper &map, const bool applyFlip=true)
	Map from self.
void	rmap (const UList< T > &mapF, const labelUList &mapAddressing)
	1 to 1 reverse-map from the given field
void	rmap (const tmp< Field< T > > &tmapF, const labelUList &mapAddressing)
	1 to 1 reverse-map from the given tmp field
void	rmap (const UList< T > &mapF, const labelUList &mapAddressing, const UList< scalar > &weights)
	Interpolative reverse map from the given field.
void	rmap (const tmp< Field< T > > &tmapF, const labelUList &mapAddressing, const UList< scalar > &weights)
	Interpolative reverse map from the given tmp field.
void	negate ()
	Inplace negate this field (negative).
void	normalise ()
	Inplace normalise this field. Generally a no-op except for vector fields.
tmp< Field< cmptType > >	component (const direction) const
	Return a component field of the field.
void	replace (const direction, const UList< cmptType > &)
	Replace a component field of the field.
void	replace (const direction, const tmp< Field< cmptType > > &)
	Replace a component field of the field.
void	replace (const direction, const cmptType &)
	Replace a component field of the field.
void	clamp_min (const T &lower)
	Impose lower (floor) clamp on the field values (in-place).
void	clamp_min (const UList< T > &lower)
	Impose lower (floor) clamp on the field values (in-place).
void	clamp_max (const T &upper)
	Impose upper (ceiling) clamp on the field values (in-place).
void	clamp_max (const UList< T > &upper)
	Impose upper (ceiling) clamp on the field values (in-place).
void	clamp_range (const T &lower, const T &upper)
	Clamp field values (in-place) to the specified range.
void	clamp_range (const MinMax< T > &range)
	Clamp field values (in-place) to the specified range.
VSForm	block (const label start) const
tmp< Field< T > >	T () const
	Return the field transpose (only defined for second rank tensors).
void	writeEntry (const word &keyword, Ostream &os) const
	Write the field as a dictionary entry.
SubField< T >	slice (const label pos, label len=-1)
	Return SubField slice (non-const access) - no range checking.
const SubField< T >	slice (const label pos, label len=-1) const
	Return SubField slice (const access) - no range checking.
SubField< T >	slice (const labelRange &range)
	Return SubField slice (non-const access) - with range checking.
const SubField< T >	slice (const labelRange &range) const
	Return SubField slice (const access) - with range checking.
void	operator= (const Field< T > &)
	Copy assignment.
void	operator= (const tmp< Field< T > > &)
void	operator= (const UList< T > &rhs)
void	operator= (const SubField< T > &rhs)
void	operator= (const IndirectListBase< T, Addr > &rhs)
	Copy assign from IndirectList.
void	operator= (Field< T > &&rhs)
	Move assignment.
void	operator= (List< T > &&rhs)
void	operator= (DynamicList< T, SizeMin > &&rhs)
void	operator= (const T &val)
	Assign entries to the given value.
void	operator= (Foam::zero)
	Assign entries to zero.
void	operator= (const VectorSpace< Form, Cmpt, nCmpt > &)
void	operator+= (const UList< T > &)
void	operator+= (const tmp< Field< T > > &)
void	operator-= (const UList< T > &)
void	operator-= (const tmp< Field< T > > &)
void	operator*= (const UList< scalar > &)
void	operator*= (const tmp< Field< scalar > > &)
void	operator/= (const UList< scalar > &)
void	operator/= (const tmp< Field< scalar > > &)
void	operator+= (const T &)
void	operator-= (const T &)
void	operator*= (const scalar &)
void	operator/= (const scalar &)
	Field (const Expression::ListExpression< E > &expr)
	Construct from value expression.
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.
void	operator= (const tmp< Field > &rhs)
void	normalise ()
void	normalise ()
void	normalise ()
	Inplace normalise (float) vector field.
void	normalise ()
	Inplace normalise (double) vector field.
Public Member Functions inherited from FieldBase
constexpr	FieldBase () noexcept
	Default construct.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.
Public Member Functions inherited from List< T >
constexpr	List () noexcept
	Default construct.
	List (const label len)
	Construct with given size.
	List (const label len, const T &val)
	Construct with given size and value for all elements.
	List (const label len, Foam::zero)
	Construct with given size initializing all elements to zero.
	List (Foam::one, const T &val)
	Construct with length=1, copying the value as the only content.
	List (Foam::one, T &&val)
	Construct with length=1, moving the value as the only content.
	List (Foam::one, Foam::zero)
	Construct with length=1, initializing content to zero.
	List (const List< T > &list)
	Copy construct from list.
	List (const UList< T > &list)
	Copy construct contents from list.
	List (List< T > &list, bool reuse)
	Construct as copy or re-use as specified.
	List (const UList< T > &list, const labelUList &indices)
	Copy construct subset of list.
template<unsigned N>
	List (const UList< T > &list, const FixedList< label, N > &indices)
	Copy construct subset of list.
template<unsigned N>
	List (const FixedList< T, N > &list)
	Construct as copy of FixedList<T, N>.
	List (const UPtrList< T > &list)
	Construct as copy of UPtrList<T> content.
template<class Addr>
	List (const IndirectListBase< T, Addr > &list)
	Construct as copy of IndirectList contents.
	List (std::initializer_list< T > list)
	Construct from an initializer list.
	List (List< T > &&list) noexcept
	Move construct from List.
template<int SizeMin>
	List (DynamicList< T, SizeMin > &&list)
	Move construct from DynamicList.
	List (Istream &is)
	Construct from Istream.
autoPtr< List< T > >	clone () const
	Clone.
	~List ()
	Destructor.
void	clear ()
	Clear the list, i.e. set size to zero.
void	resize (const label len)
	Adjust allocated size of list.
void	resize (const label len, const T &val)
	Adjust allocated size of list and set val for new elements.
void	resize_copy (label count, const label len)
	Change allocated size of list, retaining the first count elements.
void	resize_fill (const label len, const T &val)
	Adjust allocated size of list and set val for all elements.
void	resize_nocopy (const label len)
	Adjust allocated size of list without necessarily.
void	transfer (List< T > &list)
	Transfer the contents of the argument List into this list and annul the argument list.
template<int SizeMin>
void	transfer (DynamicList< T, SizeMin > &list)
	Transfer the contents of the argument List into this list and annul the argument list.
T &	newElmt (const label i)
	Return subscript-checked element of UList and resizing the list if required.
template<class... Args>
T &	emplace_back (Args &&... args)
	Construct an element at the end of the list, return reference to the new list element.
void	push_back (const T &val)
	Append an element at the end of the list.
void	push_back (T &&val)
	Move append an element at the end of the list.
void	push_back (const UList< T > &list)
	Append a List to the end of this list.
template<class Addr>
void	push_back (const IndirectListBase< T, Addr > &list)
	Append IndirectList contents at the end of this list.
label	push_uniq (const T &val)
	Append an element if not already in the list.
void	pop_back (label n=1)
	Reduce size by 1 or more elements. Can be called on an empty list.
void	operator= (const UList< T > &list)
	Assignment to UList operator. Takes linear time.
void	operator= (const List< T > &list)
	Assignment operator. Takes linear time.
template<class Addr>
void	operator= (const IndirectListBase< T, Addr > &list)
	Assignment from IndirectList. Takes linear time.
template<unsigned N>
void	operator= (const FixedList< T, N > &list)
	Copy assignment from FixedList.
void	operator= (std::initializer_list< T > list)
	Assignment to an initializer list.
void	operator= (const T &val)
	Assignment of all entries to the given value.
void	operator= (Foam::zero)
	Assignment of all entries to zero.
void	operator= (List< T > &&list)
	Move assignment. Takes constant time.
template<int SizeMin>
void	operator= (DynamicList< T, SizeMin > &&list)
	Move assignment. Takes constant time.
Istream &	readList (Istream &is)
	Read List from Istream, discarding contents of existing List.
void	shallowCopy (const UList< T > &)=delete
	No shallowCopy permitted.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	set (const label i, bool val=true)
	A bitSet::set() method for a list of bool.
void	append (const T &val)
	Append an element at the end of the list.
void	append (T &&val)
	Move append an element at the end of the list.
void	append (const UList< T > &list)
	Append a List to the end of this list.
template<class Addr>
void	append (const IndirectListBase< T, Addr > &list)
	Append IndirectList contents at the end of this list.
label	appendUniq (const T &val)
	Same as push_uniq().
void	setSize (label n)
	Alias for resize().
void	setSize (label n, const T &val)
	Alias for resize().
template<typename E>
	List (const Expression::ListExpression< E > &expr)
	Construct from value expression.
template<typename E>
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.
void	resize (const label len)
Public Member Functions inherited from UList< T >
	UList (const UList< T > &) noexcept=default
	Copy construct, shallow copy.
	UList (UList< T > &&) noexcept=default
	Move construct, shallow copy.
UList< T > &	operator= (const UList< T > &)=delete
	No copy assignment (default: shallow copy).
UList< T > &	operator= (UList< T > &&) noexcept=default
	Move assignment, shallow copy.
constexpr	UList () noexcept
	Default construct, zero-sized and nullptr.
	UList (T *__restrict__ ptr, const label len) noexcept
	Construct from components.
	UList (SubList< T > &&) noexcept
	Move construct from a SubList, shallow copy.
label	fcIndex (const label i) const noexcept
	The forward circular index. The next index in the list which returns to the first at the end of the list.
label	rcIndex (const label i) const noexcept
	The reverse circular index. The previous index in the list which returns to the last at the beginning of the list.
const T &	fcValue (const label i) const
	Return forward circular value (ie, next value in the list).
T &	fcValue (const label i)
	Return forward circular value (ie, next value in the list).
const T &	rcValue (const label i) const
	Return reverse circular value (ie, previous value in the list).
T &	rcValue (const label i)
	Return reverse circular value (ie, previous value in the list).
const T *	cdata () const noexcept
	Return pointer to the underlying array serving as data storage.
T *	data () noexcept
	Return pointer to the underlying array serving as data storage.
const char *	cdata_bytes () const noexcept
	Return pointer to the underlying array serving as data storage,.
char *	data_bytes () noexcept
	Return pointer to the underlying array serving as data storage,.
T &	front ()
	Access first element of the list, position [0].
const T &	front () const
	Access first element of the list.
T &	back ()
	Access last element of the list, position [size()-1].
const T &	back () const
	Access last element of the list, position [size()-1].
std::streamsize	size_bytes () const noexcept
	Number of contiguous bytes for the List data.
std::streamsize	byteSize () const
	Number of contiguous bytes for the List data, runtime FatalError if type is not contiguous.
void	checkStart (const label start) const
	Check start is within valid range [0,size).
void	checkSize (const label size) const
	Check size is within valid range [0,size].
void	checkRange (const label start, const label len) const
	Check that start and length define a valid range.
void	checkIndex (const label i) const
	Check index is within valid range [0,size).
bool	uniform () const
	True if all entries have identical values, and list is non-empty.
bool	contains (const T &val) const
	True if the value is contained in the list.
bool	contains (const T &val, label pos, label len=-1) const
	Is the value contained in the list?
label	find (const T &val) const
	Find index of the first occurrence of the value.
label	find (const T &val, label pos, label len=-1) const
	Find index of the first occurrence of the value.
label	rfind (const T &val, label pos=-1) const
	Find index of the last occurrence of the value.
void	moveFirst (const label i)
	Move element to the first position.
void	moveLast (const label i)
	Move element to the last position.
void	swapFirst (const label i)
	Swap element with the first element. Fatal on an empty list.
void	swapLast (const label i)
	Swap element with the last element. Fatal on an empty list.
void	shallowCopy (T *__restrict__ ptr, const label len) noexcept
	Copy the pointer and size.
void	shallowCopy (std::nullptr_t) noexcept
	Copy nullptr and zero size.
void	shallowCopy (const UList< T > &list) noexcept
	Copy the pointer and size held by the given UList.
void	deepCopy (const UList< T > &list)
	Copy elements of the given UList. Sizes must match!
template<class Addr>
void	deepCopy (const IndirectListBase< T, Addr > &list)
	Copy elements of the given indirect list. Sizes must match!
SubList< T >	slice (const label pos, label len=-1)
	Return SubList slice (non-const access) - no range checking.
const SubList< T >	slice (const label pos, label len=-1) const
	Return SubList slice (const access) - no range checking.
SubList< T >	slice (const labelRange &range)
	Return SubList slice (non-const access) - with range checking.
const SubList< T >	slice (const labelRange &range) const
	Return SubList slice (const access) - with range checking.
T &	operator[] (const label i)
	Return element of UList.
const T &	operator[] (const label i) const
	Return element of constant UList.
	operator const Foam::List< T > & () const
	Allow cast to a const List<T>&.
void	operator= (const T &val)
	Assignment of all entries to the given value.
void	operator= (Foam::zero)
	Assignment of all entries to zero.
iterator	begin () noexcept
	Return an iterator to begin traversing the UList.
iterator	end () noexcept
	Return an iterator to end traversing the UList.
iterator	begin (const label i) noexcept
	Return iterator at offset i from begin, clamped to [0,size] range.
const_iterator	cbegin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	cend () const noexcept
	Return const_iterator to end traversing the constant UList.
const_iterator	begin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	end () const noexcept
	Return const_iterator to end traversing the constant UList.
const_iterator	cbegin (const label i) const noexcept
	Return const_iterator at offset i from begin, clamped to [0,size] range.
const_iterator	begin (const label i) const noexcept
	Return const_iterator at offset i from begin, clamped to [0,size] range.
reverse_iterator	rbegin ()
	Return reverse_iterator to begin reverse traversing the UList.
reverse_iterator	rend ()
	Return reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	crbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	crend () const
	Return const_reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	rbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	rend () const
	Return const_reverse_iterator to end reverse traversing the UList.
bool	empty () const noexcept
	True if List is empty (ie, size() is zero).
label	size () const noexcept
	The number of elements in the container.
label	capacity () const noexcept
	Size of the underlying storage.
void	swap (UList< T > &list) noexcept
	Swap content with another UList of the same type in constant time.
bool	operator== (const UList< T > &list) const
	Equality operation on ULists of the same type.
bool	operator!= (const UList< T > &list) const
	The opposite of the equality operation. Takes linear time.
bool	operator< (const UList< T > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator> (const UList< T > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator<= (const UList< T > &list) const
	Return true if !(a > b). Takes linear time.
bool	operator>= (const UList< T > &list) const
	Return true if !(a < b). Takes linear time.
Istream &	readList (Istream &is)
	Read List contents from Istream.
void	writeEntry (const word &keyword, Ostream &os) const
	Write the List as a dictionary entry with keyword.
Ostream &	writeList (Ostream &os, const label shortLen=0) const
	Write List, with line-breaks in ASCII when length exceeds shortLen.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	all () const
	True if all entries are 'true' or if the list is empty.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	any () const
	True if any entries are 'true'.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	none () const
	True if no entries are 'true'.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	test (const label i) const
	Test `bool` value at specified position, always false for out-of-range access.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	get (const label i) const
	Return `bool` value at specified position, always false for out-of-range access.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	unset (const label i)
	Unset the `bool` entry at specified position, always false for out-of-range access.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_char_v<TypeT>>>
std::string_view	view () const
	Return a string_view of the charList. Content is non-modifiable.
T &	first ()
	Access first element of the list, position [0].
const T &	first () const
	Access first element of the list.
T &	last ()
	Access last element of the list, position [size()-1].
const T &	last () const
	Access last element of the list, position [size()-1].
bool	found (const T &val, label pos=0) const
	Same as contains().
auto	expr () const
	Wrap value as expression.
template<typename E>
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.

Static Public Member Functions

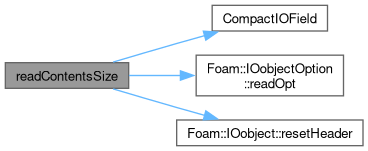

static label	readContentsSize (const IOobject &io)
	Read and return content size, -1 if not read.

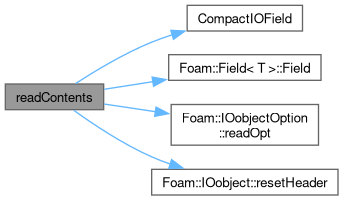

static Field< T >	readContents (const IOobject &io)
	Read and return contents. The IOobject is never registered.
Static Public Member Functions inherited from regIOobject
template<class Type>
static Type &	store (Type *p)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (std::unique_ptr< Type > &&ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (autoPtr< Type > &ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (autoPtr< Type > &&ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (refPtr< Type > &ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (refPtr< Type > &&ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (tmp< Type > &ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (tmp< Type > &&ptr)
	Transfer pointer ownership to its registry.
Static Public Member Functions inherited from IOobject
static bool	bannerEnabled () noexcept
	Status of output file banner.
static bool	bannerEnabled (bool on) noexcept
	Enable/disable output file banner.
static bool	fileModificationChecking_masterOnly () noexcept
	Test fileModificationChecking for master-only.
static bool	fileNameComponents (const fileName &path, fileName &instance, fileName &local, word &name)
	Split path into instance, local, name components.
template<class StringType>
static word	groupName (StringType base, const word &group)
	Create dot-delimited name.group string.
static word	group (const word &name)
	Return group (extension part of name).
static word	member (const word &name)
	Return member (name without the extension).
static word	scopedName (const std::string &scope, const word &name)
	Create scope:name or scope_name string.
static word	scopedName (const std::string &scope, const word &name1, const word &name2)
	Create scope:name1:name2 or scope_name1_name2 string.
static IOobject	selectIO (const IOobject &io, const fileName &altFile, const word &ioName="")
	Return the IOobject, but also consider an alternative file name.
static Ostream &	writeBanner (Ostream &os, const bool noSyntaxHint=false)
	Write the standard OpenFOAM file/dictionary banner.
static Ostream &	writeDivider (Ostream &os)
	Write the standard file section divider.
static Ostream &	writeEndDivider (Ostream &os)
	Write the standard end file divider.
Static Public Member Functions inherited from IOobjectOption
static bool	isAnyRead (readOption opt) noexcept
	True if any reading may be required (ie, != NO_READ).
static bool	isReadRequired (readOption opt) noexcept
	True if (MUST_READ \| READ_MODIFIED) bits are set.
static bool	isReadOptional (readOption opt) noexcept
	True if (LAZY_READ) bits are set [same as READ_IF_PRESENT].
static readOption	lazierRead (readOption opt) noexcept
	Downgrade readOption optional (LAZY_READ), leaves NO_READ intact.
Static Public Member Functions inherited from Field< T >
static const Field< T > &	null () noexcept
	Return a null Field (reference to a nullObject). Behaves like an empty Field.
static autoPtr< Field< T > >	New (Istream &is)
	Return a pointer to a new Field created on freestore.
static tmp< Field< T > >	NewCalculatedType (const Field< Type2 > &f)
	Return a pointer to a new calculatedFvPatchFieldField created on freestore without setting patchField values.
Static Public Member Functions inherited from FieldBase
static void	warnLocalBoundaryConsistencyCompat (const dictionary &)
	Warn about keyword changes for local boundary consistency checks.
static int	localBoundaryConsistency () noexcept
	Get flag for local boundary consistency checks.
static int	localBoundaryConsistency (int val) noexcept
	Set flag for local boundary consistency checks.
Static Public Member Functions inherited from List< T >
static const List< T > &	null () noexcept
	Return a null List (reference to a nullObject). Behaves like an empty List.
Static Public Member Functions inherited from UList< T >
static const UList< T > &	null () noexcept
	Return a null UList (reference to a nullObject). Behaves like an empty UList.
static constexpr label	max_size () noexcept
	The size of the largest possible UList.

Additional Inherited Members
Static Public Attributes inherited from IOobject
static const Enum< fileCheckTypes >	fileCheckTypesNames
	Names for the fileCheckTypes.
static char	scopeSeparator
	Character for scoping object names (':' or '_').
static fileCheckTypes	fileModificationChecking
	Type of file modification checking.
static float	fileModificationSkew
	Time skew (seconds) for file modification checks.
static int	maxFileModificationPolls
	Max number of times to poll for file modification changes.
Static Public Attributes inherited from FieldBase
static const char *const	typeName
	Typename for Field.
static bool	allowConstructFromLargerSize = false
	Permit read construct from a larger size.
static bool	unifiedGeometricField
	GeometricField with extra capacity for flattened boundary fields. Uses opt-switch "unifiedGeometricField".
static int	localBoundaryConsistency_
	Local boundary field consistency checks. Uses opt-switch "localBoundaryConsistency".
static scalar	localBoundaryTolerance_
	Tolerance for local boundary field consistency checks. Uses opt-switch "localBoundaryConsistency::tolerance".
Protected Member Functions inherited from regIOobject
bool	readHeaderOk (const IOstreamOption::streamFormat fmt, const word &typeName)
	Helper: check readOpt flags and read if necessary.
Protected Member Functions inherited from IOobject
void	setBad (const string &s)
	Set the object state to bad.
Protected Member Functions inherited from UList< T >
void	setAddressableSize (const label n) noexcept
	Set addressed size to be inconsistent with allocated storage.
void	size (const label n)
	Older name for setAddressableSize.
void	writeEntry (Ostream &os) const
	Write the UList with its compound type.
labelRange	validateRange (const labelRange &requestedRange) const
	Return a validated (start,size) subset range, which means that it always addresses a valid section of the list.
void	fill_uniform (const T &val)
	Assign all entries to the given value.
void	fill_uniform (Foam::zero)
	Assign all entries to zero.
Static Protected Member Functions inherited from IOobject
static void	writeHeaderContent (Ostream &os, const IOobject &io, const word &objectType, const dictionary *metaDataDict=nullptr)
	Helper: write content for FoamFile IOobject header with optional meta information.
static void	writeHeaderContent (dictionary &dict, const IOobject &io, const word &objectType, IOstreamOption streamOpt, const dictionary *metaDataDict=nullptr)
	Helper: write dictionary content for FoamFile header with optional meta information.
Static Protected Attributes inherited from regIOobject
static bool	masterOnlyReading = false
	To flag master-only reading of objects.

Detailed Description

template<class T>
class Foam::CompactIOField< T >

A Field of objects of type <T> with automated input and output using a compact storage. Behaves like IOField except when binary output in case it writes a CompactListList.

Useful for fields of small subfields e.g. in lagrangian

Source files

Definition at line 58 of file CompactIOField.H.
