Templated injection model class. More...

#include <InjectionModel.H>

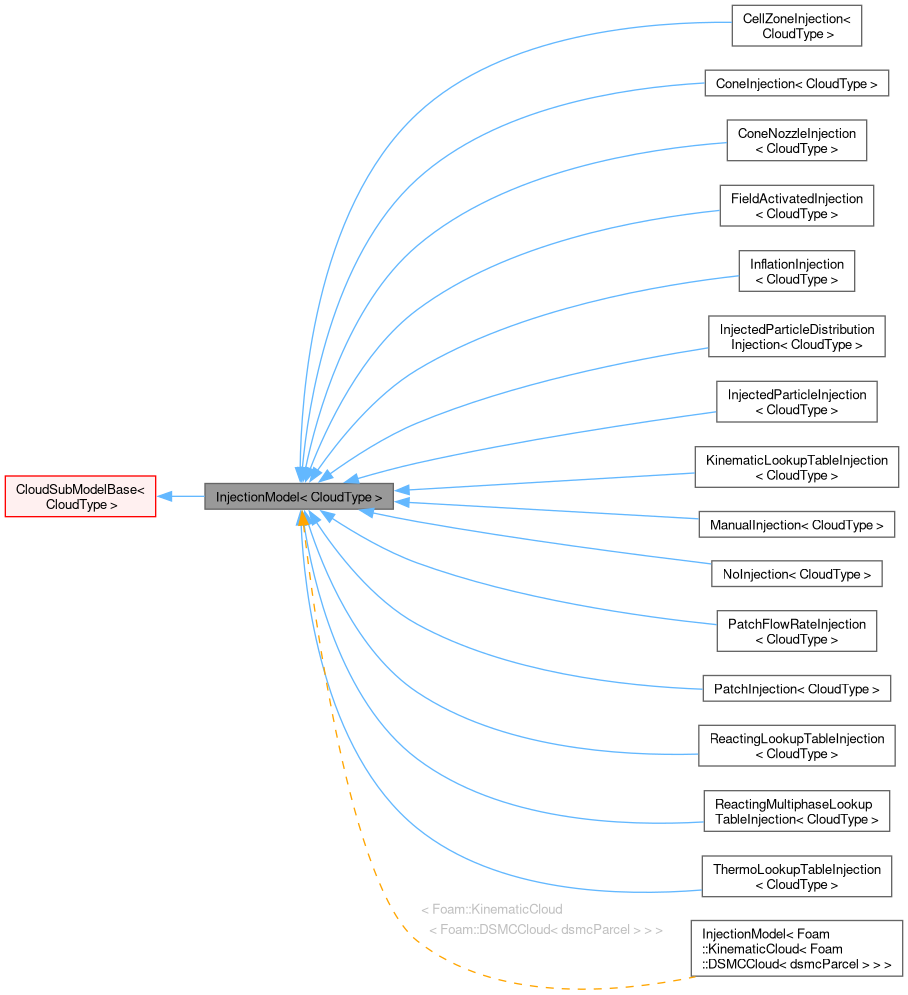

Inheritance diagram for InjectionModel< CloudType >:

[legend]

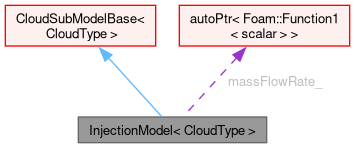

Collaboration diagram for InjectionModel< CloudType >:

[legend]

Public Types
enum	parcelBasis { pbNumber , pbMass , pbFixed }
	Parcel basis representation options i.e constant number of particles OR constant mass per parcel. More...
typedef CloudType::parcelType	parcelType
	Convenience typedef for parcelType.
Public Types inherited from CloudSubModelBase< CloudType >
typedef CloudType	cloudType
	Type of cloud this model was instantiated for.

Public Member Functions
	TypeName ("injectionModel")
	Runtime type information.

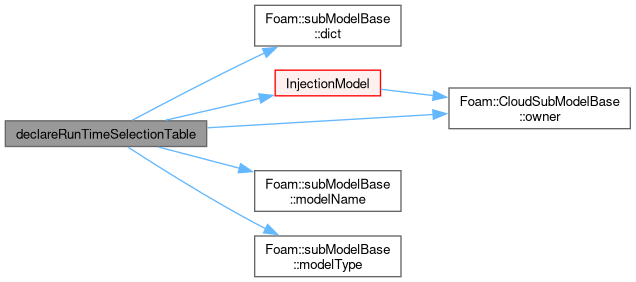

	declareRunTimeSelectionTable (autoPtr, InjectionModel, dictionary,(const dictionary &dict, CloudType &owner, const word &modelType),(dict, owner, modelType))
	Declare runtime constructor selection table.
	InjectionModel (CloudType &owner)
	Construct null from owner.
	InjectionModel (const dictionary &dict, CloudType &owner, const word &modelName, const word &modelType)
	Construct from dictionary.
	InjectionModel (const InjectionModel< CloudType > &im)
	Construct copy.
virtual autoPtr< InjectionModel< CloudType > >	clone () const =0
	Construct and return a clone.
virtual	~InjectionModel ()=default
	Destructor.
virtual void	updateMesh ()
	Update mesh.
scalar	timeStart () const
	Return the start-of-injection time.
scalar	volumeTotal () const
	Return the total volume to be injected across the event.
scalar	massTotal () const
	Return mass of particles to introduce.
scalar	massInjected () const
	Return mass of particles injected (cumulative).
label	injectorID () const
	Return injectorID.
virtual scalar	timeEnd () const =0
	Return the end-of-injection time.
virtual label	parcelsToInject (const scalar time0, const scalar time1)=0
	Number of parcels to introduce relative to SOI.
virtual scalar	volumeToInject (const scalar time0, const scalar time1)=0
	Volume of parcels to introduce relative to SOI.

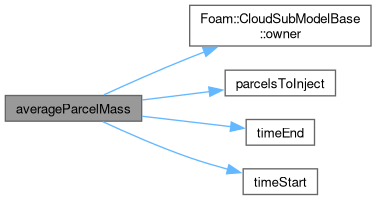

virtual scalar	averageParcelMass ()
	Return the average parcel mass over the injection period.
label	nInjections () const
	Return the number of injections.
label	parcelsAddedTotal () const
	Return the total number parcels added.
template<class TrackCloudType>
void	inject (TrackCloudType &cloud, typename CloudType::parcelType::trackingData &td)
	Main injection loop.
template<class TrackCloudType>
void	injectSteadyState (TrackCloudType &cloud, typename CloudType::parcelType::trackingData &td, const scalar trackTime)
	Main injection loop - steady-state.
virtual void	setPositionAndCell (const label parcelI, const label nParcels, const scalar time, vector &position, label &cellOwner, label &tetFacei, label &tetPti)=0
	Set the injection position and owner cell, tetFace and tetPt.
virtual void	setProperties (const label parcelI, const label nParcels, const scalar time, parcelType &parcel)=0
	Set the parcel properties.
virtual bool	fullyDescribed () const =0
	Flag to identify whether model fully describes the parcel.
virtual void	info ()
	Write injection info.
Public Member Functions inherited from CloudSubModelBase< CloudType >
	CloudSubModelBase (CloudType &owner)
	Construct null from owner cloud.
	CloudSubModelBase (CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from owner cloud without name.
	CloudSubModelBase (const word &modelName, CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from owner cloud with name.
	CloudSubModelBase (const CloudSubModelBase< CloudType > &smb)
	Construct as copy.
virtual	~CloudSubModelBase ()=default
	Destructor.
const CloudType &	owner () const
	Return const access to the owner cloud.
virtual bool	writeTime () const
	Flag to indicate when to write a property.
virtual fileName	localPath () const
	Output directory.
CloudType &	owner ()
	Return non-const access to the owner cloud for manipulation.
virtual void	write (Ostream &os) const
	Write to os.
Public Member Functions inherited from subModelBase
	subModelBase (dictionary &properties)
	Construct null.
	subModelBase (dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from components without name.
	subModelBase (const word &modelName, dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from components with name.
	subModelBase (const subModelBase &smb)
	Construct as copy.
virtual	~subModelBase ()=default
	Destructor.
const word &	modelName () const
	Return const access to the name of the sub-model.
const dictionary &	dict () const
	Return const access to the cloud dictionary.
const word &	baseName () const
	Return const access to the base name of the sub-model.
const word &	modelType () const
	Return const access to the sub-model type.
const dictionary &	coeffDict () const
	Return const access to the coefficients dictionary.
const dictionary &	properties () const
	Return const access to the properties dictionary.
virtual bool	defaultCoeffs (const bool printMsg) const
	Returns true if defaultCoeffs is true and outputs on printMsg.
virtual bool	active () const
	Return the model 'active' status - default active = true.
virtual void	cacheFields (const bool store)
	Cache dependent sub-model fields.
template<class Type>
Type	getBaseProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the base model.
template<class Type>
void	getBaseProperty (const word &entryName, Type &value) const
	Retrieve generic property from the base model.
template<class Type>
void	setBaseProperty (const word &entryName, const Type &value)
	Add generic property to the base model.
bool	getModelDict (const word &entryName, dictionary &dict) const
	Retrieve dictionary, return true if set.
template<class Type>
bool	getModelProperty (const word &entryName, Type &value) const
	Retrieve generic property from the sub-model.
template<class Type>
Type	getModelProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the sub-model.
template<class Type>
void	setModelProperty (const word &entryName, const Type &value)
	Add generic property to the sub-model.

Static Public Member Functions

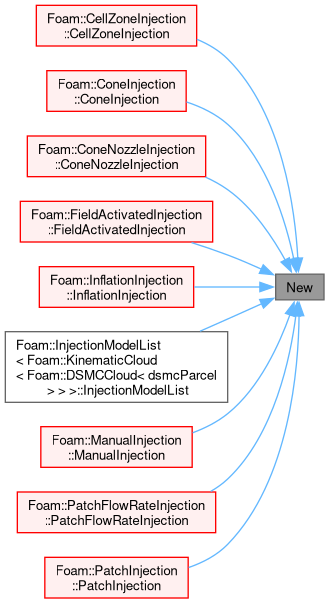

static autoPtr< InjectionModel< CloudType > >	New (const dictionary &dict, CloudType &owner)
	Selector with lookup from dictionary.
static autoPtr< InjectionModel< CloudType > >	New (const dictionary &dict, const word &modelName, const word &modelType, CloudType &owner)
	Selector with name and type.

Protected Member Functions
virtual bool	validInjection (const label parcelI)=0
	Additional flag to identify whether or not injection of parcelI is.
virtual bool	prepareForNextTimeStep (const scalar time, label &newParcels, scalar &newVolumeFraction)
	Determine properties for next time step/injection interval.

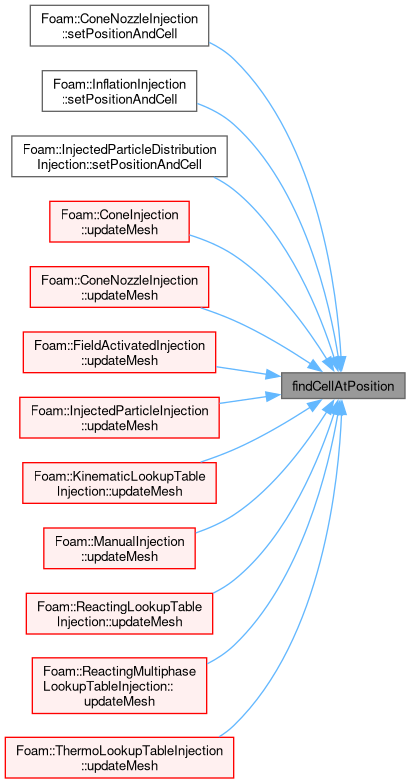

virtual bool	findCellAtPosition (label &celli, label &tetFacei, label &tetPti, vector &position, bool errorOnNotFound=true)
	Find the cell that contains the supplied position.
virtual scalar	setNumberOfParticles (const label parcels, const scalar volumeFraction, const scalar diameter, const scalar rho)
	Set number of particles to inject given parcel properties.
virtual void	postInjectCheck (const label parcelsAdded, const scalar massAdded)
	Post injection checks.
Protected Member Functions inherited from subModelBase
bool	inLine () const
	Flag to indicate whether data is/was read in-line.

Protected Attributes
scalar	SOI_
	Start of injection [s].
scalar	volumeTotal_
	Total volume of particles introduced by this injector [m^3] Note: scaled to ensure massTotal is achieved.
scalar	massTotal_
	Total mass to inject [kg].
autoPtr< Function1< scalar > >	massFlowRate_
	Mass flow rate profile for steady calculations.
scalar	massInjected_
	Total mass injected to date [kg].
label	nInjections_
	Number of injections counter.
label	parcelsAddedTotal_
	Running counter of total number of parcels added.
parcelBasis	parcelBasis_
	Parcel basis enumeration.
scalar	nParticleFixed_
	nParticle to assign to parcels when the 'fixed' basis is selected
scalar	time0_
	Continuous phase time at start of injection time step [s].
scalar	timeStep0_
	Time at start of injection time step [s].
scalar	minParticlesPerParcel_
	Minimum number of particles used to represent each parcel default = 1.
scalar	delayedVolume_
	Volume that should have been injected, but would lead to less than minParticlesPerParcel_ particle per parcel.
label	injectorID_
	Optional injector ID.
bool	ignoreOutOfBounds_
	Optional flag to indicate that injections attempted outside the mesh should be ignored.
Protected Attributes inherited from CloudSubModelBase< CloudType >
CloudType &	owner_
	Reference to the cloud.
Protected Attributes inherited from subModelBase
const word	modelName_
	Name of the sub-model.
dictionary &	properties_
	Reference to properties dictionary e.g. for restart.
const dictionary	dict_
	Copy of dictionary used during construction.
const word	baseName_
	Name of the sub-model base class.
const word	modelType_
	Type of the sub-model.
const dictionary	coeffDict_
	Coefficients dictionary.

Additional Inherited Members
Public Attributes inherited from subModelBase
bool	log
	Flag to write log into Info.

Detailed Description

template<class CloudType>
class Foam::InjectionModel< CloudType >

Templated injection model class.

The injection model nominally describes the parcel:

position
diameter
velocity In this case, the fullyDescribed() flag should be set to 0 (false). When the parcel is then added to the cloud, the remaining properties are populated using values supplied in the constant properties.

If, however, all of a parcel's properties are described in the model, the fullDescribed() flag should be set to 1 (true).

Source files

Definition at line 69 of file InjectionModel.H.

Member Typedef Documentation

◆ parcelType

template<class CloudType>

typedef CloudType::parcelType parcelType

Convenience typedef for parcelType.

Definition at line 78 of file InjectionModel.H.

Member Enumeration Documentation

◆ parcelBasis

template<class CloudType>

enum parcelBasis

Parcel basis representation options i.e constant number of particles OR constant mass per parcel.

Enumerator
pbNumber
pbMass
pbFixed

Definition at line 87 of file InjectionModel.H.

Constructor & Destructor Documentation

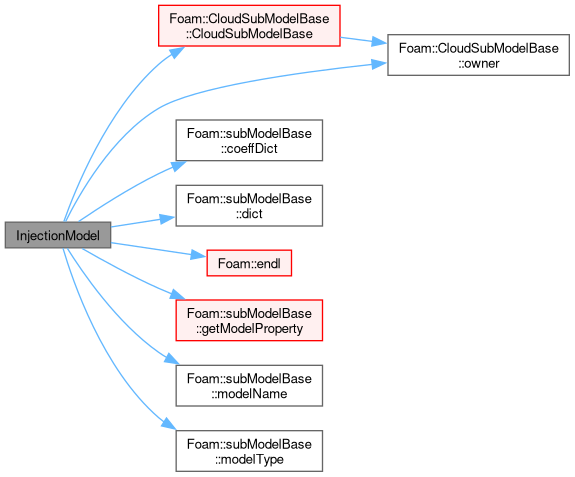

◆ InjectionModel() [1/3]

template<class CloudType>

InjectionModel ( CloudType & owner )

Construct null from owner.

Definition at line 256 of file InjectionModel.C.

References CloudSubModelBase< CloudType >::CloudSubModelBase(), subModelBase::getModelProperty(), massFlowRate_, massInjected_, massTotal_, nInjections_, nParticleFixed_, CloudSubModelBase< CloudType >::owner(), parcelBasis_, parcelsAddedTotal_, pbNumber, SOI_, time0_, and volumeTotal_.

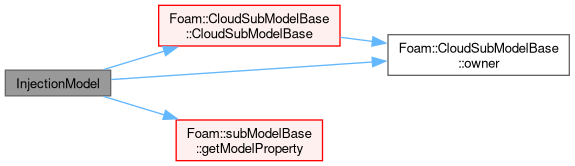

Here is the call graph for this function:

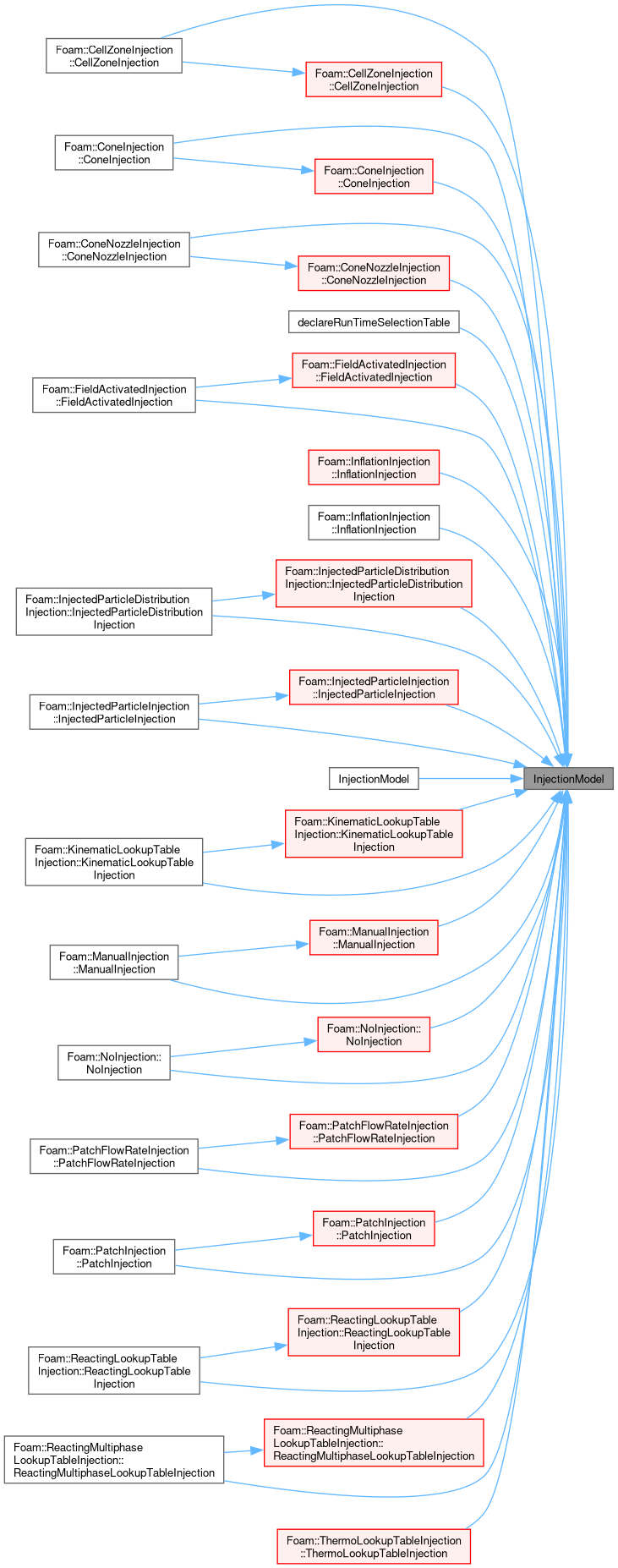

Here is the caller graph for this function:

◆ InjectionModel() [2/3]

template<class CloudType>

InjectionModel	(	const dictionary &	dict,
		CloudType &	owner,
		const word &	modelName,
		const word &	modelType )

Construct from dictionary.

Definition at line 281 of file InjectionModel.C.

References CloudSubModelBase< CloudType >::CloudSubModelBase(), subModelBase::coeffDict(), delayedVolume_, subModelBase::dict(), Foam::endl(), subModelBase::getModelProperty(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, ignoreOutOfBounds_, Foam::Info, injectorID_, massFlowRate_, massInjected_, massTotal_, minParticlesPerParcel_, subModelBase::modelName(), subModelBase::modelType(), nInjections_, nParticleFixed_, CloudSubModelBase< CloudType >::owner(), parcelBasis_, parcelsAddedTotal_, pbNumber, SOI_, time0_, timeStep0_, and volumeTotal_.

Here is the call graph for this function:

◆ InjectionModel() [3/3]

template<class CloudType>

InjectionModel ( const InjectionModel< CloudType > & im )

Construct copy.

Definition at line 381 of file InjectionModel.C.

References CloudSubModelBase< CloudType >::CloudSubModelBase(), InjectionModel(), and SOI_.

Here is the call graph for this function:

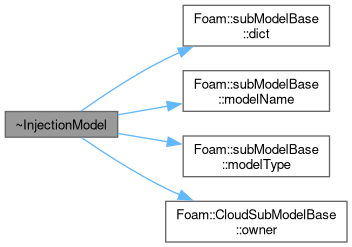

◆ ~InjectionModel()

template<class CloudType>

virtual ~InjectionModel ( )

virtualdefault

Destructor.

References subModelBase::dict(), subModelBase::modelName(), subModelBase::modelType(), and CloudSubModelBase< CloudType >::owner().

Here is the call graph for this function:

Member Function Documentation

◆ validInjection()

template<class CloudType>

virtual bool validInjection ( const label parcelI )

protectedpure virtual

Additional flag to identify whether or not injection of parcelI is.

permitted

References rho.

Referenced by prepareForNextTimeStep().

Here is the caller graph for this function:

◆ prepareForNextTimeStep()

template<class CloudType>

bool prepareForNextTimeStep	(	const scalar	time,
		label &	newParcels,
		scalar &	newVolumeFraction )

protectedvirtual

Determine properties for next time step/injection interval.

Definition at line 31 of file InjectionModel.C.

References parcelsToInject(), SOI_, timeStep0_, validInjection(), volumeToInject(), and volumeTotal_.

Referenced by inject().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findCellAtPosition()

template<class CloudType>

bool findCellAtPosition	(	label &	celli,
		label &	tetFacei,
		label &	tetPti,
		vector &	position,
		bool	errorOnNotFound = true )

protectedvirtual

Find the cell that contains the supplied position.

Will modify position slightly towards the owner cell centroid to ensure that it lies in a cell and not edge/face

Definition at line 87 of file InjectionModel.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, UPstream::myProcNo(), Foam::nl, CloudSubModelBase< CloudType >::owner(), p0, and Foam::reduce().

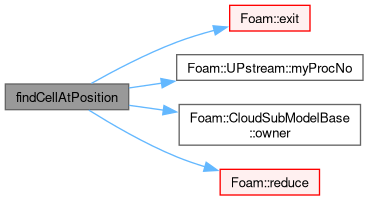

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setNumberOfParticles()

template<class CloudType>

Foam::scalar setNumberOfParticles	(	const label	parcels,
		const scalar	volumeFraction,
		const scalar	diameter,
		const scalar	rho )

protectedvirtual

Set number of particles to inject given parcel properties.

Definition at line 180 of file InjectionModel.C.

References delayedVolume_, massTotal_, parcelBasis_, pbMass, pbNumber, Foam::constant::mathematical::pi(), Foam::pow3(), and rho.

Referenced by injectSteadyState().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ postInjectCheck()

template<class CloudType>

void postInjectCheck	(	const label	parcelsAdded,
		const scalar	massAdded )

protectedvirtual

Post injection checks.

Definition at line 223 of file InjectionModel.C.

Referenced by injectSteadyState().

Here is the caller graph for this function:

◆ TypeName()

template<class CloudType>

TypeName ( "injectionModel" )

Runtime type information.

◆ declareRunTimeSelectionTable()

template<class CloudType>

declareRunTimeSelectionTable	(	autoPtr	,
		InjectionModel< CloudType >	,
		dictionary	,
		(const dictionary &dict, CloudType &owner, const word &modelType)	,
		(dict, owner, modelType)	)

Declare runtime constructor selection table.

References subModelBase::dict(), InjectionModel(), subModelBase::modelName(), subModelBase::modelType(), and CloudSubModelBase< CloudType >::owner().

Here is the call graph for this function:

◆ clone()

template<class CloudType>

virtual autoPtr< InjectionModel< CloudType > > clone ( ) const

pure virtual

Construct and return a clone.

◆ New() [1/2]

template<class CloudType>

Foam::autoPtr< Foam::InjectionModel< CloudType > > New	(	const dictionary &	dict,
		CloudType &	owner )

static

Selector with lookup from dictionary.

Definition at line 28 of file InjectionModelNew.C.

References subModelBase::dict(), Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, Foam::Info, subModelBase::modelType(), and CloudSubModelBase< CloudType >::owner().

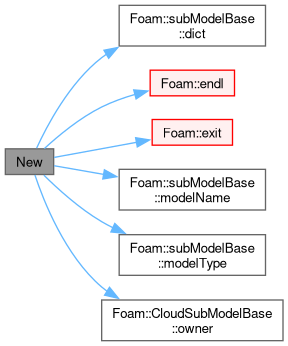

Here is the call graph for this function:

Here is the caller graph for this function:

◆ New() [2/2]

template<class CloudType>

Foam::autoPtr< Foam::InjectionModel< CloudType > > New	(	const dictionary &	dict,
		const word &	modelName,
		const word &	modelType,
		CloudType &	owner )

static

Selector with name and type.

Definition at line 57 of file InjectionModelNew.C.

References subModelBase::dict(), Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, Foam::Info, subModelBase::modelName(), subModelBase::modelType(), and CloudSubModelBase< CloudType >::owner().

Here is the call graph for this function:

◆ updateMesh()

template<class CloudType>

void updateMesh ( )

virtual

Update mesh.

Definition at line 408 of file InjectionModel.C.

◆ timeStart()

template<class CloudType>

Foam::scalar timeStart ( ) const

inline

Return the start-of-injection time.

Definition at line 27 of file InjectionModelI.H.

References SOI_.

Referenced by averageParcelMass().

Here is the caller graph for this function:

◆ volumeTotal()

template<class CloudType>

Foam::scalar volumeTotal ( ) const

inline

Return the total volume to be injected across the event.

Definition at line 34 of file InjectionModelI.H.

References volumeTotal_.

Referenced by ConeNozzleInjection< CloudType >::setProperties().

Here is the caller graph for this function:

◆ massTotal()

template<class CloudType>

Foam::scalar massTotal ( ) const

inline

Return mass of particles to introduce.

Definition at line 41 of file InjectionModelI.H.

References massTotal_.

Referenced by ConeNozzleInjection< CloudType >::setProperties().

Here is the caller graph for this function:

◆ massInjected()

template<class CloudType>

Foam::scalar massInjected ( ) const

inline

Return mass of particles injected (cumulative).

Definition at line 48 of file InjectionModelI.H.

References massInjected_.

◆ injectorID()

template<class CloudType>

Foam::label injectorID ( ) const

inline

Return injectorID.

Definition at line 55 of file InjectionModelI.H.

References injectorID_.

◆ timeEnd()

template<class CloudType>

virtual scalar timeEnd ( ) const

pure virtual

Return the end-of-injection time.

Referenced by averageParcelMass(), and inject().

Here is the caller graph for this function:

◆ parcelsToInject()

template<class CloudType>

virtual label parcelsToInject	(	const scalar	time0,
		const scalar	time1 )

pure virtual

Number of parcels to introduce relative to SOI.

Referenced by averageParcelMass(), injectSteadyState(), and prepareForNextTimeStep().

Here is the caller graph for this function:

◆ volumeToInject()

template<class CloudType>

virtual scalar volumeToInject	(	const scalar	time0,
		const scalar	time1 )

pure virtual

Volume of parcels to introduce relative to SOI.

References td().

Referenced by prepareForNextTimeStep().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ averageParcelMass()

template<class CloudType>

Foam::scalar averageParcelMass ( )

virtual

Return the average parcel mass over the injection period.

Definition at line 413 of file InjectionModel.C.

References CloudSubModelBase< CloudType >::owner(), parcelsToInject(), timeEnd(), and timeStart().

Here is the call graph for this function:

◆ nInjections()

template<class CloudType>

Foam::label nInjections ( ) const

inline

Return the number of injections.

Definition at line 62 of file InjectionModelI.H.

References nInjections_.

◆ parcelsAddedTotal()

template<class CloudType>

Foam::label parcelsAddedTotal ( ) const

inline

Return the total number parcels added.

Definition at line 69 of file InjectionModelI.H.

References parcelsAddedTotal_.

Referenced by ConeInjection< CloudType >::ConeInjection(), and InjectedParticleDistributionInjection< CloudType >::InjectedParticleDistributionInjection().

Here is the caller graph for this function:

◆ inject()

template<class CloudType>

template<class TrackCloudType>

void inject	(	TrackCloudType &	cloud,
		typename CloudType::parcelType::trackingData &	td )

Main injection loop.

Definition at line 431 of file InjectionModel.C.

References subModelBase::active(), Foam::max(), mesh, Foam::min(), CloudSubModelBase< CloudType >::owner(), prepareForNextTimeStep(), SOI_, td(), time0_, and timeEnd().

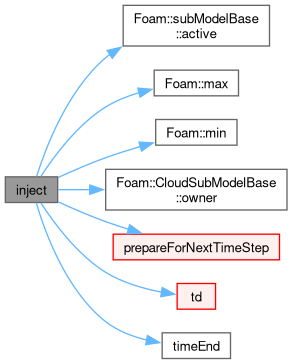

Here is the call graph for this function:

◆ injectSteadyState()

template<class CloudType>

template<class TrackCloudType>

void injectSteadyState	(	TrackCloudType &	cloud,
		typename CloudType::parcelType::trackingData &	td,
		const scalar	trackTime )

Main injection loop - steady-state.

Definition at line 561 of file InjectionModel.C.

References subModelBase::active(), Foam::meshTools::constrainDirection(), Foam::meshTools::constrainToMeshCentre(), fullyDescribed(), injectorID_, massFlowRate_, massTotal_, mesh, CloudSubModelBase< CloudType >::owner(), parcelsToInject(), Foam::pos(), postInjectCheck(), setNumberOfParticles(), setPositionAndCell(), setProperties(), SOI_, td(), time0_, DSMCParcel< ParcelType >::typeId(), DSMCParcel< ParcelType >::U(), and Foam::Zero.

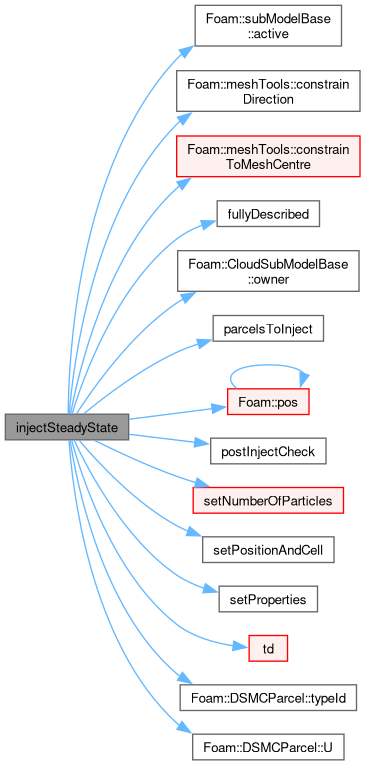

Here is the call graph for this function:

◆ setPositionAndCell()

template<class CloudType>

virtual void setPositionAndCell	(	const label	parcelI,
		const label	nParcels,
		const scalar	time,
		vector &	position,
		label &	cellOwner,
		label &	tetFacei,
		label &	tetPti )

pure virtual

Set the injection position and owner cell, tetFace and tetPt.

Referenced by injectSteadyState().

Here is the caller graph for this function:

◆ setProperties()

template<class CloudType>

virtual void setProperties	(	const label	parcelI,
		const label	nParcels,
		const scalar	time,
		parcelType &	parcel )

pure virtual

Set the parcel properties.

Referenced by injectSteadyState().

Here is the caller graph for this function:

◆ fullyDescribed()

template<class CloudType>

virtual bool fullyDescribed ( ) const

pure virtual

Flag to identify whether model fully describes the parcel.

Referenced by injectSteadyState().

Here is the caller graph for this function:

◆ info()

template<class CloudType>

void info ( )

virtual

Write injection info.

Reimplemented from CloudSubModelBase< CloudType >.

Reimplemented in ConeNozzleInjection< CloudType >, InjectedParticleDistributionInjection< CloudType >, and InjectedParticleInjection< CloudType >.

Definition at line 662 of file InjectionModel.C.

References CloudSubModelBase< CloudType >::info(), Log_, massInjected_, subModelBase::modelName(), nInjections_, Foam::nl, parcelsAddedTotal_, subModelBase::setModelProperty(), timeStep0_, volumeTotal_, and CloudSubModelBase< CloudType >::writeTime().

Referenced by ConeNozzleInjection< CloudType >::info(), InjectedParticleDistributionInjection< CloudType >::info(), and InjectedParticleInjection< CloudType >::info().

Here is the call graph for this function:

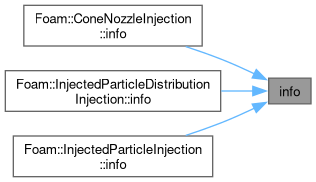

Here is the caller graph for this function:

Member Data Documentation

◆ SOI_

template<class CloudType>

scalar SOI_

protected

Start of injection [s].

Definition at line 104 of file InjectionModel.H.

template<class CloudType>

bool ignoreOutOfBounds_

protected

Optional flag to indicate that injections attempted outside the mesh should be ignored.

Definition at line 185 of file InjectionModel.H.

Referenced by InjectionModel(), ConeInjection< CloudType >::updateMesh(), FieldActivatedInjection< CloudType >::updateMesh(), KinematicLookupTableInjection< CloudType >::updateMesh(), ReactingLookupTableInjection< CloudType >::updateMesh(), ReactingMultiphaseLookupTableInjection< CloudType >::updateMesh(), and ThermoLookupTableInjection< CloudType >::updateMesh().

The documentation for this class was generated from the following files:

src/lagrangian/intermediate/submodels/Kinematic/InjectionModel/InjectionModel/InjectionModel.H
src/lagrangian/intermediate/submodels/Kinematic/InjectionModel/InjectionModel/InjectionModel.C
src/lagrangian/intermediate/submodels/Kinematic/InjectionModel/InjectionModel/InjectionModelI.H
src/lagrangian/intermediate/submodels/Kinematic/InjectionModel/InjectionModel/InjectionModelNew.C

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ parcelType

Member Enumeration Documentation

◆ parcelBasis

Constructor & Destructor Documentation

◆ InjectionModel() [1/3]

◆ InjectionModel() [2/3]

◆ InjectionModel() [3/3]

◆ ~InjectionModel()

Member Function Documentation

◆ validInjection()

◆ prepareForNextTimeStep()

◆ findCellAtPosition()

◆ setNumberOfParticles()

◆ postInjectCheck()

◆ TypeName()

◆ declareRunTimeSelectionTable()

◆ clone()

◆ New() [1/2]

◆ New() [2/2]

◆ updateMesh()

◆ timeStart()

◆ volumeTotal()

◆ massTotal()

◆ massInjected()

◆ injectorID()

◆ timeEnd()

◆ parcelsToInject()

◆ volumeToInject()

◆ averageParcelMass()

◆ nInjections()

◆ parcelsAddedTotal()

◆ inject()

◆ injectSteadyState()

◆ setPositionAndCell()

◆ setProperties()

◆ fullyDescribed()

◆ info()

Member Data Documentation

◆ SOI_

◆ volumeTotal_

◆ massTotal_

◆ massFlowRate_

◆ massInjected_

◆ nInjections_

◆ parcelsAddedTotal_

◆ parcelBasis_

◆ nParticleFixed_

◆ time0_

◆ timeStep0_

◆ minParticlesPerParcel_

◆ delayedVolume_

◆ injectorID_

◆ ignoreOutOfBounds_
