Replays an set of particle data based on an injectedParticleCloud, using the assumption of one particle per parcel. More...

#include <InjectedParticleInjection.H>

Inheritance diagram for InjectedParticleInjection< CloudType >:

[legend]

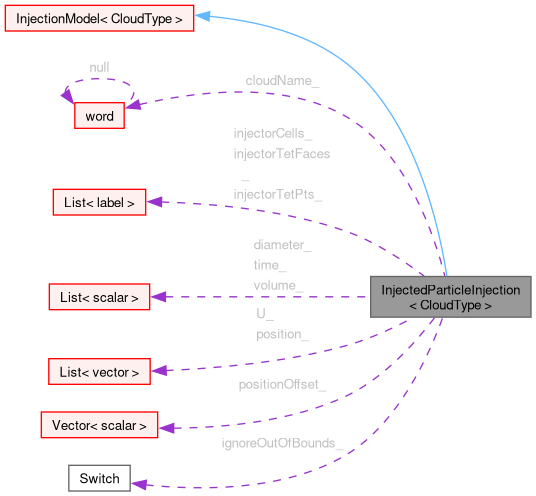

Collaboration diagram for InjectedParticleInjection< CloudType >:

[legend]

Public Member Functions
	TypeName ("injectedParticleInjection")
	Runtime type information.
	InjectedParticleInjection (const dictionary &dict, CloudType &owner, const word &modelName)
	Construct from dictionary.
	InjectedParticleInjection (const InjectedParticleInjection< CloudType > &im)
	Construct copy.
virtual autoPtr< InjectionModel< CloudType > >	clone () const
	Construct and return a clone.
virtual	~InjectedParticleInjection ()=default
	Destructor.
virtual void	updateMesh ()
	Set injector locations when mesh is updated.
scalar	timeEnd () const
	Return the end-of-injection time.
virtual label	parcelsToInject (const scalar time0, const scalar time1)
	Number of parcels to introduce relative to SOI.
virtual scalar	volumeToInject (const scalar time0, const scalar time1)
	Volume of parcels to introduce relative to SOI.
virtual void	setPositionAndCell (const label parceli, const label nParcels, const scalar time, vector &position, label &cellOwner, label &tetFacei, label &tetPti)
	Set the injection position and owner cell, tetFace and tetPt.
virtual void	setProperties (const label parceli, const label nParcels, const scalar time, typename CloudType::parcelType &parcel)
	Set the parcel properties.
virtual bool	fullyDescribed () const
	Flag to identify whether model fully describes the parcel.
virtual bool	validInjection (const label parceli)
	Return flag to identify whether or not injection of parcelI is.
void	info ()
	Write injection info.
Public Member Functions inherited from InjectionModel< CloudType >
	TypeName ("injectionModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, InjectionModel, dictionary,(const dictionary &dict, CloudType &owner, const word &modelType),(dict, owner, modelType))
	Declare runtime constructor selection table.
	InjectionModel (CloudType &owner)
	Construct null from owner.
	InjectionModel (const dictionary &dict, CloudType &owner, const word &modelName, const word &modelType)
	Construct from dictionary.
	InjectionModel (const InjectionModel< CloudType > &im)
	Construct copy.
virtual	~InjectionModel ()=default
	Destructor.
scalar	timeStart () const
	Return the start-of-injection time.
scalar	volumeTotal () const
	Return the total volume to be injected across the event.
scalar	massTotal () const
	Return mass of particles to introduce.
scalar	massInjected () const
	Return mass of particles injected (cumulative).
label	injectorID () const
	Return injectorID.
virtual scalar	averageParcelMass ()
	Return the average parcel mass over the injection period.
label	nInjections () const
	Return the number of injections.
label	parcelsAddedTotal () const
	Return the total number parcels added.
template<class TrackCloudType>
void	inject (TrackCloudType &cloud, typename CloudType::parcelType::trackingData &td)
	Main injection loop.
template<class TrackCloudType>
void	injectSteadyState (TrackCloudType &cloud, typename CloudType::parcelType::trackingData &td, const scalar trackTime)
	Main injection loop - steady-state.
Public Member Functions inherited from CloudSubModelBase< CloudType >
	CloudSubModelBase (CloudType &owner)
	Construct null from owner cloud.
	CloudSubModelBase (CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from owner cloud without name.
	CloudSubModelBase (const word &modelName, CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from owner cloud with name.
	CloudSubModelBase (const CloudSubModelBase< CloudType > &smb)
	Construct as copy.
virtual	~CloudSubModelBase ()=default
	Destructor.
const CloudType &	owner () const
	Return const access to the owner cloud.
virtual bool	writeTime () const
	Flag to indicate when to write a property.
virtual fileName	localPath () const
	Output directory.
CloudType &	owner ()
	Return non-const access to the owner cloud for manipulation.
virtual void	write (Ostream &os) const
	Write to os.
Public Member Functions inherited from subModelBase
	subModelBase (dictionary &properties)
	Construct null.
	subModelBase (dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from components without name.
	subModelBase (const word &modelName, dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from components with name.
	subModelBase (const subModelBase &smb)
	Construct as copy.
virtual	~subModelBase ()=default
	Destructor.
const word &	modelName () const
	Return const access to the name of the sub-model.
const dictionary &	dict () const
	Return const access to the cloud dictionary.
const word &	baseName () const
	Return const access to the base name of the sub-model.
const word &	modelType () const
	Return const access to the sub-model type.
const dictionary &	coeffDict () const
	Return const access to the coefficients dictionary.
const dictionary &	properties () const
	Return const access to the properties dictionary.
virtual bool	defaultCoeffs (const bool printMsg) const
	Returns true if defaultCoeffs is true and outputs on printMsg.
virtual bool	active () const
	Return the model 'active' status - default active = true.
virtual void	cacheFields (const bool store)
	Cache dependent sub-model fields.
template<class Type>
Type	getBaseProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the base model.
template<class Type>
void	getBaseProperty (const word &entryName, Type &value) const
	Retrieve generic property from the base model.
template<class Type>
void	setBaseProperty (const word &entryName, const Type &value)
	Add generic property to the base model.
bool	getModelDict (const word &entryName, dictionary &dict) const
	Retrieve dictionary, return true if set.
template<class Type>
bool	getModelProperty (const word &entryName, Type &value) const
	Retrieve generic property from the sub-model.
template<class Type>
Type	getModelProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the sub-model.
template<class Type>
void	setModelProperty (const word &entryName, const Type &value)
	Add generic property to the sub-model.

Protected Member Functions
void	initialise ()
	Initialise injectors.
Protected Member Functions inherited from InjectionModel< CloudType >
virtual bool	prepareForNextTimeStep (const scalar time, label &newParcels, scalar &newVolumeFraction)
	Determine properties for next time step/injection interval.
virtual bool	findCellAtPosition (label &celli, label &tetFacei, label &tetPti, vector &position, bool errorOnNotFound=true)
	Find the cell that contains the supplied position.
virtual scalar	setNumberOfParticles (const label parcels, const scalar volumeFraction, const scalar diameter, const scalar rho)
	Set number of particles to inject given parcel properties.
virtual void	postInjectCheck (const label parcelsAdded, const scalar massAdded)
	Post injection checks.
Protected Member Functions inherited from subModelBase
bool	inLine () const
	Flag to indicate whether data is/was read in-line.

Protected Attributes
const word	cloudName_
	Name of cloud used to seed the new particles.
labelList	injectorCells_
	List of cell label per injector.
labelList	injectorTetFaces_
	List of tetFace label per injector.
labelList	injectorTetPts_
	List of tetPt label per injector.
scalarList	time_
	List of injection time per particle [s].
vectorList	position_
	List of position per particle [m].
vector	positionOffset_
	Position offset to apply to input positions.
scalarList	diameter_
	List of diameter per particle [m].
vectorList	U_
	List of velocity per particle [m/s].
scalarList	volume_
	List of volume per particle [m3].
Switch	ignoreOutOfBounds_
	Flag to suppress errors if particle injection site is out-of-bounds.
label	currentParticlei_
	Index of current particle.
Protected Attributes inherited from InjectionModel< CloudType >
scalar	SOI_
	Start of injection [s].
scalar	volumeTotal_
	Total volume of particles introduced by this injector [m^3] Note: scaled to ensure massTotal is achieved.
scalar	massTotal_
	Total mass to inject [kg].
autoPtr< Function1< scalar > >	massFlowRate_
	Mass flow rate profile for steady calculations.
scalar	massInjected_
	Total mass injected to date [kg].
label	nInjections_
	Number of injections counter.
label	parcelsAddedTotal_
	Running counter of total number of parcels added.
parcelBasis	parcelBasis_
	Parcel basis enumeration.
scalar	nParticleFixed_
	nParticle to assign to parcels when the 'fixed' basis is selected
scalar	time0_
	Continuous phase time at start of injection time step [s].
scalar	timeStep0_
	Time at start of injection time step [s].
scalar	minParticlesPerParcel_
	Minimum number of particles used to represent each parcel default = 1.
scalar	delayedVolume_
	Volume that should have been injected, but would lead to less than minParticlesPerParcel_ particle per parcel.
label	injectorID_
	Optional injector ID.
bool	ignoreOutOfBounds_
	Optional flag to indicate that injections attempted outside the mesh should be ignored.
Protected Attributes inherited from CloudSubModelBase< CloudType >
CloudType &	owner_
	Reference to the cloud.
Protected Attributes inherited from subModelBase
const word	modelName_
	Name of the sub-model.
dictionary &	properties_
	Reference to properties dictionary e.g. for restart.
const dictionary	dict_
	Copy of dictionary used during construction.
const word	baseName_
	Name of the sub-model base class.
const word	modelType_
	Type of the sub-model.
const dictionary	coeffDict_
	Coefficients dictionary.

Additional Inherited Members
Public Types inherited from InjectionModel< CloudType >
enum	parcelBasis { pbNumber , pbMass , pbFixed }
	Parcel basis representation options i.e constant number of particles OR constant mass per parcel. More...
typedef CloudType::parcelType	parcelType
	Convenience typedef for parcelType.
Public Types inherited from CloudSubModelBase< CloudType >
typedef CloudType	cloudType
	Type of cloud this model was instantiated for.
Static Public Member Functions inherited from InjectionModel< CloudType >
static autoPtr< InjectionModel< CloudType > >	New (const dictionary &dict, CloudType &owner)
	Selector with lookup from dictionary.
static autoPtr< InjectionModel< CloudType > >	New (const dictionary &dict, const word &modelName, const word &modelType, CloudType &owner)
	Selector with name and type.
Public Attributes inherited from subModelBase
bool	log
	Flag to write log into Info.

Detailed Description

template<class CloudType>
class Foam::InjectedParticleInjection< CloudType >

Replays an set of particle data based on an injectedParticleCloud, using the assumption of one particle per parcel.

Usage

model1
{
    type            injectedParticleInjection;
    SOI             0;
    massTotal       0; // Place holder only
    parcelBasisType fixed;
    nParticle       1; // 1 particle per parcel
    cloud           eulerianParticleCloud;
    positionOffset  (-0.025 2 -0.025);
}

Source files

See also: Foam::injectedParticle Foam::injectedParticleCloud Foam::functionObjects::extractEulerianParticles

Definition at line 71 of file InjectedParticleInjection.H.

Constructor & Destructor Documentation

◆ InjectedParticleInjection() [1/2]

template<class CloudType>

InjectedParticleInjection	(	const dictionary &	dict,
		CloudType &	owner,
		const word &	modelName )

Construct from dictionary.

Definition at line 132 of file InjectedParticleInjection.C.

References cloudName_, subModelBase::coeffDict(), DSMCCloud< ParcelType >::constProps(), currentParticlei_, diameter_, subModelBase::dict(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, subModelBase::getModelProperty(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, ignoreOutOfBounds_, InjectionModel< CloudType >::InjectionModel(), injectorCells_, injectorTetFaces_, injectorTetPts_, InjectionModel< CloudType >::massTotal_, subModelBase::modelName(), CloudSubModelBase< CloudType >::owner(), InjectionModel< CloudType >::parcelBasis_, InjectionModel< CloudType >::pbFixed, position_, positionOffset_, time_, U_, updateMesh(), volume_, and InjectionModel< CloudType >::volumeTotal_.

Referenced by clone(), InjectedParticleInjection(), and TypeName().

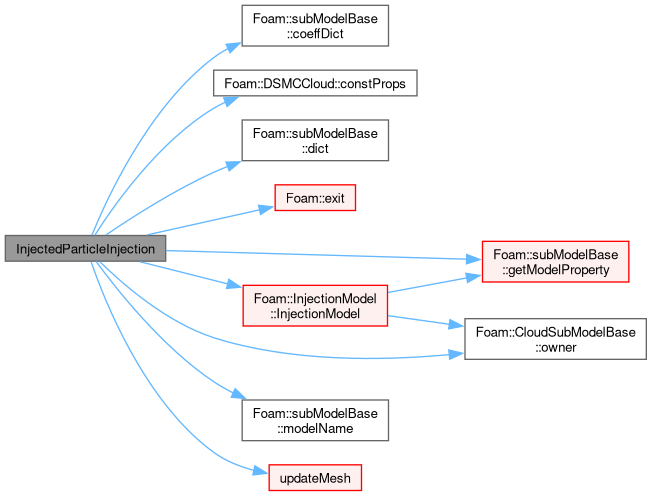

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InjectedParticleInjection() [2/2]

template<class CloudType>

InjectedParticleInjection ( const InjectedParticleInjection< CloudType > & im )

Construct copy.

Definition at line 188 of file InjectedParticleInjection.C.

References cloudName_, currentParticlei_, diameter_, ignoreOutOfBounds_, InjectedParticleInjection(), InjectionModel< CloudType >::InjectionModel(), injectorCells_, injectorTetFaces_, injectorTetPts_, position_, positionOffset_, time_, U_, and volume_.

Here is the call graph for this function:

◆ ~InjectedParticleInjection()

template<class CloudType>

virtual ~InjectedParticleInjection ( )

virtualdefault

Destructor.

Member Function Documentation

◆ initialise()

template<class CloudType>

void initialise ( )

protected

Initialise injectors.

Definition at line 31 of file InjectedParticleInjection.C.

References Pstream::allGatherList(), cloudName_, Foam::ListListOps::combine(), diameter_, Foam::endl(), forAll, Foam::Info, mesh, Foam::min(), UPstream::myProcNo(), UPstream::nProcs(), CloudSubModelBase< CloudType >::owner(), p, UPstream::parRun(), Foam::constant::mathematical::pi(), position_, positionOffset_, Foam::pow3(), HashTable< T, Key, Hash >::size(), UList< T >::size(), Foam::sortedOrder(), time_, List< T >::transfer(), U, U_, volume_, and InjectionModel< CloudType >::volumeTotal_.

Here is the call graph for this function:

◆ TypeName()

template<class CloudType>

TypeName ( "injectedParticleInjection" )

Runtime type information.

References subModelBase::dict(), InjectedParticleInjection(), subModelBase::modelName(), and CloudSubModelBase< CloudType >::owner().

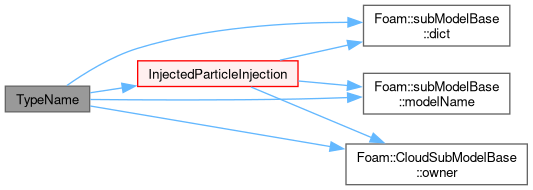

Here is the call graph for this function:

◆ clone()

template<class CloudType>

virtual autoPtr< InjectionModel< CloudType > > clone ( ) const

inlinevirtual

Construct and return a clone.

Implements InjectionModel< CloudType >.

Definition at line 179 of file InjectedParticleInjection.H.

References InjectedParticleInjection().

Here is the call graph for this function:

◆ updateMesh()

template<class CloudType>

void updateMesh ( )

virtual

Set injector locations when mesh is updated.

Reimplemented from InjectionModel< CloudType >.

Definition at line 212 of file InjectedParticleInjection.C.

References diameter_, Foam::endl(), InjectionModel< CloudType >::findCellAtPosition(), forAll, ignoreOutOfBounds_, Foam::Info, injectorCells_, injectorTetFaces_, injectorTetPts_, Foam::inplaceSubset(), position_, time_, U_, bitSet::unset(), and volume_.

Referenced by InjectedParticleInjection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ timeEnd()

template<class CloudType>

Foam::scalar timeEnd ( ) const

virtual

Return the end-of-injection time.

Implements InjectionModel< CloudType >.

Definition at line 255 of file InjectedParticleInjection.C.

References Foam::max(), and time_.

Here is the call graph for this function:

◆ parcelsToInject()

template<class CloudType>

Foam::label parcelsToInject	(	const scalar	time0,
		const scalar	time1 )

virtual

Number of parcels to introduce relative to SOI.

Implements InjectionModel< CloudType >.

Definition at line 262 of file InjectedParticleInjection.C.

References forAll, and time_.

◆ volumeToInject()

template<class CloudType>

Foam::scalar volumeToInject	(	const scalar	time0,
		const scalar	time1 )

virtual

Volume of parcels to introduce relative to SOI.

Implements InjectionModel< CloudType >.

Definition at line 282 of file InjectedParticleInjection.C.

References forAll, time_, and volume_.

◆ setPositionAndCell()

template<class CloudType>

void setPositionAndCell	(	const label	parceli,
		const label	nParcels,
		const scalar	time,
		vector &	position,
		label &	cellOwner,
		label &	tetFacei,
		label &	tetPti )

virtual

Set the injection position and owner cell, tetFace and tetPt.

Implements InjectionModel< CloudType >.

Definition at line 302 of file InjectedParticleInjection.C.

References currentParticlei_, injectorCells_, injectorTetFaces_, injectorTetPts_, and position_.

◆ setProperties()

template<class CloudType>

void setProperties	(	const label	parceli,
		const label	nParcels,
		const scalar	time,
		typename CloudType::parcelType &	parcel )

virtual

Set the parcel properties.

Implements InjectionModel< CloudType >.

Definition at line 326 of file InjectedParticleInjection.C.

References currentParticlei_, diameter_, DSMCParcel< ParcelType >::U(), and U_.

Here is the call graph for this function:

◆ fullyDescribed()

template<class CloudType>

bool fullyDescribed ( ) const

virtual

Flag to identify whether model fully describes the parcel.

Implements InjectionModel< CloudType >.

Definition at line 343 of file InjectedParticleInjection.C.

◆ validInjection()

template<class CloudType>

bool validInjection ( const label parceli )

virtual

Return flag to identify whether or not injection of parcelI is.

permitted

Implements InjectionModel< CloudType >.

Definition at line 350 of file InjectedParticleInjection.C.

◆ info()

template<class CloudType>

void info ( )

virtual

Write injection info.

Reimplemented from InjectionModel< CloudType >.

Definition at line 360 of file InjectedParticleInjection.C.

References currentParticlei_, diameter_, InjectionModel< CloudType >::info(), position_, subModelBase::setModelProperty(), time_, U_, volume_, and CloudSubModelBase< CloudType >::writeTime().

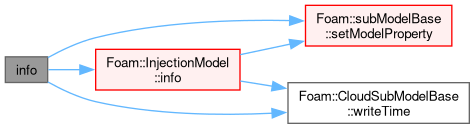

Here is the call graph for this function:

Member Data Documentation

◆ cloudName_

template<class CloudType>

const word cloudName_

protected

Name of cloud used to seed the new particles.

Definition at line 82 of file InjectedParticleInjection.H.

Referenced by initialise(), InjectedParticleInjection(), and InjectedParticleInjection().

◆ injectorCells_

template<class CloudType>

labelList injectorCells_

protected

List of cell label per injector.

Definition at line 87 of file InjectedParticleInjection.H.

Referenced by InjectedParticleInjection(), InjectedParticleInjection(), setPositionAndCell(), and updateMesh().

◆ injectorTetFaces_

template<class CloudType>

labelList injectorTetFaces_

protected

List of tetFace label per injector.

Definition at line 92 of file InjectedParticleInjection.H.

Referenced by InjectedParticleInjection(), InjectedParticleInjection(), setPositionAndCell(), and updateMesh().

◆ injectorTetPts_

template<class CloudType>

labelList injectorTetPts_

protected

List of tetPt label per injector.

Definition at line 97 of file InjectedParticleInjection.H.

Referenced by InjectedParticleInjection(), InjectedParticleInjection(), setPositionAndCell(), and updateMesh().

◆ time_

template<class CloudType>

scalarList time_

protected

List of injection time per particle [s].

Definition at line 102 of file InjectedParticleInjection.H.

Referenced by info(), initialise(), InjectedParticleInjection(), InjectedParticleInjection(), parcelsToInject(), timeEnd(), updateMesh(), and volumeToInject().

◆ position_

template<class CloudType>

vectorList position_

protected

List of position per particle [m].

Definition at line 107 of file InjectedParticleInjection.H.

Referenced by info(), initialise(), InjectedParticleInjection(), InjectedParticleInjection(), setPositionAndCell(), and updateMesh().

◆ positionOffset_

template<class CloudType>

vector positionOffset_

protected

Position offset to apply to input positions.

Definition at line 112 of file InjectedParticleInjection.H.

Referenced by initialise(), InjectedParticleInjection(), and InjectedParticleInjection().

◆ diameter_

template<class CloudType>

scalarList diameter_

protected

List of diameter per particle [m].

Definition at line 117 of file InjectedParticleInjection.H.

Referenced by info(), initialise(), InjectedParticleInjection(), InjectedParticleInjection(), setProperties(), and updateMesh().

◆ U_

template<class CloudType>

vectorList U_

protected

List of velocity per particle [m/s].

Definition at line 122 of file InjectedParticleInjection.H.

Referenced by info(), initialise(), InjectedParticleInjection(), InjectedParticleInjection(), setProperties(), and updateMesh().

◆ volume_

template<class CloudType>

scalarList volume_

protected

List of volume per particle [m3].

Definition at line 127 of file InjectedParticleInjection.H.

Referenced by info(), initialise(), InjectedParticleInjection(), InjectedParticleInjection(), updateMesh(), and volumeToInject().

◆ ignoreOutOfBounds_

template<class CloudType>

Switch ignoreOutOfBounds_

protected

Flag to suppress errors if particle injection site is out-of-bounds.

Definition at line 132 of file InjectedParticleInjection.H.

Referenced by InjectedParticleInjection(), InjectedParticleInjection(), and updateMesh().

◆ currentParticlei_

template<class CloudType>

label currentParticlei_

protected

Index of current particle.

Definition at line 137 of file InjectedParticleInjection.H.

Referenced by info(), InjectedParticleInjection(), InjectedParticleInjection(), setPositionAndCell(), and setProperties().

The documentation for this class was generated from the following files:

src/lagrangian/intermediate/submodels/Kinematic/InjectionModel/InjectedParticleInjection/InjectedParticleInjection.H
src/lagrangian/intermediate/submodels/Kinematic/InjectionModel/InjectedParticleInjection/InjectedParticleInjection.C

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ InjectedParticleInjection() [1/2]

◆ InjectedParticleInjection() [2/2]

◆ ~InjectedParticleInjection()

Member Function Documentation

◆ initialise()

◆ TypeName()

◆ clone()

◆ updateMesh()

◆ timeEnd()

◆ parcelsToInject()

◆ volumeToInject()

◆ setPositionAndCell()

◆ setProperties()

◆ fullyDescribed()

◆ validInjection()

◆ info()

Member Data Documentation

◆ cloudName_

◆ injectorCells_

◆ injectorTetFaces_

◆ injectorTetPts_

◆ time_

◆ position_

◆ positionOffset_

◆ diameter_

◆ U_

◆ volume_

◆ ignoreOutOfBounds_

◆ currentParticlei_
