Interrogates an injectedParticleCloud to convert the raw particle data into a set of 'binned' injectors. More...

#include <InjectedParticleDistributionInjection.H>

Inheritance diagram for InjectedParticleDistributionInjection< CloudType >:

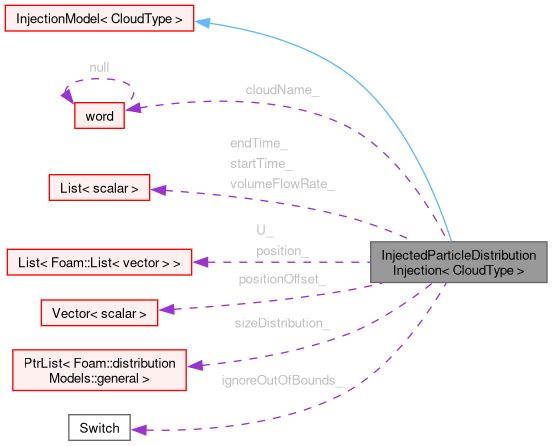

Collaboration diagram for InjectedParticleDistributionInjection< CloudType >:

[legend]

Public Member Functions

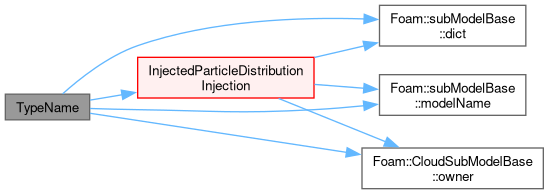

	TypeName ("injectedParticleDistributionInjection")
	Runtime type information.

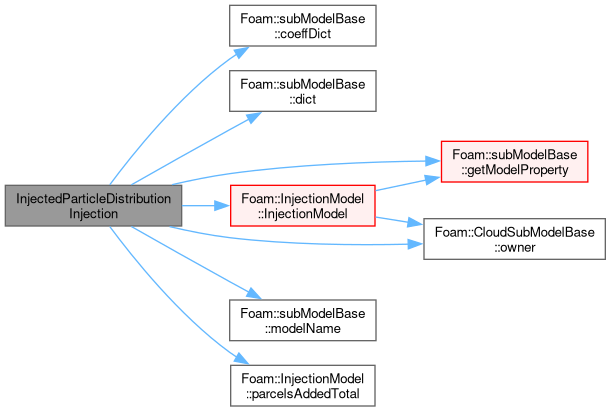

	InjectedParticleDistributionInjection (const dictionary &dict, CloudType &owner, const word &modelName)
	Construct from dictionary.
	InjectedParticleDistributionInjection (const InjectedParticleDistributionInjection< CloudType > &im)
	Construct copy.
virtual autoPtr< InjectionModel< CloudType > >	clone () const
	Construct and return a clone.
virtual	~InjectedParticleDistributionInjection ()
	Destructor.
virtual void	updateMesh ()
	Set injector locations when mesh is updated.
scalar	timeEnd () const
	Return the end-of-injection time.
virtual label	parcelsToInject (const scalar time0, const scalar time1)
	Number of parcels to introduce relative to SOI.
virtual scalar	volumeToInject (const scalar time0, const scalar time1)
	Volume of parcels to introduce relative to SOI.

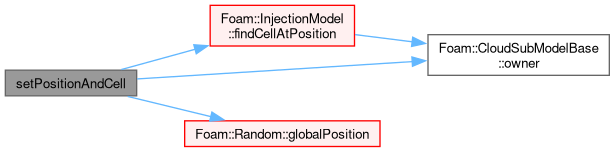

virtual void	setPositionAndCell (const label parcelI, const label nParcels, const scalar time, vector &position, label &cellOwner, label &tetFaceI, label &tetPtI)
	Set the injection position and owner cell, tetFace and tetPt.
virtual void	setProperties (const label parcelI, const label nParcels, const scalar time, typename CloudType::parcelType &parcel)
	Set the parcel properties.
virtual bool	fullyDescribed () const
	Flag to identify whether model fully describes the parcel.
virtual bool	validInjection (const label parcelI)
	Return flag to identify whether or not injection of parcelI is.

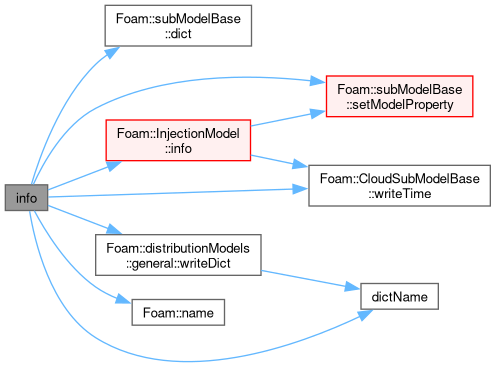

void	info ()
	Write injection info.
Public Member Functions inherited from InjectionModel< CloudType >
	TypeName ("injectionModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, InjectionModel, dictionary,(const dictionary &dict, CloudType &owner, const word &modelType),(dict, owner, modelType))
	Declare runtime constructor selection table.
	InjectionModel (CloudType &owner)
	Construct null from owner.
	InjectionModel (const dictionary &dict, CloudType &owner, const word &modelName, const word &modelType)
	Construct from dictionary.
	InjectionModel (const InjectionModel< CloudType > &im)
	Construct copy.
virtual	~InjectionModel ()=default
	Destructor.
scalar	timeStart () const
	Return the start-of-injection time.
scalar	volumeTotal () const
	Return the total volume to be injected across the event.
scalar	massTotal () const
	Return mass of particles to introduce.
scalar	massInjected () const
	Return mass of particles injected (cumulative).
label	injectorID () const
	Return injectorID.
virtual scalar	averageParcelMass ()
	Return the average parcel mass over the injection period.
label	nInjections () const
	Return the number of injections.
label	parcelsAddedTotal () const
	Return the total number parcels added.
template<class TrackCloudType>
void	inject (TrackCloudType &cloud, typename CloudType::parcelType::trackingData &td)
	Main injection loop.
template<class TrackCloudType>
void	injectSteadyState (TrackCloudType &cloud, typename CloudType::parcelType::trackingData &td, const scalar trackTime)
	Main injection loop - steady-state.
Public Member Functions inherited from CloudSubModelBase< CloudType >
	CloudSubModelBase (CloudType &owner)
	Construct null from owner cloud.
	CloudSubModelBase (CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from owner cloud without name.
	CloudSubModelBase (const word &modelName, CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from owner cloud with name.
	CloudSubModelBase (const CloudSubModelBase< CloudType > &smb)
	Construct as copy.
virtual	~CloudSubModelBase ()=default
	Destructor.
const CloudType &	owner () const
	Return const access to the owner cloud.
virtual bool	writeTime () const
	Flag to indicate when to write a property.
virtual fileName	localPath () const
	Output directory.
CloudType &	owner ()
	Return non-const access to the owner cloud for manipulation.
virtual void	write (Ostream &os) const
	Write to os.
Public Member Functions inherited from subModelBase
	subModelBase (dictionary &properties)
	Construct null.
	subModelBase (dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from components without name.
	subModelBase (const word &modelName, dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from components with name.
	subModelBase (const subModelBase &smb)
	Construct as copy.
virtual	~subModelBase ()=default
	Destructor.
const word &	modelName () const
	Return const access to the name of the sub-model.
const dictionary &	dict () const
	Return const access to the cloud dictionary.
const word &	baseName () const
	Return const access to the base name of the sub-model.
const word &	modelType () const
	Return const access to the sub-model type.
const dictionary &	coeffDict () const
	Return const access to the coefficients dictionary.
const dictionary &	properties () const
	Return const access to the properties dictionary.
virtual bool	defaultCoeffs (const bool printMsg) const
	Returns true if defaultCoeffs is true and outputs on printMsg.
virtual bool	active () const
	Return the model 'active' status - default active = true.
virtual void	cacheFields (const bool store)
	Cache dependent sub-model fields.
template<class Type>
Type	getBaseProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the base model.
template<class Type>
void	getBaseProperty (const word &entryName, Type &value) const
	Retrieve generic property from the base model.
template<class Type>
void	setBaseProperty (const word &entryName, const Type &value)
	Add generic property to the base model.
bool	getModelDict (const word &entryName, dictionary &dict) const
	Retrieve dictionary, return true if set.
template<class Type>
bool	getModelProperty (const word &entryName, Type &value) const
	Retrieve generic property from the sub-model.
template<class Type>
Type	getModelProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the sub-model.
template<class Type>
void	setModelProperty (const word &entryName, const Type &value)
	Add generic property to the sub-model.

Protected Member Functions

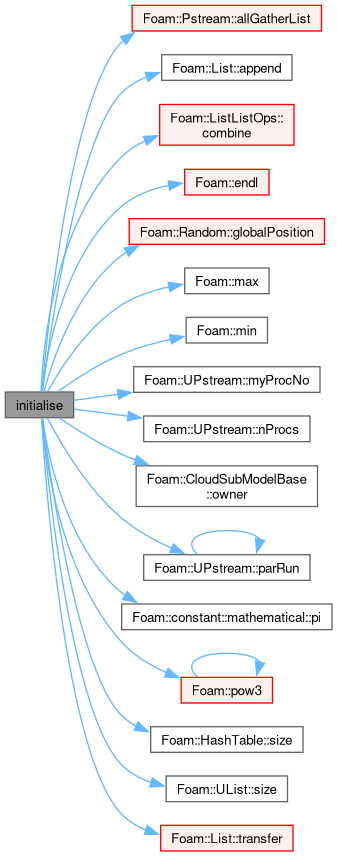

void	initialise ()
	Initialise injectors.
Protected Member Functions inherited from InjectionModel< CloudType >
virtual bool	prepareForNextTimeStep (const scalar time, label &newParcels, scalar &newVolumeFraction)
	Determine properties for next time step/injection interval.
virtual bool	findCellAtPosition (label &celli, label &tetFacei, label &tetPti, vector &position, bool errorOnNotFound=true)
	Find the cell that contains the supplied position.
virtual scalar	setNumberOfParticles (const label parcels, const scalar volumeFraction, const scalar diameter, const scalar rho)
	Set number of particles to inject given parcel properties.
virtual void	postInjectCheck (const label parcelsAdded, const scalar massAdded)
	Post injection checks.
Protected Member Functions inherited from subModelBase
bool	inLine () const
	Flag to indicate whether data is/was read in-line.

Protected Attributes
const word	cloudName_
	Name of cloud used to seed the new particles.
scalarList	startTime_
	List of start time per injector.
scalarList	endTime_
	List of end time per injector.
List< vectorList >	position_
	List of position per injector.
vector	positionOffset_
	Position offset to apply to input positions.
scalarList	volumeFlowRate_
	List of volume flow rate per injector [m3/s].
List< vectorList >	U_
	List of parcel velocity per injector.
scalar	binWidth_
	Bin width when generating particle distributions.
PtrList< distributionModels::general >	sizeDistribution_
	List of size distribution model per injector.
scalar	parcelsPerInjector_
	Target number of parcels to inject per injector.
label	resampleSize_
	Resample size.
bool	applyDistributionMassTotal_
	Flag to apply mass calculated from distribution instead of.
Switch	ignoreOutOfBounds_
	Flag to suppress errors if particle injection site is out-of-bounds.
label	nParcelsInjected_
	Running total of number of parcels injected.
label	nParcelsInjected0_
	Number of parcels injected in last step (local proc only).
label	currentInjectori_
	Current injector.
label	currentSamplei_
	Current sample.
Protected Attributes inherited from InjectionModel< CloudType >
scalar	SOI_
	Start of injection [s].
scalar	volumeTotal_
	Total volume of particles introduced by this injector [m^3] Note: scaled to ensure massTotal is achieved.
scalar	massTotal_
	Total mass to inject [kg].
autoPtr< Function1< scalar > >	massFlowRate_
	Mass flow rate profile for steady calculations.
scalar	massInjected_
	Total mass injected to date [kg].
label	nInjections_
	Number of injections counter.
label	parcelsAddedTotal_
	Running counter of total number of parcels added.
parcelBasis	parcelBasis_
	Parcel basis enumeration.
scalar	nParticleFixed_
	nParticle to assign to parcels when the 'fixed' basis is selected
scalar	time0_
	Continuous phase time at start of injection time step [s].
scalar	timeStep0_
	Time at start of injection time step [s].
scalar	minParticlesPerParcel_
	Minimum number of particles used to represent each parcel default = 1.
scalar	delayedVolume_
	Volume that should have been injected, but would lead to less than minParticlesPerParcel_ particle per parcel.
label	injectorID_
	Optional injector ID.
bool	ignoreOutOfBounds_
	Optional flag to indicate that injections attempted outside the mesh should be ignored.
Protected Attributes inherited from CloudSubModelBase< CloudType >
CloudType &	owner_
	Reference to the cloud.
Protected Attributes inherited from subModelBase
const word	modelName_
	Name of the sub-model.
dictionary &	properties_
	Reference to properties dictionary e.g. for restart.
const dictionary	dict_
	Copy of dictionary used during construction.
const word	baseName_
	Name of the sub-model base class.
const word	modelType_
	Type of the sub-model.
const dictionary	coeffDict_
	Coefficients dictionary.

Additional Inherited Members
Public Types inherited from InjectionModel< CloudType >
enum	parcelBasis { pbNumber , pbMass , pbFixed }
	Parcel basis representation options i.e constant number of particles OR constant mass per parcel. More...
typedef CloudType::parcelType	parcelType
	Convenience typedef for parcelType.
Public Types inherited from CloudSubModelBase< CloudType >
typedef CloudType	cloudType
	Type of cloud this model was instantiated for.
Static Public Member Functions inherited from InjectionModel< CloudType >
static autoPtr< InjectionModel< CloudType > >	New (const dictionary &dict, CloudType &owner)
	Selector with lookup from dictionary.
static autoPtr< InjectionModel< CloudType > >	New (const dictionary &dict, const word &modelName, const word &modelType, CloudType &owner)
	Selector with name and type.
Public Attributes inherited from subModelBase
bool	log
	Flag to write log into Info.

Detailed Description

template<class CloudType>
class Foam::InjectedParticleDistributionInjection< CloudType >

Interrogates an injectedParticleCloud to convert the raw particle data into a set of 'binned' injectors.

The bins are set according to the particle tag property, from which:

diameters are converted into general distributions with a user-specified bin width
raw velocity and diameter data are resampled and stored to provide variations per injector

The mass to inject can be set according to the raw input data mass total by using the applyDistributionMassTotal switch

Usage

model1
{
    type            injectedParticleDistributionInjection;
    SOI             0;
    parcelBasisType mass;
    cloud           eulerianParticleCloud;
    positionOffset  (-0.025 2 -0.025);
    binWidth        0.1e-3;
    parcelsPerInjector 500;
    resampleSize    100;                    // optional
    applyDistributionMassTotal yes;

    // Placeholder only when using applyDistributionMassTotal
    massTotal       0;
}

Note: The each injector location is assumed to be operating under steady conditions, i.e. using a constant flow rate profile

Source files

See also: Foam::injectedParticle Foam::injectedParticleCloud Foam::functionObjects::extractEulerianParticles Foam::distributionModels::general

Definition at line 90 of file InjectedParticleDistributionInjection.H.

Constructor & Destructor Documentation

◆ InjectedParticleDistributionInjection() [1/2]

template<class CloudType>

InjectedParticleDistributionInjection	(	const dictionary &	dict,
		CloudType &	owner,
		const word &	modelName )

Construct from dictionary.

Definition at line 223 of file InjectedParticleDistributionInjection.C.

References applyDistributionMassTotal_, binWidth_, cloudName_, subModelBase::coeffDict(), currentInjectori_, currentSamplei_, subModelBase::dict(), endTime_, subModelBase::getModelProperty(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, ignoreOutOfBounds_, InjectionModel< CloudType >::InjectionModel(), subModelBase::modelName(), nParcelsInjected0_, nParcelsInjected_, CloudSubModelBase< CloudType >::owner(), InjectionModel< CloudType >::parcelsAddedTotal(), parcelsPerInjector_, position_, positionOffset_, resampleSize_, sizeDistribution_, startTime_, U_, and volumeFlowRate_.

Referenced by clone(), InjectedParticleDistributionInjection(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InjectedParticleDistributionInjection() [2/2]

template<class CloudType>

InjectedParticleDistributionInjection ( const InjectedParticleDistributionInjection< CloudType > & im )

Construct copy.

Definition at line 299 of file InjectedParticleDistributionInjection.C.

References applyDistributionMassTotal_, binWidth_, cloudName_, currentInjectori_, currentSamplei_, endTime_, forAll, ignoreOutOfBounds_, InjectedParticleDistributionInjection(), InjectionModel< CloudType >::InjectionModel(), nParcelsInjected0_, nParcelsInjected_, parcelsPerInjector_, position_, positionOffset_, resampleSize_, sizeDistribution_, startTime_, U_, and volumeFlowRate_.

Here is the call graph for this function:

◆ ~InjectedParticleDistributionInjection()

template<class CloudType>

~InjectedParticleDistributionInjection ( )

virtual

Destructor.

Definition at line 344 of file InjectedParticleDistributionInjection.C.

Member Function Documentation

◆ initialise()

template<class CloudType>

void initialise ( )

protected

Initialise injectors.

Definition at line 31 of file InjectedParticleDistributionInjection.C.

References Pstream::allGatherList(), List< T >::append(), binWidth_, cloudName_, Foam::ListListOps::combine(), Foam::endl(), endTime_, forAll, Random::globalPosition(), Foam::Info, Foam::max(), mesh, Foam::min(), UPstream::myProcNo(), UPstream::nProcs(), CloudSubModelBase< CloudType >::owner(), p, UPstream::parRun(), Foam::constant::mathematical::pi(), position_, positionOffset_, Foam::pow3(), resampleSize_, rndGen, HashTable< T, Key, Hash >::size(), UList< T >::size(), sizeDistribution_, startTime_, List< T >::transfer(), U, U_, volumeFlowRate_, and InjectionModel< CloudType >::volumeTotal_.

Here is the call graph for this function:

◆ TypeName()

template<class CloudType>

TypeName ( "injectedParticleDistributionInjection" )

Runtime type information.

References subModelBase::dict(), InjectedParticleDistributionInjection(), subModelBase::modelName(), and CloudSubModelBase< CloudType >::owner().

Here is the call graph for this function:

◆ clone()

template<class CloudType>

virtual autoPtr< InjectionModel< CloudType > > clone ( ) const

inlinevirtual

Construct and return a clone.

Implements InjectionModel< CloudType >.

Definition at line 225 of file InjectedParticleDistributionInjection.H.

References InjectedParticleDistributionInjection().

Here is the call graph for this function:

◆ updateMesh()

template<class CloudType>

void updateMesh ( )

virtual

Set injector locations when mesh is updated.

Reimplemented from InjectionModel< CloudType >.

Definition at line 352 of file InjectedParticleDistributionInjection.C.

◆ timeEnd()

template<class CloudType>

Foam::scalar timeEnd ( ) const

virtual

Return the end-of-injection time.

Implements InjectionModel< CloudType >.

Definition at line 358 of file InjectedParticleDistributionInjection.C.

References endTime_, and Foam::max().

Here is the call graph for this function:

◆ parcelsToInject()

template<class CloudType>

Foam::label parcelsToInject	(	const scalar	time0,
		const scalar	time1 )

virtual

Number of parcels to introduce relative to SOI.

Implements InjectionModel< CloudType >.

Definition at line 366 of file InjectedParticleDistributionInjection.C.

References endTime_, forAll, Foam::min(), nParcelsInjected0_, nParcelsInjected_, parcelsPerInjector_, Foam::returnReduce(), startTime_, and volumeFlowRate_.

Here is the call graph for this function:

◆ volumeToInject()

template<class CloudType>

Foam::scalar volumeToInject	(	const scalar	time0,
		const scalar	time1 )

virtual

Volume of parcels to introduce relative to SOI.

Implements InjectionModel< CloudType >.

Definition at line 408 of file InjectedParticleDistributionInjection.C.

References endTime_, forAll, Foam::min(), startTime_, and volumeFlowRate_.

Here is the call graph for this function:

◆ setPositionAndCell()

template<class CloudType>

void setPositionAndCell	(	const label	parcelI,
		const label	nParcels,
		const scalar	time,
		vector &	position,
		label &	cellOwner,
		label &	tetFaceI,
		label &	tetPtI )

virtual

Set the injection position and owner cell, tetFace and tetPt.

Implements InjectionModel< CloudType >.

Definition at line 429 of file InjectedParticleDistributionInjection.C.

References currentInjectori_, currentSamplei_, InjectionModel< CloudType >::findCellAtPosition(), Random::globalPosition(), CloudSubModelBase< CloudType >::owner(), position_, and resampleSize_.

Here is the call graph for this function:

◆ setProperties()

template<class CloudType>

void setProperties	(	const label	parcelI,
		const label	nParcels,
		const scalar	time,
		typename CloudType::parcelType &	parcel )

virtual

Set the parcel properties.

Implements InjectionModel< CloudType >.

Definition at line 458 of file InjectedParticleDistributionInjection.C.

References currentInjectori_, currentSamplei_, nParcelsInjected0_, sizeDistribution_, DSMCParcel< ParcelType >::U(), and U_.

Here is the call graph for this function:

◆ fullyDescribed()

template<class CloudType>

bool fullyDescribed ( ) const

virtual

Flag to identify whether model fully describes the parcel.

Implements InjectionModel< CloudType >.

Definition at line 480 of file InjectedParticleDistributionInjection.C.

◆ validInjection()

template<class CloudType>

bool validInjection ( const label parcelI )

virtual

Return flag to identify whether or not injection of parcelI is.

permitted

Implements InjectionModel< CloudType >.

Definition at line 487 of file InjectedParticleDistributionInjection.C.

◆ info()

template<class CloudType>

void info ( )

virtual

Write injection info.

Reimplemented from InjectionModel< CloudType >.

Definition at line 497 of file InjectedParticleDistributionInjection.C.

References dict, subModelBase::dict(), dictName(), endTime_, forAll, InjectionModel< CloudType >::info(), Foam::name(), position_, subModelBase::setModelProperty(), sizeDistribution_, startTime_, U_, volumeFlowRate_, general::writeDict(), and CloudSubModelBase< CloudType >::writeTime().

Here is the call graph for this function:

Member Data Documentation

◆ cloudName_

template<class CloudType>

const word cloudName_

protected

Name of cloud used to seed the new particles.

Definition at line 101 of file InjectedParticleDistributionInjection.H.

Referenced by initialise(), InjectedParticleDistributionInjection(), and InjectedParticleDistributionInjection().

◆ startTime_

template<class CloudType>

scalarList startTime_

protected

List of start time per injector.

Definition at line 106 of file InjectedParticleDistributionInjection.H.

Referenced by info(), initialise(), InjectedParticleDistributionInjection(), InjectedParticleDistributionInjection(), parcelsToInject(), and volumeToInject().

◆ endTime_

template<class CloudType>

scalarList endTime_

protected

List of end time per injector.

Definition at line 111 of file InjectedParticleDistributionInjection.H.

Referenced by info(), initialise(), InjectedParticleDistributionInjection(), InjectedParticleDistributionInjection(), parcelsToInject(), timeEnd(), and volumeToInject().

◆ position_

template<class CloudType>

List<vectorList> position_

protected

List of position per injector.

Definition at line 116 of file InjectedParticleDistributionInjection.H.

Referenced by info(), initialise(), InjectedParticleDistributionInjection(), InjectedParticleDistributionInjection(), and setPositionAndCell().

◆ positionOffset_

template<class CloudType>

vector positionOffset_

protected

Position offset to apply to input positions.

Definition at line 121 of file InjectedParticleDistributionInjection.H.

Referenced by initialise(), InjectedParticleDistributionInjection(), and InjectedParticleDistributionInjection().

◆ volumeFlowRate_

template<class CloudType>

scalarList volumeFlowRate_

protected

List of volume flow rate per injector [m3/s].

Definition at line 126 of file InjectedParticleDistributionInjection.H.

Referenced by info(), initialise(), InjectedParticleDistributionInjection(), InjectedParticleDistributionInjection(), parcelsToInject(), and volumeToInject().

◆ U_

template<class CloudType>

List<vectorList> U_

protected

List of parcel velocity per injector.

Definition at line 131 of file InjectedParticleDistributionInjection.H.

Referenced by info(), initialise(), InjectedParticleDistributionInjection(), InjectedParticleDistributionInjection(), and setProperties().

◆ binWidth_

template<class CloudType>

scalar binWidth_

protected

Bin width when generating particle distributions.

Definition at line 136 of file InjectedParticleDistributionInjection.H.

Referenced by initialise(), InjectedParticleDistributionInjection(), and InjectedParticleDistributionInjection().

◆ sizeDistribution_

template<class CloudType>

PtrList<distributionModels::general> sizeDistribution_

protected

List of size distribution model per injector.

Definition at line 141 of file InjectedParticleDistributionInjection.H.

Referenced by info(), initialise(), InjectedParticleDistributionInjection(), InjectedParticleDistributionInjection(), and setProperties().

◆ parcelsPerInjector_

template<class CloudType>

scalar parcelsPerInjector_

protected

Target number of parcels to inject per injector.

Definition at line 146 of file InjectedParticleDistributionInjection.H.

Referenced by InjectedParticleDistributionInjection(), InjectedParticleDistributionInjection(), and parcelsToInject().

◆ resampleSize_

template<class CloudType>

label resampleSize_

protected

Resample size.

Definition at line 151 of file InjectedParticleDistributionInjection.H.

Referenced by initialise(), InjectedParticleDistributionInjection(), InjectedParticleDistributionInjection(), and setPositionAndCell().

◆ applyDistributionMassTotal_

template<class CloudType>

bool applyDistributionMassTotal_

protected

Flag to apply mass calculated from distribution instead of.

InjectionModel massTotal_

Definition at line 158 of file InjectedParticleDistributionInjection.H.

Referenced by InjectedParticleDistributionInjection(), and InjectedParticleDistributionInjection().

◆ ignoreOutOfBounds_

template<class CloudType>

Switch ignoreOutOfBounds_

protected

Flag to suppress errors if particle injection site is out-of-bounds.

Definition at line 163 of file InjectedParticleDistributionInjection.H.

Referenced by InjectedParticleDistributionInjection(), and InjectedParticleDistributionInjection().

◆ nParcelsInjected_

template<class CloudType>

label nParcelsInjected_

protected

Running total of number of parcels injected.

Definition at line 168 of file InjectedParticleDistributionInjection.H.

Referenced by InjectedParticleDistributionInjection(), InjectedParticleDistributionInjection(), and parcelsToInject().

◆ nParcelsInjected0_

template<class CloudType>

label nParcelsInjected0_

protected

Number of parcels injected in last step (local proc only).

Definition at line 173 of file InjectedParticleDistributionInjection.H.

Referenced by InjectedParticleDistributionInjection(), InjectedParticleDistributionInjection(), parcelsToInject(), and setProperties().

◆ currentInjectori_

template<class CloudType>

label currentInjectori_

protected

Current injector.

Definition at line 178 of file InjectedParticleDistributionInjection.H.

Referenced by InjectedParticleDistributionInjection(), InjectedParticleDistributionInjection(), setPositionAndCell(), and setProperties().

◆ currentSamplei_

template<class CloudType>

label currentSamplei_

protected

Current sample.

Definition at line 183 of file InjectedParticleDistributionInjection.H.

Referenced by InjectedParticleDistributionInjection(), InjectedParticleDistributionInjection(), setPositionAndCell(), and setProperties().

The documentation for this class was generated from the following files:

src/lagrangian/intermediate/submodels/Kinematic/InjectionModel/InjectedParticleDistributionInjection/InjectedParticleDistributionInjection.H
src/lagrangian/intermediate/submodels/Kinematic/InjectionModel/InjectedParticleDistributionInjection/InjectedParticleDistributionInjection.C

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ InjectedParticleDistributionInjection() [1/2]

◆ InjectedParticleDistributionInjection() [2/2]

◆ ~InjectedParticleDistributionInjection()

Member Function Documentation

◆ initialise()

◆ TypeName()

◆ clone()

◆ updateMesh()

◆ timeEnd()

◆ parcelsToInject()

◆ volumeToInject()

◆ setPositionAndCell()

◆ setProperties()

◆ fullyDescribed()

◆ validInjection()

◆ info()

Member Data Documentation

◆ cloudName_

◆ startTime_

◆ endTime_

◆ position_

◆ positionOffset_

◆ volumeFlowRate_

◆ U_

◆ binWidth_

◆ sizeDistribution_

◆ parcelsPerInjector_

◆ resampleSize_

◆ applyDistributionMassTotal_

◆ ignoreOutOfBounds_

◆ nParcelsInjected_

◆ nParcelsInjected0_

◆ currentInjectori_

◆ currentSamplei_
