Particle-drag model wherein drag forces (per unit carrier-fluid velocity) are dynamically computed based on empirical expressions using a four-parameter general drag correlation for non-spherical particles. More...

#include <NonSphereDragForce.H>

Inheritance diagram for NonSphereDragForce< CloudType >:

[legend]

Collaboration diagram for NonSphereDragForce< CloudType >:

[legend]

Public Member Functions
	TypeName ("nonSphereDrag")
	Runtime type information.
	NonSphereDragForce (CloudType &owner, const fvMesh &mesh, const dictionary &dict)
	Construct from mesh.
	NonSphereDragForce (const NonSphereDragForce< CloudType > &df)
	Construct copy.
virtual autoPtr< ParticleForce< CloudType > >	clone () const
	Construct and return a clone.
void	operator= (const NonSphereDragForce< CloudType > &)=delete
	No copy assignment.
virtual	~NonSphereDragForce ()=default
	Destructor.
virtual forceSuSp	calcCoupled (const typename CloudType::parcelType &p, const typename CloudType::parcelType::trackingData &td, const scalar dt, const scalar mass, const scalar Re, const scalar muc) const
	Calculate the non-coupled force.
Public Member Functions inherited from ParticleForce< CloudType >
	TypeName ("particleForce")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, ParticleForce, dictionary,(CloudType &owner, const fvMesh &mesh, const dictionary &dict),(owner, mesh, dict))
	Declare runtime constructor selection table.
	ParticleForce (CloudType &owner, const fvMesh &mesh, const dictionary &dict, const word &forceType, const bool readCoeffs)
	Construct from mesh.
	ParticleForce (const ParticleForce &pf)
	Construct copy.
virtual	~ParticleForce ()
	Destructor.
const CloudType &	owner () const noexcept
	Return const access to the cloud owner.
CloudType &	owner () noexcept
	Return reference to the cloud owner.
const fvMesh &	mesh () const noexcept
	Return the mesh database.
const dictionary &	coeffs () const noexcept
	Return the force coefficients dictionary.
virtual void	cacheFields (const bool store)
	Cache fields.
virtual forceSuSp	calcNonCoupled (const typename CloudType::parcelType &p, const typename CloudType::parcelType::trackingData &td, const scalar dt, const scalar mass, const scalar Re, const scalar muc) const
	Calculate the non-coupled force.
virtual scalar	massAdd (const typename CloudType::parcelType &p, const typename CloudType::parcelType::trackingData &td, const scalar mass) const
	Return the added mass.

Protected Member Functions
scalar	CdRe (const scalar Re) const
	Drag coefficient multiplied by Reynolds number.

Protected Attributes
scalar	phi_
	Ratio of surface of sphere having same volume as particle to actual surface area of particle (0 < phi <= 1).
scalar	a_
scalar	b_
scalar	c_
scalar	d_

Additional Inherited Members
Public Types inherited from ParticleForce< CloudType >
typedef VectorSpace< Vector< vector >, vector, 2 >	returnType
	Convenience typedef for return type.
Static Public Member Functions inherited from ParticleForce< CloudType >
static autoPtr< ParticleForce< CloudType > >	New (CloudType &owner, const fvMesh &mesh, const dictionary &dict, const word &forceType)
	Selector.

Detailed Description

template<class CloudType>
class Foam::NonSphereDragForce< CloudType >

Particle-drag model wherein drag forces (per unit carrier-fluid velocity) are dynamically computed based on empirical expressions using a four-parameter general drag correlation for non-spherical particles.

$\‍[ \mathrm{F}_\mathrm{D} = \frac{3}{4} \frac{\mu_c\,\mathrm{C}_\mathrm{D}\,\mathrm{Re}_p}{\rho_p \, d_p^2} \‍]$

with

$\‍[ \mathrm{C}_\mathrm{D} = \frac{24}{\mathrm{Re}_p} \left( 1 + A \, \mathrm{Re}_p^B \right) + \frac{C \, \mathrm{Re}_p}{D + \mathrm{Re}_p} \‍]$

where

$\‍[ A = \exp(2.3288 - 6.4581\phi + 2.4486 \phi^2) \‍]$

$\‍[ B = 0.0964 + 0.5565\phi \‍]$

$\‍[ C = \exp(4.9050 - 13.8944\phi + 18.4222\phi^2 - 10.2599 \phi^3) \‍]$

$\‍[ D = \exp(1.4681 + 12.2584\phi - 20.7322\phi^2 + 15.8855\phi^3) \‍]$

$\‍[ \phi = \frac{A_p}{A_a} \‍]$

$\‍[ \mathrm{Re}_p = \frac{\rho_c \, | \mathbf{u}_\mathrm{rel} | \, d_p}{\mu_c} \‍]$

where

$\mathrm{F}_\mathrm{D}$	=	Drag force per carrier-fluid velocity [kg/s]
$\mathrm{C}_\mathrm{D}$	=	Particle drag coefficient
$\mathrm{Re}_p$	=	Particle Reynolds number
$\rho_p$	=	Particle mass density
$\mu_c$	=	Dynamic viscosity of carrier at the cell occupying particle
	=	Particle diameter
$\rho_c$	=	Density of carrier at the cell occupying particle
$\mathbf{u}_\mathrm{rel}$	=	Relative velocity between particle and carrier
	=	Surface area of sphere with the same volume as the particle
	=	Actual surface area of the particle
$\phi$	=	Ratio of surface areas

Constraints:

Applicable to particles with a spatially homogeneous distribution.
$1 \geq \phi > 0$

References:

        Standard model (tag:HL), (Eq. 4,10-11):
            Haider, A., & Levenspiel, O. (1989).
            Drag coefficient and terminal velocity of
            spherical and nonspherical particles.
            Powder technology, 58(1), 63-70.
            DOI:10.1016/0032-5910(89)80008-7

Usage

Minimal example by using constant/<CloudProperties>:

subModels
{
    particleForces
    {
        nonSphereDrag
        {
            phi    <phi>;
        }
    }
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`type`	Type name: nonSphereDrag	word	yes	-
`phi`	Ratio of surface area of sphere having same volume as particle to actual surface area of particle	scalar	yes	-

Note

The drag coefficient model in (HL:Eq. 11) is good to within 2 to 4 % of RMS values from the corresponding experiment.
(HL:Eq. 12) also give a simplified model with greater error compared to results from the experiment, but since phi is presumed constant, Eq. 12 offers little benefit.
$\mathrm{F}_\mathrm{D}$ is weighted with the particle mass at the stage of a function return, so that it can later be normalised with the effective mass, if necessary (e.g. when using virtual-mass forces).

Source files

Definition at line 220 of file NonSphereDragForce.H.

Constructor & Destructor Documentation

◆ NonSphereDragForce() [1/2]

template<class CloudType>

NonSphereDragForce	(	CloudType &	owner,
		const fvMesh &	mesh,
		const dictionary &	dict )

Construct from mesh.

Definition at line 37 of file NonSphereDragForce.C.

References a_, b_, c_, ParticleForce< CloudType >::coeffs(), d_, dict, Foam::exit(), Foam::exp(), Foam::FatalError, FatalErrorInFunction, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, ParticleForce< CloudType >::mesh(), ParticleForce< CloudType >::owner(), ParticleForce< CloudType >::ParticleForce(), phi_, Foam::pow3(), and Foam::sqr().

Referenced by clone(), NonSphereDragForce(), operator=(), and TypeName().

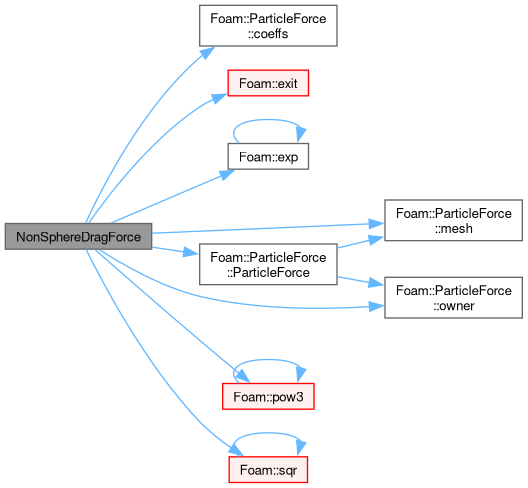

Here is the call graph for this function:

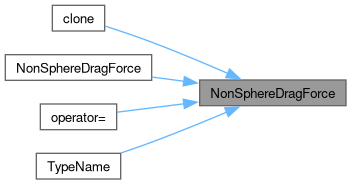

Here is the caller graph for this function:

◆ NonSphereDragForce() [2/2]

template<class CloudType>

NonSphereDragForce ( const NonSphereDragForce< CloudType > & df )

Construct copy.

Definition at line 62 of file NonSphereDragForce.C.

References a_, b_, c_, d_, NonSphereDragForce(), ParticleForce< CloudType >::ParticleForce(), and phi_.

Here is the call graph for this function:

◆ ~NonSphereDragForce()

template<class CloudType>

virtual ~NonSphereDragForce ( )

virtualdefault

Destructor.

References p, Foam::Re(), and td().

Here is the call graph for this function:

Member Function Documentation

◆ CdRe()

template<class CloudType>

Foam::scalar CdRe ( const scalar Re ) const

protected

Drag coefficient multiplied by Reynolds number.

Definition at line 27 of file NonSphereDragForce.C.

References a_, b_, c_, d_, Foam::pow(), and Foam::Re().

Referenced by calcCoupled().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

template<class CloudType>

TypeName ( "nonSphereDrag" )

Runtime type information.

References dict, ParticleForce< CloudType >::mesh(), NonSphereDragForce(), and ParticleForce< CloudType >::owner().

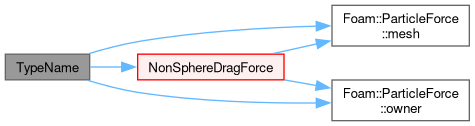

Here is the call graph for this function:

◆ clone()

template<class CloudType>

virtual autoPtr< ParticleForce< CloudType > > clone ( ) const

inlinevirtual

Construct and return a clone.

Reimplemented from ParticleForce< CloudType >.

Definition at line 282 of file NonSphereDragForce.H.

References NonSphereDragForce().

Here is the call graph for this function:

◆ operator=()

template<class CloudType>

void operator= ( const NonSphereDragForce< CloudType > & )

delete

No copy assignment.

References NonSphereDragForce().

Here is the call graph for this function:

◆ calcCoupled()

template<class CloudType>

Foam::forceSuSp calcCoupled	(	const typename CloudType::parcelType &	p,
		const typename CloudType::parcelType::trackingData &	td,
		const scalar	dt,
		const scalar	mass,
		const scalar	Re,
		const scalar	muc ) const

virtual

Calculate the non-coupled force.

Reimplemented from ParticleForce< CloudType >.

Definition at line 79 of file NonSphereDragForce.C.

References CdRe(), p, Foam::Re(), Foam::sqr(), td(), and Foam::Zero.

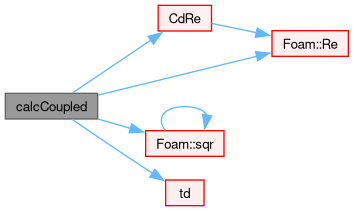

Here is the call graph for this function:

Member Data Documentation

◆ phi_

template<class CloudType>

scalar phi_

protected

Ratio of surface of sphere having same volume as particle to actual surface area of particle (0 < phi <= 1).

Definition at line 232 of file NonSphereDragForce.H.

Referenced by NonSphereDragForce(), and NonSphereDragForce().

◆ a_

template<class CloudType>

scalar a_

protected

Definition at line 237 of file NonSphereDragForce.H.

Referenced by CdRe(), NonSphereDragForce(), and NonSphereDragForce().

◆ b_

template<class CloudType>

scalar b_

protected

Definition at line 239 of file NonSphereDragForce.H.

Referenced by CdRe(), NonSphereDragForce(), and NonSphereDragForce().

◆ c_

template<class CloudType>

scalar c_

protected

Definition at line 241 of file NonSphereDragForce.H.

Referenced by CdRe(), NonSphereDragForce(), and NonSphereDragForce().

◆ d_

template<class CloudType>

scalar d_

protected

Definition at line 243 of file NonSphereDragForce.H.

Referenced by CdRe(), NonSphereDragForce(), and NonSphereDragForce().

The documentation for this class was generated from the following files:

src/lagrangian/intermediate/submodels/Kinematic/ParticleForces/Drag/NonSphereDrag/NonSphereDragForce.H
src/lagrangian/intermediate/submodels/Kinematic/ParticleForces/Drag/NonSphereDrag/NonSphereDragForce.C
