Thermodynamic parcel class with one/two-way coupling with the continuous phase. Includes Kinematic parcel sub-models, plus: More...

#include <ThermoParcel.H>

Inheritance diagram for ThermoParcel< ParcelType >:

[legend]

Collaboration diagram for ThermoParcel< ParcelType >:

[legend]

Classes
class	constantProperties
	Class to hold thermo particle constant properties. More...
class	trackingData
class	iNew
	Factory class to read-construct particles (for parallel transfer). More...

Public Member Functions
	TypeName ("ThermoParcel")
	Runtime type information.
	AddToPropertyList (ParcelType, " T"+" Cp")
	String representation of properties.
	ThermoParcel (const polyMesh &mesh, const barycentric &coordinates, const label celli, const label tetFacei, const label tetPti)
	Construct from mesh, coordinates and topology.
	ThermoParcel (const polyMesh &mesh, const vector &position, const label celli)
	Construct from a position and a cell, searching for the rest of the.
	ThermoParcel (const polyMesh &mesh, const barycentric &coordinates, const label celli, const label tetFacei, const label tetPti, const label typeId, const scalar nParticle0, const scalar d0, const scalar dTarget0, const vector &U0, const vector &f0, const vector &angularMomentum0, const vector &torque0, const constantProperties &constProps)
	Construct from components.
	ThermoParcel (const polyMesh &mesh, Istream &is, bool readFields=true, bool newFormat=true)
	Construct from Istream.
	ThermoParcel (const ThermoParcel &p)
	Construct as a copy.
	ThermoParcel (const ThermoParcel &p, const polyMesh &mesh)
	Construct as a copy.
virtual autoPtr< particle >	clone () const
	Return a (basic particle) clone.
virtual autoPtr< particle >	clone (const polyMesh &mesh) const
	Return a (basic particle) clone.
scalar	T () const
	Return const access to temperature.
scalar	Cp () const
	Return const access to specific heat capacity.
scalar	hs () const
	Return the parcel sensible enthalpy.
scalar &	T ()
	Return access to temperature.
scalar &	Cp ()
	Return access to specific heat capacity.
template<class TrackCloudType>
void	setCellValues (TrackCloudType &cloud, trackingData &td)
	Set cell values.
template<class TrackCloudType>
void	cellValueSourceCorrection (TrackCloudType &cloud, trackingData &td, const scalar dt)
	Correct cell values using latest transfer information.
template<class TrackCloudType>
void	calcSurfaceValues (TrackCloudType &cloud, trackingData &td, const scalar T, scalar &Ts, scalar &rhos, scalar &mus, scalar &Pr, scalar &kappas) const
	Calculate surface thermo properties.
template<class TrackCloudType>
void	calc (TrackCloudType &cloud, trackingData &td, const scalar dt)
	Update parcel properties over the time interval.
void	writeProperties (Ostream &os, const wordRes &filters, const word &delim, const bool namesOnly=false) const
	Write individual parcel properties to stream.
template<class TrackCloudType>
Foam::scalar	calcHeatTransfer (TrackCloudType &cloud, trackingData &td, const scalar dt, const scalar Re, const scalar Pr, const scalar kappa, const scalar NCpW, const scalar Sh, scalar &dhsTrans, scalar &Sph)

Static Public Member Functions
template<class CloudType>
static void	readFields (CloudType &c)
	Read.
template<class CloudType>
static void	writeFields (const CloudType &c)
	Write.
template<class CloudType>
static void	readObjects (CloudType &c, const objectRegistry &obr)
	Read particle fields as objects from the obr registry.
template<class CloudType>
static void	writeObjects (const CloudType &c, objectRegistry &obr)
	Write particle fields as objects into the obr registry.

Static Public Attributes
static const std::size_t	sizeofFields
	Size in bytes of the fields.

Protected Member Functions
template<class TrackCloudType>
scalar	calcHeatTransfer (TrackCloudType &cloud, trackingData &td, const scalar dt, const scalar Re, const scalar Pr, const scalar kappa, const scalar NCpW, const scalar Sh, scalar &dhsTrans, scalar &Sph)
	Calculate new particle temperature.

Protected Attributes
scalar	T_
	Temperature [K].
scalar	Cp_
	Specific heat capacity [J/(kg.K)].

Friends
Ostream &	operator<< (Ostream &, const ThermoParcel< ParcelType > &)

Detailed Description

template<class ParcelType>
class Foam::ThermoParcel< ParcelType >

Thermodynamic parcel class with one/two-way coupling with the continuous phase. Includes Kinematic parcel sub-models, plus:

heat transfer

Source files

Definition at line 67 of file ThermoParcel.H.

Constructor & Destructor Documentation

◆ ThermoParcel() [1/6]

template<class ParcelType>

ThermoParcel	(	const polyMesh &	mesh,
		const barycentric &	coordinates,
		const label	celli,
		const label	tetFacei,
		const label	tetPti )

inline

Construct from mesh, coordinates and topology.

Other properties initialised as null

Definition at line 69 of file ThermoParcelI.H.

References coordinates(), Cp_, mesh, and T_.

Referenced by ThermoParcel< ParcelType >::iNew::operator()(), readFields(), readObjects(), writeFields(), and writeObjects().

Here is the call graph for this function:

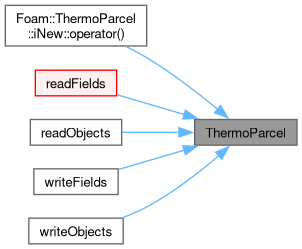

Here is the caller graph for this function:

◆ ThermoParcel() [2/6]

template<class ParcelType>

ThermoParcel	(	const polyMesh &	mesh,
		const vector &	position,
		const label	celli )

inline

Construct from a position and a cell, searching for the rest of the.

required topology. Other properties are initialised as null.

Definition at line 85 of file ThermoParcelI.H.

References Cp_, mesh, and T_.

◆ ThermoParcel() [3/6]

template<class ParcelType>

ThermoParcel	(	const polyMesh &	mesh,
		const barycentric &	coordinates,
		const label	celli,
		const label	tetFacei,
		const label	tetPti,
		const label	typeId,
		const scalar	nParticle0,
		const scalar	d0,
		const scalar	dTarget0,
		const vector &	U0,
		const vector &	f0,
		const vector &	angularMomentum0,
		const vector &	torque0,
		const constantProperties &	constProps )

inline

Construct from components.

Definition at line 99 of file ThermoParcelI.H.

References coordinates(), and mesh.

Here is the call graph for this function:

◆ ThermoParcel() [4/6]

template<class ParcelType>

ThermoParcel	(	const polyMesh &	mesh,
		Istream &	is,
		bool	readFields = true,
		bool	newFormat = true )

Construct from Istream.

Definition at line 43 of file ThermoParcelIO.C.

References IOstreamOption::ASCII, IOstream::check(), Cp_, IOstream::fatalCheckNativeSizes(), IOstreamOption::format(), FUNCTION_NAME, mesh, Istream::read(), readFields(), sizeofFields, and T_.

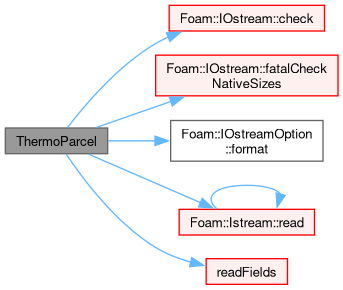

Here is the call graph for this function:

◆ ThermoParcel() [5/6]

template<class ParcelType>

ThermoParcel ( const ThermoParcel< ParcelType > & p )

Construct as a copy.

◆ ThermoParcel() [6/6]

template<class ParcelType>

ThermoParcel	(	const ThermoParcel< ParcelType > &	p,
		const polyMesh &	mesh )

Construct as a copy.

Member Function Documentation

◆ calcHeatTransfer() [1/2]

template<class ParcelType>

template<class TrackCloudType>

scalar calcHeatTransfer	(	TrackCloudType &	cloud,
		trackingData &	td,
		const scalar	dt,
		const scalar	Re,
		const scalar	Pr,
		const scalar	kappa,
		const scalar	NCpW,
		const scalar	Sh,
		scalar &	dhsTrans,
		scalar &	Sph )

protected

Calculate new particle temperature.

Referenced by calc().

Here is the caller graph for this function:

◆ TypeName()

template<class ParcelType>

TypeName ( "ThermoParcel< ParcelType >" )

Runtime type information.

◆ AddToPropertyList()

template<class ParcelType>

AddToPropertyList	(	ParcelType	,
		" T"+" Cp"	)

String representation of properties.

◆ clone() [1/2]

template<class ParcelType>

virtual autoPtr< particle > clone ( ) const

inlinevirtual

Return a (basic particle) clone.

Reimplemented in ReactingHeterogeneousParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >, ReactingMultiphaseParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >, ReactingParcel< ThermoParcel< KinematicParcel< particle > > >, and SprayParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >.

Definition at line 456 of file ThermoParcel.H.

◆ clone() [2/2]

template<class ParcelType>

virtual autoPtr< particle > clone ( const polyMesh & mesh ) const

inlinevirtual

Return a (basic particle) clone.

Reimplemented in ReactingHeterogeneousParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >, ReactingMultiphaseParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >, ReactingParcel< ThermoParcel< KinematicParcel< particle > > >, and SprayParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >.

Definition at line 464 of file ThermoParcel.H.

◆ T() [1/2]

template<class ParcelType>

Foam::scalar T ( ) const

inline

Return const access to temperature.

Definition at line 200 of file ThermoParcelI.H.

References T_.

Referenced by calcSurfaceValues(), readFields(), readObjects(), ThermoParcel< ParcelType >::trackingData::trackingData(), writeFields(), and writeObjects().

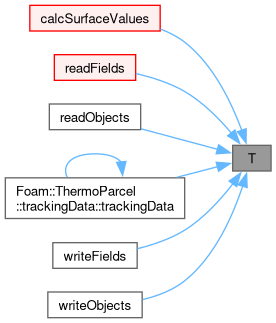

Here is the caller graph for this function:

◆ Cp() [1/2]

template<class ParcelType>

Foam::scalar Cp ( ) const

inline

Return const access to specific heat capacity.

Definition at line 207 of file ThermoParcelI.H.

References Cp_.

Referenced by readFields(), readObjects(), writeFields(), and writeObjects().

Here is the caller graph for this function:

◆ hs()

template<class ParcelType>

Foam::scalar hs ( ) const

inline

Return the parcel sensible enthalpy.

Definition at line 214 of file ThermoParcelI.H.

References Cp_, and T_.

◆ T() [2/2]

template<class ParcelType>

Foam::scalar & T ( )

inline

Return access to temperature.

Definition at line 221 of file ThermoParcelI.H.

References T_.

◆ Cp() [2/2]

template<class ParcelType>

Foam::scalar & Cp ( )

inline

Return access to specific heat capacity.

Definition at line 228 of file ThermoParcelI.H.

References Cp_.

◆ setCellValues()

template<class ParcelType>

template<class TrackCloudType>

void setCellValues	(	TrackCloudType &	cloud,
		trackingData &	td )

Set cell values.

Definition at line 30 of file ThermoParcel.C.

References coordinates(), Foam::endl(), Foam::nl, td(), and WarningInFunction.

Here is the call graph for this function:

◆ cellValueSourceCorrection()

template<class ParcelType>

template<class TrackCloudType>

void cellValueSourceCorrection	(	TrackCloudType &	cloud,
		trackingData &	td,
		const scalar	dt )

Correct cell values using latest transfer information.

Definition at line 60 of file ThermoParcel.C.

References Foam::endl(), Foam::nl, td(), and WarningInFunction.

Here is the call graph for this function:

◆ calcSurfaceValues()

template<class ParcelType>

template<class TrackCloudType>

void calcSurfaceValues	(	TrackCloudType &	cloud,
		trackingData &	td,
		const scalar	T,
		scalar &	Ts,
		scalar &	rhos,
		scalar &	mus,
		scalar &	Pr,
		scalar &	kappas ) const

Calculate surface thermo properties.

Definition at line 94 of file ThermoParcel.C.

References coordinates(), Foam::endl(), Foam::max(), Foam::nl, Pr(), T(), td(), and WarningInFunction.

Referenced by calc().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calc()

template<class ParcelType>

template<class TrackCloudType>

void calc	(	TrackCloudType &	cloud,
		trackingData &	td,
		const scalar	dt )

Update parcel properties over the time interval.

Definition at line 137 of file ThermoParcel.C.

References calcHeatTransfer(), calcSurfaceValues(), Foam::pow4(), Pr(), Foam::Re(), Foam::Su(), T0, T_, td(), and Foam::Zero.

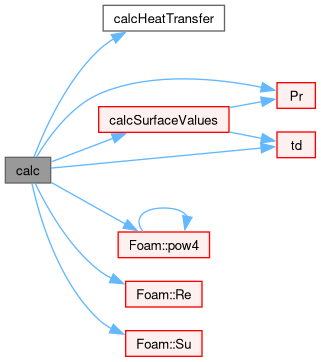

Here is the call graph for this function:

◆ readFields()

template<class ParcelType>

template<class CloudType>

void readFields ( CloudType & c )

static

Read.

Definition at line 76 of file ThermoParcelIO.C.

References Cp, Cp(), IOobjectOption::MUST_READ, p, T(), T, and ThermoParcel().

Referenced by ThermoParcel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeFields()

template<class ParcelType>

template<class CloudType>

void writeFields ( const CloudType & c )

static

Write.

Definition at line 102 of file ThermoParcelIO.C.

References Cp, Cp(), IOobjectOption::NO_READ, p, T(), T, and ThermoParcel().

Here is the call graph for this function:

◆ writeProperties()

template<class ParcelType>

void writeProperties	(	Ostream &	os,
		const wordRes &	filters,
		const word &	delim,
		const bool	namesOnly = false ) const

Write individual parcel properties to stream.

Definition at line 127 of file ThermoParcelIO.C.

References Cp_, os(), T_, and writeProp.

Here is the call graph for this function:

◆ readObjects()

template<class ParcelType>

template<class CloudType>

void readObjects	(	CloudType &	c,
		const objectRegistry &	obr )

static

Read particle fields as objects from the obr registry.

Definition at line 150 of file ThermoParcelIO.C.

References Cp(), cloud::lookupIOField(), p, T(), and ThermoParcel().

Here is the call graph for this function:

◆ writeObjects()

template<class ParcelType>

template<class CloudType>

void writeObjects	(	const CloudType &	c,
		objectRegistry &	obr )

static

Write particle fields as objects into the obr registry.

Definition at line 176 of file ThermoParcelIO.C.

References Cp(), cloud::createIOField(), p, T(), and ThermoParcel().

Here is the call graph for this function:

◆ calcHeatTransfer() [2/2]

template<class ParcelType>

template<class TrackCloudType>

Foam::scalar calcHeatTransfer	(	TrackCloudType &	cloud,
		trackingData &	td,
		const scalar	dt,
		const scalar	Re,
		const scalar	Pr,
		const scalar	kappa,
		const scalar	NCpW,
		const scalar	Sh,
		scalar &	dhsTrans,
		scalar &	Sph )

Definition at line 246 of file ThermoParcel.C.

◆ operator<<

template<class ParcelType>

Ostream & operator<<	(	Ostream &	,
		const ThermoParcel< ParcelType > &	)

friend

Member Data Documentation

◆ sizeofFields

template<class ParcelType>

const std::size_t sizeofFields

static

Size in bytes of the fields.

Definition at line 76 of file ThermoParcel.H.

Referenced by ThermoParcel().

◆ T_

template<class ParcelType>

scalar T_

protected

Temperature [K].

Definition at line 334 of file ThermoParcel.H.

Referenced by calc(), hs(), T(), T(), ThermoParcel(), ThermoParcel(), ThermoParcel(), and writeProperties().

◆ Cp_

template<class ParcelType>

scalar Cp_

protected

Specific heat capacity [J/(kg.K)].

Definition at line 339 of file ThermoParcel.H.

Referenced by Cp(), Cp(), hs(), ThermoParcel(), ThermoParcel(), ThermoParcel(), and writeProperties().

The documentation for this class was generated from the following files:

src/lagrangian/intermediate/parcels/Templates/ThermoParcel/ThermoParcel.H
src/lagrangian/intermediate/parcels/Templates/ThermoParcel/ThermoParcel.C
src/lagrangian/intermediate/parcels/Templates/ThermoParcel/ThermoParcelI.H
src/lagrangian/intermediate/parcels/Templates/ThermoParcel/ThermoParcelIO.C

Classes

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ ThermoParcel() [1/6]

◆ ThermoParcel() [2/6]

◆ ThermoParcel() [3/6]

◆ ThermoParcel() [4/6]

◆ ThermoParcel() [5/6]

◆ ThermoParcel() [6/6]

Member Function Documentation

◆ calcHeatTransfer() [1/2]

◆ TypeName()

◆ AddToPropertyList()

◆ clone() [1/2]

◆ clone() [2/2]

◆ T() [1/2]

◆ Cp() [1/2]

◆ hs()

◆ T() [2/2]

◆ Cp() [2/2]

◆ setCellValues()

◆ cellValueSourceCorrection()

◆ calcSurfaceValues()

◆ calc()

◆ readFields()

◆ writeFields()

◆ writeProperties()

◆ readObjects()

◆ writeObjects()

◆ calcHeatTransfer() [2/2]

Friends And Related Symbol Documentation

◆ operator<<

Member Data Documentation

◆ sizeofFields

◆ T_

◆ Cp_
