A surface geometry mesh, in which the surface zone information is conveyed by the 'zoneId' associated with each face. More...
#include <UnsortedMeshedSurface.H>
Public Types | |
| typedef Face | face_type |
| The face type (same as the underlying PrimitivePatch). | |
| typedef point | point_type |
| The point type (same as the underlying PrimitivePatch). | |
| Public Types inherited from MeshedSurface< Face > | |
| typedef Face | face_type |
| The face type (same as the underlying PrimitivePatch). | |
| typedef point | point_type |
| The point type (same as the underlying PrimitivePatch). | |
| Public Types inherited from PrimitivePatch<::Foam::List< Face >, pointField > | |
| enum | surfaceTopo |
| Enumeration defining the surface type. Used in check routines. More... | |
| typedef std::remove_reference< ::Foam::List< Face > >::type::value_type | face_type |
| The face type. | |
| typedef std::remove_reference< pointField >::type::value_type | point_type |
| The point type. | |
| typedef ::Foam::List< Face > | FaceListType |
| The face list type. | |
| typedef pointField | PointFieldType |
| The point field type. | |
| typedef face_type | FaceType |
| Deprecated(2020-03) prefer face_type typedef. | |
| Public Types inherited from List< T > | |
| typedef SubList< T > | subList |
| Declare type of subList. | |
| Public Types inherited from UList< T > | |
| typedef T | value_type |
| The value type the list contains. | |
| typedef T * | pointer |
| The pointer type for non-const access to value_type items. | |
| typedef const T * | const_pointer |
| The pointer type for const access to value_type items. | |
| typedef T & | reference |
| The type used for storing into value_type objects. | |
| typedef const T & | const_reference |
| The type used for reading from constant value_type objects. | |
| typedef T * | iterator |
| Random access iterator for traversing a UList. | |
| typedef const T * | const_iterator |
| Random access iterator for traversing a UList. | |
| typedef label | size_type |
| The type to represent the size of a UList. | |
| typedef label | difference_type |
| The difference between iterator objects. | |
| typedef std::reverse_iterator< iterator > | reverse_iterator |
| Reverse iterator (non-const access). | |
| typedef std::reverse_iterator< const_iterator > | const_reverse_iterator |
| Reverse iterator (const access). | |
| using | is_List = void |
| Have unique tag. | |
Public Member Functions | |
| TypeName ("UnsortedMeshedSurface") | |
| Declare type-name, virtual type (with debug switch). | |
| UnsortedMeshedSurface () | |
| Default construct. | |
| UnsortedMeshedSurface (const UnsortedMeshedSurface< Face > &surf) | |
| Copy construct. | |
| UnsortedMeshedSurface (const MeshedSurface< Face > &surf) | |
| Construct from a MeshedSurface. | |
| UnsortedMeshedSurface (UnsortedMeshedSurface< Face > &&surf) | |
| Move construct from a UnsortedMeshedSurface. | |
| UnsortedMeshedSurface (MeshedSurface< Face > &&surf) | |
| Move construct from MeshedSurface. | |
| UnsortedMeshedSurface (pointField &&pointLst, List< Face > &&faceLst, List< label > &&zoneIds, UList< surfZoneIdentifier > &tocInfo) | |
| Move construct from components (points, faces, zone ids). | |
| UnsortedMeshedSurface (const fileName &name) | |
| Construct from file name (uses extension to determine type). | |
| UnsortedMeshedSurface (const fileName &name, const word &fileType) | |
| Construct from file name with given format type. | |
| UnsortedMeshedSurface (Istream &is) | |
| Construct from Istream. | |
| UnsortedMeshedSurface (const Time &runTime) | |
| Construct from database (as surfMesh) with default name. | |
| UnsortedMeshedSurface (const Time &runTime, const word &surfName) | |
| Construct from database (as surfMesh) with given surface name. | |
| UnsortedMeshedSurface (const IOobject &io, const dictionary &dict, const bool isGlobal=true) | |
| Read construct using IO to find the file location. | |
| declareRunTimeSelectionTable (autoPtr, UnsortedMeshedSurface, fileExtension,(const fileName &name),(name)) | |
| virtual | ~UnsortedMeshedSurface ()=default |
| Destructor. | |
| declareMemberFunctionSelectionTable (void, UnsortedMeshedSurface, write, fileExtension,(const fileName &name, const UnsortedMeshedSurface< Face > &surf, IOstreamOption streamOpt, const dictionary &options),(name, surf, streamOpt, options)) | |
| label | size () const |
| The surface size is the number of faces. | |
| void | setSize (const label) |
| Reset size of face and zone list. | |

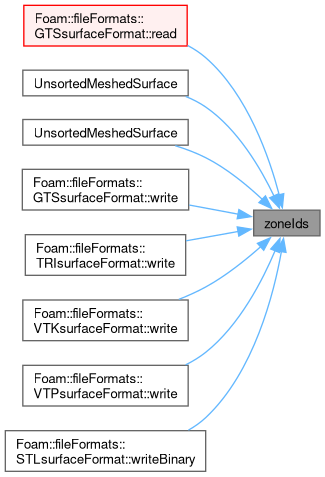

| virtual const labelList & | zoneIds () const |
| Return const access to the zone ids. | |

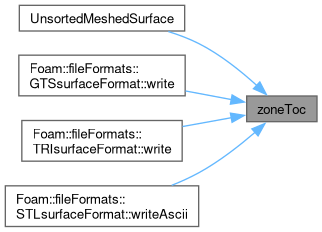

| const List< surfZoneIdentifier > & | zoneToc () const |
| Return const access to the zone table-of-contents. | |

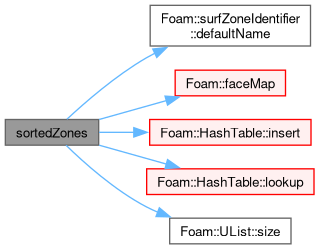

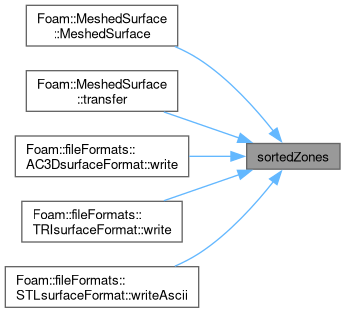

| surfZoneList | sortedZones (labelList &faceMap) const |
| Sort faces according to zoneIds. | |
| void | setOneZone () |
| Set zones to 0 and set a single zone. | |
| void | setZones (const surfZoneList &zoneLst) |
| Set zone ids and zones. | |
| void | setZones (const labelUList &sizes, const UList< word > &names) |
| Set zone ids and zones. | |
| void | setZones (const labelUList &sizes) |
| Set zone ids and zones with default names. | |
| virtual void | clear () |
| Clear all storage. | |
| template<class BoolListType> | |
| void | subsetMeshMap (const BoolListType &include, labelList &pointMap, labelList &faceMap) const |
| Create mappings for a sub-surface. | |
| UnsortedMeshedSurface | subsetMesh (const UList< bool > &include, labelList &pointMap, labelList &faceMap) const |
| Return a new surface subsetted on the selected faces. | |
| UnsortedMeshedSurface | subsetMesh (const bitSet &include, labelList &pointMap, labelList &faceMap) const |
| Return a new surface subsetted on the selected faces. | |
| UnsortedMeshedSurface | subsetMesh (const UList< bool > &include) const |
| Return a new surface subsetted on the selected faces. | |
| UnsortedMeshedSurface | subsetMesh (const bitSet &include) const |
| Return a new surface subsetted on the selected faces. | |
| void | swap (MeshedSurface< Face > &surf)=delete |
| Swap contents - disabled. | |

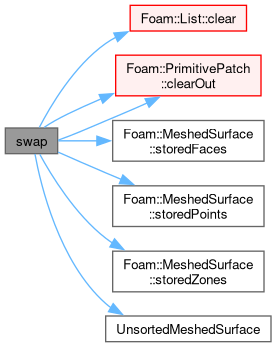

| void | swap (UnsortedMeshedSurface< Face > &surf) |
| Swap contents. | |

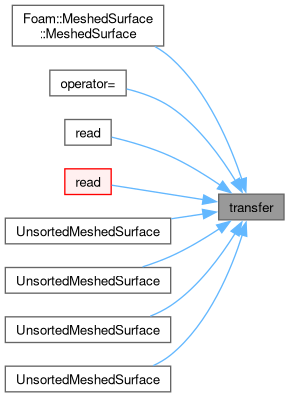

| void | transfer (UnsortedMeshedSurface< Face > &surf) |
| Transfer the contents of the argument and annul the argument. | |
| void | transfer (MeshedSurface< Face > &surf) |
| Transfer the contents of the argument and annul the argument. | |
| autoPtr< labelList > | releaseZoneIds () |
| Release (clear) stored zoneIds and return for reuse. | |
| bool | read (const fileName &name, const word &fileType) |
| Read from file with given format type. | |
| virtual bool | read (const fileName &name) |
| Read from file. Chooses reader based on detected extension. | |

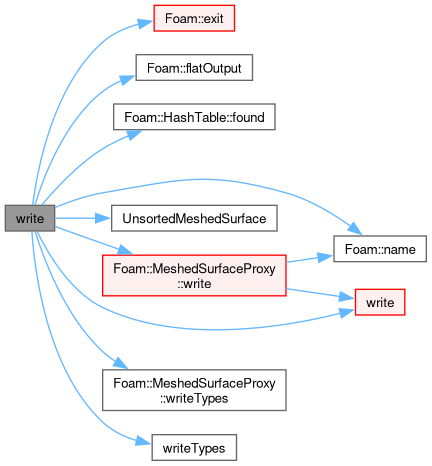

| virtual void | write (const fileName &name, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null) const |
| Write to file, choosing writer based on the file extension. | |
| virtual void | write (const fileName &name, const word &fileType, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null) const |
| Write to file with given format type. | |
| void | write (const Time &t, const word &surfName=word::null) const |
| Write to database. | |

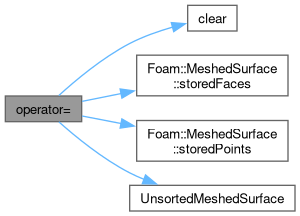

| void | operator= (const UnsortedMeshedSurface< Face > &surf) |
| Copy assignment. | |
| void | operator= (UnsortedMeshedSurface< Face > &&surf) |
| Move assignment. | |
| operator MeshedSurfaceProxy< Face > () const | |
| Conversion operator to MeshedSurfaceProxy. | |
| Public Member Functions inherited from MeshedSurface< Face > | |
| ClassName ("MeshedSurface") | |
| Declare type-name (with debug switch). | |
| MeshedSurface () | |
| Default construct, an empty surface. | |
| MeshedSurface (const MeshedSurface &surf) | |
| Copy construct. | |
| MeshedSurface (const UnsortedMeshedSurface< Face > &surf) | |
| Copy construct from an UnsortedMeshedSurface. | |
| MeshedSurface (MeshedSurface &&surf) | |
| Move construct. | |
| MeshedSurface (UnsortedMeshedSurface< Face > &&surf) | |
| Move construct from an UnsortedMeshedSurface. | |
| MeshedSurface (const pointField &pointLst, const UList< Face > &faceLst, const UList< surfZone > &zoneLst) | |
| Copy construct from components (points, faces, zones). | |
| MeshedSurface (pointField &&pointLst, List< Face > &&faceLst, const UList< surfZone > &zoneLst) | |
| Move construct from components (points, faces). | |
| MeshedSurface (const pointField &pointLst, const UList< Face > &faceLst, const labelUList &zoneSizes=labelUList(), const UList< word > &zoneNames=UList< word >()) | |
| Copy construct from components (points, faces). | |
| MeshedSurface (pointField &&pointLst, List< Face > &&faceLst, const labelUList &zoneSizes=labelUList(), const UList< word > &zoneNames=UList< word >()) | |
| Move construct from components (points, faces). | |
| MeshedSurface (const polyBoundaryMesh &pbm, const bool globalPoints=false) | |
| Construct from a boundary mesh with local points/faces. | |
| MeshedSurface (const surfMesh &mesh) | |
| Construct from a surfMesh. | |
| MeshedSurface (const fileName &name) | |
| Construct from file name (uses extension to determine type). | |
| MeshedSurface (const fileName &name, const word &fileType) | |
| Construct from file name and given file type. | |
| MeshedSurface (Istream &is) | |
| Construct from Istream. | |
| MeshedSurface (const Time &runTime) | |
| Construct from database (as surfMesh) with default name. | |
| MeshedSurface (const Time &runTime, const word &surfName) | |
| Construct from database (as surfMesh) with given surface name. | |
| MeshedSurface (const IOobject &io, const dictionary &dict, const bool isGlobal=true) | |
| Read construct using IO to find the file location. | |
| declareRunTimeSelectionTable (autoPtr, MeshedSurface, fileExtension,(const fileName &name),(name)) | |
| virtual | ~MeshedSurface () |
| Destructor. | |
| declareMemberFunctionSelectionTable (void, UnsortedMeshedSurface, write, fileExtension,(const fileName &name, const MeshedSurface< Face > &surf, IOstreamOption streamOpt, const dictionary &options),(name, surf, streamOpt, options)) | |
| label | size () const |
| The surface size is the number of faces. | |
| const List< Face > & | surfFaces () const |
| Return const access to the faces. | |
| const labelList & | faceIds () const |
| Return const access to faces ids. | |
| const surfZoneList & | surfZones () const |
| Const access to the surface zones. | |
| const vectorField & | Sf () const |
| Face area vectors (normals). | |
| const scalarField & | magSf () const |
| Face area magnitudes. | |
| const vectorField & | Cf () const |
| Face centres. | |
| virtual void | addZones (const UList< surfZone > &, const bool cullEmpty=false) |
| Add surface zones. | |
| virtual void | addZones (const labelUList &sizes, const UList< word > &names, const bool cullEmpty=false) |
| Add surface zones. | |
| virtual void | addZones (const labelUList &sizes, const bool cullEmpty=false) |
| Add surface zones. | |
| bool | addZonesToFaces () |
| Propagate zone information on face regions. | |
| virtual void | removeZones () |
| Remove surface zones. | |
| virtual void | movePoints (const pointField &newPoints) |
| Move points. | |
| virtual void | scalePoints (const scalar scaleFactor) |
| Scale points. A non-positive factor is ignored. | |
| virtual void | cleanup (const bool verbose) |
| Remove invalid faces. | |
| virtual void | compactPoints (labelList &pointMap=const_cast< labelList & >(labelList::null())) |
| Remove unused points and renumber faces in local visit order. | |
| virtual bool | stitchFaces (const scalar tol=SMALL, const bool verbose=false) |
| virtual bool | checkFaces (const bool verbose=false) |
| virtual label | nTriangles () const |
| Count number of triangles. | |
| virtual label | nTriangles (labelList &faceMap) const |
| Count number of triangles, returning a face map of original ids. | |
| virtual label | triangulate () |
| Triangulate in-place, returning the number of triangles added. | |
| virtual label | triangulate (labelList &faceMap) |
| Triangulate in-place, returning the number of triangles added. | |
| template<class BoolListType> | |
| void | subsetMeshMap (const BoolListType &include, labelList &pointMap, labelList &faceMap) const |
| Create mappings for a sub-surface. | |
| MeshedSurface | subsetMesh (const UList< bool > &include, labelList &pointMap, labelList &faceMap) const |
| Return a new surface subsetted on the selected faces. | |
| MeshedSurface | subsetMesh (const bitSet &include, labelList &pointMap, labelList &faceMap) const |
| Return a new surface subsetted on the selected faces. | |
| MeshedSurface | subsetMesh (const UList< bool > &include) const |
| Return a new surface subsetted on the selected faces. | |
| MeshedSurface | subsetMesh (const bitSet &include) const |
| Return a new surface subsetted on the selected faces. | |
| MeshedSurface | subsetMesh (const wordRes &includeNames, const wordRes &excludeNames=wordRes()) const |
| Return a new surface subsetted on the selected zone names. | |
| void | swap (MeshedSurface< Face > &surf) |
| Swap contents. | |
| void | transfer (pointField &pointLst, List< Face > &faceLst) |
| Transfer the components. | |
| void | transfer (MeshedSurface< Face > &surf) |
| Transfer the contents of the argument and annul the argument. | |
| void | transfer (UnsortedMeshedSurface< Face > &surf) |
| Transfer the contents of the argument and annul the argument. | |
| autoPtr< MeshedSurface< Face > > | releaseGeom () |
| Release (clear) geometry and return for reuse. | |
| void | swapFaces (List< Face > &faces) |
| Swap the stored faces. Use with caution. | |
| void | swapPoints (pointField &points) |
| Swap the stored points. | |
| bool | read (const fileName &name, const word &fileType) |
| Read from file. Chooses reader based on explicit extension. | |
| void | writeStats (Ostream &os) const |
| void | write (const Time &runTime, const word &surfName=word::null) const |
| Write to database. | |
| void | operator= (const MeshedSurface< Face > &surf) |
| Copy assignment. | |
| void | operator= (MeshedSurface< Face > &&surf) |
| Move assignment. | |
| operator MeshedSurfaceProxy< Face > () const | |
| Conversion operator to MeshedSurfaceProxy. | |
| template<class Face> | |
| MeshedSurface (const MeshedSurface< Face > &surf) | |
| template<class Face> | |
| MeshedSurface (MeshedSurface< Face > &&surf) | |
| bool | addZonesToFaces () |
| Specialization for labelledTri. | |
| bool | addZonesToFaces () |
| Public Member Functions inherited from PrimitivePatch<::Foam::List< Face >, pointField > | |
| PrimitivePatch (const ::Foam::List< Face > &faces, const pointField &points) | |
| Construct from components. | |
| PrimitivePatch (::Foam::List< Face > &&faces, const pointField &points) | |
| Construct from components, transferring faces. | |
| PrimitivePatch (::Foam::List< Face > &faces, pointField &points, const bool reuse) | |
| Construct from components, reuse storage. | |
| PrimitivePatch (const PrimitivePatch< ::Foam::List< Face >, pointField > &pp) | |
| Copy construct. | |
| virtual | ~PrimitivePatch () |
| Destructor. | |
| void | clearOut () |
| void | clearGeom () |
| void | clearTopology () |
| void | clearPatchMeshAddr () |
| void | swap (PrimitivePatch &)=delete |
| Suppress direct swapping, since storage containers may be const. | |
| const Field< point_type > & | points () const noexcept |
| Return reference to global points. | |
| label | nFaces () const noexcept |
| Number of faces in the patch. | |
| label | nPoints () const |
| Number of points supporting patch faces. | |
| label | nEdges () const |
| Number of edges in patch. | |
| const edgeList & | edges () const |
| Return list of edges, address into LOCAL point list. | |
| const edgeList::subList | internalEdges () const |
| Return sub-list of internal edges, address into LOCAL point list. | |
| const edgeList::subList | boundaryEdges () const |
| Return sub-list of boundary edges, address into LOCAL point list. | |
| label | nInternalEdges () const |
| Number of internal edges. | |
| label | nBoundaryEdges () const |
| Number of boundary edges == (nEdges() - nInternalEdges()). | |
| bool | isInternalEdge (const label edgei) const |
| Is internal edge? | |
| const labelList & | boundaryPoints () const |
| Return list of boundary points, address into LOCAL point list. | |
| const labelListList & | faceFaces () const |
| Return face-face addressing. | |
| const labelListList & | edgeFaces () const |
| Return edge-face addressing. | |
| const labelListList & | faceEdges () const |
| Return face-edge addressing. | |
| const labelListList & | pointEdges () const |
| Return point-edge addressing. | |
| const labelListList & | pointFaces () const |
| Return point-face addressing. | |
| const List< face_type > & | localFaces () const |
| Return patch faces addressing into local point list. | |
| labelList | boundaryFaces () const |
| Extract list of local faces corresponding to the boundary edges. | |
| labelList | uniqBoundaryFaces () const |
| Extract sorted list of unique local faces associated with the boundary edges. | |
| const labelList & | meshPoints () const |
| Return labelList of mesh points in patch. | |
| const Map< label > & | meshPointMap () const |
| Mesh point map. | |
| const Field< point_type > & | localPoints () const |
| Return pointField of points in patch. | |
| const labelList & | localPointOrder () const |
| Return orders the local points for most efficient search. | |
| label | whichPoint (const label gp) const |
| Given a global point index, return the local point index. | |
| edge | meshEdge (const label edgei) const |
| From patch edge to global edge using meshPoints. | |
| edge | meshEdge (const edge &e) const |
| From patch edge to global edge using meshPoints. | |
| label | findEdge (const edge &e) const |
| Search for edge (local point labels) and return its index in the edge list or -1 if not found. | |
| labelList | meshEdges (const edgeList &allEdges, const labelListList &cellEdges, const labelList &faceCells) const |
| Return labels of patch edges in the global edge list using cell addressing. | |
| labelList | meshEdges (const edgeList &allEdges, const labelListList &pointEdges) const |
| Return labels of patch edges into the global edge list using basic edge addressing. | |
| label | meshEdge (const label edgei, const edgeList &allEdges, const labelListList &pointEdges) const |
| Return label of the local patch edge into the global edge list using basic edge addressing. | |
| labelList | meshEdges (const labelUList &edgeLabels, const edgeList &allEdges, const labelListList &pointEdges) const |
| Return labels of specified patch edges into the global edge list using basic edge addressing. | |
| const Field< point_type > & | faceCentres () const |
| Return face centres for patch. | |
| const Field< point_type > & | faceAreas () const |
| Return face area vectors for patch. | |
| const Field< scalar > & | magFaceAreas () const |
| Return face area magnitudes for patch. | |
| const Field< point_type > & | faceNormals () const |
| Return face unit normals for patch. | |
| const Field< point_type > & | pointNormals () const |
| Return point normals for patch. | |
| Pair< point_type > | box () const |
| The enclosing (bounding) box for the patch points. | |
| scalar | sphere (const label facei) const |
| The enclosing (bounding) sphere radius^2 for specified face. | |
| bool | hasFaceAreas () const |
| bool | hasFaceCentres () const |
| bool | hasFaceNormals () const |
| bool | hasPointNormals () const |
| bool | hasBoundaryPoints () const |
| bool | hasEdges () const |
| bool | hasFaceFaces () const |
| bool | hasEdgeFaces () const |
| bool | hasFaceEdges () const |
| bool | hasPointEdges () const |
| bool | hasPointFaces () const |
| bool | hasMeshPoints () const |
| bool | hasMeshPointMap () const |
| List< objectHit > | projectPoints (const ToPatch &targetPatch, const Field< point_type > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const |
| Project vertices of patch onto another patch. | |
| List< objectHit > | projectFaceCentres (const ToPatch &targetPatch, const Field< point_type > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const |
| Project vertices of patch onto another patch. | |
| const labelListList & | edgeLoops () const |
| Return list of closed loops of boundary vertices. | |
| surfaceTopo | surfaceType (labelHashSet *badEdgesPtr=nullptr) const |
| Calculate surface type formed by patch, optionally recording the indices of illegal edges. | |
| bool | checkTopology (const bool report=false, labelHashSet *pointSetPtr=nullptr) const |
| Check surface formed by patch for manifoldness (see above). | |
| bool | checkPointManifold (const bool report=false, labelHashSet *pointSetPtr=nullptr) const |
| Checks primitivePatch for faces sharing point but not edge. | |
| virtual void | movePoints (const Field< point_type > &) |
| Correct patch after moving points. | |
| void | operator= (const PrimitivePatch< ::Foam::List< Face >, pointField > &rhs) |
| Copy assign faces. Leave points alone (could be a reference). | |
| void | operator= (PrimitivePatch< ::Foam::List< Face >, pointField > &&rhs) |
| Move assign faces. Leave points alone (could be a reference). | |
| label | whichEdge (const edge &e) const |
| Identical to findEdge. | |
| Foam::List< Foam::objectHit > | projectPoints (const ToPatch &targetPatch, const Field< typename Foam::PrimitivePatch< ::Foam::List< Face >, pointField >::point_type > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const |
| Foam::List< Foam::objectHit > | projectFaceCentres (const ToPatch &targetPatch, const Field< typename Foam::PrimitivePatch< ::Foam::List< Face >, pointField >::point_type > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const |
| Public Member Functions inherited from PrimitivePatchBase | |
| ClassName ("PrimitivePatch") | |
| Runtime type information. | |
| PrimitivePatchBase ()=default | |
| Default construct. | |
| Public Member Functions inherited from List< T > | |
| constexpr | List () noexcept |
| Default construct. | |
| List (const label len) | |
| Construct with given size. | |
| List (const label len, const T &val) | |
| Construct with given size and value for all elements. | |
| List (const label len, Foam::zero) | |
| Construct with given size initializing all elements to zero. | |
| List (Foam::one, const T &val) | |
| Construct with length=1, copying the value as the only content. | |
| List (Foam::one, T &&val) | |
| Construct with length=1, moving the value as the only content. | |
| List (Foam::one, Foam::zero) | |
| Construct with length=1, initializing content to zero. | |
| List (const List< T > &list) | |
| Copy construct from list. | |
| List (const UList< T > &list) | |
| Copy construct contents from list. | |
| List (List< T > &list, bool reuse) | |
| Construct as copy or re-use as specified. | |
| List (const UList< T > &list, const labelUList &indices) | |
| Copy construct subset of list. | |
| template<unsigned N> | |
| List (const UList< T > &list, const FixedList< label, N > &indices) | |
| Copy construct subset of list. | |
| template<unsigned N> | |
| List (const FixedList< T, N > &list) | |
| Construct as copy of FixedList<T, N>. | |
| List (const UPtrList< T > &list) | |
| Construct as copy of UPtrList<T> content. | |
| template<class Addr> | |
| List (const IndirectListBase< T, Addr > &list) | |
| Construct as copy of IndirectList contents. | |
| List (std::initializer_list< T > list) | |
| Construct from an initializer list. | |
| List (List< T > &&list) noexcept | |
| Move construct from List. | |
| template<int SizeMin> | |
| List (DynamicList< T, SizeMin > &&list) | |
| Move construct from DynamicList. | |
| List (Istream &is) | |
| Construct from Istream. | |
| autoPtr< List< T > > | clone () const |
| Clone. | |
| ~List () | |
| Destructor. | |
| void | clear () |
| Clear the list, i.e. set size to zero. | |
| void | resize (const label len) |
| Adjust allocated size of list. | |
| void | resize (const label len, const T &val) |
| Adjust allocated size of list and set val for new elements. | |
| void | resize_copy (label count, const label len) |
| Change allocated size of list, retaining the first count elements. | |
| void | resize_fill (const label len, const T &val) |
| Adjust allocated size of list and set val for all elements. | |
| void | resize_nocopy (const label len) |
| Adjust allocated size of list without necessarily. | |
| void | transfer (List< T > &list) |
| Transfer the contents of the argument List into this list and annul the argument list. | |
| template<int SizeMin> | |
| void | transfer (DynamicList< T, SizeMin > &list) |
| Transfer the contents of the argument List into this list and annul the argument list. | |
| T & | newElmt (const label i) |
| Return subscript-checked element of UList and resizing the list if required. | |
| template<class... Args> | |
| T & | emplace_back (Args &&... args) |
| Construct an element at the end of the list, return reference to the new list element. | |
| void | push_back (const T &val) |
| Append an element at the end of the list. | |
| void | push_back (T &&val) |
| Move append an element at the end of the list. | |
| void | push_back (const UList< T > &list) |
| Append a List to the end of this list. | |
| template<class Addr> | |
| void | push_back (const IndirectListBase< T, Addr > &list) |
| Append IndirectList contents at the end of this list. | |
| label | push_uniq (const T &val) |
| Append an element if not already in the list. | |
| void | pop_back (label n=1) |
| Reduce size by 1 or more elements. Can be called on an empty list. | |
| void | operator= (const UList< T > &list) |
| Assignment to UList operator. Takes linear time. | |
| void | operator= (const List< T > &list) |
| Assignment operator. Takes linear time. | |
| template<class Addr> | |
| void | operator= (const IndirectListBase< T, Addr > &list) |
| Assignment from IndirectList. Takes linear time. | |
| template<unsigned N> | |
| void | operator= (const FixedList< T, N > &list) |
| Copy assignment from FixedList. | |
| void | operator= (std::initializer_list< T > list) |
| Assignment to an initializer list. | |
| void | operator= (const T &val) |
| Assignment of all entries to the given value. | |
| void | operator= (Foam::zero) |
| Assignment of all entries to zero. | |
| void | operator= (List< T > &&list) |
| Move assignment. Takes constant time. | |
| template<int SizeMin> | |
| void | operator= (DynamicList< T, SizeMin > &&list) |
| Move assignment. Takes constant time. | |
| Istream & | readList (Istream &is) |
| Read List from Istream, discarding contents of existing List. | |
| void | shallowCopy (const UList< T > &)=delete |
| No shallowCopy permitted. | |
| template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>> | |
| bool | set (const label i, bool val=true) |
| A bitSet::set() method for a list of bool. | |
| void | append (const T &val) |
| Append an element at the end of the list. | |
| void | append (T &&val) |
| Move append an element at the end of the list. | |
| void | append (const UList< T > &list) |
| Append a List to the end of this list. | |
| template<class Addr> | |
| void | append (const IndirectListBase< T, Addr > &list) |
| Append IndirectList contents at the end of this list. | |
| label | appendUniq (const T &val) |
| Same as push_uniq(). | |
| void | setSize (label n) |
| Alias for resize(). | |
| void | setSize (label n, const T &val) |
| Alias for resize(). | |
| template<typename E> | |
| List (const Expression::ListExpression< E > &expr) | |
| Construct from value expression. | |
| template<typename E> | |
| void | operator= (const Expression::ListExpression< E > &expr) |
| Assign values from expression. | |
| void | resize (const label len) |
| Public Member Functions inherited from UList< T > | |
| UList (const UList< T > &) noexcept=default | |
| Copy construct, shallow copy. | |
| UList (UList< T > &&) noexcept=default | |
| Move construct, shallow copy. | |
| UList< T > & | operator= (const UList< T > &)=delete |
| No copy assignment (default: shallow copy). | |
| UList< T > & | operator= (UList< T > &&) noexcept=default |
| Move assignment, shallow copy. | |
| constexpr | UList () noexcept |
| Default construct, zero-sized and nullptr. | |
| UList (T *__restrict__ ptr, const label len) noexcept | |
| Construct from components. | |
| UList (SubList< T > &&) noexcept | |
| Move construct from a SubList, shallow copy. | |
| label | fcIndex (const label i) const noexcept |
| The forward circular index. The next index in the list which returns to the first at the end of the list. | |
| label | rcIndex (const label i) const noexcept |
| The reverse circular index. The previous index in the list which returns to the last at the beginning of the list. | |
| const T & | fcValue (const label i) const |
| Return forward circular value (ie, next value in the list). | |
| T & | fcValue (const label i) |
| Return forward circular value (ie, next value in the list). | |
| const T & | rcValue (const label i) const |
| Return reverse circular value (ie, previous value in the list). | |
| T & | rcValue (const label i) |
| Return reverse circular value (ie, previous value in the list). | |
| const T * | cdata () const noexcept |
| Return pointer to the underlying array serving as data storage. | |
| T * | data () noexcept |
| Return pointer to the underlying array serving as data storage. | |
| const char * | cdata_bytes () const noexcept |
| Return pointer to the underlying array serving as data storage,. | |
| char * | data_bytes () noexcept |
| Return pointer to the underlying array serving as data storage,. | |
| T & | front () |
| Access first element of the list, position [0]. | |
| const T & | front () const |
| Access first element of the list. | |
| T & | back () |
| Access last element of the list, position [size()-1]. | |
| const T & | back () const |
| Access last element of the list, position [size()-1]. | |
| std::streamsize | size_bytes () const noexcept |
| Number of contiguous bytes for the List data. | |
| std::streamsize | byteSize () const |
| Number of contiguous bytes for the List data, runtime FatalError if type is not contiguous. | |
| void | checkStart (const label start) const |
| Check start is within valid range [0,size). | |
| void | checkSize (const label size) const |
| Check size is within valid range [0,size]. | |
| void | checkRange (const label start, const label len) const |
| Check that start and length define a valid range. | |
| void | checkIndex (const label i) const |
| Check index is within valid range [0,size). | |
| bool | uniform () const |
| True if all entries have identical values, and list is non-empty. | |
| bool | contains (const T &val) const |
| True if the value is contained in the list. | |
| bool | contains (const T &val, label pos, label len=-1) const |
| Is the value contained in the list? | |
| label | find (const T &val) const |
| Find index of the first occurrence of the value. | |
| label | find (const T &val, label pos, label len=-1) const |
| Find index of the first occurrence of the value. | |
| label | rfind (const T &val, label pos=-1) const |
| Find index of the last occurrence of the value. | |
| void | moveFirst (const label i) |
| Move element to the first position. | |
| void | moveLast (const label i) |
| Move element to the last position. | |
| void | swapFirst (const label i) |
| Swap element with the first element. Fatal on an empty list. | |
| void | swapLast (const label i) |
| Swap element with the last element. Fatal on an empty list. | |
| void | shallowCopy (T *__restrict__ ptr, const label len) noexcept |
| Copy the pointer and size. | |
| void | shallowCopy (std::nullptr_t) noexcept |
| Copy nullptr and zero size. | |
| void | shallowCopy (const UList< T > &list) noexcept |
| Copy the pointer and size held by the given UList. | |
| void | deepCopy (const UList< T > &list) |
| Copy elements of the given UList. Sizes must match! | |
| template<class Addr> | |
| void | deepCopy (const IndirectListBase< T, Addr > &list) |
| Copy elements of the given indirect list. Sizes must match! | |
| SubList< T > | slice (const label pos, label len=-1) |
| Return SubList slice (non-const access) - no range checking. | |
| const SubList< T > | slice (const label pos, label len=-1) const |
| Return SubList slice (const access) - no range checking. | |
| SubList< T > | slice (const labelRange &range) |
| Return SubList slice (non-const access) - with range checking. | |
| const SubList< T > | slice (const labelRange &range) const |
| Return SubList slice (const access) - with range checking. | |
| T & | operator[] (const label i) |
| Return element of UList. | |
| const T & | operator[] (const label i) const |
| Return element of constant UList. | |
| operator const Foam::List< T > & () const | |
| Allow cast to a const List<T>&. | |
| void | operator= (const T &val) |
| Assignment of all entries to the given value. | |
| void | operator= (Foam::zero) |
| Assignment of all entries to zero. | |
| iterator | begin () noexcept |
| Return an iterator to begin traversing the UList. | |
| iterator | end () noexcept |
| Return an iterator to end traversing the UList. | |
| iterator | begin (const label i) noexcept |
| Return iterator at offset i from begin, clamped to [0,size] range. | |
| const_iterator | cbegin () const noexcept |
| Return const_iterator to begin traversing the constant UList. | |
| const_iterator | cend () const noexcept |
| Return const_iterator to end traversing the constant UList. | |
| const_iterator | begin () const noexcept |
| Return const_iterator to begin traversing the constant UList. | |
| const_iterator | end () const noexcept |
| Return const_iterator to end traversing the constant UList. | |
| const_iterator | cbegin (const label i) const noexcept |
| Return const_iterator at offset i from begin, clamped to [0,size] range. | |
| const_iterator | begin (const label i) const noexcept |
| Return const_iterator at offset i from begin, clamped to [0,size] range. | |
| reverse_iterator | rbegin () |
| Return reverse_iterator to begin reverse traversing the UList. | |
| reverse_iterator | rend () |
| Return reverse_iterator to end reverse traversing the UList. | |
| const_reverse_iterator | crbegin () const |
| Return const_reverse_iterator to begin reverse traversing the UList. | |
| const_reverse_iterator | crend () const |
| Return const_reverse_iterator to end reverse traversing the UList. | |
| const_reverse_iterator | rbegin () const |
| Return const_reverse_iterator to begin reverse traversing the UList. | |
| const_reverse_iterator | rend () const |
| Return const_reverse_iterator to end reverse traversing the UList. | |
| bool | empty () const noexcept |
| True if List is empty (ie, size() is zero). | |
| label | size () const noexcept |
| The number of elements in the container. | |
| label | capacity () const noexcept |
| Size of the underlying storage. | |
| void | swap (UList< T > &list) noexcept |
| Swap content with another UList of the same type in constant time. | |
| bool | operator== (const UList< T > &list) const |
| Equality operation on ULists of the same type. | |
| bool | operator!= (const UList< T > &list) const |
| The opposite of the equality operation. Takes linear time. | |
| bool | operator< (const UList< T > &list) const |
| Compare two ULists lexicographically. Takes linear time. | |
| bool | operator> (const UList< T > &list) const |
| Compare two ULists lexicographically. Takes linear time. | |
| bool | operator<= (const UList< T > &list) const |
| Return true if !(a > b). Takes linear time. | |
| bool | operator>= (const UList< T > &list) const |
| Return true if !(a < b). Takes linear time. | |
| Istream & | readList (Istream &is) |
| Read List contents from Istream. | |
| void | writeEntry (const word &keyword, Ostream &os) const |
| Write the List as a dictionary entry with keyword. | |
| Ostream & | writeList (Ostream &os, const label shortLen=0) const |
| Write List, with line-breaks in ASCII when length exceeds shortLen. | |
| template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>> | |
| bool | all () const |
| True if all entries are 'true' or if the list is empty. | |
| template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>> | |
| bool | any () const |
| True if any entries are 'true'. | |
| template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>> | |
| bool | none () const |
| True if no entries are 'true'. | |
| template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>> | |
| bool | test (const label i) const |
Test bool value at specified position, always false for out-of-range access. | |
| template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>> | |
| bool | get (const label i) const |
Return bool value at specified position, always false for out-of-range access. | |
| template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>> | |
| bool | unset (const label i) |
Unset the bool entry at specified position, always false for out-of-range access. | |
| template<class TypeT = T, class = std::enable_if_t<stdFoam::is_char_v<TypeT>>> | |
| std::string_view | view () const |
| Return a string_view of the charList. Content is non-modifiable. | |
| T & | first () |
| Access first element of the list, position [0]. | |
| const T & | first () const |
| Access first element of the list. | |
| T & | last () |
| Access last element of the list, position [size()-1]. | |
| const T & | last () const |
| Access last element of the list, position [size()-1]. | |
| bool | found (const T &val, label pos=0) const |
| Same as contains(). | |
| auto | expr () const |
| Wrap value as expression. | |
| template<typename E> | |
| void | operator= (const Expression::ListExpression< E > &expr) |
| Assign values from expression. | |
| Public Member Functions inherited from surfaceFormatsCore | |
| surfaceFormatsCore ()=default | |
| Default construct. | |
| virtual | ~surfaceFormatsCore ()=default |
| Destructor. | |
Static Public Member Functions | |

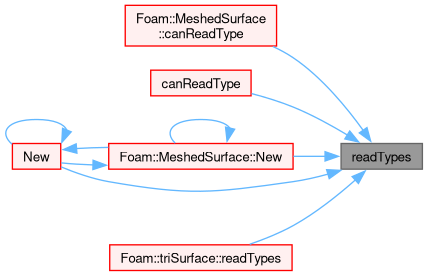

| static wordHashSet | readTypes () |
| Known readable file-types, without friends or proxies. | |
| static wordHashSet | writeTypes () |
| Known writable file-types, without friends or proxies. | |

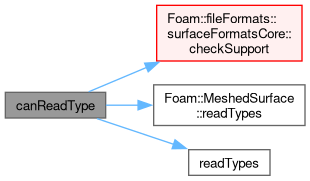

| static bool | canReadType (const word &fileType, bool verbose=false) |
| Can we read this file format? Also checks friend types. | |
| static bool | canWriteType (const word &fileType, bool verbose=false) |
| Can we write this file format? Also checks friend types. | |
| static bool | canRead (const fileName &name, bool verbose=false) |
| Can we read this file format? | |

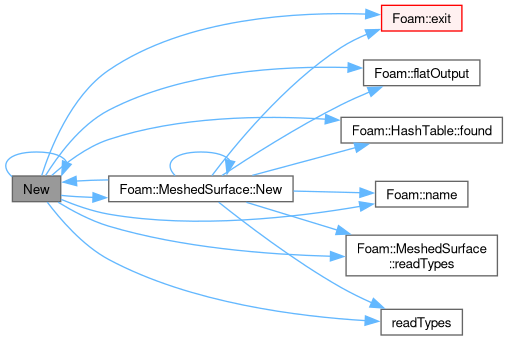

| static autoPtr< UnsortedMeshedSurface > | New (const fileName &name, const word &fileType, bool mandatory=true) |
| Read construct from filename with given file type. | |
| static autoPtr< UnsortedMeshedSurface > | New (const fileName &name) |
| Read construct from filename (implicit extension). | |
| static void | write (const fileName &name, const UnsortedMeshedSurface< Face > &surf, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null) |
| Write to file, select based on its extension. | |
| static void | write (const fileName &name, const word &fileType, const UnsortedMeshedSurface< Face > &surf, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null) |
| Write to file with given format type. | |
| Static Public Member Functions inherited from MeshedSurface< Face > | |
| static wordHashSet | readTypes () |
| Known readable file-types, without friends or proxies. | |
| static wordHashSet | writeTypes () |
| Known writable file-types, without friends or proxies. | |
| static bool | canReadType (const word &fileType, bool verbose=false) |
| Can we read this file format? Also checks friend types. | |
| static bool | canWriteType (const word &fileType, bool verbose=false) |
| Can we write this file format? Also checks proxy types. | |
| static bool | canRead (const fileName &name, bool verbose=false) |
| Can we read this file format? | |
| static autoPtr< MeshedSurface > | New (const fileName &name, const word &fileType, bool mandatory=true) |
| Read construct from filename with given file type. | |
| static autoPtr< MeshedSurface > | New (const fileName &name) |
| Read construct from filename (file type implicit from extension). | |
| static void | write (const fileName &name, const MeshedSurface< Face > &surf, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null) |
| Write to file, selecting writer based on its extension. | |
| static void | write (const fileName &name, const word &fileType, const MeshedSurface< Face > &surf, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null) |
| Write to file, selecting writer based on the given extension. | |
| Static Public Member Functions inherited from List< T > | |
| static const List< T > & | null () noexcept |
| Return a null List (reference to a nullObject). Behaves like an empty List. | |
| Static Public Member Functions inherited from UList< T > | |
| static const UList< T > & | null () noexcept |
| Return a null UList (reference to a nullObject). Behaves like an empty UList. | |
| static constexpr label | max_size () noexcept |
| The size of the largest possible UList. | |
| Static Public Member Functions inherited from surfaceFormatsCore | |
| static bool | checkSupport (const wordHashSet &available, const word &fileType, const bool verbose=false, const char *functionName=nullptr) |
| Verbose checking of fileType in the list of available types. | |
| static fileName | findFile (const IOobject &io, const bool isGlobal=true) |
| Use IOobject information to resolve file to load from, or empty if the file does not exist. | |
| static fileName | findFile (const IOobject &io, const dictionary &dict, const bool isGlobal=true) |
| Use IOobject information to resolve file to load from, or empty if the file does not exist. | |
Protected Member Functions | |
| labelList & | storedZoneIds () |
| Return non-const access to the zone Ids. | |
| List< surfZoneIdentifier > & | storedZoneToc () |
| Return non-const access to the zone table-of-contents. | |
| virtual void | remapFaces (const labelUList &faceMapNewToOld) |
| Set new zones from faceMap. | |
| Protected Member Functions inherited from MeshedSurface< Face > | |
| void | transcribe (MeshedSurface< face > &surf) |
| Transfer points/zones from 'face' to other other shapes. | |
| void | checkZones (const bool verbose=true) |
| Sanity check/resizing on zones. | |
| pointField & | storedPoints () |
| Non-const access to global points. | |
| List< Face > & | storedFaces () |
| Non-const access to the faces. | |
| labelList & | storedFaceIds () |
| Non-const access to face ids. | |
| surfZoneList & | storedZones () |
| Non-const access to the zones. | |
| void | sortFacesAndStore (DynamicList< Face > &unsortedFaces, DynamicList< label > &zoneIds, DynamicList< label > &elemIds, bool sorted) |
| Sort faces by zones and store sorted faces. | |
| void | transcribe (MeshedSurface< face > &surf) |
| void | transcribe (MeshedSurface< face > &surf) |
| void | transcribe (MeshedSurface< face > &surf) |
| Protected Member Functions inherited from UList< T > | |
| void | setAddressableSize (const label n) noexcept |
| Set addressed size to be inconsistent with allocated storage. | |
| void | size (const label n) |
| Older name for setAddressableSize. | |
| void | writeEntry (Ostream &os) const |
| Write the UList with its compound type. | |
| labelRange | validateRange (const labelRange &requestedRange) const |
| Return a validated (start,size) subset range, which means that it always addresses a valid section of the list. | |
| void | fill_uniform (const T &val) |
| Assign all entries to the given value. | |
| void | fill_uniform (Foam::zero) |
| Assign all entries to zero. | |
Friends | |
| template<class Face2> | |
| class | MeshedSurface |
| template<class Face2> | |
| class | UnsortedMeshedSurface |
| class | surfMesh |
| Istream & | operator>> (Istream &is, UnsortedMeshedSurface< Face > &surf) |
| Read UnsortedMeshedSurface from Istream. | |
| Ostream & | operator<< (Ostream &os, const UnsortedMeshedSurface< Face > &surf) |
| Write UnsortedMeshedSurface to Ostream. | |
Additional Inherited Members | |
| Static Public Attributes inherited from surfaceFormatsCore | |
| static word | nativeExt |
| The file extension corresponding to 'native' surface format. | |
| Static Protected Member Functions inherited from surfaceFormatsCore | |
| static string | getLineNoComment (ISstream &is, const char comment='#') |
| Read non-empty and non-comment line. | |
| template<class Container> | |
| static List< surfZone > | oneZone (const Container &container, const word &name="zone0") |
| Return a surfZone list with a single entry, the size of which corresponds to that of the container. | |
| static labelList | getSelectedPatches (const surfZoneList &patches, const wordRes &allow, const wordRes &deny=wordRes()) |
| Return ids for zone/patch that match by name. | |
| static fileName | relativeFilePath (const IOobject &io, const fileName &f, const bool isGlobal=true) |
| Return fileName. | |
| static fileName | checkFile (const IOobject &io, const bool isGlobal=true) |
| Return fileName to load IOobject from. | |
| static fileName | checkFile (const IOobject &io, const dictionary &dict, const bool isGlobal=true) |
| Return fileName to load IOobject from. | |
A surface geometry mesh, in which the surface zone information is conveyed by the 'zoneId' associated with each face.
This form of surface description is particularly useful for reading in surface meshes from third-party formats (eg, obj, stl, gts, etc.). It can also be particularly useful for situations in which the surface many be adjusted in an arbitrary manner without worrying about needed to adjust the zone information (eg, surface refinement).
Definition at line 77 of file UnsortedMeshedSurface.H.
| typedef Face face_type |
The face type (same as the underlying PrimitivePatch).
Definition at line 182 of file UnsortedMeshedSurface.H.
| typedef point point_type |
The point type (same as the underlying PrimitivePatch).
Definition at line 187 of file UnsortedMeshedSurface.H.
| UnsortedMeshedSurface | ( | ) |
Default construct.
Definition at line 174 of file UnsortedMeshedSurface.C.

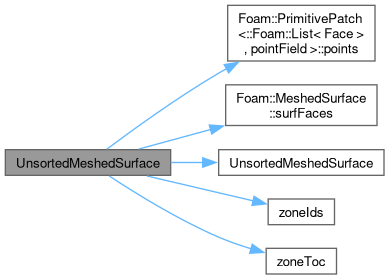

| UnsortedMeshedSurface | ( | const UnsortedMeshedSurface< Face > & | surf | ) |
Copy construct.
Definition at line 181 of file UnsortedMeshedSurface.C.
References PrimitivePatch<::Foam::List< Face >, pointField >::points(), MeshedSurface< Face >::surfFaces(), UnsortedMeshedSurface, zoneIds(), and zoneToc().

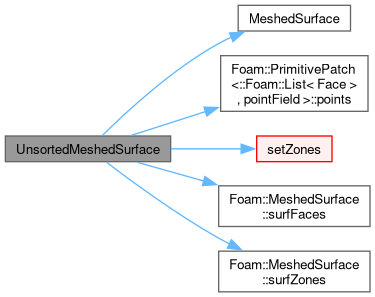

| UnsortedMeshedSurface | ( | const MeshedSurface< Face > & | surf | ) |
Construct from a MeshedSurface.
Definition at line 193 of file UnsortedMeshedSurface.C.
References MeshedSurface, PrimitivePatch<::Foam::List< Face >, pointField >::points(), setZones(), MeshedSurface< Face >::surfFaces(), and MeshedSurface< Face >::surfZones().
| UnsortedMeshedSurface | ( | UnsortedMeshedSurface< Face > && | surf | ) |
Move construct from a UnsortedMeshedSurface.
Definition at line 207 of file UnsortedMeshedSurface.C.
References transfer(), and UnsortedMeshedSurface.

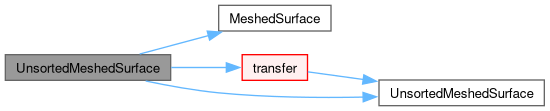

| UnsortedMeshedSurface | ( | MeshedSurface< Face > && | surf | ) |
Move construct from MeshedSurface.
Definition at line 219 of file UnsortedMeshedSurface.C.
References MeshedSurface, transfer(), and UnsortedMeshedSurface.
| UnsortedMeshedSurface | ( | pointField && | pointLst, |
| List< Face > && | faceLst, | ||
| List< label > && | zoneIds, | ||
| UList< surfZoneIdentifier > & | tocInfo ) |
Move construct from components (points, faces, zone ids).
Zone information is fairly lightweight and is copied.
Definition at line 231 of file UnsortedMeshedSurface.C.
References zoneIds().
|
explicit |
Construct from file name (uses extension to determine type).
Definition at line 259 of file UnsortedMeshedSurface.C.
References Foam::name(), read(), and UnsortedMeshedSurface.
Construct from file name with given format type.
If the format type is "", uses the file extension.
Definition at line 246 of file UnsortedMeshedSurface.C.
References Foam::name(), read(), and UnsortedMeshedSurface.
|
explicit |
Construct from Istream.
Definition at line 271 of file UnsortedMeshedSurface.C.
References UnsortedMeshedSurface.
|

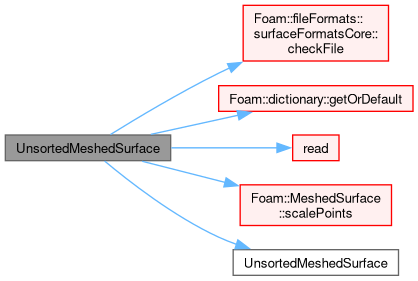

explicit |
Construct from database (as surfMesh) with default name.
Definition at line 283 of file UnsortedMeshedSurface.C.
References MeshedSurface, runTime, transfer(), and UnsortedMeshedSurface.
Construct from database (as surfMesh) with given surface name.
Definition at line 296 of file UnsortedMeshedSurface.C.
References MeshedSurface, runTime, transfer(), and UnsortedMeshedSurface.
| UnsortedMeshedSurface | ( | const IOobject & | io, |
| const dictionary & | dict, | ||
| const bool | isGlobal = true ) |
Read construct using IO to find the file location.
Dictionary may contain the following entries:
file = alternative file name (default is dictionary name)fileType = file format (default is from file extension)scale (eg, 0.001: mm to m)| isGlobal | resolve as a global file |
Definition at line 310 of file UnsortedMeshedSurface.C.
References surfaceFormatsCore::checkFile(), dict, dictionary::getOrDefault(), io, word::null, read(), MeshedSurface< Face >::scalePoints(), and UnsortedMeshedSurface.
|
virtualdefault |
Destructor.
|
inlineprotected |
Return non-const access to the zone Ids.
Definition at line 156 of file UnsortedMeshedSurface.H.
Referenced by GTSsurfaceFormat< Face >::read(), and releaseZoneIds().
|
inlineprotected |
Return non-const access to the zone table-of-contents.
Definition at line 164 of file UnsortedMeshedSurface.H.
Referenced by GTSsurfaceFormat< Face >::read().
|
protectedvirtual |
Set new zones from faceMap.
Reimplemented from MeshedSurface< Face >.
Definition at line 428 of file UnsortedMeshedSurface.C.
References UList< T >::empty(), forAll, setOneZone(), and UList< T >::size().
| TypeName | ( | "UnsortedMeshedSurface< Face >" | ) |
Declare type-name, virtual type (with debug switch).
|
static |
Known readable file-types, without friends or proxies.
Definition at line 34 of file UnsortedMeshedSurface.C.
Referenced by MeshedSurface< Face >::canReadType(), canReadType(), MeshedSurface< Face >::New(), New(), and triSurface::readTypes().
|
static |
Known writable file-types, without friends or proxies.
Definition at line 41 of file UnsortedMeshedSurface.C.
Referenced by canWriteType(), and write().
|
static |
Can we read this file format? Also checks friend types.
Definition at line 48 of file UnsortedMeshedSurface.C.
References surfaceFormatsCore::checkSupport(), MeshedSurface< Face >::readTypes(), and readTypes().
Referenced by canRead().
|
static |
Can we write this file format? Also checks friend types.
Definition at line 65 of file UnsortedMeshedSurface.C.
References surfaceFormatsCore::checkSupport(), and writeTypes().
|
static |
Can we read this file format?
Definition at line 82 of file UnsortedMeshedSurface.C.
References canReadType(), and Foam::name().
| declareRunTimeSelectionTable | ( | autoPtr | , |
| UnsortedMeshedSurface< Face > | , | ||
| fileExtension | , | ||
| (const fileName &name) | , | ||
| (name) | ) |
|
static |
Read construct from filename with given file type.
Definition at line 29 of file UnsortedMeshedSurfaceNew.C.
References DebugInFunction, Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::flatOutput(), HashTable< T, Key, Hash >::found(), Foam::name(), MeshedSurface< Face >::New(), New(), Foam::nl, MeshedSurface< Face >::readTypes(), and readTypes().
Referenced by MeshedSurface< Face >::New(), New(), and New().
|
static |
Read construct from filename (implicit extension).
Definition at line 108 of file UnsortedMeshedSurfaceNew.C.
References Foam::name(), and New().
| declareMemberFunctionSelectionTable | ( | void | , |
| UnsortedMeshedSurface< Face > | , | ||
| write | , | ||
| fileExtension | , | ||
| (const fileName &name, const UnsortedMeshedSurface< Face > &surf, IOstreamOption streamOpt, const dictionary &options) | , | ||
| (name, surf, streamOpt, options) | ) |
|
static |
Write to file, select based on its extension.
Definition at line 100 of file UnsortedMeshedSurface.C.
References Foam::name(), UnsortedMeshedSurface, and write().
|
static |
Write to file with given format type.
If the format type is "", uses the file extension.
Definition at line 113 of file UnsortedMeshedSurface.C.
References DebugInFunction, Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::flatOutput(), HashTable< T, Key, Hash >::found(), Foam::name(), Foam::nl, UnsortedMeshedSurface, MeshedSurfaceProxy< Face >::write(), write(), MeshedSurfaceProxy< Face >::writeTypes(), and writeTypes().
|
inline |
The surface size is the number of faces.
Definition at line 400 of file UnsortedMeshedSurface.H.
Referenced by setOneZone(), setZones(), setZones(), setZones(), and GTSsurfaceFormat< Face >::write().
| void setSize | ( | const label | s | ) |
Reset size of face and zone list.
Definition at line 486 of file UnsortedMeshedSurface.C.
References s(), and MeshedSurface< Face >::storedFaces().
|
inlinevirtual |
Return const access to the zone ids.
Definition at line 413 of file UnsortedMeshedSurface.H.
Referenced by GTSsurfaceFormat< Face >::read(), UnsortedMeshedSurface(), UnsortedMeshedSurface(), GTSsurfaceFormat< Face >::write(), TRIsurfaceFormat< Face >::write(), VTKsurfaceFormat< Face >::write(), VTPsurfaceFormat< Face >::write(), and STLsurfaceFormat< Face >::writeBinary().
|
inline |
Return const access to the zone table-of-contents.
Definition at line 421 of file UnsortedMeshedSurface.H.
Referenced by UnsortedMeshedSurface(), GTSsurfaceFormat< Face >::write(), TRIsurfaceFormat< Face >::write(), and STLsurfaceFormat< Face >::writeAscii().
| Foam::surfZoneList sortedZones | ( | labelList & | faceMap | ) | const |
Sort faces according to zoneIds.
Returns a surfZoneList and sets faceMap to index within faces() (i.e. map from original,unsorted to sorted)
Definition at line 504 of file UnsortedMeshedSurface.C.
References surfZoneIdentifier::defaultName(), Foam::faceMap(), forAll, forAllIters, HashTable< T, Key, Hash >::insert(), HashTable< T, Key, Hash >::lookup(), name, and UList< T >::size().
Referenced by MeshedSurface< Face >::MeshedSurface(), MeshedSurface< Face >::transfer(), AC3DsurfaceFormat< Face >::write(), TRIsurfaceFormat< Face >::write(), and STLsurfaceFormat< Face >::writeAscii().
| void setOneZone | ( | ) |
Set zones to 0 and set a single zone.
Definition at line 333 of file UnsortedMeshedSurface.C.
References UList< T >::empty(), name, MeshedSurface< Face >::removeZones(), and size().
Referenced by remapFaces().
| void setZones | ( | const surfZoneList & | zoneLst | ) |
Set zone ids and zones.
Definition at line 353 of file UnsortedMeshedSurface.C.
References forAll, MeshedSurface< Face >::removeZones(), UList< T >::size(), and size().
Referenced by transfer(), and UnsortedMeshedSurface().
| void setZones | ( | const labelUList & | sizes, |
| const UList< word > & | names ) |
Set zone ids and zones.
Definition at line 375 of file UnsortedMeshedSurface.C.
References forAll, names, MeshedSurface< Face >::removeZones(), UList< T >::size(), and size().
| void setZones | ( | const labelUList & | sizes | ) |
Set zone ids and zones with default names.
Definition at line 400 of file UnsortedMeshedSurface.C.
References surfZoneIdentifier::defaultName(), forAll, MeshedSurface< Face >::removeZones(), UList< T >::size(), and size().
|
virtual |
Clear all storage.
Reimplemented from MeshedSurface< Face >.
Definition at line 495 of file UnsortedMeshedSurface.C.
References MeshedSurface< Face >::clear().
Referenced by MeshedSurface< Face >::transfer(), and transfer().
|
inline |
Create mappings for a sub-surface.
| [in] | include | the faces to select |
| [out] | pointMap | from new to old localPoints |
| [out] | faceMap | from new to old localFaces |
Definition at line 471 of file UnsortedMeshedSurface.H.
Referenced by subsetMesh(), and subsetMesh().
| Foam::UnsortedMeshedSurface< Face > subsetMesh | ( | const UList< bool > & | include, |
| labelList & | pointMap, | ||
| labelList & | faceMap ) const |
Return a new surface subsetted on the selected faces.
| [in] | include | the faces to select |
| [out] | pointMap | from new to old localPoints |
| [out] | faceMap | from new to old localFaces |
Definition at line 627 of file UnsortedMeshedSurface.C.
References Foam::faceMap(), and subsetMeshMap().
Referenced by subsetMesh(), and subsetMesh().
| Foam::UnsortedMeshedSurface< Face > subsetMesh | ( | const bitSet & | include, |
| labelList & | pointMap, | ||
| labelList & | faceMap ) const |
Return a new surface subsetted on the selected faces.
| [in] | include | the faces to select |
| [out] | pointMap | from new to old localPoints |
| [out] | faceMap | from new to old localFaces |
Definition at line 641 of file UnsortedMeshedSurface.C.
References Foam::faceMap(), and subsetMeshMap().
| Foam::UnsortedMeshedSurface< Face > subsetMesh | ( | const UList< bool > & | include | ) | const |
Return a new surface subsetted on the selected faces.
| [in] | include | the faces to select |
Definition at line 655 of file UnsortedMeshedSurface.C.
References Foam::faceMap(), and subsetMesh().
| Foam::UnsortedMeshedSurface< Face > subsetMesh | ( | const bitSet & | include | ) | const |
Return a new surface subsetted on the selected faces.
| [in] | include | the faces to select |
Definition at line 667 of file UnsortedMeshedSurface.C.
References Foam::faceMap(), and subsetMesh().
|
delete |
Swap contents - disabled.
| void swap | ( | UnsortedMeshedSurface< Face > & | surf | ) |
Swap contents.
Definition at line 678 of file UnsortedMeshedSurface.C.
References List< T >::clear(), PrimitivePatch< FaceList, PointField >::clearOut(), PrimitivePatch<::Foam::List< Face >, pointField >::clearOut(), MeshedSurface< Face >::storedFaces(), MeshedSurface< Face >::storedPoints(), MeshedSurface< Face >::storedZones(), and UnsortedMeshedSurface.
| void transfer | ( | UnsortedMeshedSurface< Face > & | surf | ) |
Transfer the contents of the argument and annul the argument.
Definition at line 702 of file UnsortedMeshedSurface.C.
References clear(), clear(), MeshedSurface< Face >::storedFaces(), MeshedSurface< Face >::storedPoints(), and UnsortedMeshedSurface.
Referenced by MeshedSurface< Face >::MeshedSurface(), operator=(), read(), read(), UnsortedMeshedSurface(), UnsortedMeshedSurface(), UnsortedMeshedSurface(), and UnsortedMeshedSurface().
| void transfer | ( | MeshedSurface< Face > & | surf | ) |
Transfer the contents of the argument and annul the argument.
Definition at line 724 of file UnsortedMeshedSurface.C.
References clear(), MeshedSurface, setZones(), MeshedSurface< Face >::surfZones(), and MeshedSurface< Face >::transfer().
| Foam::autoPtr< Foam::labelList > releaseZoneIds | ( | ) |
Release (clear) stored zoneIds and return for reuse.
Definition at line 741 of file UnsortedMeshedSurface.C.
References autoPtr< T >::New(), and storedZoneIds().
Read from file with given format type.
If the format type is "", uses the file extension.
Definition at line 757 of file UnsortedMeshedSurface.C.
References clear(), Foam::name(), Foam::New(), and transfer().
Referenced by UnsortedMeshedSurface(), UnsortedMeshedSurface(), and UnsortedMeshedSurface().
|
virtual |
Read from file. Chooses reader based on detected extension.
Reimplemented from MeshedSurface< Face >.
Reimplemented in GTSsurfaceFormat< Face >.
Definition at line 748 of file UnsortedMeshedSurface.C.
References clear(), Foam::name(), Foam::New(), and transfer().
|
inlinevirtual |
Write to file, choosing writer based on the file extension.
Reimplemented from MeshedSurface< Face >.
Reimplemented in GTSsurfaceFormat< Face >.
Definition at line 574 of file UnsortedMeshedSurface.H.
|
inlinevirtual |
Write to file with given format type.
If the format type is "", uses the file extension.
Reimplemented from MeshedSurface< Face >.
Reimplemented in GTSsurfaceFormat< Face >.
Definition at line 589 of file UnsortedMeshedSurface.H.
| void write | ( | const Time & | t, |
| const word & | surfName = word::null ) const |
Write to database.
Definition at line 770 of file UnsortedMeshedSurface.C.
References MeshedSurfaceProxy< Face >::write().
| void operator= | ( | const UnsortedMeshedSurface< Face > & | surf | ) |
Copy assignment.
Definition at line 783 of file UnsortedMeshedSurface.C.
References clear(), MeshedSurface< Face >::storedFaces(), MeshedSurface< Face >::storedPoints(), and UnsortedMeshedSurface.
| void operator= | ( | UnsortedMeshedSurface< Face > && | surf | ) |
Move assignment.
Definition at line 803 of file UnsortedMeshedSurface.C.
References transfer(), and UnsortedMeshedSurface.
| operator MeshedSurfaceProxy< Face > | ( | ) | const |
Conversion operator to MeshedSurfaceProxy.
|
friend |
Definition at line 82 of file UnsortedMeshedSurface.H.
Referenced by transfer(), UnsortedMeshedSurface(), UnsortedMeshedSurface(), UnsortedMeshedSurface(), UnsortedMeshedSurface(), GTSsurfaceFormat< Face >::write(), and GTSsurfaceFormat< Face >::~GTSsurfaceFormat().
|
friend |
Definition at line 83 of file UnsortedMeshedSurface.H.
Referenced by operator=(), operator=(), swap(), transfer(), UnsortedMeshedSurface(), UnsortedMeshedSurface(), UnsortedMeshedSurface(), UnsortedMeshedSurface(), UnsortedMeshedSurface(), UnsortedMeshedSurface(), UnsortedMeshedSurface(), UnsortedMeshedSurface(), UnsortedMeshedSurface(), GTSsurfaceFormat< Face >::write(), write(), write(), and GTSsurfaceFormat< Face >::~GTSsurfaceFormat().
|
friend |
Definition at line 86 of file UnsortedMeshedSurface.H.
|
friend |
Read UnsortedMeshedSurface from Istream.
Avoid using to read/write file content (fragile).
|
friend |
Write UnsortedMeshedSurface to Ostream.
Avoid using to read/write file content (fragile).
1.16.1
