This boundary condition provides a fixed heat constraint on temperature (i.e. T) to specify temperature gradient through an input heat source which can either be specified as absolute power [W], or as flux [W/m2]. More...

#include <atmTurbulentHeatFluxTemperatureFvPatchScalarField.H>

Inheritance diagram for atmTurbulentHeatFluxTemperatureFvPatchScalarField:

[legend]

Collaboration diagram for atmTurbulentHeatFluxTemperatureFvPatchScalarField:

[legend]

Public Member Functions
	TypeName ("atmTurbulentHeatFluxTemperature")
	Runtime type information.
	atmTurbulentHeatFluxTemperatureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	atmTurbulentHeatFluxTemperatureFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	atmTurbulentHeatFluxTemperatureFvPatchScalarField (const atmTurbulentHeatFluxTemperatureFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given atmTurbulentHeatFluxTemperatureFvPatchScalarField onto a new patch.
	atmTurbulentHeatFluxTemperatureFvPatchScalarField (const atmTurbulentHeatFluxTemperatureFvPatchScalarField &)
	Construct as copy.
	atmTurbulentHeatFluxTemperatureFvPatchScalarField (const atmTurbulentHeatFluxTemperatureFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
virtual void	autoMap (const fvPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const fvPatchScalarField &, const labelList &)
	Reverse map the given fvPatchField onto this fvPatchField.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	write (Ostream &) const
	Write.

Detailed Description

This boundary condition provides a fixed heat constraint on temperature (i.e. T) to specify temperature gradient through an input heat source which can either be specified as absolute power [W], or as flux [W/m2].

Required fields:

  nut    | Turbulent viscosity                   [m2/s]
  k      | Turbulent kinetic energy              [m2/s2]

Usage

Example of the boundary condition specification:

<patchName>
{
    // Mandatory entries (unmodifiable)
    type            atmTurbulentHeatFluxTemperature;
    heatSource      flux;
    alphaEff        alphaEff;

    // Mandatory entries (runtime modifiable)
    Cp0             0.001;
    q               uniform 10;

    // Optional (inherited) entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
`heatSource`	Heat source type	word	yes	-
`alphaEff`	Name of turbulent thermal diff. field [kg/m/s]	word	yes	-
`Cp0`	Specific heat capacity [m2/s2/K]	Function1<scalar>	yes	-
`q`	Heat source value [W (power) or W/m2 (flux)]	PatchFunction1<scalar>	yes	-

The inherited entries are elaborated in:

Options for the heatSource entry:

      power  | Absolute power heat source [W]
      flux   | Flux heat source           [W/m2]

Source files

Definition at line 139 of file atmTurbulentHeatFluxTemperatureFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ atmTurbulentHeatFluxTemperatureFvPatchScalarField() [1/5]

atmTurbulentHeatFluxTemperatureFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 48 of file atmTurbulentHeatFluxTemperatureFvPatchScalarField.C.

References p.

Referenced by atmTurbulentHeatFluxTemperatureFvPatchScalarField(), atmTurbulentHeatFluxTemperatureFvPatchScalarField(), atmTurbulentHeatFluxTemperatureFvPatchScalarField(), rmap(), and TypeName().

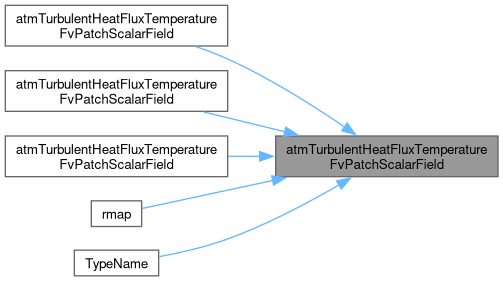

Here is the caller graph for this function:

◆ atmTurbulentHeatFluxTemperatureFvPatchScalarField() [2/5]

atmTurbulentHeatFluxTemperatureFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 80 of file atmTurbulentHeatFluxTemperatureFvPatchScalarField.C.

References dict, Foam::New(), p, and Foam::Zero.

Here is the call graph for this function:

◆ atmTurbulentHeatFluxTemperatureFvPatchScalarField() [3/5]

atmTurbulentHeatFluxTemperatureFvPatchScalarField	(	const atmTurbulentHeatFluxTemperatureFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given atmTurbulentHeatFluxTemperatureFvPatchScalarField onto a new patch.

Definition at line 63 of file atmTurbulentHeatFluxTemperatureFvPatchScalarField.C.

References atmTurbulentHeatFluxTemperatureFvPatchScalarField(), clone(), and p.

Here is the call graph for this function:

◆ atmTurbulentHeatFluxTemperatureFvPatchScalarField() [4/5]

atmTurbulentHeatFluxTemperatureFvPatchScalarField ( const atmTurbulentHeatFluxTemperatureFvPatchScalarField & atmpsf )

Construct as copy.

Definition at line 110 of file atmTurbulentHeatFluxTemperatureFvPatchScalarField.C.

References atmTurbulentHeatFluxTemperatureFvPatchScalarField(), and clone().

Here is the call graph for this function:

◆ atmTurbulentHeatFluxTemperatureFvPatchScalarField() [5/5]

atmTurbulentHeatFluxTemperatureFvPatchScalarField	(	const atmTurbulentHeatFluxTemperatureFvPatchScalarField &	atmpsf,
		const DimensionedField< scalar, volMesh > &	iF )
