blendedEdgeInterpolation< Type > Class Template Reference

linear/upwind blended differencing scheme. More...

#include <blendedEdgeInterpolation.H>

Inheritance diagram for blendedEdgeInterpolation< Type >:

Collaboration diagram for blendedEdgeInterpolation< Type >:

Public Member Functions
	TypeName ("blended")
	Runtime type information.
	blendedEdgeInterpolation (const blendedEdgeInterpolation &)=delete
	No copy construct.
void	operator= (const blendedEdgeInterpolation &)=delete
	No copy assignment.
	blendedEdgeInterpolation (const faMesh &mesh, const edgeScalarField &faceFlux, const scalar blendingFactor)
	Construct from mesh, faceFlux and blendingFactor.
	blendedEdgeInterpolation (const faMesh &mesh, Istream &is)
	Construct from mesh and Istream.
	blendedEdgeInterpolation (const faMesh &mesh, const edgeScalarField &faceFlux, Istream &is)
	Construct from mesh, faceFlux and Istream.
virtual tmp< edgeScalarField >	weights (const GeometricField< Type, faPatchField, areaMesh > &vf) const
	Return the interpolation weighting factors.
Public Member Functions inherited from linearEdgeInterpolation< Type >
	TypeName ("linear")
	Runtime type information.
	linearEdgeInterpolation (const linearEdgeInterpolation &)=delete
	No copy construct.
void	operator= (const linearEdgeInterpolation &)=delete
	No copy assignment.
	linearEdgeInterpolation (const faMesh &mesh)
	Construct from mesh.
	linearEdgeInterpolation (const faMesh &mesh, Istream &)
	Construct from Istream.
	linearEdgeInterpolation (const faMesh &mesh, const edgeScalarField &, Istream &)
	Construct from faceFlux and Istream.
tmp< edgeScalarField >	weights (const GeometricField< Type, faPatchField, areaMesh > &) const
	Return the interpolation weighting factors.
Public Member Functions inherited from edgeInterpolationScheme< Type >
	declareRunTimeSelectionTable (tmp, edgeInterpolationScheme, Mesh,(const faMesh &mesh, Istream &schemeData),(mesh, schemeData))
	declareRunTimeSelectionTable (tmp, edgeInterpolationScheme, MeshFlux,(const faMesh &mesh, const edgeScalarField &faceFlux, Istream &schemeData),(mesh, faceFlux, schemeData))
	edgeInterpolationScheme (const edgeInterpolationScheme &)=delete
	No copy construct.
void	operator= (const edgeInterpolationScheme &)=delete
	No copy assignment.
	edgeInterpolationScheme (const faMesh &mesh)
	Construct from mesh.
virtual	~edgeInterpolationScheme ()
const faMesh &	mesh () const
	Return mesh reference.
virtual bool	corrected () const
	Return true if this scheme uses an explicit correction.
virtual tmp< GeometricField< Type, faePatchField, edgeMesh > >	correction (const GeometricField< Type, faPatchField, areaMesh > &) const
	Return the explicit correction to the face-interpolate.
virtual tmp< GeometricField< Type, faePatchField, edgeMesh > >	interpolate (const GeometricField< Type, faPatchField, areaMesh > &) const
	Return the face-interpolate of the given cell field.
virtual tmp< GeometricField< Type, faePatchField, edgeMesh > >	euclidianInterpolate (const GeometricField< Type, faPatchField, areaMesh > &) const
	Return the euclidian edge-interpolate of the given area field.
tmp< GeometricField< Type, faePatchField, edgeMesh > >	interpolate (const tmp< GeometricField< Type, faPatchField, areaMesh > > &) const
	Return the face-interpolate of the given tmp cell field.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.
Public Member Functions inherited from upwindEdgeInterpolation< Type >
	TypeName ("upwind")
	Runtime type information.
	upwindEdgeInterpolation (const upwindEdgeInterpolation &)=delete
	No copy construct.
void	operator= (const upwindEdgeInterpolation &)=delete
	No copy assignment.
	upwindEdgeInterpolation (const faMesh &mesh, const edgeScalarField &faceFlux)
	Construct from faceFlux.
	upwindEdgeInterpolation (const faMesh &mesh, Istream &is)
	Construct from Istream.
	upwindEdgeInterpolation (const faMesh &mesh, const edgeScalarField &faceFlux, Istream &)
	Construct from faceFlux and Istream.

Additional Inherited Members
Static Public Member Functions inherited from edgeInterpolationScheme< Type >
static tmp< edgeInterpolationScheme< Type > >	New (const faMesh &mesh, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< edgeInterpolationScheme< Type > >	New (const faMesh &mesh, const edgeScalarField &faceFlux, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< GeometricField< Type, faePatchField, edgeMesh > >	interpolate (const GeometricField< Type, faPatchField, areaMesh > &, const tmp< edgeScalarField > &, const tmp< edgeScalarField > &)
	Return the face-interpolate of the given cell field.
static tmp< GeometricField< Type, faePatchField, edgeMesh > >	interpolate (const GeometricField< Type, faPatchField, areaMesh > &, const tmp< edgeScalarField > &)
	Return the face-interpolate of the given cell field.
static tmp< GeometricField< Type, faePatchField, edgeMesh > >	euclidianInterpolate (const GeometricField< Type, faPatchField, areaMesh > &, const tmp< edgeScalarField > &)
	Return the euclidian edge-interpolate of the given area field.

Detailed Description

template<class Type>
class Foam::blendedEdgeInterpolation< Type >

linear/upwind blended differencing scheme.

Source files

• blendedEdgeInterpolation.H
• blendedEdgeInterpolationMake.C

Definition at line 49 of file blendedEdgeInterpolation.H.

Constructor & Destructor Documentation

blendedEdgeInterpolation() [1/4]

template<class Type>

blendedEdgeInterpolation ( const blendedEdgeInterpolation< Type > & )

delete

No copy construct.

References blendedEdgeInterpolation().

Referenced by blendedEdgeInterpolation(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

blendedEdgeInterpolation() [2/4]

template<class Type>

blendedEdgeInterpolation ( const faMesh & mesh, const edgeScalarField & faceFlux, const scalar blendingFactor )

inline

Construct from mesh, faceFlux and blendingFactor.

Definition at line 88 of file blendedEdgeInterpolation.H.

References linearEdgeInterpolation< Type >::linearEdgeInterpolation(), edgeInterpolationScheme< Type >::mesh(), and upwindEdgeInterpolation< Type >::upwindEdgeInterpolation().

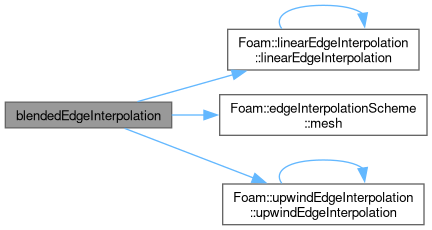

Here is the call graph for this function:

blendedEdgeInterpolation() [3/4]

template<class Type>

blendedEdgeInterpolation ( const faMesh & mesh, Istream & is )

inline

Construct from mesh and Istream.

The name of the flux field is read from the Istream and looked-up from the database

Definition at line 107 of file blendedEdgeInterpolation.H.

References linearEdgeInterpolation< Type >::linearEdgeInterpolation(), edgeInterpolationScheme< Type >::mesh(), and upwindEdgeInterpolation< Type >::upwindEdgeInterpolation().

Here is the call graph for this function:

blendedEdgeInterpolation() [4/4]

template<class Type>

blendedEdgeInterpolation ( const faMesh & mesh, const edgeScalarField & faceFlux, Istream & is )

inline

Construct from mesh, faceFlux and Istream.

Definition at line 129 of file blendedEdgeInterpolation.H.

References linearEdgeInterpolation< Type >::linearEdgeInterpolation(), edgeInterpolationScheme< Type >::mesh(), and upwindEdgeInterpolation< Type >::upwindEdgeInterpolation().

Here is the call graph for this function:

Member Function Documentation

TypeName()

template<class Type>

TypeName

(

"blended"

)

Runtime type information.

operator=()

template<class Type>

void operator= ( const blendedEdgeInterpolation< Type > & )

delete

No copy assignment.

References blendedEdgeInterpolation().

Here is the call graph for this function:

weights()

template<class Type>

virtual tmp< edgeScalarField > weights ( const GeometricField< Type, faPatchField, areaMesh > & vf ) const

inlinevirtual

Return the interpolation weighting factors.

Implements edgeInterpolationScheme< Type >.

Definition at line 148 of file blendedEdgeInterpolation.H.

References linearEdgeInterpolation< Type >::weights(), and upwindEdgeInterpolation< Type >::weights().

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• src/finiteArea/interpolation/edgeInterpolation/schemes/blended/blendedEdgeInterpolation.H
