Abstract base class for edge interpolation schemes. More...

#include <edgeInterpolationScheme.H>

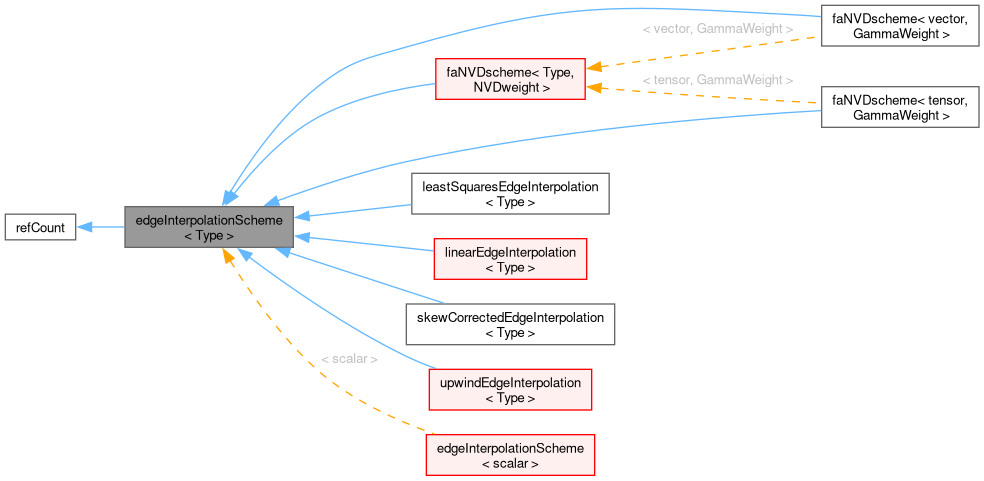

Inheritance diagram for edgeInterpolationScheme< Type >:

[legend]

Collaboration diagram for edgeInterpolationScheme< Type >:

Public Member Functions
	declareRunTimeSelectionTable (tmp, edgeInterpolationScheme, Mesh,(const faMesh &mesh, Istream &schemeData),(mesh, schemeData))
	declareRunTimeSelectionTable (tmp, edgeInterpolationScheme, MeshFlux,(const faMesh &mesh, const edgeScalarField &faceFlux, Istream &schemeData),(mesh, faceFlux, schemeData))
	edgeInterpolationScheme (const edgeInterpolationScheme &)=delete
	No copy construct.
void	operator= (const edgeInterpolationScheme &)=delete
	No copy assignment.
	edgeInterpolationScheme (const faMesh &mesh)
	Construct from mesh.
virtual	~edgeInterpolationScheme ()
const faMesh &	mesh () const
	Return mesh reference.
virtual tmp< edgeScalarField >	weights (const GeometricField< Type, faPatchField, areaMesh > &) const =0
	Return the interpolation weighting factors for the given field.
virtual bool	corrected () const
	Return true if this scheme uses an explicit correction.
virtual tmp< GeometricField< Type, faePatchField, edgeMesh > >	correction (const GeometricField< Type, faPatchField, areaMesh > &) const
	Return the explicit correction to the face-interpolate.
virtual tmp< GeometricField< Type, faePatchField, edgeMesh > >	interpolate (const GeometricField< Type, faPatchField, areaMesh > &) const
	Return the face-interpolate of the given cell field.
virtual tmp< GeometricField< Type, faePatchField, edgeMesh > >	euclidianInterpolate (const GeometricField< Type, faPatchField, areaMesh > &) const
	Return the euclidian edge-interpolate of the given area field.
tmp< GeometricField< Type, faePatchField, edgeMesh > >	interpolate (const tmp< GeometricField< Type, faPatchField, areaMesh > > &) const
	Return the face-interpolate of the given tmp cell field.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Static Public Member Functions
static tmp< edgeInterpolationScheme< Type > >	New (const faMesh &mesh, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< edgeInterpolationScheme< Type > >	New (const faMesh &mesh, const edgeScalarField &faceFlux, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< GeometricField< Type, faePatchField, edgeMesh > >	interpolate (const GeometricField< Type, faPatchField, areaMesh > &, const tmp< edgeScalarField > &, const tmp< edgeScalarField > &)
	Return the face-interpolate of the given cell field.
static tmp< GeometricField< Type, faePatchField, edgeMesh > >	interpolate (const GeometricField< Type, faPatchField, areaMesh > &, const tmp< edgeScalarField > &)
	Return the face-interpolate of the given cell field.
static tmp< GeometricField< Type, faePatchField, edgeMesh > >	euclidianInterpolate (const GeometricField< Type, faPatchField, areaMesh > &, const tmp< edgeScalarField > &)
	Return the euclidian edge-interpolate of the given area field.

Detailed Description

template<class Type>
class Foam::edgeInterpolationScheme< Type >

Abstract base class for edge interpolation schemes.

Source files

Definition at line 51 of file edgeInterpolationScheme.H.

Constructor & Destructor Documentation

◆ edgeInterpolationScheme() [1/2]

template<class Type>

edgeInterpolationScheme ( const edgeInterpolationScheme< Type > & )

delete

No copy construct.

References edgeInterpolationScheme().

Here is the call graph for this function:

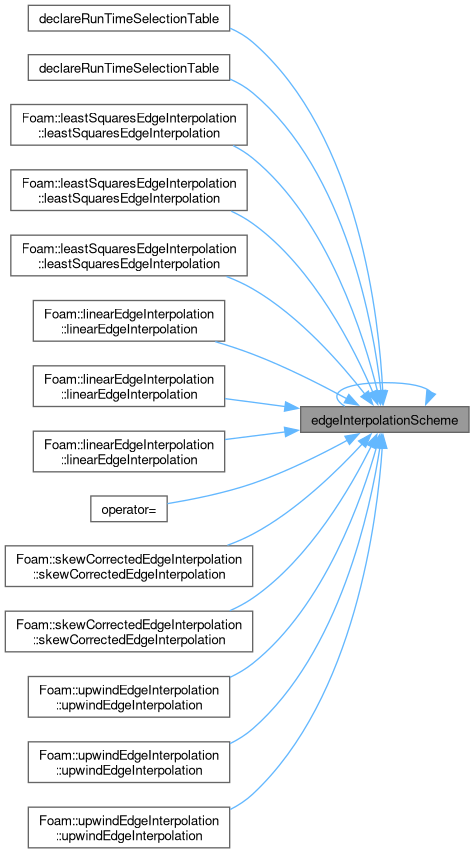

Here is the caller graph for this function:

◆ edgeInterpolationScheme() [2/2]

template<class Type>

edgeInterpolationScheme ( const faMesh & mesh )

inline

Construct from mesh.

Definition at line 111 of file edgeInterpolationScheme.H.

References mesh().

Here is the call graph for this function:

◆ ~edgeInterpolationScheme()

template<class Type>

~edgeInterpolationScheme ( )

virtual

Definition at line 120 of file edgeInterpolationScheme.C.

Member Function Documentation

◆ declareRunTimeSelectionTable() [1/2]

template<class Type>

declareRunTimeSelectionTable	(	tmp	,
		edgeInterpolationScheme< Type >	,
		Mesh	,
		(const faMesh &mesh, Istream &schemeData)	,
		(mesh, schemeData)	)

References edgeInterpolationScheme(), and mesh().

Here is the call graph for this function:

◆ declareRunTimeSelectionTable() [2/2]

template<class Type>

declareRunTimeSelectionTable	(	tmp	,
		edgeInterpolationScheme< Type >	,
		MeshFlux	,
		(const faMesh &mesh, const edgeScalarField &faceFlux, Istream &schemeData)	,
		(mesh, faceFlux, schemeData)	)

References edgeInterpolationScheme(), and mesh().

Here is the call graph for this function:

◆ operator=()

template<class Type>

void operator= ( const edgeInterpolationScheme< Type > & )

delete

No copy assignment.

References edgeInterpolationScheme().

Here is the call graph for this function:

◆ New() [1/2]

template<class Type>

Foam::tmp< Foam::edgeInterpolationScheme< Type > > New	(	const faMesh &	mesh,
		Istream &	schemeData )

static

Return new tmp interpolation scheme.

Definition at line 31 of file edgeInterpolationScheme.C.

References Foam::endl(), IOstream::eof(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, FatalIOErrorInLookup, InfoInFunction, mesh(), and Foam::nl.

Referenced by skewCorrectedEdgeInterpolation< Type >::skewCorrectedEdgeInterpolation(), and skewCorrectedEdgeInterpolation< Type >::skewCorrectedEdgeInterpolation().

Here is the call graph for this function:

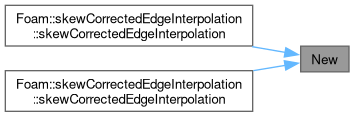

Here is the caller graph for this function:

◆ New() [2/2]

template<class Type>

Foam::tmp< Foam::edgeInterpolationScheme< Type > > New	(	const faMesh &	mesh,
		const edgeScalarField &	faceFlux,
		Istream &	schemeData )

static

Return new tmp interpolation scheme.

Definition at line 74 of file edgeInterpolationScheme.C.

References Foam::endl(), IOstream::eof(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, FatalIOErrorInLookup, InfoInFunction, and mesh().

Here is the call graph for this function:

◆ mesh()

template<class Type>

const faMesh & mesh ( ) const

inline

Return mesh reference.

Definition at line 149 of file edgeInterpolationScheme.H.

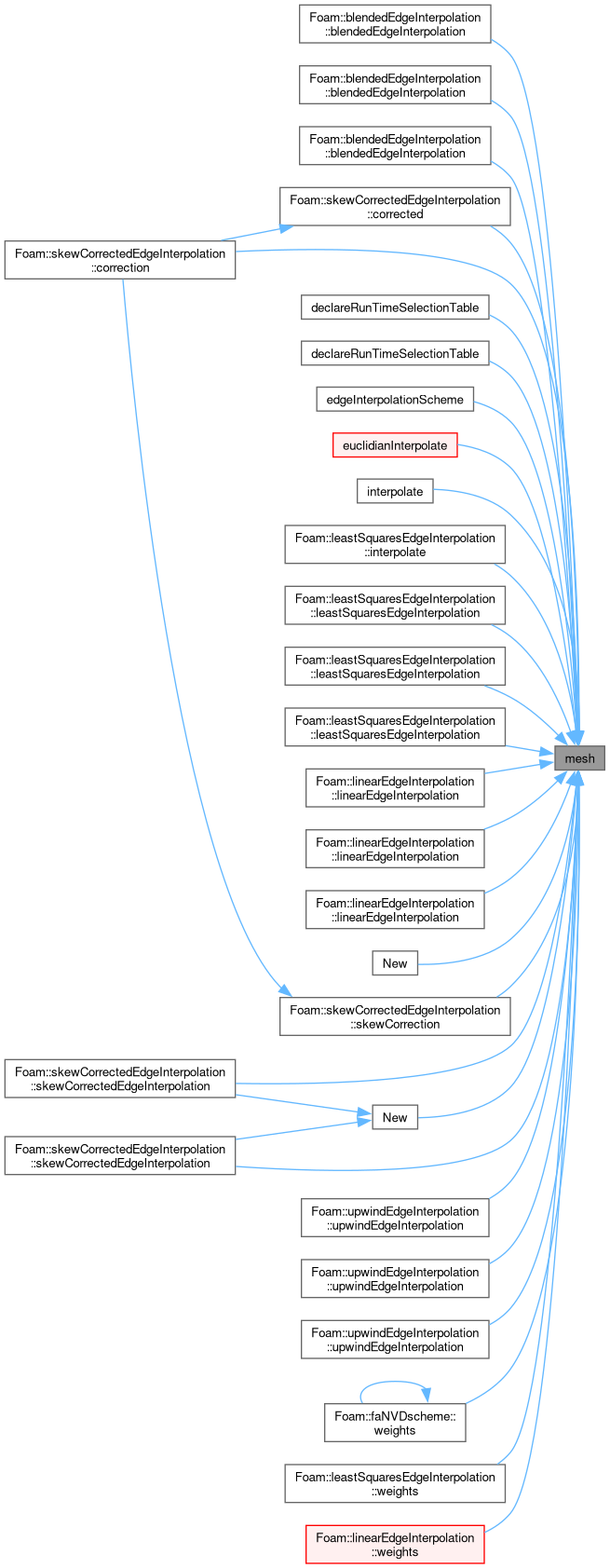

Here is the caller graph for this function:

◆ interpolate() [1/4]

template<class Type>

Foam::tmp< Foam::GeometricField< Type, Foam::faePatchField, Foam::edgeMesh > > interpolate	(	const GeometricField< Type, faPatchField, areaMesh > &	vf,
		const tmp< edgeScalarField > &	tlambdas,
		const tmp< edgeScalarField > &	tys )

static

Return the face-interpolate of the given cell field.

with the given owner and neighbour weighting factors

Definition at line 128 of file edgeInterpolationScheme.C.

References InfoInFunction, and IOobject::name().

Referenced by Foam::linearEdgeInterpolate(), and skewCorrectedEdgeInterpolation< Type >::skewCorrection().

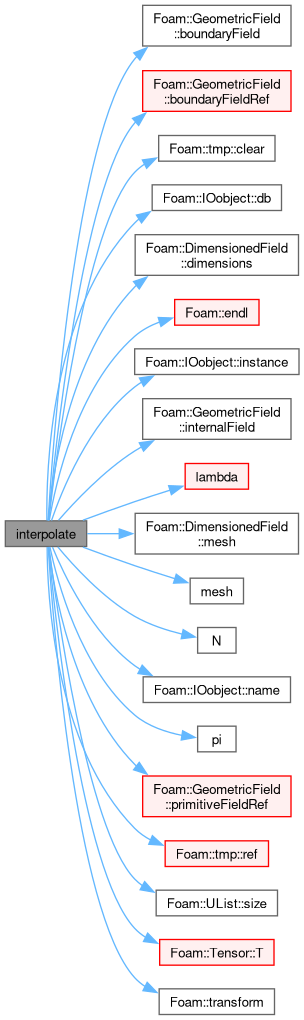

Here is the call graph for this function:

Here is the caller graph for this function:

◆ interpolate() [2/4]

template<class Type>

Foam::tmp< Foam::GeometricField< Type, Foam::faePatchField, Foam::edgeMesh > > interpolate	(	const GeometricField< Type, faPatchField, areaMesh > &	vf,
		const tmp< edgeScalarField > &	tlambdas )

static

Return the face-interpolate of the given cell field.

with the given weighting factors

Definition at line 247 of file edgeInterpolationScheme.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), tmp< T >::clear(), IOobject::db(), DimensionedField< Type, GeoMesh >::dimensions(), Foam::endl(), forAll, InfoInFunction, IOobject::instance(), GeometricField< Type, PatchField, GeoMesh >::internalField(), lambda(), DimensionedField< Type, GeoMesh >::mesh(), mesh(), N(), IOobject::name(), pi(), GeometricField< Type, PatchField, GeoMesh >::primitiveFieldRef(), tmp< T >::ref(), UList< T >::size(), Tensor< Cmpt >::T(), and Foam::transform().

Here is the call graph for this function:

◆ euclidianInterpolate() [1/2]

template<class Type>

Foam::tmp< Foam::GeometricField< Type, Foam::faePatchField, Foam::edgeMesh > > euclidianInterpolate	(	const GeometricField< Type, faPatchField, areaMesh > &	vf,
		const tmp< edgeScalarField > &	tlambdas )

static

Return the euclidian edge-interpolate of the given area field.

with the given weighting factors

Definition at line 363 of file edgeInterpolationScheme.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), tmp< T >::clear(), IOobject::db(), DimensionedField< Type, GeoMesh >::dimensions(), Foam::endl(), forAll, InfoInFunction, IOobject::instance(), GeometricField< Type, PatchField, GeoMesh >::internalField(), lambda(), DimensionedField< Type, GeoMesh >::mesh(), mesh(), N(), IOobject::name(), pi(), GeometricField< Type, PatchField, GeoMesh >::primitiveFieldRef(), tmp< T >::ref(), and UList< T >::size().

Referenced by euclidianInterpolate().

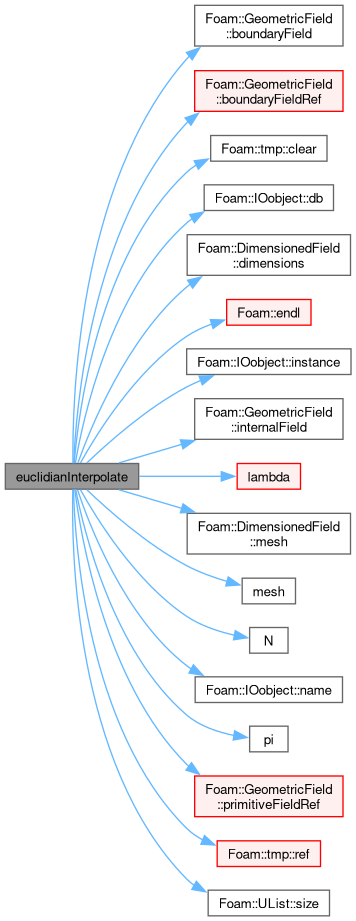

Here is the call graph for this function:

Here is the caller graph for this function:

◆ weights()

template<class Type>

virtual tmp< edgeScalarField > weights ( const GeometricField< Type, faPatchField, areaMesh > & ) const

pure virtual

Return the interpolation weighting factors for the given field.

Implemented in blendedEdgeInterpolation< Type >, faNVDscheme< Type, NVDweight >, faNVDscheme< scalar, GammaWeight >, leastSquaresEdgeInterpolation< Type >, linearEdgeInterpolation< Type >, skewCorrectedEdgeInterpolation< Type >, and upwindEdgeInterpolation< Type >.

Referenced by euclidianInterpolate(), and interpolate().

Here is the caller graph for this function:

◆ corrected()

template<class Type>

virtual bool corrected ( ) const

inlinevirtual

Return true if this scheme uses an explicit correction.

Reimplemented in skewCorrectedEdgeInterpolation< Type >.

Definition at line 205 of file edgeInterpolationScheme.H.

Referenced by interpolate().

Here is the caller graph for this function:

◆ correction()

template<class Type>

virtual tmp< GeometricField< Type, faePatchField, edgeMesh > > correction ( const GeometricField< Type, faPatchField, areaMesh > & ) const

inlinevirtual

Return the explicit correction to the face-interpolate.

for the given field

Reimplemented in skewCorrectedEdgeInterpolation< Type >.

Definition at line 213 of file edgeInterpolationScheme.H.

Referenced by interpolate().

Here is the caller graph for this function:

◆ interpolate() [3/4]

template<class Type>

Foam::tmp< Foam::GeometricField< Type, Foam::faePatchField, Foam::edgeMesh > > interpolate ( const GeometricField< Type, faPatchField, areaMesh > & vf ) const

virtual

Return the face-interpolate of the given cell field.

with explicit correction

Reimplemented in leastSquaresEdgeInterpolation< Type >.

Definition at line 439 of file edgeInterpolationScheme.C.

References corrected(), correction(), Foam::endl(), InfoInFunction, interpolate(), IOobject::name(), tmp< T >::ref(), and weights().

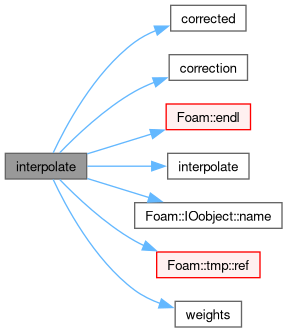

Here is the call graph for this function:

◆ euclidianInterpolate() [2/2]

template<class Type>

Foam::tmp< Foam::GeometricField< Type, Foam::faePatchField, Foam::edgeMesh > > euclidianInterpolate ( const GeometricField< Type, faPatchField, areaMesh > & vf ) const

virtual

Return the euclidian edge-interpolate of the given area field.

without explicit correction

Definition at line 468 of file edgeInterpolationScheme.C.

References Foam::endl(), euclidianInterpolate(), InfoInFunction, IOobject::name(), and weights().

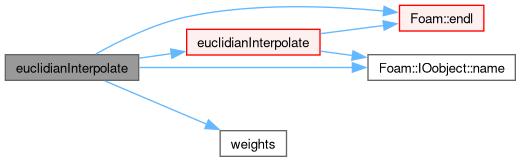

Here is the call graph for this function:

◆ interpolate() [4/4]

template<class Type>

Foam::tmp< Foam::GeometricField< Type, Foam::faePatchField, Foam::edgeMesh > > interpolate ( const tmp< GeometricField< Type, faPatchField, areaMesh > > & tvf ) const

Return the face-interpolate of the given tmp cell field.

with explicit correction

Definition at line 492 of file edgeInterpolationScheme.C.

References interpolate().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/finiteArea/interpolation/edgeInterpolation/edgeInterpolationScheme/edgeInterpolationScheme.H
src/finiteArea/interpolation/edgeInterpolation/edgeInterpolationScheme/edgeInterpolationScheme.C
