upwindEdgeInterpolation< Type > Class Template Reference

Upwind differencing scheme class. More...

#include <upwindEdgeInterpolation.H>

Inheritance diagram for upwindEdgeInterpolation< Type >:

Collaboration diagram for upwindEdgeInterpolation< Type >:

Public Member Functions
	TypeName ("upwind")
	Runtime type information.
	upwindEdgeInterpolation (const upwindEdgeInterpolation &)=delete
	No copy construct.
void	operator= (const upwindEdgeInterpolation &)=delete
	No copy assignment.
	upwindEdgeInterpolation (const faMesh &mesh, const edgeScalarField &faceFlux)
	Construct from faceFlux.
	upwindEdgeInterpolation (const faMesh &mesh, Istream &is)
	Construct from Istream.
	upwindEdgeInterpolation (const faMesh &mesh, const edgeScalarField &faceFlux, Istream &)
	Construct from faceFlux and Istream.
virtual tmp< edgeScalarField >	weights (const GeometricField< Type, faPatchField, areaMesh > &) const
	Return the interpolation weighting factors.
Public Member Functions inherited from edgeInterpolationScheme< Type >
	declareRunTimeSelectionTable (tmp, edgeInterpolationScheme, Mesh,(const faMesh &mesh, Istream &schemeData),(mesh, schemeData))
	declareRunTimeSelectionTable (tmp, edgeInterpolationScheme, MeshFlux,(const faMesh &mesh, const edgeScalarField &faceFlux, Istream &schemeData),(mesh, faceFlux, schemeData))
	edgeInterpolationScheme (const edgeInterpolationScheme &)=delete
	No copy construct.
void	operator= (const edgeInterpolationScheme &)=delete
	No copy assignment.
	edgeInterpolationScheme (const faMesh &mesh)
	Construct from mesh.
virtual	~edgeInterpolationScheme ()
const faMesh &	mesh () const
	Return mesh reference.
virtual bool	corrected () const
	Return true if this scheme uses an explicit correction.
virtual tmp< GeometricField< Type, faePatchField, edgeMesh > >	correction (const GeometricField< Type, faPatchField, areaMesh > &) const
	Return the explicit correction to the face-interpolate.
virtual tmp< GeometricField< Type, faePatchField, edgeMesh > >	interpolate (const GeometricField< Type, faPatchField, areaMesh > &) const
	Return the face-interpolate of the given cell field.
virtual tmp< GeometricField< Type, faePatchField, edgeMesh > >	euclidianInterpolate (const GeometricField< Type, faPatchField, areaMesh > &) const
	Return the euclidian edge-interpolate of the given area field.
tmp< GeometricField< Type, faePatchField, edgeMesh > >	interpolate (const tmp< GeometricField< Type, faPatchField, areaMesh > > &) const
	Return the face-interpolate of the given tmp cell field.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Additional Inherited Members
Static Public Member Functions inherited from edgeInterpolationScheme< Type >
static tmp< edgeInterpolationScheme< Type > >	New (const faMesh &mesh, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< edgeInterpolationScheme< Type > >	New (const faMesh &mesh, const edgeScalarField &faceFlux, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< GeometricField< Type, faePatchField, edgeMesh > >	interpolate (const GeometricField< Type, faPatchField, areaMesh > &, const tmp< edgeScalarField > &, const tmp< edgeScalarField > &)
	Return the face-interpolate of the given cell field.
static tmp< GeometricField< Type, faePatchField, edgeMesh > >	interpolate (const GeometricField< Type, faPatchField, areaMesh > &, const tmp< edgeScalarField > &)
	Return the face-interpolate of the given cell field.
static tmp< GeometricField< Type, faePatchField, edgeMesh > >	euclidianInterpolate (const GeometricField< Type, faPatchField, areaMesh > &, const tmp< edgeScalarField > &)
	Return the euclidian edge-interpolate of the given area field.

Detailed Description

template<class Type>
class Foam::upwindEdgeInterpolation< Type >

Upwind differencing scheme class.

Source files

• upwindEdgeInterpolation.H
• upwindEdgeInterpolation.C

Definition at line 49 of file upwindEdgeInterpolation.H.

Constructor & Destructor Documentation

upwindEdgeInterpolation() [1/4]

template<class Type>

upwindEdgeInterpolation ( const upwindEdgeInterpolation< Type > & )

delete

No copy construct.

References upwindEdgeInterpolation().

Referenced by blendedEdgeInterpolation< Type >::blendedEdgeInterpolation(), blendedEdgeInterpolation< Type >::blendedEdgeInterpolation(), blendedEdgeInterpolation< Type >::blendedEdgeInterpolation(), operator=(), and upwindEdgeInterpolation().

Here is the call graph for this function:

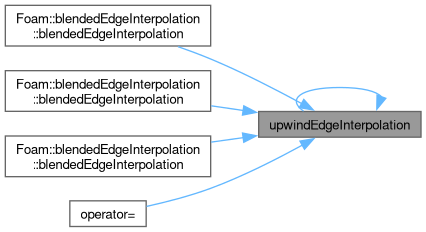

Here is the caller graph for this function:

upwindEdgeInterpolation() [2/4]

template<class Type>

upwindEdgeInterpolation ( const faMesh & mesh, const edgeScalarField & faceFlux )

inline

Construct from faceFlux.

Definition at line 87 of file upwindEdgeInterpolation.H.

References edgeInterpolationScheme< Type >::edgeInterpolationScheme(), and edgeInterpolationScheme< Type >::mesh().

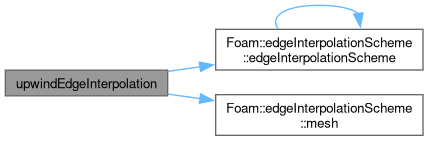

Here is the call graph for this function:

upwindEdgeInterpolation() [3/4]

template<class Type>

upwindEdgeInterpolation ( const faMesh & mesh, Istream & is )

inline

Construct from Istream.

The name of the flux field is read from the Istream and looked-up from the database

Definition at line 103 of file upwindEdgeInterpolation.H.

References edgeInterpolationScheme< Type >::edgeInterpolationScheme(), and edgeInterpolationScheme< Type >::mesh().

Here is the call graph for this function:

upwindEdgeInterpolation() [4/4]

template<class Type>

upwindEdgeInterpolation ( const faMesh & mesh, const edgeScalarField & faceFlux, Istream &  )

inline

Construct from faceFlux and Istream.

Definition at line 122 of file upwindEdgeInterpolation.H.

References edgeInterpolationScheme< Type >::edgeInterpolationScheme(), and edgeInterpolationScheme< Type >::mesh().

Here is the call graph for this function:

Member Function Documentation

TypeName()

template<class Type>

TypeName

(

"upwind"

)

Runtime type information.

operator=()

template<class Type>

void operator= ( const upwindEdgeInterpolation< Type > & )

delete

No copy assignment.

References upwindEdgeInterpolation().

Here is the call graph for this function:

weights()

template<class Type>

virtual tmp< edgeScalarField > weights ( const GeometricField< Type, faPatchField, areaMesh > & ) const

inlinevirtual

Return the interpolation weighting factors.

Implements edgeInterpolationScheme< Type >.

Reimplemented in blendedEdgeInterpolation< Type >.

Definition at line 139 of file upwindEdgeInterpolation.H.

References Foam::pos().

Referenced by blendedEdgeInterpolation< Type >::weights().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/finiteArea/interpolation/edgeInterpolation/schemes/upwind/upwindEdgeInterpolation.H
