turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField Class Reference

Mixed boundary condition for temperature and radiation heat transfer to be used for in multiregion cases with two phase Euler system. More...

#include <turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField.H>

Inheritance diagram for turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField:
Inheritance graph
[legend]
Collaboration diagram for turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField:
Collaboration graph
[legend]

Public Types

enum  KMethodType { mtSolidThermo , mtLookup , mtPhaseSystem }
 Type of supplied Kappa. More...
enum  regionType { solid , fluid }
 Enumeration listing the region. More...

Public Member Functions

 TypeName ("compressible::turbulentTemperatureTwoPhaseRadCoupledMixed")
 Runtime type information.
 turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
 Construct from patch and internal field.
 turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
 Construct from patch, internal field and dictionary.
 turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField (const turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
 Construct by mapping given.
 turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField (const turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
 Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > > clone () const
 Return a clone.
virtual tmp< fvPatchField< scalar > > clone (const DimensionedField< scalar, volMesh > &iF) const
 Clone with an internal field reference.
virtual void updateCoeffs ()
 Update the coefficients associated with the patch field.
virtual void write (Ostream &) const
 Write.

Detailed Description

Mixed boundary condition for temperature and radiation heat transfer to be used for in multiregion cases with two phase Euler system.

Usage
Property Description Required Default value
Tnbr name of the field no T
qrNbr name of the radiative flux in the nbr region no none
qr name of the radiative flux in this region no none
region region to which this BC belongs yes
otherPhase name of the vapour phase in the fluid region yes
kappaMethod inherited from temperatureCoupledBase inherited
kappa inherited from temperatureCoupledBase inherited

Example of the boundary condition specification on the fluid region:

    <patchName>
    {
        type            compressible::turbulentTemperatureTwoPhaseRadCoupledMixed;
        Tnbr            T;
        qrNbr           none;
        qr              none;
        kappaMethod     phaseSystem;
        region          fluid;
        otherPhase      gas;
        value           uniform 300;
    }

Example of the boundary condition specification on the solid region:

    <patchName>
    {
        type            compressible::turbulentTemperatureTwoPhaseRadCoupledMixed;
        Tnbr            T.liquid;
        qrNbr           none;
        qr              none;
        kappaMethod     solidThermo;
        region          solid;
        otherPhase      gas;
        value           uniform 300;
    }

Needs to be on underlying mapped(Wall)FvPatch.

Source files

Definition at line 133 of file turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField.H.

Member Enumeration Documentation

◆ KMethodType

enum KMethodType

Type of supplied Kappa.

Enumerator
mtSolidThermo
mtLookup
mtPhaseSystem

Definition at line 144 of file turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField.H.

◆ regionType

enum regionType

Enumeration listing the region.

Enumerator
solid
fluid

Definition at line 156 of file turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField() [1/4]

turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField ( const fvPatch & ,
const DimensionedField< scalar, volMesh > &  )

Construct from patch and internal field.

Referenced by turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField(), and turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField().

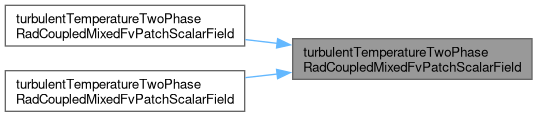

Here is the caller graph for this function:

◆ turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField() [2/4]

turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField ( const fvPatch & ,
const DimensionedField< scalar, volMesh > & ,
const dictionary &  )

Construct from patch, internal field and dictionary.

◆ turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField() [3/4]

turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField ( const turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField & ,
const fvPatch & ,
const DimensionedField< scalar, volMesh > & ,
const fvPatchFieldMapper &  )

Construct by mapping given.

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField onto a new patch

References turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField().

Here is the call graph for this function:

◆ turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField() [4/4]

turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField ( const turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField & ,
const DimensionedField< scalar, volMesh > &  )

Construct as copy setting internal field reference.

References turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "compressible::turbulentTemperatureTwoPhaseRadCoupledMixed" )

Runtime type information.

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const
inlinevirtual

Return a clone.

Definition at line 276 of file turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF) const
inlinevirtual

Clone with an internal field reference.

Definition at line 284 of file turbulentTemperatureTwoPhaseRadCoupledMixedFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ updateCoeffs()

virtual void updateCoeffs ( )
virtual

Update the coefficients associated with the patch field.

◆ write()

virtual void write ( Ostream & ) const
virtual

Write.

The documentation for this class was generated from the following file:
