Mixed boundary condition for temperature, to be used for heat-transfer on back-to-back baffles. Optional thin thermal layer resistances can be specified through thicknessLayers and kappaLayers entries. More...

#include <turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.H>

Inheritance diagram for turbulentTemperatureCoupledBaffleMixedFvPatchScalarField:

[legend]

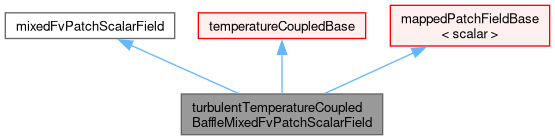

Collaboration diagram for turbulentTemperatureCoupledBaffleMixedFvPatchScalarField:

[legend]

Public Member Functions
	TypeName ("compressible::turbulentTemperatureCoupledBaffleMixed")
	Runtime type information.
	turbulentTemperatureCoupledBaffleMixedFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	turbulentTemperatureCoupledBaffleMixedFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	turbulentTemperatureCoupledBaffleMixedFvPatchScalarField (const turbulentTemperatureCoupledBaffleMixedFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given.
	turbulentTemperatureCoupledBaffleMixedFvPatchScalarField (const turbulentTemperatureCoupledBaffleMixedFvPatchScalarField &)
	Construct as copy setting internal field reference.
	turbulentTemperatureCoupledBaffleMixedFvPatchScalarField (const turbulentTemperatureCoupledBaffleMixedFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
virtual void	autoMap (const fvPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const fvPatchField< scalar > &, const labelList &)
	Reverse map the given fvPatchField onto this fvPatchField.
virtual tmp< scalarField >	kappa (const scalarField &Tp) const
	Given patch temperature calculate corresponding K field. Override temperatureCoupledBase::kappa to includes effect of any explicit kappaThickness.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	manipulateMatrix (fvMatrix< scalar > &m, const label iMatrix, const direction cmpt)
	Manipulate matrix.
virtual void	write (Ostream &os) const
	Write.
Public Member Functions inherited from temperatureCoupledBase
	temperatureCoupledBase (const fvPatch &patch, const KMethodType method=KMethodType::mtFluidThermo)
	Default construct from patch, using fluidThermo (default) or specified method.
	temperatureCoupledBase (const fvPatch &patch, const KMethodType method, const word &kappaName, const word &alphaName, const word &alphaAniName)
	Construct from patch, method type and field names.
	temperatureCoupledBase (const fvPatch &patch, const dictionary &dict)
	Construct from patch and dictionary.
	temperatureCoupledBase (const fvPatch &patch, const temperatureCoupledBase &base)
	Construct from patch and temperatureCoupledBase.
	temperatureCoupledBase (const temperatureCoupledBase &base)
	Copy construct.
virtual	~temperatureCoupledBase ()=default
	Destructor.
word	KMethod () const
	Method to obtain K.
const word &	kappaName () const noexcept
	Name of thermal conductivity field.
const word &	alphaName () const noexcept
	Name of thermal diffusivity field.
virtual tmp< scalarField >	alpha (const scalarField &Tp) const
	Given patch temperature calculate corresponding alphaEff field.
void	write (Ostream &os) const
	Write.
Public Member Functions inherited from mappedPatchFieldBase< scalar >
const Foam::GeometricField< Type2, Foam::fvPatchField, Foam::volMesh > &	sampleField (const word &fieldName) const
	mappedPatchFieldBase (const mappedPatchBase &mapper, const fvPatchField< scalar > &patchField, const word &fieldName, const bool setAverage, const scalar average, const word &interpolationScheme)
	Construct from components.
virtual	~mappedPatchFieldBase ()=default
	Destructor.
virtual tmp< Field< scalar > >	mappedField () const
	Map sampleField onto *this patch.
virtual tmp< Field< scalar > >	mappedInternalField () const
	Map internal of sampleField onto *this patch.
virtual tmp< scalarField >	mappedWeightField () const
	Map optional weightField onto *this patch. Default is deltaCoeffs.
void	distribute (const word &fieldName, Field< T > &newValues) const
	Wrapper for mapDistribute::distribute that knows about dabase mapping.

Additional Inherited Members
Public Types inherited from temperatureCoupledBase
enum	KMethodType { mtFluidThermo , mtSolidThermo , mtDirectionalSolidThermo , mtLookup , mtFunction }
	Type of supplied Kappa. More...
Static Public Member Functions inherited from mappedPatchFieldBase< scalar >
static const mappedPatchBase &	mapper (const fvPatch &p, const DimensionedField< scalar, volMesh > &iF)
	Check that patch is of correct type.
Protected Member Functions inherited from mappedPatchFieldBase< scalar >
void	initRetrieveField (const objectRegistry &obr, const word &region, const word &patch, const labelListList &map, const word &fieldName, const Field< T > &fld) const
	Construct field from registered elements.
bool	storeAndRetrieveField (const word &fieldName, const label myComm, const labelListList &subMap, const label constructSize, const labelListList &constructMap, const labelListList &address, const scalarListList &weights, Field< T > &fld) const
	Helper : storeField and retrieveField and interpolate. Leaves fld.
void	storeField (const objectRegistry &obr, const word &region, const word &patch, const label myComm, const labelListList &procToMap, const word &fieldName, const Field< T > &fld) const
	Store elements of field onto (sub) registry.
bool	retrieveField (const bool allowUnset, const objectRegistry &obr, const word &region, const word &patch, const label myComm, const labelListList &procToMap, const word &fieldName, Field< T > &fld) const
	Construct field from registered elements.
Protected Attributes inherited from temperatureCoupledBase
const fvPatch &	patch_
	Underlying patch.
const KMethodType	method_
	How to get K.
const word	kappaName_
	Name of thermal conductivity field (if looked up from database).
const word	alphaName_
	Name of thermal diffusivity.
const word	alphaAniName_
	Name of the non-isotropic alpha (for directional solidThermo).
autoPtr< PatchFunction1< scalar > >	kappaFunction1_
	Function1 for kappa.
autoPtr< PatchFunction1< scalar > >	alphaFunction1_
	Function1 for alpha.
Protected Attributes inherited from mappedPatchFieldBase< scalar >
const mappedPatchBase &	mapper_
	Mapping engine.
const fvPatchField< scalar > &	patchField_
	Underlying patch field.
word	fieldName_
	Name of field to sample.
const bool	setAverage_
	If true adjust the mapped field to maintain average value average_.
const scalar	average_
	Average value the mapped field is adjusted to maintain if setAverage_ is set true.
word	interpolationScheme_
	Interpolation scheme to use for nearestcell mode.
Static Protected Attributes inherited from temperatureCoupledBase
static const Enum< KMethodType >	KMethodTypeNames_

Detailed Description

Mixed boundary condition for temperature, to be used for heat-transfer on back-to-back baffles. Optional thin thermal layer resistances can be specified through thicknessLayers and kappaLayers entries.

Specifies gradient and temperature such that the equations are the same on both sides:

refGradient = zero gradient
refValue = neighbour value
mixFraction = nbrKDelta / (nbrKDelta + myKDelta())

where KDelta is heat-transfer coefficient K * deltaCoeffs

The thermal conductivity kappa can either be retrieved from various possible sources, as detailed in the class temperatureCoupledBase.

Usage

Property	Description	Required	Default value
`Tnbr`	name of the field	no	T
`thicknessLayers`	list of thicknesses per layer [m]	no
`kappaLayers`	list of thermal conductivities per layer [W/m/K]	no
`thicknessLayer`	single thickness of layer [m]	no
`kappaLayer`	corresponding thermal conductivity [W/m/K]	no
`kappaMethod`	inherited from temperatureCoupledBase	inherited
`kappa`	inherited from temperatureCoupledBase	inherited

Example of the boundary condition specification:

    <patchName>
    {
        type            compressible::turbulentTemperatureCoupledBaffleMixed;
        Tnbr            T;
        thicknessLayers (0.1 0.2 0.3 0.4);
        kappaLayers     (1 2 3 4);
        kappaMethod     lookup;
        kappa           kappa;
        value           uniform 300;
    }

Needs to be on underlying mapped(Wall)FvPatch.

See also: Foam::temperatureCoupledBase

Source files

Definition at line 136 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ turbulentTemperatureCoupledBaffleMixedFvPatchScalarField() [1/5]

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 37 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C.

References mappedPatchFieldBase< scalar >::mappedPatchFieldBase(), mappedPatchFieldBase< scalar >::mapper(), p, temperatureCoupledBase::temperatureCoupledBase(), and Foam::Zero.

Referenced by rmap(), turbulentTemperatureCoupledBaffleMixedFvPatchScalarField(), turbulentTemperatureCoupledBaffleMixedFvPatchScalarField(), turbulentTemperatureCoupledBaffleMixedFvPatchScalarField(), TypeName(), and updateCoeffs().

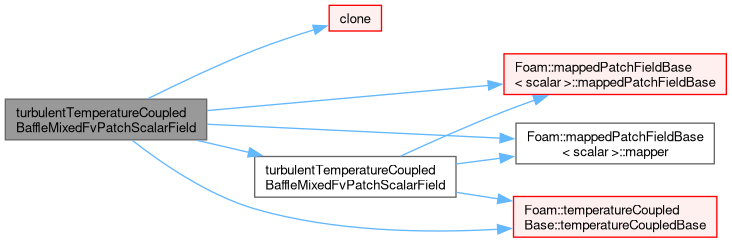

Here is the call graph for this function:

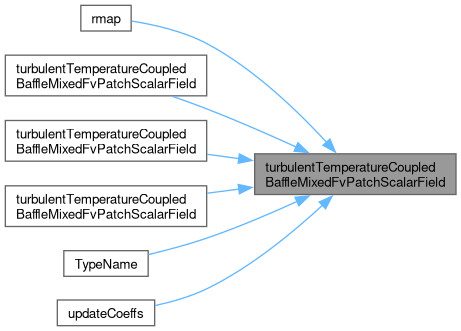

Here is the caller graph for this function:

◆ turbulentTemperatureCoupledBaffleMixedFvPatchScalarField() [2/5]

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

// Store patch value as initial guess when running in database mode mappedPatchFieldBase<scalar>::initRetrieveField ( this->internalField().name(), *this ); mappedPatchFieldBase<scalar>::initRetrieveField ( this->internalField().name() + "_weights", this->patch().deltaCoeffs() );

Definition at line 84 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C.

References dict, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, if(), Foam::isA(), mappedPatchFieldBase< scalar >::mappedPatchFieldBase(), mappedPatchFieldBase< scalar >::mapper(), IOobjectOption::MUST_READ, PatchFunction1< Type >::NewIfPresent(), p, temperatureCoupledBase::temperatureCoupledBase(), WarningInFunction, and Foam::Zero.

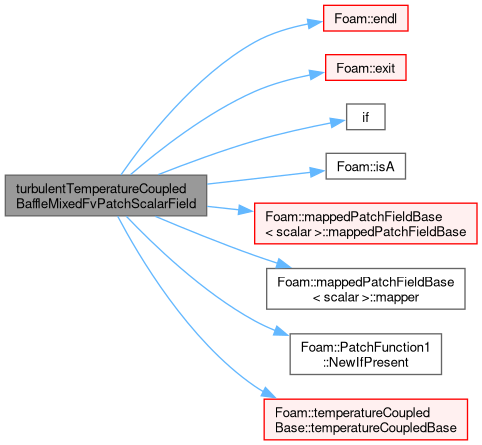

Here is the call graph for this function:

◆ turbulentTemperatureCoupledBaffleMixedFvPatchScalarField() [3/5]

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField	(	const turbulentTemperatureCoupledBaffleMixedFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given.

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField onto a new patch

Definition at line 59 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C.

References clone(), mappedPatchFieldBase< scalar >::mappedPatchFieldBase(), mappedPatchFieldBase< scalar >::mapper(), p, temperatureCoupledBase::temperatureCoupledBase(), and turbulentTemperatureCoupledBaffleMixedFvPatchScalarField().

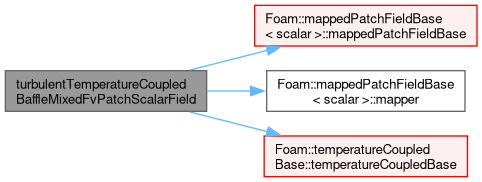

Here is the call graph for this function:

◆ turbulentTemperatureCoupledBaffleMixedFvPatchScalarField() [4/5]

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField ( const turbulentTemperatureCoupledBaffleMixedFvPatchScalarField & wtcsf )

Construct as copy setting internal field reference.

Definition at line 192 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C.

References clone(), mappedPatchFieldBase< scalar >::mappedPatchFieldBase(), mappedPatchFieldBase< scalar >::mapper(), temperatureCoupledBase::temperatureCoupledBase(), and turbulentTemperatureCoupledBaffleMixedFvPatchScalarField().

Here is the call graph for this function:

◆ turbulentTemperatureCoupledBaffleMixedFvPatchScalarField() [5/5]

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField	(	const turbulentTemperatureCoupledBaffleMixedFvPatchScalarField &	wtcsf,
		const DimensionedField< scalar, volMesh > &	iF )
