Version of DILUpreconditioner that uses preconditioning across processor (and coupled) boundaries. Based on 'Parallel Preconditioners' chapter from 'Iterative Methods for Sparse Linear Systems' by Yousef Saad. More...

#include <distributedDILUPreconditioner.H>

Inheritance diagram for distributedDILUPreconditioner:

[legend]

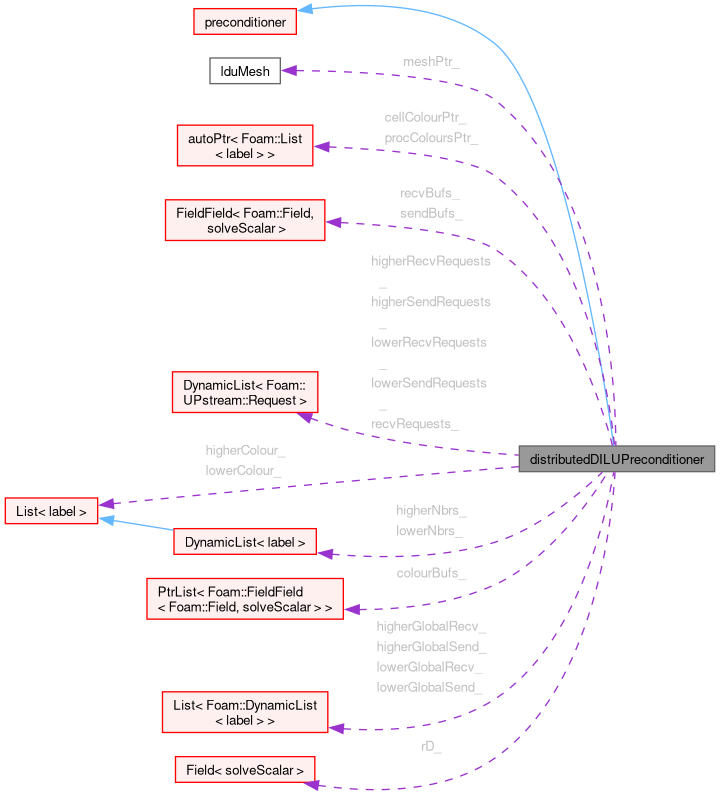

Collaboration diagram for distributedDILUPreconditioner:

[legend]

Public Member Functions
	TypeName ("distributedDILU")
	Runtime type information.
	distributedDILUPreconditioner (const lduMatrix::solver &, const dictionary &solverControlsUnused)
	Construct from matrix components and preconditioner solver controls.
virtual	~distributedDILUPreconditioner ()
	Destructor.
virtual void	precondition (solveScalarField &wA, const solveScalarField &rA, const direction cmpt=0) const
	Return wA the preconditioned form of residual rA.
virtual void	setFinished (const solverPerformance &perf) const
	Signal end of solver.
Public Member Functions inherited from lduMatrix::preconditioner
virtual const word &	type () const =0
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, preconditioner, symMatrix,(const solver &sol, const dictionary &solverControls),(sol, solverControls))
	declareRunTimeSelectionTable (autoPtr, preconditioner, asymMatrix,(const solver &sol, const dictionary &solverControls),(sol, solverControls))
	preconditioner (const solver &sol)
	Construct for given solver.
virtual	~preconditioner ()=default
	Destructor.
virtual void	read (const dictionary &)
	Read and reset the preconditioner parameters from the given stream.
virtual void	preconditionT (solveScalarField &wT, const solveScalarField &rT, const direction cmpt=0) const
	Return wT the transpose-matrix preconditioned form of residual rT.

Protected Member Functions
void	updateMatrixInterfaces (const bool add, const FieldField< Field, scalar > &coupleCoeffs, const labelList &selectedInterfaces, const solveScalarField &psiif, solveScalarField &result, const direction cmpt) const
	Variant of lduMatrix::updateMatrixInterfaces on selected interfaces.
void	sendGlobal (const labelList &selectedInterfaces, solveScalarField &psi, const label colouri) const
	Send (and store in colourBufs_[colouri]) the effect of.
void	receive (const labelList &selectedInterfaces, DynamicList< UPstream::Request > &requests) const
	Start receiving in recvBufs_.
void	send (const labelList &selectedInterfaces, const solveScalarField &psiInternal, DynamicList< UPstream::Request > &requests) const
	Start sending sendBufs_.
void	wait (DynamicList< UPstream::Request > &requests, const bool cancel=false) const
	Wait for requests or cancel/free requests.
virtual void	addInterfaceDiag (solveScalarField &rD, const label inti, const Field< solveScalar > &recvBuf) const
	Update diagonal for interface.
virtual void	forwardInternalDiag (solveScalarField &rD, const label colouri) const
	Update diagonal for all faces of a certain colour.
virtual void	addInterface (solveScalarField &wA, const label inti, const Field< solveScalar > &recvBuf) const
	Update preconditioned variable from interface.
virtual void	forwardInternal (solveScalarField &wA, const label colouri) const
	Update preconditioned variable walking forward on internal faces.
virtual void	backwardInternal (solveScalarField &wA, const label colouri) const
	Update preconditioned variable walking backward on internal faces.
virtual void	calcReciprocalD (solveScalarField &rD) const
	Calculate reciprocal of diagonal.

Protected Attributes
const bool	coupled_
	Precondition across global coupled bc.
FieldField< Field, solveScalar >	sendBufs_
	Buffers for sending and receiving data.
FieldField< Field, solveScalar >	recvBufs_
DynamicList< UPstream::Request >	recvRequests_
DynamicList< label >	lowerNbrs_
	Interfaces to lower coloured processors.
DynamicList< UPstream::Request >	lowerSendRequests_
DynamicList< UPstream::Request >	lowerRecvRequests_
DynamicList< label >	higherNbrs_
	Interfaces to higher coloured processors.
DynamicList< UPstream::Request >	higherSendRequests_
DynamicList< UPstream::Request >	higherRecvRequests_
autoPtr< labelList >	cellColourPtr_
	Local (cell) colouring from global interfaces.
label	nColours_
	Number of colours (in case of multiple disconnected regions.
PtrList< FieldField< Field, solveScalar > >	colourBufs_
	Global interfaces. Per colour the interfaces that (might) influence it.
List< DynamicList< label > >	lowerGlobalRecv_
	Interfaces to non-processor lower coupled interfaces.
List< DynamicList< label > >	lowerGlobalSend_
	Interfaces to non-processor lower coupled interfaces.
List< label >	lowerColour_
	Corresponding destination colour (for lowerGlobal).
List< DynamicList< label > >	higherGlobalRecv_
	Interfaces to non-processor higher coupled interfaces.
List< DynamicList< label > >	higherGlobalSend_
	Interfaces to non-processor higher coupled interfaces.
List< label >	higherColour_
	Corresponding destination colour (for higherGlobal).
solveScalarField	rD_
	The reciprocal preconditioned diagonal.
Protected Attributes inherited from lduMatrix::preconditioner
const solver &	solver_
	Reference to the base-solver this preconditioner is used with.

Static Protected Attributes
static const lduMesh *	meshPtr_ = nullptr
	Processor interface buffers and colouring.
static autoPtr< labelList >	procColoursPtr_
	Previous processor colours.

Additional Inherited Members
Static Public Member Functions inherited from lduMatrix::preconditioner
static word	getName (const dictionary &)
	Find the preconditioner name (directly or from a sub-dictionary).
static autoPtr< preconditioner >	New (const solver &sol, const dictionary &solverControls)
	Return a new preconditioner.

Detailed Description

Version of DILUpreconditioner that uses preconditioning across processor (and coupled) boundaries. Based on 'Parallel Preconditioners' chapter from 'Iterative Methods for Sparse Linear Systems' by Yousef Saad.

Leaves out the handling of boundary nodes after internal nodes since probably not beneficial (so no overlap of comms and internal calculation)

By default preconditions across coupled boundaries (currently only tested for cyclicAMI). This can be disabled with the 'coupled' setting

solver PCG; preconditioner { preconditioner distributedDILU; coupled false; }

The cyclicAMI boundary behaviour will only work if

running non-parallel or
different sides of cyclicAMI run on different processors i.e. there is no processor which has cells on both owner and neighbour of the patch pair.

See also: Foam::DILUPreconditioner Foam::distributedDICPreconditioner

Source files

Definition at line 74 of file distributedDILUPreconditioner.H.

Constructor & Destructor Documentation

◆ distributedDILUPreconditioner()

distributedDILUPreconditioner	(	const lduMatrix::solver &	sol,
		const dictionary &	solverControlsUnused )

Construct from matrix components and preconditioner solver controls.

Definition at line 513 of file distributedDILUPreconditioner.C.

References calcReciprocalD(), processorColour::cellColour(), cellColourPtr_, processorColour::colour(), colourBufs_, coupled_, Foam::diag(), dict, Foam::endl(), Foam::flatOutput(), forAll, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, higherColour_, higherGlobalRecv_, higherGlobalSend_, higherNbrs_, Foam::incrIndent(), Foam::indent(), Foam::Info, lduMatrix::solver::interfaceBouCoeffs(), lduMatrix::solver::interfaces(), Foam::isA(), lowerColour_, lowerGlobalRecv_, lowerGlobalSend_, lowerNbrs_, lduMatrix::solver::matrix(), mesh, meshPtr_, UPstream::myProcNo(), nColours_, UPstream::nProcs(), lduMatrix::preconditioner::preconditioner(), procColoursPtr_, rD_, recvBufs_, sendBufs_, WarningInFunction, and Foam::Zero.

Referenced by distributedDICPreconditioner::distributedDICPreconditioner().

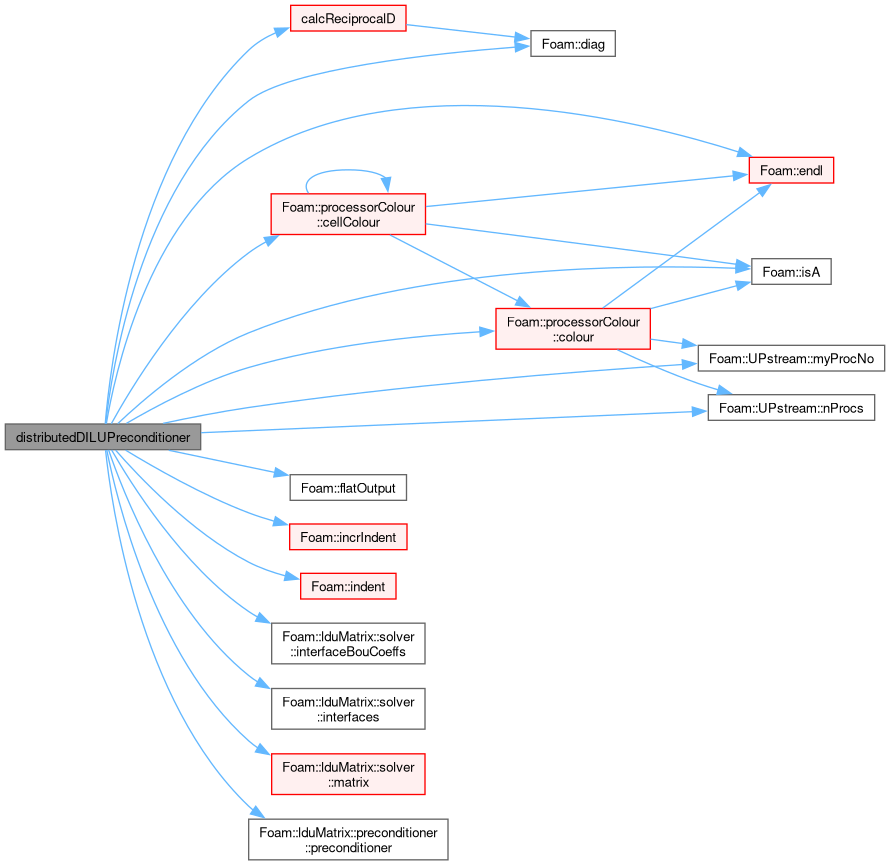

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ~distributedDILUPreconditioner()

~distributedDILUPreconditioner ( )

virtual

Destructor.

Definition at line 755 of file distributedDILUPreconditioner.C.

References DebugPout, Foam::endl(), higherRecvRequests_, higherSendRequests_, lowerRecvRequests_, lowerSendRequests_, and wait().

Here is the call graph for this function:

Member Function Documentation

◆ updateMatrixInterfaces()

void updateMatrixInterfaces	(	const bool	add,
		const FieldField< Field, scalar > &	coupleCoeffs,
		const labelList &	selectedInterfaces,
		const solveScalarField &	psiif,
		solveScalarField &	result,
		const direction	cmpt ) const

protected

Variant of lduMatrix::updateMatrixInterfaces on selected interfaces.

Definition at line 45 of file distributedDILUPreconditioner.C.

References Foam::add(), UPstream::incrMsgType(), UPstream::msgType(), UPstream::nonBlocking, UPstream::nRequests(), lduMatrix::preconditioner::solver_, and UPstream::waitRequests().

Referenced by sendGlobal().

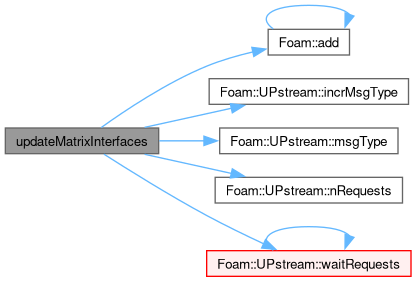

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sendGlobal()

void sendGlobal	(	const labelList &	selectedInterfaces,
		solveScalarField &	psi,
		const label	colouri ) const

protected

Send (and store in colourBufs_[colouri]) the effect of.

doing selectedInterfaces

Definition at line 103 of file distributedDILUPreconditioner.C.

References colourBufs_, forAll, psi, PtrList< T >::set(), UList< T >::size(), lduMatrix::preconditioner::solver_, and updateMatrixInterfaces().

Referenced by calcReciprocalD(), and precondition().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ receive()

void receive	(	const labelList &	selectedInterfaces,
		DynamicList< UPstream::Request > &	requests ) const

protected

Start receiving in recvBufs_.

Definition at line 172 of file distributedDILUPreconditioner.C.

References DynamicList< T, SizeMin >::emplace_back(), Foam::isA(), UIPstream::read(), recvBufs_, and lduMatrix::preconditioner::solver_.

Referenced by calcReciprocalD(), and precondition().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send()

void send	(	const labelList &	selectedInterfaces,
		const solveScalarField &	psiInternal,
		DynamicList< UPstream::Request > &	requests ) const

protected

Start sending sendBufs_.

Definition at line 202 of file distributedDILUPreconditioner.C.

References DynamicList< T, SizeMin >::emplace_back(), forAll, Foam::isA(), sendBufs_, lduMatrix::preconditioner::solver_, and UOPstream::write().

Referenced by calcReciprocalD(), and precondition().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ wait()

void wait	(	DynamicList< UPstream::Request > &	requests,
		const bool	cancel = false ) const

protected

Wait for requests or cancel/free requests.

Definition at line 238 of file distributedDILUPreconditioner.C.

References UPstream::cancelRequests(), DynamicList< T, SizeMin >::clear(), and UPstream::waitRequests().

Referenced by calcReciprocalD(), precondition(), setFinished(), and ~distributedDILUPreconditioner().

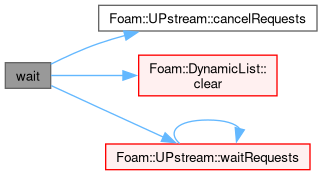

Here is the call graph for this function:

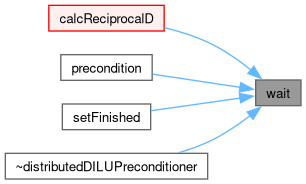

Here is the caller graph for this function:

◆ addInterfaceDiag()

void addInterfaceDiag	(	solveScalarField &	rD,
		const label	inti,
		const Field< solveScalar > &	recvBuf ) const

protectedvirtual

Update diagonal for interface.

Definition at line 259 of file distributedDILUPreconditioner.C.

References forAll, and lduMatrix::preconditioner::solver_.

Referenced by calcReciprocalD().

Here is the caller graph for this function:

◆ forwardInternalDiag()

void forwardInternalDiag	(	solveScalarField &	rD,
		const label	colouri ) const

protectedvirtual

Update diagonal for all faces of a certain colour.

Reimplemented in distributedDICPreconditioner.

Definition at line 285 of file distributedDILUPreconditioner.C.

References cellColourPtr_, and lduMatrix::preconditioner::solver_.

Referenced by calcReciprocalD().

Here is the caller graph for this function:

◆ addInterface()

void addInterface	(	solveScalarField &	wA,
		const label	inti,
		const Field< solveScalar > &	recvBuf ) const

protectedvirtual

Update preconditioned variable from interface.

Definition at line 324 of file distributedDILUPreconditioner.C.

References UList< T >::begin(), forAll, rD_, and lduMatrix::preconditioner::solver_.

Referenced by precondition().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ forwardInternal()

void forwardInternal	(	solveScalarField &	wA,
		const label	colouri ) const

protectedvirtual

Update preconditioned variable walking forward on internal faces.

Reimplemented in distributedDICPreconditioner.

Definition at line 349 of file distributedDILUPreconditioner.C.

References UList< T >::begin(), cellColourPtr_, rD_, and lduMatrix::preconditioner::solver_.

Referenced by precondition().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ backwardInternal()

void backwardInternal	(	solveScalarField &	wA,
		const label	colouri ) const

protectedvirtual

Update preconditioned variable walking backward on internal faces.

Definition at line 393 of file distributedDILUPreconditioner.C.

References UList< T >::begin(), cellColourPtr_, rD_, and lduMatrix::preconditioner::solver_.

Referenced by precondition().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calcReciprocalD()

void calcReciprocalD ( solveScalarField & rD ) const

protectedvirtual

Calculate reciprocal of diagonal.

Definition at line 436 of file distributedDILUPreconditioner.C.

References addInterfaceDiag(), UList< T >::begin(), cellColourPtr_, colourBufs_, Foam::diag(), forwardInternalDiag(), higherColour_, higherGlobalSend_, higherNbrs_, higherSendRequests_, lowerGlobalRecv_, lowerNbrs_, lowerRecvRequests_, nColours_, receive(), recvBufs_, List< T >::resize_nocopy(), send(), sendGlobal(), UList< T >::size(), lduMatrix::preconditioner::solver_, and wait().

Referenced by distributedDILUPreconditioner().

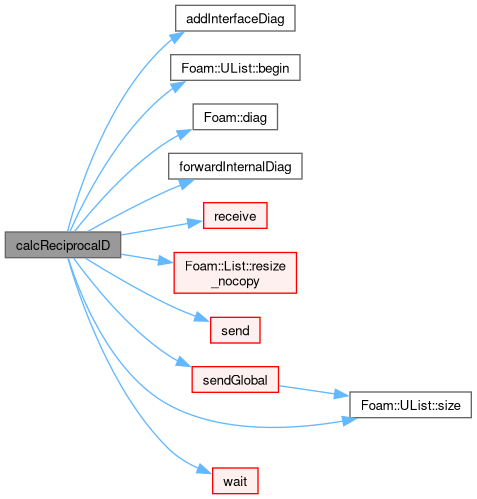

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "distributedDILU" )

Runtime type information.

◆ precondition()

void precondition	(	solveScalarField &	wA,
		const solveScalarField &	rA,
		const direction	cmpt = 0 ) const

virtual

Return wA the preconditioned form of residual rA.

Implements lduMatrix::preconditioner.

Definition at line 776 of file distributedDILUPreconditioner.C.

References addInterface(), backwardInternal(), UList< T >::begin(), cellColourPtr_, colourBufs_, forwardInternal(), higherColour_, higherGlobalRecv_, higherGlobalSend_, higherNbrs_, higherRecvRequests_, higherSendRequests_, lowerColour_, lowerGlobalRecv_, lowerGlobalSend_, lowerNbrs_, lowerRecvRequests_, lowerSendRequests_, nColours_, rD_, receive(), recvBufs_, send(), sendGlobal(), UList< T >::size(), and wait().

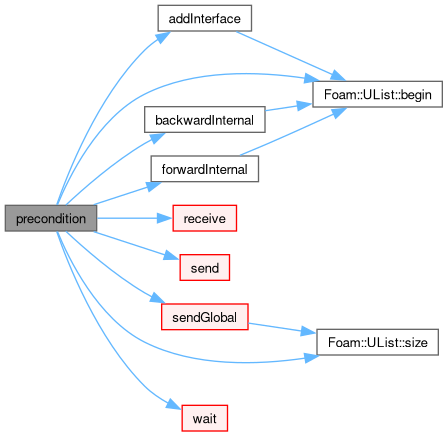

Here is the call graph for this function:

◆ setFinished()

void setFinished ( const solverPerformance & perf ) const

virtual

Signal end of solver.

Reimplemented from lduMatrix::preconditioner.

Definition at line 902 of file distributedDILUPreconditioner.C.

References DebugPout, Foam::endl(), higherRecvRequests_, higherSendRequests_, lowerRecvRequests_, lowerSendRequests_, s(), and wait().

Here is the call graph for this function:

Member Data Documentation

◆ coupled_

const bool coupled_

protected

Precondition across global coupled bc.

Definition at line 85 of file distributedDILUPreconditioner.H.

Referenced by distributedDILUPreconditioner().

◆ meshPtr_

const lduMesh * meshPtr_ = nullptr

staticprotected

Processor interface buffers and colouring.

Previous mesh

Definition at line 95 of file distributedDILUPreconditioner.H.

Referenced by distributedDILUPreconditioner().

◆ procColoursPtr_

autoPtr< labelList > procColoursPtr_

staticprotected

Previous processor colours.

Definition at line 100 of file distributedDILUPreconditioner.H.

Referenced by distributedDILUPreconditioner().

◆ sendBufs_

FieldField<Field, solveScalar> sendBufs_

mutableprotected

Buffers for sending and receiving data.

Definition at line 105 of file distributedDILUPreconditioner.H.

Referenced by distributedDILUPreconditioner(), and send().

◆ recvBufs_

FieldField<Field, solveScalar> recvBufs_

mutableprotected

Definition at line 106 of file distributedDILUPreconditioner.H.

Referenced by calcReciprocalD(), distributedDILUPreconditioner(), precondition(), and receive().

◆ recvRequests_

DynamicList<UPstream::Request> recvRequests_

mutableprotected

Definition at line 107 of file distributedDILUPreconditioner.H.

◆ lowerNbrs_

DynamicList<label> lowerNbrs_

protected

Interfaces to lower coloured processors.

Definition at line 112 of file distributedDILUPreconditioner.H.

Referenced by calcReciprocalD(), distributedDILUPreconditioner(), and precondition().

◆ lowerSendRequests_

DynamicList<UPstream::Request> lowerSendRequests_

mutableprotected

Definition at line 113 of file distributedDILUPreconditioner.H.

Referenced by precondition(), setFinished(), and ~distributedDILUPreconditioner().

◆ lowerRecvRequests_

DynamicList<UPstream::Request> lowerRecvRequests_

mutableprotected

Definition at line 114 of file distributedDILUPreconditioner.H.

Referenced by calcReciprocalD(), precondition(), setFinished(), and ~distributedDILUPreconditioner().

◆ higherNbrs_

DynamicList<label> higherNbrs_

protected

Interfaces to higher coloured processors.

Definition at line 119 of file distributedDILUPreconditioner.H.

Referenced by calcReciprocalD(), distributedDILUPreconditioner(), and precondition().

◆ higherSendRequests_

DynamicList<UPstream::Request> higherSendRequests_

mutableprotected

Definition at line 120 of file distributedDILUPreconditioner.H.

Referenced by calcReciprocalD(), precondition(), setFinished(), and ~distributedDILUPreconditioner().

◆ higherRecvRequests_

DynamicList<UPstream::Request> higherRecvRequests_

mutableprotected

Definition at line 121 of file distributedDILUPreconditioner.H.

Referenced by precondition(), setFinished(), and ~distributedDILUPreconditioner().

◆ cellColourPtr_

autoPtr<labelList> cellColourPtr_

protected

Local (cell) colouring from global interfaces.

Colour/zone per cell

Definition at line 131 of file distributedDILUPreconditioner.H.

Referenced by backwardInternal(), calcReciprocalD(), distributedDILUPreconditioner(), distributedDICPreconditioner::forwardInternal(), forwardInternal(), distributedDICPreconditioner::forwardInternalDiag(), forwardInternalDiag(), and precondition().

◆ nColours_

label nColours_

protected

Number of colours (in case of multiple disconnected regions.

in single mesh)

Definition at line 138 of file distributedDILUPreconditioner.H.

Referenced by calcReciprocalD(), distributedDILUPreconditioner(), and precondition().

◆ colourBufs_

PtrList<FieldField<Field, solveScalar> > colourBufs_

mutableprotected

Global interfaces. Per colour the interfaces that (might) influence it.

Definition at line 146 of file distributedDILUPreconditioner.H.

Referenced by calcReciprocalD(), distributedDILUPreconditioner(), precondition(), and sendGlobal().

◆ lowerGlobalRecv_

List<DynamicList<label> > lowerGlobalRecv_

protected

Interfaces to non-processor lower coupled interfaces.

Definition at line 151 of file distributedDILUPreconditioner.H.

Referenced by calcReciprocalD(), distributedDILUPreconditioner(), and precondition().

◆ lowerGlobalSend_

List<DynamicList<label> > lowerGlobalSend_

protected

Interfaces to non-processor lower coupled interfaces.

Definition at line 156 of file distributedDILUPreconditioner.H.

Referenced by distributedDILUPreconditioner(), and precondition().

◆ lowerColour_

List<label> lowerColour_

protected

Corresponding destination colour (for lowerGlobal).

Definition at line 161 of file distributedDILUPreconditioner.H.

Referenced by distributedDILUPreconditioner(), and precondition().

◆ higherGlobalRecv_

List<DynamicList<label> > higherGlobalRecv_

protected

Interfaces to non-processor higher coupled interfaces.

Definition at line 166 of file distributedDILUPreconditioner.H.

Referenced by distributedDILUPreconditioner(), and precondition().

◆ higherGlobalSend_

List<DynamicList<label> > higherGlobalSend_

protected

Interfaces to non-processor higher coupled interfaces.

Definition at line 171 of file distributedDILUPreconditioner.H.

Referenced by calcReciprocalD(), distributedDILUPreconditioner(), and precondition().

◆ higherColour_

List<label> higherColour_

protected

Corresponding destination colour (for higherGlobal).

Definition at line 176 of file distributedDILUPreconditioner.H.

Referenced by calcReciprocalD(), distributedDILUPreconditioner(), and precondition().

◆ rD_

solveScalarField rD_

protected

The reciprocal preconditioned diagonal.

Definition at line 182 of file distributedDILUPreconditioner.H.

Referenced by addInterface(), backwardInternal(), distributedDILUPreconditioner(), distributedDICPreconditioner::forwardInternal(), forwardInternal(), and precondition().

The documentation for this class was generated from the following files:

src/meshTools/matrices/lduMatrix/preconditioners/distributedDILUPreconditioner/distributedDILUPreconditioner.H
src/meshTools/matrices/lduMatrix/preconditioners/distributedDILUPreconditioner/distributedDILUPreconditioner.C

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ distributedDILUPreconditioner()

◆ ~distributedDILUPreconditioner()

Member Function Documentation

◆ updateMatrixInterfaces()

◆ sendGlobal()

◆ receive()

◆ send()

◆ wait()

◆ addInterfaceDiag()

◆ forwardInternalDiag()

◆ addInterface()

◆ forwardInternal()

◆ backwardInternal()

◆ calcReciprocalD()

◆ TypeName()

◆ precondition()

◆ setFinished()

Member Data Documentation

◆ coupled_

◆ meshPtr_

◆ procColoursPtr_

◆ sendBufs_

◆ recvBufs_

◆ recvRequests_

◆ lowerNbrs_

◆ lowerSendRequests_

◆ lowerRecvRequests_

◆ higherNbrs_

◆ higherSendRequests_

◆ higherRecvRequests_

◆ cellColourPtr_

◆ nColours_

◆ colourBufs_

◆ lowerGlobalRecv_

◆ lowerGlobalSend_

◆ lowerColour_

◆ higherGlobalRecv_

◆ higherGlobalSend_

◆ higherColour_

◆ rD_
