Read/write the lines from PROSTAR vrt/cel files. More...

#include <STARCDedgeFormat.H>

Inheritance diagram for STARCDedgeFormat:

[legend]

Collaboration diagram for STARCDedgeFormat:

[legend]

Public Member Functions
	STARCDedgeFormat (const fileName &filename)
	Construct from file name.
virtual	~STARCDedgeFormat ()=default
	Destructor.
virtual bool	read (const fileName &name) override
	Read from file.
virtual void	write (const fileName &name, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null) const override
	Write to file.
virtual void	write (const fileName &name, const word &fileType, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null) const override
	Write to file.
Public Member Functions inherited from edgeMesh
	edgeMesh (const faMesh &mesh)
	Construct finite-area edge mesh faMesh reference.
label	size () const noexcept
	The geometric (internal) size - number of internal edges.
const edgeVectorField &	C () const
	Field of edge centres.
	TypeName ("edgeMesh")
	Runtime type information.
	edgeMesh ()
	Default construct.
	edgeMesh (const edgeMesh &em)
	Copy construct.
	edgeMesh (edgeMesh &&em)
	Move construct.
	edgeMesh (const pointField &points, const edgeList &edges)
	Copy construct from components.
	edgeMesh (pointField &&pointLst, edgeList &&edgeLst)
	Move construct from components.
	edgeMesh (const fileName &name)
	Construct from file name (uses extension to determine type).
	edgeMesh (const fileName &name, const word &fileType)
	Construct from file name with specified type.
	declareRunTimeSelectionTable (autoPtr, edgeMesh, fileExtension,(const fileName &name),(name))
virtual	~edgeMesh ()=default
	Destructor.
	declareMemberFunctionSelectionTable (void, edgeMesh, write, fileExtension,(const fileName &name, const edgeMesh &mesh, IOstreamOption streamOpt, const dictionary &options),(name, mesh, streamOpt, options))
void	transfer (edgeMesh &mesh)
	Transfer the contents of the argument and annul the argument.
bool	read (const fileName &name, const word &fileType)
	Read from file. Chooses reader based on explicit extension.
const pointField &	points () const noexcept
	Return points.
const edgeList &	edges () const noexcept
	Return edges.
const labelListList &	pointEdges () const
	Return edges.
label	regions (labelList &edgeRegion) const
	Find connected regions. Set region number per edge.
virtual void	clear ()
	Clear all storage.
virtual void	scalePoints (const scalar scaleFactor)
	Scale points. A non-positive factor is ignored.
virtual void	mergePoints (const scalar mergeDist)
	Geometric merge points (points within mergeDist) prior to.
virtual void	mergeEdges ()
	Merge duplicate edges and eliminate unused points.
virtual void	writeStats (Ostream &) const
void	operator= (const edgeMesh &rhs)
	Copy assignment.
void	operator= (edgeMesh &&rhs)
	Move assignment.
Public Member Functions inherited from GeoMesh< faMesh >
	GeoMesh (const faMesh &mesh)
	Construct from mesh reference.
bool	hasDb () const
	Return true if thisDb() is a valid DB - here = false.
const objectRegistry &	thisDb () const
	Return the object registry.
const faMesh &	operator() () const
	Return reference to the underlying mesh.
Public Member Functions inherited from edgeMeshFormatsCore
	edgeMeshFormatsCore ()=default
	Default construct.
virtual	~edgeMeshFormatsCore ()=default
	Destructor.

Static Public Member Functions
static autoPtr< edgeMesh >	New (const fileName &name)
	Read file and return edgeMesh.
static void	write (const fileName &filename, const edgeMesh &mesh, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null)
	Write edge mesh to file in STARCD format.
Static Public Member Functions inherited from edgeMesh
static label	size (const faMesh &mesh) noexcept
	The geometric (internal) size - number of internal edges.
static label	boundary_size (const faMesh &mesh) noexcept
	The geometric boundary size - number of boundary edges.
static wordHashSet	readTypes ()
	Summary of supported read file types.
static wordHashSet	writeTypes ()
	Summary of supported write file types.
static bool	canReadType (const word &fileType, bool verbose=false)
	Can we read this file format?
static bool	canWriteType (const word &fileType, bool verbose=false)
	Can we write this file format type?
static bool	canRead (const fileName &name, bool verbose=false)
	Can we read this file format?
static autoPtr< edgeMesh >	New (const fileName &name, const word &fileType)
	Read construct from filename with given format.
static autoPtr< edgeMesh >	New (const fileName &name)
	Select constructed from filename (implicit extension).
static void	write (const fileName &name, const edgeMesh &mesh, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null)
	Write to file (format implicit in the extension).
static void	write (const fileName &name, const word &fileType, const edgeMesh &mesh, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null)
	Write to file, with given format.
Static Public Member Functions inherited from edgeMeshFormatsCore
static bool	checkSupport (const wordHashSet &available, const word &fileType, const bool verbose=false, const char *functionName=nullptr)
	Verbose checking of fileType in the list of available types.

Static Protected Member Functions
static void	writeCase (Ostream &os, const pointField &pointLst, const label nEdges)
Static Protected Member Functions inherited from edgeMeshFormatsCore
static string	getLineNoComment (ISstream &is, const char comment='#')
	Read non-comment line.
Static Protected Member Functions inherited from STARCDCore
static bool	readHeader (IFstream &is, const enum fileHeader header)
	Read header and check signature PROSTAR_(CELL\|VERTEX\|BOUNDARY).
static void	writeHeader (Ostream &os, const enum fileHeader header)
	Write header for fileType (CELL\|VERTEX\|BOUNDARY).
static fileName	starFileName (const fileName &baseName, const enum fileExt ext)
	Resolve base file-name for the given file-type.
static void	removeFiles (const fileName &baseName)
	Remove existing PROSTAR files for the given base file-name.
static label	readPoints (IFstream &is, List< point > &points, List< label > &ids)
	Read points from a (.vrt) file, return the max prostar id used.
static void	writePoints (Ostream &os, const UList< point > &points, const scalar scaleFactor=1.0)
	Write header and points to (.vrt) file, optionally with scaling.

Additional Inherited Members
Public Types inherited from GeoMesh< faMesh >
typedef faMesh	Mesh
typedef faMesh::BoundaryMesh	BoundaryMesh
Static Public Attributes inherited from edgeMeshFormatsCore
static word	nativeExt
	The file extension corresponding to 'native' edge format.
Protected Types inherited from STARCDCore
enum	fileHeader { HEADER_CEL , HEADER_VRT , HEADER_BND }
	Enumeration defining the file headers. More...
enum	fileExt { CEL_FILE , VRT_FILE , BND_FILE , INP_FILE }
	Enumeration defining the file extensions. More...
enum	matlType { starcdFluidType = 1 , starcdSolidType = 2 , starcdBaffleType = 3 , starcdShellType = 4 , starcdLineType = 5 , starcdPointType = 6 }
	Basic material type for STARCD/PROSTAR files. More...
enum	shapeType { starcdPoint = 1 , starcdLine = 2 , starcdShell = 3 , starcdHex = 11 , starcdPrism = 12 , starcdTet = 13 , starcdPyr = 14 , starcdPoly = 255 }
	Shape-Type for STARCD/PROSTAR files. More...
Protected Member Functions inherited from edgeMesh
pointField &	storedPoints () noexcept
	Non-const access to global points.
edgeList &	storedEdges () noexcept
	Non-const access to the edges.
Protected Member Functions inherited from STARCDCore
	STARCDCore ()=default
	Construct null.
Protected Attributes inherited from GeoMesh< faMesh >
const faMesh &	mesh_
	Reference to Mesh.
Static Protected Attributes inherited from STARCDCore
static const Map< FixedList< int, 6 > >	starToFoamFaceAddr
	Face addressing from PROSTAR faces to OpenFOAM faces.
static const Map< FixedList< int, 6 > >	foamToStarFaceAddr
	Face addressing from OpenFOAM faces to PROSTAR faces.
static const char *const	defaultBoundaryName
	The name for default (unassigned) boundaries.
static const char *const	defaultSolidBoundaryName
	The name we have chosen for default (unassigned) solid boundaries.

Detailed Description

Read/write the lines from PROSTAR vrt/cel files.

Note: Uses the extension .inp (input) to denote the format.

See also: Foam::meshReaders::STARCD

Source files

Definition at line 59 of file STARCDedgeFormat.H.

Constructor & Destructor Documentation

◆ STARCDedgeFormat()

STARCDedgeFormat ( const fileName & filename )

explicit

Construct from file name.

Definition at line 92 of file STARCDedgeFormat.C.

References Foam::read().

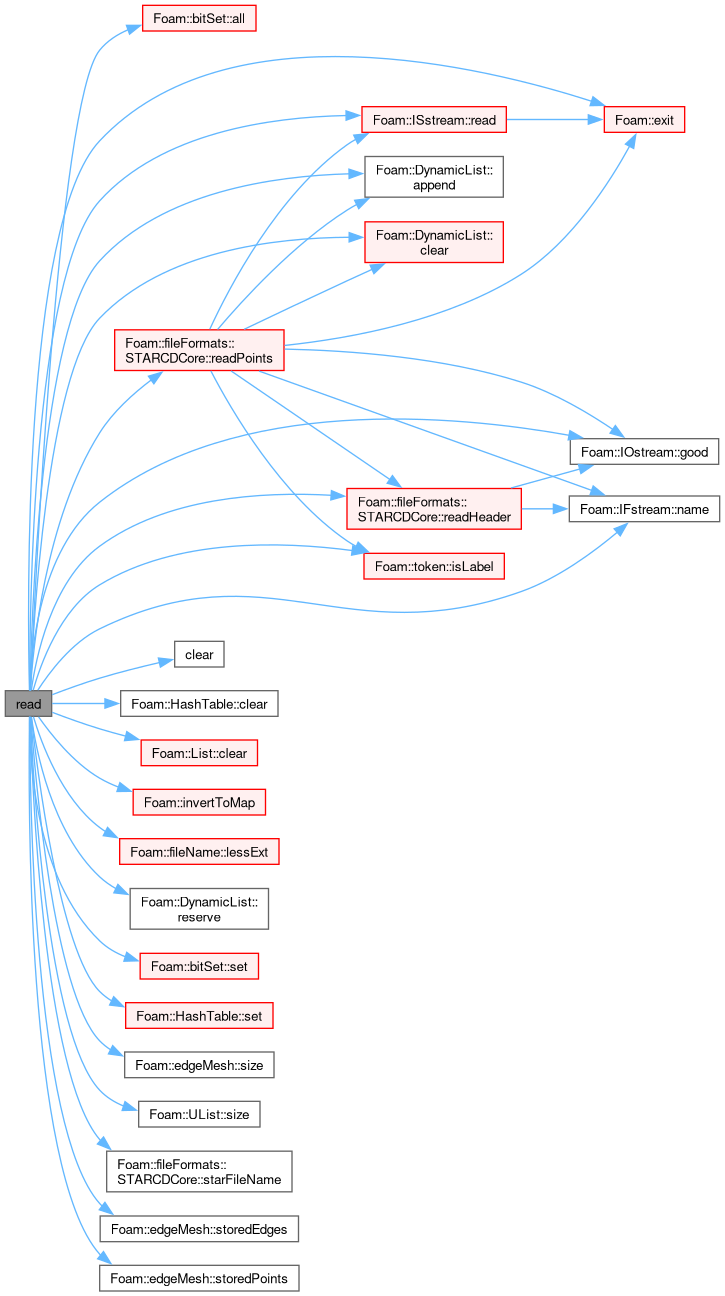

Here is the call graph for this function:

◆ ~STARCDedgeFormat()

virtual ~STARCDedgeFormat ( )

virtualdefault

Destructor.

References edgeMesh::edgeMesh(), mesh, Foam::name(), and dictionary::null.

Here is the call graph for this function:

Member Function Documentation

◆ writeCase()

void writeCase	(	Ostream &	os,
		const pointField &	pointLst,
		const label	nEdges )

staticprotected

Definition at line 58 of file STARCDedgeFormat.C.

References clock::dateTime(), Foam::nl, os(), and UList< T >::size().

Referenced by write().

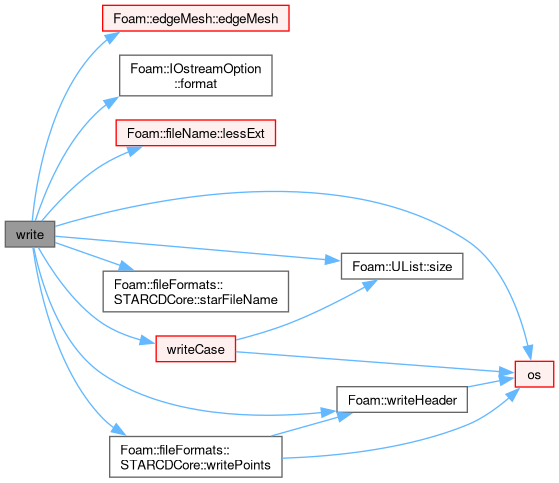

Here is the call graph for this function:

Here is the caller graph for this function:

◆ New()

autoPtr< edgeMesh > New ( const fileName & name )

inlinestatic

Read file and return edgeMesh.

Definition at line 100 of file STARCDedgeFormat.H.

References Foam::name(), and autoPtr< T >::NewFrom().

Here is the call graph for this function:

◆ write() [1/3]

void write	(	const fileName &	filename,
		const edgeMesh &	mesh,
		IOstreamOption	streamOpt = IOstreamOption(),
		const dictionary &	options = dictionary::null )

static

Write edge mesh to file in STARCD format.

Definition at line 223 of file STARCDedgeFormat.C.

References IOstreamOption::ASCII, STARCDCore::CEL_FILE, edgeMesh::edgeMesh(), IOstreamOption::format(), STARCDCore::HEADER_CEL, STARCDCore::INP_FILE, fileName::lessExt(), mesh, os(), UList< T >::size(), STARCDCore::starFileName(), STARCDCore::VRT_FILE, writeCase(), Foam::writeHeader(), and STARCDCore::writePoints().

Here is the call graph for this function:

◆ read()

bool read ( const fileName & name )

overridevirtual

Read from file.

Reimplemented from edgeMesh.

Definition at line 103 of file STARCDedgeFormat.C.

References bitSet::all(), DynamicList< T, SizeMin >::append(), STARCDCore::CEL_FILE, clear(), DynamicList< T, SizeMin >::clear(), HashTable< T, Key, Hash >::clear(), List< T >::clear(), e, Foam::exit(), Foam::FatalError, FatalErrorInFunction, IOstream::good(), STARCDCore::HEADER_CEL, Foam::invertToMap(), token::isLabel(), fileName::lessExt(), IFstream::name(), points, pts, ISstream::read(), STARCDCore::readHeader(), STARCDCore::readPoints(), DynamicList< T, SizeMin >::reserve(), bitSet::set(), HashTable< T, Key, Hash >::set(), edgeMesh::size(), UList< T >::size(), STARCDCore::starcdLineType, STARCDCore::starFileName(), edgeMesh::storedEdges(), edgeMesh::storedPoints(), and STARCDCore::VRT_FILE.

Here is the call graph for this function:

◆ write() [2/3]

virtual void write	(	const fileName &	name,
		IOstreamOption	streamOpt = IOstreamOption(),
		const dictionary &	options = dictionary::null ) const

inlineoverridevirtual

Write to file.

Reimplemented from edgeMesh.

Definition at line 136 of file STARCDedgeFormat.H.

References Foam::name(), dictionary::null, and write().

Here is the call graph for this function:

◆ write() [3/3]

virtual void write	(	const fileName &	name,
		const word &	fileType,
		IOstreamOption	streamOpt = IOstreamOption(),
		const dictionary &	options = dictionary::null ) const

inlineoverridevirtual

Write to file.

Reimplemented from edgeMesh.

Definition at line 149 of file STARCDedgeFormat.H.

References Foam::name(), dictionary::null, and write().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/meshTools/edgeMesh/edgeFormats/starcd/STARCDedgeFormat.H
src/meshTools/edgeMesh/edgeFormats/starcd/STARCDedgeFormat.C
