Provide a means of reading/writing the single-file OpenFOAM edge format. More...

#include <edgeMeshFormat.H>

Inheritance diagram for edgeMeshFormat:

Collaboration diagram for edgeMeshFormat:

Public Member Functions
	edgeMeshFormat (const fileName &filename)
	Construct from file name.
virtual	~edgeMeshFormat ()=default
	Destructor.
virtual bool	read (const fileName &filename) override
	Read from file.
virtual void	write (const fileName &name, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null) const override
	Write edge mesh to file.
virtual void	write (const fileName &name, const word &fileType, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null) const override
	Write edge mesh to file.
Public Member Functions inherited from edgeMesh
	edgeMesh (const faMesh &mesh)
	Construct finite-area edge mesh faMesh reference.
label	size () const noexcept
	The geometric (internal) size - number of internal edges.
const edgeVectorField &	C () const
	Field of edge centres.
	TypeName ("edgeMesh")
	Runtime type information.
	edgeMesh ()
	Default construct.
	edgeMesh (const edgeMesh &em)
	Copy construct.
	edgeMesh (edgeMesh &&em)
	Move construct.
	edgeMesh (const pointField &points, const edgeList &edges)
	Copy construct from components.
	edgeMesh (pointField &&pointLst, edgeList &&edgeLst)
	Move construct from components.
	edgeMesh (const fileName &name)
	Construct from file name (uses extension to determine type).
	edgeMesh (const fileName &name, const word &fileType)
	Construct from file name with specified type.
	declareRunTimeSelectionTable (autoPtr, edgeMesh, fileExtension,(const fileName &name),(name))
virtual	~edgeMesh ()=default
	Destructor.
	declareMemberFunctionSelectionTable (void, edgeMesh, write, fileExtension,(const fileName &name, const edgeMesh &mesh, IOstreamOption streamOpt, const dictionary &options),(name, mesh, streamOpt, options))
void	transfer (edgeMesh &mesh)
	Transfer the contents of the argument and annul the argument.
bool	read (const fileName &name, const word &fileType)
	Read from file. Chooses reader based on explicit extension.
const pointField &	points () const noexcept
	Return points.
const edgeList &	edges () const noexcept
	Return edges.
const labelListList &	pointEdges () const
	Return edges.
label	regions (labelList &edgeRegion) const
	Find connected regions. Set region number per edge.
virtual void	clear ()
	Clear all storage.
virtual void	scalePoints (const scalar scaleFactor)
	Scale points. A non-positive factor is ignored.
virtual void	mergePoints (const scalar mergeDist)
	Geometric merge points (points within mergeDist) prior to.
virtual void	mergeEdges ()
	Merge duplicate edges and eliminate unused points.
virtual void	writeStats (Ostream &) const
void	operator= (const edgeMesh &rhs)
	Copy assignment.
void	operator= (edgeMesh &&rhs)
	Move assignment.
Public Member Functions inherited from GeoMesh< faMesh >
	GeoMesh (const faMesh &mesh)
	Construct from mesh reference.
bool	hasDb () const
	Return true if thisDb() is a valid DB - here = false.
const objectRegistry &	thisDb () const
	Return the object registry.
const faMesh &	operator() () const
	Return reference to the underlying mesh.
Public Member Functions inherited from edgeMeshFormatsCore
	edgeMeshFormatsCore ()=default
	Default construct.
virtual	~edgeMeshFormatsCore ()=default
	Destructor.

Static Public Member Functions
static autoPtr< edgeMesh >	New (const fileName &name)
	Read file and return edgeMesh.
static bool	read (Istream &, pointField &, edgeList &)
	Read edgeMesh components from stream.
static Ostream &	write (Ostream &, const pointField &, const edgeList &)
	Write edgeMesh components to stream.
static void	write (const fileName &filename, const edgeMesh &mesh, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null)
	Write edge mesh to file with a mimicked IOobject header.
Static Public Member Functions inherited from edgeMesh
static label	size (const faMesh &mesh) noexcept
	The geometric (internal) size - number of internal edges.
static label	boundary_size (const faMesh &mesh) noexcept
	The geometric boundary size - number of boundary edges.
static wordHashSet	readTypes ()
	Summary of supported read file types.
static wordHashSet	writeTypes ()
	Summary of supported write file types.
static bool	canReadType (const word &fileType, bool verbose=false)
	Can we read this file format?
static bool	canWriteType (const word &fileType, bool verbose=false)
	Can we write this file format type?
static bool	canRead (const fileName &name, bool verbose=false)
	Can we read this file format?
static autoPtr< edgeMesh >	New (const fileName &name, const word &fileType)
	Read construct from filename with given format.
static autoPtr< edgeMesh >	New (const fileName &name)
	Select constructed from filename (implicit extension).
static void	write (const fileName &name, const edgeMesh &mesh, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null)
	Write to file (format implicit in the extension).
static void	write (const fileName &name, const word &fileType, const edgeMesh &mesh, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null)
	Write to file, with given format.
Static Public Member Functions inherited from edgeMeshFormatsCore
static bool	checkSupport (const wordHashSet &available, const word &fileType, const bool verbose=false, const char *functionName=nullptr)
	Verbose checking of fileType in the list of available types.

Static Protected Member Functions
static void	writeHeader (Ostream &, const pointField &, const edgeList &)
	Write header information.
Static Protected Member Functions inherited from edgeMeshFormatsCore
static string	getLineNoComment (ISstream &is, const char comment='#')
	Read non-comment line.

Additional Inherited Members
Public Types inherited from GeoMesh< faMesh >
typedef faMesh	Mesh
typedef faMesh::BoundaryMesh	BoundaryMesh
Static Public Attributes inherited from edgeMeshFormatsCore
static word	nativeExt
	The file extension corresponding to 'native' edge format.
Protected Member Functions inherited from edgeMesh
pointField &	storedPoints () noexcept
	Non-const access to global points.
edgeList &	storedEdges () noexcept
	Non-const access to the edges.
Protected Attributes inherited from GeoMesh< faMesh >
const faMesh &	mesh_
	Reference to Mesh.

Detailed Description

Provide a means of reading/writing the single-file OpenFOAM edge format.

Note: This class provides more methods than the regular edge format interface.

Source files

Definition at line 54 of file edgeMeshFormat.H.

Constructor & Destructor Documentation

◆ edgeMeshFormat()

edgeMeshFormat ( const fileName & filename )

explicit

Construct from file name.

Definition at line 31 of file edgeMeshFormat.C.

References read().

Here is the call graph for this function:

◆ ~edgeMeshFormat()

virtual ~edgeMeshFormat ( )

virtualdefault

Destructor.

References edgeMesh::edgeMesh(), mesh, and dictionary::null.

Here is the call graph for this function:

Member Function Documentation

◆ writeHeader()

void writeHeader	(	Ostream &	,
		const pointField &	,
		const edgeList &	)

staticprotected

Write header information.

◆ New()

autoPtr< edgeMesh > New ( const fileName & name )

inlinestatic

Read file and return edgeMesh.

Definition at line 88 of file edgeMeshFormat.H.

References Foam::name(), and autoPtr< T >::NewFrom().

Here is the call graph for this function:

◆ read() [1/2]

bool read	(	Istream &	is,
		pointField &	pointLst,
		edgeList &	edgeLst )

static

Read edgeMesh components from stream.

Definition at line 89 of file edgeMeshFormat.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, and IOstream::good().

Referenced by edgeMeshFormat(), Foam::operator>>(), and extendedFeatureEdgeMeshFormat::read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write() [1/4]

Foam::Ostream & write	(	Ostream &	os,
		const pointField &	pointLst,
		const edgeList &	edgeLst )

static

Write edgeMesh components to stream.

Definition at line 110 of file edgeMeshFormat.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, FUNCTION_NAME, Foam::nl, os(), and IOobject::writeDivider().

Referenced by Foam::operator<<().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write() [2/4]

void write	(	const fileName &	filename,
		const edgeMesh &	mesh,
		IOstreamOption	streamOpt = IOstreamOption(),
		const dictionary &	options = dictionary::null )

static

Write edge mesh to file with a mimicked IOobject header.

Definition at line 134 of file edgeMeshFormat.C.

References clock::dateTime(), edgeMesh::edgeMesh(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, FUNCTION_NAME, io, mesh, Time::New(), IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, os(), and write().

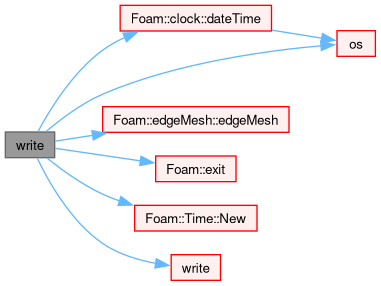

Here is the call graph for this function:

◆ read() [2/2]

bool read ( const fileName & filename )

overridevirtual

Read from file.

Reimplemented from edgeMesh.

Definition at line 42 of file edgeMeshFormat.C.

References clear(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, io, Time::New(), IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, Foam::read(), edgeMesh::storedEdges(), and edgeMesh::storedPoints().

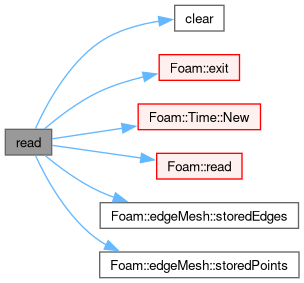

Here is the call graph for this function:

◆ write() [3/4]

virtual void write	(	const fileName &	name,
		IOstreamOption	streamOpt = IOstreamOption(),
		const dictionary &	options = dictionary::null ) const

inlineoverridevirtual

Write edge mesh to file.

Reimplemented from edgeMesh.

Definition at line 144 of file edgeMeshFormat.H.

References Foam::name(), dictionary::null, and write().

Here is the call graph for this function:

◆ write() [4/4]

virtual void write	(	const fileName &	name,
		const word &	fileType,
		IOstreamOption	streamOpt = IOstreamOption(),
		const dictionary &	options = dictionary::null ) const

inlineoverridevirtual

Write edge mesh to file.

Reimplemented from edgeMesh.

Definition at line 157 of file edgeMeshFormat.H.

References Foam::name(), dictionary::null, and write().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/meshTools/edgeMesh/edgeFormats/edgeMesh/edgeMeshFormat.H
src/meshTools/edgeMesh/edgeFormats/edgeMesh/edgeMeshFormat.C
