Base driver for parsing value expressions associated with an fvMesh. More...

#include <fvExprDriver.H>

Inheritance diagram for fvExprDriver:

[legend]

Collaboration diagram for fvExprDriver:

Public Member Functions
	TypeName ("fvExprDriver")
	Runtime type information.

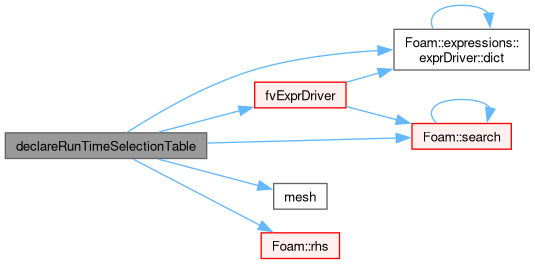

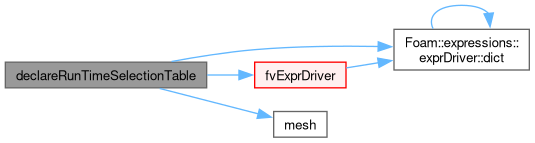

	declareRunTimeSelectionTable (autoPtr, fvExprDriver, dictionary,(const dictionary &dict, const fvMesh &mesh),(dict, mesh))
	declareRunTimeSelectionTable (autoPtr, fvExprDriver, idName,(const word &ident, const fvMesh &mesh),(ident, mesh))

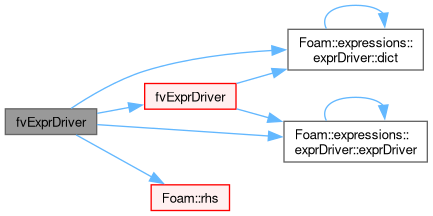

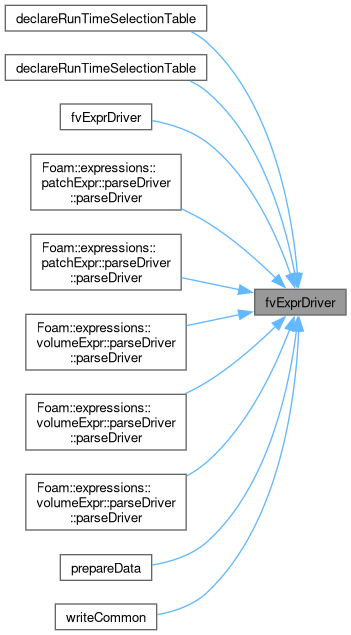

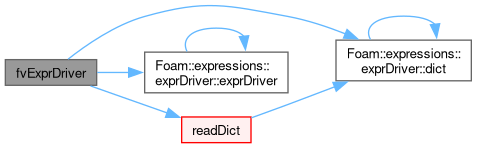

	fvExprDriver (enum exprDriver::searchControls search=exprDriver::searchControls::DEFAULT_SEARCH, const dictionary &dict=dictionary::null)
	Default construct, and default construct with search preferences.
	fvExprDriver (const fvExprDriver &rhs, const dictionary &dict)
	Copy construct with dictionary reference.
	fvExprDriver (const dictionary &dict)
	Construct from a dictionary.
virtual autoPtr< fvExprDriver >	clone ()=delete
	Not generally clonable.
virtual	~fvExprDriver ()
	Destructor.
virtual label	size () const =0
	The natural field size for the expression.
virtual label	pointSize () const =0
	The point field size for the expression.
bool	cacheSets () const
	Status of cache-sets (static variable).

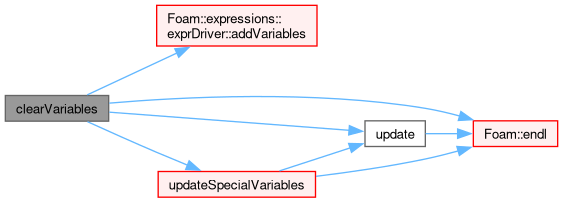

virtual void	clearVariables ()
	Clear temporary variables, reset from expression strings.
virtual bool	hasVariable (const word &name) const
	True if named variable exists.
virtual const exprResult &	variable (const word &name) const
	Return const-access to the named variable.
template<class Type>
bool	isVariableOrField (const word &name, const bool wantPointData=false, const label expectSize=-1) const
	Test for existence of a local/global variable or a field.
template<class Type>

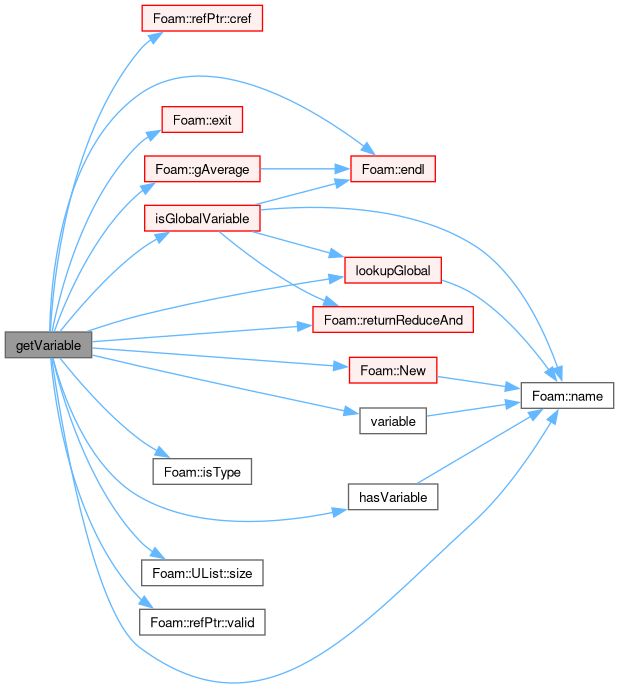

tmp< Field< Type > >	getVariable (const word &name, const label expectSize, const bool mandatory=true) const
	Retrieve local/global variable as a tmp field.

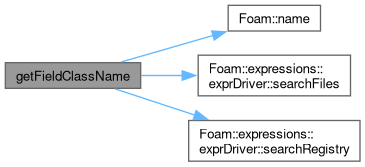

word	getFieldClassName (const word &name) const
	Lookup the field class name (memory or read from disk).
topoSetSource::sourceType	topoSetType (const word &name) const
	Return cell/face/point set type or unknown.
topoSetSource::sourceType	topoZoneType (const word &name) const
	Return cell/face/point zone type or unknown.
topoSetSource::sourceType	topoSourceType (const word &name) const
	Return cell/face/point zone/set type or unknown.

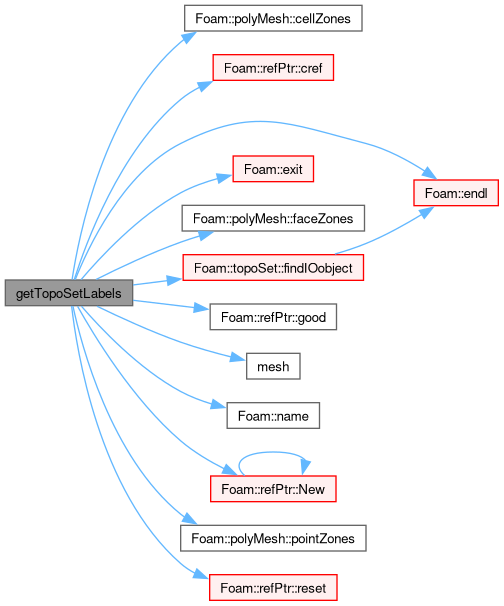

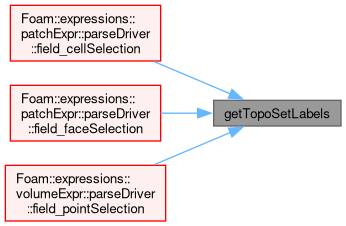

refPtr< labelList >	getTopoSetLabels (const word &name, enum topoSetSource::sourceType setType) const
	Get the labels associated with the topo set.
bool	isCellZone (const word &name) const
	Test if name is a known cellZone.
bool	isFaceZone (const word &name) const
	Test if name is a known faceZone.
bool	isPointZone (const word &name) const
	Test if name is a known pointZone.
bool	isCellSet (const word &name) const
	Test if name is a known cellSet.
bool	isFaceSet (const word &name) const
	Test if name is a known faceSet.
bool	isPointSet (const word &name) const
	Test if name is a known pointSet.

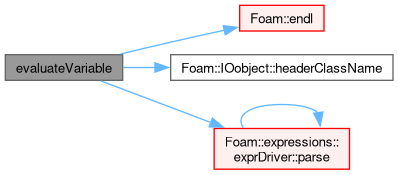

virtual void	evaluateVariable (const word &varName, const expressions::exprString &expr)
	Evaluate the expression and save as the specified named variable.

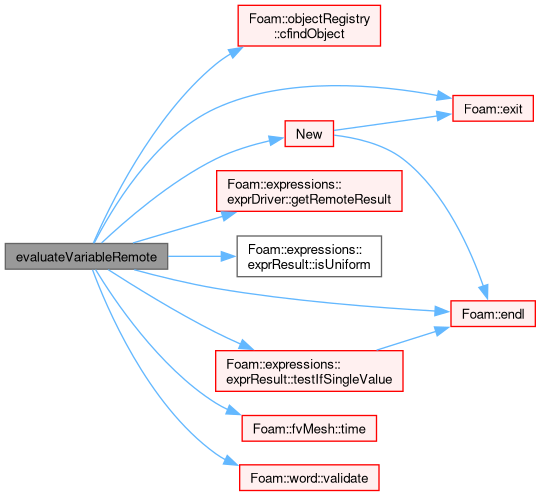

virtual void	evaluateVariableRemote (string remote, const word &varName, const expressions::exprString &expr)
	Evaluate an expression on a remote and save as the specified named variable.
template<class Type>
bool	isVariable (const word &name, bool wantPointData=false, label expectSize=-1) const
	Test existence of a local/global variable.
template<class Type>

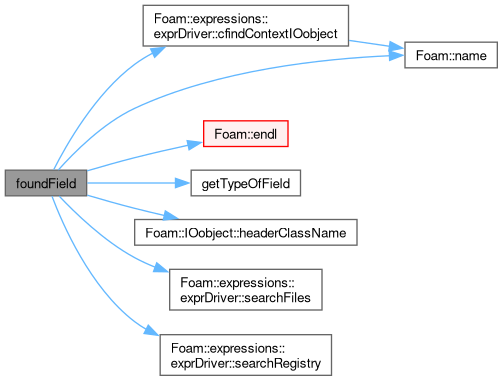

bool	foundField (const word &name) const
	Test if specified field can be found in memory or disk.

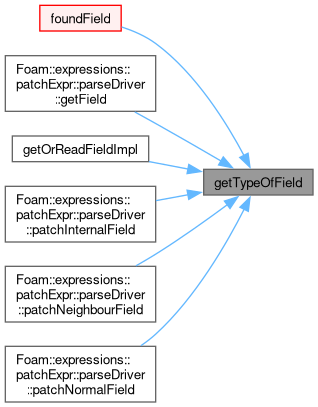

word	getTypeOfField (const word &fieldName) const
	Read the IOobject for fieldName and return its headerClassName.

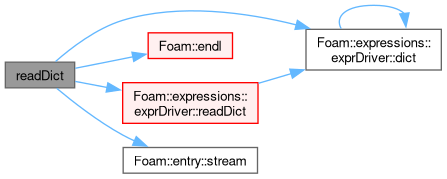

virtual bool	readDict (const dictionary &dict)
	Read variables, tables etc.

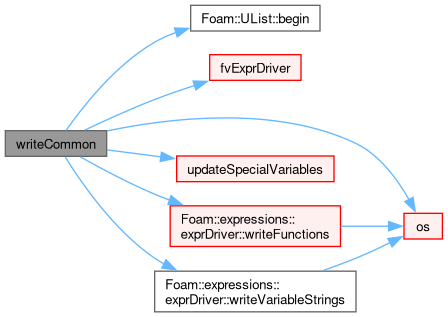

Ostream &	writeCommon (Ostream &os, bool debug=false) const
	Write "variables", "storedVariables", "delayedVariables", "globalScopes" if they are present.

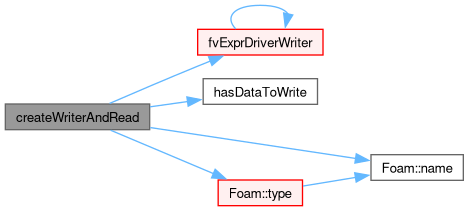

void	createWriterAndRead (const word &name)
	Create a writer for this object.
void	tryWrite () const
	Write data if appropriate Should enable exact restarts.
template<class GeomField>

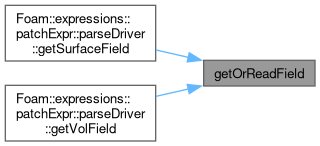

Foam::tmp< GeomField >	getOrReadField (const word &name, const bool mandatory, const bool getOldTime)
template<class GeomField>

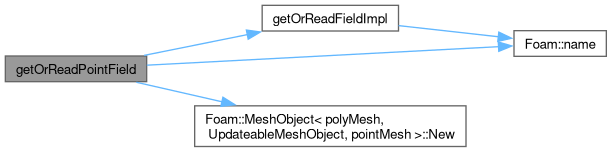

Foam::tmp< GeomField >	getOrReadPointField (const word &name, const bool mandatory, const bool getOldTime)

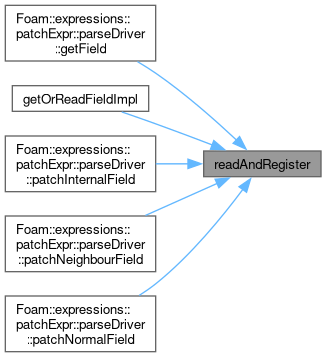

template<class GeomField, class Mesh>
Foam::tmp< GeomField >	readAndRegister (const word &name, const Mesh &meshRef)
template<class Type>
Foam::tmp< Foam::Field< Type > >	getVariable (const word &name, const label expectedSize, const bool mandatory) const
template<class GeomField, class Mesh>

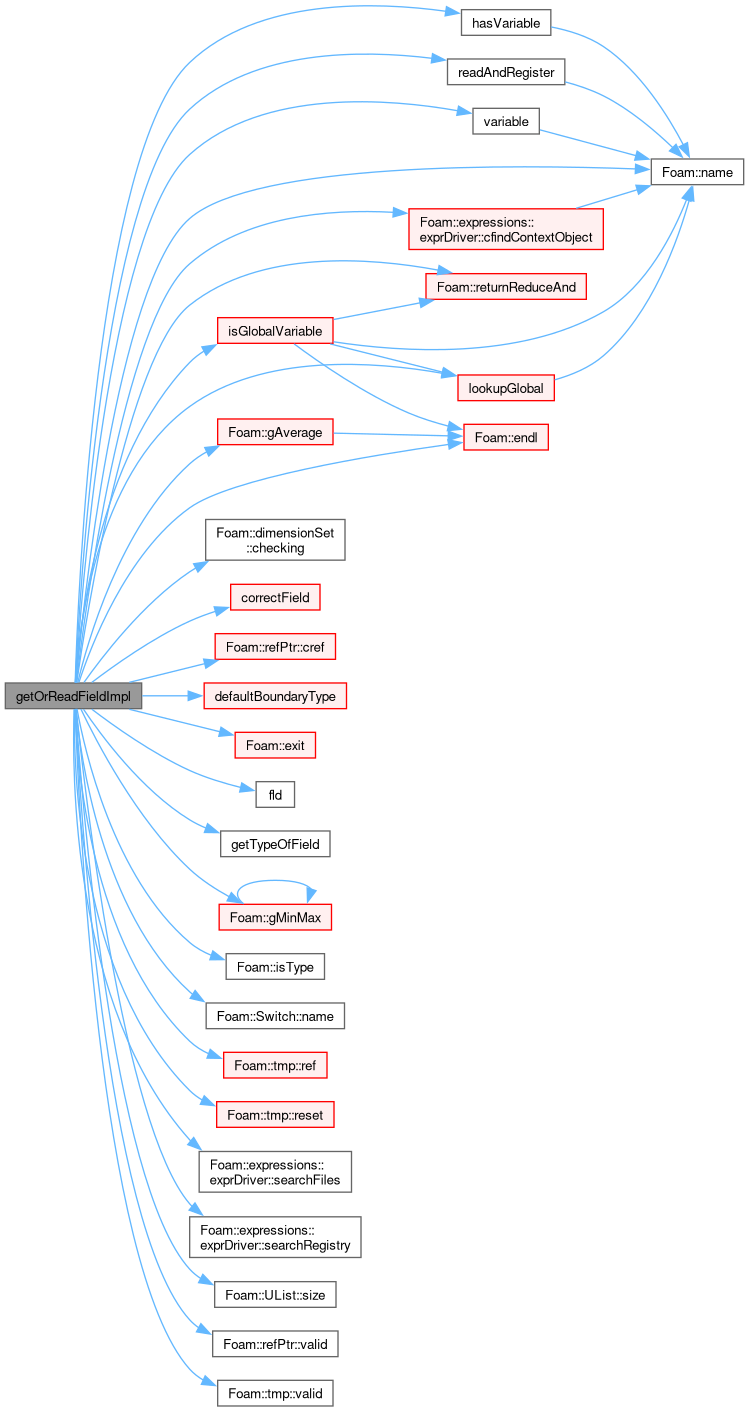

Foam::tmp< GeomField >	getOrReadFieldImpl (const word &name, const Mesh &meshRef, bool mandatory, bool getOldTime)
template<class T>

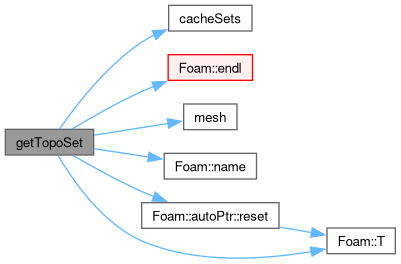

Foam::autoPtr< T >	getTopoSet (const fvMesh &mesh, const word &name, SetOrigin &origin) const
Public Member Functions inherited from exprDriver
	TypeName ("exprDriver")
	Runtime type information.
	exprDriver (const exprDriver &)=delete
	No copy construct.
void	operator= (const exprDriver &)=delete
	No copy assignment.
	exprDriver (enum searchControls search=searchControls::DEFAULT_SEARCH, const dictionary &dict=dictionary::null)
	Default construct, and default construct with search preferences.
	exprDriver (const exprDriver &rhs, const dictionary &dict)
	Copy construct with new dictionary reference.
	exprDriver (const dictionary &dict)
	Construct from a dictionary.
virtual	~exprDriver ()=default
	Destructor.
const TimeState *	timeState () const noexcept
	Reference to the current time-state (can be nullptr).
virtual scalar	timeValue () const
	The current time value.
virtual scalar	deltaT () const
	The current deltaT value.
const dictionary &	dict () const noexcept
	The dictionary with all input data/specification.
const exprResult &	result () const noexcept
	Const access to expression result.
exprResult &	result () noexcept
	Non-const access to expression result.
void	clearResult ()
	Clear the result.
template<class Type>
tmp< Field< Type > >	getResult (bool wantPointData=false)
	Return the expression result as a tmp field.
const word &	getResultType () const noexcept
	The result type as word - same as result().valueType().
void	resetDb (const objectRegistry *obrPtr=nullptr)
	Reset the objectRegistry (for functions).
void	resetDb (const objectRegistry &db)
	Reset the objectRegistry (for functions).
scalar	argValue () const noexcept
	Get special-purpose scalar reference argument.
int	stashedTokenId () const noexcept
	Get "look-behind" parsing context (internal bookkeeping).
int	resetStashedTokenId (int tokenId=0) const noexcept
	Reset "look-behind" parsing context (mutable operation).
void	setDebugging (bool scannerDebug, bool parserDebug)
	Set the scanner/parser debug.
void	setDebugging (const exprDriver &rhs)
	Set the scanner/parser debug to match the input.
bool	setCaching (bool on) noexcept
	Toggle CACHE_READ_FIELDS control.
void	setSearchBehaviour (enum searchControls search, const bool caching=false)
	Set search behaviour, with additional CACHE_READ_FIELDS toggle on.
void	setSearchBehaviour (const exprDriver &rhs)
	Set search behaviour to be identical to rhs.
bool	debugScanner () const noexcept
	Read access to scanner debug.
bool	debugParser () const noexcept
	Read access to parser debug.
bool	prevIterIsOldTime () const
void	setArgument (const scalar val) noexcept
	Set special-purpose scalar reference argument.
void	addVariables (const expressions::exprString &expr, bool clear=true)
	Add/set string expressions for variables.
void	addVariables (const UList< expressions::exprString > &list, bool clear=true)
	Add/set string expressions for variables.
template<class T>
void	addUniformVariable (const word &name, const T &val)
	Add a uniform variable from an outside caller.
bool	hasContextObjects () const
	True if any context fields are defined.
const regIOobject *	cfindContextIOobject (const word &name) const
	Find named context field, if it exists.
template<class ObjType>
const ObjType *	cfindContextObject (const word &name) const
	Find context field object of specified type.
void	addContextObject (const word &name, const regIOobject *)
	Add the object to the context.
void	addContextObject (const regIOobject *)
	Add the object to the context.
void	removeContextObject (const word &name)
	Remove the object from the context.
void	removeContextObject (const regIOobject *)
	Remove the object from the context.
const contextObjectTableType &	contextObjects () const noexcept
	Read access to the object context.
contextObjectTableType &	contextObjects () noexcept
	Write access to the object context.
template<class Type>
bool	isFunction (const word &name) const
	Named mapping with given type exists.
template<class Type>
Type	getFunctionValue (const word &name, const scalar x) const
	Evaluate named mapping for the given time/value. Zero for undefined/unknown.
template<class Type>
void	fillFunctionValues (Field< Type > &result, const word &name, const scalarField &input) const
	Fill result with values remapped according to the named Function1.
template<class T>
bool	isLocalVariable (const word &name, bool wantPointData=false, label expectedSize=-1) const
	Test existence of a local variable.
template<class Type>
tmp< Field< Type > >	getLocalVariable (const word &name, label expectSize, const bool mandatory=true) const
	Retrieve local/global variable as a tmp field.
virtual unsigned	parse (const std::string &expr, size_t pos=0, size_t len=std::string::npos)=0
	Execute the parser.
template<class Type>
tmp< Field< Type > >	evaluate (const expressions::exprString &expr, bool wantPointData=false)
	Evaluate the expression and return the field.
template<class Type>
Type	evaluateUniform (const expressions::exprString &expr, bool wantPointData=false)
	Evaluate the expression and return a single value.
void	evaluateVariable (const word &varName, const expressions::exprString &expr)
	Evaluate the expression and save as the specified named variable.
template<class Type>
tmp< Field< Type > >	newField (const Type &val=pTraits< Type >::zero) const
	Return a new field with the size().
template<class Type>
tmp< Field< Type > >	newPointField (const Type &val=pTraits< Type >::zero) const
	Return a new field with the pointSize().
expressions::exprString	readExpression (const word &name)
	Read an expression string (with the current dictionary) and do substitutions.
label	setVariableStrings (const dictionary &dict, bool mandatory=false)
	Read "variables" and assigns to the list of expression strings.
Ostream &	writeVariableStrings (Ostream &os, const word &keyword="") const
	Write "variables".
template<class Type>
void	addUniformVariable (const word &name, const Type &val)
template<class Type>
Foam::tmp< Foam::Field< Type > >	evaluate (const expressions::exprString &expr, bool wantPointData)
template<class Type>
Foam::tmp< Foam::Field< Type > >	getResult (bool wantPointData)
template<class Type>
const Foam::Function1< Type > *	getFunction1Ptr (const word &name, const HashTable< refPtr< Function1< Type > > > &tbl, wordList *listFailure)
template<class Type>
Foam::tmp< Foam::Field< Type > >	newField (const Type &val) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	newPointField (const Type &val) const

Static Public Member Functions
static const fvMesh &	defaultMesh ()
	Get the default mesh, if one is defined.
static const fvMesh *	resetDefaultMesh (const fvMesh &mesh, const bool force=false)
	Set the default mesh (if not already set).

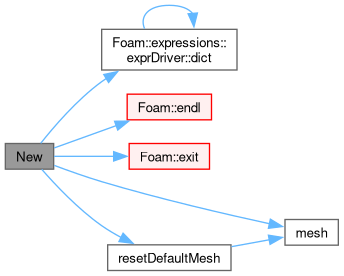

static autoPtr< fvExprDriver >	New (const dictionary &dict, const fvMesh &mesh)
	Return a reference to the selected value driver.
static autoPtr< fvExprDriver >	New (const dictionary &dict)
	Return a reference to the selected value driver.
static autoPtr< fvExprDriver >	New (const word &type, const word &id, const fvMesh &mesh)
	Return a reference to the selected value driver.
Static Public Member Functions inherited from exprDriver
static expressions::exprString	readExpression (const word &name, const dictionary &dict)
	Read an expression string and do substitutions.
static List< expressions::exprString >	readVariableStrings (const dictionary &dict, const word &name="variables", bool mandatory=false)
	Read the list of variable strings.

Protected Types
enum	SetOrigin { INVALID = 0 , NEW , FILE , MEMORY , CACHE }
	The origin of the topoSet. More...

Protected Member Functions
virtual const fvMesh &	mesh () const =0
	The mesh we are attached to.
void	setGlobalScopes (const wordUList &scopes)
	Define scopes for global variables.
virtual exprResult &	variable (const word &name)
	Non-const access to the named variable (sub-classes only).
template<class T>
bool	isGlobalVariable (const word &name, const bool wantPointData=false, const label expectedSize=-1) const
	Test existence of a global variable.
const exprResult &	lookupGlobal (const word &name) const
	Return the global variable if available or a null result.
template<class Type>
bool	isField (const word &name, const bool wantPointData=false, const label expectSize=-1) const
	Test for the existence of a mesh field.
template<class GeomField>
tmp< GeomField >	getOrReadField (const word &name, const bool mandatory=true, const bool getOldTime=false)
	Retrieve field from memory or disk.
template<class GeomField>
tmp< GeomField >	getOrReadPointField (const word &name, const bool mandatory=true, const bool getOldTime=false)
	Retrieve point field from memory or disk.
template<class GeomField, class MeshRef>
tmp< GeomField >	getOrReadFieldImpl (const word &name, const MeshRef &meshRef, const bool mandatory=true, const bool getOldTime=false)
	Retrieve field from memory or disk (implementation).
template<class GeomField, class MeshRef>
tmp< GeomField >	readAndRegister (const word &name, const MeshRef &meshRef)
	Helper function for getOrReadField.
template<class T>
autoPtr< T >	getTopoSet (const fvMesh &mesh, const word &setName, SetOrigin &origin) const
	Get topoSet.
template<class T>

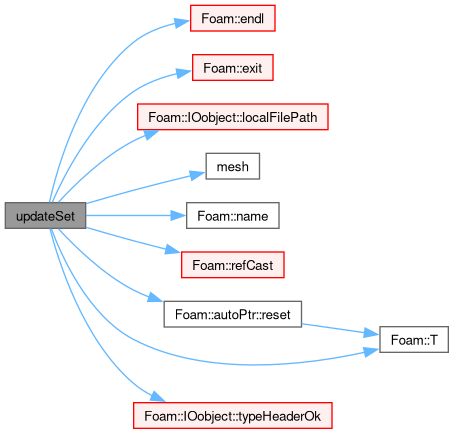

bool	updateSet (autoPtr< T > &setPtr, const word &setName, SetOrigin origin) const
	Update topoSet.

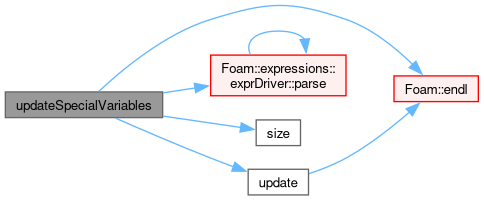

virtual void	updateSpecialVariables (bool force=false)
	Examine current variable values and update stored variables.
virtual bool	hasDataToWrite () const
	Do we need a data file to be written.
virtual void	prepareData (dictionary &dict) const
	Prepare/update special variables and add to dictionary, normally via the reader/writer.
virtual void	getData (const dictionary &dict)
	Read data from dictionary, normally via the reader/writer.
Protected Member Functions inherited from exprDriver
bool	searchRegistry () const noexcept
bool	searchFiles () const noexcept
bool	cacheReadFields () const noexcept
void	resetTimeReference (const TimeState *ts)
	Reset the time-state reference.
void	resetTimeReference (const TimeState &ts)
	Reset the time-state reference.
void	writeFunctions (Ostream &os) const
	Write scalar/vector Function1 entries in dictionary format.
void	fill_random (scalarField &field, label seed=0, const bool gaussian=false) const
	Fill a random field.
virtual bool	update ()
	Update things.
virtual exprResult	getRemoteResult (const exprDriver &other) const
	Get the result from another driver.

Static Protected Member Functions
static const fvMesh &	regionMesh (const dictionary &dict, const fvMesh &mesh, bool readIfNecessary)
	Determine mesh or region mesh as specified in the dictionary with the keyword "region".
template<class T>
static word	defaultBoundaryType (const T &)
	Default boundary type is calculated.
template<class Type>
static word	defaultBoundaryType (const VolumeField< Type > &)
	Default boundary type for volume fields is zeroGradient since they are essentially just internal fields.
template<class T>
static void	correctField (T &)
	Apply correctBoundaryConditions (volume fields only).
template<class Type>
static void	correctField (VolumeField< Type > &fld)
Static Protected Member Functions inherited from exprDriver
static point	getPositionOfMinimum (const scalarField &vals, const pointField &locs)
	Return the location of the min value.
static point	getPositionOfMaximum (const scalarField &vals, const pointField &locs)
	Return the location of the max value.

Friends
class	fvExprDriverWriter

Additional Inherited Members
Public Types inherited from exprDriver
enum	searchControls { NO_SEARCH = 0 , SEARCH_REGISTRY = 1 , SEARCH_FILES = 2 , CACHE_READ_FIELDS = 4 , DEFAULT_SEARCH = (SEARCH_REGISTRY) }
	Search/caching controls. More...
typedef HashTable< const regIOobject * >	contextObjectTableType
	Externally defined context fields.
Protected Attributes inherited from exprDriver
const dictionary &	dict_
	The dictionary with all input data/specification.
exprResult	result_
	The result.
List< expressions::exprString >	variableStrings_
	Variable definitions, as read from a dictionary.
HashTable< exprResult >	variables_
	The variables table.
HashTable< refPtr< Function1< scalar > > >	scalarFuncs_
	Function1 mappings/timelines (scalar), evaluated at the simulation time or with arbitrary scalars.
HashTable< refPtr< Function1< vector > > >	vectorFuncs_
	Function1 mappings/timelines (vector), evaluated at the simulation time or with arbitrary scalars.
contextObjectTableType	contextObjects_
	Externally defined context fields.
scalar	arg1Value_
	Special-purpose scalar reference argument.
const TimeState *	timeStatePtr_
	Reference to the time-state.
const objectRegistry *	obrPtr_
	Pointer to an object registry (for functions etc).
int	stashedTokenId_
	Internal bookkeeping as "look-behind" parsing context.
bool	debugScanner_
	Request debugging for scanner.
bool	debugParser_
	Request debugging for parser.
bool	allowShadowing_
	Allow variable names to mask field names.
bool	prevIterIsOldTime_
	Use value of previous iteration when oldTime is requested.
searchControls	searchCtrl_
	Registry/disk/caching control.

Detailed Description

Base driver for parsing value expressions associated with an fvMesh.

Largely based on code and ideas from swak4foam

Properties

Property	Description	Required	Default
`variables`	List of variables for expressions	no	()
`delayedVariables`	List of delayed variables	no	()
`storedVariables`	List of stored variables	no	()
`globalScopes`	Scopes for global variables	no	()
`allowShadowing`	Allow variables to shadow field names	no	false

Debug Properties

Property	Description	Required	Default
`debug.driver`	Debug level (int) for base driver	no
`debug.scanner`	Add debug for scanner	no	false
`debug.parser`	Add debug for parser	no	false

Source files

Definition at line 132 of file fvExprDriver.H.

Member Enumeration Documentation

◆ SetOrigin

enum SetOrigin

protected

The origin of the topoSet.

Enumerator
INVALID
NEW
FILE
MEMORY
CACHE

Definition at line 371 of file fvExprDriver.H.

Constructor & Destructor Documentation

◆ fvExprDriver() [1/3]

fvExprDriver	(	enum exprDriver::searchControls	search = exprDriver::searchControls::DEFAULT_SEARCH,
		const dictionary &	dict = dictionary::null )

explicit

Default construct, and default construct with search preferences.

Definition at line 88 of file fvExprDriver.C.

References exprDriver::dict(), exprDriver::exprDriver(), and Foam::search().

Referenced by declareRunTimeSelectionTable(), declareRunTimeSelectionTable(), fvExprDriver(), parseDriver::parseDriver(), parseDriver::parseDriver(), parseDriver::parseDriver(), parseDriver::parseDriver(), parseDriver::parseDriver(), prepareData(), and writeCommon().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fvExprDriver() [2/3]

fvExprDriver	(	const fvExprDriver &	rhs,
		const dictionary &	dict )

explicit

Copy construct with dictionary reference.

Definition at line 104 of file fvExprDriver.C.

References exprDriver::dict(), exprDriver::exprDriver(), fvExprDriver(), and Foam::rhs().

Here is the call graph for this function:

◆ fvExprDriver() [3/3]

fvExprDriver ( const dictionary & dict )

explicit

Construct from a dictionary.

Definition at line 120 of file fvExprDriver.C.

References exprDriver::dict(), exprDriver::exprDriver(), and readDict().

Here is the call graph for this function:

◆ ~fvExprDriver()

~fvExprDriver ( )

virtual

Destructor.

Definition at line 139 of file fvExprDriver.C.

Member Function Documentation

◆ regionMesh()

const Foam::fvMesh & regionMesh	(	const dictionary &	dict,
		const fvMesh &	mesh,
		bool	readIfNecessary )

staticprotected

Determine mesh or region mesh as specified in the dictionary with the keyword "region".

Definition at line 501 of file fvExprDriver.C.

References DebugInFunction, exprDriver::dict(), Foam::endl(), FatalErrorInFunction, mesh(), meshPtr, IOobjectOption::MUST_READ, Foam::nl, IOobjectOption::NO_WRITE, regionName, IOobjectOption::REGISTER, and WarningInFunction.

Here is the call graph for this function:

◆ defaultBoundaryType() [1/2]

template<class T>

word defaultBoundaryType ( const T & )

inlinestaticprotected

Default boundary type is calculated.

Definition at line 230 of file fvExprDriver.H.

References Foam::T().

Referenced by getOrReadFieldImpl().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ defaultBoundaryType() [2/2]

template<class Type>

word defaultBoundaryType ( const VolumeField< Type > & )

inlinestaticprotected

Default boundary type for volume fields is zeroGradient since they are essentially just internal fields.

Definition at line 240 of file fvExprDriver.H.

◆ correctField() [1/2]

template<class T>

void correctField ( T & )

inlinestaticprotected

Apply correctBoundaryConditions (volume fields only).

Definition at line 253 of file fvExprDriver.H.

References Foam::T().

Referenced by getOrReadFieldImpl().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ correctField() [2/2]

template<class Type>

void correctField ( VolumeField< Type > & fld )

inlinestaticprotected

Definition at line 256 of file fvExprDriver.H.

References fld().

Here is the call graph for this function:

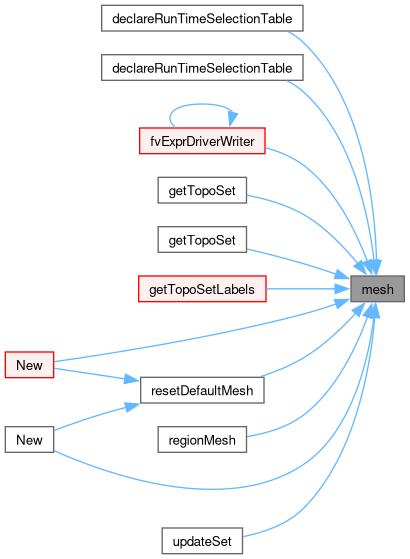

◆ mesh()

virtual const fvMesh & mesh ( ) const

protectedpure virtual

The mesh we are attached to.

Implemented in parseDriver, and parseDriver.

Referenced by declareRunTimeSelectionTable(), declareRunTimeSelectionTable(), fvExprDriverWriter, getTopoSet(), getTopoSet(), getTopoSetLabels(), New(), New(), regionMesh(), resetDefaultMesh(), and updateSet().

Here is the caller graph for this function:

◆ setGlobalScopes()

void setGlobalScopes ( const wordUList & scopes )

inlineprotected

Define scopes for global variables.

Definition at line 280 of file fvExprDriver.H.

◆ variable() [1/2]

Foam::expressions::exprResult & variable ( const word & name )

inlineprotectedvirtual

Non-const access to the named variable (sub-classes only).

Reimplemented from exprDriver.

Definition at line 51 of file fvExprDriverI.H.

References Foam::name(), and exprDriver::variables_.

Referenced by getOrReadFieldImpl(), getVariable(), and parseDriver::getVariableIfAvailable().

Here is the call graph for this function:

Here is the caller graph for this function:

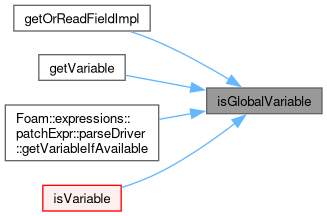

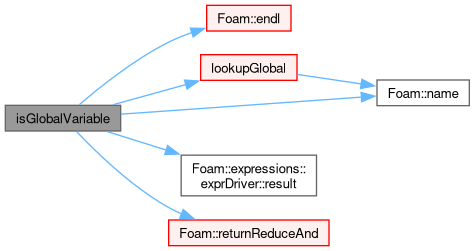

◆ isGlobalVariable()

template<class Type>

bool isGlobalVariable	(	const word &	name,
		const bool	wantPointData = false,
		const label	expectedSize = -1 ) const

protected

Test existence of a global variable.

Definition at line 30 of file fvExprDriverTemplates.C.

References DebugInfo, Foam::endl(), Foam::Info, lookupGlobal(), Foam::name(), exprDriver::result(), and Foam::returnReduceAnd().

Referenced by getOrReadFieldImpl(), getVariable(), parseDriver::getVariableIfAvailable(), and isVariable().

Here is the call graph for this function:

Here is the caller graph for this function:

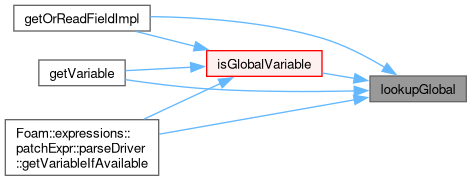

◆ lookupGlobal()

const Foam::expressions::exprResult & lookupGlobal ( const word & name ) const

protected

Return the global variable if available or a null result.

Definition at line 694 of file fvExprDriver.C.

References exprResultGlobals::get(), mesh, Foam::name(), and exprResultGlobals::New().

Referenced by getOrReadFieldImpl(), getVariable(), parseDriver::getVariableIfAvailable(), and isGlobalVariable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isField()

template<class Type>

bool isField	(	const word &	name,
		const bool	wantPointData = false,
		const label	expectSize = -1 ) const

protected

Test for the existence of a mesh field.

Parameters

expectSize ignored

Definition at line 214 of file fvExprDriverTemplates.C.

References Foam::endl(), foundField(), Foam::Info, and Foam::name().

Referenced by isVariableOrField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getOrReadField() [1/2]

template<class GeomField>

tmp< GeomField > getOrReadField	(	const word &	name,
		const bool	mandatory = true,
		const bool	getOldTime = false )

inlineprotected

Retrieve field from memory or disk.

References Foam::name().

Referenced by parseDriver::getSurfaceField(), and parseDriver::getVolField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getOrReadPointField() [1/2]

template<class GeomField>

tmp< GeomField > getOrReadPointField	(	const word &	name,
		const bool	mandatory = true,
		const bool	getOldTime = false )

inlineprotected

Retrieve point field from memory or disk.

References Foam::name().

Referenced by parseDriver::getPointField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getOrReadFieldImpl() [1/2]

template<class GeomField, class MeshRef>

tmp< GeomField > getOrReadFieldImpl	(	const word &	name,
		const MeshRef &	meshRef,
		const bool	mandatory = true,
		const bool	getOldTime = false )

protected

Retrieve field from memory or disk (implementation).

References Foam::name().

Referenced by getOrReadField(), and getOrReadPointField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readAndRegister() [1/2]

template<class GeomField, class MeshRef>

tmp< GeomField > readAndRegister	(	const word &	name,
		const MeshRef &	meshRef )

inlineprotected

Helper function for getOrReadField.

References Foam::name().

Referenced by parseDriver::getField(), getOrReadFieldImpl(), parseDriver::patchInternalField(), parseDriver::patchNeighbourField(), and parseDriver::patchNormalField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getTopoSet() [1/2]

template<class T>

autoPtr< T > getTopoSet	(	const fvMesh &	mesh,
		const word &	setName,
		SetOrigin &	origin ) const

protected

Get topoSet.

References exprDriver::dict(), and mesh().

Here is the call graph for this function:

◆ updateSet()

template<class T>

bool updateSet	(	autoPtr< T > &	setPtr,
		const word &	setName,
		SetOrigin	origin ) const

inlineprotected

Update topoSet.

Definition at line 561 of file fvExprDriverTemplates.C.

References CACHE, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, FILE, Foam::Info, INVALID, IOobject::localFilePath(), MEMORY, mesh(), polyMesh::meshSubDir, IOobjectOption::MUST_READ, Foam::name(), NEW, IOobjectOption::NO_WRITE, Foam::Pout, Foam::refCast(), autoPtr< T >::reset(), Foam::T(), T, IOobject::typeHeaderOk(), and WarningInFunction.

Here is the call graph for this function:

◆ updateSpecialVariables()

void updateSpecialVariables ( bool force = false )

protectedvirtual

Examine current variable values and update stored variables.

Reimplemented from exprDriver.

Definition at line 233 of file fvExprDriver.C.

References DebugInfo, Foam::endl(), forAllIters, mesh, Foam::nl, exprDriver::parse(), exprDriver::result_, size(), update(), and exprDriver::variables_.

Referenced by clearVariables(), and writeCommon().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hasDataToWrite()

bool hasDataToWrite ( ) const

protectedvirtual

Do we need a data file to be written.

Definition at line 703 of file fvExprDriver.C.

Referenced by createWriterAndRead().

Here is the caller graph for this function:

◆ prepareData()

void prepareData ( dictionary & dict ) const

protectedvirtual

Prepare/update special variables and add to dictionary, normally via the reader/writer.

Definition at line 718 of file fvExprDriver.C.

References exprDriver::dict(), and fvExprDriver().

Here is the call graph for this function:

◆ getData()

void getData ( const dictionary & dict )

protectedvirtual

Read data from dictionary, normally via the reader/writer.

Definition at line 709 of file fvExprDriver.C.

References exprDriver::dict().

Here is the call graph for this function:

◆ defaultMesh()

const Foam::fvMesh & defaultMesh ( )

static

Get the default mesh, if one is defined.

Definition at line 54 of file fvExprDriver.C.

References Foam::abort(), Foam::endl(), Foam::FatalError, FatalErrorInFunction, and Foam::nl.

Referenced by New().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ resetDefaultMesh()

const Foam::fvMesh * resetDefaultMesh	(	const fvMesh &	mesh,
		const bool	force = false )

static

Set the default mesh (if not already set).

Parameters

force Force reset, even if already set

Definition at line 69 of file fvExprDriver.C.

References mesh().

Referenced by New(), and New().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "fvExprDriver" )

Runtime type information.

◆ declareRunTimeSelectionTable() [1/2]

declareRunTimeSelectionTable	(	autoPtr	,
		fvExprDriver	,
		dictionary	,
		(const dictionary &dict, const fvMesh &mesh)	,
		(dict, mesh)	)

References exprDriver::dict(), fvExprDriver(), and mesh().

Here is the call graph for this function:

◆ declareRunTimeSelectionTable() [2/2]

declareRunTimeSelectionTable	(	autoPtr	,
		fvExprDriver	,
		idName	,
		(const word &ident, const fvMesh &mesh)	,
		(ident, mesh)	)

References exprDriver::DEFAULT_SEARCH, exprDriver::dict(), fvExprDriver(), mesh(), dictionary::null, Foam::rhs(), and Foam::search().

Here is the call graph for this function:

◆ New() [1/3]

Foam::autoPtr< Foam::expressions::fvExprDriver > New	(	const dictionary &	dict,
		const fvMesh &	mesh )

static

Return a reference to the selected value driver.

Definition at line 41 of file fvExprDriverNew.C.

References DebugInFunction, exprDriver::dict(), Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, mesh(), and resetDefaultMesh().

Referenced by evaluateVariableRemote(), parseDriver::getVariableIfAvailable(), and New().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ New() [2/3]

Foam::autoPtr< Foam::expressions::fvExprDriver > New ( const dictionary & dict )

static

Return a reference to the selected value driver.

Definition at line 27 of file fvExprDriverNew.C.

References defaultMesh(), exprDriver::dict(), and New().

Here is the call graph for this function:

◆ New() [3/3]

Foam::autoPtr< Foam::expressions::fvExprDriver > New	(	const word &	type,
		const word &	id,
		const fvMesh &	mesh )

static

Return a reference to the selected value driver.

Definition at line 71 of file fvExprDriverNew.C.

References DebugInFunction, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInLookup, mesh(), and resetDefaultMesh().

Here is the call graph for this function:

◆ clone()

virtual autoPtr< fvExprDriver > clone ( )

virtualdelete

Not generally clonable.

◆ size()

virtual label size ( ) const

pure virtual

The natural field size for the expression.

Reimplemented from exprDriver.

Implemented in parseDriver, and parseDriver.

Referenced by updateSpecialVariables().

Here is the caller graph for this function:

◆ pointSize()

virtual label pointSize ( ) const

pure virtual

The point field size for the expression.

Reimplemented from exprDriver.

Implemented in parseDriver, and parseDriver.

◆ cacheSets()

bool cacheSets ( ) const

inline

Status of cache-sets (static variable).

Definition at line 560 of file fvExprDriver.H.

Referenced by getTopoSet().

Here is the caller graph for this function:

◆ clearVariables()

void clearVariables ( )

virtual

Clear temporary variables, reset from expression strings.

Reimplemented from exprDriver.

Definition at line 324 of file fvExprDriver.C.

References exprDriver::addVariables(), DebugInfo, Foam::endl(), forAllIters, mesh, update(), updateSpecialVariables(), exprDriver::variables_, and exprDriver::variableStrings_.

Here is the call graph for this function:

◆ hasVariable()

bool hasVariable ( const word & name ) const

inlinevirtual

True if named variable exists.

Reimplemented from exprDriver.

Definition at line 26 of file fvExprDriverI.H.

References Foam::name(), and exprDriver::variables_.

Referenced by getOrReadFieldImpl(), getVariable(), and parseDriver::getVariableIfAvailable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ variable() [2/2]

const Foam::expressions::exprResult & variable ( const word & name ) const

inlinevirtual

Return const-access to the named variable.

Reimplemented from exprDriver.

Definition at line 36 of file fvExprDriverI.H.

References Foam::name(), and exprDriver::variables_.

Here is the call graph for this function:

◆ isVariableOrField()

template<class Type>

bool isVariableOrField	(	const word &	name,
		const bool	wantPointData = false,
		const label	expectSize = -1 ) const

inline

Test for existence of a local/global variable or a field.

Definition at line 82 of file fvExprDriverI.H.

References isField(), isVariable(), and Foam::name().

Here is the call graph for this function:

◆ getVariable() [1/2]

template<class Type>

tmp< Field< Type > > getVariable	(	const word &	name,
		const label	expectSize,
		const bool	mandatory = true ) const

Retrieve local/global variable as a tmp field.

Parameters

name	The name of the local/global field
expectSize	The size check on the variable, -1 to ignore
mandatory	A missing variable is Fatal, or return an invalid tmp

References exprDriver::dict(), Foam::name(), and os().

Referenced by parseDriver::getPointField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getFieldClassName()

Foam::word getFieldClassName ( const word & name ) const

Lookup the field class name (memory or read from disk).

Return empty if the name cannot be resolved.

Definition at line 562 of file fvExprDriver.C.

References mesh, Foam::name(), word::null, exprDriver::searchFiles(), and exprDriver::searchRegistry().

Here is the call graph for this function:

◆ topoSetType()

Foam::topoSetSource::sourceType topoSetType ( const word & name ) const

Return cell/face/point set type or unknown.

Definition at line 587 of file fvExprDriver.C.

References topoSetSource::CELLSET_SOURCE, topoSetSource::FACESET_SOURCE, topoSet::findIOobject(), io, mesh, topoSetSource::POINTSET_SOURCE, and topoSetSource::UNKNOWN_SOURCE.

Referenced by isCellSet(), isFaceSet(), isPointSet(), and topoSourceType().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ topoZoneType()

Foam::topoSetSource::sourceType topoZoneType ( const word & name ) const

Return cell/face/point zone type or unknown.

Definition at line 609 of file fvExprDriver.C.

References topoSetSource::CELLZONE_SOURCE, topoSetSource::FACEZONE_SOURCE, mesh, topoSetSource::POINTZONE_SOURCE, and topoSetSource::UNKNOWN_SOURCE.

Referenced by topoSourceType().

Here is the caller graph for this function:

◆ topoSourceType()

Foam::topoSetSource::sourceType topoSourceType ( const word & name ) const

Return cell/face/point zone/set type or unknown.

Definition at line 631 of file fvExprDriver.C.

References topoSetType(), topoZoneType(), and topoSetSource::UNKNOWN_SOURCE.

Here is the call graph for this function:

◆ getTopoSetLabels()

Foam::refPtr< Foam::labelList > getTopoSetLabels	(	const word &	name,
		enum topoSetSource::sourceType	setType ) const

Get the labels associated with the topo set.

Definition at line 31 of file fvExprDriverIO.C.

References topoSetSource::CELLSET_SOURCE, topoSetSource::CELLZONE_SOURCE, polyMesh::cellZones(), refPtr< T >::cref(), Foam::endl(), Foam::exit(), topoSetSource::FACESET_SOURCE, topoSetSource::FACEZONE_SOURCE, polyMesh::faceZones(), Foam::FatalError, FatalErrorInFunction, topoSet::findIOobject(), refPtr< T >::good(), io, mesh(), Foam::name(), refPtr< T >::New(), Foam::nl, topoSetSource::POINTSET_SOURCE, topoSetSource::POINTZONE_SOURCE, polyMesh::pointZones(), and refPtr< T >::reset().

Referenced by parseDriver::field_cellSelection(), parseDriver::field_faceSelection(), and parseDriver::field_pointSelection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isCellZone()

bool isCellZone ( const word & name ) const

Test if name is a known cellZone.

Definition at line 675 of file fvExprDriver.C.

References mesh, and Foam::name().

Here is the call graph for this function:

◆ isFaceZone()

bool isFaceZone ( const word & name ) const

Test if name is a known faceZone.

Definition at line 681 of file fvExprDriver.C.

References mesh, and Foam::name().

Here is the call graph for this function:

◆ isPointZone()

bool isPointZone ( const word & name ) const

Test if name is a known pointZone.

Definition at line 687 of file fvExprDriver.C.

References mesh, and Foam::name().

Here is the call graph for this function:

◆ isCellSet()

bool isCellSet ( const word & name ) const

Test if name is a known cellSet.

Definition at line 645 of file fvExprDriver.C.

References topoSetSource::CELLSET_SOURCE, and topoSetType().

Here is the call graph for this function:

◆ isFaceSet()

bool isFaceSet ( const word & name ) const

Test if name is a known faceSet.

Definition at line 655 of file fvExprDriver.C.

References topoSetSource::FACESET_SOURCE, and topoSetType().

Here is the call graph for this function:

◆ isPointSet()

bool isPointSet ( const word & name ) const

Test if name is a known pointSet.

Definition at line 665 of file fvExprDriver.C.

References topoSetSource::POINTSET_SOURCE, and topoSetType().

Here is the call graph for this function:

◆ evaluateVariable()

void evaluateVariable	(	const word &	varName,
		const expressions::exprString &	expr )

virtual

Evaluate the expression and save as the specified named variable.

Definition at line 349 of file fvExprDriver.C.

References exprDriver::allowShadowing_, DebugInfo, Foam::endl(), IOobject::headerClassName(), mesh, Foam::nl, exprDriver::parse(), exprDriver::result_, exprDriver::variables_, and WarningInFunction.

Here is the call graph for this function:

◆ evaluateVariableRemote()

void evaluateVariableRemote	(	string	remote,
		const word &	varName,
		const expressions::exprString &	expr )

virtual

Evaluate an expression on a remote and save as the specified named variable.

The fully qualified form of the remote is given as follows

*     type'name/region
*

If not specified, the default type is "patch", which means the following are equivalent

*     patch'name/region
*     name/region
*

If region is identical to the current region, it can be omitted:

*     patch'name
*     name   (default is patch)
*

Reimplemented from exprDriver.

Definition at line 397 of file fvExprDriver.C.

References objectRegistry::cfindObject(), DebugInfo, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, exprDriver::getRemoteResult(), exprResult::isUniform(), mesh, New(), Foam::nl, regionName, exprResult::testIfSingleValue(), fvMesh::time(), word::validate(), and exprDriver::variables_.

Here is the call graph for this function:

◆ isVariable()

template<class Type>

bool isVariable	(	const word &	name,
		bool	wantPointData = false,
		label	expectSize = -1 ) const

inline

Test existence of a local/global variable.

Definition at line 66 of file fvExprDriverI.H.

References isGlobalVariable(), exprDriver::isLocalVariable(), and Foam::name().

Referenced by isVariableOrField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ foundField()

template<class Type>

bool foundField ( const word & name ) const

Test if specified field can be found in memory or disk.

Definition at line 128 of file fvExprDriverTemplates.C.

References exprDriver::cfindContextIOobject(), Foam::endl(), getTypeOfField(), IOobject::headerClassName(), Foam::Info, mesh, Foam::name(), Foam::nl, exprDriver::searchFiles(), and exprDriver::searchRegistry().

Referenced by isField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getTypeOfField()

Foam::word getTypeOfField ( const word & fieldName ) const

Read the IOobject for fieldName and return its headerClassName.

Empty if the field could not be found.

Definition at line 553 of file fvExprDriver.C.

References mesh.

Referenced by foundField(), parseDriver::getField(), getOrReadFieldImpl(), parseDriver::patchInternalField(), parseDriver::patchNeighbourField(), and parseDriver::patchNormalField().

Here is the caller graph for this function:

◆ readDict()

bool readDict ( const dictionary & dict )

virtual

Read variables, tables etc.

Also usable for objects not constructed from a dictionary.

Reimplemented from exprDriver.

Reimplemented in parseDriver.

Definition at line 145 of file fvExprDriver.C.

References exprDriver::dict(), Foam::endl(), keyType::LITERAL, exprDriver::readDict(), entry::stream(), and WarningInFunction.

Referenced by fvExprDriver(), and parseDriver::readDict().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeCommon()

Foam::Ostream & writeCommon	(	Ostream &	os,
		bool	debug = false ) const

Write "variables", "storedVariables", "delayedVariables", "globalScopes" if they are present.

Definition at line 210 of file fvExprDriverIO.C.

References UList< T >::begin(), forAllConstIters, fvExprDriver(), os(), updateSpecialVariables(), exprDriver::variables_, exprDriver::writeFunctions(), and exprDriver::writeVariableStrings().

Here is the call graph for this function:

◆ createWriterAndRead()

void createWriterAndRead ( const word & name )

Create a writer for this object.

Definition at line 264 of file fvExprDriverIO.C.

References fvExprDriverWriter, hasDataToWrite(), Foam::name(), and Foam::type().

Here is the call graph for this function:

◆ tryWrite()

void tryWrite ( ) const

Write data if appropriate Should enable exact restarts.

Definition at line 273 of file fvExprDriverIO.C.

References mesh.

◆ getOrReadField() [2/2]

template<class GeomField>

Foam::tmp< GeomField > getOrReadField	(	const word &	name,
		const bool	mandatory,
		const bool	getOldTime )

inline

Definition at line 100 of file fvExprDriverI.H.

References getOrReadFieldImpl(), mesh, and Foam::name().

Here is the call graph for this function:

◆ getOrReadPointField() [2/2]

template<class GeomField>

Foam::tmp< GeomField > getOrReadPointField	(	const word &	name,
		const bool	mandatory,
		const bool	getOldTime )

inline

Definition at line 119 of file fvExprDriverI.H.

References getOrReadFieldImpl(), mesh, Foam::name(), and MeshObject< polyMesh, UpdateableMeshObject, pointMesh >::New().

Here is the call graph for this function:

◆ readAndRegister() [2/2]

template<class GeomField, class Mesh>

Foam::tmp< GeomField > readAndRegister	(	const word &	name,
		const Mesh &	meshRef )

inline

Definition at line 138 of file fvExprDriverI.H.

References exprDriver::cacheReadFields(), DebugInfo, IOobjectOption::MUST_READ, Foam::name(), Foam::nl, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, and regIOobject::store().

Here is the call graph for this function:

◆ getVariable() [2/2]

template<class Type>

Foam::tmp< Foam::Field< Type > > getVariable	(	const word &	name,
		const label	expectedSize,
		const bool	mandatory ) const

Definition at line 70 of file fvExprDriverTemplates.C.

References refPtr< T >::cref(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::gAverage(), hasVariable(), isGlobalVariable(), Foam::isType(), lookupGlobal(), Foam::name(), Foam::New(), Foam::nl, Foam::returnReduceAnd(), UList< T >::size(), refPtr< T >::valid(), variable(), and WarningInFunction.

Here is the call graph for this function:

◆ getOrReadFieldImpl() [2/2]

template<class GeomField, class Mesh>

Foam::tmp< GeomField > getOrReadFieldImpl	(	const word &	name,
		const Mesh &	meshRef,
		bool	mandatory,
		bool	getOldTime )

Definition at line 240 of file fvExprDriverTemplates.C.

References exprDriver::cfindContextObject(), dimensionSet::checking(), correctField(), refPtr< T >::cref(), defaultBoundaryType(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, fld(), Foam::gAverage(), getTypeOfField(), Foam::gMinMax(), hasVariable(), Foam::Info, isGlobalVariable(), Foam::isType(), lookupGlobal(), Foam::name(), Switch::name(), Foam::nl, Foam::Pout, range, readAndRegister(), tmp< T >::ref(), tmp< T >::reset(), Foam::returnReduceAnd(), exprDriver::searchFiles(), exprDriver::searchRegistry(), UList< T >::size(), refPtr< T >::valid(), tmp< T >::valid(), variable(), and WarningInFunction.

Here is the call graph for this function:

◆ getTopoSet() [2/2]

template<class T>

Foam::autoPtr< T > getTopoSet	(	const fvMesh &	mesh,
		const word &	name,
		SetOrigin &	origin ) const

Definition at line 471 of file fvExprDriverTemplates.C.

References CACHE, cacheSets(), Foam::endl(), FILE, Foam::Info, INVALID, MEMORY, mesh(), IOobjectOption::MUST_READ, Foam::name(), Foam::nl, Foam::Pout, autoPtr< T >::reset(), Foam::T(), and T.

Here is the call graph for this function:

◆ fvExprDriverWriter

friend class fvExprDriverWriter

friend

Definition at line 423 of file fvExprDriver.H.

References fvExprDriverWriter, and mesh().

Referenced by createWriterAndRead(), and fvExprDriverWriter.

The documentation for this class was generated from the following files:

src/finiteVolume/expressions/base/fvExprDriver.H
src/finiteVolume/expressions/base/fvExprDriver.C
src/finiteVolume/expressions/base/fvExprDriverI.H
src/finiteVolume/expressions/base/fvExprDriverIO.C
src/finiteVolume/expressions/base/fvExprDriverNew.C
src/finiteVolume/expressions/base/fvExprDriverTemplates.C

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ SetOrigin

Constructor & Destructor Documentation

◆ fvExprDriver() [1/3]

◆ fvExprDriver() [2/3]

◆ fvExprDriver() [3/3]

◆ ~fvExprDriver()

Member Function Documentation

◆ regionMesh()

◆ defaultBoundaryType() [1/2]

◆ defaultBoundaryType() [2/2]

◆ correctField() [1/2]

◆ correctField() [2/2]

◆ mesh()

◆ setGlobalScopes()

◆ variable() [1/2]

◆ isGlobalVariable()

◆ lookupGlobal()

◆ isField()

◆ getOrReadField() [1/2]

◆ getOrReadPointField() [1/2]

◆ getOrReadFieldImpl() [1/2]

◆ readAndRegister() [1/2]

◆ getTopoSet() [1/2]

◆ updateSet()

◆ updateSpecialVariables()

◆ hasDataToWrite()

◆ prepareData()

◆ getData()

◆ defaultMesh()

◆ resetDefaultMesh()

◆ TypeName()

◆ declareRunTimeSelectionTable() [1/2]

◆ declareRunTimeSelectionTable() [2/2]

◆ New() [1/3]

◆ New() [2/3]

◆ New() [3/3]

◆ clone()

◆ size()

◆ pointSize()

◆ cacheSets()

◆ clearVariables()

◆ hasVariable()

◆ variable() [2/2]

◆ isVariableOrField()

◆ getVariable() [1/2]

◆ getFieldClassName()

◆ topoSetType()

◆ topoZoneType()

◆ topoSourceType()

◆ getTopoSetLabels()

◆ isCellZone()

◆ isFaceZone()

◆ isPointZone()

◆ isCellSet()

◆ isFaceSet()

◆ isPointSet()

◆ evaluateVariable()

◆ evaluateVariableRemote()

◆ isVariable()

◆ foundField()

◆ getTypeOfField()

◆ readDict()

◆ writeCommon()

◆ createWriterAndRead()

◆ tryWrite()

◆ getOrReadField() [2/2]

◆ getOrReadPointField() [2/2]

◆ readAndRegister() [2/2]

◆ getVariable() [2/2]

◆ getOrReadFieldImpl() [2/2]

◆ getTopoSet() [2/2]
