Driver for patch expressions. More...

#include <patchExprDriver.H>

Inheritance diagram for parseDriver:

[legend]

Collaboration diagram for parseDriver:

[legend]

Public Member Functions
	ClassName ("patchExpr::driver")
	parseDriver (const parseDriver &)=delete
void	operator= (const parseDriver &)=delete

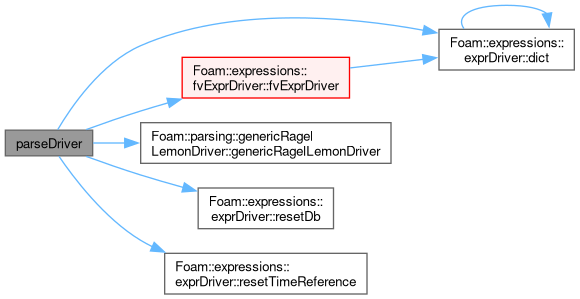

	parseDriver (const fvPatch &p, const dictionary &dict=dictionary::null)
	Construct for specified patch, with dictionary information.

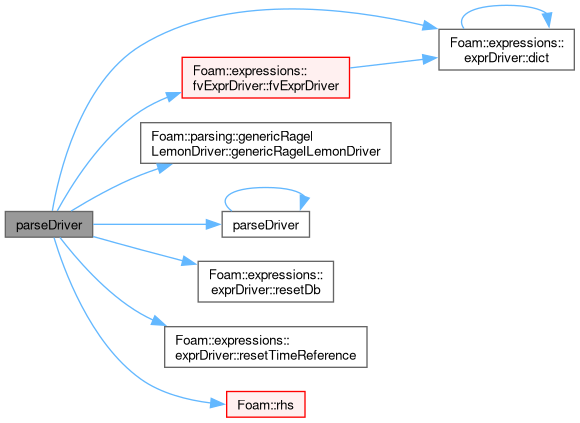

	parseDriver (const fvPatch &p, const parseDriver &driver, const dictionary &dict)
	Construct for specified patch with copy of driver context.
	parseDriver (const word &patchName, const fvMesh &mesh)
	Construct with patchName for the given mesh.
	parseDriver (const dictionary &dict, const fvMesh &mesh)
	Construct with "patch" (mandatory) and "region" (optional) specified in dictionary.
virtual	~parseDriver ()=default
	Destructor.
virtual const fvMesh &	mesh () const
	The mesh we are attached to.
virtual label	size () const
	The natural field size for the expression.
virtual label	pointSize () const
	The point field size for the expression.
label	size (const FieldAssociation geoType) const
	Field size associated with different geometric field types.

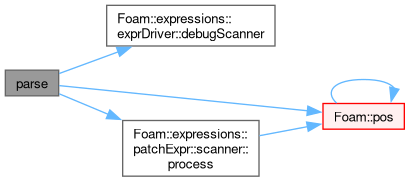

virtual unsigned	parse (const std::string &expr, size_t pos=0, size_t len=std::string::npos)
	Execute the parser.
template<class Type>
void	setResult (Field< Type > *ptr, bool pointVal=false)
	Set result.
template<class Type>

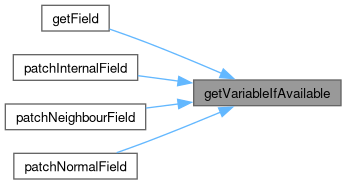

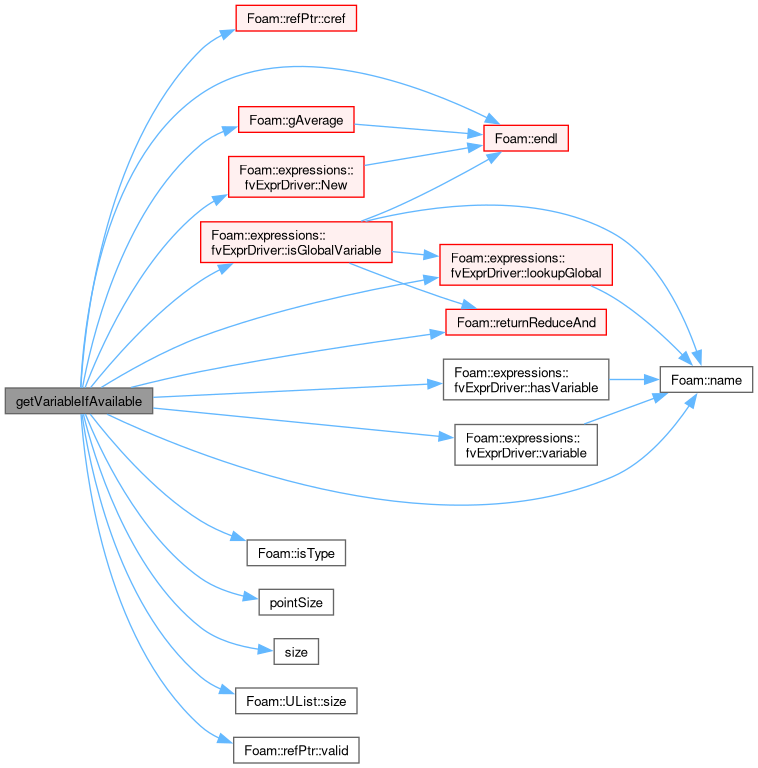

tmp< Field< Type > >	getVariableIfAvailable (const word &fldName) const
	Retrieve variable as field if possible.
template<class Type>

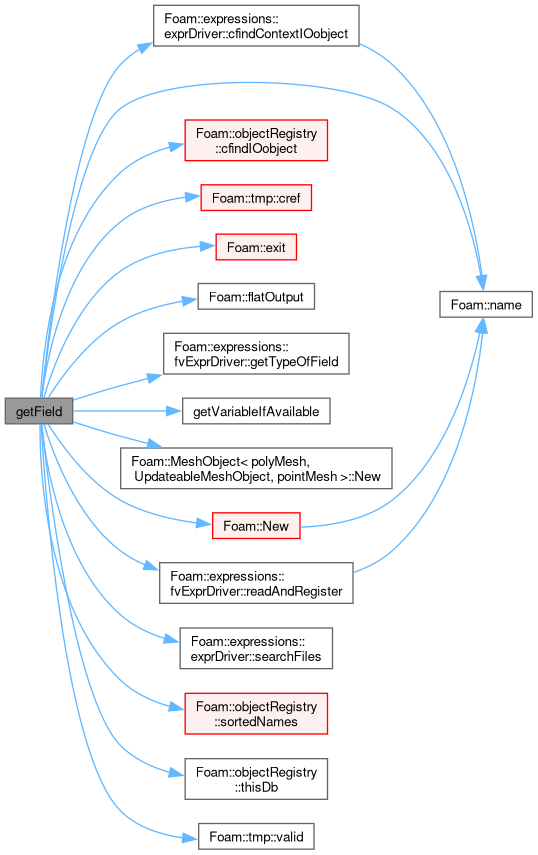

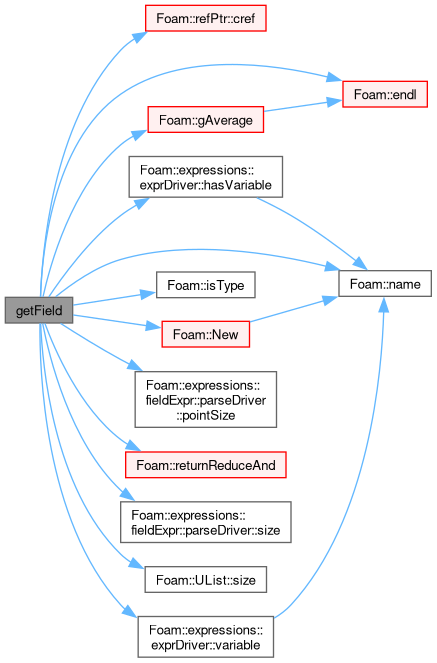

tmp< Field< Type > >	getField (const word &fldName)
	Return named field.
template<class Type>
tmp< Field< Type > >	getVolField (const word &fldName)
	Retrieve field (vol field).
template<class Type>
tmp< Field< Type > >	getSurfaceField (const word &fldName)
	Retrieve field (surface field).
template<class Type>
tmp< Field< Type > >	getPointField (const word &fldName)
	Retrieve field (point field).
template<class Type>

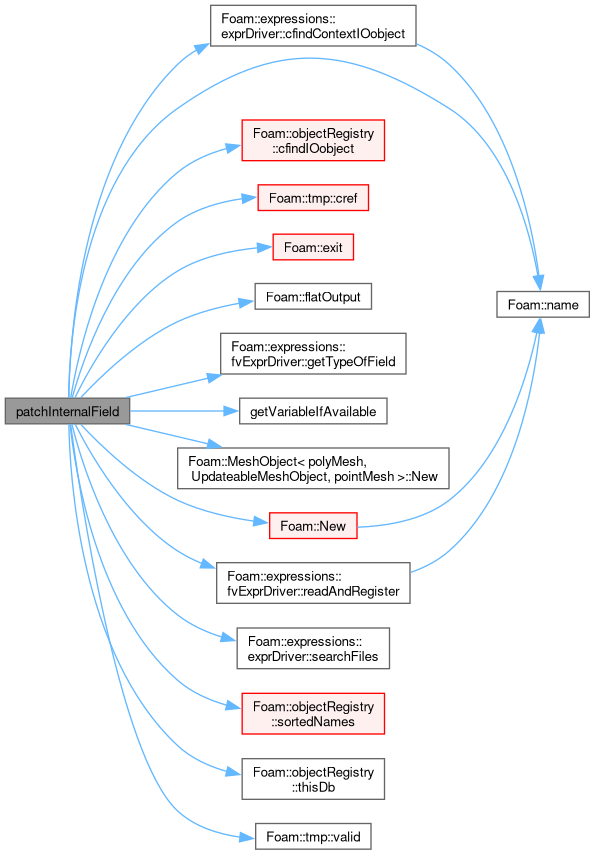

tmp< Field< Type > >	patchInternalField (const word &fldName)
	Return internal field next to patch.
template<class Type>

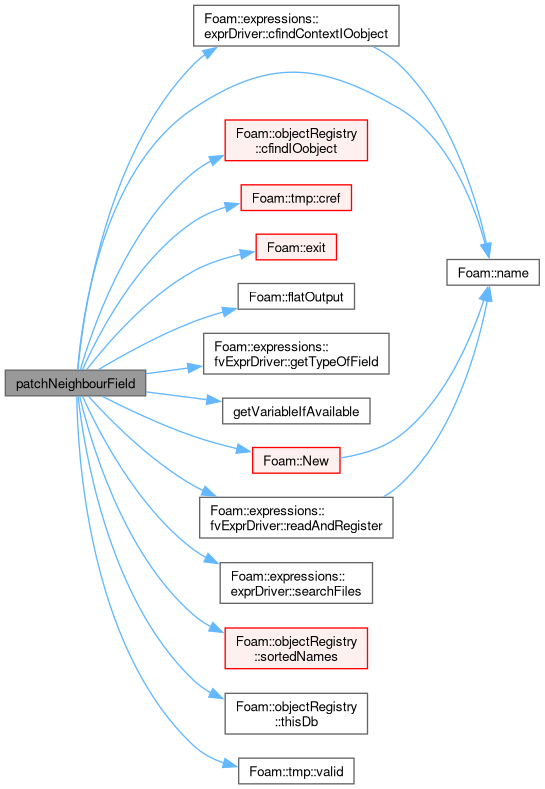

tmp< Field< Type > >	patchNeighbourField (const word &fldName)
	Return patchField on the opposite patch of a coupled patch.
template<class Type>

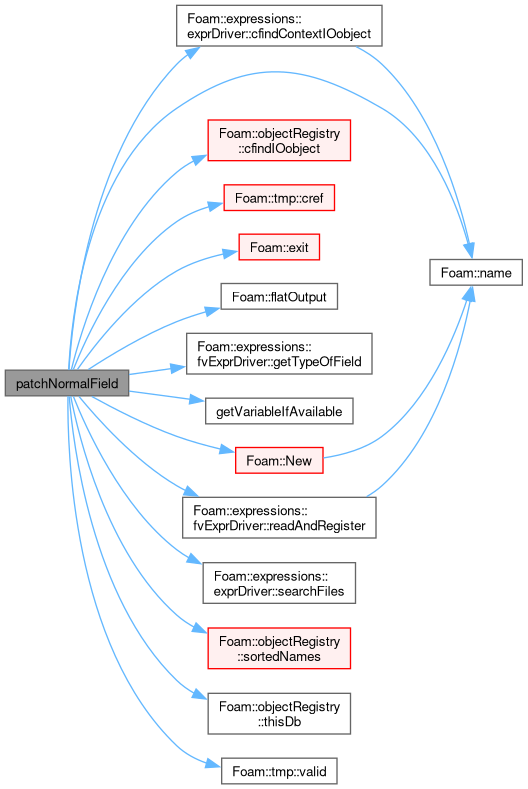

tmp< Field< Type > >	patchNormalField (const word &fldName)
	Return surface normal field (snGrad).
template<class Type>
tmp< Field< Type > >	faceToPoint (const Field< Type > &field) const
	Interpolate face to point.
template<class Type>
tmp< Field< Type > >	pointToFace (const Field< Type > &field) const
	Interpolate point to face values.
template<class Type>
Type	areaAverage (const Field< Type > &fld) const
	The area-weighted average of a field.
template<class Type>
Type	areaSum (const Field< Type > &fld) const
	The area-weighted sum of a field.
tmp< scalarField >	field_faceArea () const
	The face area magnitudes [magSf] - (swak = area).
tmp< vectorField >	field_faceCentre () const
	The face centres - (swak = pos).
tmp< vectorField >	field_areaNormal () const
	The face areas with their vector direction [Sf] - (swak = face).
tmp< vectorField >	field_unitNormal () const
	The face unit normal direction [nf] - (expression: normal).
tmp< vectorField >	field_pointField () const
	The patch point locations - (swak = pts).
tmp< boolField >	field_cellSet (const word &name) const
	Cell selection (set).
tmp< boolField >	field_cellZone (const word &name) const
	Cell selection (zone).
tmp< boolField >	field_faceSet (const word &name) const
	Face selection (set).
tmp< boolField >	field_faceZone (const word &name) const
	Face selection (zone).
tmp< scalarField >	field_rand (label seed=0, bool gaussian=false) const
	A uniform random field.
tmp< scalarField >	field_randGaussian (label seed=0) const
	A Gaussian random field.
template<>
tmp< Field< bool > >	getSurfaceField (const word &fldName)
	Retrieve field (surface field: bool).
template<>
tmp< Field< bool > >	getPointField (const word &fldName)
	Retrieve field (point field: bool).
template<>
Foam::tmp< Foam::Field< bool > >	getSurfaceField (const word &name)
template<>
Foam::tmp< Foam::Field< bool > >	getPointField (const word &name)
template<class Type>
Foam::tmp< Foam::Field< Type > >	getVariableIfAvailable (const word &name) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	getVolField (const word &name)
template<class Type>
Foam::tmp< Foam::Field< Type > >	getSurfaceField (const word &name)
template<class Type>
Foam::tmp< Foam::Field< Type > >	getPointField (const word &name)
template<class Type>
Foam::tmp< Foam::Field< Type > >	getField (const word &name)
template<class Type>
Foam::tmp< Foam::Field< Type > >	patchInternalField (const word &name)
template<class Type>
Foam::tmp< Foam::Field< Type > >	patchNeighbourField (const word &name)
template<class Type>
Foam::tmp< Foam::Field< Type > >	patchNormalField (const word &name)
template<class Type>
Foam::tmp< Foam::Field< Type > >	faceToPoint (const Field< Type > &field) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	pointToFace (const Field< Type > &field) const
template<class Type>
Foam::tmp< Foam::VolumeField< Type > >	getVolField (const word &fldName, bool getOldTime)
template<class Type>
Foam::tmp< Foam::SurfaceField< Type > >	getSurfaceField (const word &fldName, bool getOldTime)
template<class Type>
Foam::tmp< Foam::PointField< Type > >	getPointField (const word &fldName, bool getOldTime)
template<class Type>
Foam::tmp< Foam::Field< Type > >	getField (const word &name) const
Public Member Functions inherited from genericRagelLemonDriver
	genericRagelLemonDriver ()
	Construct null.
	genericRagelLemonDriver (const genericRagelLemonDriver &rhs)=default
	Copy construct.
	genericRagelLemonDriver (genericRagelLemonDriver &&rhs)=default
	Move construct.
virtual	~genericRagelLemonDriver ()=default
	Destructor.
void	clear ()
	Reset references.
const std::string &	content () const
	Get reference to the input buffer content.
void	content (const std::string &s, size_t pos=0, size_t len=std::string::npos)
	Set reference to the input buffer content, which acts like a std::string_view.
std::string::const_iterator	cbegin () const
	Iterator to begin of content (sub)string.
std::string::const_iterator	cend () const
	Iterator to end of content (sub)string.
size_t	parsePosition () const
	The relative parse position with the content (sub)string.
size_t &	parsePosition ()
	The relative parse position with the content (sub)string.
Ostream &	printBuffer (Ostream &os) const
	Output the input buffer string content.
void	reportFatal (const std::string &msg) const
	Report FatalError.
void	reportFatal (const std::string &msg, size_t pos) const
	Report FatalError at parser position.
Public Member Functions inherited from fvExprDriver
	TypeName ("fvExprDriver")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, fvExprDriver, dictionary,(const dictionary &dict, const fvMesh &mesh),(dict, mesh))
	declareRunTimeSelectionTable (autoPtr, fvExprDriver, idName,(const word &ident, const fvMesh &mesh),(ident, mesh))
	fvExprDriver (enum exprDriver::searchControls search=exprDriver::searchControls::DEFAULT_SEARCH, const dictionary &dict=dictionary::null)
	Default construct, and default construct with search preferences.
	fvExprDriver (const fvExprDriver &rhs, const dictionary &dict)
	Copy construct with dictionary reference.
	fvExprDriver (const dictionary &dict)
	Construct from a dictionary.
virtual autoPtr< fvExprDriver >	clone ()=delete
	Not generally clonable.
virtual	~fvExprDriver ()
	Destructor.
bool	cacheSets () const
	Status of cache-sets (static variable).
virtual void	clearVariables ()
	Clear temporary variables, reset from expression strings.
virtual bool	hasVariable (const word &name) const
	True if named variable exists.
virtual const exprResult &	variable (const word &name) const
	Return const-access to the named variable.
template<class Type>
bool	isVariableOrField (const word &name, const bool wantPointData=false, const label expectSize=-1) const
	Test for existence of a local/global variable or a field.
template<class Type>
tmp< Field< Type > >	getVariable (const word &name, const label expectSize, const bool mandatory=true) const
	Retrieve local/global variable as a tmp field.
word	getFieldClassName (const word &name) const
	Lookup the field class name (memory or read from disk).
topoSetSource::sourceType	topoSetType (const word &name) const
	Return cell/face/point set type or unknown.
topoSetSource::sourceType	topoZoneType (const word &name) const
	Return cell/face/point zone type or unknown.
topoSetSource::sourceType	topoSourceType (const word &name) const
	Return cell/face/point zone/set type or unknown.
refPtr< labelList >	getTopoSetLabels (const word &name, enum topoSetSource::sourceType setType) const
	Get the labels associated with the topo set.
bool	isCellZone (const word &name) const
	Test if name is a known cellZone.
bool	isFaceZone (const word &name) const
	Test if name is a known faceZone.
bool	isPointZone (const word &name) const
	Test if name is a known pointZone.
bool	isCellSet (const word &name) const
	Test if name is a known cellSet.
bool	isFaceSet (const word &name) const
	Test if name is a known faceSet.
bool	isPointSet (const word &name) const
	Test if name is a known pointSet.
virtual void	evaluateVariable (const word &varName, const expressions::exprString &expr)
	Evaluate the expression and save as the specified named variable.
virtual void	evaluateVariableRemote (string remote, const word &varName, const expressions::exprString &expr)
	Evaluate an expression on a remote and save as the specified named variable.
template<class Type>
bool	isVariable (const word &name, bool wantPointData=false, label expectSize=-1) const
	Test existence of a local/global variable.
template<class Type>
bool	foundField (const word &name) const
	Test if specified field can be found in memory or disk.
word	getTypeOfField (const word &fieldName) const
	Read the IOobject for fieldName and return its headerClassName.
virtual bool	readDict (const dictionary &dict)
	Read variables, tables etc.
Ostream &	writeCommon (Ostream &os, bool debug=false) const
	Write "variables", "storedVariables", "delayedVariables", "globalScopes" if they are present.
void	createWriterAndRead (const word &name)
	Create a writer for this object.
void	tryWrite () const
	Write data if appropriate Should enable exact restarts.
template<class GeomField>
Foam::tmp< GeomField >	getOrReadField (const word &name, const bool mandatory, const bool getOldTime)
template<class GeomField>
Foam::tmp< GeomField >	getOrReadPointField (const word &name, const bool mandatory, const bool getOldTime)
template<class GeomField, class Mesh>
Foam::tmp< GeomField >	readAndRegister (const word &name, const Mesh &meshRef)
template<class Type>
Foam::tmp< Foam::Field< Type > >	getVariable (const word &name, const label expectedSize, const bool mandatory) const
template<class GeomField, class Mesh>
Foam::tmp< GeomField >	getOrReadFieldImpl (const word &name, const Mesh &meshRef, bool mandatory, bool getOldTime)
template<class T>
Foam::autoPtr< T >	getTopoSet (const fvMesh &mesh, const word &name, SetOrigin &origin) const
Public Member Functions inherited from exprDriver
	TypeName ("exprDriver")
	Runtime type information.
	exprDriver (const exprDriver &)=delete
	No copy construct.
void	operator= (const exprDriver &)=delete
	No copy assignment.
	exprDriver (enum searchControls search=searchControls::DEFAULT_SEARCH, const dictionary &dict=dictionary::null)
	Default construct, and default construct with search preferences.
	exprDriver (const exprDriver &rhs, const dictionary &dict)
	Copy construct with new dictionary reference.
	exprDriver (const dictionary &dict)
	Construct from a dictionary.
virtual	~exprDriver ()=default
	Destructor.
const TimeState *	timeState () const noexcept
	Reference to the current time-state (can be nullptr).
virtual scalar	timeValue () const
	The current time value.
virtual scalar	deltaT () const
	The current deltaT value.
const dictionary &	dict () const noexcept
	The dictionary with all input data/specification.
const exprResult &	result () const noexcept
	Const access to expression result.
exprResult &	result () noexcept
	Non-const access to expression result.
void	clearResult ()
	Clear the result.
template<class Type>
tmp< Field< Type > >	getResult (bool wantPointData=false)
	Return the expression result as a tmp field.
const word &	getResultType () const noexcept
	The result type as word - same as result().valueType().
void	resetDb (const objectRegistry *obrPtr=nullptr)
	Reset the objectRegistry (for functions).
void	resetDb (const objectRegistry &db)
	Reset the objectRegistry (for functions).
scalar	argValue () const noexcept
	Get special-purpose scalar reference argument.
int	stashedTokenId () const noexcept
	Get "look-behind" parsing context (internal bookkeeping).
int	resetStashedTokenId (int tokenId=0) const noexcept
	Reset "look-behind" parsing context (mutable operation).
void	setDebugging (bool scannerDebug, bool parserDebug)
	Set the scanner/parser debug.
void	setDebugging (const exprDriver &rhs)
	Set the scanner/parser debug to match the input.
bool	setCaching (bool on) noexcept
	Toggle CACHE_READ_FIELDS control.
void	setSearchBehaviour (enum searchControls search, const bool caching=false)
	Set search behaviour, with additional CACHE_READ_FIELDS toggle on.
void	setSearchBehaviour (const exprDriver &rhs)
	Set search behaviour to be identical to rhs.
bool	debugScanner () const noexcept
	Read access to scanner debug.
bool	debugParser () const noexcept
	Read access to parser debug.
bool	prevIterIsOldTime () const
void	setArgument (const scalar val) noexcept
	Set special-purpose scalar reference argument.
void	addVariables (const expressions::exprString &expr, bool clear=true)
	Add/set string expressions for variables.
void	addVariables (const UList< expressions::exprString > &list, bool clear=true)
	Add/set string expressions for variables.
template<class T>
void	addUniformVariable (const word &name, const T &val)
	Add a uniform variable from an outside caller.
bool	hasContextObjects () const
	True if any context fields are defined.
const regIOobject *	cfindContextIOobject (const word &name) const
	Find named context field, if it exists.
template<class ObjType>
const ObjType *	cfindContextObject (const word &name) const
	Find context field object of specified type.
void	addContextObject (const word &name, const regIOobject *)
	Add the object to the context.
void	addContextObject (const regIOobject *)
	Add the object to the context.
void	removeContextObject (const word &name)
	Remove the object from the context.
void	removeContextObject (const regIOobject *)
	Remove the object from the context.
const contextObjectTableType &	contextObjects () const noexcept
	Read access to the object context.
contextObjectTableType &	contextObjects () noexcept
	Write access to the object context.
template<class Type>
bool	isFunction (const word &name) const
	Named mapping with given type exists.
template<class Type>
Type	getFunctionValue (const word &name, const scalar x) const
	Evaluate named mapping for the given time/value. Zero for undefined/unknown.
template<class Type>
void	fillFunctionValues (Field< Type > &result, const word &name, const scalarField &input) const
	Fill result with values remapped according to the named Function1.
template<class T>
bool	isLocalVariable (const word &name, bool wantPointData=false, label expectedSize=-1) const
	Test existence of a local variable.
template<class Type>
tmp< Field< Type > >	getLocalVariable (const word &name, label expectSize, const bool mandatory=true) const
	Retrieve local/global variable as a tmp field.
template<class Type>
tmp< Field< Type > >	evaluate (const expressions::exprString &expr, bool wantPointData=false)
	Evaluate the expression and return the field.
template<class Type>
Type	evaluateUniform (const expressions::exprString &expr, bool wantPointData=false)
	Evaluate the expression and return a single value.
void	evaluateVariable (const word &varName, const expressions::exprString &expr)
	Evaluate the expression and save as the specified named variable.
template<class Type>
tmp< Field< Type > >	newField (const Type &val=pTraits< Type >::zero) const
	Return a new field with the size().
template<class Type>
tmp< Field< Type > >	newPointField (const Type &val=pTraits< Type >::zero) const
	Return a new field with the pointSize().
expressions::exprString	readExpression (const word &name)
	Read an expression string (with the current dictionary) and do substitutions.
label	setVariableStrings (const dictionary &dict, bool mandatory=false)
	Read "variables" and assigns to the list of expression strings.
Ostream &	writeVariableStrings (Ostream &os, const word &keyword="") const
	Write "variables".
template<class Type>
void	addUniformVariable (const word &name, const Type &val)
template<class Type>
Foam::tmp< Foam::Field< Type > >	evaluate (const expressions::exprString &expr, bool wantPointData)
template<class Type>
Foam::tmp< Foam::Field< Type > >	getResult (bool wantPointData)
template<class Type>
const Foam::Function1< Type > *	getFunction1Ptr (const word &name, const HashTable< refPtr< Function1< Type > > > &tbl, wordList *listFailure)
template<class Type>
Foam::tmp< Foam::Field< Type > >	newField (const Type &val) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	newPointField (const Type &val) const

Protected Member Functions
tmp< boolField >	field_cellSelection (const word &name, enum topoSetSource::sourceType setType) const
	Cell selections (as logical).

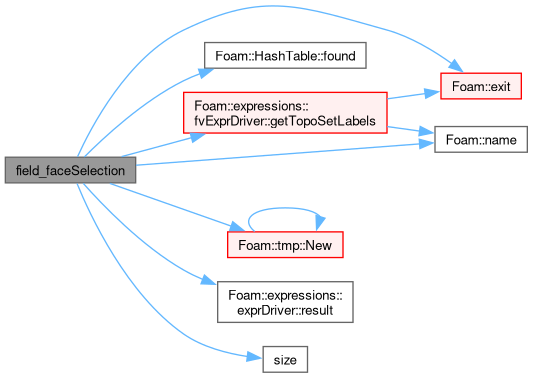

tmp< boolField >	field_faceSelection (const word &name, enum topoSetSource::sourceType setType) const
	Face selections (as logical).
Protected Member Functions inherited from fvExprDriver
void	setGlobalScopes (const wordUList &scopes)
	Define scopes for global variables.
virtual exprResult &	variable (const word &name)
	Non-const access to the named variable (sub-classes only).
template<class T>
bool	isGlobalVariable (const word &name, const bool wantPointData=false, const label expectedSize=-1) const
	Test existence of a global variable.
const exprResult &	lookupGlobal (const word &name) const
	Return the global variable if available or a null result.
template<class Type>
bool	isField (const word &name, const bool wantPointData=false, const label expectSize=-1) const
	Test for the existence of a mesh field.
template<class GeomField>
tmp< GeomField >	getOrReadField (const word &name, const bool mandatory=true, const bool getOldTime=false)
	Retrieve field from memory or disk.
template<class GeomField>
tmp< GeomField >	getOrReadPointField (const word &name, const bool mandatory=true, const bool getOldTime=false)
	Retrieve point field from memory or disk.
template<class GeomField, class MeshRef>
tmp< GeomField >	getOrReadFieldImpl (const word &name, const MeshRef &meshRef, const bool mandatory=true, const bool getOldTime=false)
	Retrieve field from memory or disk (implementation).
template<class GeomField, class MeshRef>
tmp< GeomField >	readAndRegister (const word &name, const MeshRef &meshRef)
	Helper function for getOrReadField.
template<class T>
autoPtr< T >	getTopoSet (const fvMesh &mesh, const word &setName, SetOrigin &origin) const
	Get topoSet.
template<class T>
bool	updateSet (autoPtr< T > &setPtr, const word &setName, SetOrigin origin) const
	Update topoSet.
virtual void	updateSpecialVariables (bool force=false)
	Examine current variable values and update stored variables.
virtual bool	hasDataToWrite () const
	Do we need a data file to be written.
virtual void	prepareData (dictionary &dict) const
	Prepare/update special variables and add to dictionary, normally via the reader/writer.
virtual void	getData (const dictionary &dict)
	Read data from dictionary, normally via the reader/writer.
Protected Member Functions inherited from exprDriver
bool	searchRegistry () const noexcept
bool	searchFiles () const noexcept
bool	cacheReadFields () const noexcept
void	resetTimeReference (const TimeState *ts)
	Reset the time-state reference.
void	resetTimeReference (const TimeState &ts)
	Reset the time-state reference.
void	writeFunctions (Ostream &os) const
	Write scalar/vector Function1 entries in dictionary format.
void	fill_random (scalarField &field, label seed=0, const bool gaussian=false) const
	Fill a random field.
virtual bool	update ()
	Update things.
virtual exprResult	getRemoteResult (const exprDriver &other) const
	Get the result from another driver.

Protected Attributes
const fvPatch &	patch_
	The referenced patch.
Protected Attributes inherited from genericRagelLemonDriver
std::reference_wrapper< const std::string >	content_
	Reference to the input string.
size_t	start_
	Start position within input string.
size_t	length_
	Length of input (sub)string.
size_t	position_
	The last known parser position.
Protected Attributes inherited from exprDriver
const dictionary &	dict_
	The dictionary with all input data/specification.
exprResult	result_
	The result.
List< expressions::exprString >	variableStrings_
	Variable definitions, as read from a dictionary.
HashTable< exprResult >	variables_
	The variables table.
HashTable< refPtr< Function1< scalar > > >	scalarFuncs_
	Function1 mappings/timelines (scalar), evaluated at the simulation time or with arbitrary scalars.
HashTable< refPtr< Function1< vector > > >	vectorFuncs_
	Function1 mappings/timelines (vector), evaluated at the simulation time or with arbitrary scalars.
contextObjectTableType	contextObjects_
	Externally defined context fields.
scalar	arg1Value_
	Special-purpose scalar reference argument.
const TimeState *	timeStatePtr_
	Reference to the time-state.
const objectRegistry *	obrPtr_
	Pointer to an object registry (for functions etc).
int	stashedTokenId_
	Internal bookkeeping as "look-behind" parsing context.
bool	debugScanner_
	Request debugging for scanner.
bool	debugParser_
	Request debugging for parser.
bool	allowShadowing_
	Allow variable names to mask field names.
bool	prevIterIsOldTime_
	Use value of previous iteration when oldTime is requested.
searchControls	searchCtrl_
	Registry/disk/caching control.

Additional Inherited Members
Public Types inherited from genericRagelLemonDriver
typedef size_t	location_type
	Type for linear addressing within parse content.
Public Types inherited from exprDriver
enum	searchControls { NO_SEARCH = 0 , SEARCH_REGISTRY = 1 , SEARCH_FILES = 2 , CACHE_READ_FIELDS = 4 , DEFAULT_SEARCH = (SEARCH_REGISTRY) }
	Search/caching controls. More...
typedef HashTable< const regIOobject * >	contextObjectTableType
	Externally defined context fields.
Static Public Member Functions inherited from fvExprDriver
static const fvMesh &	defaultMesh ()
	Get the default mesh, if one is defined.
static const fvMesh *	resetDefaultMesh (const fvMesh &mesh, const bool force=false)
	Set the default mesh (if not already set).
static autoPtr< fvExprDriver >	New (const dictionary &dict, const fvMesh &mesh)
	Return a reference to the selected value driver.
static autoPtr< fvExprDriver >	New (const dictionary &dict)
	Return a reference to the selected value driver.
static autoPtr< fvExprDriver >	New (const word &type, const word &id, const fvMesh &mesh)
	Return a reference to the selected value driver.
Static Public Member Functions inherited from exprDriver
static expressions::exprString	readExpression (const word &name, const dictionary &dict)
	Read an expression string and do substitutions.
static List< expressions::exprString >	readVariableStrings (const dictionary &dict, const word &name="variables", bool mandatory=false)
	Read the list of variable strings.
Protected Types inherited from fvExprDriver
enum	SetOrigin { INVALID = 0 , NEW , FILE , MEMORY , CACHE }
	The origin of the topoSet. More...
Static Protected Member Functions inherited from fvExprDriver
static const fvMesh &	regionMesh (const dictionary &dict, const fvMesh &mesh, bool readIfNecessary)
	Determine mesh or region mesh as specified in the dictionary with the keyword "region".
template<class T>
static word	defaultBoundaryType (const T &)
	Default boundary type is calculated.
template<class Type>
static word	defaultBoundaryType (const VolumeField< Type > &)
	Default boundary type for volume fields is zeroGradient since they are essentially just internal fields.
template<class T>
static void	correctField (T &)
	Apply correctBoundaryConditions (volume fields only).
template<class Type>
static void	correctField (VolumeField< Type > &fld)
Static Protected Member Functions inherited from exprDriver
static point	getPositionOfMinimum (const scalarField &vals, const pointField &locs)
	Return the location of the min value.
static point	getPositionOfMaximum (const scalarField &vals, const pointField &locs)
	Return the location of the max value.

Detailed Description

Driver for patch expressions.

In addition to the standard mathematical functions, operations and logical and relational operations, the patch expressions support the following driver-specific functions:

Functions

Function	Description	Number of arguments
`pos`	The face centres	0
`pts`	The face points	0
`area`	The face area magnitudes	0
`weightAverage`	Area weighted average	1
`weightSum`	Area weighted sum	1
`face`	The face area normal vectors	0
`normal`	The face unit normal vectors	0
`point`	A point-field point value	1
`faceToPoint`	Interpolate face values onto points	1
`pointToFace`	Interpolate point values onto faces	1
`rand`	Random field	0/1
`snGrad`	Surface normal field	0
`internalField`	Internal field next to patch	0
`neighbourField`	patch field on opposite side of coupled patch	0

Note: Use namespace debug switch patchExpr for scanner (2), parser (4) or dictionary controls as per Foam::expressions::exprDriver.

Source files

Definition at line 161 of file patchExprDriver.H.

Constructor & Destructor Documentation

◆ parseDriver() [1/5]

parseDriver ( const parseDriver & )

delete

References parseDriver().

Referenced by operator=(), parseDriver(), parseDriver(), parseDriver(), and parseDriver().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parseDriver() [2/5]

parseDriver	(	const fvPatch &	p,
		const dictionary &	dict = dictionary::null )

explicit

Construct for specified patch, with dictionary information.

Definition at line 95 of file patchExprDriver.C.

References exprDriver::dict(), fvExprDriver::fvExprDriver(), genericRagelLemonDriver::genericRagelLemonDriver(), p, patch_, exprDriver::resetDb(), and exprDriver::resetTimeReference().

Here is the call graph for this function:

◆ parseDriver() [3/5]

parseDriver	(	const fvPatch &	p,
		const parseDriver &	driver,
		const dictionary &	dict )

Construct for specified patch with copy of driver context.

Definition at line 110 of file patchExprDriver.C.

References exprDriver::dict(), fvExprDriver::fvExprDriver(), genericRagelLemonDriver::genericRagelLemonDriver(), p, parseDriver(), patch_, exprDriver::resetDb(), exprDriver::resetTimeReference(), and Foam::rhs().

Here is the call graph for this function:

◆ parseDriver() [4/5]

parseDriver	(	const word &	patchName,
		const fvMesh &	mesh )

Construct with patchName for the given mesh.

Definition at line 126 of file patchExprDriver.C.

References Foam::lookupFvPatch(), mesh(), and parseDriver().

Here is the call graph for this function:

◆ parseDriver() [5/5]

parseDriver	(	const dictionary &	dict,
		const fvMesh &	mesh )

Construct with "patch" (mandatory) and "region" (optional) specified in dictionary.

Definition at line 136 of file patchExprDriver.C.

References exprDriver::dict(), mesh(), and parseDriver().

Here is the call graph for this function:

◆ ~parseDriver()

virtual ~parseDriver ( )

virtualdefault

Destructor.

Member Function Documentation

◆ field_cellSelection()

Foam::tmp< Foam::boolField > field_cellSelection	(	const word &	name,
		enum topoSetSource::sourceType	setType ) const

protected

Cell selections (as logical).

Definition at line 52 of file patchExprDriverFields.C.

References topoSetSource::CELLSET_SOURCE, topoSetSource::CELLZONE_SOURCE, Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, HashTable< T, Key, Hash >::found(), fvExprDriver::getTopoSetLabels(), Foam::name(), tmp< T >::New(), Foam::nl, patch_, exprDriver::result(), and size().

Referenced by field_cellZone().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ field_faceSelection()

Foam::tmp< Foam::boolField > field_faceSelection	(	const word &	name,
		enum topoSetSource::sourceType	setType ) const

protected

Face selections (as logical).

Definition at line 97 of file patchExprDriverFields.C.

References Foam::exit(), topoSetSource::FACESET_SOURCE, topoSetSource::FACEZONE_SOURCE, Foam::FatalError, FatalErrorInFunction, forAll, HashTable< T, Key, Hash >::found(), fvExprDriver::getTopoSetLabels(), Foam::name(), tmp< T >::New(), Foam::nl, patch_, exprDriver::result(), and size().

Referenced by field_faceSet(), and field_faceZone().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ClassName()

ClassName ( "patchExpr::driver" )

◆ operator=()

void operator= ( const parseDriver & )

delete

References exprDriver::dict(), mesh(), dictionary::null, p, and parseDriver().

Here is the call graph for this function:

◆ mesh()

virtual const fvMesh & mesh ( ) const

inlinevirtual

The mesh we are attached to.

Implements fvExprDriver.

Definition at line 266 of file patchExprDriver.H.

References patch_.

Referenced by operator=(), parseDriver(), and parseDriver().

Here is the caller graph for this function:

◆ size() [1/2]

virtual label size ( ) const

inlinevirtual

The natural field size for the expression.

Implements fvExprDriver.

Definition at line 274 of file patchExprDriver.H.

References patch_.

Referenced by field_cellSelection(), field_faceSelection(), field_rand(), getPointField(), and getVariableIfAvailable().

Here is the caller graph for this function:

◆ pointSize()

virtual label pointSize ( ) const

inlinevirtual

The point field size for the expression.

Implements fvExprDriver.

Definition at line 282 of file patchExprDriver.H.

References patch_.

Referenced by getVariableIfAvailable().

Here is the caller graph for this function:

◆ size() [2/2]

Foam::label size ( const FieldAssociation geoType ) const

inline

Field size associated with different geometric field types.

Definition at line 23 of file patchExprDriverI.H.

References Foam::expressions::FACE_DATA, patch_, and Foam::expressions::POINT_DATA.

◆ parse()

unsigned parse	(	const std::string &	expr,
		size_t	pos = 0,
		size_t	len = std::string::npos )

virtual

Execute the parser.

The return value currently has no meaning.

Implements exprDriver.

Definition at line 148 of file patchExprDriver.C.

References exprDriver::debugScanner(), Foam::pos(), and scanner::process().

Here is the call graph for this function:

◆ setResult()

template<class Type>

void setResult	(	Field< Type > *	ptr,
		bool	pointVal = false )

inline

Set result.

Definition at line 319 of file patchExprDriver.H.

References exprDriver::result(), and exprResult::setResult().

Here is the call graph for this function:

◆ getVariableIfAvailable() [1/2]

template<class Type>

tmp< Field< Type > > getVariableIfAvailable ( const word & fldName ) const

Retrieve variable as field if possible.

Test tmp for validity to determine success of the operation.

Referenced by getField(), patchInternalField(), patchNeighbourField(), and patchNormalField().

Here is the caller graph for this function:

◆ getField() [1/3]

template<class Type>

tmp< Field< Type > > getField ( const word & fldName )

Return named field.

◆ getVolField() [1/3]

template<class Type>

tmp< Field< Type > > getVolField ( const word & fldName )

Retrieve field (vol field).

◆ getSurfaceField() [1/5]

template<class Type>

tmp< Field< Type > > getSurfaceField ( const word & fldName )

Retrieve field (surface field).

◆ getPointField() [1/5]

template<class Type>

tmp< Field< Type > > getPointField ( const word & fldName )

Retrieve field (point field).

◆ patchInternalField() [1/2]

template<class Type>

tmp< Field< Type > > patchInternalField ( const word & fldName )

Return internal field next to patch.

◆ patchNeighbourField() [1/2]

template<class Type>

tmp< Field< Type > > patchNeighbourField ( const word & fldName )

Return patchField on the opposite patch of a coupled patch.

◆ patchNormalField() [1/2]

template<class Type>

tmp< Field< Type > > patchNormalField ( const word & fldName )

Return surface normal field (snGrad).

◆ faceToPoint() [1/2]

template<class Type>

tmp< Field< Type > > faceToPoint ( const Field< Type > & field ) const

Interpolate face to point.

References field().

Here is the call graph for this function:

◆ pointToFace() [1/2]

template<class Type>

tmp< Field< Type > > pointToFace ( const Field< Type > & field ) const

Interpolate point to face values.

References field().

Here is the call graph for this function:

◆ areaAverage()

template<class Type>

Type areaAverage ( const Field< Type > & fld ) const

inline

The area-weighted average of a field.

Definition at line 400 of file patchExprDriver.H.

References fld(), Foam::gWeightedAverage(), and patch_.

Here is the call graph for this function:

◆ areaSum()

template<class Type>

Type areaSum ( const Field< Type > & fld ) const

inline

The area-weighted sum of a field.

Definition at line 409 of file patchExprDriver.H.

References fld(), Foam::gWeightedSum(), and patch_.

Here is the call graph for this function:

◆ field_faceArea()

Foam::tmp< Foam::scalarField > field_faceArea ( ) const

The face area magnitudes [magSf] - (swak = area).

Definition at line 143 of file patchExprDriverFields.C.

References patch_.

◆ field_faceCentre()

Foam::tmp< Foam::vectorField > field_faceCentre ( ) const

The face centres - (swak = pos).

Definition at line 150 of file patchExprDriverFields.C.

References patch_.

◆ field_areaNormal()

Foam::tmp< Foam::vectorField > field_areaNormal ( ) const

The face areas with their vector direction [Sf] - (swak = face).

Definition at line 157 of file patchExprDriverFields.C.

References patch_.

◆ field_unitNormal()

Foam::tmp< Foam::vectorField > field_unitNormal ( ) const

The face unit normal direction [nf] - (expression: normal).

Definition at line 164 of file patchExprDriverFields.C.

References patch_.

◆ field_pointField()

Foam::tmp< Foam::vectorField > field_pointField ( ) const

The patch point locations - (swak = pts).

Definition at line 171 of file patchExprDriverFields.C.

References patch_.

◆ field_cellSet()

tmp< boolField > field_cellSet ( const word & name ) const

inline

Cell selection (set).

References Foam::name().

Here is the call graph for this function:

◆ field_cellZone()

Foam::tmp< Foam::boolField > field_cellZone ( const word & name ) const

inline

Cell selection (zone).

Definition at line 58 of file patchExprDriverI.H.

References topoSetSource::CELLZONE_SOURCE, field_cellSelection(), and Foam::name().

Here is the call graph for this function:

◆ field_faceSet()

Foam::tmp< Foam::boolField > field_faceSet ( const word & name ) const

inline

Face selection (set).

Definition at line 72 of file patchExprDriverI.H.

References topoSetSource::FACESET_SOURCE, field_faceSelection(), and Foam::name().

Here is the call graph for this function:

◆ field_faceZone()

Foam::tmp< Foam::boolField > field_faceZone ( const word & name ) const

inline

Face selection (zone).

Definition at line 86 of file patchExprDriverI.H.

References topoSetSource::FACEZONE_SOURCE, field_faceSelection(), and Foam::name().

Here is the call graph for this function:

◆ field_rand()

Foam::tmp< Foam::scalarField > field_rand	(	label	seed = 0,
		bool	gaussian = false ) const

A uniform random field.

Definition at line 178 of file patchExprDriverFields.C.

References exprDriver::fill_random(), tmp< T >::New(), and size().

Referenced by field_randGaussian().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ field_randGaussian()

tmp< scalarField > field_randGaussian ( label seed = 0 ) const

inline

A Gaussian random field.

Definition at line 469 of file patchExprDriver.H.

References field_rand().

Here is the call graph for this function:

◆ getSurfaceField() [2/5]

template<>

tmp< Field< bool > > getSurfaceField ( const word & fldName )

Retrieve field (surface field: bool).

◆ getPointField() [2/5]

template<>

tmp< Field< bool > > getPointField ( const word & fldName )

Retrieve field (point field: bool).

◆ getSurfaceField() [3/5]

template<>

Foam::tmp< Foam::Field< bool > > getSurfaceField ( const word & name )

Definition at line 1 of file patchExprDriverFields.C.

◆ getPointField() [3/5]

template<>

Foam::tmp< Foam::Field< bool > > getPointField ( const word & name )

Definition at line 1 of file patchExprDriverFields.C.

References fvExprDriver::getVariable(), Foam::name(), and size().

Here is the call graph for this function:

◆ getVariableIfAvailable() [2/2]

template<class Type>

Foam::tmp< Foam::Field< Type > > getVariableIfAvailable ( const word & name ) const

Definition at line 27 of file patchExprDriverTemplates.C.

References refPtr< T >::cref(), Foam::endl(), Foam::gAverage(), fvExprDriver::hasVariable(), fvExprDriver::isGlobalVariable(), Foam::isType(), fvExprDriver::lookupGlobal(), Foam::name(), fvExprDriver::New(), pointSize(), Foam::returnReduceAnd(), size(), UList< T >::size(), refPtr< T >::valid(), fvExprDriver::variable(), and WarningInFunction.

Here is the call graph for this function:

◆ getVolField() [2/3]

template<class Type>

Foam::tmp< Foam::Field< Type > > getVolField ( const word & name )

Definition at line 77 of file patchExprDriverTemplates.C.

References Foam::getField(), and Foam::name().

Here is the call graph for this function:

◆ getSurfaceField() [4/5]

template<class Type>

Foam::tmp< Foam::Field< Type > > getSurfaceField ( const word & name )

Definition at line 85 of file patchExprDriverTemplates.C.

References Foam::getField(), and Foam::name().

Here is the call graph for this function:

◆ getPointField() [4/5]

template<class Type>

Foam::tmp< Foam::Field< Type > > getPointField ( const word & name )

Definition at line 93 of file patchExprDriverTemplates.C.

References Foam::getField(), and Foam::name().

Here is the call graph for this function:

◆ getField() [2/3]

template<class Type>

Foam::tmp< Foam::Field< Type > > getField ( const word & name )

Definition at line 101 of file patchExprDriverTemplates.C.

References exprDriver::cfindContextIOobject(), objectRegistry::cfindIOobject(), tmp< T >::cref(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::flatOutput(), found, fvExprDriver::getTypeOfField(), getVariableIfAvailable(), mesh, Foam::name(), MeshObject< polyMesh, UpdateableMeshObject, pointMesh >::New(), Foam::New(), Foam::nl, patch_, fvExprDriver::readAndRegister(), exprDriver::searchFiles(), objectRegistry::sortedNames(), objectRegistry::thisDb(), FieldBase::typeName, and tmp< T >::valid().

Here is the call graph for this function:

◆ patchInternalField() [2/2]

template<class Type>

Foam::tmp< Foam::Field< Type > > patchInternalField ( const word & name )

Definition at line 219 of file patchExprDriverTemplates.C.

References exprDriver::cfindContextIOobject(), objectRegistry::cfindIOobject(), tmp< T >::cref(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::flatOutput(), found, fvExprDriver::getTypeOfField(), getVariableIfAvailable(), mesh, Foam::name(), MeshObject< polyMesh, UpdateableMeshObject, pointMesh >::New(), Foam::New(), Foam::nl, patch_, fvExprDriver::readAndRegister(), exprDriver::searchFiles(), objectRegistry::sortedNames(), objectRegistry::thisDb(), FieldBase::typeName, and tmp< T >::valid().

Here is the call graph for this function:

◆ patchNeighbourField() [2/2]

template<class Type>

Foam::tmp< Foam::Field< Type > > patchNeighbourField ( const word & name )

Definition at line 316 of file patchExprDriverTemplates.C.

References exprDriver::cfindContextIOobject(), objectRegistry::cfindIOobject(), tmp< T >::cref(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::flatOutput(), found, fvExprDriver::getTypeOfField(), getVariableIfAvailable(), mesh, Foam::name(), Foam::New(), Foam::nl, patch_, fvExprDriver::readAndRegister(), exprDriver::searchFiles(), objectRegistry::sortedNames(), objectRegistry::thisDb(), FieldBase::typeName, and tmp< T >::valid().

Here is the call graph for this function:

◆ patchNormalField() [2/2]

template<class Type>

Foam::tmp< Foam::Field< Type > > patchNormalField ( const word & name )

Definition at line 391 of file patchExprDriverTemplates.C.

References exprDriver::cfindContextIOobject(), objectRegistry::cfindIOobject(), tmp< T >::cref(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::flatOutput(), found, fvExprDriver::getTypeOfField(), getVariableIfAvailable(), mesh, Foam::name(), Foam::New(), Foam::nl, patch_, fvExprDriver::readAndRegister(), exprDriver::searchFiles(), objectRegistry::sortedNames(), objectRegistry::thisDb(), FieldBase::typeName, and tmp< T >::valid().

Here is the call graph for this function:

◆ faceToPoint() [2/2]

template<class Type>

Foam::tmp< Foam::Field< Type > > faceToPoint ( const Field< Type > & field ) const

Definition at line 466 of file patchExprDriverTemplates.C.

References PrimitivePatchInterpolation< Patch >::faceToPointInterpolate(), field(), and patch_.

Here is the call graph for this function:

◆ pointToFace() [2/2]

template<class Type>

Foam::tmp< Foam::Field< Type > > pointToFace ( const Field< Type > & field ) const

Definition at line 479 of file patchExprDriverTemplates.C.

References field(), patch_, and PrimitivePatchInterpolation< Patch >::pointToFaceInterpolate().

Here is the call graph for this function:

◆ getVolField() [3/3]

template<class Type>

Foam::tmp< Foam::VolumeField< Type > > getVolField	(	const word &	fldName,
		bool	getOldTime )

Definition at line 173 of file volumeExprDriverTemplates.C.

References fvExprDriver::getOrReadField().

Here is the call graph for this function:

◆ getSurfaceField() [5/5]

template<class Type>

Foam::tmp< Foam::SurfaceField< Type > > getSurfaceField	(	const word &	fldName,
		bool	getOldTime )

Definition at line 190 of file volumeExprDriverTemplates.C.

References fvExprDriver::getOrReadField().

Here is the call graph for this function:

◆ getPointField() [5/5]

template<class Type>

Foam::tmp< Foam::PointField< Type > > getPointField	(	const word &	fldName,
		bool	getOldTime )

Definition at line 207 of file volumeExprDriverTemplates.C.

References fvExprDriver::getOrReadPointField().

Here is the call graph for this function:

◆ getField() [3/3]

template<class Type>

Foam::tmp< Foam::Field< Type > > getField ( const word & name ) const

Definition at line 25 of file fieldExprDriverTemplates.C.

References refPtr< T >::cref(), Foam::endl(), Foam::gAverage(), exprDriver::hasVariable(), Foam::isType(), Foam::name(), Foam::New(), pointSize(), Foam::returnReduceAnd(), size(), UList< T >::size(), exprDriver::variable(), and WarningInFunction.

Here is the call graph for this function:

Member Data Documentation

◆ patch_

const fvPatch& patch_

protected

The referenced patch.

Definition at line 182 of file patchExprDriver.H.

Referenced by areaAverage(), areaSum(), faceToPoint(), field_areaNormal(), field_cellSelection(), field_faceArea(), field_faceCentre(), field_faceSelection(), field_pointField(), field_unitNormal(), getField(), mesh(), parseDriver(), parseDriver(), patchInternalField(), patchNeighbourField(), patchNormalField(), pointSize(), pointToFace(), size(), and size().

The documentation for this class was generated from the following files:

src/finiteVolume/expressions/patch/patchExprDriver.H
src/finiteVolume/expressions/patch/patchExprDriver.C
src/finiteVolume/expressions/patch/patchExprDriverFields.C
src/finiteVolume/expressions/patch/patchExprDriverI.H
src/finiteVolume/expressions/patch/patchExprDriverTemplates.C
src/finiteVolume/expressions/volume/volumeExprDriverTemplates.C
src/OpenFOAM/expressions/fields/fieldExprDriverTemplates.C

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ parseDriver() [1/5]

◆ parseDriver() [2/5]

◆ parseDriver() [3/5]

◆ parseDriver() [4/5]

◆ parseDriver() [5/5]

◆ ~parseDriver()

Member Function Documentation

◆ field_cellSelection()

◆ field_faceSelection()

◆ ClassName()

◆ operator=()

◆ mesh()

◆ size() [1/2]

◆ pointSize()

◆ size() [2/2]

◆ parse()

◆ setResult()

◆ getVariableIfAvailable() [1/2]

◆ getField() [1/3]

◆ getVolField() [1/3]

◆ getSurfaceField() [1/5]

◆ getPointField() [1/5]

◆ patchInternalField() [1/2]

◆ patchNeighbourField() [1/2]

◆ patchNormalField() [1/2]

◆ faceToPoint() [1/2]

◆ pointToFace() [1/2]

◆ areaAverage()

◆ areaSum()

◆ field_faceArea()

◆ field_faceCentre()

◆ field_areaNormal()

◆ field_unitNormal()

◆ field_pointField()

◆ field_cellSet()

◆ field_cellZone()

◆ field_faceSet()

◆ field_faceZone()

◆ field_rand()

◆ field_randGaussian()

◆ getSurfaceField() [2/5]

◆ getPointField() [2/5]

◆ getSurfaceField() [3/5]

◆ getPointField() [3/5]

◆ getVariableIfAvailable() [2/2]

◆ getVolField() [2/3]

◆ getSurfaceField() [4/5]

◆ getPointField() [4/5]

◆ getField() [2/3]

◆ patchInternalField() [2/2]

◆ patchNeighbourField() [2/2]

◆ patchNormalField() [2/2]

◆ faceToPoint() [2/2]

◆ pointToFace() [2/2]

◆ getVolField() [3/3]

◆ getSurfaceField() [5/5]

◆ getPointField() [5/5]

◆ getField() [3/3]

Member Data Documentation

◆ patch_
