FIREMeshWriter Class Reference

Writes polyMesh in AVL/FIRE polyhedra format (fpma, fpmb). More...

#include <FIREMeshWriter.H>

Inheritance diagram for FIREMeshWriter:
Inheritance graph
[legend]
Collaboration diagram for FIREMeshWriter:
Collaboration graph
[legend]

Public Member Functions

 FIREMeshWriter (const polyMesh &, const scalar scaleFactor=1.0)
 Prepare for writing, optionally with scaling.
virtual ~FIREMeshWriter ()=default
 Destructor.
virtual bool write (const fileName &meshName=fileName::null) const
 Write volume mesh.
Public Member Functions inherited from meshWriter
 meshWriter (const polyMesh &, const scalar scaling=1.0)
 Create a writer object with given output scaling.
virtual ~meshWriter ()
 Destructor.

Static Public Attributes

static bool binary = false
 Write binary (default ascii).
static bool compress = false
 Write with compression (default false).
static bool prefixBoundary = true
 Prefix patches with 'BND_' before writing (default true).
Static Public Attributes inherited from meshWriter
static string defaultMeshName = "meshExport"
 Specify a default mesh name.

Additional Inherited Members

Public Types inherited from FIRECore
enum  selectionType { cellSelection = 2 , faceSelection = 3 }
 Selection Types. More...
enum  shapeType {
  fireLine = 1 , fireTri = 2 , fireQuad = 3 , fireTet = 4 ,
  fireHex = 5 , firePyr = 6 , firePrism = 8
}
 Shape-Type for FIRE (FLMA) files. More...
enum  fileExt3d { POLY_ASCII , POLY_BINARY , POLY_ASCII_Z , POLY_BINARY_Z }
 Enumeration defining the file extensions for 3D types. More...
typedef int32_t fireInt_t
 Integer type (binary format).
typedef double fireReal_t
 Float type (binary format).
Static Public Member Functions inherited from FIRECore
static fileName fireFileName (const fileName &baseName, const enum fileExt3d)
 Resolve base file-name for the given file-type.
static label getFireLabel (ISstream &)
 Get an integer (ascii or binary).
static point getFirePoint (ISstream &)
 Get an point x/y/z (ascii or binary).
static std::string getFireString (ISstream &)
 Extract a string (ascii or binary).
static void putFireLabel (OSstream &, const label)
 Write an integer (ascii or binary).
static void putFireLabels (OSstream &, const labelUList &)
 Write multiple integers (ascii or binary).
static void putFireLabels (OSstream &, const label count, const label start)
 Write an on-the-fly list of integers (ascii or binary).
static void putFirePoint (OSstream &, const point &)
 Write a point x/y/z (ascii or binary).
static void putFireString (OSstream &, const std::string &)
 Write a string (ascii or binary).
Protected Member Functions inherited from FIRECore
 FIRECore ()=default
 Construct null.
Static Protected Member Functions inherited from FIRECore
static label readPoints (ISstream &, pointField &)
 Read points.
Protected Attributes inherited from meshWriter
const polyMesh & mesh_
 Mesh reference.
scalar scaleFactor_
 Scaling factor for points (eg, [m] -> [mm]).
boundaryRegion boundaryRegion_
 boundaryRegion persistent data saved as a dictionary
cellTable cellTable_
 cellTable persistent data saved as a dictionary
labelList cellTableId_
 cellTable IDs for each cell
Static Protected Attributes inherited from FIRECore
static const Enum< fileExt3d > file3dExtensions

Detailed Description

Writes polyMesh in AVL/FIRE polyhedra format (fpma, fpmb).

It is also possible to write compressed formats (fpmaz, fpmbz)

Note
The fpma, fpmb formats are relatively poorly documented, but are manageable to read and write. It is, however, not recommended to import them directly into AVL/FIRE (the GUI) since it is generally not robust enough. Instead use their file-convertor to reconvert them into their native format.

In the AVL/FIRE polyhedra format, the faces normals point inwards, whereas the OpenFOAM face normals always point outwards.

Source files

Definition at line 62 of file FIREMeshWriter.H.

Constructor & Destructor Documentation

◆ FIREMeshWriter()

FIREMeshWriter ( const polyMesh & mesh,
const scalar scaleFactor = 1.0 )

Prepare for writing, optionally with scaling.

Treats a zero or negative scale factor as unity scaling.

Definition at line 237 of file FIREMeshWriter.C.

References mesh.

◆ ~FIREMeshWriter()

virtual ~FIREMeshWriter ( )
virtualdefault

Destructor.

References fileName::null.

Member Function Documentation

◆ write()

bool write ( const fileName & meshName = fileName::null) const
virtual

Write volume mesh.

Implements meshWriter.

Definition at line 249 of file FIREMeshWriter.C.

References IOstreamOption::ASCII, IOstreamOption::BINARY, binary, autoPtr< T >::clear(), compress, IOstreamOption::COMPRESSED, IOstreamOption::compression(), TimePaths::constant(), meshWriter::defaultMeshName, Foam::endl(), fileName::ext(), FIRECore::file3dExtensions, FIRECore::fireFileName(), IOstreamOption::format(), found, Foam::Info, meshWriter::mesh_, Foam::mv(), FIRECore::POLY_ASCII, FIRECore::POLY_ASCII_Z, FIRECore::POLY_BINARY, FIRECore::POLY_BINARY_Z, fileName::remove_ext(), Time::timeName(), IOstreamOption::UNCOMPRESSED, and writeGeometry().

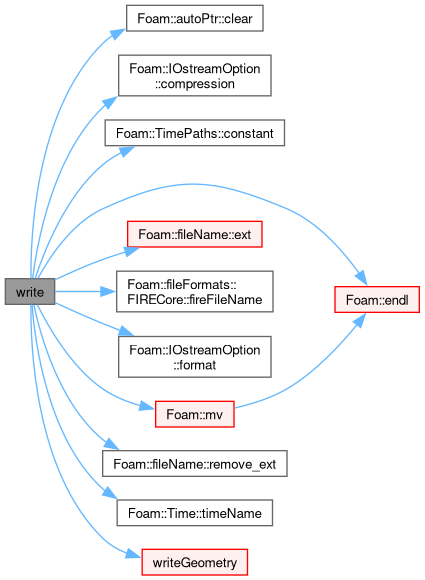

Here is the call graph for this function:

Member Data Documentation

◆ binary

bool binary = false
static

Write binary (default ascii).

Definition at line 96 of file FIREMeshWriter.H.

Referenced by write().

◆ compress

bool compress = false
static

Write with compression (default false).

Definition at line 101 of file FIREMeshWriter.H.

Referenced by write().

◆ prefixBoundary

bool prefixBoundary = true
static

Prefix patches with 'BND_' before writing (default true).

Definition at line 106 of file FIREMeshWriter.H.
