fixedUnburntEnthalpyFvPatchScalarField Class Reference

Fixed boundary condition for unburnt. More...

#include <fixedUnburntEnthalpyFvPatchScalarField.H>

Inheritance diagram for fixedUnburntEnthalpyFvPatchScalarField:

Collaboration diagram for fixedUnburntEnthalpyFvPatchScalarField:

Public Member Functions
	TypeName ("fixedUnburntEnthalpy")
	Runtime type information.
	fixedUnburntEnthalpyFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	fixedUnburntEnthalpyFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	fixedUnburntEnthalpyFvPatchScalarField (const fixedUnburntEnthalpyFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given fixedUnburntEnthalpyFvPatchScalarField.
	fixedUnburntEnthalpyFvPatchScalarField (const fixedUnburntEnthalpyFvPatchScalarField &)
	Construct as copy.
	fixedUnburntEnthalpyFvPatchScalarField (const fixedUnburntEnthalpyFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.

Detailed Description

Fixed boundary condition for unburnt.

Source files

• fixedUnburntEnthalpyFvPatchScalarField.H
• fixedUnburntEnthalpyFvPatchScalarField.C

Definition at line 49 of file fixedUnburntEnthalpyFvPatchScalarField.H.

Constructor & Destructor Documentation

fixedUnburntEnthalpyFvPatchScalarField() [1/5]

fixedUnburntEnthalpyFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 30 of file fixedUnburntEnthalpyFvPatchScalarField.C.

References p.

Referenced by fixedUnburntEnthalpyFvPatchScalarField(), fixedUnburntEnthalpyFvPatchScalarField(), fixedUnburntEnthalpyFvPatchScalarField(), and TypeName().

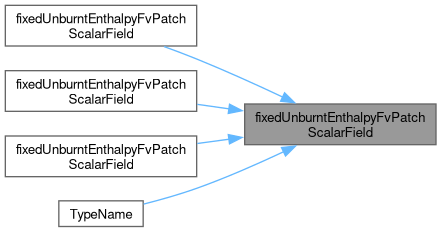

Here is the caller graph for this function:

fixedUnburntEnthalpyFvPatchScalarField() [2/5]

fixedUnburntEnthalpyFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 54 of file fixedUnburntEnthalpyFvPatchScalarField.C.

References dict, and p.

fixedUnburntEnthalpyFvPatchScalarField() [3/5]

fixedUnburntEnthalpyFvPatchScalarField	(	const fixedUnburntEnthalpyFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given fixedUnburntEnthalpyFvPatchScalarField.

onto a new patch

Definition at line 41 of file fixedUnburntEnthalpyFvPatchScalarField.C.

References fixedUnburntEnthalpyFvPatchScalarField(), and p.

Here is the call graph for this function:

fixedUnburntEnthalpyFvPatchScalarField() [4/5]

fixedUnburntEnthalpyFvPatchScalarField

(

const fixedUnburntEnthalpyFvPatchScalarField &

tppsf

)

Construct as copy.

Definition at line 66 of file fixedUnburntEnthalpyFvPatchScalarField.C.

References fixedUnburntEnthalpyFvPatchScalarField().

Here is the call graph for this function:

fixedUnburntEnthalpyFvPatchScalarField() [5/5]

fixedUnburntEnthalpyFvPatchScalarField	(	const fixedUnburntEnthalpyFvPatchScalarField &	tppsf,
		const DimensionedField< scalar, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 76 of file fixedUnburntEnthalpyFvPatchScalarField.C.

References fixedUnburntEnthalpyFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

TypeName()

TypeName

(

"fixedUnburntEnthalpy"

)

Runtime type information.

References fixedUnburntEnthalpyFvPatchScalarField().

Here is the call graph for this function:

clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 116 of file fixedUnburntEnthalpyFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 124 of file fixedUnburntEnthalpyFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 89 of file fixedUnburntEnthalpyFvPatchScalarField.C.

References basicThermo::dictName, fvPatchField< Type >::evaluate(), and Foam::operator==().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/thermophysicalModels/reactionThermo/derivedFvPatchFields/fixedUnburntEnthalpy/fixedUnburntEnthalpyFvPatchScalarField.H
• src/thermophysicalModels/reactionThermo/derivedFvPatchFields/fixedUnburntEnthalpy/fixedUnburntEnthalpyFvPatchScalarField.C
