fluxCorrectedVelocityFvPatchVectorField Class Reference
Boundary conditions » Outlet

This boundary condition provides a velocity outlet boundary condition for patches where the pressure is specified. The outflow velocity is obtained by "zeroGradient" and then corrected from the flux: More...

#include <fluxCorrectedVelocityFvPatchVectorField.H>

Inheritance diagram for fluxCorrectedVelocityFvPatchVectorField:
Inheritance graph
[legend]
Collaboration diagram for fluxCorrectedVelocityFvPatchVectorField:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("fluxCorrectedVelocity")
 Runtime type information.
 fluxCorrectedVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &)
 Construct from patch and internal field.
 fluxCorrectedVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &, const dictionary &)
 Construct from patch, internal field and dictionary.
 fluxCorrectedVelocityFvPatchVectorField (const fluxCorrectedVelocityFvPatchVectorField &, const fvPatch &, const DimensionedField< vector, volMesh > &, const fvPatchFieldMapper &)
 Construct by mapping given fluxCorrectedVelocityFvPatchVectorField.
 fluxCorrectedVelocityFvPatchVectorField (const fluxCorrectedVelocityFvPatchVectorField &, const DimensionedField< vector, volMesh > &)
 Construct as copy setting internal field reference.
virtual tmp< fvPatchField< vector > > clone () const
 Return a clone.
virtual tmp< fvPatchField< vector > > clone (const DimensionedField< vector, volMesh > &iF) const
 Clone with an internal field reference.
virtual void evaluate (const Pstream::commsTypes commsType=Pstream::commsTypes::buffered)
 Evaluate the patch field.
virtual void write (Ostream &) const
 Write.

Detailed Description

This boundary condition provides a velocity outlet boundary condition for patches where the pressure is specified. The outflow velocity is obtained by "zeroGradient" and then corrected from the flux:

\‍[ U_p = U_c - n (n \cdot U_c) + \frac{n \phi_p}{|S_f|} \‍]

where

$ U_p $=velocity at the patch [m/s]
$ U_c $=velocity in cells adjacent to the patch [m/s]
$ n $=patch normal vectors
$ \phi_p $=flux at the patch [m3/s or kg/s]
$ S_f $=patch face area vectors [m2]

where

Property Description Required Default value
phi name of flux field no phi
rho name of density field no rho

Example of the boundary condition specification:

    <patchName>
    {
        type            fluxCorrectedVelocity;
        phi             phi;
        rho             rho;
    }
Note
If reverse flow is possible or expected use the pressureInletOutletVelocity condition instead.
See also
Foam::zeroGradientFvPatchField Foam::pressureInletOutletVelocityFvPatchVectorField
Source files

Definition at line 127 of file fluxCorrectedVelocityFvPatchVectorField.H.

Constructor & Destructor Documentation

◆ fluxCorrectedVelocityFvPatchVectorField() [1/4]

fluxCorrectedVelocityFvPatchVectorField ( const fvPatch & p,
const DimensionedField< vector, volMesh > & iF )

Construct from patch and internal field.

Definition at line 30 of file fluxCorrectedVelocityFvPatchVectorField.C.

References p.

Referenced by fluxCorrectedVelocityFvPatchVectorField(), fluxCorrectedVelocityFvPatchVectorField(), and TypeName().

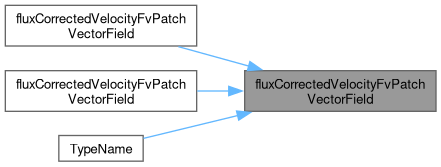

Here is the caller graph for this function:

◆ fluxCorrectedVelocityFvPatchVectorField() [2/4]

fluxCorrectedVelocityFvPatchVectorField ( const fvPatch & p,
const DimensionedField< vector, volMesh > & iF,
const dictionary & dict )

Construct from patch, internal field and dictionary.

Definition at line 58 of file fluxCorrectedVelocityFvPatchVectorField.C.

References dict, and p.

◆ fluxCorrectedVelocityFvPatchVectorField() [3/4]

fluxCorrectedVelocityFvPatchVectorField ( const fluxCorrectedVelocityFvPatchVectorField & ptf,
const fvPatch & p,
const DimensionedField< vector, volMesh > & iF,
const fvPatchFieldMapper & mapper )

Construct by mapping given fluxCorrectedVelocityFvPatchVectorField.

onto a new patch

Definition at line 43 of file fluxCorrectedVelocityFvPatchVectorField.C.

References fluxCorrectedVelocityFvPatchVectorField(), and p.

Here is the call graph for this function:

◆ fluxCorrectedVelocityFvPatchVectorField() [4/4]

fluxCorrectedVelocityFvPatchVectorField ( const fluxCorrectedVelocityFvPatchVectorField & fcvpvf,
const DimensionedField< vector, volMesh > & iF )

Construct as copy setting internal field reference.

Definition at line 72 of file fluxCorrectedVelocityFvPatchVectorField.C.

References fluxCorrectedVelocityFvPatchVectorField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "fluxCorrectedVelocity" )

Runtime type information.

References fluxCorrectedVelocityFvPatchVectorField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< vector > > clone ( ) const
inlinevirtual

Return a clone.

Definition at line 198 of file fluxCorrectedVelocityFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< vector > > clone ( const DimensionedField< vector, volMesh > & iF) const
inlinevirtual

Clone with an internal field reference.

Definition at line 206 of file fluxCorrectedVelocityFvPatchVectorField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ evaluate()

void evaluate ( const Pstream::commsTypes commsType = Pstream::commsTypes::buffered)
virtual

Evaluate the patch field.

Definition at line 87 of file fluxCorrectedVelocityFvPatchVectorField.C.

References Foam::dimMass, Foam::dimTime, Foam::dimVolume, Foam::exit(), Foam::FatalError, FatalErrorInFunction, n, and Foam::operator==().

Here is the call graph for this function:

◆ write()

void write ( Ostream & os) const
virtual

Write.

Definition at line 126 of file fluxCorrectedVelocityFvPatchVectorField.C.

References os(), fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:
