Watches for presence of the named trigger file in the case directory and signals a simulation stop (or other) event if found. More...

#include <abort.H>

Inheritance diagram for abort:

[legend]

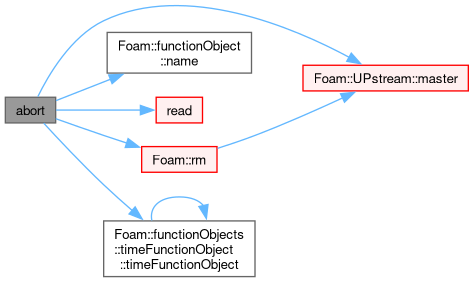

Collaboration diagram for abort:

[legend]

Public Member Functions
	TypeName ("abort")
	Runtime type information.
	abort (const word &name, const Time &runTime, const dictionary &dict)
	Construct from name, Time and dictionary.
virtual	~abort ()=default
	Destructor.
virtual bool	read (const dictionary &dict)
	Read the function-object dictionary.
virtual bool	execute ()
	Execute the function-object operations.
virtual bool	write ()
	Write the function-object results (no-op).
virtual bool	end ()
	Remove the trigger file after the final time-loop.
Public Member Functions inherited from timeFunctionObject
	timeFunctionObject (const word &name, const Time &runTime)
	Construct from Time.
virtual	~timeFunctionObject ()=default
	Destructor.
const Time &	time () const
	Return time database.
objectRegistry &	storedObjects ()
	Write access to the output objects ("functionObjectObjects") registered on Time.
const objectRegistry &	storedObjects () const
	Const access to the output objects ("functionObjectObjects") registered on Time.
Public Member Functions inherited from functionObject
	declareRunTimeSelectionTable (autoPtr, functionObject, dictionary,(const word &name, const Time &runTime, const dictionary &dict),(name, runTime, dict))
	functionObject (const word &name, const bool withNamePrefix=defaultUseNamePrefix)
	Construct from components.
autoPtr< functionObject >	clone () const
	Return clone.
virtual	~functionObject ()=default
	Destructor.
virtual const word &	type () const =0
	Runtime type information.
const word &	name () const noexcept
	Return the name of this functionObject.
bool	useNamePrefix () const noexcept
	Return the flag for adding a scoping name prefix.
bool	useNamePrefix (bool on) noexcept
	Modify the flag for adding a scoping name prefix.
virtual bool	execute (const label subIndex)
	Execute using the specified subIndex.
virtual bool	adjustTimeStep ()
	Called at the end of Time::adjustDeltaT() if adjustTime is true.
virtual bool	filesModified () const
	Did any file get changed during execution?
virtual void	updateMesh (const mapPolyMesh &mpm)
	Update for changes of mesh.
virtual void	movePoints (const polyMesh &mesh)
	Update for changes of mesh.

Additional Inherited Members
Static Public Member Functions inherited from functionObject
static autoPtr< functionObject >	New (const word &name, const Time &runTime, const dictionary &dict)
	Select from dictionary, based on its "type" entry.
Public Attributes inherited from functionObject
bool	log
	Flag to write log into Info.
Static Public Attributes inherited from functionObject
static int	debug
	Flag to execute debug content.
static bool	postProcess
	Global post-processing mode switch.
static bool	defaultUseNamePrefix
	Global default for useNamePrefix.
static word	outputPrefix
	Directory prefix.
Protected Member Functions inherited from timeFunctionObject
void	clearOutputObjects (const wordList &objNames)
	Remove specified items from "functionObjectObjects".
	timeFunctionObject (const timeFunctionObject &)=delete
	No copy construct.
void	operator= (const timeFunctionObject &)=delete
	No copy assignment.
Protected Member Functions inherited from functionObject
word	scopedName (const word &name) const
	Return a scoped (prefixed) name.
Protected Attributes inherited from timeFunctionObject
const Time &	time_
	Reference to the time database.

Detailed Description

Watches for presence of the named trigger file in the case directory and signals a simulation stop (or other) event if found.

The presence of the trigger file is only checked on the master process.

Currently the following action types are supported:

noWriteNow
writeNow
nextWrite

Usage

Minimal example by using system/controlDict.functions:

abortFO
{
    // Mandatory entries
    type            abort;
    libs            (utilityFunctionObjects);

    // Optional entries
    file            <word>;  // "<case>/GOODBYE";
    action          <word>;

    // Inherited entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`type`	Type name: abort	word	yes	-
`libs`	Library name: utilityFunctionObjects	word	yes	-
`file`	The trigger filename	word	no	<case>/name
`action`	The default action to trigger	word	no	nextWrite

When the trigger file is found, it is checked for the following content which corresponds to actions.

action=noWriteNow : triggers Foam::Time::saNoWriteNow (stop without writing data)
action=writeNow : triggers Foam::Time::saWriteNow (stop and write data)
action=nextWrite : triggers Foam::Time::saNextWrite (stop after next normal data write)
action=endTime : triggers Foam::Time::saEndTime (continue simulation to the end)
Anything else (empty file, no action=, ...) : use the default action

The inherited entries are elaborated in:

timeFunctionObject.H

Note: The trigger file is considered "sticky". This means that once detected and processed, the trigger is duly noted and the file will not be rechecked. It is not possible or desirable to 'untrigger' an action.

Source files

Definition at line 141 of file abort.H.
