Provides a general interface to enable dynamic code compilation. More...

#include <codedFunctionObject.H>

Inheritance diagram for codedFunctionObject:

[legend]

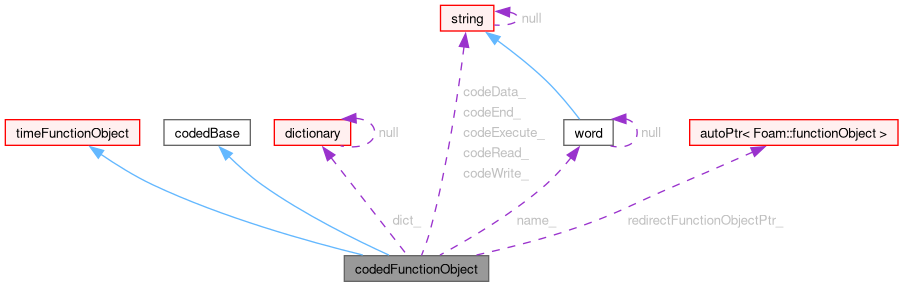

Collaboration diagram for codedFunctionObject:

[legend]

Public Member Functions
	TypeName ("coded")
	Runtime type information.
	codedFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from name, Time and dictionary.
virtual	~codedFunctionObject ()=default
	Destructor.
functionObject &	redirectFunctionObject () const
	Dynamically compiled functionObject.
virtual bool	execute ()
	Called at each ++ or += of the time-loop.
virtual bool	write ()
	Called at each ++ or += of the time-loop.
virtual bool	end ()
	Called when Time::run() determines that the time-loop exits.
virtual bool	read (const dictionary &)
	Read and set the function object if its data have changed.
Public Member Functions inherited from timeFunctionObject
	timeFunctionObject (const word &name, const Time &runTime)
	Construct from Time.
virtual	~timeFunctionObject ()=default
	Destructor.
const Time &	time () const
	Return time database.
objectRegistry &	storedObjects ()
	Write access to the output objects ("functionObjectObjects") registered on Time.
const objectRegistry &	storedObjects () const
	Const access to the output objects ("functionObjectObjects") registered on Time.
Public Member Functions inherited from functionObject
	declareRunTimeSelectionTable (autoPtr, functionObject, dictionary,(const word &name, const Time &runTime, const dictionary &dict),(name, runTime, dict))
	functionObject (const word &name, const bool withNamePrefix=defaultUseNamePrefix)
	Construct from components.
autoPtr< functionObject >	clone () const
	Return clone.
virtual	~functionObject ()=default
	Destructor.
virtual const word &	type () const =0
	Runtime type information.
const word &	name () const noexcept
	Return the name of this functionObject.
bool	useNamePrefix () const noexcept
	Return the flag for adding a scoping name prefix.
bool	useNamePrefix (bool on) noexcept
	Modify the flag for adding a scoping name prefix.
virtual bool	execute (const label subIndex)
	Execute using the specified subIndex.
virtual bool	adjustTimeStep ()
	Called at the end of Time::adjustDeltaT() if adjustTime is true.
virtual bool	filesModified () const
	Did any file get changed during execution?
virtual void	updateMesh (const mapPolyMesh &mpm)
	Update for changes of mesh.
virtual void	movePoints (const polyMesh &mesh)
	Update for changes of mesh.
Public Member Functions inherited from codedBase
	ClassName ("codedBase")
	Runtime type information.
	codedBase (const codedBase &)=delete
	No copy construct.
void	operator= (const codedBase &)=delete
	No copy assignment.
	codedBase ()=default
	Default construct.
virtual	~codedBase ()=default
	Destructor.

Static Public Attributes
static constexpr const char *const	codeTemplateC = "functionObjectTemplate.C"
	Name of the C code template to be used.
static constexpr const char *const	codeTemplateH = "functionObjectTemplate.H"
	Name of the H code template to be used.
Static Public Attributes inherited from functionObject
static int	debug
	Flag to execute debug content.
static bool	postProcess
	Global post-processing mode switch.
static bool	defaultUseNamePrefix
	Global default for useNamePrefix.
static word	outputPrefix
	Directory prefix.

Protected Member Functions
virtual dlLibraryTable &	libs () const
	Mutable access to the loaded dynamic libraries.
virtual string	description () const
	Description (type + name) for the output.
virtual void	clearRedirect () const
	Clear redirected object(s).
virtual const dictionary &	codeContext () const
	Additional 'codeContext' dictionary to pass through.
virtual const dictionary &	codeDict () const
	The code dictionary.
virtual void	prepare (dynamicCode &, const dynamicCodeContext &) const
	Adapt the context for the current object.
	codedFunctionObject (const codedFunctionObject &)=delete
	No copy construct.
void	operator= (const codedFunctionObject &)=delete
	No copy assignment.
Protected Member Functions inherited from timeFunctionObject
void	clearOutputObjects (const wordList &objNames)
	Remove specified items from "functionObjectObjects".
	timeFunctionObject (const timeFunctionObject &)=delete
	No copy construct.
void	operator= (const timeFunctionObject &)=delete
	No copy assignment.
Protected Member Functions inherited from functionObject
word	scopedName (const word &name) const
	Return a scoped (prefixed) name.
Protected Member Functions inherited from codedBase
dynamicCodeContext &	codeContext ()
	Access to the dynamic code context.
void	setCodeContext (const dictionary &dict)
	Set code context from a dictionary.
void	append (const std::string &str)
	Add content to SHA1 hashing.
void	updateLibrary (const word &name, const dynamicCodeContext &context) const
	Update library as required, using the given context.
void	updateLibrary (const word &name, const dictionary &dict) const
	Update library as required, using the given code dictionary to use for the context.
void	updateLibrary (const word &name) const
	Update library as required, using the predefined context or use the codeDict() to generate one.

Protected Attributes
dictionary	dict_
	Input dictionary.
word	name_
string	codeData_
string	codeRead_
string	codeExecute_
string	codeWrite_
string	codeEnd_
autoPtr< functionObject >	redirectFunctionObjectPtr_
	Underlying functionObject.
Protected Attributes inherited from timeFunctionObject
const Time &	time_
	Reference to the time database.

Additional Inherited Members
Static Public Member Functions inherited from functionObject
static autoPtr< functionObject >	New (const word &name, const Time &runTime, const dictionary &dict)
	Select from dictionary, based on its "type" entry.
Public Attributes inherited from functionObject
bool	log
	Flag to write log into Info.
Static Protected Member Functions inherited from codedBase
static void	writeCodeDict (Ostream &os, const dictionary &dict)
	Write code-dictionary contents.
static const dictionary &	codeDict (const objectRegistry &obr, const word &dictName="codeDict")
	Return "codeDict" from objectRegistry or read from disk.

Detailed Description

Provides a general interface to enable dynamic code compilation.

Usage

Minimal example by using system/controlDict.functions:

difference
{
    // Mandatory entries
    type                coded;
    libs                (utilityFunctionObjects);

    // Name of on-the-fly generated functionObject
    name                <word>;  // writeMagU;
    codeWrite
    #{
        // Lookup U
        const volVectorField& U = mesh().lookupObject<volVectorField>("U");

        // Write
        mag(U)().write();
    #};
    ...

    // Inherited entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`type`	Type name: coded	word	yes	-
`libs`	Library name: utilityFunctionObjects	word	yes	-
`name`	Name of the function object	word	yes	-
`codeInclude`	include files	word	no	-
`codeOptions`	compiler line: added to EXE_INC (Make/options)	word	no	-
`codeLibs`	linker line: added to LIB_LIBS (Make/options)	word	no	-
`codeData`	c++; local member data (default constructed)	word	no	-
`localCode`	c++; local static functions	word	no	-
`codeRead`	c++; upon functionObject::read()	word	no	-
`codeExecute`	c++; upon functionObject::execute()	word	no	-
`codeWrite`	c++; upon functionObject::write()	word	no	-
`codeEnd`	c++; upon functionObject::end()	word	no	-
`codeContext`	additional dictionary context for the code	word	no	-

The inherited entries are elaborated in:

timeFunctionObject.H
codedBase.H
Note
The code context dictionary can be supplied separately as the codeContext entry.
Source files
- codedFunctionObject.H
- codedFunctionObject.C

Definition at line 188 of file codedFunctionObject.H.

Constructor & Destructor Documentation

◆ codedFunctionObject() [1/2]

codedFunctionObject ( const codedFunctionObject & )

protecteddelete

No copy construct.

References codedFunctionObject().

Referenced by codedFunctionObject(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ codedFunctionObject() [2/2]

codedFunctionObject	(	const word &	name,
		const Time &	runTime,
		const dictionary &	dict )

Construct from name, Time and dictionary.

Definition at line 127 of file codedFunctionObject.C.

References codedBase::codedBase(), dict, dict_, functionObject::name(), name_, read(), redirectFunctionObject(), runTime, timeFunctionObject::timeFunctionObject(), and codedBase::updateLibrary().

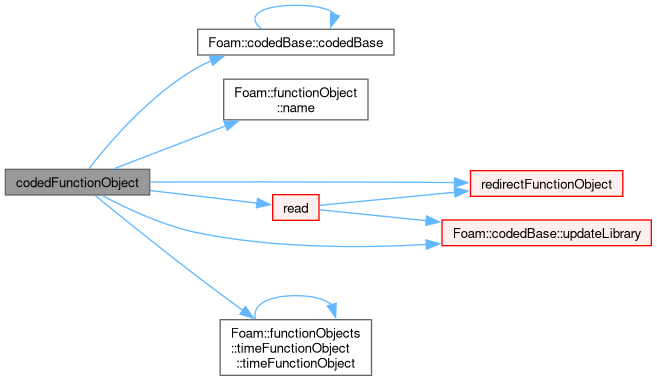

Here is the call graph for this function:

◆ ~codedFunctionObject()

virtual ~codedFunctionObject ( )

virtualdefault

Destructor.

References functionObject::functionObject().

Here is the call graph for this function:

Member Function Documentation

◆ libs()

Foam::dlLibraryTable & libs ( ) const

protectedvirtual

Mutable access to the loaded dynamic libraries.

Implements codedBase.

Definition at line 50 of file codedFunctionObject.C.

References timeFunctionObject::time_.

◆ description()

Foam::string description ( ) const

protectedvirtual

Description (type + name) for the output.

Implements codedBase.

Definition at line 56 of file codedFunctionObject.C.

References name.

◆ clearRedirect()

void clearRedirect ( ) const

protectedvirtual

Clear redirected object(s).

Implements codedBase.

Definition at line 62 of file codedFunctionObject.C.

References redirectFunctionObjectPtr_.

◆ codeContext()

const Foam::dictionary & codeContext ( ) const

protectedvirtual

Additional 'codeContext' dictionary to pass through.

Definition at line 69 of file codedFunctionObject.C.

References dict_, keyType::LITERAL, and dictionary::null.

Referenced by redirectFunctionObject().

Here is the caller graph for this function:

◆ codeDict()

const Foam::dictionary & codeDict ( ) const

protectedvirtual

The code dictionary.

Implements codedBase.

Definition at line 77 of file codedFunctionObject.C.

References dict_.

◆ prepare()

void prepare	(	dynamicCode &	dynCode,
		const dynamicCodeContext &	context ) const

protectedvirtual

Adapt the context for the current object.

Implements codedBase.

Definition at line 83 of file codedFunctionObject.C.

References dynamicCode::addCompileFile(), dynamicCode::addCopyFile(), codeData_, codeEnd_, codeExecute_, codeRead_, codeTemplateC, codeTemplateH, codeWrite_, DetailInfo, Foam::endl(), dynamicCodeContext::libs(), name_, dynamicCodeContext::options(), dynamicCode::setFilterVariable(), dynamicCode::setMakeOptions(), and dynamicCodeContext::sha1().

Here is the call graph for this function:

◆ operator=()

void operator= ( const codedFunctionObject & )

protecteddelete

No copy assignment.

References codedFunctionObject().

Here is the call graph for this function:

◆ TypeName()

TypeName ( "coded" )

Runtime type information.

References dict, functionObject::name(), and runTime.

Here is the call graph for this function:

◆ redirectFunctionObject()

Foam::functionObject & redirectFunctionObject ( ) const

Dynamically compiled functionObject.

Definition at line 148 of file codedFunctionObject.C.

References codeContext(), dict_, name_, functionObject::New(), Foam::nl, redirectFunctionObjectPtr_, dictionary::set(), timeFunctionObject::time_, and WarningInFunction.

Referenced by codedFunctionObject(), end(), execute(), read(), and write().

Here is the call graph for this function:

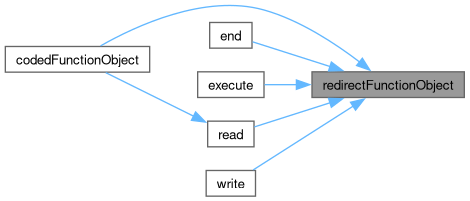

Here is the caller graph for this function:

◆ execute()

bool execute ( )

virtual

Called at each ++ or += of the time-loop.

postProcess overrides the usual executeControl behaviour and forces execution (used in post-processing mode)

Implements functionObject.

Definition at line 182 of file codedFunctionObject.C.

References name_, redirectFunctionObject(), and codedBase::updateLibrary().

Here is the call graph for this function:

◆ write()

bool write ( )

virtual

Called at each ++ or += of the time-loop.

postProcess overrides the usual writeControl behaviour and forces writing always (used in post-processing mode)

Implements functionObject.

Definition at line 189 of file codedFunctionObject.C.

References name_, redirectFunctionObject(), and codedBase::updateLibrary().

Here is the call graph for this function:

◆ end()

bool end ( )

virtual

Called when Time::run() determines that the time-loop exits.

By default it simply calls execute().

Reimplemented from functionObject.

Definition at line 196 of file codedFunctionObject.C.

References name_, redirectFunctionObject(), and codedBase::updateLibrary().

Here is the call graph for this function:

◆ read()

bool read ( const dictionary & dict )

virtual

Read and set the function object if its data have changed.

Reimplemented from functionObject.

Definition at line 203 of file codedFunctionObject.C.

References codedBase::codeContext(), codeData_, codeEnd_, codeExecute_, codeRead_, codeWrite_, dict, Foam::endl(), IOWarningInFunction, name_, Foam::nl, functionObject::read(), redirectFunctionObject(), codedBase::setCodeContext(), and codedBase::updateLibrary().

Referenced by codedFunctionObject().

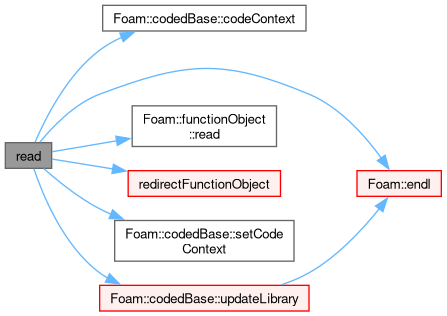

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ dict_

dictionary dict_

protected

Input dictionary.

Definition at line 200 of file codedFunctionObject.H.

Referenced by codeContext(), codedFunctionObject(), codeDict(), and redirectFunctionObject().

◆ name_

word name_

protected

Definition at line 202 of file codedFunctionObject.H.

Referenced by codedFunctionObject(), end(), execute(), prepare(), read(), redirectFunctionObject(), and write().

◆ codeData_

string codeData_

protected

Definition at line 204 of file codedFunctionObject.H.

Referenced by prepare(), and read().

◆ codeRead_

string codeRead_

protected

Definition at line 205 of file codedFunctionObject.H.

Referenced by prepare(), and read().

◆ codeExecute_

string codeExecute_

protected

Definition at line 206 of file codedFunctionObject.H.

Referenced by prepare(), and read().

◆ codeWrite_

string codeWrite_

protected

Definition at line 207 of file codedFunctionObject.H.

Referenced by prepare(), and read().

◆ codeEnd_

string codeEnd_

protected

Definition at line 208 of file codedFunctionObject.H.

Referenced by prepare(), and read().

◆ redirectFunctionObjectPtr_

autoPtr<functionObject> redirectFunctionObjectPtr_

mutableprotected

Underlying functionObject.

Definition at line 213 of file codedFunctionObject.H.

Referenced by clearRedirect(), and redirectFunctionObject().

◆ codeTemplateC

const char* const codeTemplateC = "functionObjectTemplate.C"

staticconstexpr

Name of the C code template to be used.

Definition at line 267 of file codedFunctionObject.H.

Referenced by prepare().

◆ codeTemplateH

const char* const codeTemplateH = "functionObjectTemplate.H"

staticconstexpr

Name of the H code template to be used.

Definition at line 273 of file codedFunctionObject.H.

Referenced by prepare().

The documentation for this class was generated from the following files:

src/functionObjects/utilities/codedFunctionObject/codedFunctionObject.H
src/functionObjects/utilities/codedFunctionObject/codedFunctionObject.C

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ codedFunctionObject() [1/2]

◆ codedFunctionObject() [2/2]

◆ ~codedFunctionObject()

Member Function Documentation

◆ libs()

◆ description()

◆ clearRedirect()

◆ codeContext()

◆ codeDict()

◆ prepare()

◆ operator=()

◆ TypeName()

◆ redirectFunctionObject()

◆ execute()

◆ write()

◆ end()

◆ read()

Member Data Documentation

◆ dict_

◆ name_

◆ codeData_

◆ codeRead_

◆ codeExecute_

◆ codeWrite_

◆ codeEnd_

◆ redirectFunctionObjectPtr_

◆ codeTemplateC

◆ codeTemplateH
